The Better Bilstein Ebay Coilover Thread
#963
Senior Member
iTrader: (1)
Join Date: Sep 2011
Location: Lambertville, NJ
Posts: 1,215
Total Cats: 74
Good point- the '99 has a 1.125 tubular front bar and the '03 is stock. Both run 55/350 Bilstein setups and both have the same problem. Both are heavy pigs though. Me included
One behavior I noticed was that in a fast, long, full-throttle 3rd gear turn the outside (driver's side) suspension is essentially already fully loaded. Any slight bump in the surface and things stop being fun.
One behavior I noticed was that in a fast, long, full-throttle 3rd gear turn the outside (driver's side) suspension is essentially already fully loaded. Any slight bump in the surface and things stop being fun.
#964
Moderator
iTrader: (12)
Join Date: Nov 2008
Location: Tampa, Florida
Posts: 21,026
Total Cats: 3,123
Yes, you need enough spring rate (or travel) to keep you off of the bumpstops at maximum sustained grip for your chosen tire. Sways "borrow" spring rate from the other side of the car and therefore don't necessitate as strong a spring.
Additional travel will help because a 500lb per inch spring with 1 inch of available travel will only support 500lbs before contacting the bumpstop. But if you have 2 inches of available travel with the same 500lb spring then it will support 1000lbs of force before contacting the bumpstop. Travel is important to the equation.
I was originally confronted with this issue when running at Road Atlanta. Turn 12 is a very fast, wide sweeper at the bottom of a large hill. There is raised curbing on the outside edge of the surface at track out. If the car is already on or near the bumpstops on the outside and you contact the curbing there is no suspension travel left to keep the car from unsettling. There are concrete walls on both sides of the surface with very little room for error.
Additional travel will help because a 500lb per inch spring with 1 inch of available travel will only support 500lbs before contacting the bumpstop. But if you have 2 inches of available travel with the same 500lb spring then it will support 1000lbs of force before contacting the bumpstop. Travel is important to the equation.
I was originally confronted with this issue when running at Road Atlanta. Turn 12 is a very fast, wide sweeper at the bottom of a large hill. There is raised curbing on the outside edge of the surface at track out. If the car is already on or near the bumpstops on the outside and you contact the curbing there is no suspension travel left to keep the car from unsettling. There are concrete walls on both sides of the surface with very little room for error.
#965
Great thread, really like the DIY attitude of it. It seems everyone so far is running NA or NB shocks, has anyone tried this method on NC shocks at all? I'd quite to give it a go as I'm looking to get my NC a little more track focused so I'm avoiding the lowering springs route.
Anyway I've measured Bilsteins and they are the same diameter (around 50mm), so the coilover adaptor should work.

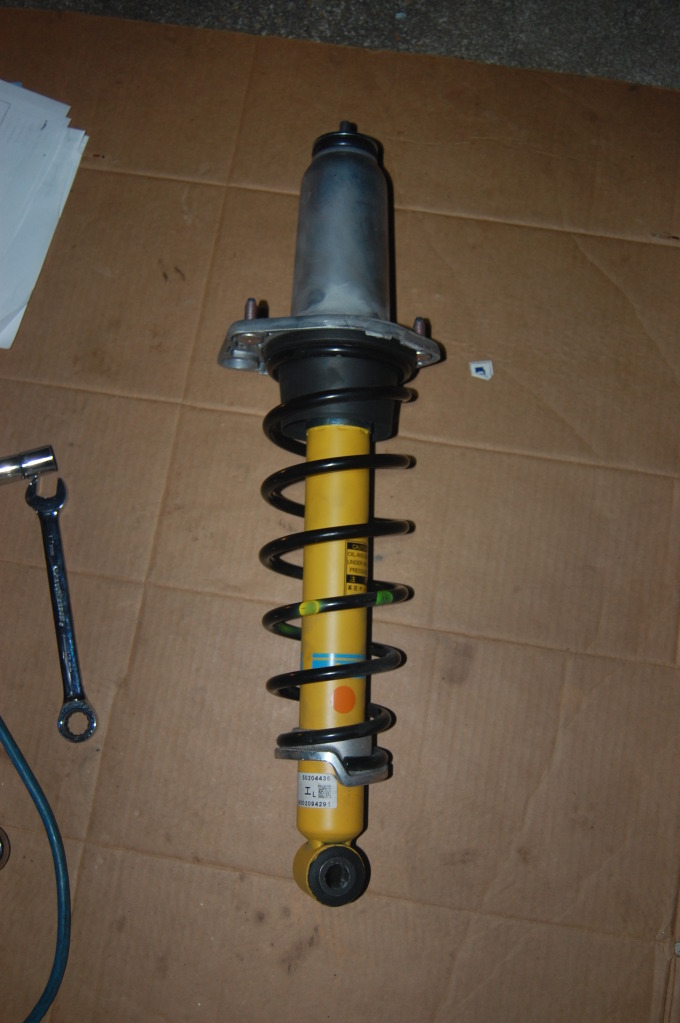

The only problem is that the rear top hat on the NC is a totally different design, here's a pic:
The spring is tapered, it's wider at the top hat, and this so far seems to be the main issue.
Could I get some sort of bush or adaptor in order to make a straight spring fit?
Once I find the spring clamps I'll get the shock apart and take some measurements.
Anyway I've measured Bilsteins and they are the same diameter (around 50mm), so the coilover adaptor should work.
The only problem is that the rear top hat on the NC is a totally different design, here's a pic:
The spring is tapered, it's wider at the top hat, and this so far seems to be the main issue.
Could I get some sort of bush or adaptor in order to make a straight spring fit?
Once I find the spring clamps I'll get the shock apart and take some measurements.
#969
Thanks, found them:
RX8/ NC Miata Upper Spring Perch Delrin for RACE Springs for RX8
It's a shame Goodwin don't post to the UK, I'll have to see if I can use a forwarding service, or I may be able to fabricate something myself
RX8/ NC Miata Upper Spring Perch Delrin for RACE Springs for RX8
It's a shame Goodwin don't post to the UK, I'll have to see if I can use a forwarding service, or I may be able to fabricate something myself
#970
hey guys, could some of you measure the Outside diameter of the ALL star performace sleeve? Also it would help me a lot if you could measure "adjusting nut" diameter for smallest possible to fit spring. So you need to measure the step which is on that sleeve.

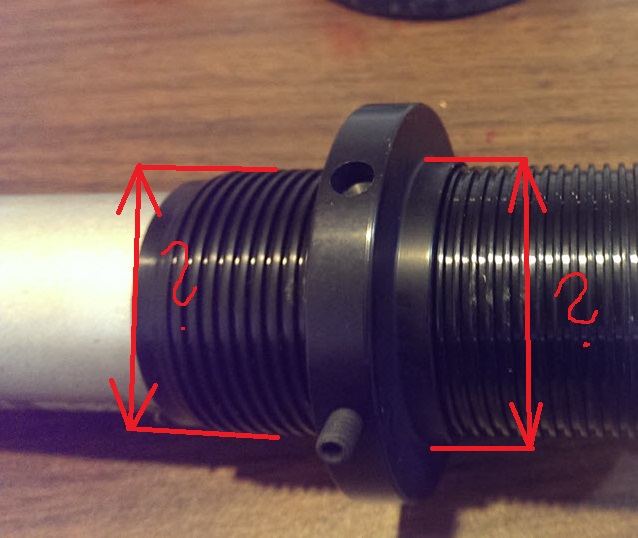

See my pro drawing to see what I want to measure. :-D
https://www.miataturbo.net/attachmen...1&d=1479574061
See my pro drawing to see what I want to measure. :-D
https://www.miataturbo.net/attachmen...1&d=1479574061
#971
hey guys, could some of you measure the Outside diameter of the ALL star performace sleeve? Also it would help me a lot if you could measure "adjusting nut" diameter for smallest possible to fit spring. So you need to measure the step which is on that sleeve.
See my pro drawing to see what I want to measure. :-D
https://www.miataturbo.net/attachmen...1&d=1479574061
See my pro drawing to see what I want to measure. :-D
https://www.miataturbo.net/attachmen...1&d=1479574061
Spring collar minimum ID: 2.470" [62.74] (which is why they call for 2-1/2" springs)
#978
or this one: https://www.advanced-autosports.com/...s/wrench-short
There may be others for less.
#979
Quick question. In the rear I have pretty much zero room between the control arm and frame of the car. If I lower my car a bit more to get closer to the 949 ride heights, I will probably start contacting things right?
For reference I am running a 7" 300 lbs/in spring with ISC 1.5" extended rear top hat and a 225/45/15 tire. My bumpstop is already trimmed to the minimum length. I believe the rears are set to 12.75" hub to fender but I'll get a pinch weld measurement when there's light out.
For reference I am running a 7" 300 lbs/in spring with ISC 1.5" extended rear top hat and a 225/45/15 tire. My bumpstop is already trimmed to the minimum length. I believe the rears are set to 12.75" hub to fender but I'll get a pinch weld measurement when there's light out.
#980
Quick question. In the rear I have pretty much zero room between the control arm and frame of the car. If I lower my car a bit more to get closer to the 949 ride heights, I will probably start contacting things right?
For reference I am running a 7" 300 lbs/in spring with ISC 1.5" extended rear top hat and a 225/45/15 tire. My bumpstop is already trimmed to the minimum length. I believe the rears are set to 12.75" hub to fender but I'll get a pinch weld measurement when there's light out.
For reference I am running a 7" 300 lbs/in spring with ISC 1.5" extended rear top hat and a 225/45/15 tire. My bumpstop is already trimmed to the minimum length. I believe the rears are set to 12.75" hub to fender but I'll get a pinch weld measurement when there's light out.
