Katech V4 for a Miata?
#21
Boost Pope
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/smod.png)
iTrader: (8)
Join Date: Sep 2005
Location: Chicago. (The less-murder part.)
Posts: 33,339
Total Cats: 6,793
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Spyker fulfills essentially the same "need" as Prada or Rolex. These are all brands which appeal to those consumers who elect to define themselves by projecting a certain image which might be described as "fashionable" or "exclusive." None of these objects perform the specific function for which they were ostensibly created any better than an equivalent object costing 1/10 as much, nor do they really need to claim to. It is the perfect embodiment of form over function.
I consider this to be functionally inseparable from hipsterism or putting huge wings and tiny wheels on FWD Hondas.
I consider this to be functionally inseparable from hipsterism or putting huge wings and tiny wheels on FWD Hondas.
#22
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
It's ludicrous at $15k, no question, but if Katech can sell 10,000 of them to Bultaco for their triumphant return to high performance forklift production and next week they cost $1500/ea, then they become a really interesting, viable option.
And the same qualities that make V4s the correct engine configuration for sport bikes make them excellent for small sports cars, too. They're more compact than an inline 4, while still having the ability to be even fire and having enough cylinders to make power. They package tightly against the firewall for weight distribution (or high and forward with very tight mass centralization in a sport bike). Plus they sound wicked awesome.
And the same qualities that make V4s the correct engine configuration for sport bikes make them excellent for small sports cars, too. They're more compact than an inline 4, while still having the ability to be even fire and having enough cylinders to make power. They package tightly against the firewall for weight distribution (or high and forward with very tight mass centralization in a sport bike). Plus they sound wicked awesome.
#23
Supporting Vendor
![](/mt2011/images_td/ranks/vendor.png)
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (1)
Join Date: Sep 2010
Location: Lake Forest, CA
Posts: 7,976
Total Cats: 1,019
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Let it be said that I would rather put an engine out of the Erik Buell Racing 1190RS in a small light car (not miata... like, locost-style car). My dad had an 1125CR and it was a monster. Can't imagine what another 40 hp would be like.
#24
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (9)
Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,922
Total Cats: 402
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Motus' copy of this engine, $10220:
V4 Baby Block features:
1650cc (100ci), liquid cooled, cast aluminum 90° V4 w/ steel liners
Cam-in-the-block, 2 OHV
Splayed lifters for maximum valvetrain stability
Aluminum cylinder heads w/ splayed & canted valves for max. flow and combustion efficiency
Automotive-style low mass, low inertia roller rocker arms
Maintenance-free hydraulic roller lifters
4340 forged steel I-beam connecting rods
3-ring forged aluminum pistons with moly coating
Wet sump w/ integral pick-up, serviceable screen, magnetic drain plug
4 bolt main bearing girdle for maximum strength and durability
Investment cast 4340 one-piece crank w/ automotive-style plain bearings
Gerotor oil pump, integrally cast internal water pump
CFD optimized, precision cast water jackets
Closed loop 250kBd multi-point fully sequential fuel injection
Ride-by-wire w/ electronic throttle control (ETC)
Cast individual runner manifold w/ 4 x 40mm contoured bore downdraft throttle bodies
12 bolt bellhousing (9.5” bolt circle) for easy application adaptation
Spare bosses for alternate accessory drives and motor mounts
Turnkey V4 Baby Block (w/ECU, ride-by-wire intake, engine harness, fuse box)...$10,220
1650cc (100ci), liquid cooled, cast aluminum 90° V4 w/ steel liners
Cam-in-the-block, 2 OHV
Splayed lifters for maximum valvetrain stability
Aluminum cylinder heads w/ splayed & canted valves for max. flow and combustion efficiency
Automotive-style low mass, low inertia roller rocker arms
Maintenance-free hydraulic roller lifters
4340 forged steel I-beam connecting rods
3-ring forged aluminum pistons with moly coating
Wet sump w/ integral pick-up, serviceable screen, magnetic drain plug
4 bolt main bearing girdle for maximum strength and durability
Investment cast 4340 one-piece crank w/ automotive-style plain bearings
Gerotor oil pump, integrally cast internal water pump
CFD optimized, precision cast water jackets
Closed loop 250kBd multi-point fully sequential fuel injection
Ride-by-wire w/ electronic throttle control (ETC)
Cast individual runner manifold w/ 4 x 40mm contoured bore downdraft throttle bodies
12 bolt bellhousing (9.5” bolt circle) for easy application adaptation
Spare bosses for alternate accessory drives and motor mounts
Turnkey V4 Baby Block (w/ECU, ride-by-wire intake, engine harness, fuse box)...$10,220
#25
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I know this is out of the question for any of our pockets, but I found this in the latest issue of Racecar Engineering Magazine. I don't know what the price is but other than that it has good numbers.
500 bhp
380 lbft
72 kg (167.2 lb)
1489 cc
10,200 rpm
I thought I should share whats on my wish list for Santa

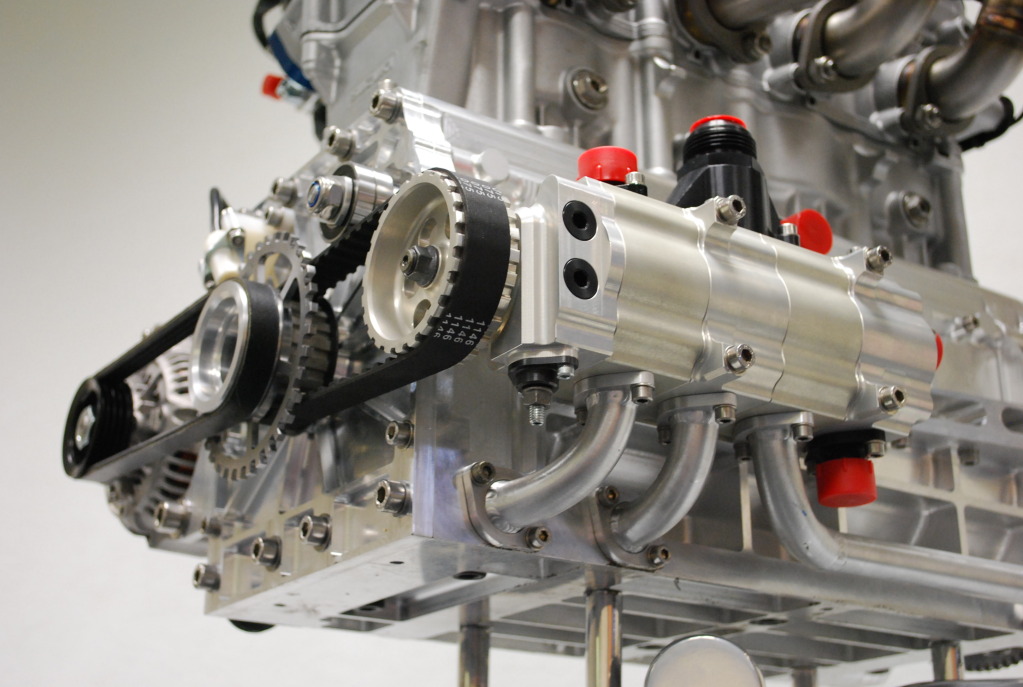

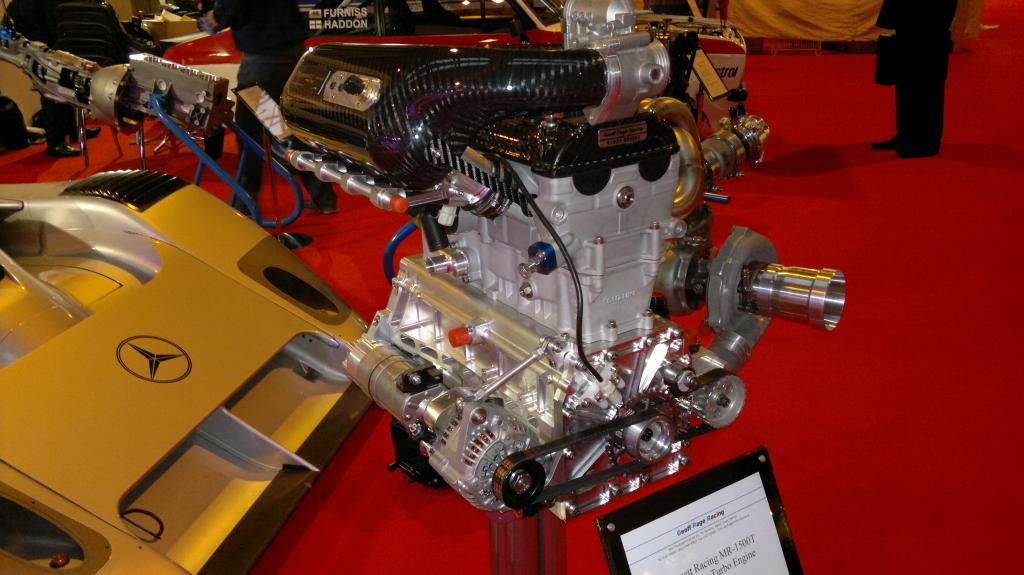

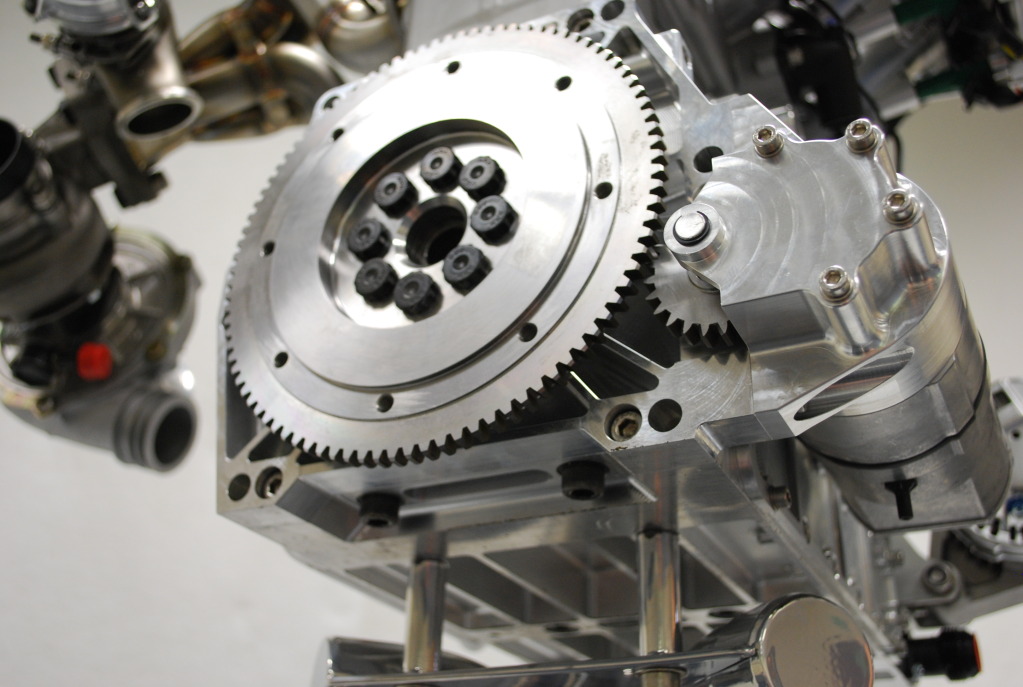

Mussett Racing MR-1500T
![](https://www.miataturbo.net/attachments/race-prep-75/68379-katech-v4-miata-mr-1500tmagazineimages033_zps7fed9922.jpg?dateline=1361583399)
![](https://www.miataturbo.net/attachments/race-prep-75/68380-katech-v4-miata-mr-1500tmagazineimages027_zps23e57205.jpg?dateline=1361583399)
500 bhp
380 lbft
72 kg (167.2 lb)
1489 cc
10,200 rpm
I thought I should share whats on my wish list for Santa
Mussett Racing MR-1500T
![](https://www.miataturbo.net/attachments/race-prep-75/68379-katech-v4-miata-mr-1500tmagazineimages033_zps7fed9922.jpg?dateline=1361583399)
![](https://www.miataturbo.net/attachments/race-prep-75/68380-katech-v4-miata-mr-1500tmagazineimages027_zps23e57205.jpg?dateline=1361583399)
![](https://www.miataturbo.net/attachments/race-prep-75/68381-katech-v4-miata-mr-1500tmagazineimages021_zps9bafb299.jpg?dateline=1361583399)
#28
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (9)
Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,922
Total Cats: 402
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Do it!

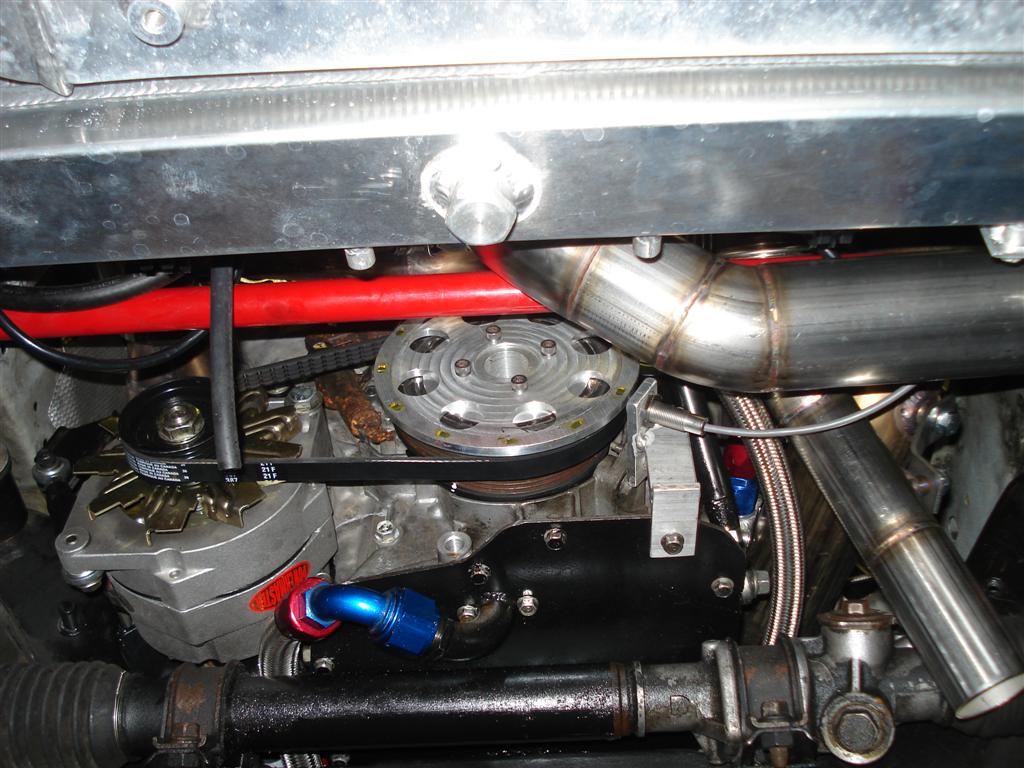

Certainly not as pretty, but that's how I like it. Heimens make life good.
![](https://www.miataturbo.net/attachments/race-prep-75/68417-katech-v4-miata-ewgdump4.jpg?dateline=1361631177)
I still need to find a larger alternator pulley, technically. But horray for rebuildable, USA made, 100amp, <$100 1 wire alternators.
Actually I think the OEM Mazda way of tightening the belt is slick.
Certainly not as pretty, but that's how I like it. Heimens make life good.
![](https://www.miataturbo.net/attachments/race-prep-75/68417-katech-v4-miata-ewgdump4.jpg?dateline=1361631177)
I still need to find a larger alternator pulley, technically. But horray for rebuildable, USA made, 100amp, <$100 1 wire alternators.
Actually I think the OEM Mazda way of tightening the belt is slick.
#29
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
JayL had one on his old Miata but the pic was deleted.
I tried to replicate it with McMaster parts, but the space is tight so now I have some paper weights. If you figure it out, I'd be interested. One less thing to potentially break.
I tried to replicate it with McMaster parts, but the space is tight so now I have some paper weights. If you figure it out, I'd be interested. One less thing to potentially break.
