HPDE / track day safety gear flow chart !!
#361
Elite Member
iTrader: (2)
Join Date: Aug 2016
Location: New Fucking Jersey
Posts: 3,890
Total Cats: 143
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Yeah, I thought the rule of thumb was that race seats and 'regular' seatbelts were mostly fine, but modifying stock seats for harnesses was a big no-no.
On a few facebook groups, I've seen folks cut holes into stock seats and seal them off to fit harnesses through. It's pretty bizarre what folks think is acceptable for safety...
On a few facebook groups, I've seen folks cut holes into stock seats and seal them off to fit harnesses through. It's pretty bizarre what folks think is acceptable for safety...
#362
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Jeebus, no.

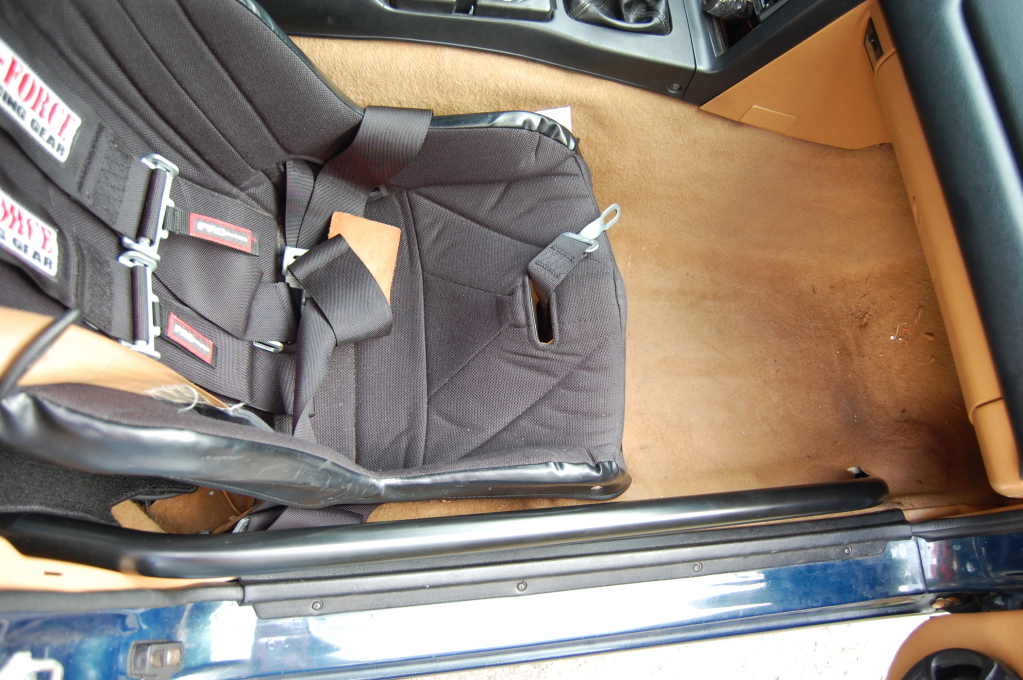

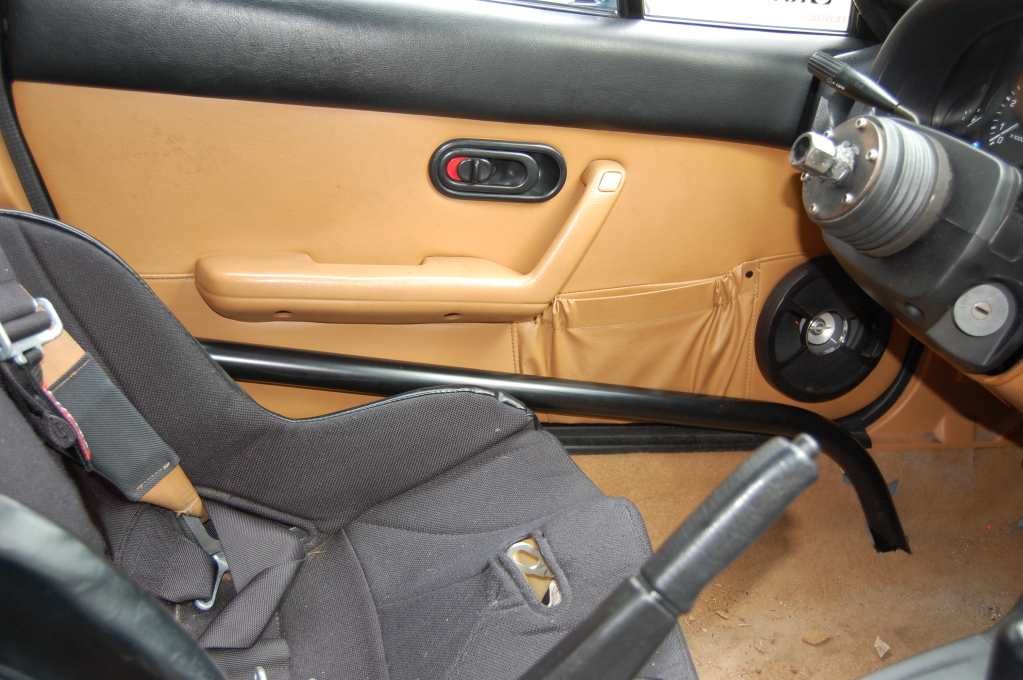

1. Door bars are not be used with OEM seats. You have a big steel tube against your unprotected hip. Minor side impact and you'll never walk again. Only use door bars with one piece FIA seats.
2. Sub belt anchor point(s) needs to be behind seat port. As yours it, the sub belt does nothing, you'll just slide forward.
3. Shoulder belts need to be anchored in seat ports designed for that. Those little straps will explode in any real impact and let your upper body slide sideways.
4. Basically, only use 5/6 pts with a one piece FIA seat. Waste of time trying to integrate with a floppy OEM seat.
5. I do not recommend using 5/6 points with adjustable seat rails unless they are competition specific locking rails.
Just a preference here but 5 pts suck. Not as safe and way less comfortable than 6 pts. Stay away from 6 points that use a wide metal bracket below the buckle. That's old school and only works for really fat guys. Schroth and most newer design 6 pts uses a fabric "Y" that is comfy, easy to use and the safest way to restrain your torso from submarining in a frontal impact.
1. Door bars are not be used with OEM seats. You have a big steel tube against your unprotected hip. Minor side impact and you'll never walk again. Only use door bars with one piece FIA seats.
2. Sub belt anchor point(s) needs to be behind seat port. As yours it, the sub belt does nothing, you'll just slide forward.
3. Shoulder belts need to be anchored in seat ports designed for that. Those little straps will explode in any real impact and let your upper body slide sideways.
4. Basically, only use 5/6 pts with a one piece FIA seat. Waste of time trying to integrate with a floppy OEM seat.
5. I do not recommend using 5/6 points with adjustable seat rails unless they are competition specific locking rails.
Just a preference here but 5 pts suck. Not as safe and way less comfortable than 6 pts. Stay away from 6 points that use a wide metal bracket below the buckle. That's old school and only works for really fat guys. Schroth and most newer design 6 pts uses a fabric "Y" that is comfy, easy to use and the safest way to restrain your torso from submarining in a frontal impact.
__________________
#364
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks all. I'll remove the door bars and harness until such time as I source proper seats.
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
#365
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks all. I'll remove the door bars and harness until such time as I source proper seats.
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
__________________
#368
Elite Member
iTrader: (2)
Join Date: Aug 2016
Location: New Fucking Jersey
Posts: 3,890
Total Cats: 143
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks all. I'll remove the door bars and harness until such time as I source proper seats.
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
Emilio, you might want to add the caveat about door bars coupled with OEM seats to your website. The current sample pic shown a stock seat and there's no contra-indication in the text (which looks like boiler-plate from Hard Dog).
#371
SADFab Destructive Testing Engineer
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
What do you use on your endurance racing cars? Pick drivers that are the same height.
When dual driving with my fiance last year I drilled 2 sets of holes in my seat mounts and swapped between run groups, but that would be way too long in a racing situation.
When dual driving with my fiance last year I drilled 2 sets of holes in my seat mounts and swapped between run groups, but that would be way too long in a racing situation.
#372
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
We mount the seat a wee bit too close for me and the shorter drivers (everyone) add pads. Its not safe to stack 8" of pads in there so I end up being a bit scrunched in my own car. For Vegas, we made a set of brackets like you speak of, two sets of holes.The rear are perfect for me. The front are so I can share with midgets (those less than 6-3' with 36" inseam). In pro level racing, they often use foam inserts. Otherwise, yes, you need to have all the drivers fairly close in stature. I have seen chumpcar teams with wildly different size drivers, sliding rails, big guys that can't evac quickly. Bad things.
__________________
#373
SADFab Destructive Testing Engineer
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Makes sense. We made a diy foam insert that worked great, but the 6'1" to 5'1" height difference meant seat moving too.
Does Vegas have any pedal adjustments? Or just the seat.
Does Vegas have any pedal adjustments? Or just the seat.
#376
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So I've read this thread and incorporated much of the flow chart but have reminded myself recently that track day safety is, of course, more than about the equipment. Posting this as an example to intermediate and below track day devotees to take your time and don't make assumptions about the other drivers. Leave a margin between you and the other guy. This worked out but that is not a forgiving corner.
#377
Elite Member
iTrader: (15)
Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 2,068
Total Cats: 277
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
We use a pivoting seat mount and pads to accommodate drivers from 5'-8" to about 6-8". Its an Ultrasheild Rally Sport (I think). The seat pivots on the from mount tied into the cage. The rear has two telescoping down tubes mounted high on the seat (to act as a back brace). We use two 3/8" pins in through the telescoping tubes to support it. There is an additional catch on the floor that acts a a secondary support. Our shortest driver does use a single 1" pad to help get her closer to the wheel. I use no pad (5'-10") and seat up. Tallest drivers use seat down and no pads.
#378
Senior Member
iTrader: (1)
Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 1,218
Total Cats: 175
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
We use a pivoting seat mount and pads to accommodate drivers from 5'-8" to about 6-8". Its an Ultrasheild Rally Sport (I think). The seat pivots on the from mount tied into the cage. The rear has two telescoping down tubes mounted high on the seat (to act as a back brace). We use two 3/8" pins in through the telescoping tubes to support it. There is an additional catch on the floor that acts a a secondary support. Our shortest driver does use a single 1" pad to help get her closer to the wheel. I use no pad (5'-10") and seat up. Tallest drivers use seat down and no pads.
#379
Elite Member
iTrader: (15)
Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 2,068
Total Cats: 277
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I will see what I can do. Most of the stuff is tucked away and hard to see. Only the backbrace tubes are really visible. We loath the day we have to remove the seat to change out the belts.
#380
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
After seeing the low speed miata crash and the ensuing damage (please let me know if this should start a new thread as its a question about street safety not track), Is there a recommended set of upgrades to make the STREET miata safer. I drive a 1990, the tech isn't exactly new. I have a roll bar with padding and run stock seat/belt on the street. Does everyone on here run that as basics, or do people add door bars etc for street safety? I would guess a lot have track/street cars that are up to fully caged, but how do you keep a miata livable while still being as safe as possible if you get hit at 35-50? Or is the only upgrade to buy newer?
- wooden Nardi steering wheel (no airbag)
- Lotus Elise seats mounted to the stock sliders using 3mm steel adapters and high strength bolts. Seats were chosen mostly because of the higher headrest to keep my melon off the roll bar, and because i love the look. Sparco sprints etc. just didn't cut it for me
- stock belts (non-airbag version)
- TR lane roll bar (still unpadded)
Although I'd love to spend every day on a track, in reality I do most of my driving in traffic, back roads and alpine twisties. So statistically there's a way higher chance of having a front/rear accident with another car, or sliding off the road and hitting a rock/tree, than having an accident on track. I want to improve safety for both road and track. I suppose almost anything will be better than a stock Miata without an airbag, but what are really sensible options for me?
- harness: I'm leaning towards a 6-point Schroth harness. I could probably live with the everyday-struggle of buckling up. I know everybody nowadays speaks in favor of a HANS device (totally understand the benefits!), but it's just not gonna happen on the road. I could still get one for the track day, but ain't gonna wear it on the road. Still, millions of people have been using harnesses without any HANS device for decades and walked away from serious crashes. So while without doubt 6pt harness + HANS is #1 on track, wouldn't a 6pt harness alone still be better than using the stock 3pt belts and hitting my head on the solid no-airbag steering wheel?
- seat: I'm 1.74 cm and have a decent space between the Lotus seat and the roll bar. Still, rollbar padding is on my shopping list, even if it might not do a lot when not wearing a helmet. A halo seat is not street-legal due to impaired visibility. My plan was to add designated seat grommets to the Lotus seat, as most Elise owners do for the 6pt shoulder and crotch straps to pass through.
