Not Mine: 2 INDYCAR EFR6758 turbos $450 each
#1
Elite Member
Thread Starter
iTrader: (2)
Join Date: Aug 2012
Location: Indianapolis
Posts: 3,267
Total Cats: 239
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
A friend posted this on the Indiana Miata Owners facebook group. That's all I know about those turbos.
https://www.facebook.com/groups/2462...0436810751945/
https://www.facebook.com/groups/2462...0436810751945/
#6
Elite Member
Thread Starter
iTrader: (2)
Join Date: Aug 2012
Location: Indianapolis
Posts: 3,267
Total Cats: 239
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Originally Posted by facebook post

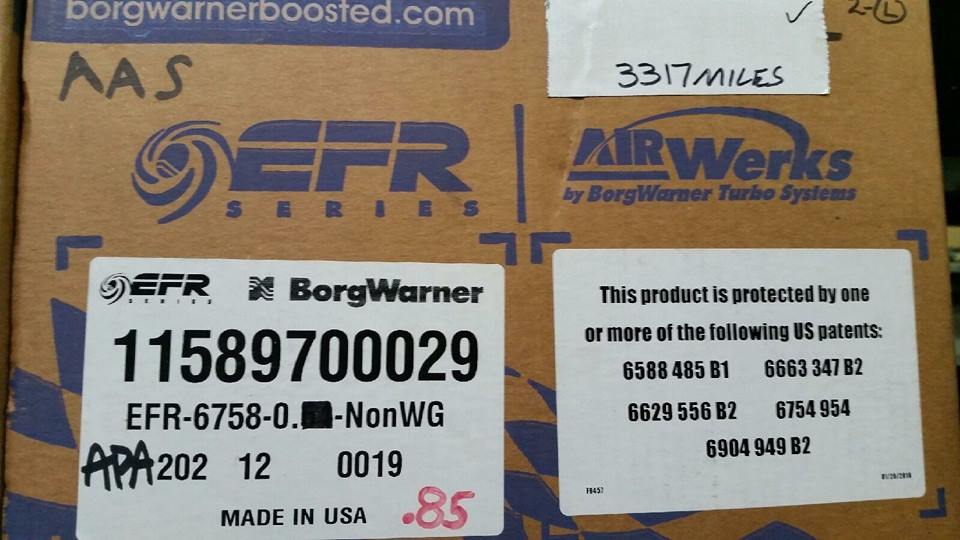

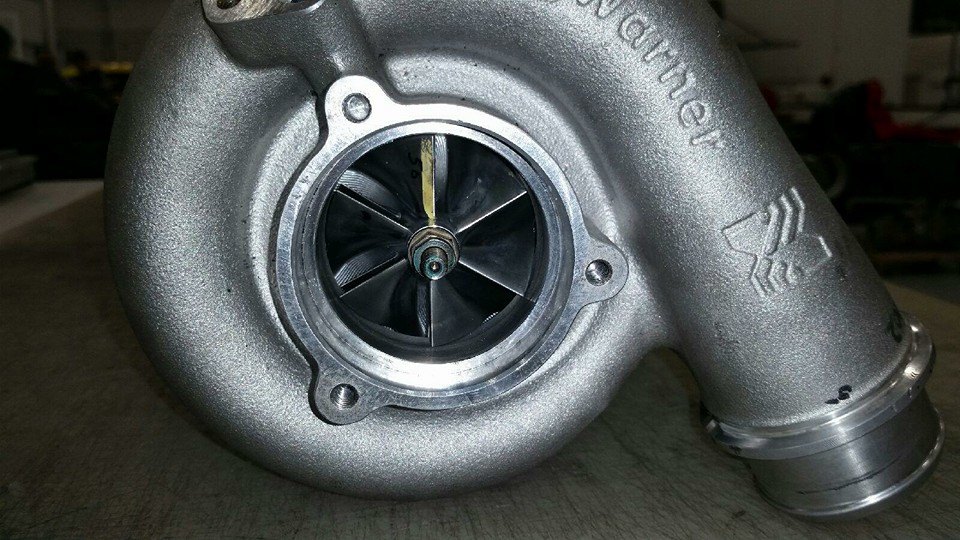

Borg Warner EFR 6758 turbo's off of a couple Indy Cars, $450 ea.
![Name: xGx8g3U.jpg
Views: 31
Size: 69.1 KB](https://www.miataturbo.net/attachments/miata-parts-sale-trade-5/235134d1683054181-not-mine-2-indycar-efr6758-turbos-%24450-each-xgx8g3u.jpg)
![Name: jQvvTHQ.jpg
Views: 28
Size: 137.5 KB](https://www.miataturbo.net/attachments/miata-parts-sale-trade-5/235135d1683054181-not-mine-2-indycar-efr6758-turbos-%24450-each-jqvvthq.jpg)
Looks like it's the same as that Ebay ad.
Hmmm, full-race has pictures of both 6 and 7 bladed compressors. BorgWarner EFR 6758 Turbo - Full-Race.com The picture they show for the T4 .80 has 6 blades. Or maybe the INDYCAR ones are different. I don't know.
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Yep its the same ebay ad and is from the same seller in Indiana. Its legit
http://www.full-race.com/articles/efrturbotechbrief.pdf
page 67

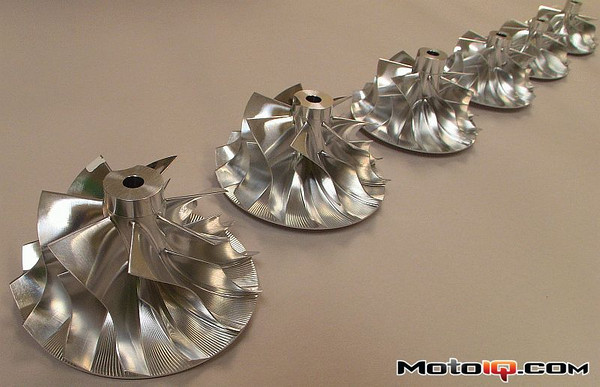

Well apparently I'm wrong and its the other way. 6758 has 6 blades (well, 6 visible and 6 shorter ones so 12) and the rest have 7 (or actually 14)
Hmmm, full-race has pictures of both 6 and 7 bladed compressors. BorgWarner EFR 6758 Turbo - Full-Race.com The picture they show for the T4 .80 has 6 blades. Or maybe the INDYCAR ones are different. I don't know.
page 67
The speed sensor is powered by a +5V supply, and the return signal is a
variable frequency square wave that has maximum amplitude of 5V and
has a 50% duty cycle. The frequency of this signal depends on the
speed of the wheel. Each passing blade creates a pulse, and all the EFR
wheels have 14 blades except for the 67mm (which has 12 blades). The
sensor embedded electronics divides the blade-pass frequency by 8, and
then the resulting count forms the output waveform. Here is an
example:
variable frequency square wave that has maximum amplitude of 5V and
has a 50% duty cycle. The frequency of this signal depends on the
speed of the wheel. Each passing blade creates a pulse, and all the EFR
wheels have 14 blades except for the 67mm (which has 12 blades). The
sensor embedded electronics divides the blade-pass frequency by 8, and
then the resulting count forms the output waveform. Here is an
example:
![](https://www.miataturbo.net/attachments/miata-parts-sale-trade-5/125668-not-mine-2-indycar-efr6758-turbos-%24450-each-1075823350_izip2-m.jpg?dateline=1413343914)
