FlowForce R8 Coil Kit (yes, you heard that right)
#64
Cpt. Slow
iTrader: (25)
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,360
Total Cats: 1,184
No, I was headed to the dyno, shooting for 350hp+. Figured I'd need them, didn't end up having time to wire it, and didn't even have spark issues at 330hp. I have other priorities to fix, so I ended up selling them.
#65
Alright all you cool cats and kittens. I was able to get my MS3X running correctly using TC4427 on the proto area of the MS base board. I made one modification to the recommended layout. Instead of using the LED spark outputs I took the series resistors off of the current MS3X ignition outputs of U13. This way I could retain knock sensing functionality. It goes something like this.
#66
Elite Member
iTrader: (10)
Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,987
Total Cats: 359
About 330mA. The entire chip is rated for 1.5A, so 750mA per output. You may want to reconsider though, as the chip is also rated for 470mW of power. At higher RPM, you may find yourself in a 50% duty cycle on the coil signals, so 0,33A*5V*0.5 = 825mW, well over the design limit.
Assuming a 3ms dwell time, and a max duty cycle of 25% to be below the power limit, your max RPM will be around 5800rpm.
Assuming a 3ms dwell time, and a max duty cycle of 25% to be below the power limit, your max RPM will be around 5800rpm.
#67
330 was the number I was looking for. Thanks for doing the math on that too, yeah, I would want to do one coil per chip output if I go this rout.
Though it looks like a max dwell around 2.4ms and 2.1ms at red line for this coils, so it would be clooooose to being ok, but the engineer in me likes safty facotors.
Though it looks like a max dwell around 2.4ms and 2.1ms at red line for this coils, so it would be clooooose to being ok, but the engineer in me likes safty facotors.

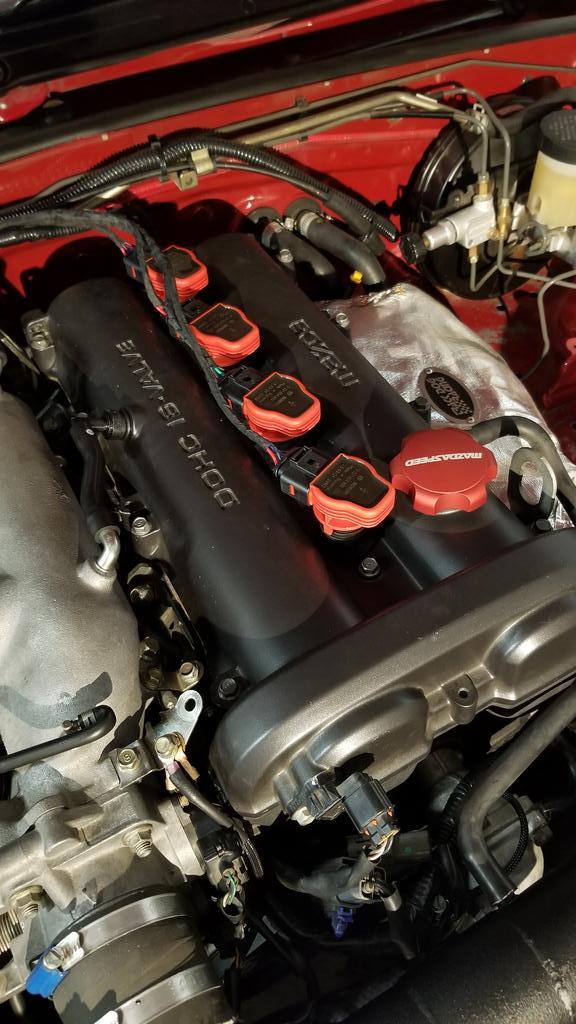

#78
