Built 1.6l Engine, 1,820 miles
#1
Junior Member
Thread Starter
iTrader: (2)
Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Built 1.6l Engine, 1,820 miles
Located in Latrobe, PA 15650
No shipping at this time.
Asking prices:
Longblock with cooling and clutch $3000
Turbo kit with exhaust intercooler and piping $1,000
Transmission and rear end plus components $750
ECU $400
EDIT- $4000 will get you the whole setup besides the trans and rear diff.
Parts and price may fluctuate on what you want. Motor is still in the running car. I just finished my build in May, but some things have come up and my toy has to go. I'm having trouble selling the vehicle as a whole, so my only other option is to part it out.

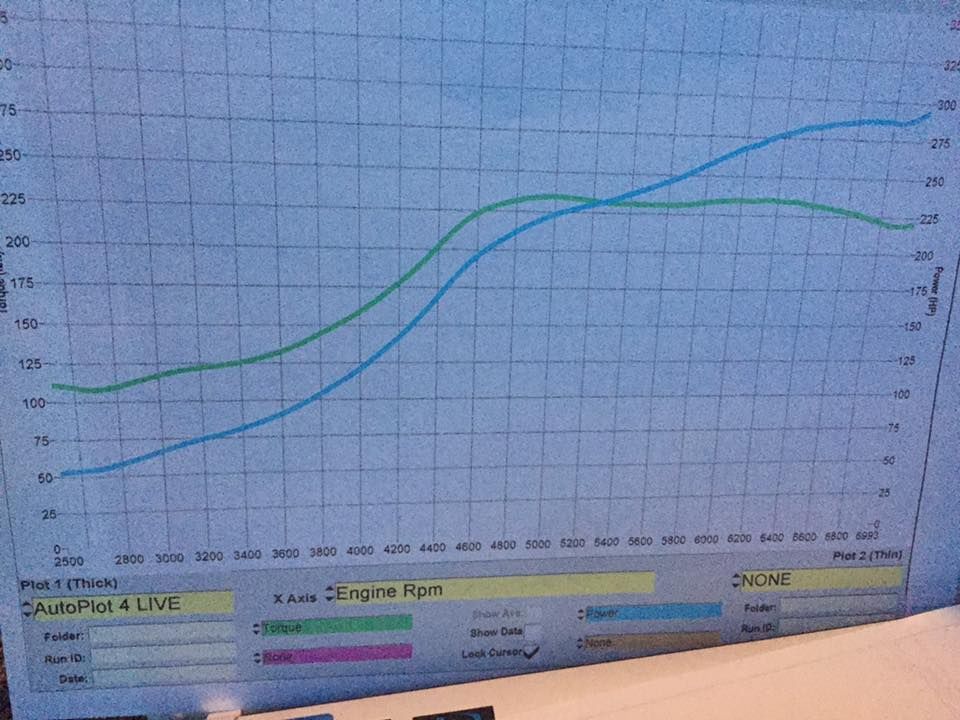

This motor was machined at P&R Engine Re-builders in Greensburg, PA late 2014 with receipts to prove it ($1,200 worth). It was broken in properly, and then trailered to J-K Tuning in Newville, PA where it was Dyno tuned to 295hp and 220 tq on 18psi.
I will not pull a thing until I have a serious buyer interested; At which point you can come drive the car, know that it works correctly, and that you're getting what you paid for.
Details as follows:
ENGINE
(Using a BrainBuilt DIY PNP megasquirt ECU)
Head:

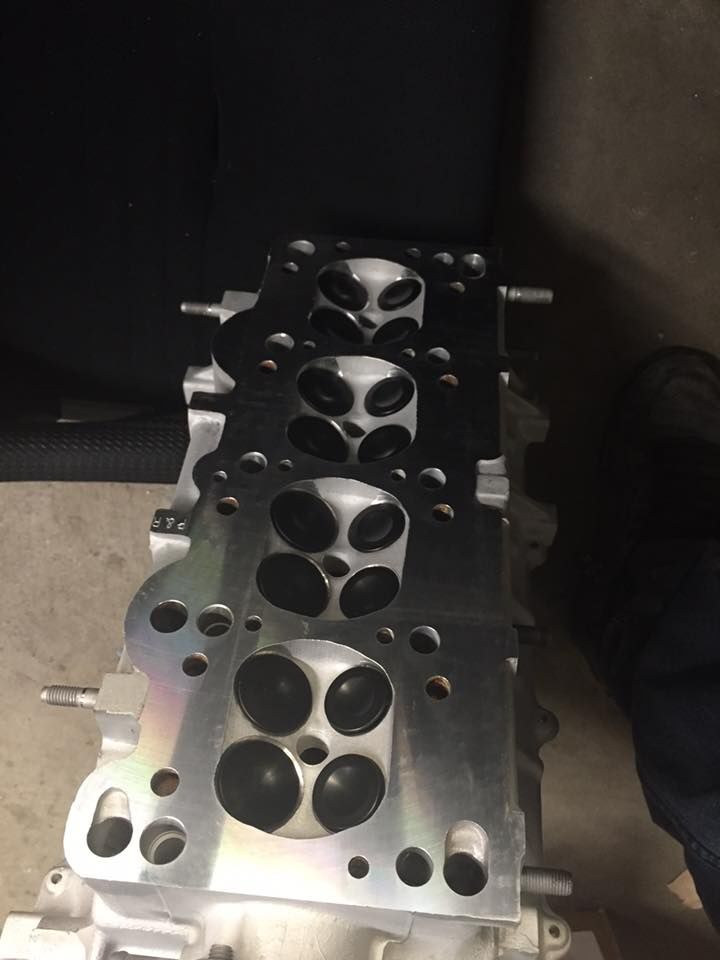

-Media blasted, checked for cracks, head gasket surface cut and 3 angle valve job and assembly by P&R.
-Supertech +1mm oversized intake and exhaust valves.
Block:

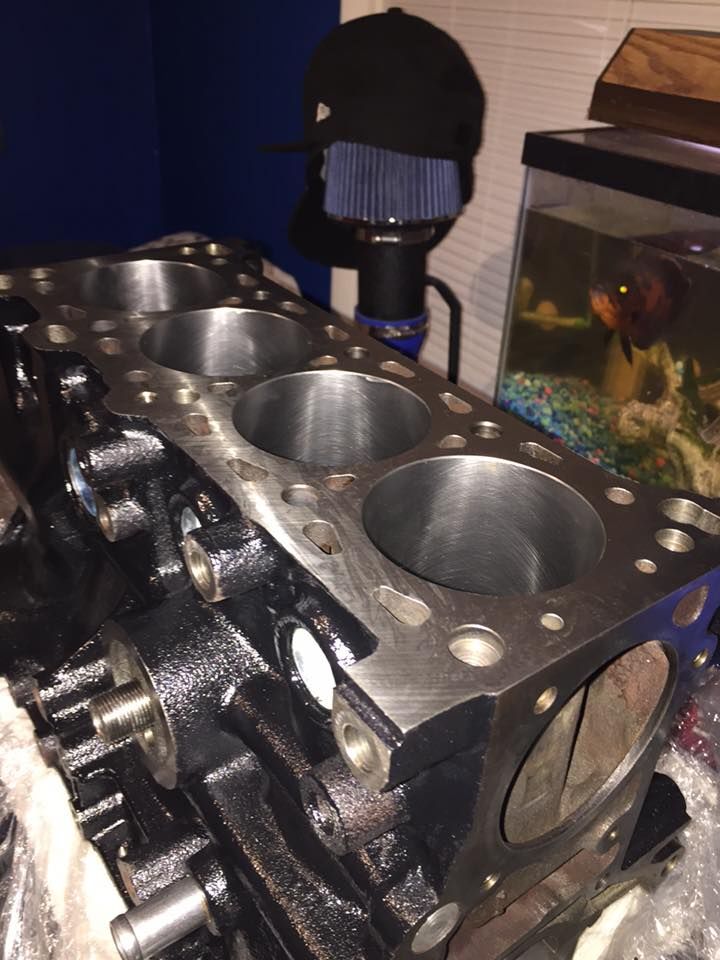

-Media blasted, head surface decked, cylinders bored over .02 and honed, main bearing align honed by P&R.
- cometic head gasket

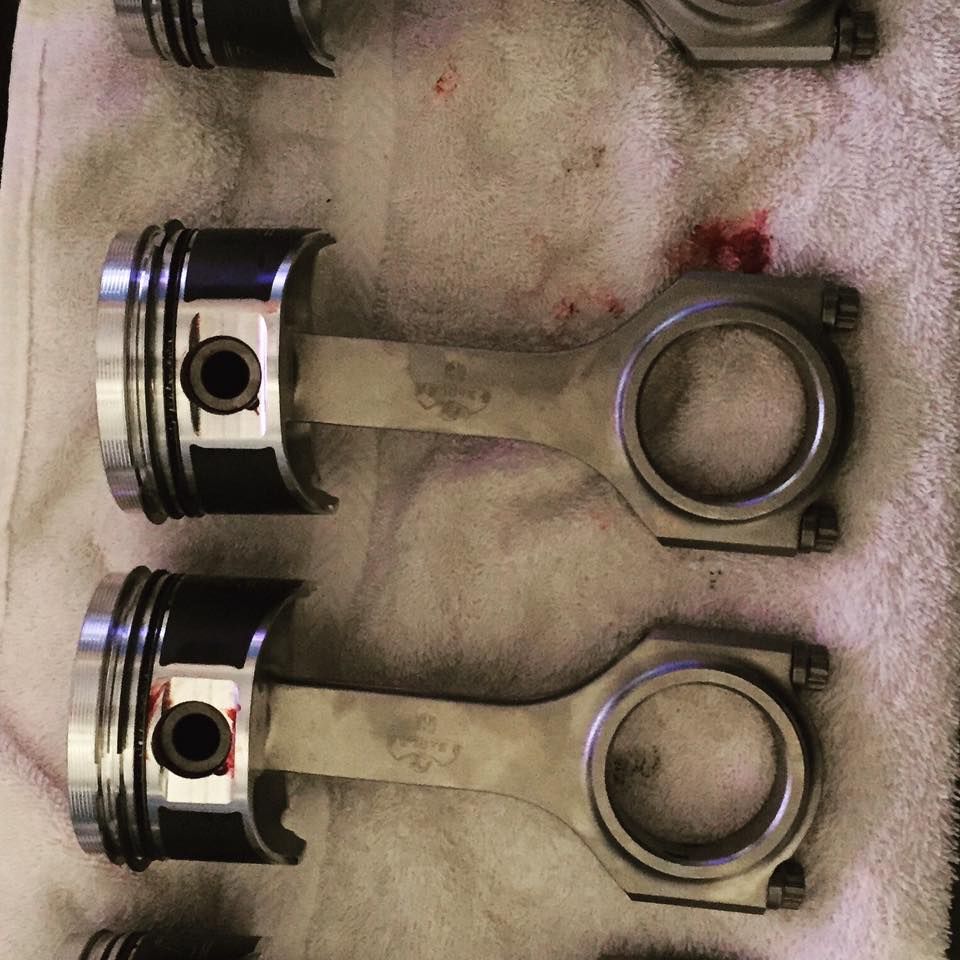

-Wiseco 78.5mm 8.5:1 Pistons
-Eagle H-Beam con rods w/ ARP bolts
-ARP head studs
-ARP main bearing cap studs
-ACL race main and thrust bearings
-Boundary Engineering Oil pump with 2 shims and billet gears
-Mazda comp motor mounts

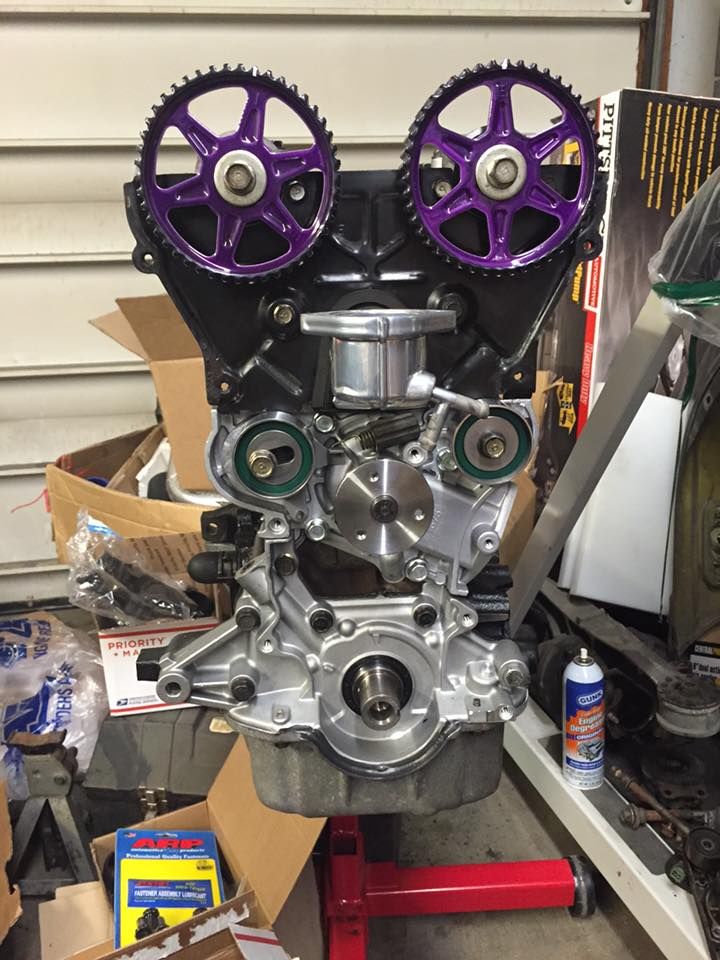

-Gates racing blue timing belt
-all other gaskets/ pulleys/ seals replaced using Flyin Miata Engine Rebuild Kit
Cooling:
-KoyoRad Aluminum radiator
-BEGI coolant reroute
-Gates water pump
-Red silicone coolant hoses
Fuel:
-Walbro 190lph fuel pump
-Fuel Injector Clinic 650cc injectors
-new OEM fuel filter and bracket
Turbo setup (if included in the deal):
TURBO

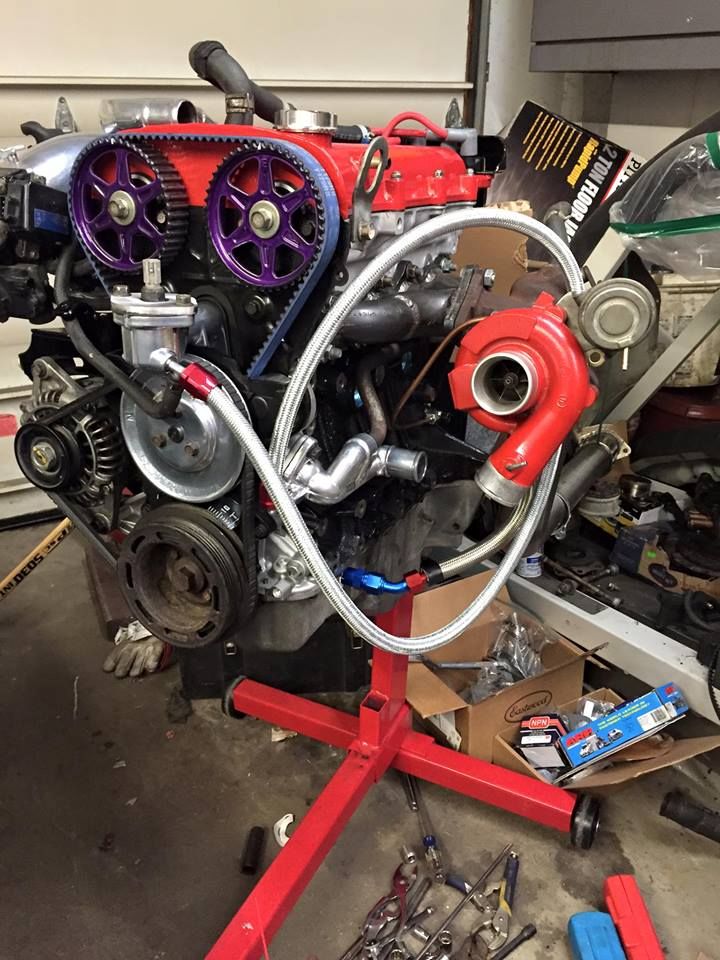

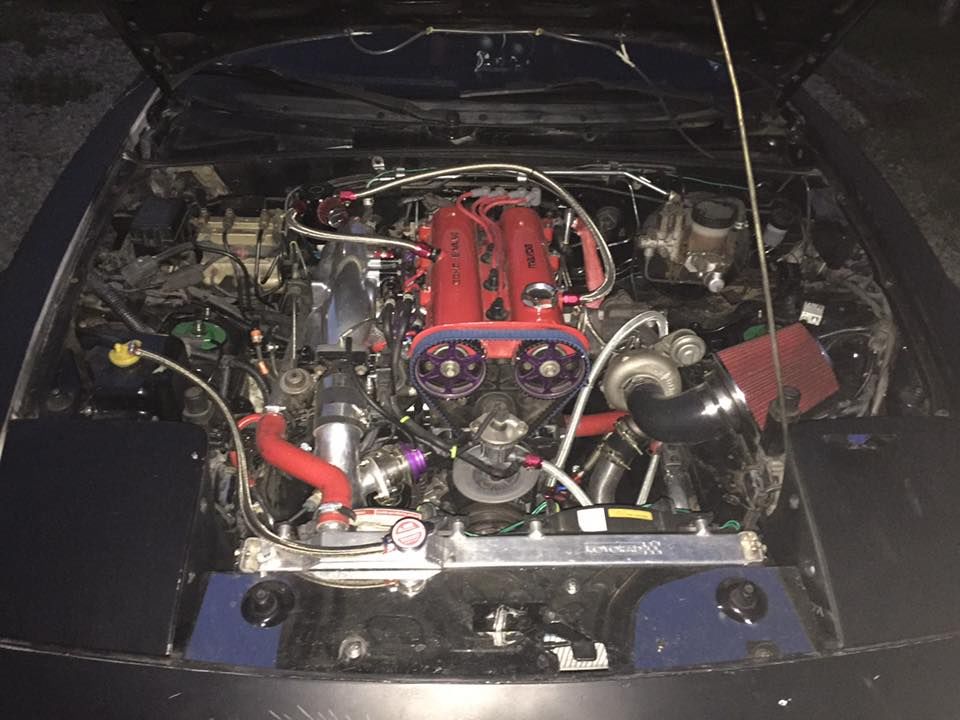

-IHI VF48 from a 2012 STI (This is the shown in the picture of the engine in the car, the red turbo on the stand is a TD04 for fitment)
-3/8" stainless banjo fitting coolant lines
-10AN stainless oil return line tapped into pan
-3/8" stainless catch can lines
-4AN stainless oil feed line
-CXRacing intercooler, piping, and blow off valve
-Mishimoto baffled oil catch can with vent to atmosphere setup with drain hose
-DIYAutotune EBCS
-Sturovo built manifold and downpipe
-3" vband exhaust w/ ebay muffler
Drive line components (also if included in the deal):
DRIVETRAIN

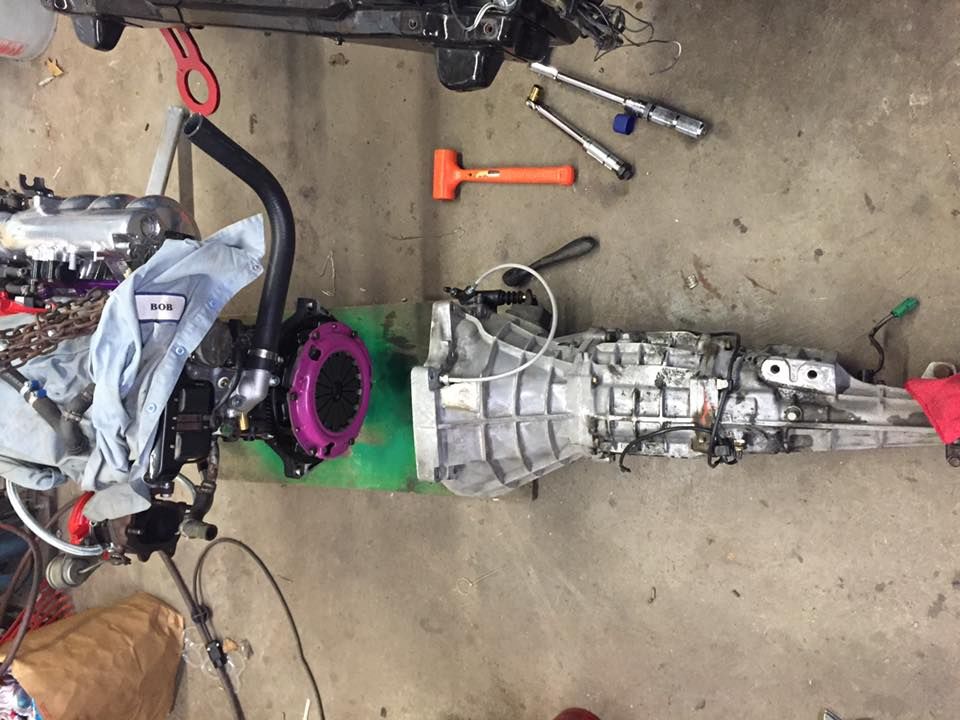

-2001 6 speed transmission (2nd gear syncro is getting rough when cold)
-Moss Miata shifter rebuild kit
-Fresh Redline tranny and diff fluid
-94 7" Torsen rear end
-totally rebuilt 2 piece axles with freshly rebuilt inner and outer CV joints
- Flyin Miata stage 2 clutch kit happy meal with 10lb flywheel
-new clutch master and slave cylinder
-TechnaFit braided stainless clutch line
The best way to reach me is via text any time at 724-309-4689. I will respond asap to anyone interested, on questions or anything else. Thank you for your time.
No shipping at this time.
Asking prices:
Longblock with cooling and clutch $3000
Turbo kit with exhaust intercooler and piping $1,000
Transmission and rear end plus components $750
ECU $400
EDIT- $4000 will get you the whole setup besides the trans and rear diff.
Parts and price may fluctuate on what you want. Motor is still in the running car. I just finished my build in May, but some things have come up and my toy has to go. I'm having trouble selling the vehicle as a whole, so my only other option is to part it out.
This motor was machined at P&R Engine Re-builders in Greensburg, PA late 2014 with receipts to prove it ($1,200 worth). It was broken in properly, and then trailered to J-K Tuning in Newville, PA where it was Dyno tuned to 295hp and 220 tq on 18psi.
I will not pull a thing until I have a serious buyer interested; At which point you can come drive the car, know that it works correctly, and that you're getting what you paid for.
Details as follows:
ENGINE
(Using a BrainBuilt DIY PNP megasquirt ECU)
Head:
-Media blasted, checked for cracks, head gasket surface cut and 3 angle valve job and assembly by P&R.
-Supertech +1mm oversized intake and exhaust valves.
Block:
-Media blasted, head surface decked, cylinders bored over .02 and honed, main bearing align honed by P&R.
- cometic head gasket
-Wiseco 78.5mm 8.5:1 Pistons
-Eagle H-Beam con rods w/ ARP bolts
-ARP head studs
-ARP main bearing cap studs
-ACL race main and thrust bearings
-Boundary Engineering Oil pump with 2 shims and billet gears
-Mazda comp motor mounts
-Gates racing blue timing belt
-all other gaskets/ pulleys/ seals replaced using Flyin Miata Engine Rebuild Kit
Cooling:
-KoyoRad Aluminum radiator
-BEGI coolant reroute
-Gates water pump
-Red silicone coolant hoses
Fuel:
-Walbro 190lph fuel pump
-Fuel Injector Clinic 650cc injectors
-new OEM fuel filter and bracket
Turbo setup (if included in the deal):
TURBO
-IHI VF48 from a 2012 STI (This is the shown in the picture of the engine in the car, the red turbo on the stand is a TD04 for fitment)
-3/8" stainless banjo fitting coolant lines
-10AN stainless oil return line tapped into pan
-3/8" stainless catch can lines
-4AN stainless oil feed line
-CXRacing intercooler, piping, and blow off valve
-Mishimoto baffled oil catch can with vent to atmosphere setup with drain hose
-DIYAutotune EBCS
-Sturovo built manifold and downpipe
-3" vband exhaust w/ ebay muffler
Drive line components (also if included in the deal):
DRIVETRAIN
-2001 6 speed transmission (2nd gear syncro is getting rough when cold)
-Moss Miata shifter rebuild kit
-Fresh Redline tranny and diff fluid
-94 7" Torsen rear end
-totally rebuilt 2 piece axles with freshly rebuilt inner and outer CV joints
- Flyin Miata stage 2 clutch kit happy meal with 10lb flywheel
-new clutch master and slave cylinder
-TechnaFit braided stainless clutch line
The best way to reach me is via text any time at 724-309-4689. I will respond asap to anyone interested, on questions or anything else. Thank you for your time.
Last edited by Baxgordum; 09-01-2015 at 06:07 PM.
#8
Junior Member
Thread Starter
iTrader: (2)
Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Other sources told me that it's fair considering its a brand new build with less than 2,000 miles. I have probably 4-5 into the motor itself. 3,500 for the entire setup and driveline seems like a steal.
#11
Let me know when you get ready to pull the megasquirt ecu.
#12
Serious question: Why would one put all of this money and effort into a 1.6 vs a 1.8? Smoother reving? Lighter weight? I am not trying to start a flame war, just trying to educate myself. I have an M45 supercharged 1.6, and have wondered what my options are if I want to significantly increase my power.
#13
Serious question: Why would one put all of this money and effort into a 1.6 vs a 1.8? Smoother reving? Lighter weight? I am not trying to start a flame war, just trying to educate myself. I have an M45 supercharged 1.6, and have wondered what my options are if I want to significantly increase my power.
#14
Junior Member
Thread Starter
iTrader: (2)
Join Date: May 2014
Location: Latrobe PA
Posts: 100
Total Cats: 1
Serious question: Why would one put all of this money and effort into a 1.6 vs a 1.8? Smoother reving? Lighter weight? I am not trying to start a flame war, just trying to educate myself. I have an M45 supercharged 1.6, and have wondered what my options are if I want to significantly increase my power.
This entire build sort of got out of hand by accident. I wanted to originally just refresh the stock motor and add some boost. Well then I decided to build it and basically the motor can handle so much more than what it makes. If I were to continue with my car I would redo the entire turbo setup. Probably go with a full vband Borg Werner setup from Fab9.
#15
To answer your question seriously,
This entire build sort of got out of hand by accident. I wanted to originally just refresh the stock motor and add some boost. Well then I decided to build it and basically the motor can handle so much more than what it makes. If I were to continue with my car I would redo the entire turbo setup. Probably go with a full vband Borg Werner setup from Fab9.
This entire build sort of got out of hand by accident. I wanted to originally just refresh the stock motor and add some boost. Well then I decided to build it and basically the motor can handle so much more than what it makes. If I were to continue with my car I would redo the entire turbo setup. Probably go with a full vband Borg Werner setup from Fab9.
I'd be interested, if I had the money, and time...
#16
Cleary your feelings get hurt easily. I'm sorry, there was no intent of being a know it all, I am not the most experienced or knowledgeable person on the forum. What I do know are the guide lines for threads. This is a for sale thread that will get all messed up if people start asking questions not related to simply purchasing items. Is this your first time on a forum? If not you should know, your supposed to save your questions for proper threads, after you spend YOUR time on Google searching the questions you have. Make sense?
#17
Cleary your feelings get hurt easily. I'm sorry, there was no intent of being a know it all, I am not the most experienced or knowledgeable person on the forum. What I do know are the guide lines for threads. This is a for sale thread that will get all messed up if people start asking questions not related to simply purchasing items. Is this your first time on a forum? If not you should know, your supposed to save your questions for proper threads, after you spend YOUR time on Google searching the questions you have. Make sense?
Hope you enjoy the long weekend.
