VVT Issue
Posting here too in case anyone has any experience with this. But basically my VVT target is getting "stuck" I have a bunch of logs, and a good explanation here: Megasquirt Support Forum (MSEXTRA) ? VVT Issues (View topic)
This is a video showing the issue
Let me know if you have seen anything like this before.
This is a video showing the issue
Let me know if you have seen anything like this before.
#2
Looks like buggy code to me...
You've tried different versions of firmware?
Not on a puter that has mlv on it. What is the actual cam position doing?
The newest stable release, 1.5.whatever vvt works (I'm using it). I think you mentioned other things didn't work there, but it would be simple to try and determine if it is a firmware problem.
You've tried different versions of firmware?
Not on a puter that has mlv on it. What is the actual cam position doing?
The newest stable release, 1.5.whatever vvt works (I'm using it). I think you mentioned other things didn't work there, but it would be simple to try and determine if it is a firmware problem.
#3
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
http://www.msextra.com/forums/viewtopic.php?f=131&t=59278
that issue is very similar to mine. I'll try the new cap and r11 adjustment.
that issue is very similar to mine. I'll try the new cap and r11 adjustment.
#6
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)
Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Turns out it looks like I was losing cam sync and thats what was causing the issue.
Megasquirt Support Forum (MSEXTRA) ? VVT with Flying Miata 36-2 wheel (View topic)

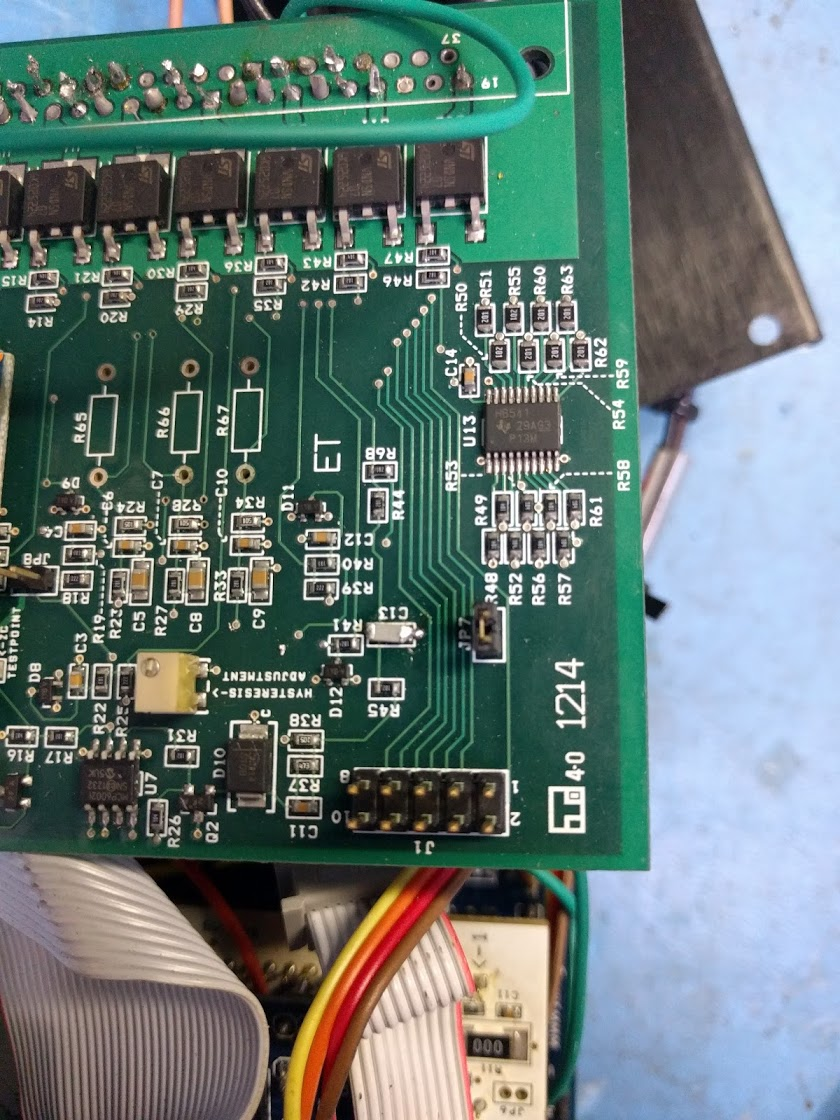

First I switched to updating the VVT angle based on timing instead of cam events, and that worked, then I swapped out the .22uf cap for a .001uF cap and now it seems like everything is working fine.
Soldering is ugly but I've got shakey hands.
Megasquirt Support Forum (MSEXTRA) ? VVT with Flying Miata 36-2 wheel (View topic)
First I switched to updating the VVT angle based on timing instead of cam events, and that worked, then I swapped out the .22uf cap for a .001uF cap and now it seems like everything is working fine.
Soldering is ugly but I've got shakey hands.
