I'm having a difficult time tuning any off boost cruise condition for good fuel economy. Used DIY's MSPNP Spark and VE maps but tweeked on the AFR target table a bit. The map is heavy bias (obviously) on > 101kpa for boosted vehicles so this might end up being a take/give situation.
Mostly around 3500rpm and around 80kpa is where I spend a lot of time in a low to medium load cruise condition, so I tweeked teh target table at 4000rpm/70kpa to 15:1 but when you run it through megalogviewer it'll typically enrichen that general area because of how limited the AFR target table is. Do I need to go in manually and have a driver duplicate my cruise condition and adjust the target cells down a bit for a little more lean cruise condition? 3000/70kpa is 14.6:1, then the next step up is 3000/101kpa and 4000/101kpa which are 14.6:1 and 13:1 respectively. Haven't yet taken an actual numbers stab at my fuel economy instead Im just seeing a 12.6 - 13.4:1 AFR in that cruise area where I'd like it a bit lower.
How has anyone else comprimised on their map or adjusted it for optimal economy out of boost?
![](http://jugrnot.com/jug-ve1.jpg)
![](http://jugrnot.com/jug-aft1.jpg)
The VE table has been thorugh maybe 3 driving sessions so its not even remotely fine tuned yet, and obviously not tuned for any boost either.
Mostly around 3500rpm and around 80kpa is where I spend a lot of time in a low to medium load cruise condition, so I tweeked teh target table at 4000rpm/70kpa to 15:1 but when you run it through megalogviewer it'll typically enrichen that general area because of how limited the AFR target table is. Do I need to go in manually and have a driver duplicate my cruise condition and adjust the target cells down a bit for a little more lean cruise condition? 3000/70kpa is 14.6:1, then the next step up is 3000/101kpa and 4000/101kpa which are 14.6:1 and 13:1 respectively. Haven't yet taken an actual numbers stab at my fuel economy instead Im just seeing a 12.6 - 13.4:1 AFR in that cruise area where I'd like it a bit lower.
How has anyone else comprimised on their map or adjusted it for optimal economy out of boost?
![](http://jugrnot.com/jug-ve1.jpg)
![](http://jugrnot.com/jug-aft1.jpg)
The VE table has been thorugh maybe 3 driving sessions so its not even remotely fine tuned yet, and obviously not tuned for any boost either.
![](https://www.miataturbo.net/images/smilies/mad.gif)
#2
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I use the target table in MLV because of the better resolution but I'm not sure that's so much of an issue. I found when I took a long trip that logging for more than an hour and driving in such a way that I make sure that i'm constantly and slowly hitting all areas of my vac gauge at different RPMs will get the AFRs almost perfect after two such logs. So if you're taking shorter logs ~20min or so it'll take more time and logs to get the numbers right.
And maybe someone else can confirm or correct me on this but I think because you're not cruising exactly at 4000 rpms and 70kpa or any other specific cell of your AFR table your AFRs are the result of interpolation between either 15:1 and 14.6:1 or 13:1.
And maybe someone else can confirm or correct me on this but I think because you're not cruising exactly at 4000 rpms and 70kpa or any other specific cell of your AFR table your AFRs are the result of interpolation between either 15:1 and 14.6:1 or 13:1.
#3
Elite Member
iTrader: (21)
Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Yeah that sounds correct. I let MLV do it's thing and yeah I use the 12x12 default AFR table in it instead of the one in you MSQ. But I then tune my cruise cells manually. With your VE table open watch your AFR gauge(if you have one). If you are richer or leaner than you want to be under the present conditions note which cell is green and adjust it accordingly. Burn change. Repeat. Vary driving to cover all of the area you usually cruise in. Helps to have a passenger with you for this.
#4
Elite Member
Thread Starter
iTrader: (11)
Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,360
Total Cats: 43
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Crap. I have to be missing something.. After posting this thread I did some looking through a few others and saw some people talking about the default MLV 12x12 table.. Where / How do I locate that?? The AFRBins1/2 are both from my MSQ.. Do I have an odd version of MLV?
Also I noticed the other day you can't change the Easy/medium/hard settings in the VE Analyzer anymore. I know theres an upgrade available for MLV, but I don't wanna get it because the alt menu access goes away.. Have v2.74
Also I noticed the other day you can't change the Easy/medium/hard settings in the VE Analyzer anymore. I know theres an upgrade available for MLV, but I don't wanna get it because the alt menu access goes away.. Have v2.74
#7
Elite Member
Thread Starter
iTrader: (11)
Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,360
Total Cats: 43
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

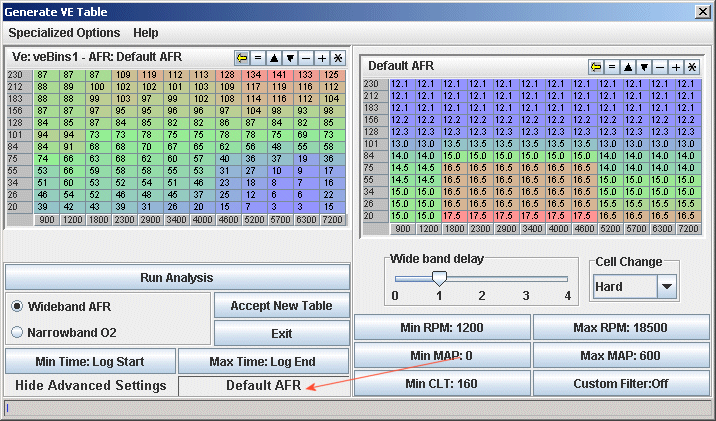

Okay. Upgraded to newest version of MLV and it has the Easy/Hard dropdown box along with the 12x12 Default AFR table.. Absolutely hate that I can't access the menu with the ALT key!
