New CL Boost control code for MS3/MS2 experiences?
#1
Elite Member
Thread Starter
Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,558
Total Cats: 105
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
@Brain and all MS3/MS2 users.
With the new code 3.0.3u they backported the boost control code from MS3 to MS2.
It is supposed to react better to changes in boost and to bring it to the target better.
I asked at MSextra.com how the tuning procedure changes and Ken answered the following:
You should still tune "P" first, but the number should be much lower than before... maybe 10% or so instead of in the 100's.
Then add enough I to get you to your target. However, when you add I, you'll probably start to overshoot. You'll probably have to double the P term once you start tuning I.
With P and I tuned, you should be overshooting slightly then leveling off right at the desired boost.
Does anyone (Brain?) have tried this already - (And what are your settings)? I have to tune my bost control anyway due to my new turbo so I would like to try the new code...
Thanks
Greets
Use a small amount of D term to compensate for that overshoot.
With the new code 3.0.3u they backported the boost control code from MS3 to MS2.
It is supposed to react better to changes in boost and to bring it to the target better.
I asked at MSextra.com how the tuning procedure changes and Ken answered the following:
You should still tune "P" first, but the number should be much lower than before... maybe 10% or so instead of in the 100's.
Then add enough I to get you to your target. However, when you add I, you'll probably start to overshoot. You'll probably have to double the P term once you start tuning I.
With P and I tuned, you should be overshooting slightly then leveling off right at the desired boost.
Does anyone (Brain?) have tried this already - (And what are your settings)? I have to tune my bost control anyway due to my new turbo so I would like to try the new code...
Thanks
Greets
Use a small amount of D term to compensate for that overshoot.
#3
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Shuiends got Ken (the developer of the code) to tune it pretty good. His final numbers were: P-23 I-33 D-20. He was confident he could get it better, but Shuiends thought it was good enough.
log targeting 170kPa: ftp://larssnead.com/megasquirt/dyno6.msl
For mine, I think I'm right around P-23 I-8 and I just starting tuning it yesterday. So I'm still fine tuning it, but I'm close:
![](http://www.boostedmiata.com/gallery2/d/11517-2/MSIII_PID_EBC.png)
that was on my drive in today, targeting 200kPa.
log targeting 170kPa: ftp://larssnead.com/megasquirt/dyno6.msl
For mine, I think I'm right around P-23 I-8 and I just starting tuning it yesterday. So I'm still fine tuning it, but I'm close:
![](http://www.boostedmiata.com/gallery2/d/11517-2/MSIII_PID_EBC.png)
that was on my drive in today, targeting 200kPa.
#4
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Im now at P-26 I-26 D-30
![](http://www.boostedmiata.com/gallery2/d/11839-1/blown_coupler.png)
Hopefully I don't need to fool with the settings beyond this. had to keep adding a little I each time to remove oscillation and then alter the P setting to still reach the boost target, then when i was happy with that I added D until it stopped spiking.
![](http://www.boostedmiata.com/gallery2/d/11839-1/blown_coupler.png)
Hopefully I don't need to fool with the settings beyond this. had to keep adding a little I each time to remove oscillation and then alter the P setting to still reach the boost target, then when i was happy with that I added D until it stopped spiking.
#8
Elite Member
Thread Starter
Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,558
Total Cats: 105
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
O.K. here are the results... of my first tuning attempts on the new boost control as posted on msextra.com
I just have the first (promising) results of this new boost control algorithm on 3.0.3u.
Settings:
P 23
I 27
D 8
Should be a 5th gear run from low rpm. Target 170kPa - overshoots a bit first but keeps within +/- 3 kPa.

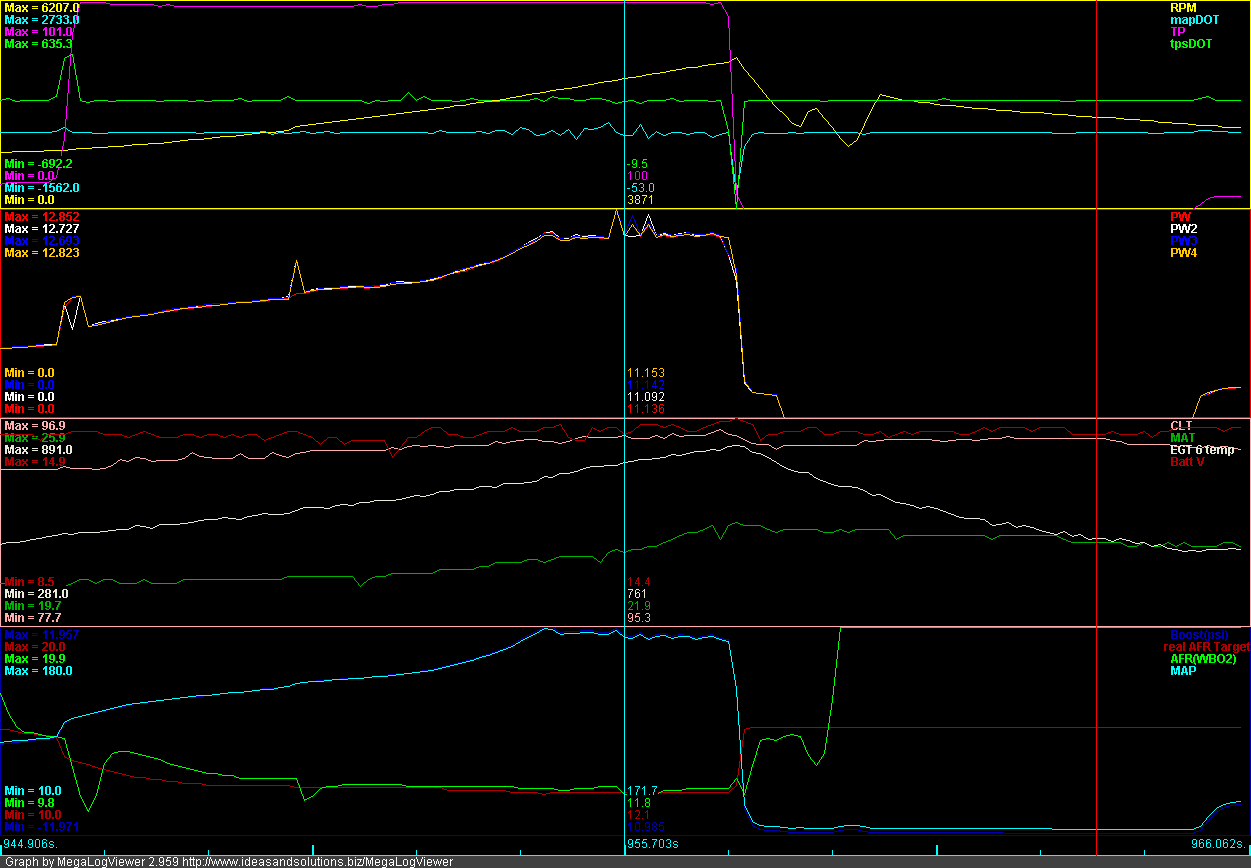

![](http://www.ingenieure-reichel.de/upload/MS/graph_BC_220610_1.jpg)
3rd gear to target, shift, 4th gear

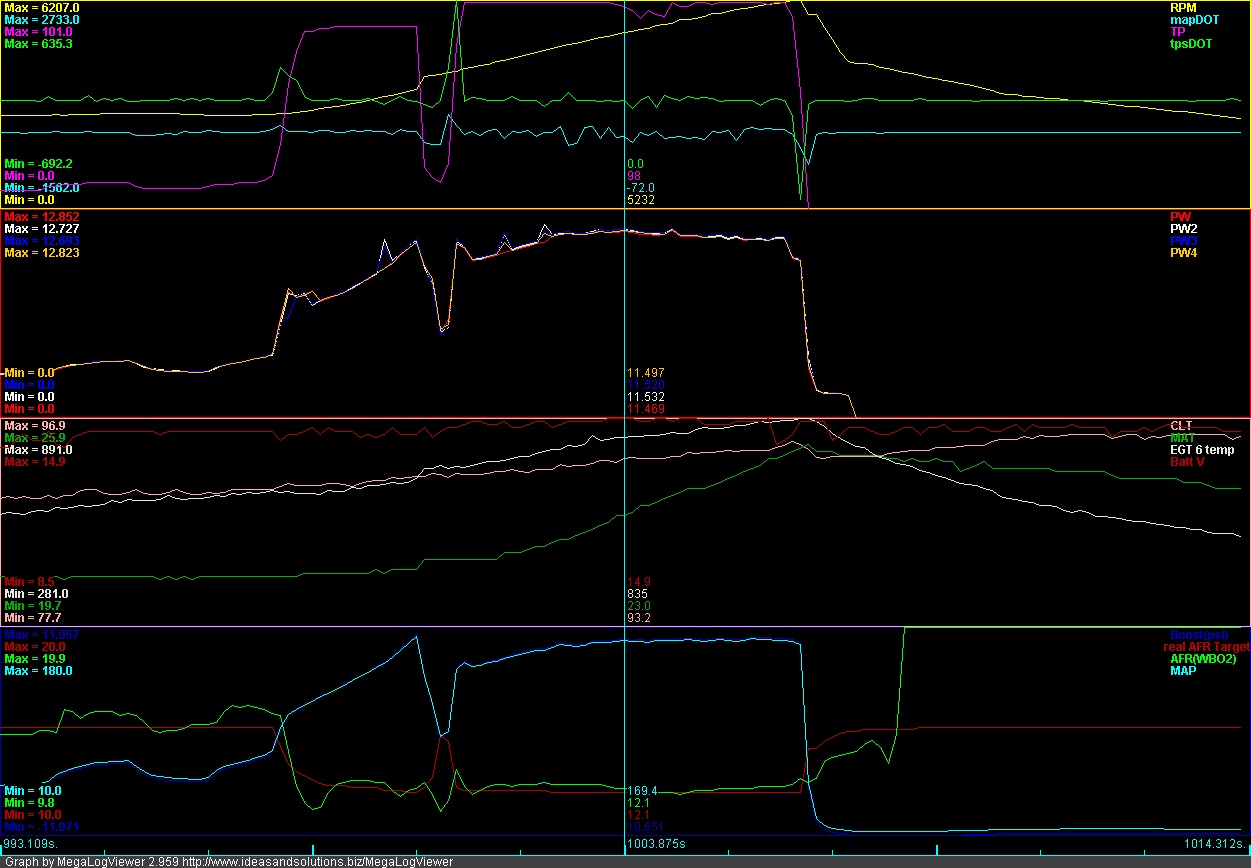

![](http://www.ingenieure-reichel.de/upload/MS/graph_BC_220610_2.jpg)
Nice flat line just a tad (~ 0.5 kPa ! ) under the target.
Just thought I share this as this thread came up.
Spool seems to be a bit slower than with open loop control last year.
Any suggestions what to change for a little better spool and a little less overshoot when boost is rising slow and constant?
Greets
I just have the first (promising) results of this new boost control algorithm on 3.0.3u.
Settings:
P 23
I 27
D 8
Should be a 5th gear run from low rpm. Target 170kPa - overshoots a bit first but keeps within +/- 3 kPa.
![](http://www.ingenieure-reichel.de/upload/MS/graph_BC_220610_1.jpg)
3rd gear to target, shift, 4th gear
![](http://www.ingenieure-reichel.de/upload/MS/graph_BC_220610_2.jpg)
Nice flat line just a tad (~ 0.5 kPa ! ) under the target.
Just thought I share this as this thread came up.
Spool seems to be a bit slower than with open loop control last year.
Any suggestions what to change for a little better spool and a little less overshoot when boost is rising slow and constant?
Greets
