94 1.8l with MS PNP, 2000 heads adjustable timing gears, COP ignition, header, naturally aspirated
The issue is that i have an AEM wideband that was already installed in the car when i bought it. When i began tuning i set up my project properties wrong
The lambda settings were for a "TECH EDGE sensor @ 1-5v 19:1 afr"
ive been tuning the car like this forever and the gauge in TS always was right on with my physical aem gauge in the car.
Just realized the newer settings in project properties for the:
AEM Uego/linear 30-42xx and...
AEM uego legacy aem 30-230x
Honestly i have no idea what aem sensor i have they all look the same and its been installed in the car at least 2 years ago maybe if that helps
I selected the AEM uego linear 30-42xx and rebooted
It changed all of my AFR's to 10.00
Is this voltage? why is it now rounded out to hundredth's ie.-> 15.19 when i type a 15.20

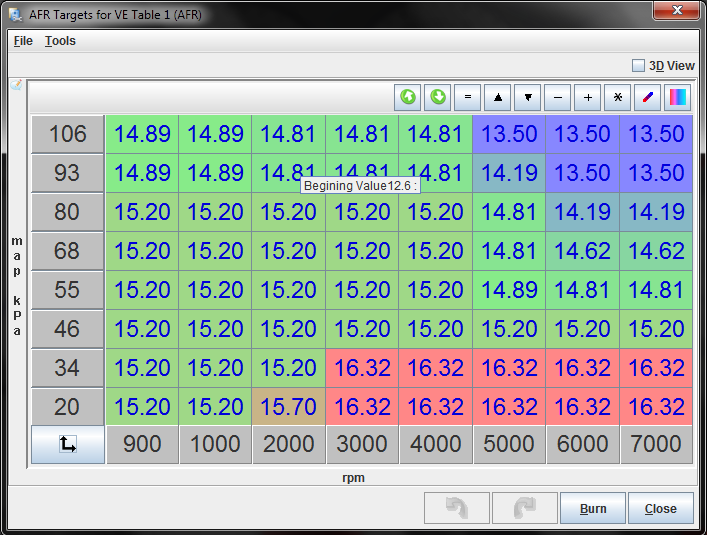

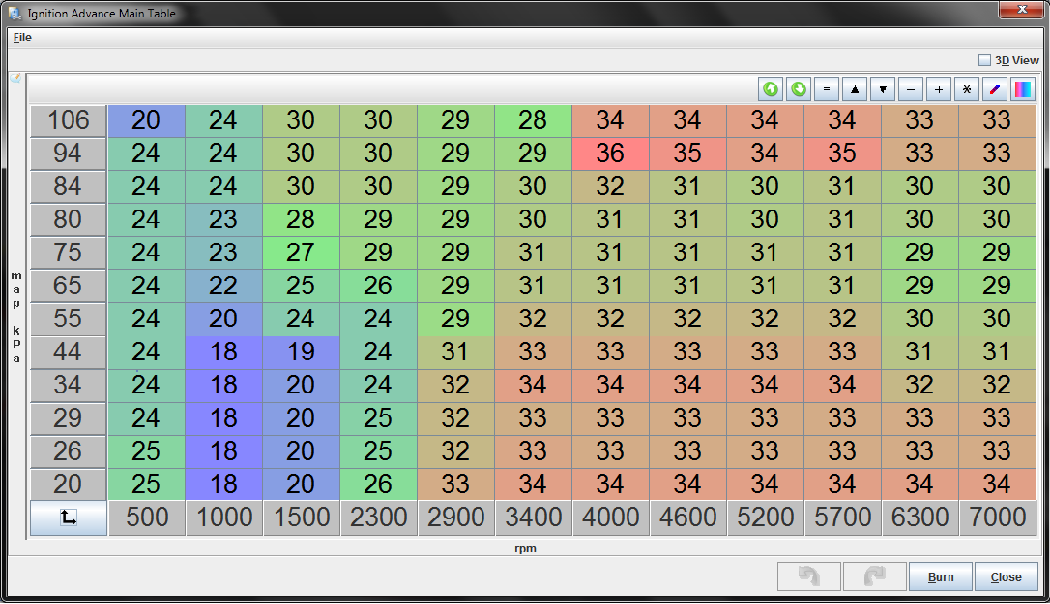

Here is my AFR and Spark table....can you guys take a look at it and see if im headed in the right direction?
Ive only been into tuning for about 2-3 months i have learned a lot but im not as good as anybody on here
![N/A 1.8...changing project properties & outputs ??-zackafrtable.png](https://www.miataturbo.net/attachments/megasquirt-18/102539d1467840244t-n-1-8-changing-project-properties-outputs-zackafrtable.png)
The issue is that i have an AEM wideband that was already installed in the car when i bought it. When i began tuning i set up my project properties wrong
The lambda settings were for a "TECH EDGE sensor @ 1-5v 19:1 afr"
ive been tuning the car like this forever and the gauge in TS always was right on with my physical aem gauge in the car.
Just realized the newer settings in project properties for the:
AEM Uego/linear 30-42xx and...
AEM uego legacy aem 30-230x
Honestly i have no idea what aem sensor i have they all look the same and its been installed in the car at least 2 years ago maybe if that helps
I selected the AEM uego linear 30-42xx and rebooted
It changed all of my AFR's to 10.00
Is this voltage? why is it now rounded out to hundredth's ie.-> 15.19 when i type a 15.20
Here is my AFR and Spark table....can you guys take a look at it and see if im headed in the right direction?
Ive only been into tuning for about 2-3 months i have learned a lot but im not as good as anybody on here
![N/A 1.8...changing project properties & outputs ??-zackafrtable.png](https://www.miataturbo.net/attachments/megasquirt-18/102539d1467840244t-n-1-8-changing-project-properties-outputs-zackafrtable.png)
![N/A 1.8...changing project properties & outputs ??-zackssparktable.png](https://www.miataturbo.net/attachments/megasquirt-18/102540d1467840244t-n-1-8-changing-project-properties-outputs-zackssparktable.png)
