"MSnS-extra format 029q..." error
#1
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
http://i44.tinypic.com/280jiht.jpg
Car: 95R, brain's build
I'm throwing this code up when I start the car. The car is NA at the moment, because I want to get this running before I start dismantling things. I can start the car, but megatune is not working right. I followed brain's instructions, which is similar to the one in the miataturbo wiki. The only thing I didn't do is "flash the file" (step 2). This is confusing because brain's instruction does not mention this, yet the miata wiki does. Brain's instructions mention copying the ".inc" files into my project's MTCFG folder, but the link no longer works. My com port is checked and working. Please help me make progress in my build!
Car: 95R, brain's build
I'm throwing this code up when I start the car. The car is NA at the moment, because I want to get this running before I start dismantling things. I can start the car, but megatune is not working right. I followed brain's instructions, which is similar to the one in the miataturbo wiki. The only thing I didn't do is "flash the file" (step 2). This is confusing because brain's instruction does not mention this, yet the miata wiki does. Brain's instructions mention copying the ".inc" files into my project's MTCFG folder, but the link no longer works. My com port is checked and working. Please help me make progress in my build!
Last edited by popopopop; 06-12-2009 at 06:57 PM.
#3
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
no you dont. it should have been flashed, you dont to activate HR_10g firmware, should be in that writeup.
download these two files: Index of /MS/msq/firmware
to c:\ program files\ megatune\ megatune2.25\mtcfg
open up megasquirt configurator

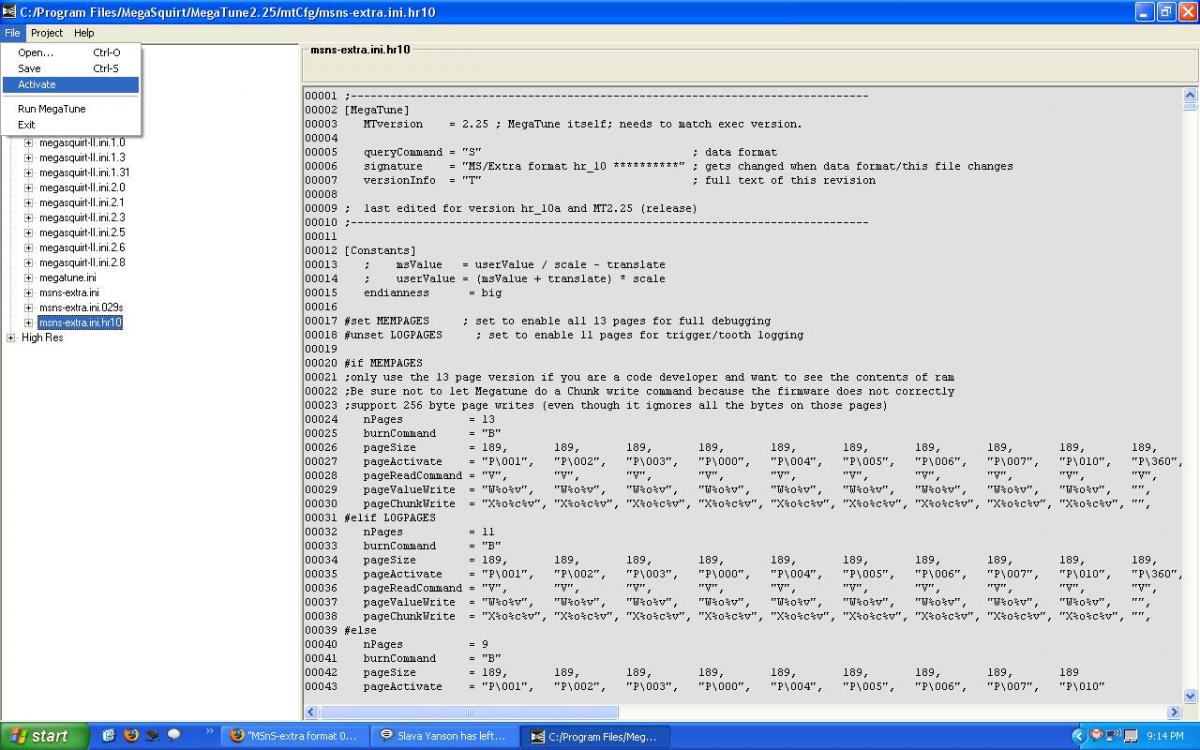

under megatune 2.25 highlight the last ini file, msns-extra.hr.10g then go to file activate.
save, then open MT and try again.
download these two files: Index of /MS/msq/firmware
to c:\ program files\ megatune\ megatune2.25\mtcfg
open up megasquirt configurator
under megatune 2.25 highlight the last ini file, msns-extra.hr.10g then go to file activate.
save, then open MT and try again.
#4
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Glad you're here Brain! It didn't work sadly. If it helps, this is what's under file-> Msq info...
File Name MT Ver MegaSquirt Signature
1 MegaLogViewer/Example-extra_29q.msq 4.00 MSnS-extra format 029q *********
2 MSPNP MM9093 without AFM/default_files/default-degC.msq 4.00 MSnS-extra format 029q *********
3 MSPNP MM9093 without AFM/default_files/default-degF.msq 4.00 MSnS-extra format 029q *********
4 MSPNP MM9093 without AFM/hr_10g/default_files/default-degC.msq 4.00 MS/Extra format hr_10 **********
5 MSPNP MM9093 without AFM/hr_10g/default_files/Default-degF.msq 4.00 MS/Extra format hr_10 **********
6 MSPNP MM9093 without AFM/MSPNP_MM9093_Base_Map_112807 - no AFM.msq 4.00 MSnS-extra format 029q *********
Note: Version 4.00 files are portable XML.
File Name MT Ver MegaSquirt Signature
1 MegaLogViewer/Example-extra_29q.msq 4.00 MSnS-extra format 029q *********
2 MSPNP MM9093 without AFM/default_files/default-degC.msq 4.00 MSnS-extra format 029q *********
3 MSPNP MM9093 without AFM/default_files/default-degF.msq 4.00 MSnS-extra format 029q *********
4 MSPNP MM9093 without AFM/hr_10g/default_files/default-degC.msq 4.00 MS/Extra format hr_10 **********
5 MSPNP MM9093 without AFM/hr_10g/default_files/Default-degF.msq 4.00 MS/Extra format hr_10 **********
6 MSPNP MM9093 without AFM/MSPNP_MM9093_Base_Map_112807 - no AFM.msq 4.00 MSnS-extra format 029q *********
Note: Version 4.00 files are portable XML.
#5
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
that doesnt mean anything, that's the files youve ever loaded into MT not the MS.
open MS Downloader, should be in the megatune folder on the start menu.
now go to file read signature (after selecting the com port and speed), what does that say?
open MS Downloader, should be in the megatune folder on the start menu.
now go to file read signature (after selecting the com port and speed), what does that say?
#6
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Huh, to get it to work, I have to open the msq file in the "90-93 no afm" folder first, before I turn the car on. If I try just opening megatune normally, I get the above message.
This is what I get when I use the MSPNP_MM9093_Base_Map_112807 - no AFM.msq in the folder.
http://i40.tinypic.com/dwb5nt.jpg
Hitting yes just tells me it can't communicate to the controller.
This is what I get when I use the MSPNP_MM9093_Base_Map_112807 - no AFM.msq in the folder.
http://i40.tinypic.com/dwb5nt.jpg
Hitting yes just tells me it can't communicate to the controller.
#9
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I set up at 9600, on my com 2 port which is the port ms is reading off of. I get this in the Download...
MegaSquirt Download 2.00
Failed:
Could not open comm port 2.
Exception caught: 2
No signature available, possibly could not connect properly.
MegaSquirt Download 2.00
Failed:
Could not open comm port 2.
Exception caught: 2
No signature available, possibly could not connect properly.
#10
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
http://i42.tinypic.com/ilelmv.jpg
This is what I get if I click on the basemap in the project folder first.
This is what I get if I click on the basemap in the project folder first.
#11
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
^I can get the above with using megatune normally now! The only catch is that I have to open megatune, get the error in the OP, then turn the ignition to ON. My MS Download says...
Opened comm port 2 at 9600.
Reading signature:
Signature: "MS/Extra format hr_10 **********"
???? Slow progress, but progress.
Opened comm port 2 at 9600.
Reading signature:
Signature: "MS/Extra format hr_10 **********"
???? Slow progress, but progress.
#12
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
ok we are back to your first error.
your MS is loaded with hr_10 code, but your software is looking for 029q.
once you download the two files and activate the code, you should not get that error. furthermore, the MS had a basemap on it. once connected and you go to file open and choose another, you lost what I loaded it with.
once you get it to connect without the error, you should start with the attached map.
your MS is loaded with hr_10 code, but your software is looking for 029q.
once you download the two files and activate the code, you should not get that error. furthermore, the MS had a basemap on it. once connected and you go to file open and choose another, you lost what I loaded it with.
once you get it to connect without the error, you should start with the attached map.
#13
Junior Member
Thread Starter
Join Date: Apr 2008
Location: Dallas metroplex
Posts: 141
Total Cats: -1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
You've been veryyyyyyyy patient with me Brain, I appreciate it. I redid what you told me with those two files, and start megatune up and hit activate. This is what my config looks like if it makes a difference. I have that MSnS.ini and MS_ECU.ini under the .hr10 from day one.
http://i43.tinypic.com/2jahsed.jpg
http://i43.tinypic.com/2jahsed.jpg
