Default MS3 no-sync 60-2 wheel + cam sensor

Finally finished wiring my MS3 + DIYBOB in my 1994.
Have VR+pullup for crank sensor, sawed off CAS with pullup for cam.
Tested MS3 sees sensor inputs with JimStim.

Using CNP with DIYAutoTune IGN-1A coils. Coils we tested with MS3.

No trigger/no sync, etc in vehicle. The ignition logger runs but stays blank. I know the crank sensor and cas work, or at least they did - had been using it with my TEC3.

Some sensors work - MAP, TPS, coolant, air temp.
I don't hear the fuel pump come on. Probably because no crank, right?

What is the best way to go about diagnosing this? Scope the best way? Haven't got one at home, I can borrow one from work. Anything I can try without a scope?
Old 11-13-2011 | 06:49 PM
  #2
Ben's Avatar
Ben
Supporting Vendor
iTrader: (33)

Joined: Jul 2006
Posts: 12,659
Total Cats: 134
From: atlanta-ish
Default

I've never seen a TEC EMS that used a hall effect CKP sensor. Sounds like you set up the CKP input circuit incorrectly. IOW, you need to set up your CKP input for VR.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Old 11-13-2011 | 08:40 PM
  #3
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

What is CKP? My FSM refers to the Crankshaft Positioner Sensor signals as SGC and SGT. SGC has 2 pulses per revolution and SGT has 4 pulses.

The TEC3 used a 60-2 wheel with VR for the crank. I used a miata CAS (hall) with with a sawed off arm for sequential for the TEC3. (SGC)

So I set up the MS3 for VR+pullup for the crank. I'm using the SGC signal on CAS (sawed off) for the CAM signal. I am not using the SGT signal.

I get no signals at all on the ignition logger.
Old 11-14-2011 | 09:58 PM
  #4
Ben's Avatar
Ben
Supporting Vendor
iTrader: (33)

Joined: Jul 2006
Posts: 12,659
Total Cats: 134
From: atlanta-ish
Default

Originally Posted by SlowRider
What is CKP?
CKP sensor

Originally Posted by SlowRider
The TEC3 used a 60-2 wheel with VR for the crank.
Right.

Originally Posted by SlowRider
So I set up the MS3 for VR+pullup for the crank.
Why did you set up your input for a hall sensor when you have a VR sensor?

So in other words...
Originally Posted by Ben
Sounds like you set up the CKP input circuit incorrectly. IOW, you need to set up your CKP input for VR.
You're not going to get a tach input signal until you fix this. Here is what you need to do (I'm assuming you built a V3.0)...

V3.0 board - VR Input
a) Solder a link between VRIN and TACHSELECT
b) Solder a wire between VrOUT and TSEL
c) With a small screwdriver, turn the pots, R52 and R56, about 12 turns to the fully anticlockwise position (you may feel a "click" when the end position is reached, they can't be damaged by turning too far.) This sets them up for most VR sensors.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Old 11-14-2011 | 10:17 PM
  #5
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Are you saying that VR+pullup = hall ?
That was not real obvious in the documentation. Clearly I missed it.

So I need to clip the pullup. Funny, that was my original configuration. No trigger there either. Maybe I did not have the pots set right.

Thanks
-Bruce
Old 11-18-2011 | 09:54 AM
  #6
Joe Perez's Avatar
Boost Pope
iTrader: (8)

Joined: Sep 2005
Posts: 33,556
Total Cats: 6,933
From: Chicago. (The less-murder part.)
Default

Originally Posted by SlowRider
Are you saying that VR+pullup = hall ?
Any hall sensor (or any sensor with an open-collector output, for that matter) requires a pullup. Pure VR sensor, by comparison, generate a voltage all by themselves.

Technically, the circuit Ben is pointing you to was originally designed to take a VR sensor, however if you apply a pullup at the front end and adjust the zero-crossing pot to near the top of the range (such it's providing a bias of greater than 2 volts to the (+) input of the op-amp) then that circuit can also work with a hall-type sensor.
Old 11-19-2011 | 02:39 PM
  #7
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Still no VR output. Got a USB scope, I'll take a look at it this afternoon.

I'm not sure I've wired everything right. Everything checked out on my JimStim.

At key on, is the fuel pump supposed to go on? My TEC3 always fired up the fuel pump at key on.

My fuel pump doesn't turn on at key on. I understand that the fuel pump should go off if the ecu had not received any crank pulses for some time.

What signals are required at key on for the fuel pump to come on?
Old 11-20-2011 | 07:19 PM
  #8
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Scoped the Sensor output. +/- 400 mV during crank. Nothing out of the VR circuit. Probed the circuit to find out what was wrong.

I went to probe the circuit at R47. It wasn't there. Assembly error... Spent 20 minutes looking for resistor. Actually found it. Then freaking lost it in the garage. Spent another 10 minutes looking for the tiny plastic bag. Finally soldered in the resistor.

Too dark to connect everything together in the driveway - hope to fire it up tomorrow.
Old 11-21-2011 | 04:07 PM
  #9
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Gahhh... This has been painful. Finally got the VR to trigger. Had to use a scope to set the trigger point. Standard setpoint did not work - it was too low. Had to raise it so I'd get crank.

CAM does not seem to trigger. Jumper JP7 for pullup is in.

When I turn the pot R11, the voltage at the ZC test pad does not change. Is that normal? That is not the way the circuit behaved on the V3.0 board.

What could cause a fixed (80mV) output at ZC?
Old 11-27-2011 | 02:36 PM
  #10
Chiburbian's Avatar
Elite Member
iTrader: (1)

Joined: Feb 2008
Posts: 2,331
Total Cats: 203
From: Loganville, GA
Default

Any update? I think I might be having the same problem.
Old 11-27-2011 | 03:25 PM
  #11
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

I seem to not have sync errors. Had a lot of operator errors, including how to run usb scope. usb scope is a lot harder and slower than a real scope.

What kind of problem? no cam/cas or?
Old 11-27-2011 | 03:59 PM
  #12
Chiburbian's Avatar
Elite Member
iTrader: (1)

Joined: Feb 2008
Posts: 2,331
Total Cats: 203
From: Loganville, GA
Default

No Cam. Lots of operator errors on my part as well. I will be checking my wiring soon to see if its just a missing signal or ground. I am just so frustrated I needed to take some time off. I was hoping you found something that was simple/easy to fix.
Old 11-27-2011 | 04:55 PM
  #13
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Well I know how you feel. Been screwing with this for a week now. My other thread needs a title change to NO Start, rather than first start.

Do you have the pull up on the CAM signal? There is a jumper on the ms3x that you install. I think it is there by default. Nothing on the tooth logger?

I used a scope to make sure the CAS signal was at the ms3x input. Is there a signal at input?

Have a JimStim? That simplifies things.
Old 11-27-2011 | 09:09 PM
  #14
Joe Perez's Avatar
Boost Pope
iTrader: (8)

Joined: Sep 2005
Posts: 33,556
Total Cats: 6,933
From: Chicago. (The less-murder part.)
Default

Late to the party again...

Originally Posted by SlowRider
Had to use a scope to set the trigger point. Standard setpoint did not work - it was too low.
I had the same problem on Emilo's new car. They'd set it by the book, but the actual voltage at the opamp was under 1v.

Regarding the earlier question about the ZC pad:



Not much that could prevent this from working properly apart from a bad connection, a missing part, or a shorted Q1 / U7.

You could try probing at the base of Q1 just to be sure that you are getting a voltage out of R11. It's the pin labeled B:




80mv doesn't make any sense- the VBE on a MMBT2907A would be in he hundreds of millivolts.

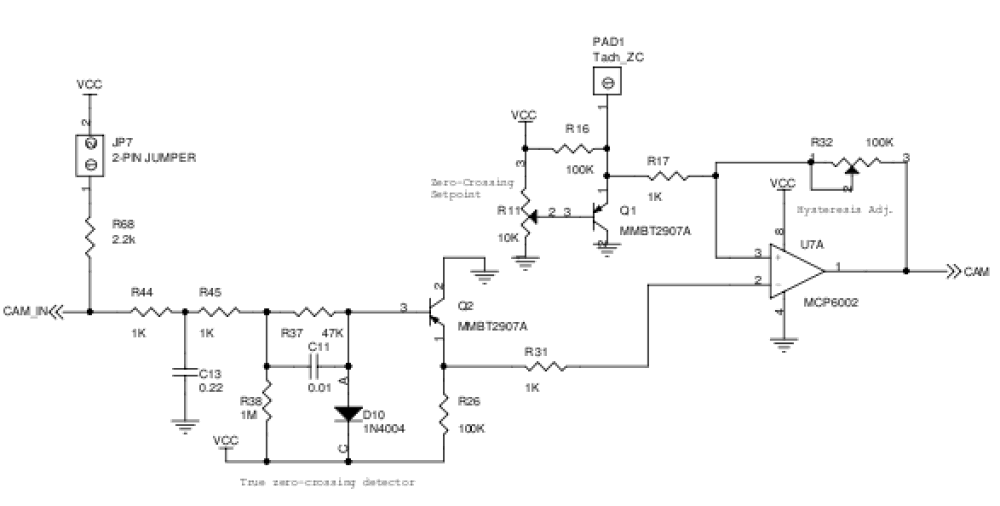

Attached Thumbnails MS3 no-sync 60-2 wheel + cam sensor-pza05.gif   MS3 no-sync 60-2 wheel + cam sensor-jmluy.gif
Old 11-28-2011 | 11:21 AM
  #15
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Joe, just measured 2.00 V at the base of the transistor. Only 80mV at the output ZC TP. Measured with a digital VOM. The 80mV measurement is the same as when I measured with the crummy usb scope. Bad transistor? Anything else I could measure? Should I set the voltage higher?
Old 11-28-2011 | 11:34 AM
  #16
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Funny thing though, sometimes ZC measures 2.69V, with a base of 2.04V, which gives a decent Vbe. After starting, it seems to latch up and give ZC=50-80mV. Is this probably U7 latchup? I don't think I've seen such a simple transistor behave this way. When I get CAM activity it tries to start. No cam, no start.

What do I change? Where to find parts?
Old 11-28-2011 | 11:52 AM
  #17
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Hmm, the key was to fiddle with hysteresis. I just moved it a little bit, and the system changed state. Then I reset the R11 pot and ZC started moving. Beats me why it works that way... Have big cam signal now...
Old 11-28-2011 | 12:23 PM
  #18
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

is it syncing now?
Old 11-28-2011 | 12:36 PM
  #19
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

My other thread has the ignition log. I'll attach it here too.

Where is the rising (or falling edge) supposed to be for the cam? 120 degrees before TDC? Which way should I rotate the cas?

CAM signal out is not reliable... some logs show it stuck low in weird places.
I have no GD idea how to set this CAM signal properly...
Attached Files
File Type: csv
2011-11-28_10.47.48.csv (125.5 KB, 142 views)

Last edited by SlowRider; 11-28-2011 at 01:20 PM. Reason: update to note cam not reliable...
Old 11-28-2011 | 05:05 PM
  #20
SlowRider's Avatar
Thread Starter
Junior Member

Joined: Dec 2006
Posts: 114
Total Cats: 1
From: NH
Default

Originally Posted by Braineack
is it syncing now?
Only at some rpms! low 957 and 5555 rpm ok on JimStm, 1468 I lose sync.
Maybe it is a bad pot on the JimStim? 2590 rpm is no good too.

WTF? I have a probe on the CAM output signal - looks ok. As does the VR signal.
