MS2/Extra 3.3.3 Very Odd isue with boost control initial duty table
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So I Took the plundge into closed loop boost controll tuning and at this point i belive i have a solid understanding of most of it.
However there is this extreamly odd issue i have been running inot with this Initial duty table

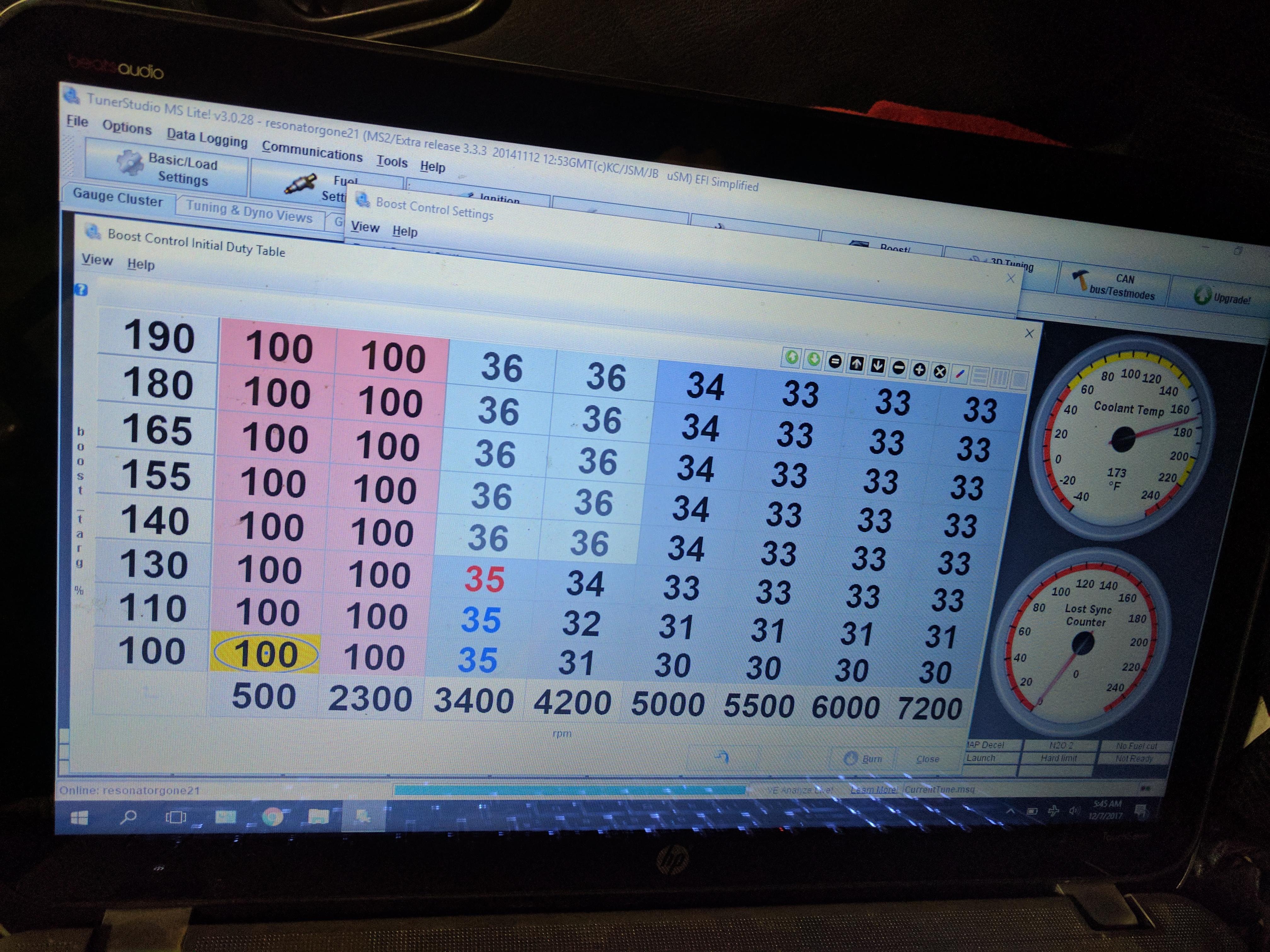

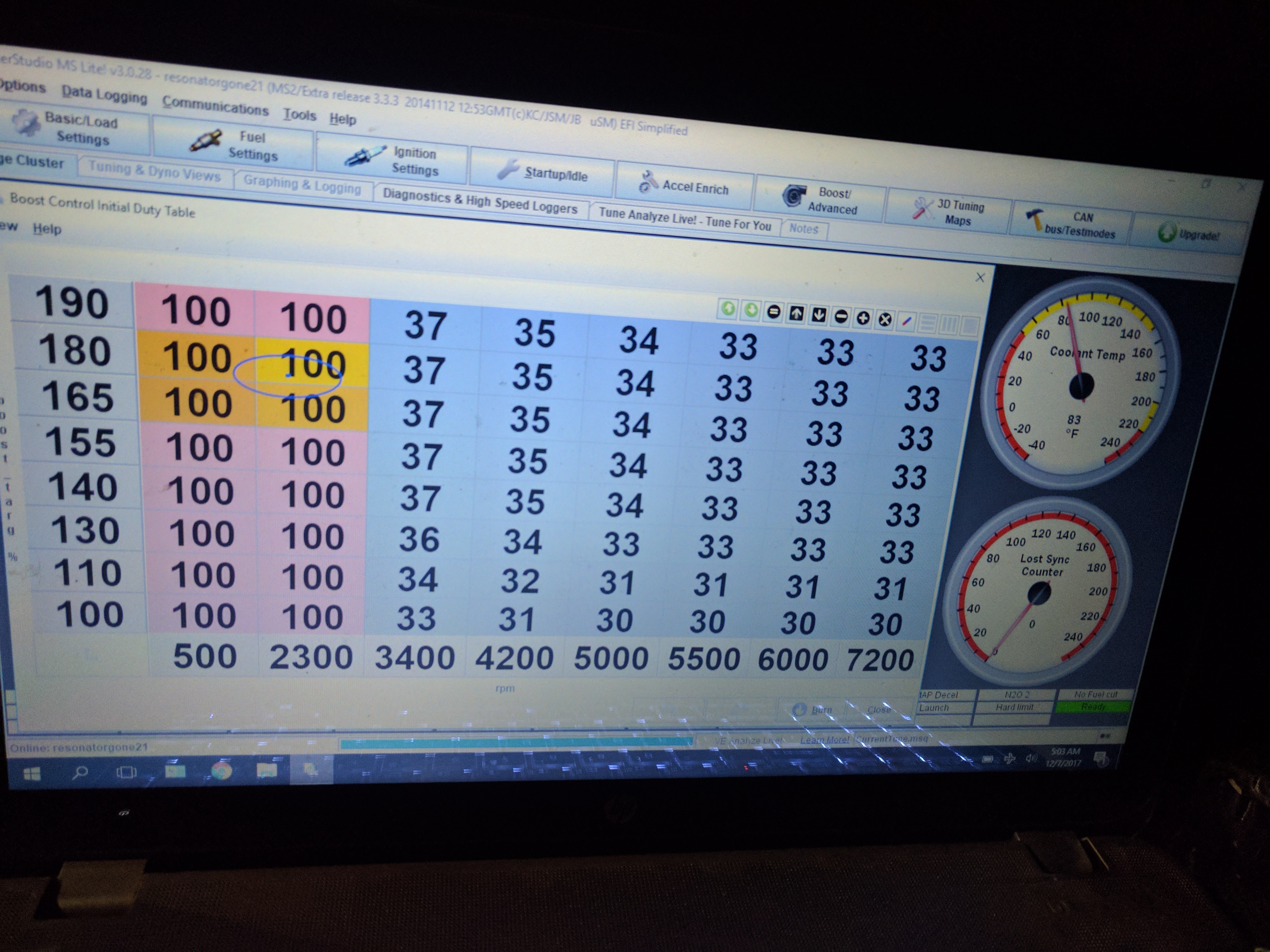

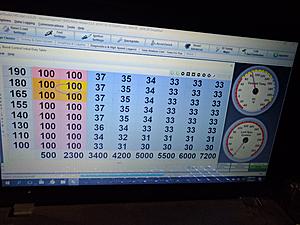

The Y Axis looks to be lableed boost in kpa and the X axis is RPM. Now what is super odd here is that the table will move along rpm but will not chnage with boost pressure
When the car is on it sits at 180ish and when the car is off it sits at the bottom
it moves just fine alog rpm just no boost
i have adached some pictures and my tune as well
currently the table is set to ignore boost rpessure because it dosent work so its just by rpm at this point
However there is this extreamly odd issue i have been running inot with this Initial duty table
The Y Axis looks to be lableed boost in kpa and the X axis is RPM. Now what is super odd here is that the table will move along rpm but will not chnage with boost pressure
When the car is on it sits at 180ish and when the car is off it sits at the bottom
it moves just fine alog rpm just no boost
i have adached some pictures and my tune as well
currently the table is set to ignore boost rpessure because it dosent work so its just by rpm at this point
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Here is my current tune along wiht the data log of what its doing
the tune may be back on open loop for the drive home but the closed loop setings should be there
still i find it really odd that my ecu reads boost presure just fine everywhere but this one tabe lol
the tune may be back on open loop for the drive home but the closed loop setings should be there
still i find it really odd that my ecu reads boost presure just fine everywhere but this one tabe lol
Last edited by Cspit24; 12-13-2017 at 12:25 AM.
