Default Megasquirt 1 no spark, 94 Miata

First of all, this is a first time install for a Megasquirt for me, and finished the assembly last weekend. I have the MS1/ver 3.0 which I assembled from scratch. I had updated the firmware to 029y4a and am running MS1-Extra. I plan to run it full standalone with fuel and spark.

I ran TunerStudio and loaded the basemap from DIYautotune (usdm-mazda-miata-9495-18bp-mt-sequential-3.0.3.msq).

Last weekend, I tried starting the car and it failed to start. I pulled the plug and verified there was no spark. I swapped back to the stock ECU and things worked just fine. I also noticed there was no tach signal in Tunerstudio nor my real tach. The LEDs D14, D16 were also solid as I plugged it in w/o even turning the ignition on... Not sure whether thats normal. According to megalogviewer, there's no spark or injector signals. I have attached the log.

When I built it, I verified everything was working with the stim. It passed all the tests with flying colors. One thing I noticed is the tach more or less stopped working when I loaded the base map from DIYAutotune. I noticed I could enable it to work by disabling "generic wheel", but thought that was normal as the stim cant simulate that sort of signal.

I also didn't have the stock MAF connected and was planning on using the Narrow band for now just to keep things simple. But figured the car would at least start, and the disconnected MAF shouldn't affect the idle circuit to affect starting.

I also built the MS with all the usual mods: PWM IAC/TIP120, Relay Mod and followed the DIYAutotune directions for the MSns-E Input mods, as well as the directions to to Trigger spark via the Stock Ignitors, per How to MegaSquirt your Mazda Miata.

One thing I'm not 100% sure about is the harness, so I pieced together things I found on the web. Maybe someone here has one? I can certainly provide a diagram if thats whats needed next.

It'd be great at this point just to narrow things down.!!!
Attached Files
File Type: msl
Old 01-14-2014 | 09:19 AM
  #2
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

post pics of your board mods and how you built the harness.
Old 01-14-2014 | 12:19 PM
  #3
Chiburbian's Avatar
Elite Member
iTrader: (1)

Joined: Feb 2008
Posts: 2,331
Total Cats: 203
From: Loganville, GA
Default

It sounds like your crankshaft/cam position sensors are either not wired correctly, your setup on your MS isn't configured properly, or something is off in software. I'd stick with the decoder specified in the DIYautotune map. The problem is that the stim was proving that your MS worked if it was fed a proper tach signal. Now you just need to figure out why the tach signal isn't getting to the MS.

If you have the car apart, i'd recommend making sure that you have all of the grounds wired up. Some people get by without them (running only the one the stock ECU uses) but I have seen people have problems if they don't run a couple dedicated grounds to the engine block. At the very least it won't hurt.
Old 01-14-2014 | 03:15 PM
  #4
ScottyP3821's Avatar
Senior Member
iTrader: (2)

Joined: Jun 2012
Posts: 1,153
Total Cats: 50
From: Texas
Default

I bet it has something to do with those potentiometers not getting crank signal. Search around an make sure you have them adjusted correctly.
Old 01-14-2014 | 03:20 PM
  #5
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

Originally Posted by ScottyP3821
I bet it has something to do with those potentiometers not getting crank signal. Search around an make sure you have them adjusted correctly.
vr circuit shouldn't even be used if he followed the mods in that link...
Old 01-14-2014 | 03:28 PM
  #6
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Yeah, point noted about the dedicated grounds and ground to the engine block for less voltage drop and generally better accuracy as I have read. Right now I am grounding just to the harness connector, but figure that should at least provide spark. (see diagram). I'd figure the basemap would also have good decoder settings.

Is it normal to lose tach when you turn the decoder signal to "generic wheel" when using the stim?

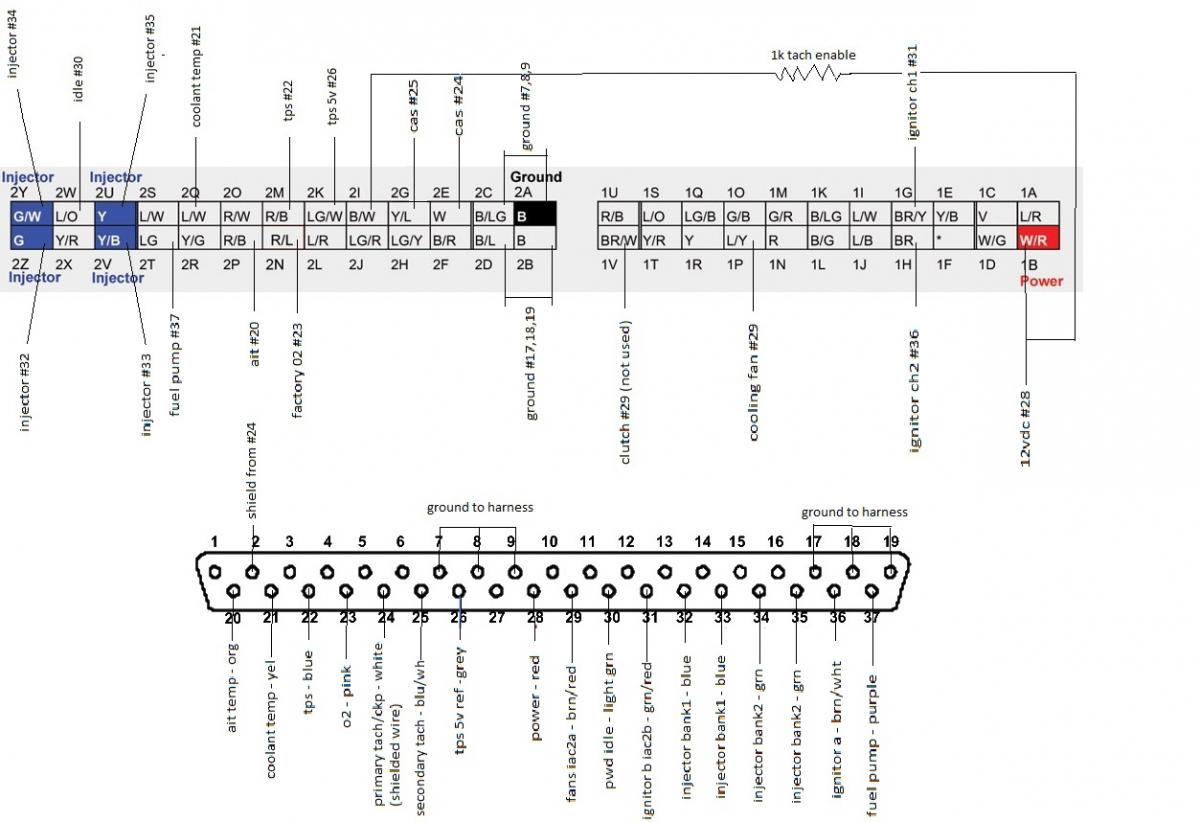

Let me know if you guys see something wrong about this diagram. I'll post pictures of the mods later.

Attached Thumbnails Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-cars-691-picture-byu-standalone-harness-3577.jpg
Old 01-14-2014 | 03:29 PM
  #7
ScottyP3821's Avatar
Senior Member
iTrader: (2)

Joined: Jun 2012
Posts: 1,153
Total Cats: 50
From: Texas
Default

Originally Posted by Braineack
vr circuit shouldn't even be used if he followed the mods in that link...
I didn't follow the link OP ignore me but remember this no MS that Ive encountered runs good on a Narrowband. Make sure when you start tuning to get a wideband
Old 01-14-2014 | 03:57 PM
  #8
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Yeah, I ignored the VR circuit and just built the hall circuit also cross referencing Braineack's modified diagram to make sure I was on track.
Yes, switching to Wideband soon for sure.
Old 01-15-2014 | 05:42 AM
  #9
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

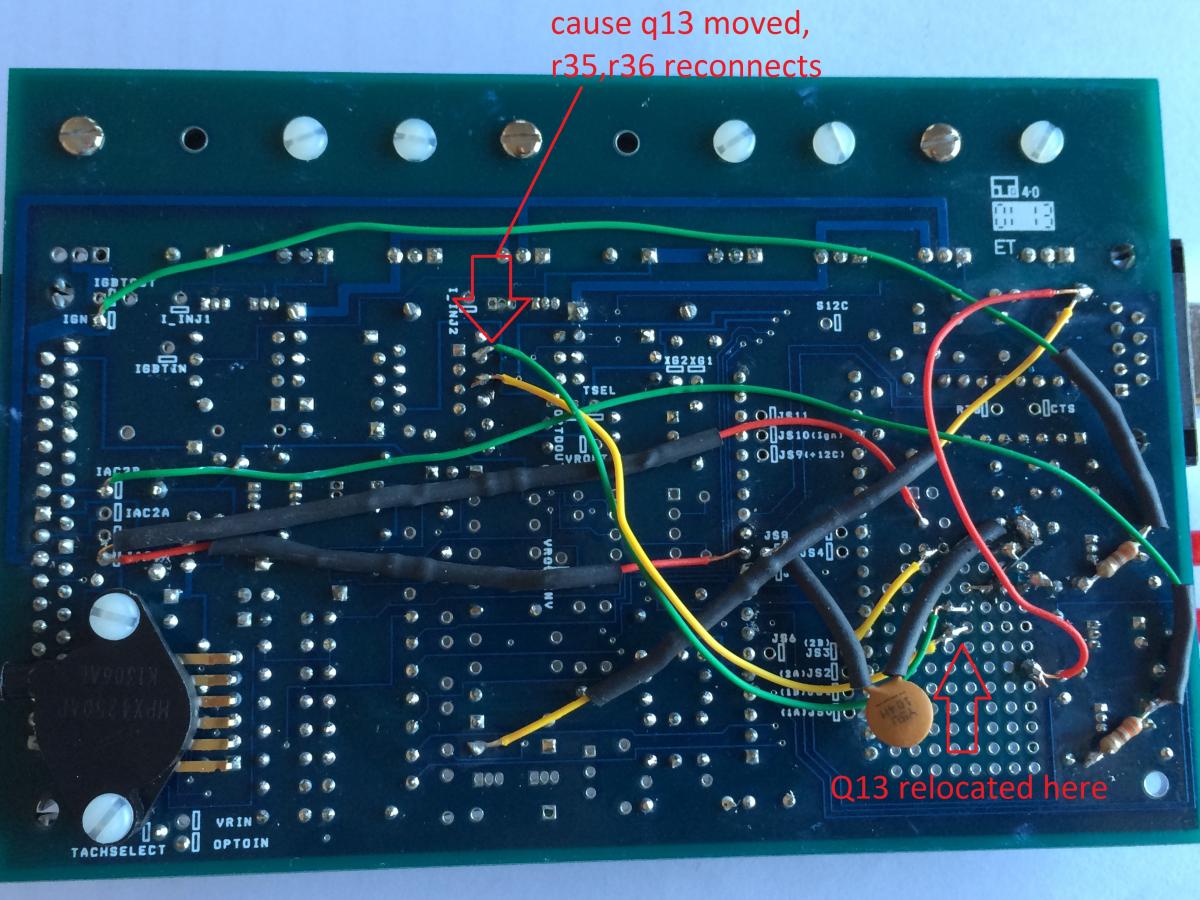

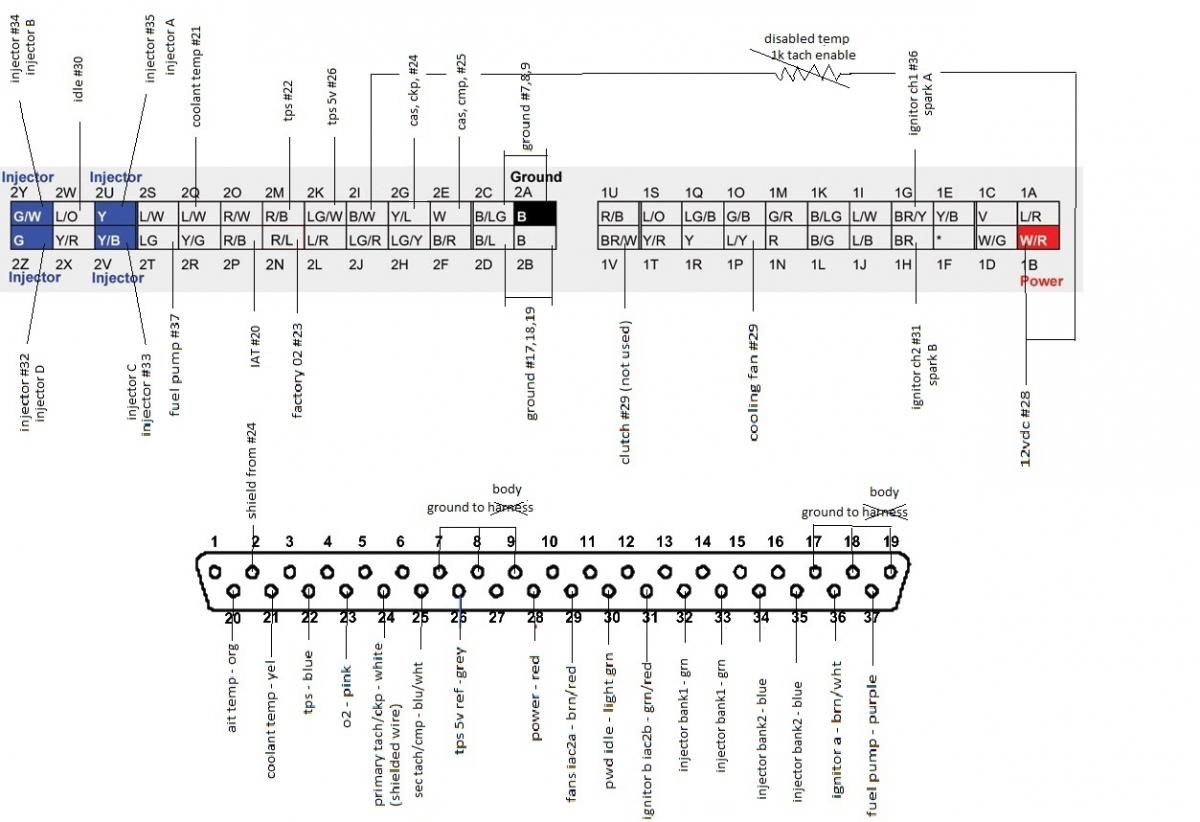

Scrap that previous diagram, believe I found some issues with the cas signals. Updated it here, as well as swapping the ignitor wires. Also created ground wires to body just near ecu instead of just relying on harness grounds. Same situation though... no spark :(



Here's my mods. Please note, that I had to relocate Q13 to the prototype area as I jacked up the solder pads. I believe its
part of the PWM flyback circuit, which should not affect spark.

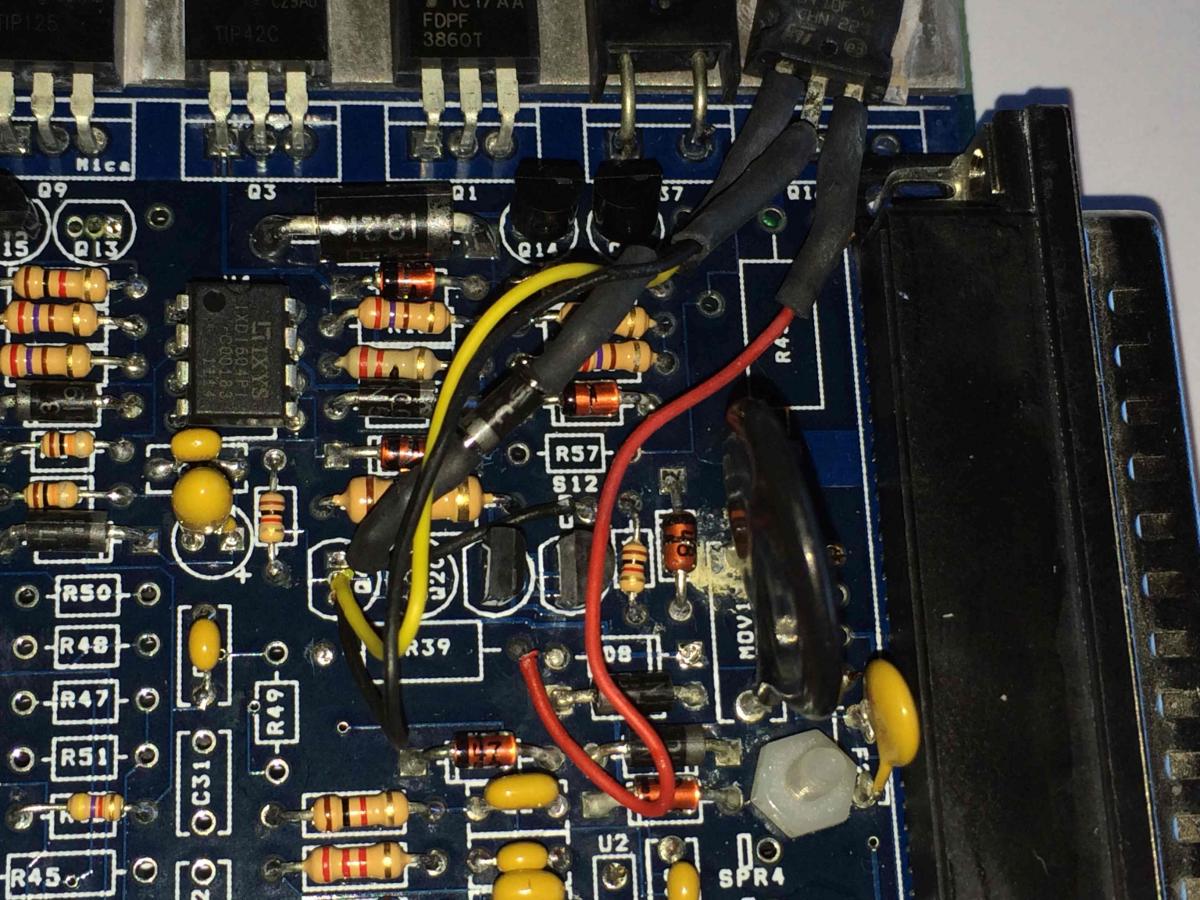

TIP 120 Mod

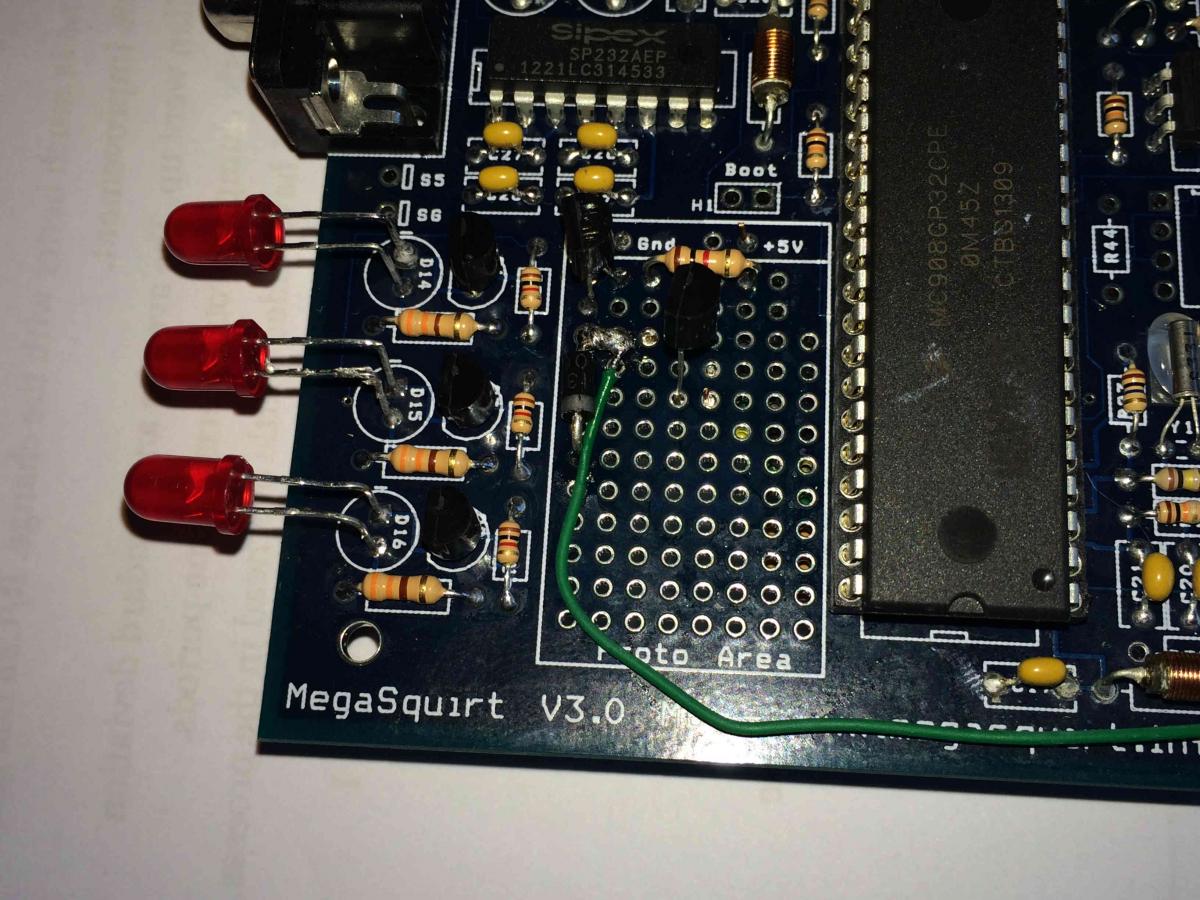

Q13 relocated to prototype area


Attached Thumbnails Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-cars-691-picture-pcb-modded-byu-3578.jpg   Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-cars-691-picture-tip120-mod-3579.jpg   Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-cars-691-picture-proto-area-q13-relocated-because-broken-pads-3580.jpg   Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-cars-691-picture-byu-standalone-harness-corrected-3581.jpg
Old 01-15-2014 | 08:36 AM
  #10
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

tach input mods look correct, but i don't think you put that q13 back to the correct resistors. looks like you have it going back to r34 and r35, but it should be r36 and r35.
Old 01-15-2014 | 02:17 PM
  #11
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Originally Posted by Braineack
tach input mods look correct, but i don't think you put that q13 back to the correct resistors. looks like you have it going back to r34 and r35, but it should be r36 and r35.
Nice catch! I pulled out my multimeter and verified my mistake, and did have R34/R35 connected. Resoldered to R36/R35 per below.



No change as far as spark goes, nor rpm on TunerStudio, although I didn't pull a plug this time. Attached is my datalog. How does the log look?

Also, is it normal to have D14/D16 lit when you first plug it in w/o any ignition turned on?

Thanks!

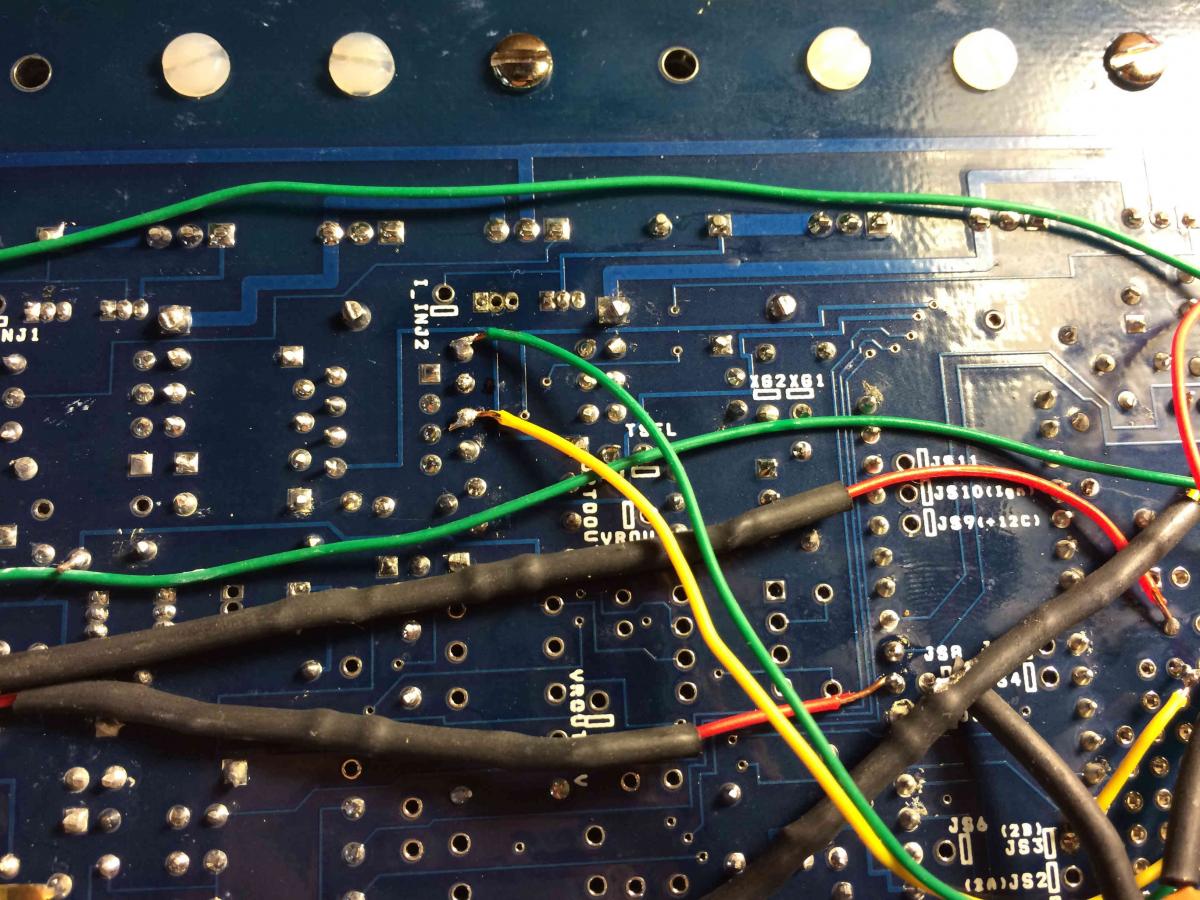

Attached Thumbnails Megasquirt 1 no spark, 94 Miata-byunique-12860-albums-byunique-691-picture-q13-after-sm-3584.jpg
Attached Files
File Type: msl
2014-01-15_09.52.22.msl (25.1 KB, 108 views)
Old 01-15-2014 | 03:22 PM
  #12
ScottyP3821's Avatar
Senior Member
iTrader: (2)

Joined: Jun 2012
Posts: 1,153
Total Cats: 50
From: Texas
Default

Originally Posted by byunique
Nice catch! I pulled out my multimeter and verified my mistake, and did have R34/R35 connected. Resoldered to R36/R35 per below.



No change as far as spark goes, nor rpm on TunerStudio, although I didn't pull a plug this time. Attached is my datalog. How does the log look?

Also, is it normal to have D14/D16 lit when you first plug it in w/o any ignition turned on?

Thanks!

That red jumper looks like its about to bridge a separate connection. probably irrelevant but if it almost happened there you might want to make sure the rest of them are not bridging elsewhere.
Old 01-15-2014 | 09:22 PM
  #13
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Originally Posted by ScottyP3821
That red jumper looks like its about to bridge a separate connection. probably irrelevant but if it almost happened there you might want to make sure the rest of them are not bridging elsewhere.
Yeah, it wasn't bridging, but shortened the wire anway to be safe. Inspected the whole board for shortings, etc with a 20x magnifying glass and everything looked fine.
Old 01-16-2014 | 10:57 AM
  #14
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

what tune do you have loaded?


your log files are completely fucked:

you're not getting RPMS during cranking.

your map sensor is not registering vacuum during cranking.

your clt sensor is not registering accurate temps.

your ait sensor in not registering accurate temps.

your o2 sensor is not registering accurate afrs.

...and you wonder why it's not running?
Old 01-16-2014 | 01:23 PM
  #15
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Originally Posted by Braineack
what tune do you have loaded?

your log files are completely fucked:

you're not getting RPMS during cranking.

your map sensor is not registering vacuum during cranking.

your clt sensor is not registering accurate temps.

your ait sensor in not registering accurate temps.

your o2 sensor is not registering accurate afrs.

...and you wonder why it's not running?
Yeah, am running the diyautotune basemap (usdm-mazda-miata-9495-18bp-mt-sequential-3.0.3.msq). It'd be nice to load up another map to see if anything changes with that...

Map is not yet connected, correct... chose not to use AIT yet ... using stock Narrowband. My assumption is that I should still get a spark besides these sensor readings?

Yeah, pretty fubar huh? So long term I'm thinking I'd like to have a 2nd megasquirt for backup purposes. I can get this one running in my spare time Going to PM you to order one!
Old 01-16-2014 | 01:37 PM
  #16
Braineack's Avatar
Boost Czar
iTrader: (62)

Joined: May 2005
Posts: 79,818
Total Cats: 4,152
From: Chantilly, VA
Default

sounds awesome. you should order it without the parts needed to make it run.
Old 01-16-2014 | 05:14 PM
  #17
ScottyP3821's Avatar
Senior Member
iTrader: (2)

Joined: Jun 2012
Posts: 1,153
Total Cats: 50
From: Texas
Default

Originally Posted by byunique
Yeah, am running the diyautotune basemap (usdm-mazda-miata-9495-18bp-mt-sequential-3.0.3.msq). It'd be nice to load up another map to see if anything changes with that...

Map is not yet connected, correct... chose not to use AIT yet ... using stock Narrowband. My assumption is that I should still get a spark besides these sensor readings?

Yeah, pretty fubar huh? So long term I'm thinking I'd like to have a 2nd megasquirt for backup purposes. I can get this one running in my spare time Going to PM you to order one!

Attached Thumbnails Megasquirt 1 no spark, 94 Miata-picard-wtf-meme-generator-what-fuck-shit-2a74ca.jpg
Old 01-16-2014 | 05:32 PM
  #18
Chiburbian's Avatar
Elite Member
iTrader: (1)

Joined: Feb 2008
Posts: 2,331
Total Cats: 203
From: Loganville, GA
Default

Yes you should be able to get spark running without those items. That said, fix them ASAP. You won't be able to run without MAP signal so even if you figure out the crank trigger thing you will be stuck again and it will **** you off that you can't drive it. Same with the AIT and wideband. Just fix it now and put it behind you.

In regards to your crank and cam triggers, have you verified continuity with the lines from the pin on the DB37 to the crank trigger and then the cam trigger? Double, triple check them. Go from the actual DB 37 plug to the actual pins on the sensor.

I farted around with my cam and crank signals for over a year (off and on) and when I fiinally figured it out it turned out to be a combination of grounding issues and misplaced wire on my harness.
Old 01-17-2014 | 02:45 AM
  #19
byunique's Avatar
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 95
Total Cats: 6
From: San Fran
Default

Originally Posted by Braineack
sounds awesome. you should order it without the parts needed to make it run.

PM'ed
Old 01-17-2014 | 07:37 AM
  #20
Chiburbian's Avatar
Elite Member
iTrader: (1)

Joined: Feb 2008
Posts: 2,331
Total Cats: 203
From: Loganville, GA
Default

I see you have a couple of your grounds running to "body" instead of engine. What grounding point are you using?
