Hi fellow Megasquirt Miata drivers,
As I am in the process of changing my 99 gauge cluster once more:

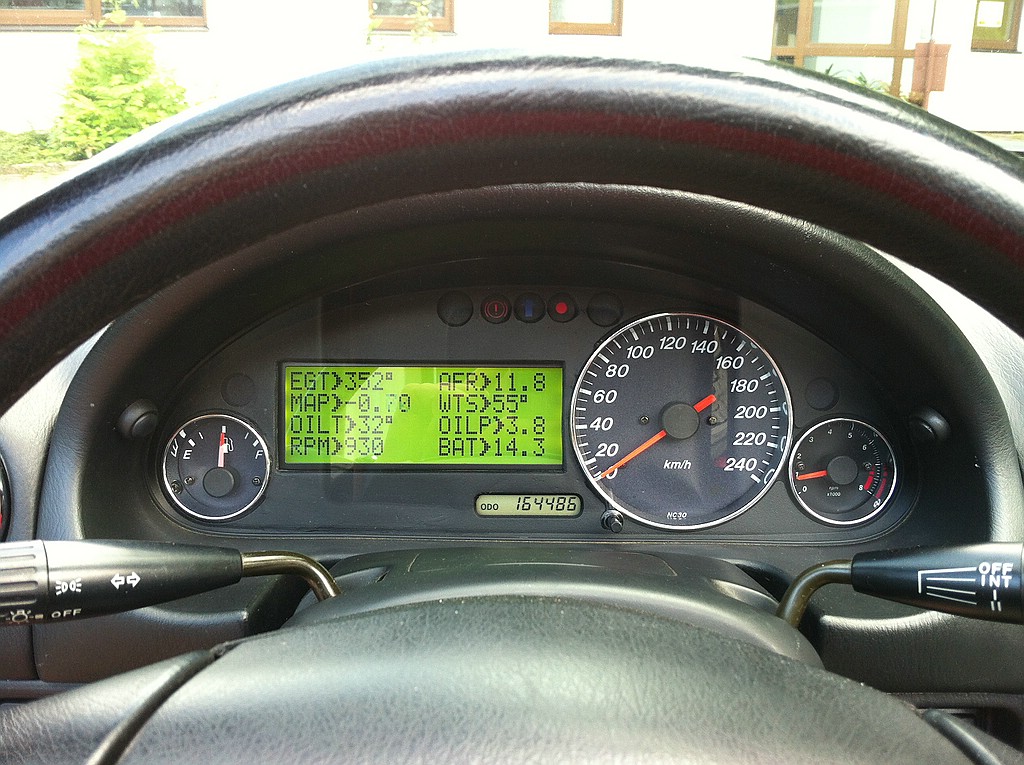

from this (2012?) - some of you may remember - with a Maxigauge inside the cluster and relocated little rev counter
![](http://www.ingenieure-reichel.de/upload/2012/gc_0022.jpg)

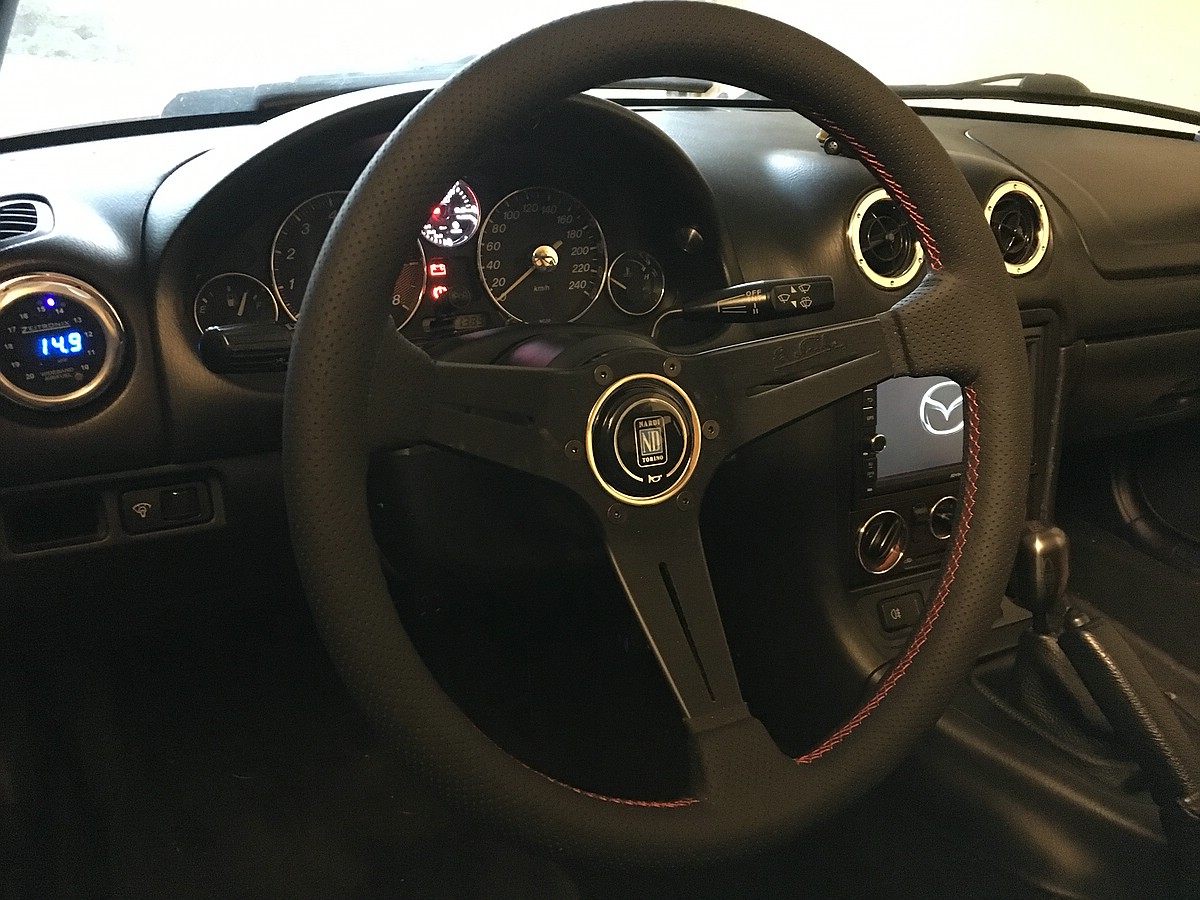

I went to this (2015 I think) - with integrated Propsort boost gauge in the middle spot
![](http://www.ingenieure-reichel.de/upload/2016/gc_boost_01.jpg)
to NOW "finally" this - with integrated CAN gauge for my MS3pro in the middle spot:
![](http://www.ingenieure-reichel.de/upload/2016/gc_can_01.jpg)
![](http://www.ingenieure-reichel.de/upload/2016/gc_can_02.jpg)
I was always craving for a very clean and simple look and I think, now I finally found what I was looking for.
There were some minor mods needed to the instrument cluster and to the gauge itself - but nothing serious..
Here are some videos of the gauge in action:
Videos still might take a little while to load.
The gauge is from Germany and can be found here:
triChecked - Display für trijekt und megasquirt - alle Werte, alle Informationen, alle Features in einer Anzeige
Greets
Sven
As I am in the process of changing my 99 gauge cluster once more:
from this (2012?) - some of you may remember - with a Maxigauge inside the cluster and relocated little rev counter
![](http://www.ingenieure-reichel.de/upload/2012/gc_0022.jpg)
I went to this (2015 I think) - with integrated Propsort boost gauge in the middle spot
![](http://www.ingenieure-reichel.de/upload/2016/gc_boost_01.jpg)
to NOW "finally" this - with integrated CAN gauge for my MS3pro in the middle spot:
![](http://www.ingenieure-reichel.de/upload/2016/gc_can_01.jpg)
![](http://www.ingenieure-reichel.de/upload/2016/gc_can_02.jpg)
![](http://www.ingenieure-reichel.de/upload/2016/gc_can_03.jpg)
There were some minor mods needed to the instrument cluster and to the gauge itself - but nothing serious..
Here are some videos of the gauge in action:
Videos still might take a little while to load.
The gauge is from Germany and can be found here:
triChecked - Display für trijekt und megasquirt - alle Werte, alle Informationen, alle Features in einer Anzeige
Greets
Sven
