Well I just sucessfuly adapted the duralast tps201 (autozone) onto my 1.6l manual throttle body. Now for some tips.
1) When you grind off one of the teeth in the tps to make it fit, make sure you grind off the right one! I almost messed it up real bad haha.
2) When you take the manual tps off, when disassembling it, the metal busing that the plastic switcher rides on is pressed into the plate, a couple of sockets and a vice works very well here.
3) Make sure you drill the holes for bolting the TPS onto the plate perfect or else everything will be misaligned when you try to put it on!
4) if you are going to use nuts and bolts to hold the tps on, the nuts will almost fit into the groove in the throttle body. You will need one of those hole enlargener bits for a dremal, and use it to enlarge the groove in the throttlebody.
Then the plate with the TPS will bolt onto the throttle body, and you can notch the plastic cover to allow the wires to come out, put the cover on, and it looks stock!
For the wires I cut the stock plug off, and soldered the:
TPS CAR FUNCTION
RED to WHITE AND GREEN (that should be right) 5V+
BLACK to BLACK (the middle wire on the 3 wire connector) GROUND
GREEN to Ran my own wire to the MS OUTPUT
Works perfect, go to tools in megatune and set WOT and no throttle, save, restart the MS, and enjoy a nice idle.
And yes, now my idle is so smooth, no matter how I try to upset it![](https://www.miataturbo.net/images/smilies/smile.gif)
Here are the pictures.

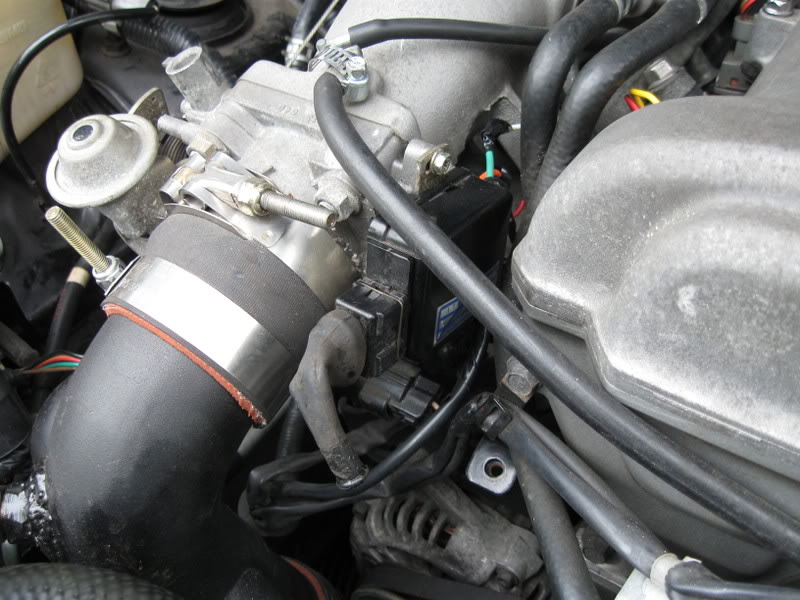

Pic 1 shows how it looks somewhat stock, and has the cover for protection

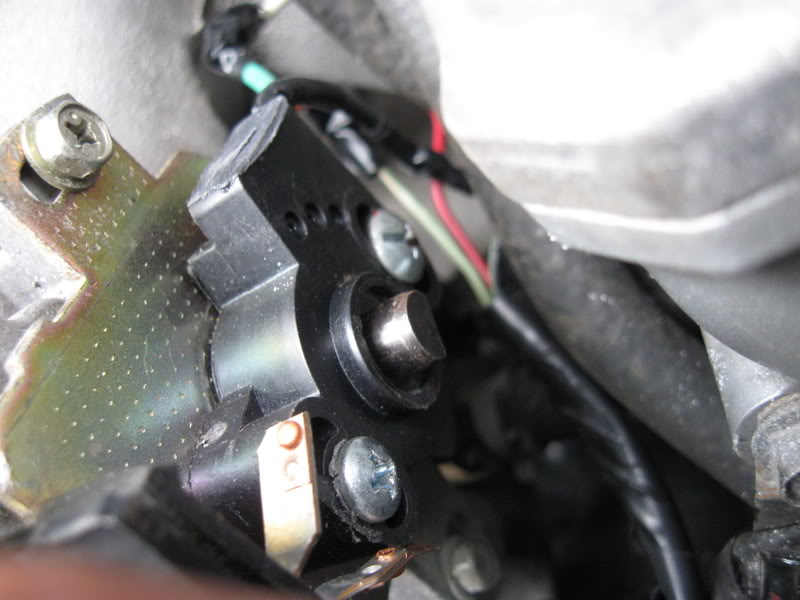

Pic 2 shows how its screwed in, on the throttle body behind those screws is where there is the lip that has to be enlarged.

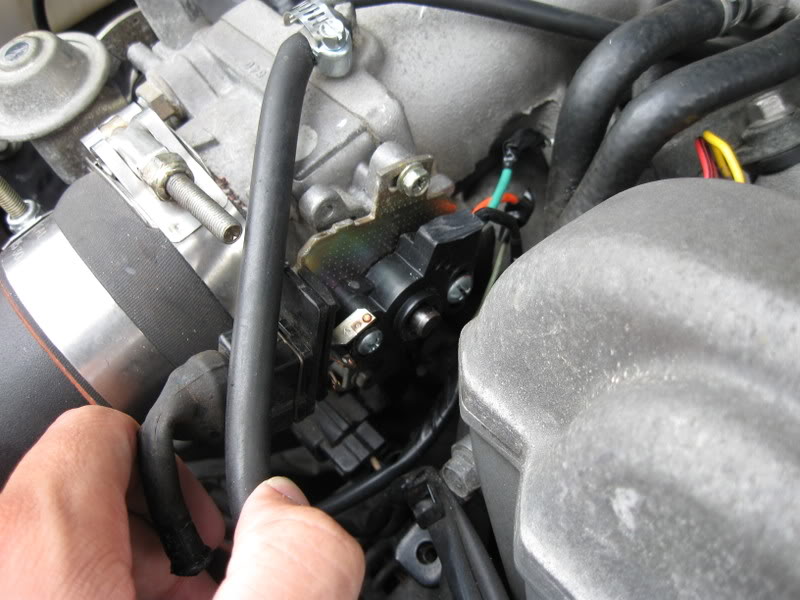

Pic 3 is a farther away shot, you can see my wireing.
![Name: TPS001.jpg
Views: 1641
Size: 91.2 KB](https://www.miataturbo.net/attachments/megasquirt-18/212260d1501264711-info-instructions-wells-tps201-tps-%2A%2A-pictures-tps001.jpg)
![Name: TPS002.jpg
Views: 1555
Size: 61.6 KB](https://www.miataturbo.net/attachments/megasquirt-18/212261d1501264711-info-instructions-wells-tps201-tps-%2A%2A-pictures-tps002.jpg)
1) When you grind off one of the teeth in the tps to make it fit, make sure you grind off the right one! I almost messed it up real bad haha.
2) When you take the manual tps off, when disassembling it, the metal busing that the plastic switcher rides on is pressed into the plate, a couple of sockets and a vice works very well here.
3) Make sure you drill the holes for bolting the TPS onto the plate perfect or else everything will be misaligned when you try to put it on!
4) if you are going to use nuts and bolts to hold the tps on, the nuts will almost fit into the groove in the throttle body. You will need one of those hole enlargener bits for a dremal, and use it to enlarge the groove in the throttlebody.
Then the plate with the TPS will bolt onto the throttle body, and you can notch the plastic cover to allow the wires to come out, put the cover on, and it looks stock!
For the wires I cut the stock plug off, and soldered the:
TPS CAR FUNCTION
RED to WHITE AND GREEN (that should be right) 5V+
BLACK to BLACK (the middle wire on the 3 wire connector) GROUND
GREEN to Ran my own wire to the MS OUTPUT
Works perfect, go to tools in megatune and set WOT and no throttle, save, restart the MS, and enjoy a nice idle.
And yes, now my idle is so smooth, no matter how I try to upset it
![](https://www.miataturbo.net/images/smilies/smile.gif)
Here are the pictures.
Pic 1 shows how it looks somewhat stock, and has the cover for protection
Pic 2 shows how its screwed in, on the throttle body behind those screws is where there is the lip that has to be enlarged.
Pic 3 is a farther away shot, you can see my wireing.
![Name: TPS001.jpg
Views: 1641
Size: 91.2 KB](https://www.miataturbo.net/attachments/megasquirt-18/212260d1501264711-info-instructions-wells-tps201-tps-%2A%2A-pictures-tps001.jpg)
![Name: TPS002.jpg
Views: 1555
Size: 61.6 KB](https://www.miataturbo.net/attachments/megasquirt-18/212261d1501264711-info-instructions-wells-tps201-tps-%2A%2A-pictures-tps002.jpg)
![Name: TPS003.jpg
Views: 2483
Size: 78.8 KB](https://www.miataturbo.net/attachments/megasquirt-18/212262d1501264711-info-instructions-wells-tps201-tps-%2A%2A-pictures-tps003.jpg)
Last edited by cardriverx; 07-27-2008 at 04:40 PM.
#3
Elite Member
Thread Starter
iTrader: (12)
Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,573
Total Cats: 12
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I have A/C, 8 lb flywheel.
Before the idle would bog sometimes but mostly it would go up then down then up then down then up then...... between 1200 and 400 rpm.
The TPS fixed it perfect.
Before the idle would bog sometimes but mostly it would go up then down then up then down then up then...... between 1200 and 400 rpm.
The TPS fixed it perfect.
#8
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
i have one to adapt. havent gotten around to it. It came off a working one, that was laying around in a shop. I couldn't remove the two 7mm screws that held the plate in place so i only have the tps, but it shouldn't be too difficult to do on mine.
#9
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
![wink](https://www.miataturbo.net/images/smilies/wink.gif)
#10
Elite Member
Thread Starter
iTrader: (12)
Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,573
Total Cats: 12
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I definitely think that's significant of a worn 1.6 manual tps. Mine is driving me crazy right now, proving nearly impossible to adjust so that the signals are positioned properly to the pedal input. Once I get it right so it doesn't show idle up to 2200rpm or never show idle (and do the rhythmic bouncing idle), it will eventually break again and quit showing idle. If I floor the pedal (car off) and the start it back up it will work... for a bit. I've cleaned it and still no better. I think it's just mechanical piece of crap at 18 years of age. ![wink](https://www.miataturbo.net/images/smilies/wink.gif)
![wink](https://www.miataturbo.net/images/smilies/wink.gif)
The manual TPS is just a switch, Ground and 12V+ are connected at idle, nothing is at any throttle, and at full throttle Ground and 5V+ are connected
Those are the 3 wires off the cars wireing harness, 12V, 5V, and ground. I used the 5V and ground when I adapted the variable TPS.
#14
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

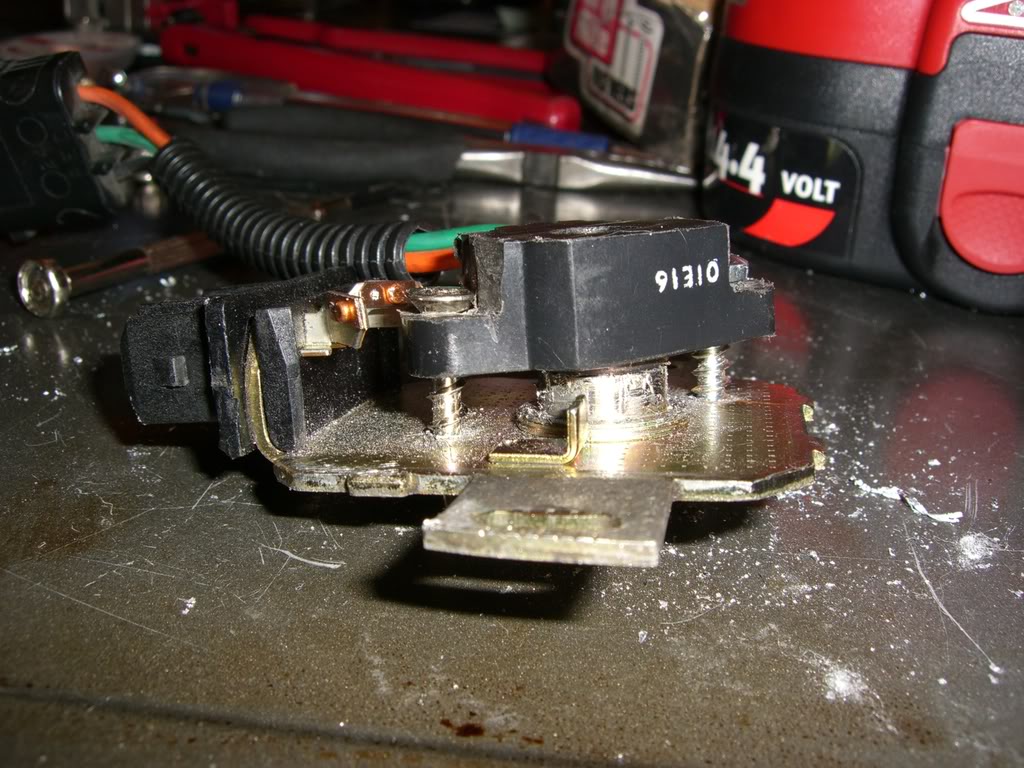

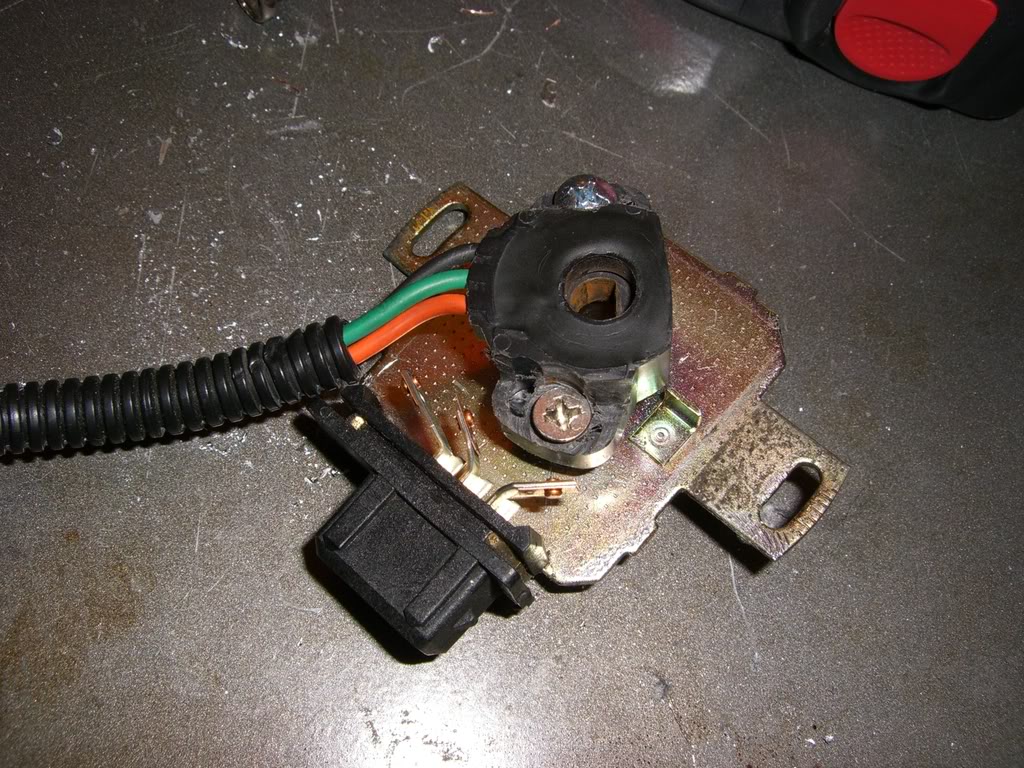

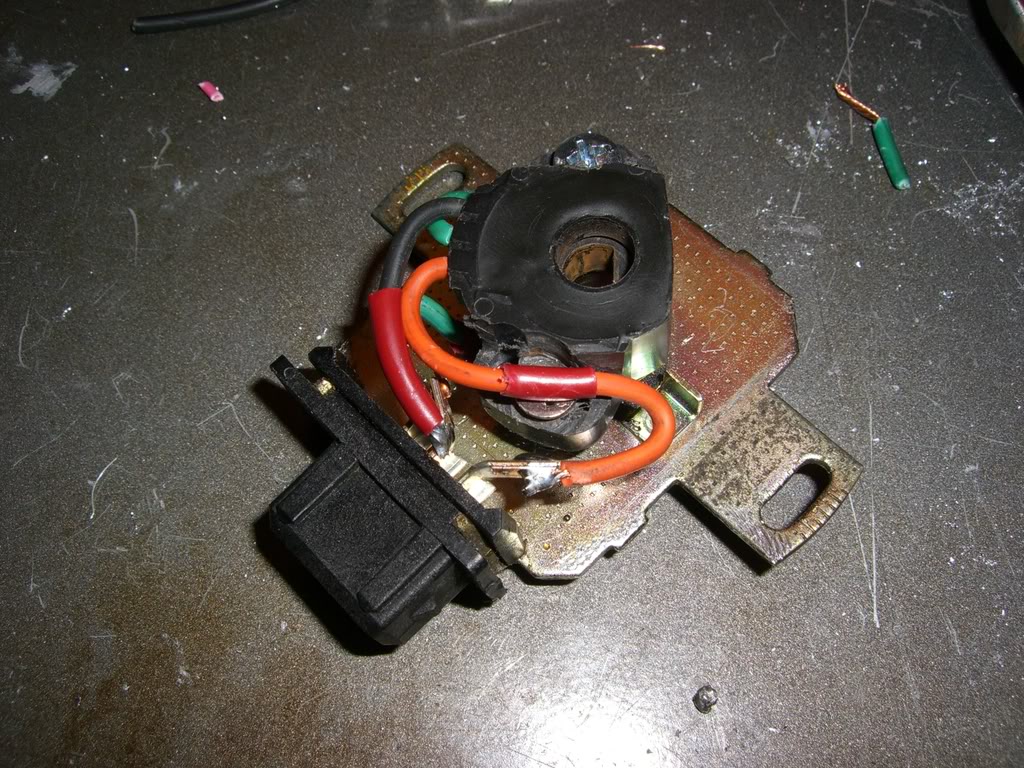

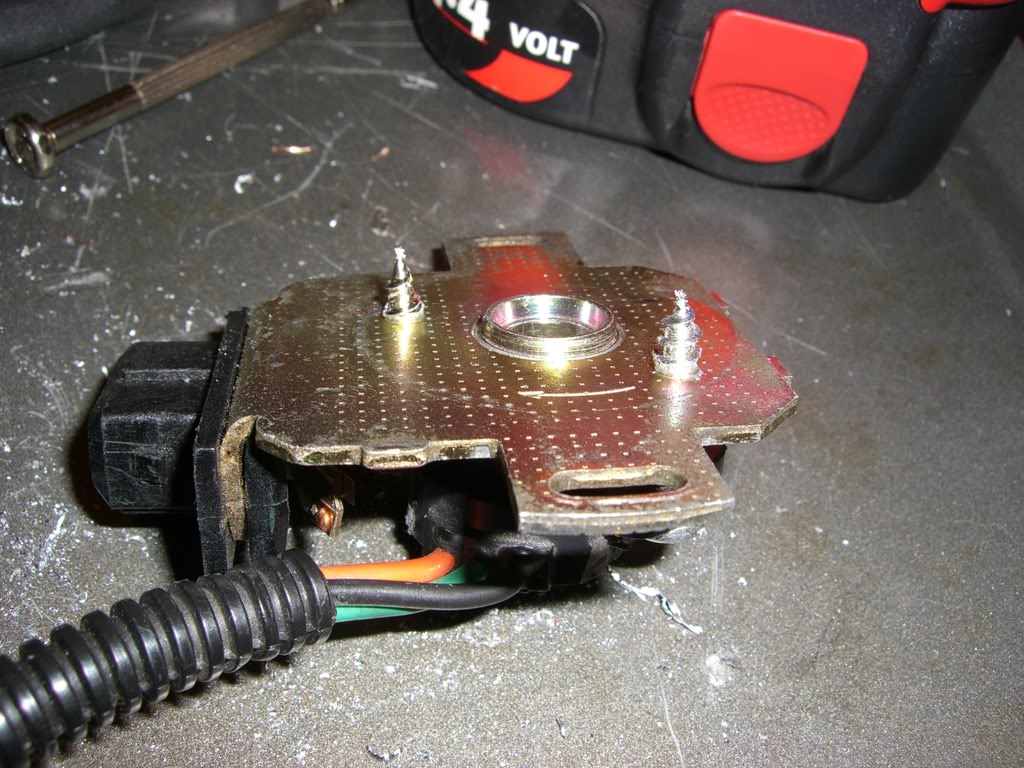

I just wanted to share my pictures. Not sure what model TPS is it as it was pocketed. No markings on it.
![Name: CIMG1730.jpg
Views: 1554
Size: 221.3 KB](https://www.miataturbo.net/attachments/megasquirt-18/211996d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1730.jpg)
![Name: CIMG1731.jpg
Views: 1484
Size: 162.5 KB](https://www.miataturbo.net/attachments/megasquirt-18/211997d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1731.jpg)
![Name: CIMG1733.jpg
Views: 1482
Size: 152.3 KB](https://www.miataturbo.net/attachments/megasquirt-18/211998d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1733.jpg)
![Name: CIMG1735.jpg
Views: 1571
Size: 226.2 KB](https://www.miataturbo.net/attachments/megasquirt-18/211999d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1735.jpg)
![Name: CIMG1734.jpg
Views: 1754
Size: 182.5 KB](https://www.miataturbo.net/attachments/megasquirt-18/212000d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1734.jpg)
I also wanted to share Ben's original writeup, for those who don't know:
https://www.miataturbo.net/forum/sho...97&postcount=4
![Name: CIMG1730.jpg
Views: 1554
Size: 221.3 KB](https://www.miataturbo.net/attachments/megasquirt-18/211996d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1730.jpg)
![Name: CIMG1731.jpg
Views: 1484
Size: 162.5 KB](https://www.miataturbo.net/attachments/megasquirt-18/211997d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1731.jpg)
![Name: CIMG1733.jpg
Views: 1482
Size: 152.3 KB](https://www.miataturbo.net/attachments/megasquirt-18/211998d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1733.jpg)
![Name: CIMG1735.jpg
Views: 1571
Size: 226.2 KB](https://www.miataturbo.net/attachments/megasquirt-18/211999d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1735.jpg)
![Name: CIMG1734.jpg
Views: 1754
Size: 182.5 KB](https://www.miataturbo.net/attachments/megasquirt-18/212000d1501264250-info-instructions-wells-tps201-tps-%2A%2A-pictures-cimg1734.jpg)
I also wanted to share Ben's original writeup, for those who don't know:
https://www.miataturbo.net/forum/sho...97&postcount=4
#19
Boost Czar
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (62)
Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'm fairly positive Wells TPS4164 would work with the stock connector...
![](http://www.e-webcatalog.com/wells/PartImage.aspx?img=E:\Wells\images\parts\TPS4164.jpg)
it would still sit high on the shaft, like mine, but it's possible all you'd have to do it attach it straight to the throttle body, just like the auto tps....not bad. worse case, you attach it like mine above and cut off the stock connector.
Still looking for the one I have.
hmm TPS452 looks like it has potential....would point in the right direction (down slightly)....probably bolts right up. Would probably want to call and verify it's a real linear tps, not a switch.
![](http://www.e-webcatalog.com/wells/PartImage.aspx?img=E:\Wells\images\parts\TPS452.jpg)
keyway looks correct, hard to see....
![](http://www.e-webcatalog.com/wells/PartImage.aspx?img=E:\Wells\images\parts\TPS4164.jpg)
it would still sit high on the shaft, like mine, but it's possible all you'd have to do it attach it straight to the throttle body, just like the auto tps....not bad. worse case, you attach it like mine above and cut off the stock connector.
Still looking for the one I have.
hmm TPS452 looks like it has potential....would point in the right direction (down slightly)....probably bolts right up. Would probably want to call and verify it's a real linear tps, not a switch.
![](http://www.e-webcatalog.com/wells/PartImage.aspx?img=E:\Wells\images\parts\TPS452.jpg)
keyway looks correct, hard to see....
