cranking no start
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

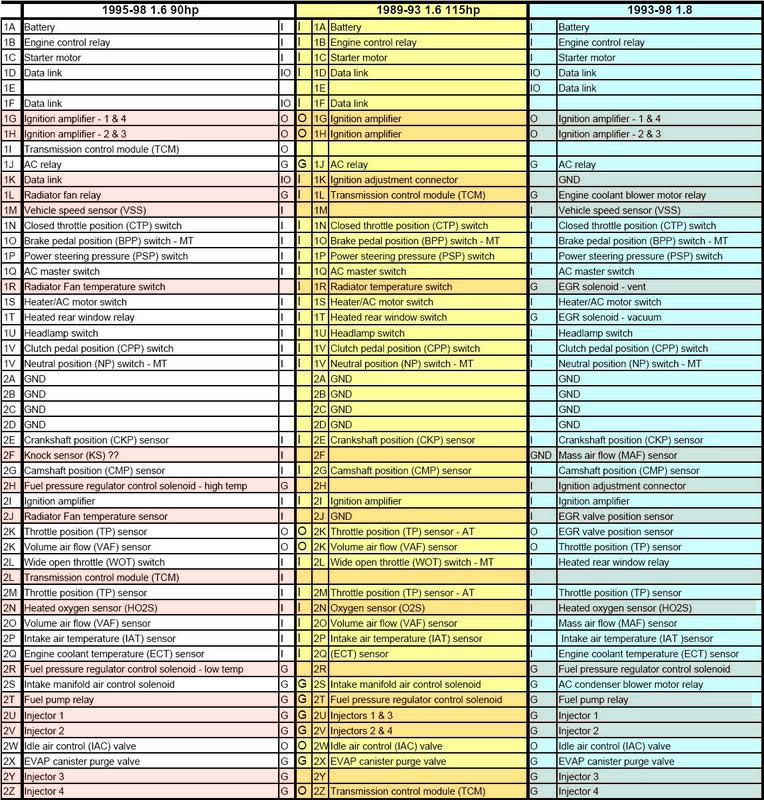

hi everyone, ive got a 1989 1.6 eunos roadster just upgraded my ms1pnp 9093 v3.57 board for a ms2 diypnp, i have repinned the ecu connectors as the MS2 is configured for a 1997 1.6
but the car wont start, i have bridged the fuel pump on to see if its a fuel issue but no luck.
i have a log of this.
but the car wont start, i have bridged the fuel pump on to see if its a fuel issue but no luck.
i have a log of this.
#2
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Your map sensor boucnes around like the engine is cranking, but there is no RPM signal and no injector output. Something is wrong with the CAS inputs to the megasquirt, most likely.
Your map sensor readings don't look right either, they shouldn't be so saw toothed through cranking like that.
I suggest you go back and triple check all your repinning.
Your map sensor readings don't look right either, they shouldn't be so saw toothed through cranking like that.
I suggest you go back and triple check all your repinning.
#4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Just so we are 100% sure and I can be sure I didn't do this to you telling you to cut the signal ground wire.

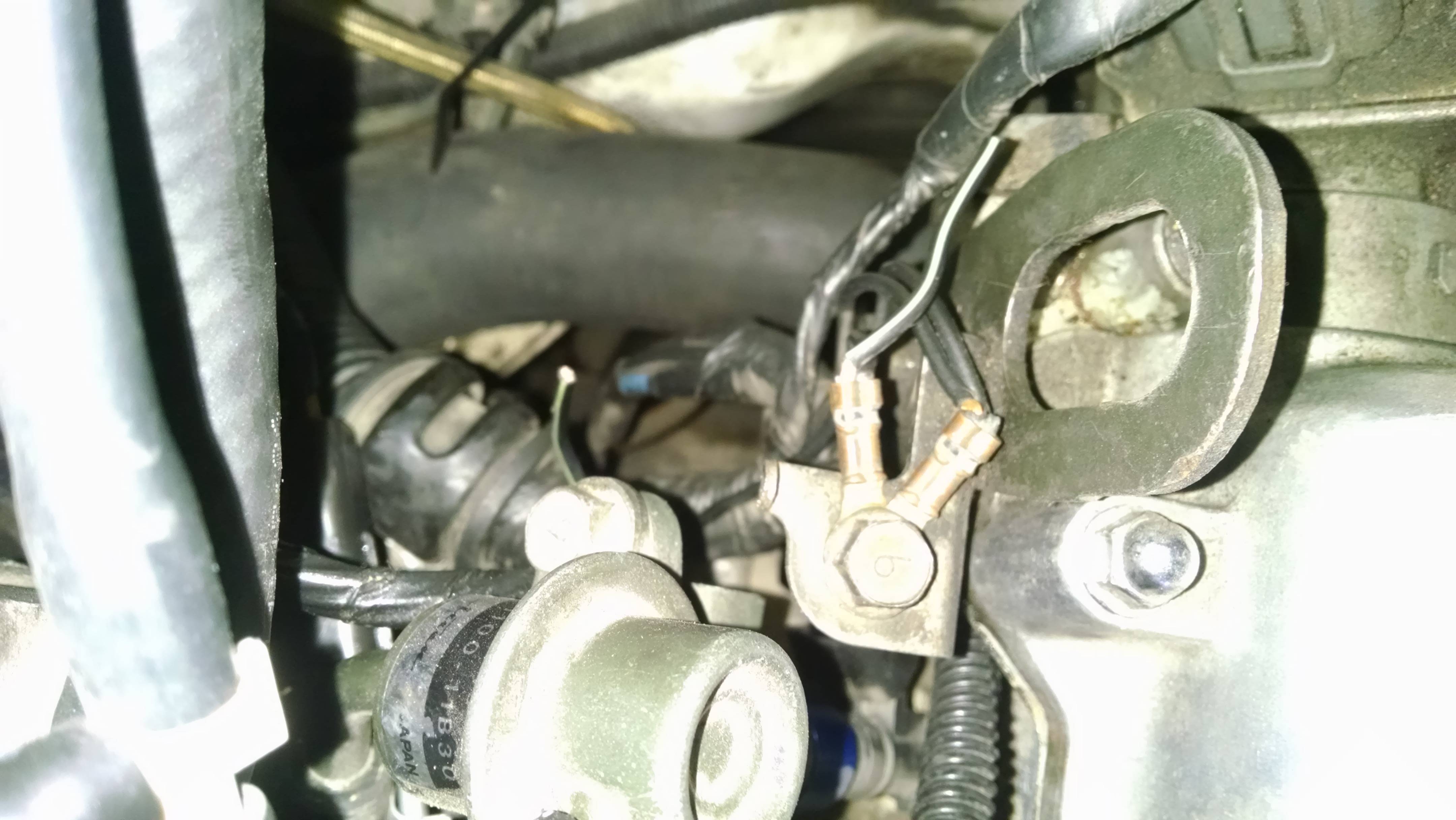

This is the one wire I asked you to cut, you did remove just this one wire and not any of the other three solid black wires? You can see where it attaches to the ECU harness in this picture. It is not white and black, but green and black. The flash makes it look white, sorry about that.
![Name: 5MQjzFt.jpg
Views: 145
Size: 518.4 KB](https://www.miataturbo.net/attachments/megasquirt-18/230598d1683052413-cranking-no-start-5mqjzft.jpg)
If you removed any of the other three wires you might have lost the CAS ground, that won't work.
Also, your megasquirt is configured wrong for sequential. Sequential spark requires WLED and ALED on a MS2, you are attempting to use it for both the cooling fan and coil on plug (4 spark outs.) That also won't work, you don't get cooling fan or AC control if you run sequential spark on MS2.
This is the one wire I asked you to cut, you did remove just this one wire and not any of the other three solid black wires? You can see where it attaches to the ECU harness in this picture. It is not white and black, but green and black. The flash makes it look white, sorry about that.
![Name: 5MQjzFt.jpg
Views: 145
Size: 518.4 KB](https://www.miataturbo.net/attachments/megasquirt-18/230598d1683052413-cranking-no-start-5mqjzft.jpg)
If you removed any of the other three wires you might have lost the CAS ground, that won't work.
Also, your megasquirt is configured wrong for sequential. Sequential spark requires WLED and ALED on a MS2, you are attempting to use it for both the cooling fan and coil on plug (4 spark outs.) That also won't work, you don't get cooling fan or AC control if you run sequential spark on MS2.
#7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
It's probably because it's showing a config error. It can't make spark or fuel squirts if it has no idea the engine is turning.
In tunerstudio, under boost/advanced is the programmable on/off outputs. You will see a green light for ALED or WLED, you need to turn that off. If you have "coil on plug" selected under the ignition settings ignition options/wheel decoder it uses WLED and ALED as secondary spark. If you have a config error, it shouldn't do anything other than reading the inputs as far as I know.
Then you need to make sure your cooling fan thermoswitch still works so it doesn't overheat idling or something. If you followed DIYPNPs directions, you might have moved the cooling fan trigger to WLED or ALED. You will need to undo that, redo it like the PO had it.
In tunerstudio, under boost/advanced is the programmable on/off outputs. You will see a green light for ALED or WLED, you need to turn that off. If you have "coil on plug" selected under the ignition settings ignition options/wheel decoder it uses WLED and ALED as secondary spark. If you have a config error, it shouldn't do anything other than reading the inputs as far as I know.
Then you need to make sure your cooling fan thermoswitch still works so it doesn't overheat idling or something. If you followed DIYPNPs directions, you might have moved the cooling fan trigger to WLED or ALED. You will need to undo that, redo it like the PO had it.
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
ive disabled the WLED no change :/
but i did find this http://www.extraefi.co.uk/pdf/MX5PnP.pdf
thats my setup
but i did find this http://www.extraefi.co.uk/pdf/MX5PnP.pdf
thats my setup
#10
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Please take photos of all the wires going to your coil packs, trace them back to the exact pins on the megasquirt itself please. Are you 100% certain it's sequential coil on plug and not wasted spark coil on plug? There is a pretty big difference, half your **** won't be firing if you've got it wrong.
