Calibrate AFR Table question, Why won't they stay?
#1
Senior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (4)
Join Date: Feb 2011
Location: Crest Hill, IL
Posts: 743
Total Cats: 42
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Hi, I'm having trouble getting the LC-1 gauge and Megasquirt to read the same. All the grounding is done per instructions. It has ben suggested that I adjust the AFR table to make the readings match. I go to Tools - Calibrate AFR Table - Choose Custom Wide Band. Then Adjust the settings
Point 1: 0.2v-------AFR 7.35
Point 2: 5.0v-------AFR 22.39
I select write to controller. Turn key off, wait a few seconds then start the car. Check and It doesn't show the changes that were input. It shows the settings that were there from before I changed them. Why won't the new settings show up? What am I doing wrong?
Thanks,
-JB
![](https://www.miataturbo.net/attachments/megasquirt-18/49791-calibrate-afr-table-question-why-wont-they-stay-p1000912.jpg?dateline=1342929332)

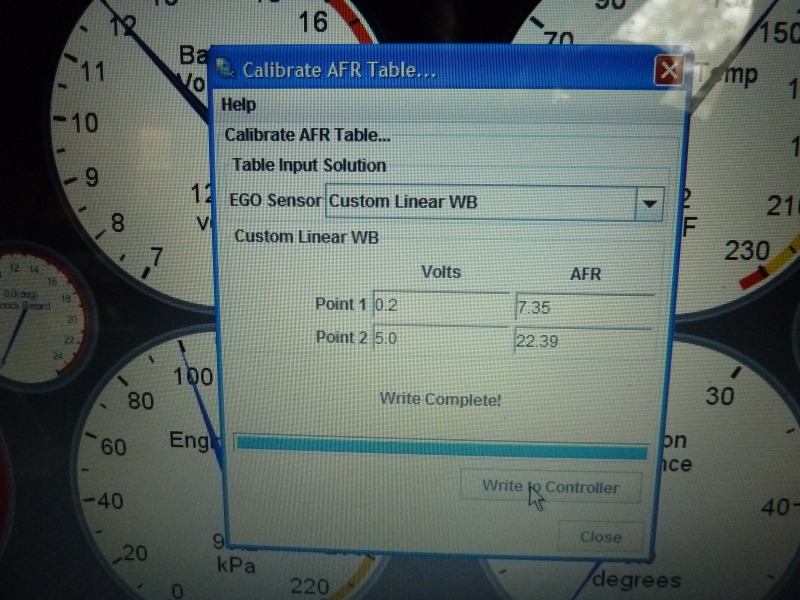

Point 1: 0.2v-------AFR 7.35
Point 2: 5.0v-------AFR 22.39
I select write to controller. Turn key off, wait a few seconds then start the car. Check and It doesn't show the changes that were input. It shows the settings that were there from before I changed them. Why won't the new settings show up? What am I doing wrong?
Thanks,
-JB
![](https://www.miataturbo.net/attachments/megasquirt-18/49791-calibrate-afr-table-question-why-wont-they-stay-p1000912.jpg?dateline=1342929332)
![](https://www.miataturbo.net/attachments/megasquirt-18/49792-calibrate-afr-table-question-why-wont-they-stay-p1000913.jpg?dateline=1342929332)
#2
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (10)
Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,987
Total Cats: 359
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
That's normal. That window is only a command to the MS to write that specific table. There is no feedback or indication of which table is currently burnt in the MS. Sad but true. So just burn the table you want and continue.
