Base Map VE kpa range
I finished building my DIYPNP today, and loaded firmware MS2/Extra v3.4.2. I downloaded a basemap for 94/95 non-turbo ( i think) from here: (MegaSquirtPNP by DIYAutoTune.com)
I am completely new to MS/TunerStudio and as I look at the VE tables I notice the y-axis kpa range goes from 20kpa to 230kpa. I was under the impression this map should be for a naturaly aspirated engine. Am I wrong?
I tried another base map from here: (https://www.diyautotune.com/support/...5-mazda-miata/)
It's v3.0.3.The values changes some but still much greater than 100kpa.
My process for loading the msq:
1. create project, following process via the sticky in this forum/diyautotune's site
2. select 'load msq'
3. navigate to msq I want and select it
I do of course get quite a few errors because the most recent base map is v3.3.1 and my firmware is 3.4.2, I'm wondering if this is the problem... The vehicle is a completely stock 1994 and I'd like to get MS running and learn to tune before the turbo goes on, and just want to make sure I'm starting out with the correct base map.
Thanks!
I am completely new to MS/TunerStudio and as I look at the VE tables I notice the y-axis kpa range goes from 20kpa to 230kpa. I was under the impression this map should be for a naturaly aspirated engine. Am I wrong?
I tried another base map from here: (https://www.diyautotune.com/support/...5-mazda-miata/)
It's v3.0.3.The values changes some but still much greater than 100kpa.
My process for loading the msq:
1. create project, following process via the sticky in this forum/diyautotune's site
2. select 'load msq'
3. navigate to msq I want and select it
I do of course get quite a few errors because the most recent base map is v3.3.1 and my firmware is 3.4.2, I'm wondering if this is the problem... The vehicle is a completely stock 1994 and I'd like to get MS running and learn to tune before the turbo goes on, and just want to make sure I'm starting out with the correct base map.
Thanks!
#3
Junior Member
Thread Starter
iTrader: (1)
Join Date: Dec 2015
Location: Sacramento, CA
Posts: 110
Total Cats: 15

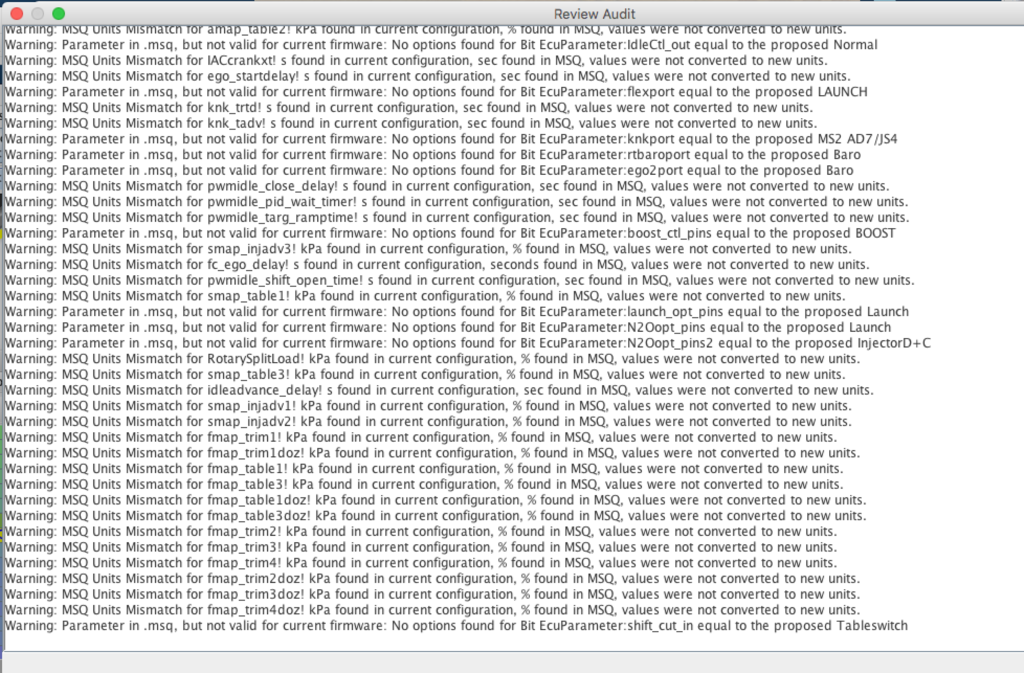

I can accept that. I'm getting ~40 errors due to unit mismatch. I've read a few posts and it seems this isn't a big deal, yet TS says it doesn't convert over the values. See image. I'm mainly concerned something with timing may be getting screwy.
#5
You can try my very refined map from my Track car from when I was running a '96 1.8 with my DIYPNP. I have since moved on to a VVT motor, but the msq files are still available here: '90 Miata w/NOW '01 VVT engine DIYPNP Megasquirt! - www.MSruns.com
I would open my MSQ and export the spark table and then import it into your MSQ. That will avoid any potenial firmware issues.
I would open my MSQ and export the spark table and then import it into your MSQ. That will avoid any potenial firmware issues.
#8
Honestly you should learn what everything does and then just use base maps as reference points or general idea, not just lump in a completely random base map from someone else's racecar or something.
Starting with someone's already tuned map and just dumping it into your TS and then trying to fix all the discrepancies is a backwards approach that will have you waste more time than starting from scratch.
on 91 assuming your ms is sync'd correctly, you should be running mid 20's to low 30's spark in the upper row, with mid to low 12's afr.
Starting with someone's already tuned map and just dumping it into your TS and then trying to fix all the discrepancies is a backwards approach that will have you waste more time than starting from scratch.
on 91 assuming your ms is sync'd correctly, you should be running mid 20's to low 30's spark in the upper row, with mid to low 12's afr.
