Another CL boost tuning help thread
#1
Senior Member
Thread Starter
iTrader: (8)
Join Date: Jun 2010
Location: Florida
Posts: 1,116
Total Cats: 43
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Hey guys, I have been tinkering with CL boost the past week, it's 80-90% there, but there are some situations I'm still running into overboost issues. Rundown of details of my setup:
DIYPNP on firmware v3.2.5
99 Mazda Miata, GTX2867R with Tial MVS 38m ext. wastegate (5psi rated spring)
DIYautotune solenoid, plumbed to both port on the wastegate, like this (bottom diagram): http://www.diyautotune.com/images/pr...te_control.png
With boost control off, it holds a steady ~5.5psi to redline. Open loop boost control all checked out good, 100 = spring pressure, I can't remember the specifics, but lowering the values in the OL table increased boost little by little. I needed less than 50% duty cycle to hit my 225kpa target.

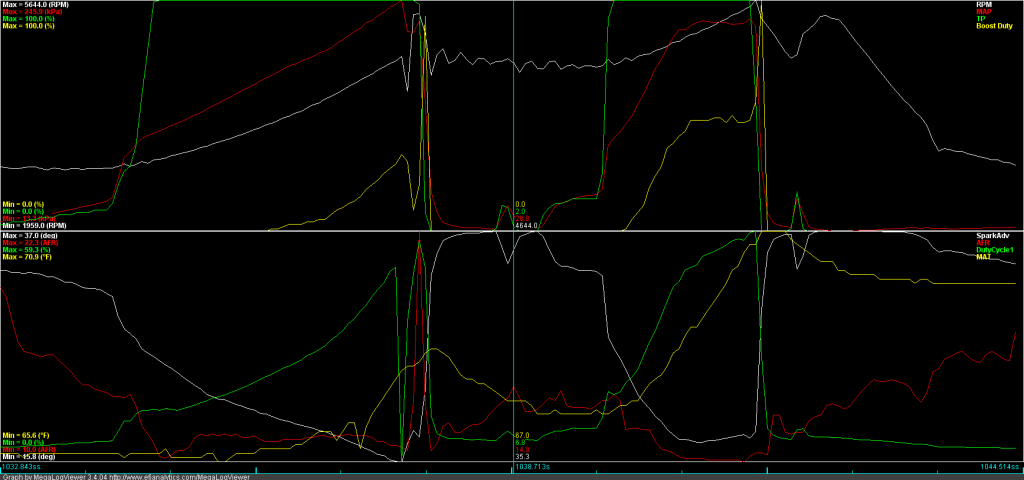

Moved onto CL boost, using the MS3 docs as my guideline, which I believe still totally applies to MS2 3.2.5, with 100 duty meaning 0 actual duty cycle = maximum wastegate opened. I did the tuning at around 4k rpm, per the guide.... I used 4000-4500 rpm as my starting point and found P and I values that worked well. At that point I thought I was done and good to do, but I ran into an odd issue when starting the "gear pull" from a low RPM- it would overshoot really badly. Below are screenshots of my setup and a datalog. In the datalog, I do a low RPM start, and you can see the boost duty does not increase quick enough, it overshoots badly and I hit fuel cut ~245kpa. Then right after, I show you how I went about tuning per the guide and how it works relatively well, hits target quickly and holds. I don't do it in the datalog, but it will hold steady till redline just fine.
Is this an indication that I need larger I values? I also have a problem of overboosting if I go from say 70% throttle in boost, then 100% real quick, it just does not react quick enough. Open to any and all suggestions. Looking to get it squared away before an event tomorrow. If I can't get it sorted, I'll probably just end up doing open loop, which is fine, but I do miss out on some low end/mid range power.
![](https://www.miataturbo.net/attachments/megasquirt-18/94282-another-cl-boost-tuning-help-thread-boostpage_zpsa0a15739.png?dateline=1384020762)
DIYPNP on firmware v3.2.5
99 Mazda Miata, GTX2867R with Tial MVS 38m ext. wastegate (5psi rated spring)
DIYautotune solenoid, plumbed to both port on the wastegate, like this (bottom diagram): http://www.diyautotune.com/images/pr...te_control.png
With boost control off, it holds a steady ~5.5psi to redline. Open loop boost control all checked out good, 100 = spring pressure, I can't remember the specifics, but lowering the values in the OL table increased boost little by little. I needed less than 50% duty cycle to hit my 225kpa target.
Moved onto CL boost, using the MS3 docs as my guideline, which I believe still totally applies to MS2 3.2.5, with 100 duty meaning 0 actual duty cycle = maximum wastegate opened. I did the tuning at around 4k rpm, per the guide.... I used 4000-4500 rpm as my starting point and found P and I values that worked well. At that point I thought I was done and good to do, but I ran into an odd issue when starting the "gear pull" from a low RPM- it would overshoot really badly. Below are screenshots of my setup and a datalog. In the datalog, I do a low RPM start, and you can see the boost duty does not increase quick enough, it overshoots badly and I hit fuel cut ~245kpa. Then right after, I show you how I went about tuning per the guide and how it works relatively well, hits target quickly and holds. I don't do it in the datalog, but it will hold steady till redline just fine.
Is this an indication that I need larger I values? I also have a problem of overboosting if I go from say 70% throttle in boost, then 100% real quick, it just does not react quick enough. Open to any and all suggestions. Looking to get it squared away before an event tomorrow. If I can't get it sorted, I'll probably just end up doing open loop, which is fine, but I do miss out on some low end/mid range power.
![](https://www.miataturbo.net/attachments/megasquirt-18/94282-another-cl-boost-tuning-help-thread-boostpage_zpsa0a15739.png?dateline=1384020762)
![](https://www.miataturbo.net/attachments/megasquirt-18/94283-another-cl-boost-tuning-help-thread-graph_zps4a24cbd7.png?dateline=1384020762)
