96 Miata MS3X Cranks but won't start
#1
96 Miata MS3X Cranks but won't start
Used the Trubokitty guide to assemble a MS3X.
- Checked the harness multiple times
- Done the necessary jumpers listed in the guide (tach, flyback to Xboard, etc.)
- Tuned the pots like in the guide
- Using the 96-97 base tune
- I see coolant temp, tps, the narrowband, and map

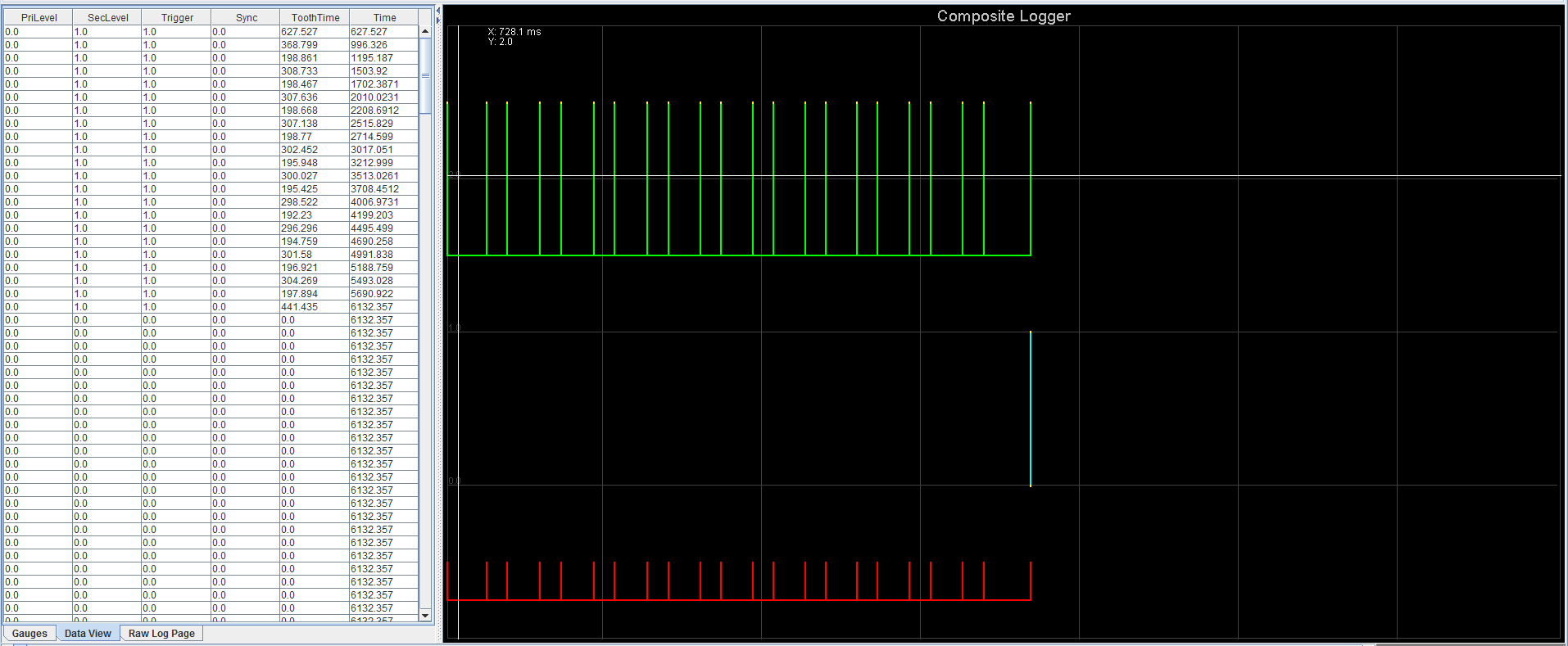

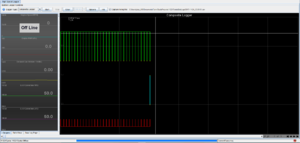

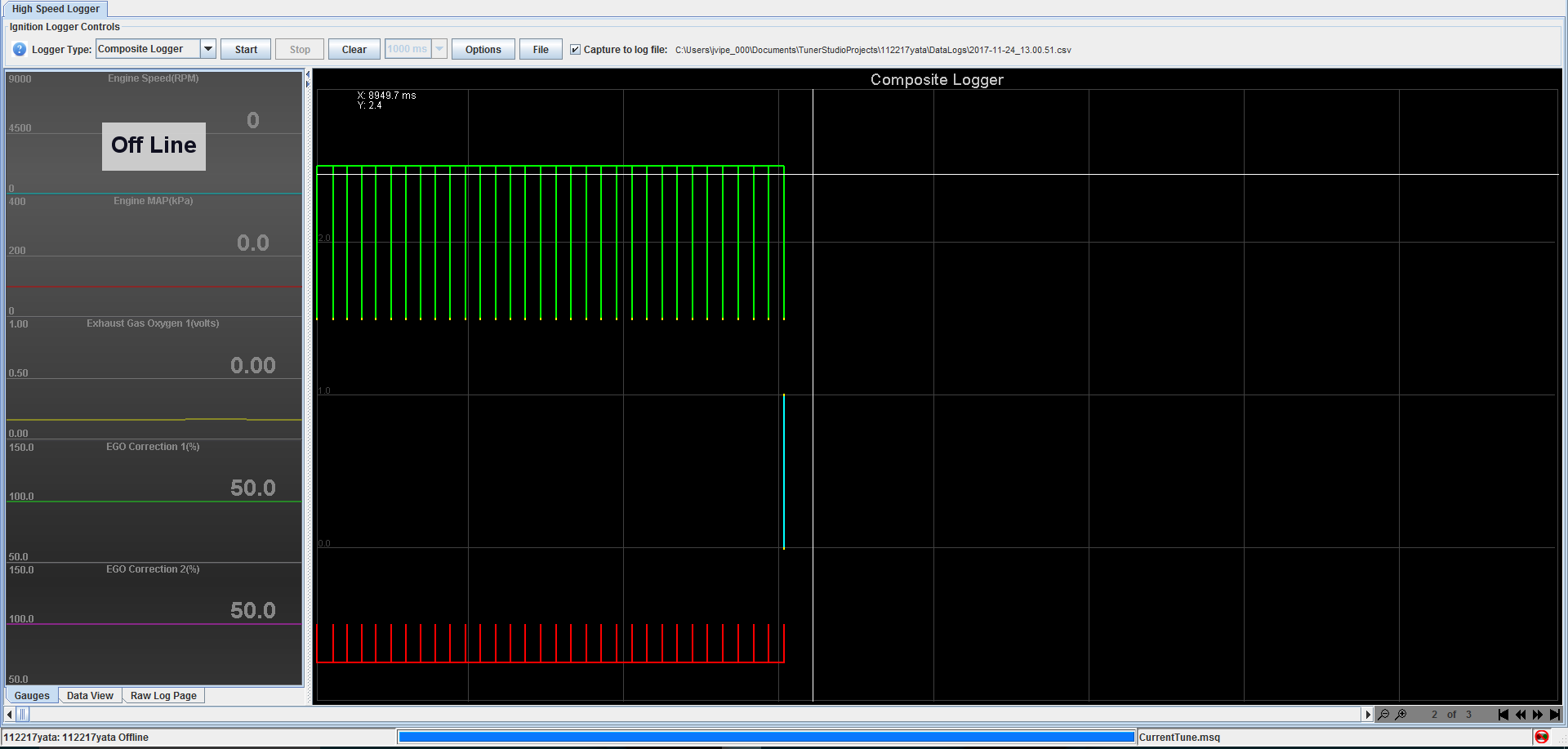

When I go to crank with the MS installed I can't seem to get it to fire, It's definitely injecting fuel though. Feeling like an extreme noob right now with all this. Maybe even with all the board mods I'm still missing the crank sensor somehow? When I did a log I got tooth time and I saw green and red, but only one blue spike when I left off the starter.
Any suggestions?
- Checked the harness multiple times
- Done the necessary jumpers listed in the guide (tach, flyback to Xboard, etc.)
- Tuned the pots like in the guide
- Using the 96-97 base tune
- I see coolant temp, tps, the narrowband, and map
When I go to crank with the MS installed I can't seem to get it to fire, It's definitely injecting fuel though. Feeling like an extreme noob right now with all this. Maybe even with all the board mods I'm still missing the crank sensor somehow? When I did a log I got tooth time and I saw green and red, but only one blue spike when I left off the starter.
Any suggestions?
Last edited by AMDnoob; 11-24-2017 at 01:17 PM.
