96-97 DIYPNP Jumper Visual Map
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Hello all, I am in the process of finishing up a DIYPNP build and just started on the wiring connecting the main board to the connector board. So, I figured that I would post some pictures mapping these connections visually as I go along. I know this should be very straight forward to most, but I am doing this for two reasons. One, because if you are like me, having a visual map makes following this wiring a thousand times easier than following written instructions alone. Two, I am also adding this here so people with more DIYPNP build experience can hopefully check my work to make sure that I am indeed connecting the 2 boards correctly, and if not, how to correct any mistakes that I may have made, and mary the boards correctly.
Also, the wiring below follows the path outlined here and my car is of the same specs listed:
DIYPNP MegaSquirt installation for the Mazda Miata
*Note: I may go a different route with the A/C hook up that Ive read about that does not require the removal of the R14 resistor. I will cross this bridge as I move along.
So here we go. (I have only made 10 connections so far but will add more ASAP)

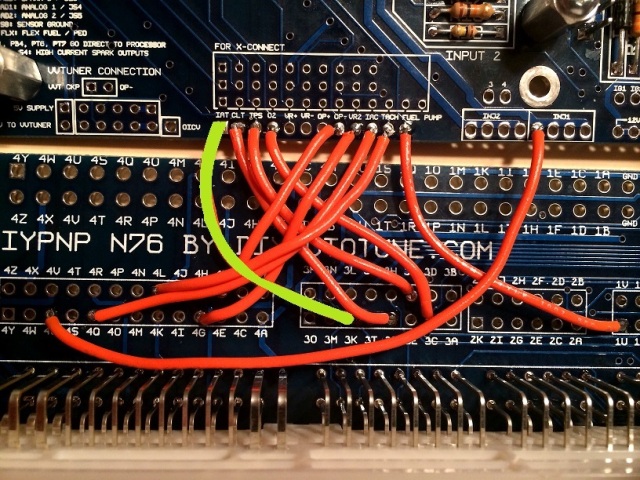

IAT to 3K
![](https://www.miataturbo.net/attachments/megasquirt-18/107542-%9196-97-diypnp-jumper-visual-map-330guah.jpg?dateline=1395938209)
CLT to 3G
![](https://www.miataturbo.net/attachments/megasquirt-18/107543-%9196-97-diypnp-jumper-visual-map-2mmd743.jpg?dateline=1395938209)
TPS to 3F
![](https://www.miataturbo.net/attachments/megasquirt-18/107544-%9196-97-diypnp-jumper-visual-map-jpv3n5.jpg?dateline=1395938209)

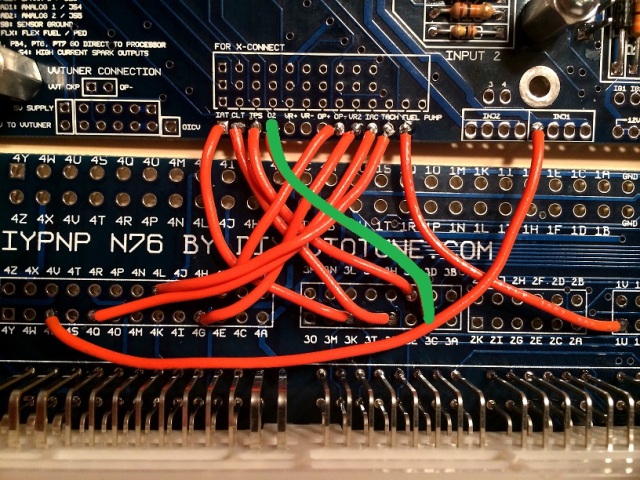

O2 to 3C
![](https://www.miataturbo.net/attachments/megasquirt-18/107545-%9196-97-diypnp-jumper-visual-map-2a66p00.jpg?dateline=1395938209)

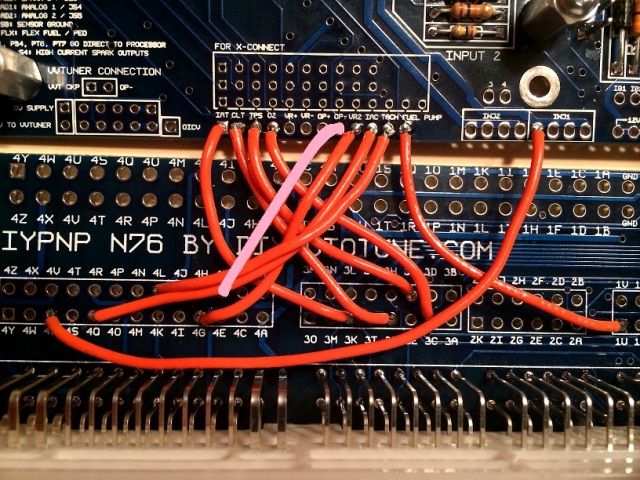

OP- to 4F
![](https://www.miataturbo.net/attachments/megasquirt-18/107546-%9196-97-diypnp-jumper-visual-map-2cdwljb.jpg?dateline=1395938209)
VR2 to 4G
![](https://www.miataturbo.net/attachments/megasquirt-18/107547-%9196-97-diypnp-jumper-visual-map-2iq73c.jpg?dateline=1395938209)

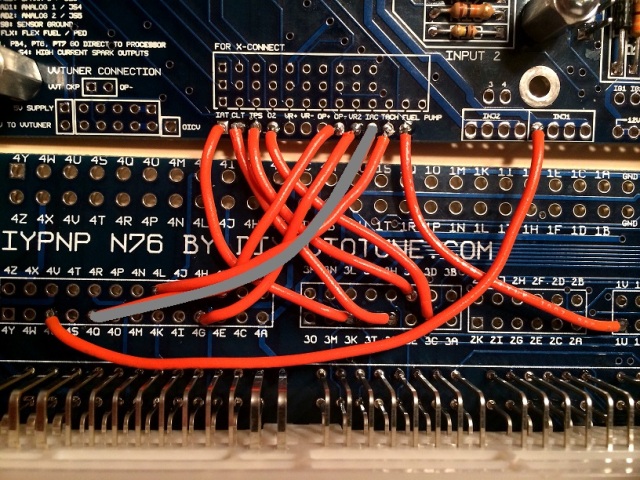

IAC to 4Q
![](https://www.miataturbo.net/attachments/megasquirt-18/107548-%9196-97-diypnp-jumper-visual-map-z1rno.jpg?dateline=1395938209)

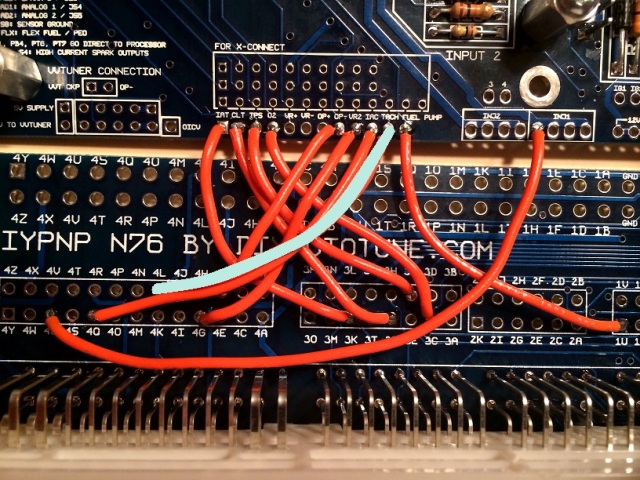

TACH to 4L
![](https://www.miataturbo.net/attachments/megasquirt-18/107549-%9196-97-diypnp-jumper-visual-map-34hurrm.jpg?dateline=1395938209)
FUEL to 1U
![](https://www.miataturbo.net/attachments/megasquirt-18/107550-%9196-97-diypnp-jumper-visual-map-116ht9d.jpg?dateline=1395938209)

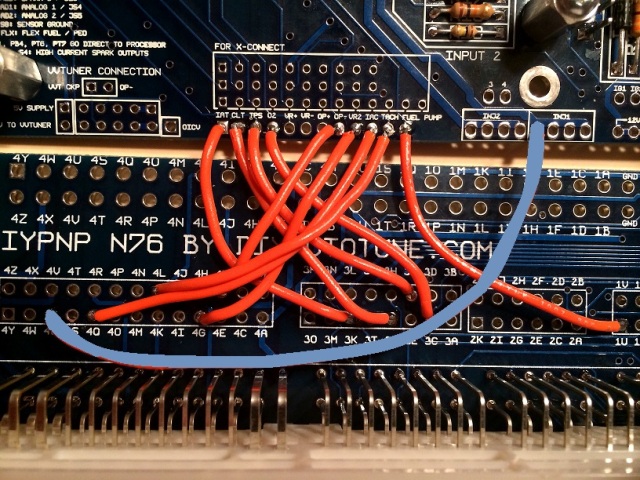

INJ1 to 4U
Also, the wiring below follows the path outlined here and my car is of the same specs listed:
DIYPNP MegaSquirt installation for the Mazda Miata
*Note: I may go a different route with the A/C hook up that Ive read about that does not require the removal of the R14 resistor. I will cross this bridge as I move along.
So here we go. (I have only made 10 connections so far but will add more ASAP)
IAT to 3K
![](https://www.miataturbo.net/attachments/megasquirt-18/107542-%9196-97-diypnp-jumper-visual-map-330guah.jpg?dateline=1395938209)
CLT to 3G
![](https://www.miataturbo.net/attachments/megasquirt-18/107543-%9196-97-diypnp-jumper-visual-map-2mmd743.jpg?dateline=1395938209)
TPS to 3F
![](https://www.miataturbo.net/attachments/megasquirt-18/107544-%9196-97-diypnp-jumper-visual-map-jpv3n5.jpg?dateline=1395938209)
O2 to 3C
![](https://www.miataturbo.net/attachments/megasquirt-18/107545-%9196-97-diypnp-jumper-visual-map-2a66p00.jpg?dateline=1395938209)
OP- to 4F
![](https://www.miataturbo.net/attachments/megasquirt-18/107546-%9196-97-diypnp-jumper-visual-map-2cdwljb.jpg?dateline=1395938209)
VR2 to 4G
![](https://www.miataturbo.net/attachments/megasquirt-18/107547-%9196-97-diypnp-jumper-visual-map-2iq73c.jpg?dateline=1395938209)
IAC to 4Q
![](https://www.miataturbo.net/attachments/megasquirt-18/107548-%9196-97-diypnp-jumper-visual-map-z1rno.jpg?dateline=1395938209)
TACH to 4L
![](https://www.miataturbo.net/attachments/megasquirt-18/107549-%9196-97-diypnp-jumper-visual-map-34hurrm.jpg?dateline=1395938209)
FUEL to 1U
![](https://www.miataturbo.net/attachments/megasquirt-18/107550-%9196-97-diypnp-jumper-visual-map-116ht9d.jpg?dateline=1395938209)
INJ1 to 4U
![](https://www.miataturbo.net/attachments/megasquirt-18/107551-%9196-97-diypnp-jumper-visual-map-2wq7plw.jpg?dateline=1395938209)
#3
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
But if you find this useless have the thread deleted. Fine by me.
![](https://www.miataturbo.net/images/smilies/smile.gif)
#4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
For ref I'm running DIYPNP on a 96-97 Eunos.
Whilst I haven't done it quite to the level you have, I do get where you're coming from....I capture extra info in Excel if I think it'll be usefil, listi out the connections I made, then checked, etc. Including noting down ECU factory pinout purposes and misc plugs uses as I found them in the factory loom diagrams and on here/the web. For me it helped when I needed to change setup from 94 to 96 ECU pinouts, plus a few other changes in between as I configure the custom outputs, switched basemaps to use A/C idle up (recommended on here) and finally now ditching A/C.
Anyway more importantly, the wires you've shown there are fine. What variations/extras from the 'standard' diyautotune setup are you planning on running?
-Seq Injection module?
-A/C?
-Boost control/Table switching etc?
Whilst I haven't done it quite to the level you have, I do get where you're coming from....I capture extra info in Excel if I think it'll be usefil, listi out the connections I made, then checked, etc. Including noting down ECU factory pinout purposes and misc plugs uses as I found them in the factory loom diagrams and on here/the web. For me it helped when I needed to change setup from 94 to 96 ECU pinouts, plus a few other changes in between as I configure the custom outputs, switched basemaps to use A/C idle up (recommended on here) and finally now ditching A/C.
Anyway more importantly, the wires you've shown there are fine. What variations/extras from the 'standard' diyautotune setup are you planning on running?
-Seq Injection module?
-A/C?
-Boost control/Table switching etc?
#5
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

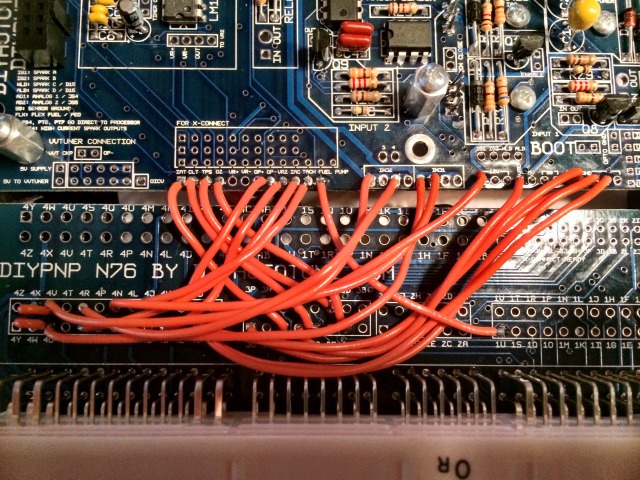

After completing the jumpers I can understand why some may find this a pointless posting since it is so straight forward, so I won’t go into any more step by step connections and will just post this image of the finished wiring. Both the radiator fan and A/C relay & fan are connected on the backside of the board so can’t be seen. I connected the radiator fan and A/C relay & fan following a slightly different rout than the instructions in the link above, following a path explained in another post. (shown below) I hope that it work out.
A/C
1K to Input 1 IN
Input 1 OUT to PE1
PA0 to 1B
1B to 1G
Radiator
WLD to Relay 1 IN
Relay 1 OUT to 1A
source: https://www.miataturbo.net/megasquir...p-c-r14-76265/
At this point in the game I am simply trying to run the DIYPNP on a stock set up in hopes to gain an understanding of tuning the car without any variables. From there I hope to get injectors and a fuel pump upgrade, and finally the FM 2kit down the road after I am confident using tunerstudio. That said, at this point (other than A/C) I think I’m going to be running a pretty “standard” set up, and hope the wiring looks OK to folks who’ve done this before.
Thanks in advance for your feedback.
A/C
1K to Input 1 IN
Input 1 OUT to PE1
PA0 to 1B
1B to 1G
Radiator
WLD to Relay 1 IN
Relay 1 OUT to 1A
source: https://www.miataturbo.net/megasquir...p-c-r14-76265/
At this point in the game I am simply trying to run the DIYPNP on a stock set up in hopes to gain an understanding of tuning the car without any variables. From there I hope to get injectors and a fuel pump upgrade, and finally the FM 2kit down the road after I am confident using tunerstudio. That said, at this point (other than A/C) I think I’m going to be running a pretty “standard” set up, and hope the wiring looks OK to folks who’ve done this before.
Thanks in advance for your feedback.
![](https://www.miataturbo.net/attachments/megasquirt-18/108022-%9196-97-diypnp-jumper-visual-map-21j0z8w.jpg?dateline=1396282953)
#6
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Looks fine apart from WLED (see below). Just thought I'd add my thoughts on how I've done mine, based decisions on my layout on the input/output documentation from DIYPNP (DIYPNP Documentation - DIYAutoTune.com) and threads on here:
A/C Input:
1K (A/C Switch) > Input 1 IN
Input 1 OUT > FLX (PE0)
A/C Output:
ALED > 1B (Air Con Fan Relay) and 1G (A/C Pump Relay)
The reason I've used PE0 rather than the DiyAutotune suggested PA0 is so I can use PA0 for boost control in the future and not limit other possible uses for the inputs and outputs.
As I've deleted A/C now I'm doing a few changes, moving 1B (A/C Fan relay) to WLED so it comes on with Fan Control. It then frees up the A/C Switch input to PE0 to control something else.
Radiator Fan control:
WLED > 1A
WLED and ALED do NOT need to be output through a Relay circuit.
IAC:
Another random note, in Diyautotunes old basemap for 96-97 they didn't include a Diode in the pull up location for the IAC, this IS required (and I did confirm this with them).
I should note, I have had this running fine with GSlender and 3.3 releases but only on NA. I'm fitting the Turbo at the moment!
A/C Input:
1K (A/C Switch) > Input 1 IN
Input 1 OUT > FLX (PE0)
A/C Output:
ALED > 1B (Air Con Fan Relay) and 1G (A/C Pump Relay)
The reason I've used PE0 rather than the DiyAutotune suggested PA0 is so I can use PA0 for boost control in the future and not limit other possible uses for the inputs and outputs.
As I've deleted A/C now I'm doing a few changes, moving 1B (A/C Fan relay) to WLED so it comes on with Fan Control. It then frees up the A/C Switch input to PE0 to control something else.
Radiator Fan control:
WLED > 1A
WLED and ALED do NOT need to be output through a Relay circuit.
IAC:
Another random note, in Diyautotunes old basemap for 96-97 they didn't include a Diode in the pull up location for the IAC, this IS required (and I did confirm this with them).
I should note, I have had this running fine with GSlender and 3.3 releases but only on NA. I'm fitting the Turbo at the moment!
#7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks for the feedback Manic! I’m going to compare your notes to what I have and may make some changes per your suggestions. I also may end up deleting the A/C down the road but I guess I’ll see if I can get it running right first at least for wiring experience sake.
I did run a diode from IAC to 12V, with the banded end toward the 12V in the Pull Ups area. They must have updated the pin out map to reflect this so I should (hopefully) be OK.
Thanks again for your input man!!
I did run a diode from IAC to 12V, with the banded end toward the 12V in the Pull Ups area. They must have updated the pin out map to reflect this so I should (hopefully) be OK.
Thanks again for your input man!!
#9
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks man! That may be a great resource to reference. If it's not too much of a hassle that would be awesome.
Here my info: strombley79@gmail.com
Thanks again Manic!
