Hey crew-
I'm Pinky. I'm about to stick an '04 Mazdaspeed Turbo drivetrain into my '99 Miata.
I've had the '99 for a long time and have upgraded it over the years. As it sits right now it's got a hybrid "Spec Front/Double D Rear" Hard Dog cage, Sparco Sprints and 5 point belts, Simpson Design hood and trunk, SE nose and chin spoiler, rolled and pulled fenders, Tokico Illuminas with Tein springs, Poly and Delrin bushings, big sways and solid links and Fatcat bump stops. The motor is internally stock with a header, custom CAI, adjustable exhaust cam gear and a clearanced cam cover. It's a nice handling car, but a bit lacking in performance.
The car has been sitting for a few years (I have an Elise, among other toys) but I got inspired to pull it out and prep it for a track day with my friends. That led to a fairly major rebuild of the car, which I've accumulated the parts for and am about to begin.

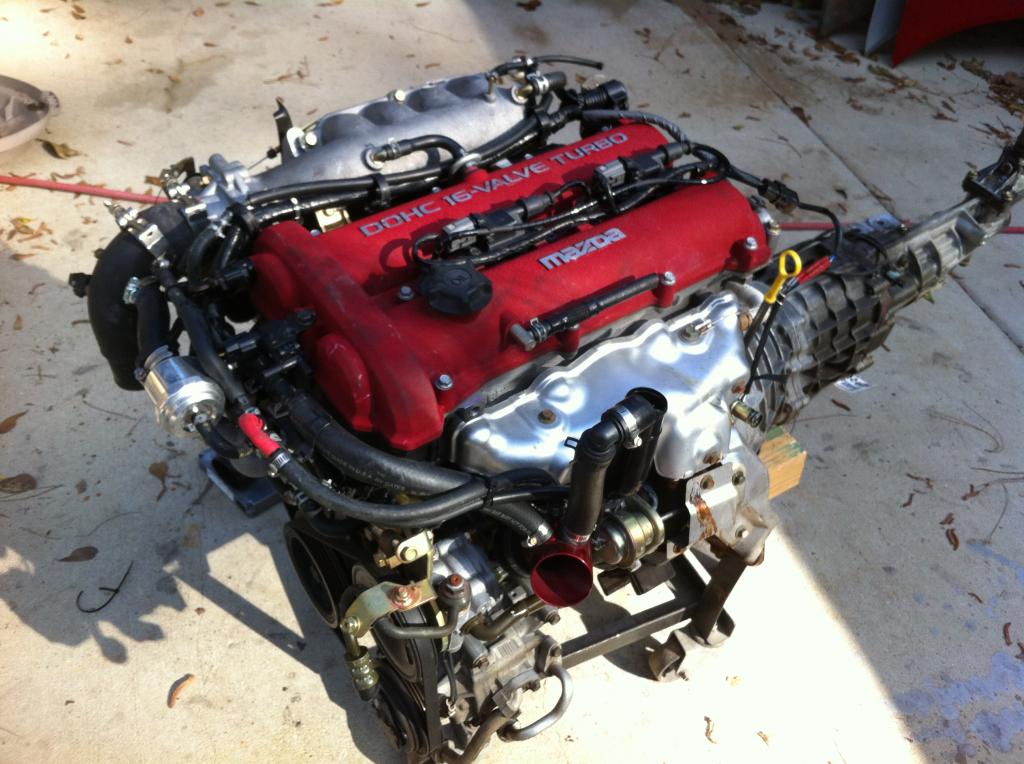

First off, I've bought a complete "cut-out" from a wrecked 2004 Mazdaspeed Miata (Build number 47, built on 1/29/04). It just arrived today! Bonus: It's got a Forge BOV, a MBC, a BEGI Throttle Body Inlet Tube and some parts of what appears to be an aftermarket intake. The wrecking yard inexplicably sawed through a nice stainless downpipe, so I'll have to replace that. It's complete with the 6 speed, intercooler and the ECU, although I won't be needing the ECU, because...
I've also just bought a 99-00 Megasquirt PNP, which I bought before the MSM drivetrain came through. I'm hoping that it'll work with the MSM motor, as the 99-00 motor is largely the same as the 04-05 MSM. (Aside from Coil On Plug ignition, which is the only really obvious difference I can find from a wiring perspective.)
I've ordered some eBay stainless stuff for the car, including a tubular manifold, turbo inlet and outlet and a downpipe, and dropped off all the remaining stock piping at the powdercoater. As soon as I get all that stuff I'll slap the motor in the car.
Anyway, that's my project. I'll open individual threads for the actual mods, but just wanted to introduce myself and the car to y'all.
![](https://www.miataturbo.net/attachments/meet-greet-40/66393-my-franken-msm-img_6257_zpsac4a6d69.jpg?dateline=1359761361)
![](https://www.miataturbo.net/attachments/meet-greet-40/66394-my-franken-msm-img_6260_zps0b9bfc1b.jpg?dateline=1359761361)

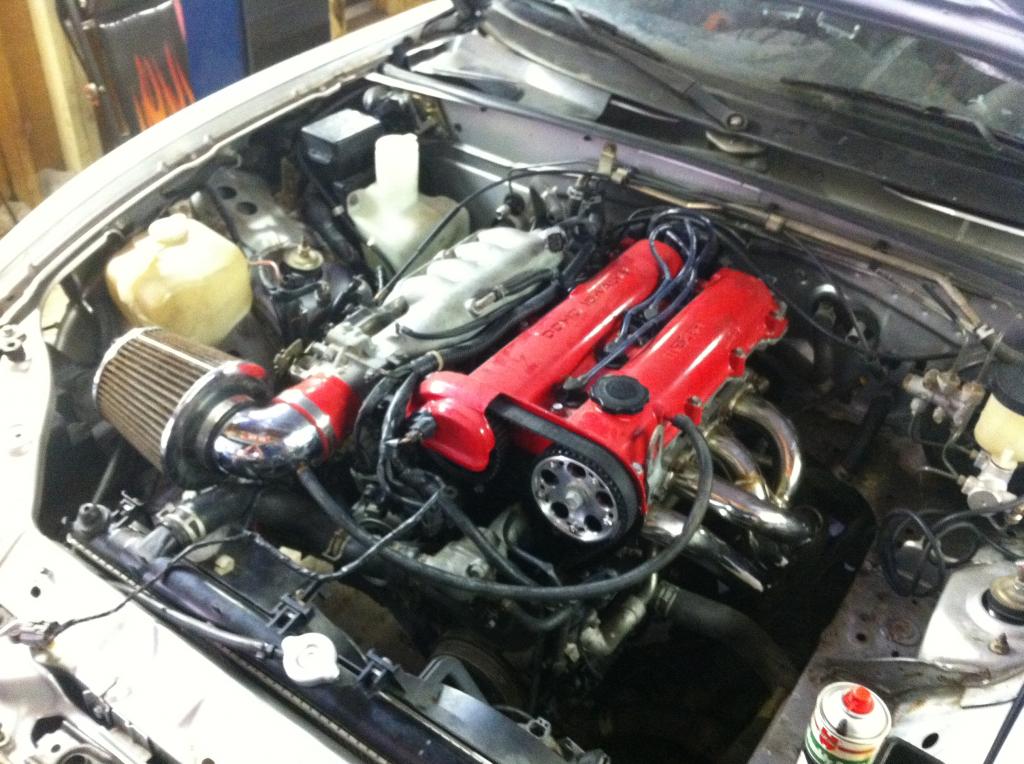

The car as it sits:
![](https://www.miataturbo.net/attachments/meet-greet-40/66395-my-franken-msm-img_6150_zps4a24ebfa.jpg?dateline=1359761361)
I'm Pinky. I'm about to stick an '04 Mazdaspeed Turbo drivetrain into my '99 Miata.
I've had the '99 for a long time and have upgraded it over the years. As it sits right now it's got a hybrid "Spec Front/Double D Rear" Hard Dog cage, Sparco Sprints and 5 point belts, Simpson Design hood and trunk, SE nose and chin spoiler, rolled and pulled fenders, Tokico Illuminas with Tein springs, Poly and Delrin bushings, big sways and solid links and Fatcat bump stops. The motor is internally stock with a header, custom CAI, adjustable exhaust cam gear and a clearanced cam cover. It's a nice handling car, but a bit lacking in performance.
The car has been sitting for a few years (I have an Elise, among other toys) but I got inspired to pull it out and prep it for a track day with my friends. That led to a fairly major rebuild of the car, which I've accumulated the parts for and am about to begin.
First off, I've bought a complete "cut-out" from a wrecked 2004 Mazdaspeed Miata (Build number 47, built on 1/29/04). It just arrived today! Bonus: It's got a Forge BOV, a MBC, a BEGI Throttle Body Inlet Tube and some parts of what appears to be an aftermarket intake. The wrecking yard inexplicably sawed through a nice stainless downpipe, so I'll have to replace that. It's complete with the 6 speed, intercooler and the ECU, although I won't be needing the ECU, because...
I've also just bought a 99-00 Megasquirt PNP, which I bought before the MSM drivetrain came through. I'm hoping that it'll work with the MSM motor, as the 99-00 motor is largely the same as the 04-05 MSM. (Aside from Coil On Plug ignition, which is the only really obvious difference I can find from a wiring perspective.)
I've ordered some eBay stainless stuff for the car, including a tubular manifold, turbo inlet and outlet and a downpipe, and dropped off all the remaining stock piping at the powdercoater. As soon as I get all that stuff I'll slap the motor in the car.
Anyway, that's my project. I'll open individual threads for the actual mods, but just wanted to introduce myself and the car to y'all.
![](https://www.miataturbo.net/attachments/meet-greet-40/66393-my-franken-msm-img_6257_zpsac4a6d69.jpg?dateline=1359761361)
![](https://www.miataturbo.net/attachments/meet-greet-40/66394-my-franken-msm-img_6260_zps0b9bfc1b.jpg?dateline=1359761361)
The car as it sits:
![](https://www.miataturbo.net/attachments/meet-greet-40/66395-my-franken-msm-img_6150_zps4a24ebfa.jpg?dateline=1359761361)
![](https://www.miataturbo.net/attachments/meet-greet-40/66396-my-franken-msm-img_6092_zps38a9d270.jpg?dateline=1359761361)
#2
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2013
Location: Jacksonville FL
Posts: 648
Total Cats: 216
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
In reviewing my post, it seems that I didn't do much in the way of introducing *myself*, so..
As said before, my name's Pinky. (It's a long story..) I'm originally from Jersey, but have been in Jacksonville FL for 20 years now so I guess I'm "from Florida". I bailed on Corporate America about ten years ago and now have a small restoration/metal fabrication shop called ThugBilt, and a "boutique" car dealership called Bahnzai, both here in Jax. (I traded a coat and tie for sleeve tattoos!) I'm pretty much a "one-man-show" at both places, although I have a floating crew of helpers/painters/gearheads that work with me as needed. I do some specialty display fabrication for a restaurant chain in addition to the car stuff, but it's mostly completing and flipping "basket case" hot rods. It's the greatest job in the world.
As far as interests go, I'm a gearhead, and most of my leisure time involves cars or bikes in some fashion. I've got two sons, 13 and 3, and they keep me pretty busy.
Anyway, a few pictures of The Pinky Dream Shop-

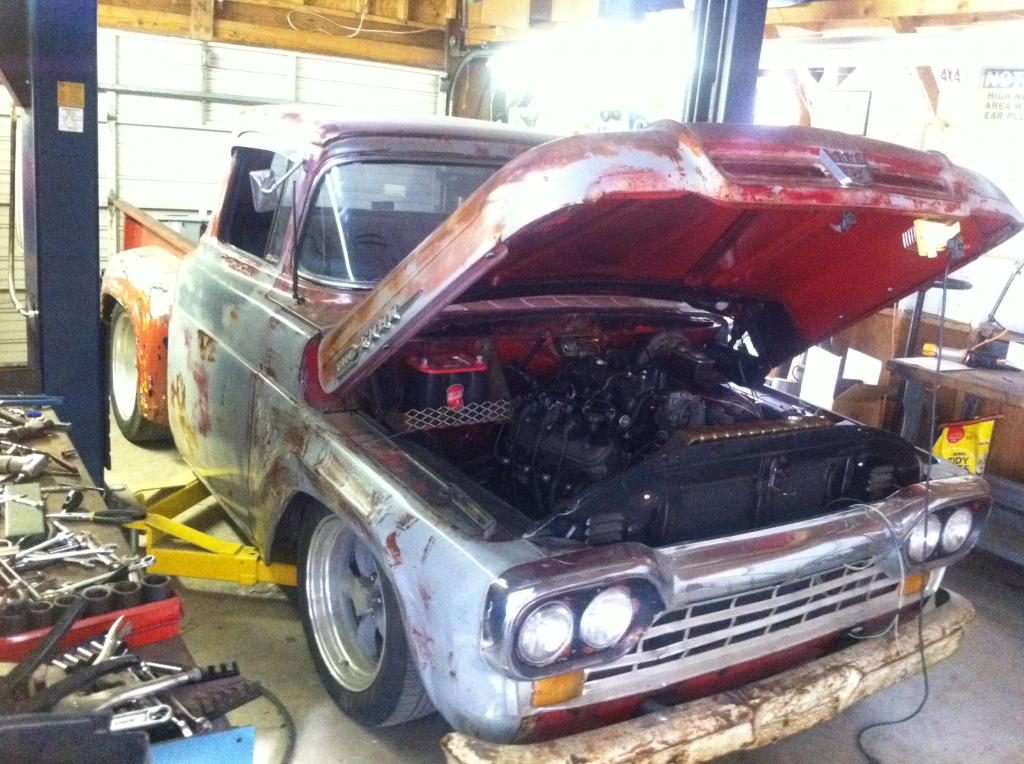

The main lift bay, at the front of the shop. There's a scissor lift in the assembly area, but this is the primary lift.
![](https://www.miataturbo.net/attachments/meet-greet-40/66400-my-franken-msm-img_5536_zps32798691.jpg?dateline=1359768131)
Looking from the lift bay back into the welding and machine shop area.
![](https://www.miataturbo.net/attachments/meet-greet-40/66401-my-franken-msm-img_5875_zps67dedb90.jpg?dateline=1359768131)
The shop is an "L" shape, here looking from the machine shop out into the assembly area. My office is in the far right corner.
![](https://www.miataturbo.net/attachments/meet-greet-40/66402-my-franken-msm-img_5876_zps4c36bf18.jpg?dateline=1359768131)
Gratuitous Tool ****:
![](https://www.miataturbo.net/attachments/meet-greet-40/66403-my-franken-msm-img_5874_zps0b7bb3f3.jpg?dateline=1359768131)
There's also a wood shop, a gym, a paint booth and a couple car storage buildings, all on 3 secluded acres. Great place to go to work every day.
As said before, my name's Pinky. (It's a long story..) I'm originally from Jersey, but have been in Jacksonville FL for 20 years now so I guess I'm "from Florida". I bailed on Corporate America about ten years ago and now have a small restoration/metal fabrication shop called ThugBilt, and a "boutique" car dealership called Bahnzai, both here in Jax. (I traded a coat and tie for sleeve tattoos!) I'm pretty much a "one-man-show" at both places, although I have a floating crew of helpers/painters/gearheads that work with me as needed. I do some specialty display fabrication for a restaurant chain in addition to the car stuff, but it's mostly completing and flipping "basket case" hot rods. It's the greatest job in the world.
As far as interests go, I'm a gearhead, and most of my leisure time involves cars or bikes in some fashion. I've got two sons, 13 and 3, and they keep me pretty busy.
Anyway, a few pictures of The Pinky Dream Shop-
The main lift bay, at the front of the shop. There's a scissor lift in the assembly area, but this is the primary lift.
![](https://www.miataturbo.net/attachments/meet-greet-40/66400-my-franken-msm-img_5536_zps32798691.jpg?dateline=1359768131)

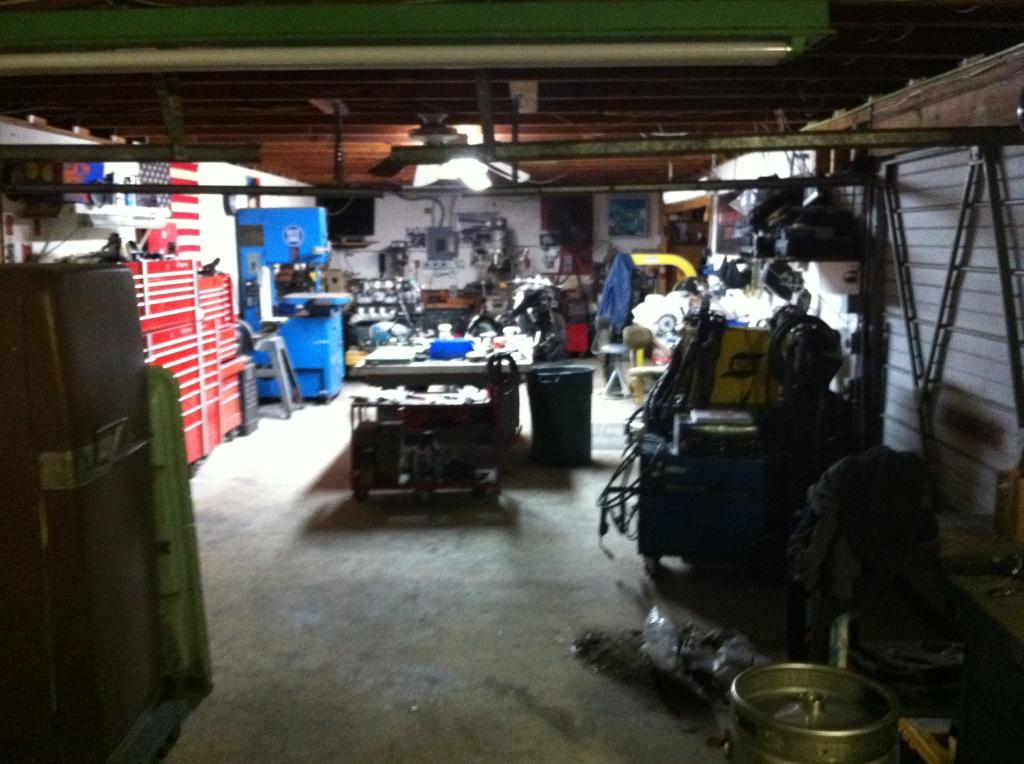

Looking from the lift bay back into the welding and machine shop area.
![](https://www.miataturbo.net/attachments/meet-greet-40/66401-my-franken-msm-img_5875_zps67dedb90.jpg?dateline=1359768131)
The shop is an "L" shape, here looking from the machine shop out into the assembly area. My office is in the far right corner.
![](https://www.miataturbo.net/attachments/meet-greet-40/66402-my-franken-msm-img_5876_zps4c36bf18.jpg?dateline=1359768131)
Gratuitous Tool ****:
![](https://www.miataturbo.net/attachments/meet-greet-40/66403-my-franken-msm-img_5874_zps0b7bb3f3.jpg?dateline=1359768131)
There's also a wood shop, a gym, a paint booth and a couple car storage buildings, all on 3 secluded acres. Great place to go to work every day.
#6
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2013
Location: Jacksonville FL
Posts: 648
Total Cats: 216
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Wow, cool car Tim - That looks like a factory install; did the car start out as a MSM or did you swap into an earlier shell like me? Looks like the same BOV, same inlet elbow, same intake (except yours is complete). I'm guessing that we should be building similar power, so I'm curious how fast the car is? (I've never driven a turbo miata, only supercharged ones.)
#7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Wow, cool car Tim - That looks like a factory install; did the car start out as a MSM or did you swap into an earlier shell like me? Looks like the same BOV, same inlet elbow, same intake (except yours is complete). I'm guessing that we should be building similar power, so I'm curious how fast the car is? (I've never driven a turbo miata, only supercharged ones.)
#8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Wow, cool car Tim - That looks like a factory install; did the car start out as a MSM or did you swap into an earlier shell like me? Looks like the same BOV, same inlet elbow, same intake (except yours is complete). I'm guessing that we should be building similar power, so I'm curious how fast the car is? (I've never driven a turbo miata, only supercharged ones.)
#11
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2013
Location: Jacksonville FL
Posts: 648
Total Cats: 216
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

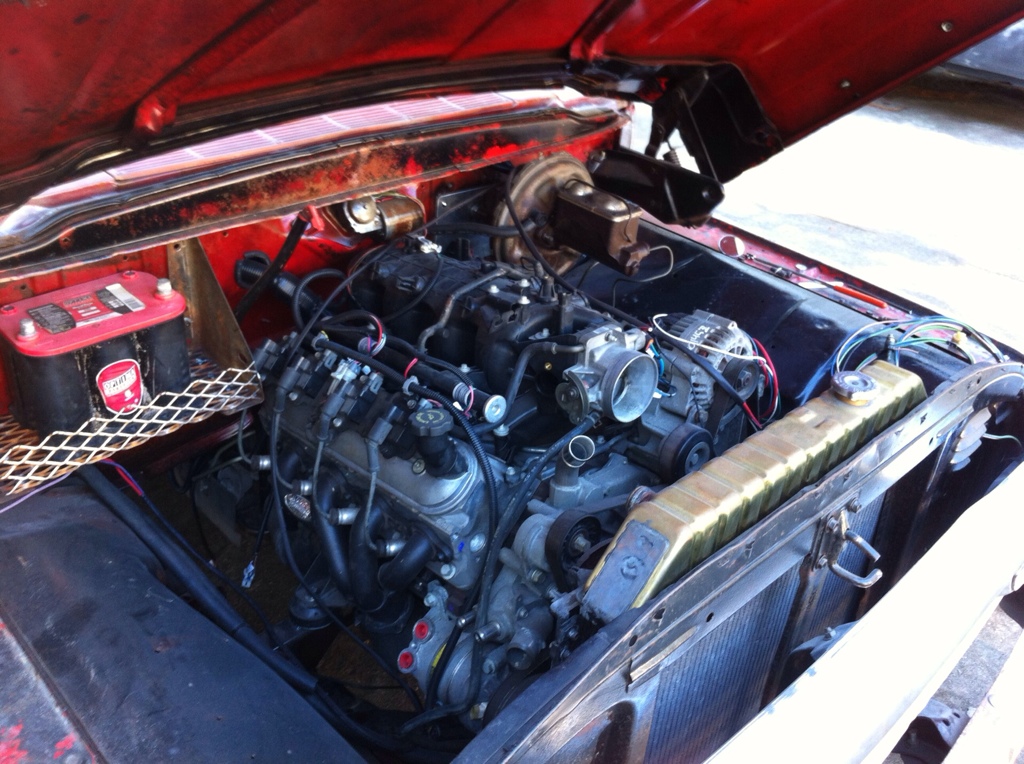

My '59 is getting a 5.3 Vortec with a 4L60E. Its just a stock junkyard motor, nothing fancy. The truck has a Volare IFS with disc brakes and a 9", although I have a Frankland quick-change sitting here tempting me... (I have to make a new driveshaft for it anyway, might as well.
