93' NA6 from Australia
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
hey all,

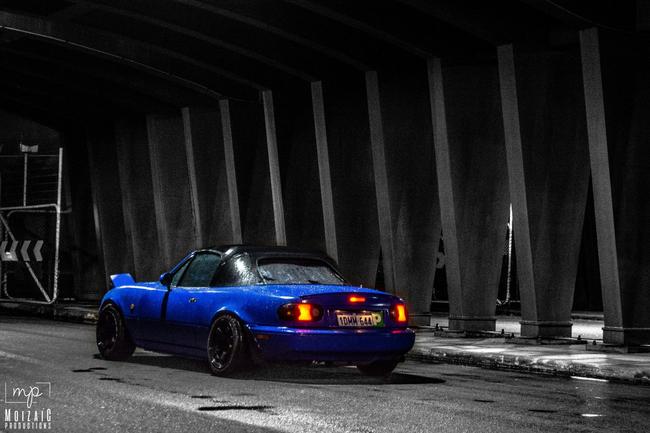

Owned my mx-5 for a few months now coming from a 200kw atw hawkeye wrx.
I like the 5 a lot more.
![Name: VilmeIN.jpg
Views: 10
Size: 39.2 KB](https://www.miataturbo.net/attachments/meet-greet-40/230939d1683052552-93-na6-australia-vilmein.jpg)
It's pretty standard bar a pod filter and some offset wheels and seems very healthy.
Just picked up a 1.8 nb8b rear end to replace my welded diff and have been reading up a heap about turbo'ing my 1.6 (and painting lol)
Car seems healthy... but going to do a compression test before I buy a pnp megasquirt and add some rx8 injectors or similar and go from there, learning as I go.
Have an alright condition t25 and an intercooler and various piping I got for cheapish...
Looking at getting a manifold made by NitroDann, decent price and will be much better than ebay.
Still a long way away from comitting to it.
Love having options so chose to go t25 in hopes if it all goes well and I feel i need more power there is more bolt on turbos available.
Will make sure I do my research before making a shitpost and getting roasted LOL
Tonnes of good info around here though, having fun learning heaps about what these miatas can do.
Thanks for viewing
-Jordan
Owned my mx-5 for a few months now coming from a 200kw atw hawkeye wrx.
I like the 5 a lot more.
![Name: VilmeIN.jpg
Views: 10
Size: 39.2 KB](https://www.miataturbo.net/attachments/meet-greet-40/230939d1683052552-93-na6-australia-vilmein.jpg)
It's pretty standard bar a pod filter and some offset wheels and seems very healthy.
Just picked up a 1.8 nb8b rear end to replace my welded diff and have been reading up a heap about turbo'ing my 1.6 (and painting lol)
Car seems healthy... but going to do a compression test before I buy a pnp megasquirt and add some rx8 injectors or similar and go from there, learning as I go.
Have an alright condition t25 and an intercooler and various piping I got for cheapish...
Looking at getting a manifold made by NitroDann, decent price and will be much better than ebay.
Still a long way away from comitting to it.
Love having options so chose to go t25 in hopes if it all goes well and I feel i need more power there is more bolt on turbos available.
Will make sure I do my research before making a shitpost and getting roasted LOL
Tonnes of good info around here though, having fun learning heaps about what these miatas can do.
Thanks for viewing
-Jordan
#4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So 6 months of progress Into one reply, here it goes

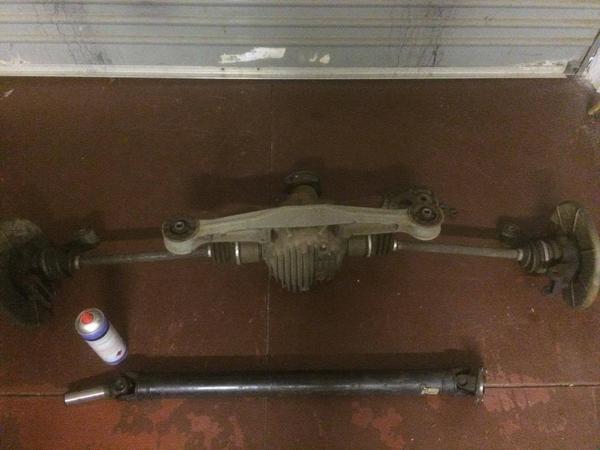

Added a 1.8 Rear end from an nb8b (bolt in swap)
![Name: jPlx7rT.jpg
Views: 11
Size: 31.6 KB](https://www.miataturbo.net/attachments/meet-greet-40/230932d1683052552-93-na6-australia-jplx7rt.jpg)

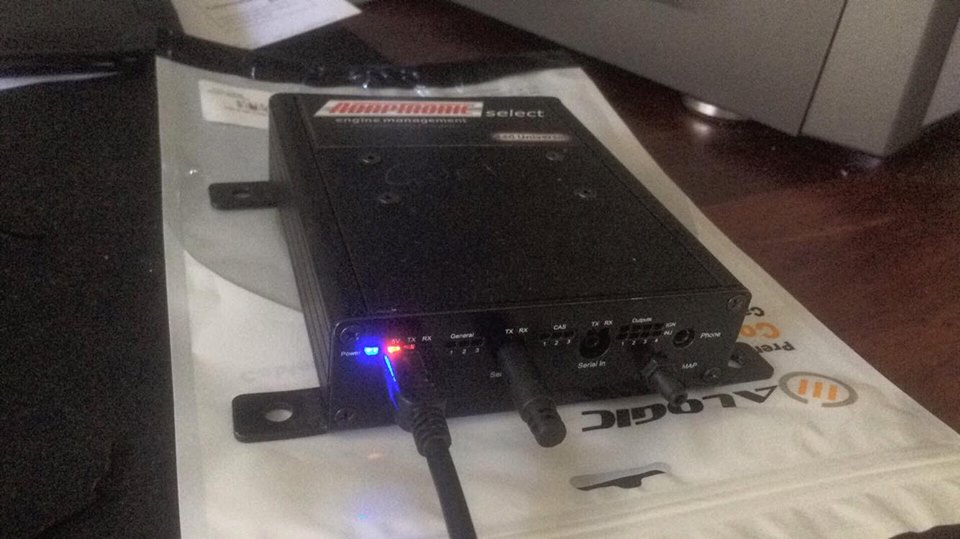

Bought a used adaptronic 440d and LC-1 and installed that both, learned the basics of tuning while N/A
![Name: XeZkOCH.jpg
Views: 10
Size: 89.2 KB](https://www.miataturbo.net/attachments/meet-greet-40/230933d1683052552-93-na6-australia-xezkoch.jpg)
Did an AFM delete and wired fuel pump for independent control with ECU.

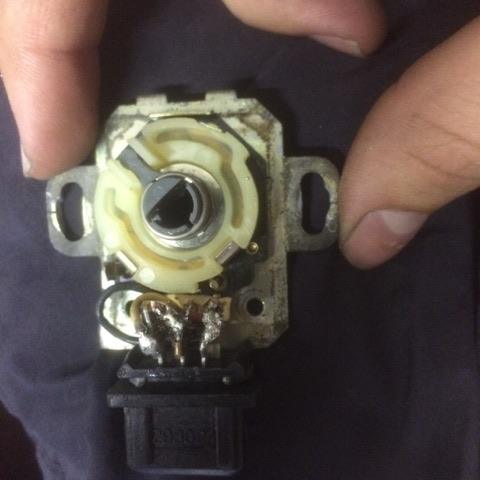

Rb30 tps that I got for $20! Worked a treat and made it PnP with some wiring modification internally
![Name: M4LE4OR.jpg
Views: 10
Size: 22.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/230934d1683052552-93-na6-australia-m4le4or.jpg)
Replaced my suspension with some koni units

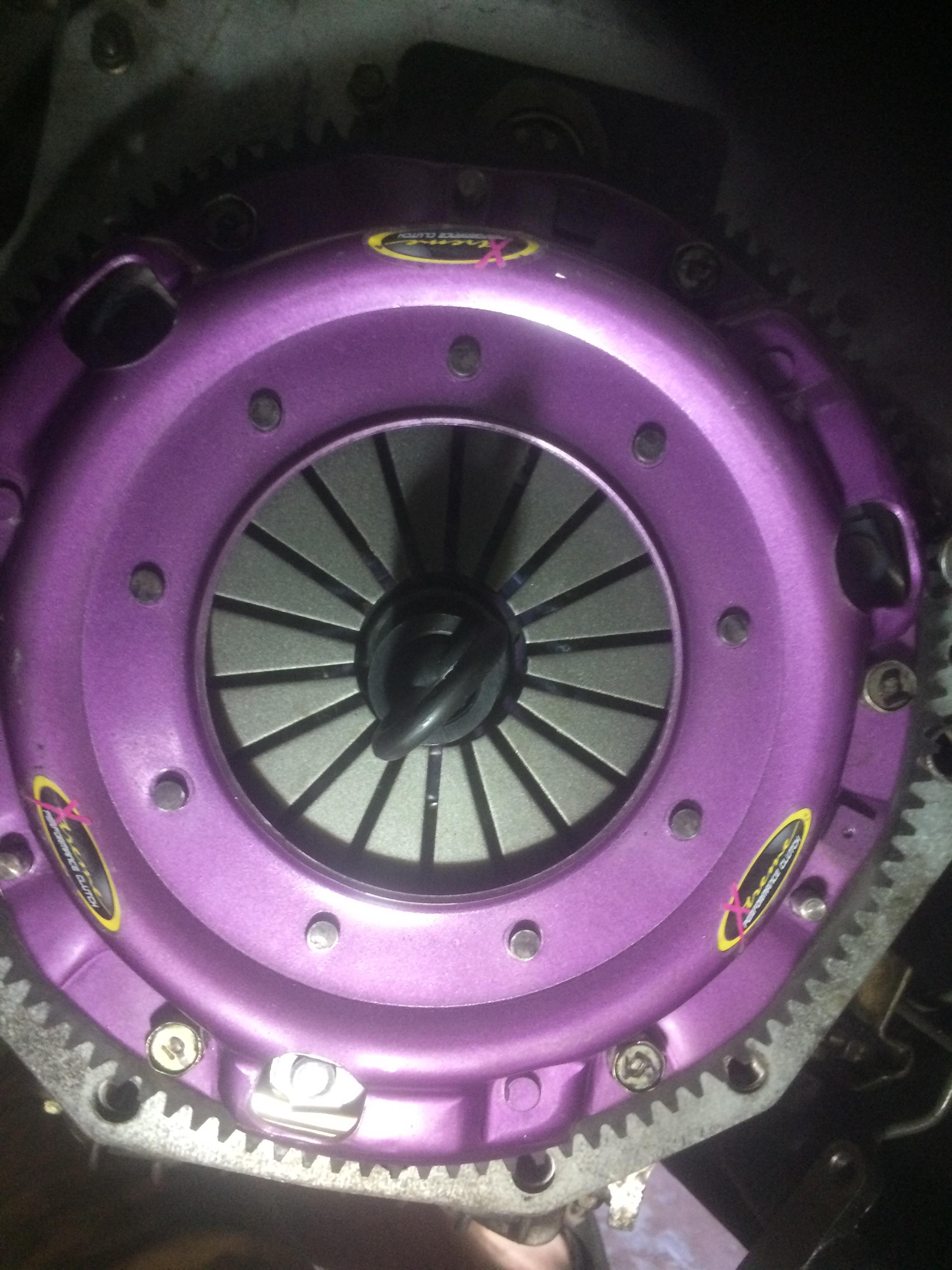

Upgraded my clutch
![Name: KNUIZrS.jpg
Views: 11
Size: 570.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/230935d1683052552-93-na6-australia-knuizrs.jpg)
Somewhere along in there I installed na8 brakes in the front
Drilled and tapped sump
Installed flowforce injectors and checked for leaks and drove on them a bit to check how my deadtimes were

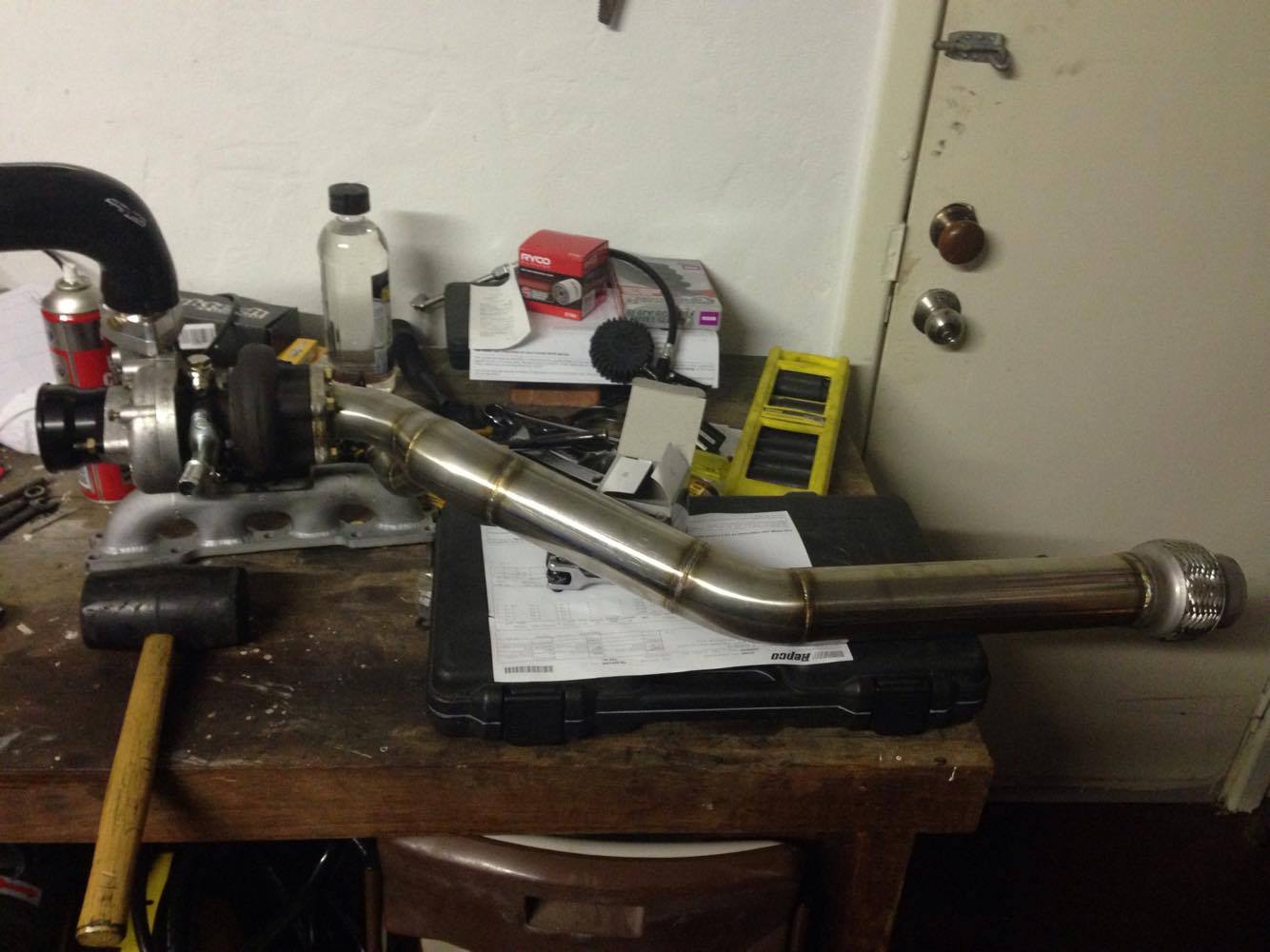

Mocked up the turbo setup
![Name: LdQ608B.jpg
Views: 11
Size: 103.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/230936d1683052552-93-na6-australia-ldq608b.jpg)

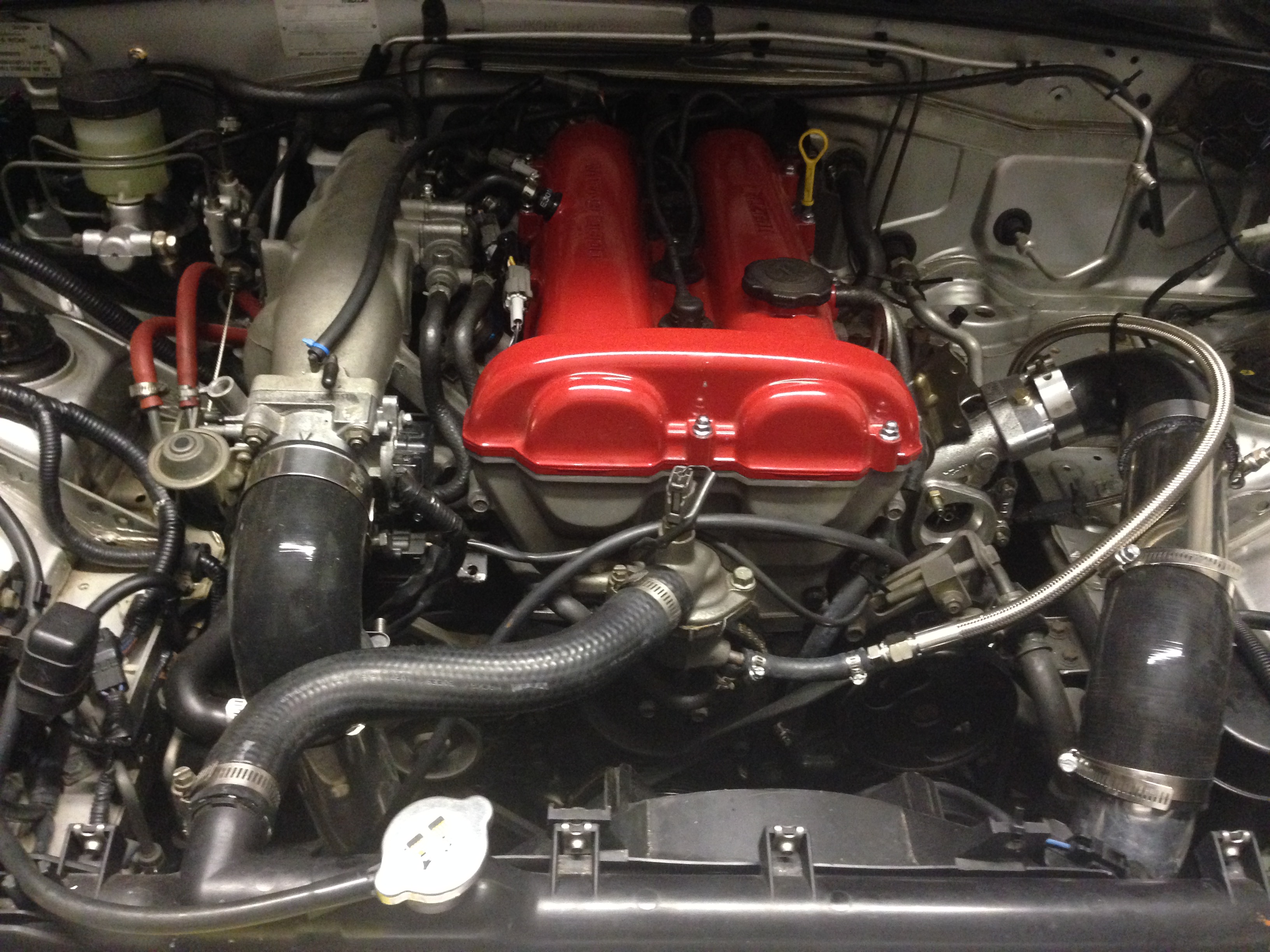

Bolted everything in
![Name: 2pNphbi.jpg
Views: 10
Size: 1.39 MB](https://www.miataturbo.net/attachments/meet-greet-40/230937d1683052552-93-na6-australia-2pnphbi.jpg)
Messed up the P/S inlet and removed my whole P/S system and got a manual rack (should have done this from the start lol
Waited 2 weeks for a manual rack to arrive (the only time I will hate having 4 public holidays in 2 weeks)
Started it up checked for leaks, none, all good.

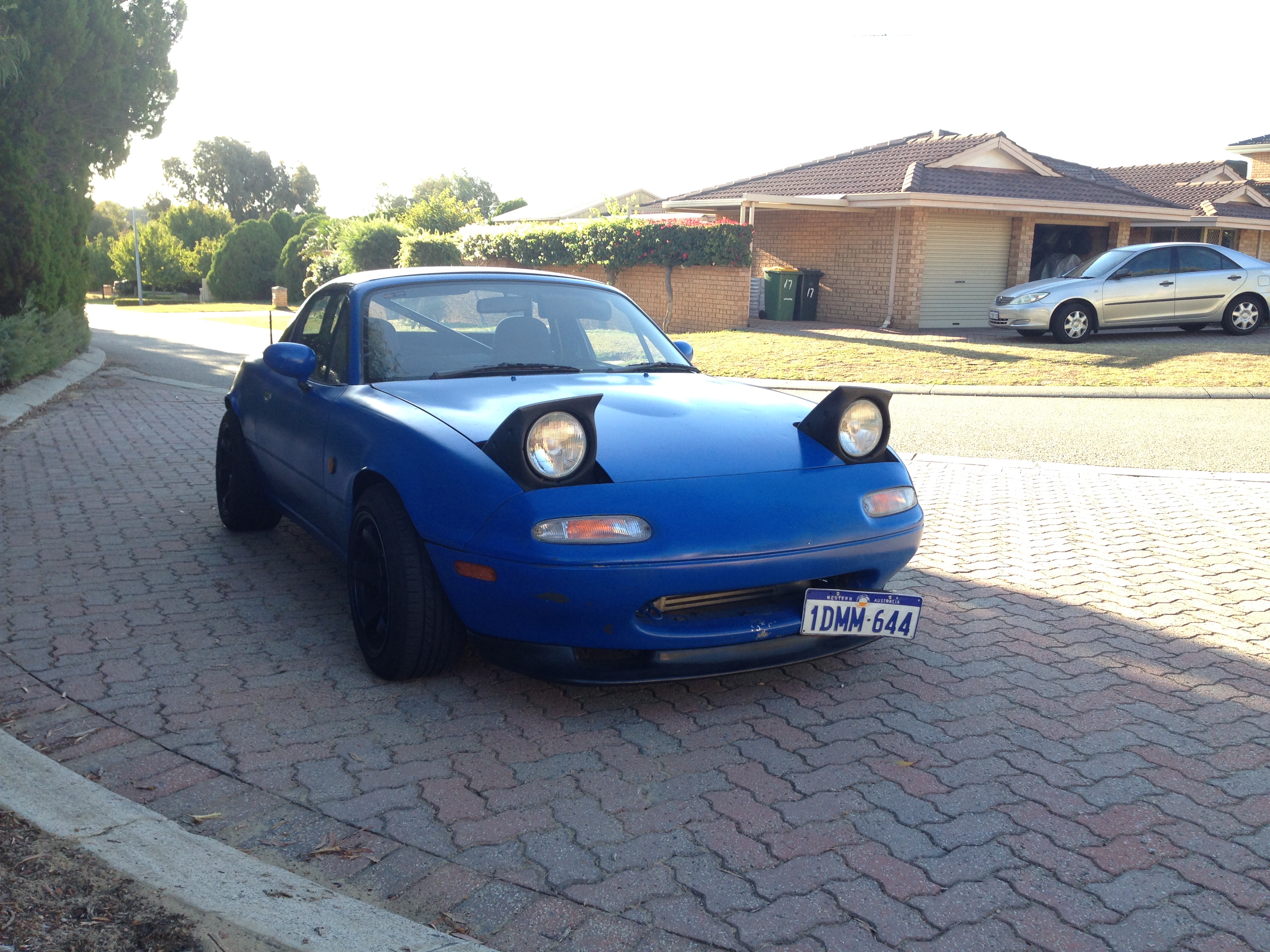

Hardtop and roll bar added, paint still sh*t
![Name: eeUh1pC.jpg
Views: 11
Size: 2.58 MB](https://www.miataturbo.net/attachments/meet-greet-40/230938d1683052552-93-na6-australia-eeuh1pc.jpg)
And have been driving it around lightly and made my first few psi of boost on light throttle, awaiting a dyno tune as I don't think I am confident enough to get the most power out of it myself.
Very easy to drive car just very loud as I need a full exhaust!
My only concern at this point is that there are 4 connection on my intercooler piping that do NOT have bead rolls, so I think they may blow off at some point. I will get them bead rolled if they do and remove my A/C at the same time
Will hopefully be posting dyno results in the coming week or so depending on my luck.
If i were to do it again I would just gut A/C and P/S day one, that stuff is a waste of weight and space.
Thanks for reading
Added a 1.8 Rear end from an nb8b (bolt in swap)
![Name: jPlx7rT.jpg
Views: 11
Size: 31.6 KB](https://www.miataturbo.net/attachments/meet-greet-40/230932d1683052552-93-na6-australia-jplx7rt.jpg)
Bought a used adaptronic 440d and LC-1 and installed that both, learned the basics of tuning while N/A
![Name: XeZkOCH.jpg
Views: 10
Size: 89.2 KB](https://www.miataturbo.net/attachments/meet-greet-40/230933d1683052552-93-na6-australia-xezkoch.jpg)
Did an AFM delete and wired fuel pump for independent control with ECU.
Rb30 tps that I got for $20! Worked a treat and made it PnP with some wiring modification internally
![Name: M4LE4OR.jpg
Views: 10
Size: 22.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/230934d1683052552-93-na6-australia-m4le4or.jpg)
Replaced my suspension with some koni units
Upgraded my clutch
![Name: KNUIZrS.jpg
Views: 11
Size: 570.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/230935d1683052552-93-na6-australia-knuizrs.jpg)
Somewhere along in there I installed na8 brakes in the front
Drilled and tapped sump
Installed flowforce injectors and checked for leaks and drove on them a bit to check how my deadtimes were
Mocked up the turbo setup
![Name: LdQ608B.jpg
Views: 11
Size: 103.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/230936d1683052552-93-na6-australia-ldq608b.jpg)
Bolted everything in
![Name: 2pNphbi.jpg
Views: 10
Size: 1.39 MB](https://www.miataturbo.net/attachments/meet-greet-40/230937d1683052552-93-na6-australia-2pnphbi.jpg)
Messed up the P/S inlet and removed my whole P/S system and got a manual rack (should have done this from the start lol
Waited 2 weeks for a manual rack to arrive (the only time I will hate having 4 public holidays in 2 weeks)
Started it up checked for leaks, none, all good.
Hardtop and roll bar added, paint still sh*t
![Name: eeUh1pC.jpg
Views: 11
Size: 2.58 MB](https://www.miataturbo.net/attachments/meet-greet-40/230938d1683052552-93-na6-australia-eeuh1pc.jpg)
And have been driving it around lightly and made my first few psi of boost on light throttle, awaiting a dyno tune as I don't think I am confident enough to get the most power out of it myself.
Very easy to drive car just very loud as I need a full exhaust!
My only concern at this point is that there are 4 connection on my intercooler piping that do NOT have bead rolls, so I think they may blow off at some point. I will get them bead rolled if they do and remove my A/C at the same time
Will hopefully be posting dyno results in the coming week or so depending on my luck.
If i were to do it again I would just gut A/C and P/S day one, that stuff is a waste of weight and space.
Thanks for reading
