And now that this one got approved. I shall begin.
Hello, and welcome to the donkey show that is my $17,XXX 2 year never ending project of a $700 beater that was never ever supposed to be what it became.
![Name: received_1244443625633094_zpsptgdl6m9.png
Views: 287
Size: 1.11 MB](https://www.miataturbo.net/attachments/meet-greet-40/181538d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-received_1244443625633094_zpsptgdl6m9.png)
List of crap I've done, or replaced, or upgraded:
INTERIOR:
EBay EL gauge face with 6000k white led 1194 leds for needles.
Socket 87 blue led in HVAC, Dimmer, and hazard button.
3 pod gauge A pillar mount with AEM UEGO boost and AFR gauges.
1994 Tombstone trimmed for the Metra 99-7505 kit with a pioneer double din in dash DVD player.
New full HVAC panel to replace the yellow nasty one.
Kicker 6.5" component door speakers with tweeters mounted on A pillars.
Kicker 6X9s in boxes on the parcel shelf.
Shallow mount MTX 12" subwoofer on parcel shelf.
MTX Jackhammer JH300 amp.
Viper alarm system with:
DEI 513 piezo siren.
DEI 516U talking module.
DEI 508D Field density motion detector.
Spal aftermarket central locking electronic door locks.
Added power windows with Spal illuminated window switches and a custom built wiring harness.
Replaced door cards that where missing
Filled center console door with expanding foam to reinforce it from breaking.
SMD 5630 led interior and trunk lighting. Spal trunk light switch.
2.5% limo tint.
Replaced gauge hood.
Eclipse vents.
EXTERIOR:
Hard top with Project G Visor.
KGwerks spoiler.
Second trunk lid with 57" wing and led 3rd brake light on wing.
Autokenxion N1 flares and lip.
Sportmax 002 16X8 -0 offset.
Vraptor Speedworks hood louvers.
TSIs
Clear black Euro tail lights.
Moss miata clear LED third brake light.
Third brake light strobe module.
7 watt CREE projector reverse lights.
Licence plate rear view camera.
Switchback white/amber front turn signals.
LED 1157 tail light bulbs.
LED 194 side marker lights in smoked black housings.
65 watt CREE led rear turn signals.
AAC carbon Fiber flush mount projector headlights with Morimoto 35 watt low beams and 55 watt high beams.
California street legal led underbody lights.
FM frame rails.
Blazer 18" led light bar with yellow tint.
LRB speed aluminum undertray.
Wolo bad boy highway blaster horn.
Custom diamond plate aluminum upper radiator cowl.
BODY MECHANICAL:
949 adjustable away bar endlinks.
94M edition tie rods.
Garagestar steering rack spacers.
Tein Street Advance coilovers.
2" ITB rear top hats.
Brembo drilled rotors in rear.
Willwood 13" big brake kit up front with Brembo adapters.
POWERTRAIN:
SNC 1.6 with all new seals and gaskets.
CX Racing 52mm radiator.
Mtuned coolant reroute.
All silicone radiator hoses.
VW Jetta aluminum overflow tank.
FM happy meal 10.2lb flywheel.
New clutch master and slave and stainless braided hose.
Charcoal can relocated into passenger side fender.
Orange silicone vacuum hose kit.
FFS coldside Magnison TVS900 supercharger kit with 110mm pulley at 10PSI.
1.8 injectors.
4.1 torsen rear diff.
Reman solid 1.8 rear axles.
JDM N1 stainless cat back 2.5" exhaust.
Raceland header.
Magnaflow high flow catalytic converter.
K&N cold air intake and insulated aluminum airbox.
EBay short throw shifter with new oem bushings.
All new seals and New clutch fork boot on transmission.
Megan Racing motor mounts.
It was a disaster of a car. 310,XXX had to work on it in the previous owners yard for 2 1/2 hours to even get it running(after several different tests, figured out the fuel pump wiring had a meltdown.) 4 bald rotten tires, no back window, no working accesories or heater blower, no back window, trunk and hood both bungied down. And I drove it 257 miles through the San Bernardino mountains at 10 pm in January to get it home.

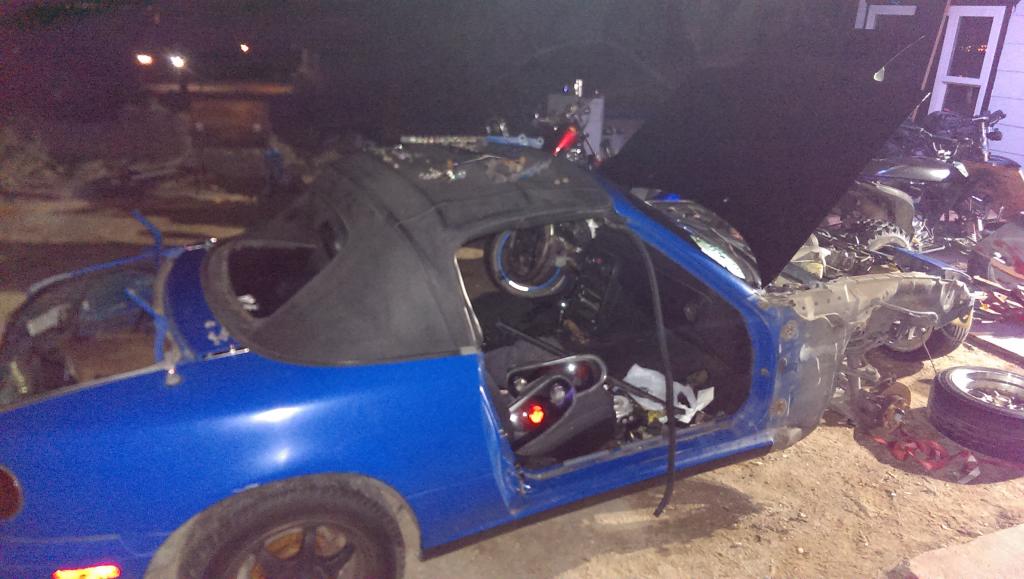

And the teardown began, January 2015.
![Name: IMAG2782_zpsyy0sx9k2.jpg
Views: 241
Size: 79.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/181539d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag2782_zpsyy0sx9k2.jpg)

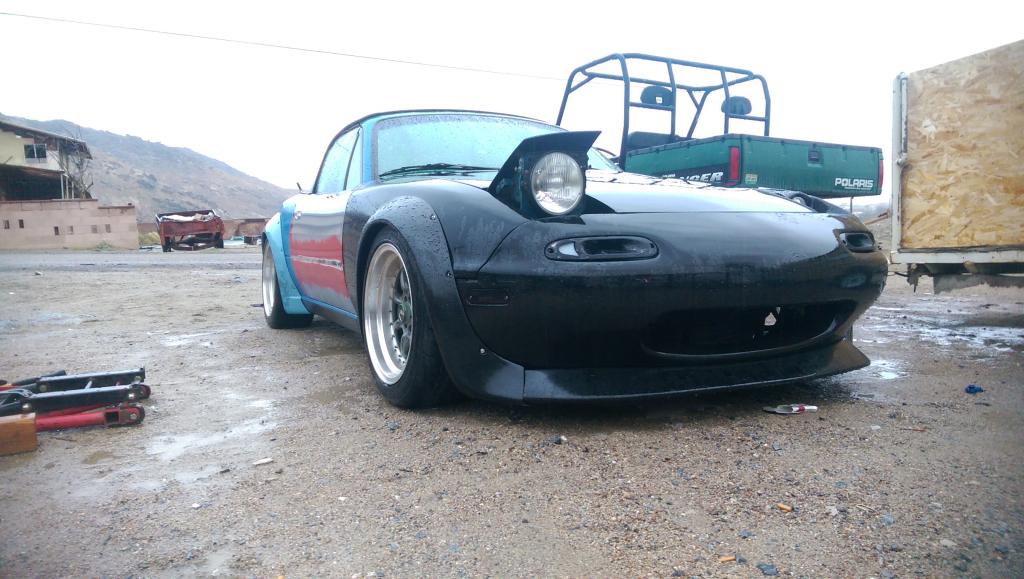

spent about 6 months about 5 different colors.
![Name: IMAG0025_zpsp4vnyrmr.jpg
Views: 260
Size: 97.2 KB](https://www.miataturbo.net/attachments/meet-greet-40/181540d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag0025_zpsp4vnyrmr.jpg)

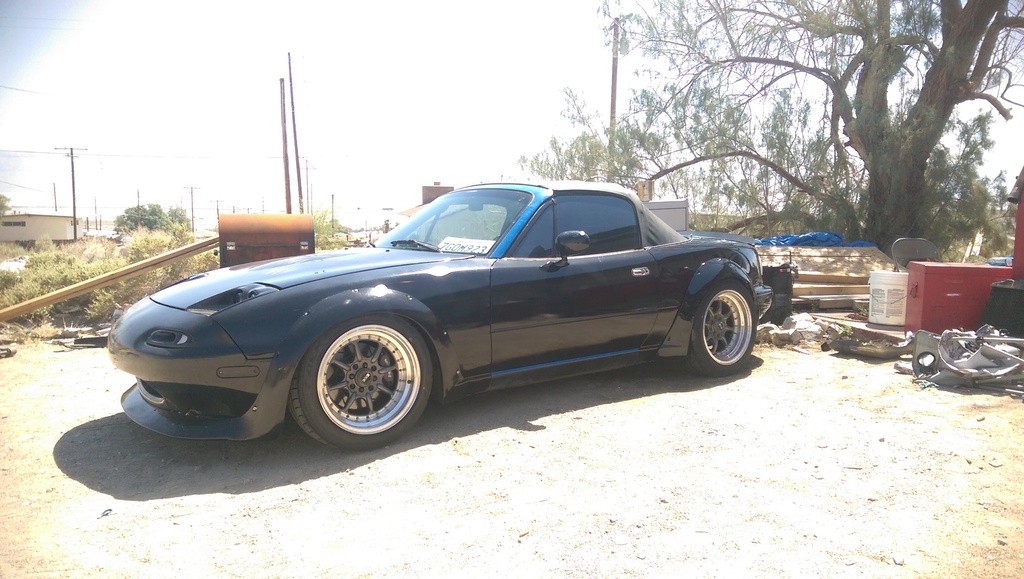

mostly one color.
![Name: IMAG0475_zpskpdubxkl.jpg
Views: 298
Size: 261.3 KB](https://www.miataturbo.net/attachments/meet-greet-40/181541d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag0475_zpskpdubxkl.jpg)

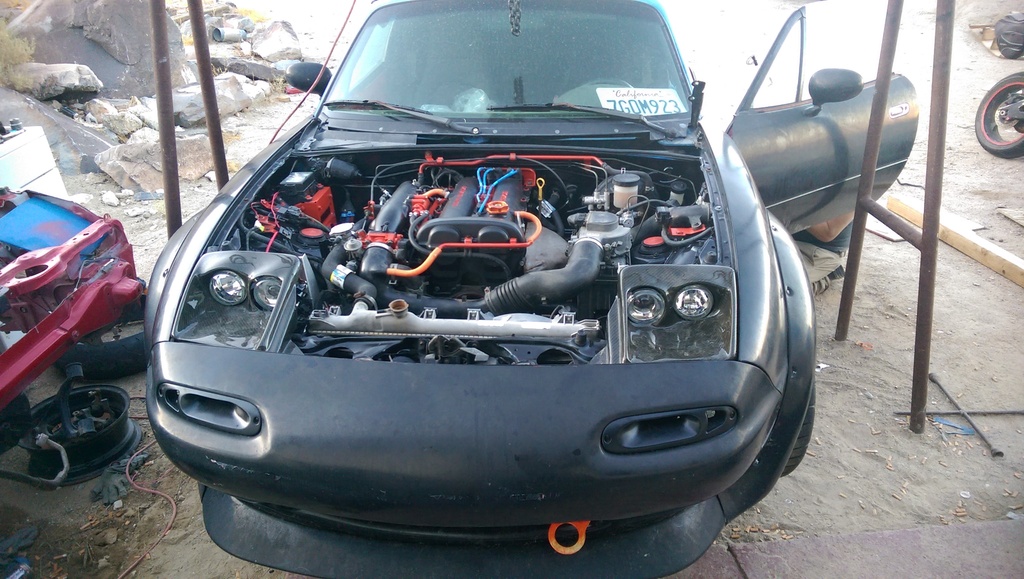

engine/transmission swap complete. 121,000 miles on this setup.
![Name: IMAG0799_zpsdwjvcgh7.jpg
Views: 291
Size: 294.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/181542d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag0799_zpsdwjvcgh7.jpg)

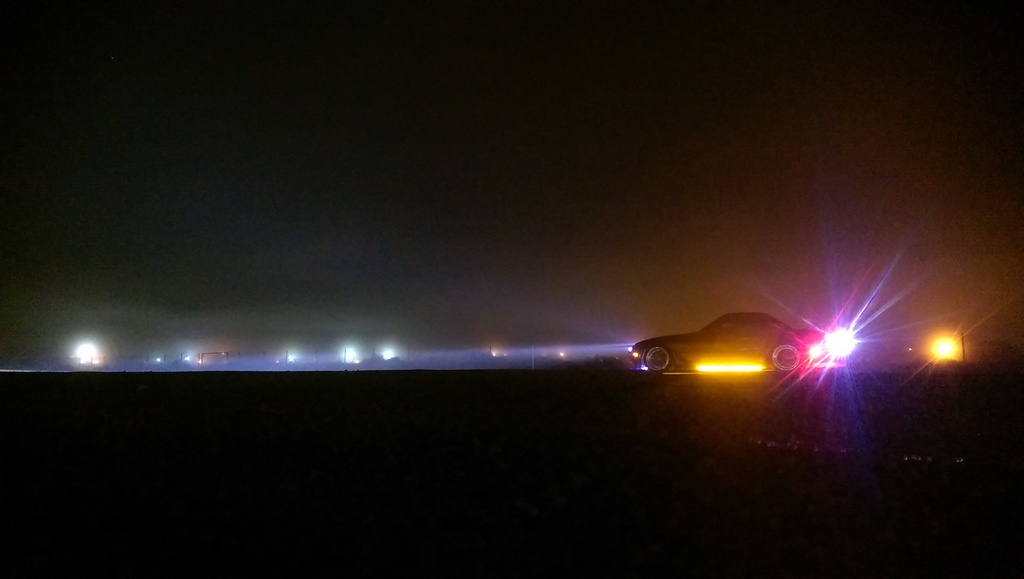

low beams.
![Name: IMAG2022_zpssakhgivf.jpg
Views: 248
Size: 112.8 KB](https://www.miataturbo.net/attachments/meet-greet-40/181543d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag2022_zpssakhgivf.jpg)

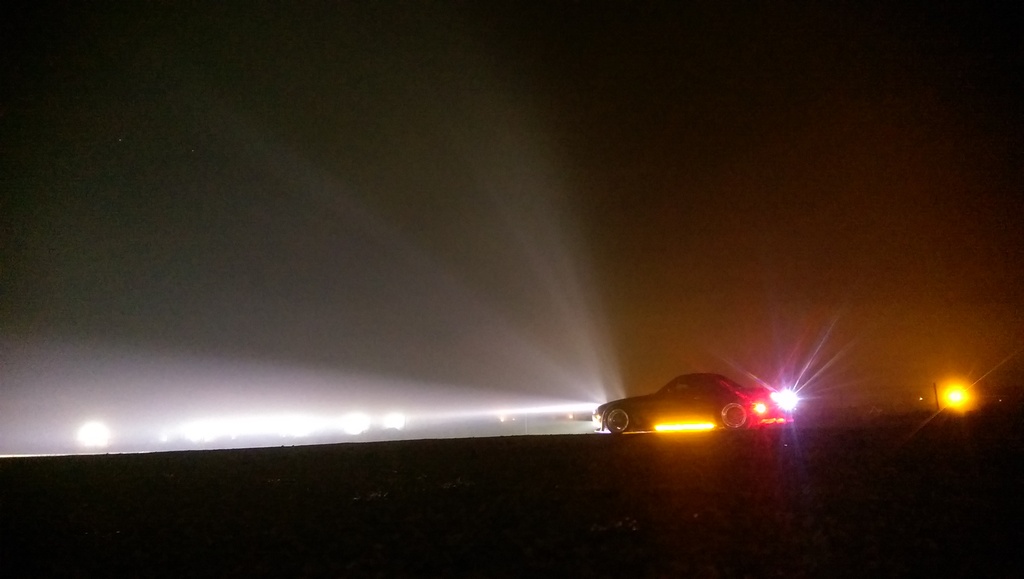

High beams
![Name: IMAG2021_zpsgxbksosn.jpg
Views: 274
Size: 122.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/181544d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag2021_zpsgxbksosn.jpg)

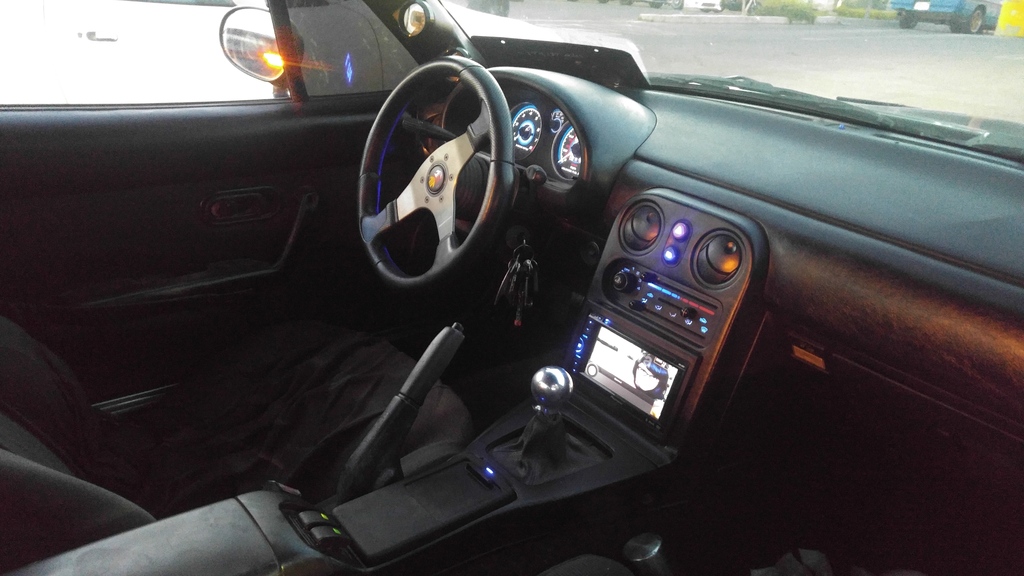

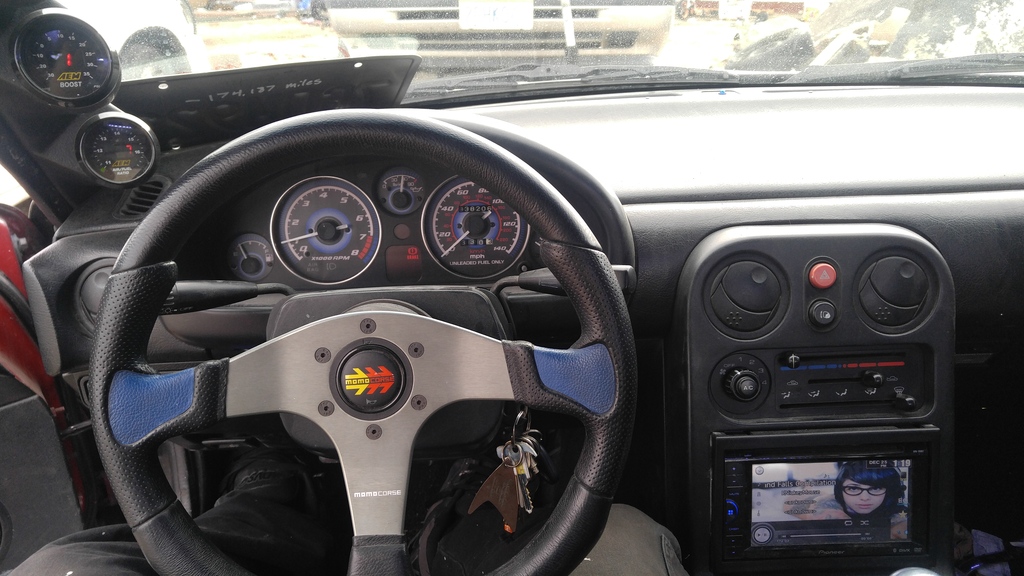

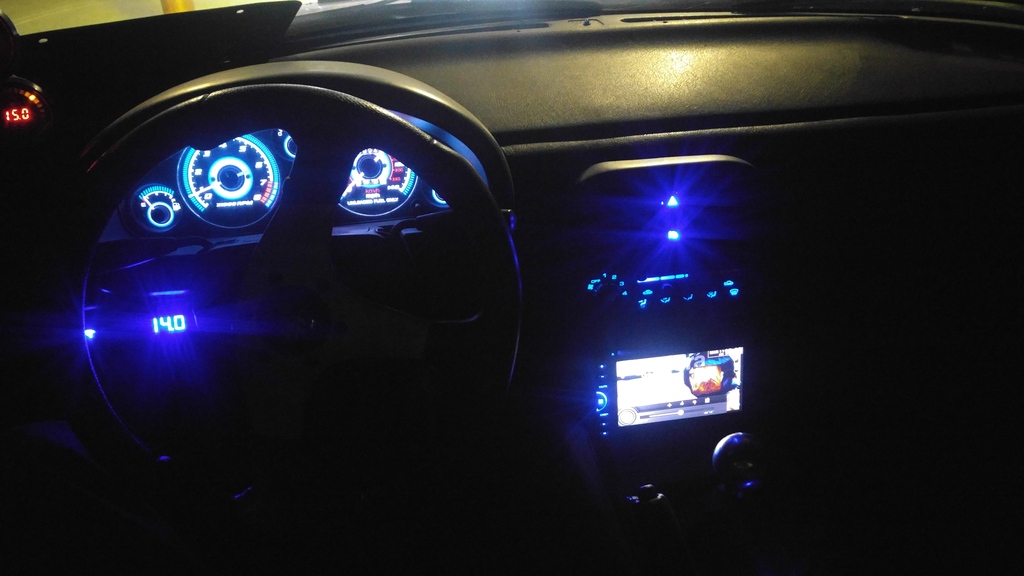

interior.
![Name: 0318171915a_zpsuyyf7ylm.jpg
Views: 270
Size: 243.1 KB](https://www.miataturbo.net/attachments/meet-greet-40/181545d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0318171915a_zpsuyyf7ylm.jpg)
![Name: 0311172241_zpsom9grdcj.jpg
Views: 272
Size: 190.5 KB](https://www.miataturbo.net/attachments/meet-greet-40/181546d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0311172241_zpsom9grdcj.jpg)
![Name: 1225161314_zpscxgvzeqr.jpg
Views: 277
Size: 286.9 KB](https://www.miataturbo.net/attachments/meet-greet-40/181547d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-1225161314_zpscxgvzeqr.jpg)

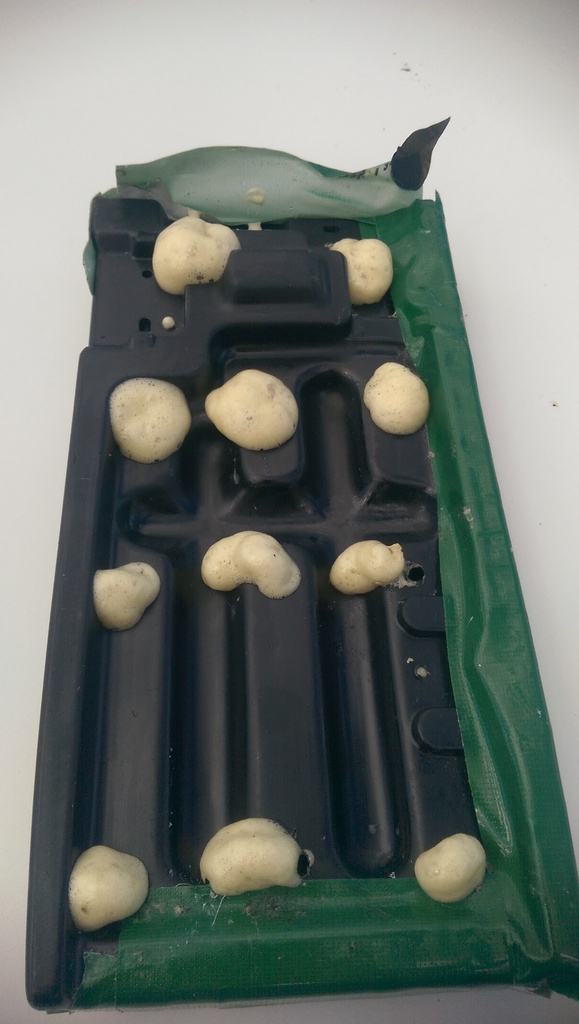

center console split door fixed. Filled with expanding foam. Solid now.
![Name: IMAG2794_zpsdgv8tqry.jpg
Views: 253
Size: 164.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/181548d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag2794_zpsdgv8tqry.jpg)

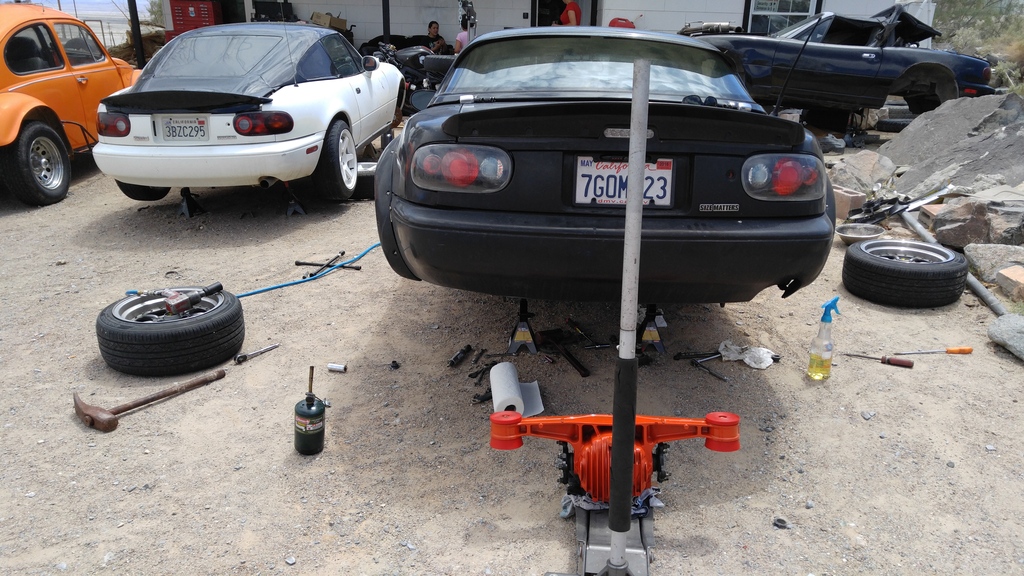

4.1 torsen install
![Name: 0508161335_zpsezguorhu.jpg
Views: 248
Size: 378.0 KB](https://www.miataturbo.net/attachments/meet-greet-40/181549d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0508161335_zpsezguorhu.jpg)

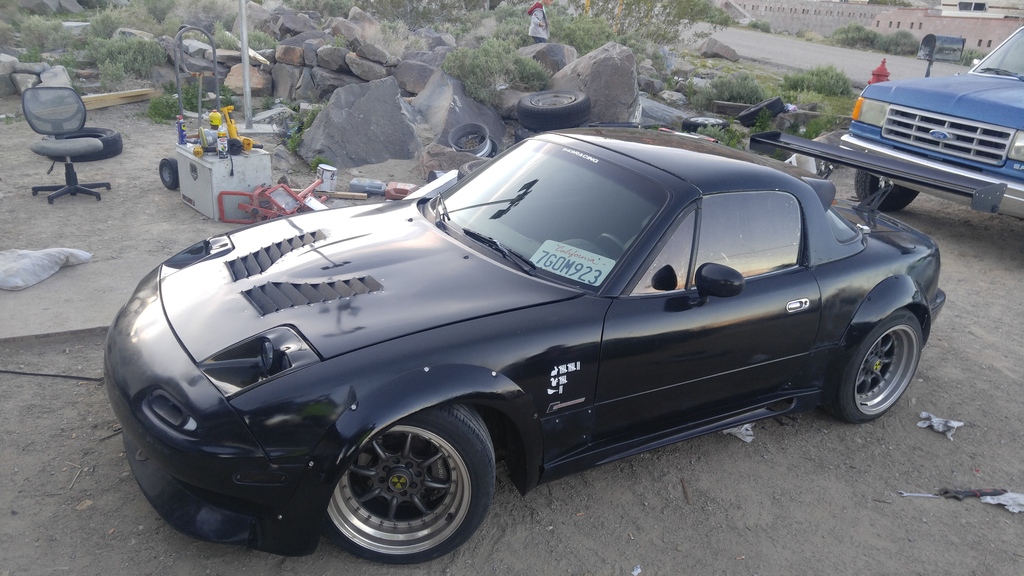

shiny for car show.
![Name: 0315171755_zpst005hc4v.jpg
Views: 282
Size: 325.5 KB](https://www.miataturbo.net/attachments/meet-greet-40/181550d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0315171755_zpst005hc4v.jpg)

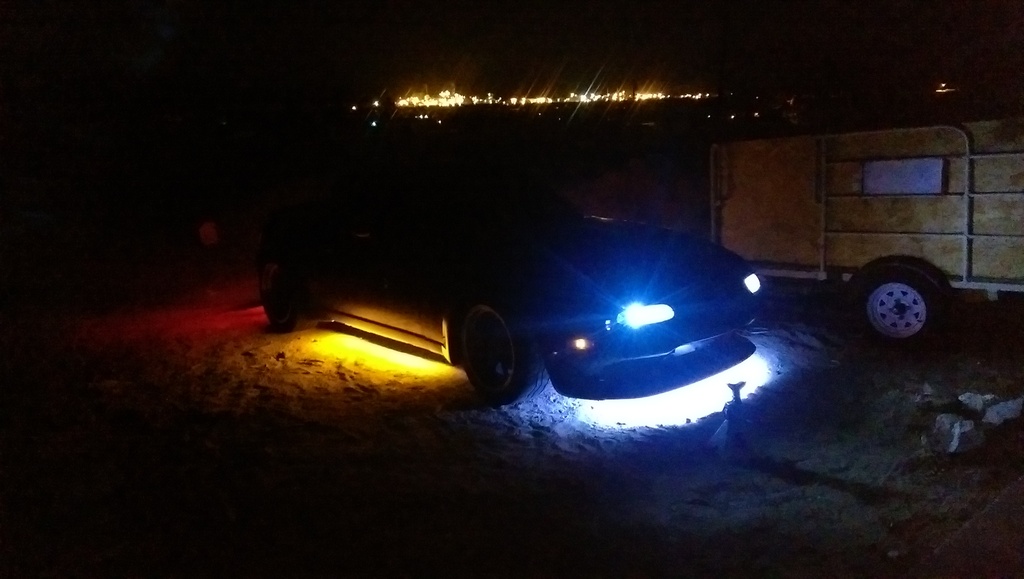

lights.
![Name: IMAG1146_zpsmvot6n72.jpg
Views: 279
Size: 155.3 KB](https://www.miataturbo.net/attachments/meet-greet-40/181551d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-imag1146_zpsmvot6n72.jpg)

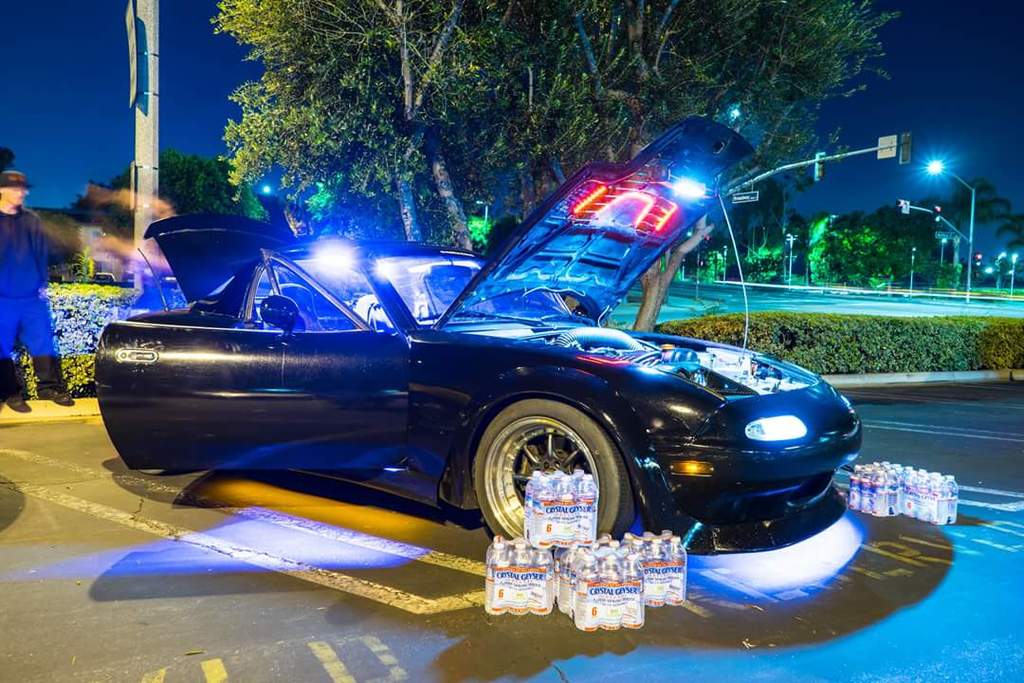

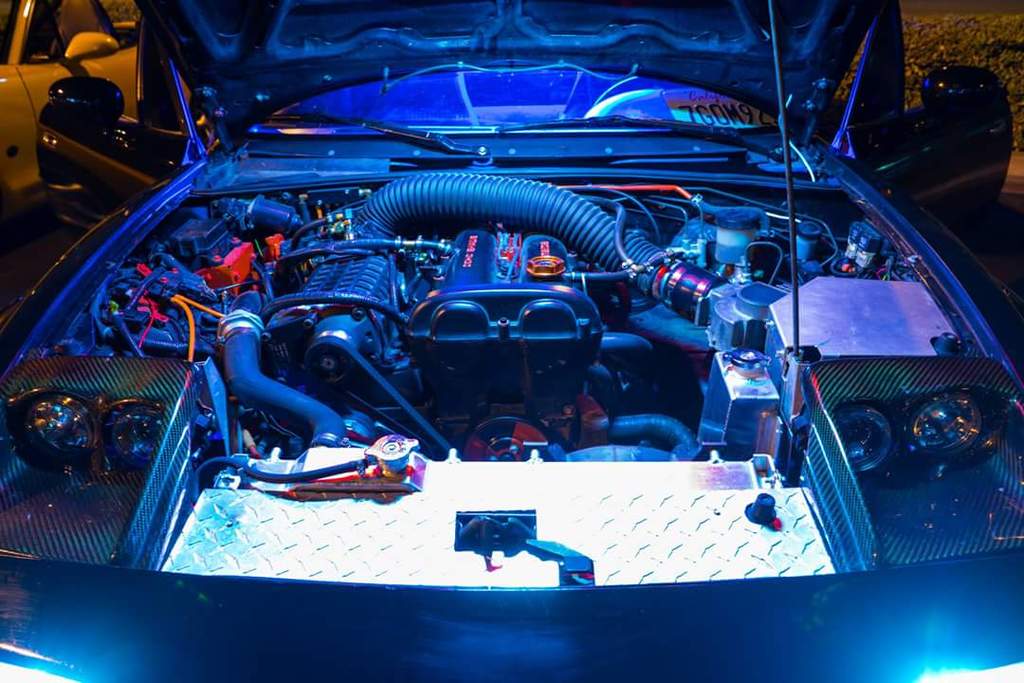

Greg Peters big miata meet.
![Name: FB_IMG_1468745912650_zpsegyg2fzq.jpg
Views: 251
Size: 113.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/181552d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-fb_img_1468745912650_zpsegyg2fzq.jpg)
![Name: FB_IMG_1468745919583_zps2wizyk66.jpg
Views: 244
Size: 94.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/181553d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-fb_img_1468745919583_zps2wizyk66.jpg)

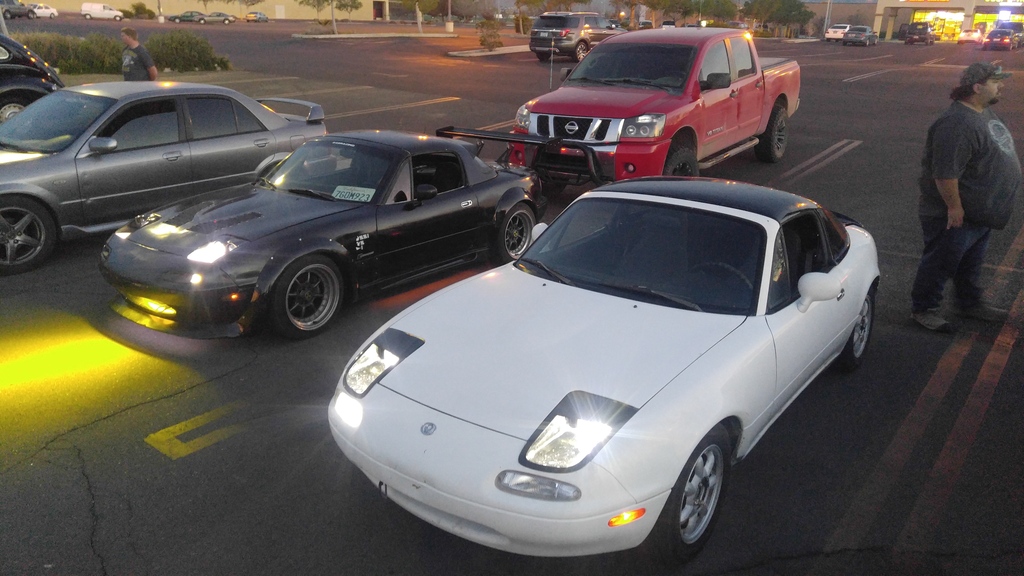

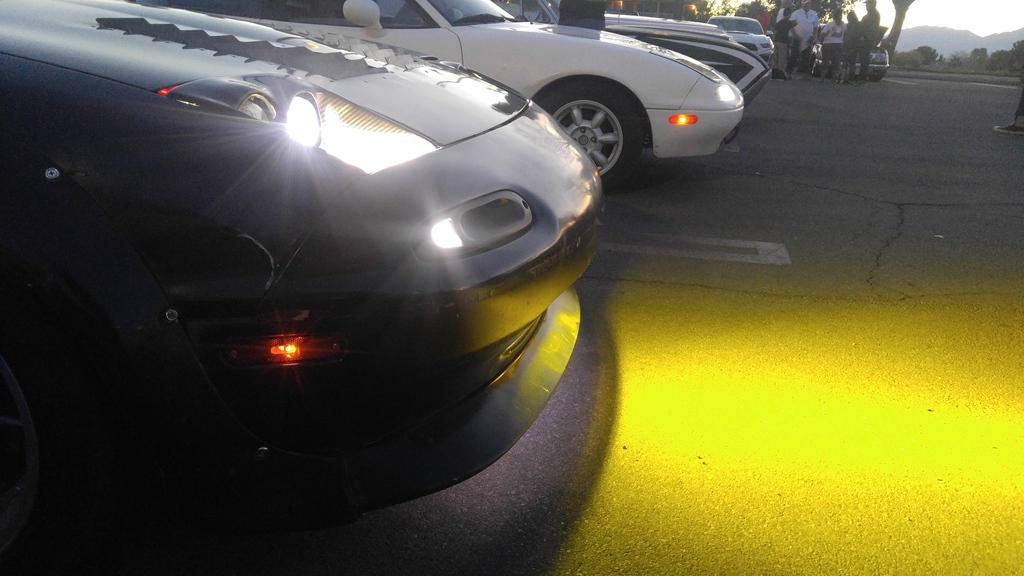

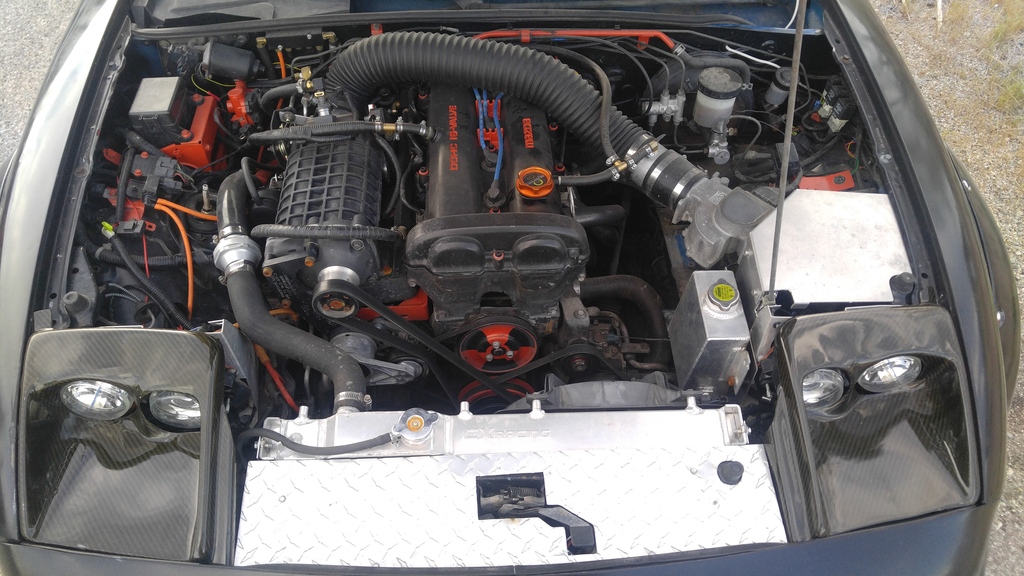

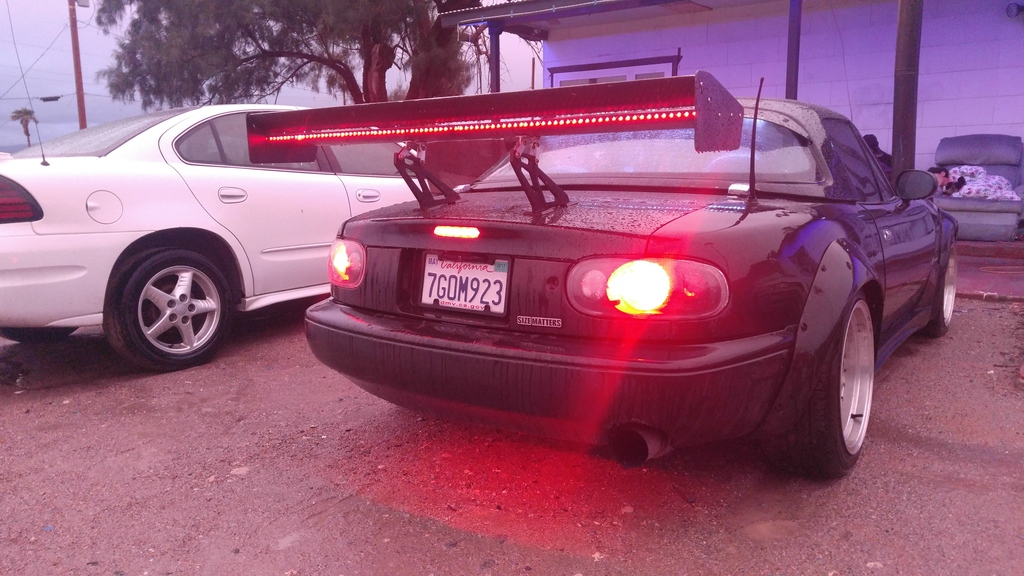

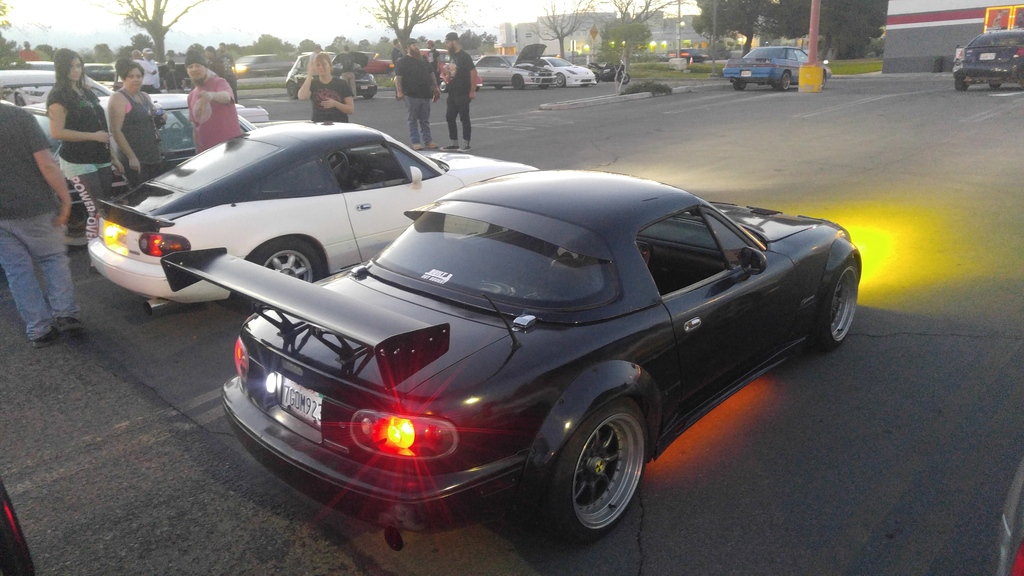

Car as it sits now.
![Name: 0318171914a_zpsbkvioa1u.jpg
Views: 286
Size: 289.1 KB](https://www.miataturbo.net/attachments/meet-greet-40/181554d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0318171914a_zpsbkvioa1u.jpg)
![Name: 0318171915_zpsc8igbz9b.jpg
Views: 282
Size: 297.3 KB](https://www.miataturbo.net/attachments/meet-greet-40/181555d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0318171915_zpsc8igbz9b.jpg)
![Name: 0318171916_zps7159aihx.jpg
Views: 258
Size: 253.4 KB](https://www.miataturbo.net/attachments/meet-greet-40/181556d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0318171916_zps7159aihx.jpg)
![Name: 0122171711a_zpse00trdbb.jpg
Views: 261
Size: 321.0 KB](https://www.miataturbo.net/attachments/meet-greet-40/181557d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0122171711a_zpse00trdbb.jpg)
![Name: 0319171810_zpsha9fhg2w.jpg
Views: 326
Size: 333.0 KB](https://www.miataturbo.net/attachments/meet-greet-40/181558d1501201382-1991-ffs-tvs900-s-c-1-6-junkyard-disaster-accident-build-0319171810_zpsha9fhg2w.jpg)
Thanks for taking a look. A lot of blood and creative work in this pile of crap.
