Modifying 90° Pliers into Snap Ring Pliers
#1
Elite Member
Thread Starter
iTrader: (6)
Join Date: Sep 2007
Location: CA
Posts: 2,016
Total Cats: 13
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I bought a 90* needle nose plier @ Harbor Freight. Needed to notch and modify the end of the plier a little to get it to fit in the circlip on the turbo.
Can a Dremel cut off wheel be able to do this? Not sure if it will even make a scratch on the plier.
Maybe someone can chime in on this. Thanks.
Can a Dremel cut off wheel be able to do this? Not sure if it will even make a scratch on the plier.
Maybe someone can chime in on this. Thanks.
#9
Elite Member
iTrader: (2)
Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,606
Total Cats: 16
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
just bought my rebuild kit from T2, T25, T28 Rebuild Kits . Im gunna try to buy some cheap pliers and modify them today.
#10
Elite Member
iTrader: (2)
Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,606
Total Cats: 16
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
i got it off!

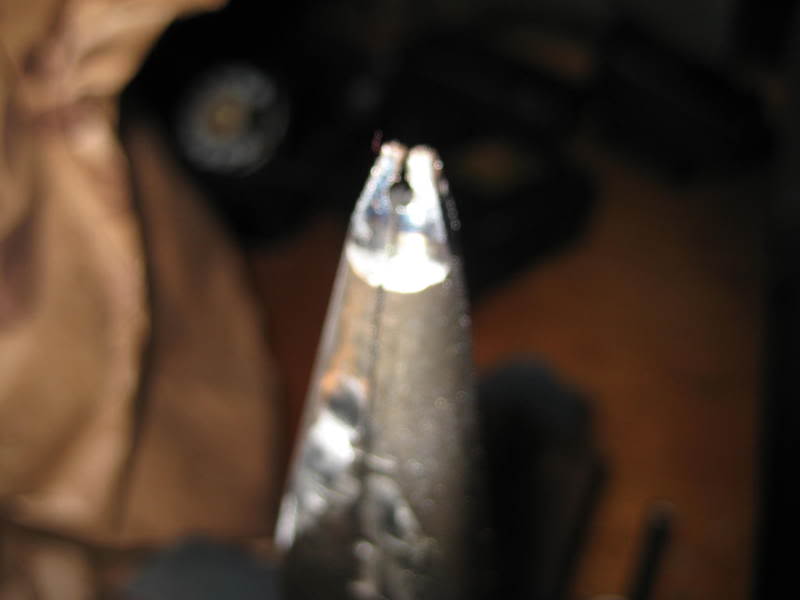

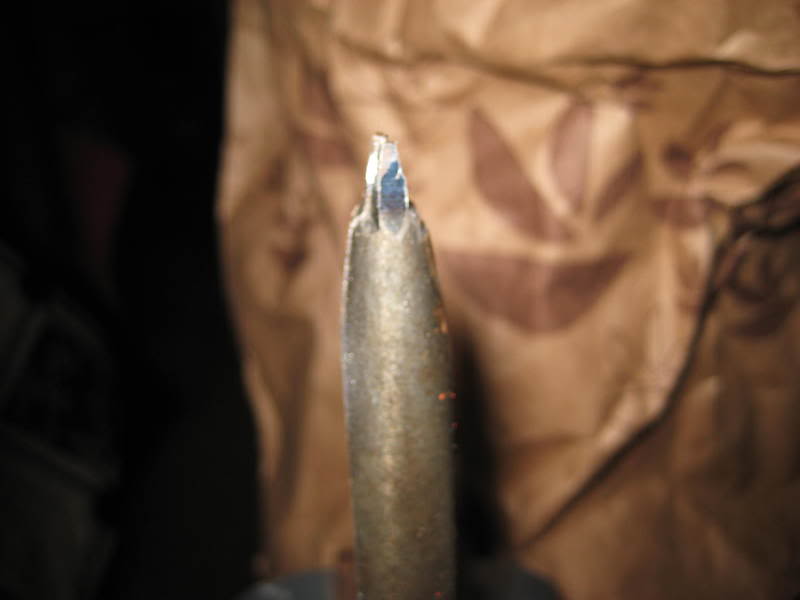

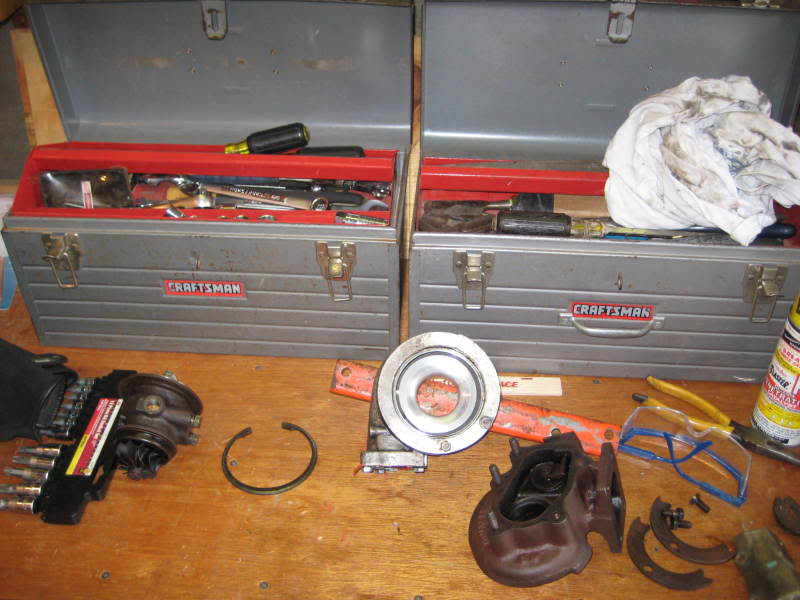

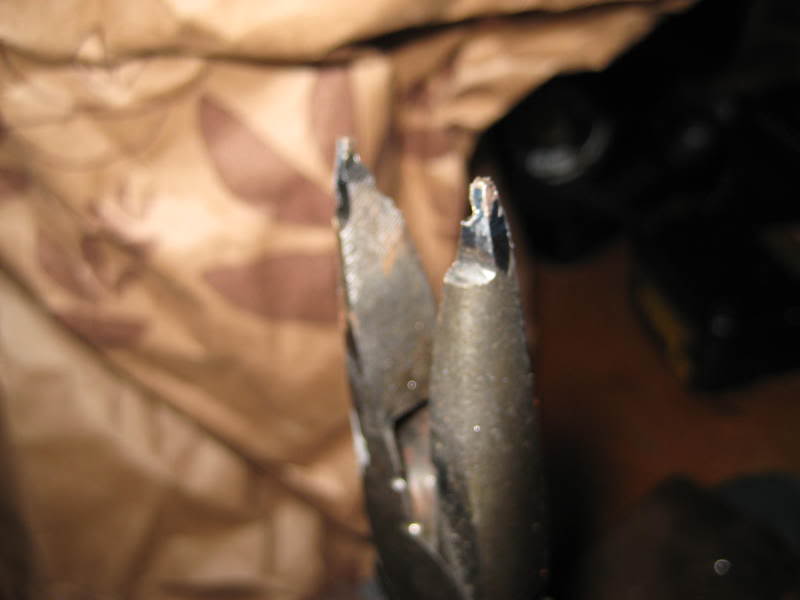

i already had the exhaust housing off so i had room to just use regular needle nosed. I modified them using a grinder to make them smaller and then a cut off wheel to put a small groove in them so they would grab the snapring. My first attempt snapped cause i made the groove too deep, so i re- did it. I ended up pulling one side out, putting a screwdriver under the snapring and prying it around the compressor housing till it popped off.
here are some crappy pics using my camera in macro mode
![Name: turbosnapring001.jpg
Views: 117
Size: 69.3 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209649d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring001.jpg)
![Name: turbosnapring003.jpg
Views: 96
Size: 23.7 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209650d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring003.jpg)
![Name: turbosnapring004.jpg
Views: 109
Size: 26.9 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209651d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring004.jpg)
i already had the exhaust housing off so i had room to just use regular needle nosed. I modified them using a grinder to make them smaller and then a cut off wheel to put a small groove in them so they would grab the snapring. My first attempt snapped cause i made the groove too deep, so i re- did it. I ended up pulling one side out, putting a screwdriver under the snapring and prying it around the compressor housing till it popped off.
here are some crappy pics using my camera in macro mode
![Name: turbosnapring001.jpg
Views: 117
Size: 69.3 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209649d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring001.jpg)
![Name: turbosnapring003.jpg
Views: 96
Size: 23.7 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209650d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring003.jpg)
![Name: turbosnapring004.jpg
Views: 109
Size: 26.9 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209651d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring004.jpg)
![Name: turbosnapring005.jpg
Views: 100
Size: 28.9 KB](https://www.miataturbo.net/attachments/insert-bs-here-4/209652d1501259593-modifying-90%B0-pliers-into-snap-ring-pliers-turbosnapring005.jpg)
#13
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
when I clocked my turbo last night, I found a cheap set of pliers laying around that were perfect, no grinding required. I did however have to compress the ring with my hand to get it back on, the pliers weren't big enough to span the gap between the 2 holes
I like the notches, I'll have to try that
