Assuming that you grab a pigtail from a '99-'00 car to plug into the new TPS, splice it into the '96 harness as follows:
Old wire (car) -- New wire (NB TPS pigtail) -- [function]
green / white -- green / red -- [12 volts]
black / blue -- black / red -- [sensor GND]
red / black -- green / black -- [TPS signal]
The red wire in the car harness will not be used.
Old wire (car) -- New wire (NB TPS pigtail) -- [function]
green / white -- green / red -- [12 volts]
black / blue -- black / red -- [sensor GND]
red / black -- green / black -- [TPS signal]
The red wire in the car harness will not be used.
![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
Moderator
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/moderator.png)
iTrader: (12)
Join Date: Nov 2008
Location: Tampa, Florida
Posts: 20,887
Total Cats: 3,075
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
What's with the Shrek jizz in your manifold?
And since this is a techie dominated board and a fairly tech-heavy thread I thought I would share this interesting look at what else your smart phone will be doing next year, including conversing with nanobots in your bloodstream. Sorry about it being on NBC.
NBCNews.com Video Player
And since this is a techie dominated board and a fairly tech-heavy thread I thought I would share this interesting look at what else your smart phone will be doing next year, including conversing with nanobots in your bloodstream. Sorry about it being on NBC.
NBCNews.com Video Player
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Last week was my birthday and I didn't feel very well waking up on that morning. I went downstairs for breakfast hoping my wife would be pleasant and say, "Happy Birthday!", and possibly have a small present for me. As it turned out, she barely said good morning, let alone "Happy Birthday." I thought... Well, that's marriage for you, but the kids... They will remember. My kids came bounding down stairs to breakfast and didn't say a word. So when I left for the office, I felt pretty low and somewhat despondent.
As I walked into my office, my secretary Jane said,
"Good Morning Boss, and by the way Happy Birthday!"
It felt a little better that at least someone had remembered. I worked until one o'clock, when Jane knocked on my door and said, "You know, It's such a beautiful day outside, and it is your Birthday, what do you say we go out to lunch, just you and me."
I said, "Thanks, Jane, that's the greatest thing I've heard all day. Let's go!"
We went to lunch. But we didn't go where we normally would go. She choose instead a quiet bistro with a private table.
We had two Martinis each and I enjoyed the meal tremendously. On the way back to the office, Jane said, "You know, It's such a beautiful day... We don't need to go straight back to the office, do we?" I responded, "I guess not. What do you have in mind?" She said, "Let's drop by my apartment, it's just around the corner."
After arriving at her apartment, Jane turned to me and said,
"Boss, if you don't mind, I'm going to step into the bedroom for just a moment. I'll be right back."
"Okay," I nervously replied. She went into the bedroom and, after a couple of minutes, she came out carrying a huge birthday cake.
Followed by my wife, my kids, and dozens of my friends and co-workers, all singing "Happy birthday".
And I just sat there...
On the couch...
Sobbing...
Naked...
and erect.
As I walked into my office, my secretary Jane said,
"Good Morning Boss, and by the way Happy Birthday!"
It felt a little better that at least someone had remembered. I worked until one o'clock, when Jane knocked on my door and said, "You know, It's such a beautiful day outside, and it is your Birthday, what do you say we go out to lunch, just you and me."
I said, "Thanks, Jane, that's the greatest thing I've heard all day. Let's go!"
We went to lunch. But we didn't go where we normally would go. She choose instead a quiet bistro with a private table.
We had two Martinis each and I enjoyed the meal tremendously. On the way back to the office, Jane said, "You know, It's such a beautiful day... We don't need to go straight back to the office, do we?" I responded, "I guess not. What do you have in mind?" She said, "Let's drop by my apartment, it's just around the corner."
After arriving at her apartment, Jane turned to me and said,
"Boss, if you don't mind, I'm going to step into the bedroom for just a moment. I'll be right back."
"Okay," I nervously replied. She went into the bedroom and, after a couple of minutes, she came out carrying a huge birthday cake.
Followed by my wife, my kids, and dozens of my friends and co-workers, all singing "Happy birthday".
And I just sat there...
On the couch...
Sobbing...
Naked...
and erect.
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Assuming that you grab a pigtail from a '99-'00 car to plug into the new TPS, splice it into the '96 harness as follows:
Old wire (car) -- New wire (NB TPS pigtail) -- [function]
green / white -- green / red -- [12 volts]
black / blue -- black / red -- [sensor GND]
red / black -- green / black -- [TPS signal]
The red wire in the car harness will not be used.
Old wire (car) -- New wire (NB TPS pigtail) -- [function]
green / white -- green / red -- [12 volts]
black / blue -- black / red -- [sensor GND]
red / black -- green / black -- [TPS signal]
The red wire in the car harness will not be used.
in order
Brown/White
Orange
Pink/ Either Black or Blue

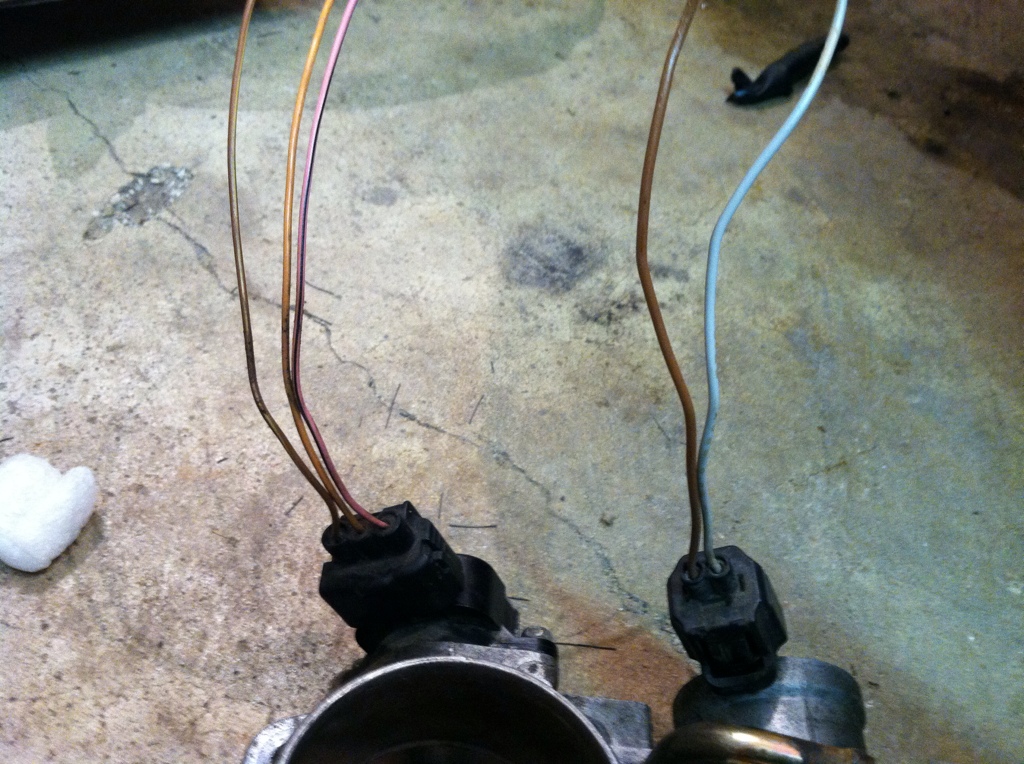

![](https://www.miataturbo.net/attachments/insert-bs-here-4/67443-how-why-ramble-your-goat-sideways-de468f42-e67f-4c0c-a694-70c57e689115-6938-000008d9f9a98926_zpsc37a5803.jpg?dateline=1360698206)
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
hey i got it together and running but at more than 3/4 throttle it kicks the CEL on and gives the tps above threshold code. did i wire it backwards or something stupid like that.
Boost Pope
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/smod.png)
iTrader: (8)
Join Date: Sep 2005
Location: Chicago. (The less-murder part.)
Posts: 33,340
Total Cats: 6,800
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Ah, didn't realize you were running a stock ECU...
I've never compared the scale for an NB TPS to an NA model. It might be complaining because the "TPS Closed" line (the red wire) is now floating.
Which code specifically is it giving you? Is it P0120, P0510, something else?
I've never compared the scale for an NB TPS to an NA model. It might be complaining because the "TPS Closed" line (the red wire) is now floating.
Which code specifically is it giving you? Is it P0120, P0510, something else?
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Ah, didn't realize you were running a stock ECU...
I've never compared the scale for an NB TPS to an NA model. It might be complaining because the "TPS Closed" line (the red wire) is now floating.
Which code specifically is it giving you? Is it P0120, P0510, something else?
I've never compared the scale for an NB TPS to an NA model. It might be complaining because the "TPS Closed" line (the red wire) is now floating.
Which code specifically is it giving you? Is it P0120, P0510, something else?
i mean it runs decent for now, and my MS should be coming in end of the month (ish). so i may just drive it with the light on for a while and deal with it once the ms is in.
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Today is my 3rd office day this week. I had to do payroll, bills and finish a few estimates, but was also lucky enough to have a hour long meeting with this super hot chick from the bank.
The guys are gonna be jealous as **** when I tell them bout those ****. lol
Tomorrow I'll be on the lake job setting forms speaking brazilish all day. Def not as fun.
The guys are gonna be jealous as **** when I tell them bout those ****. lol
Tomorrow I'll be on the lake job setting forms speaking brazilish all day. Def not as fun.
Boost Pope
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/smod.png)
iTrader: (8)
Join Date: Sep 2005
Location: Chicago. (The less-murder part.)
Posts: 33,340
Total Cats: 6,800
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
It's hard to tell from that scan, but it's actually GBBRLGR. There are no vowels in our language.
redturbomiata, I can't remember what the orientation of the connector on the TPS is, nor do I have an NB TPS here to use as a reference. So I'm not sure which direction to read the wires in the photo you posted.

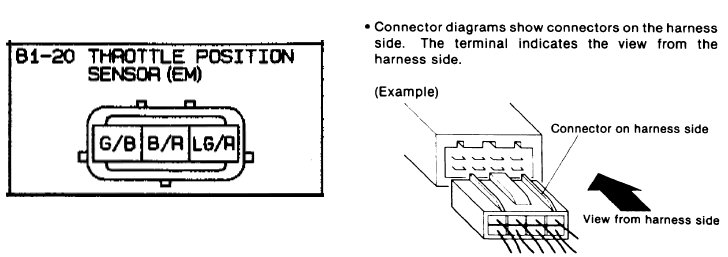

But you can solve this mystery. Pop the connector off and use the tabs to orient it in the same way as the diagram I posted. Remember, you want the pins facing away from you. Now, just take the conversion table I posted and, comparing your wire colors to the colors on the diagram, populate the brown, orange and pink wires into the appropriate rows on the table.
