Discount: 2X10" 1500cuft/min Slim fans $45
#61
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks much,
-B
#63
Junior Member
iTrader: (3)
Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 330
Total Cats: 14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thank you.
I finally got to installing them.

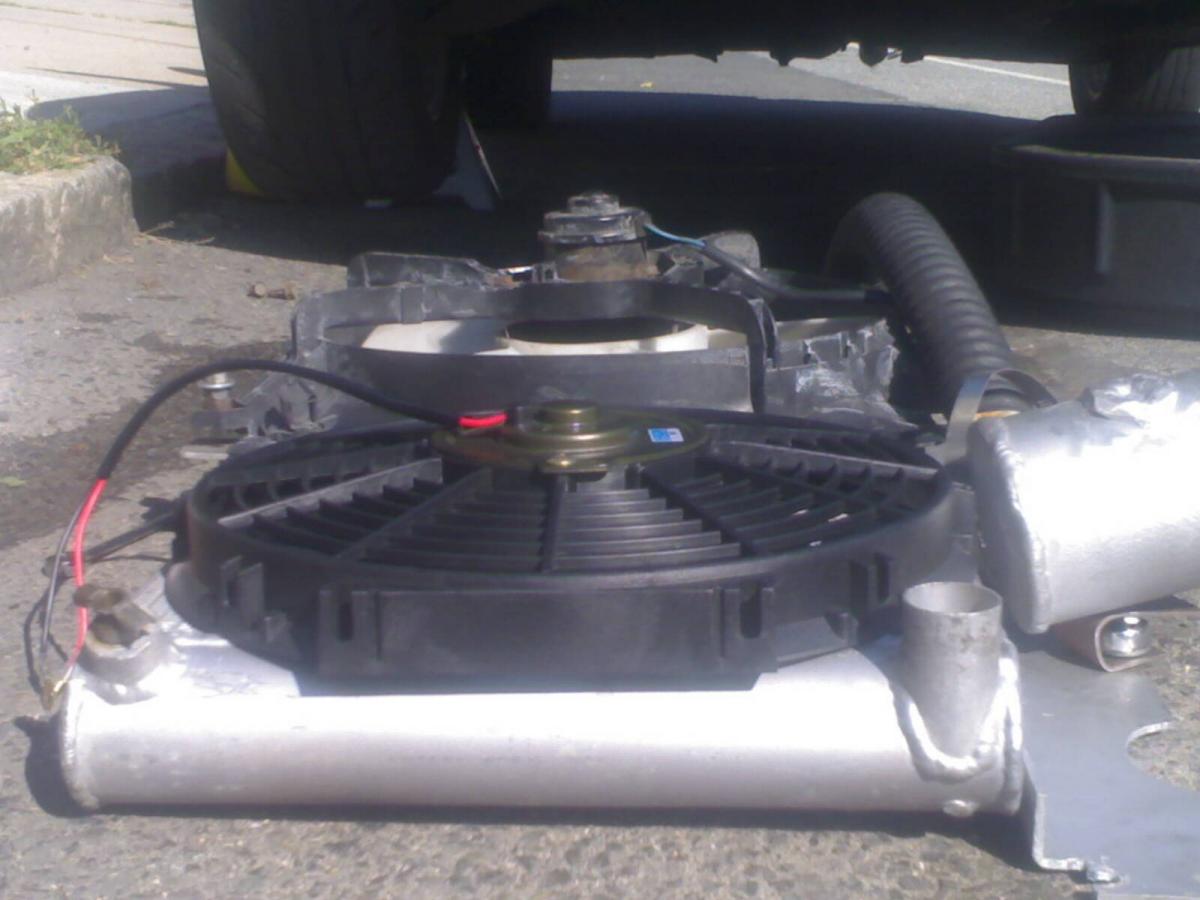

First photo shows the stock and 12" side-by-side. Notice the scalloping of the stock shroud to the left of the fan motor, done to clear the sway (and the sway still rested on the shroud).

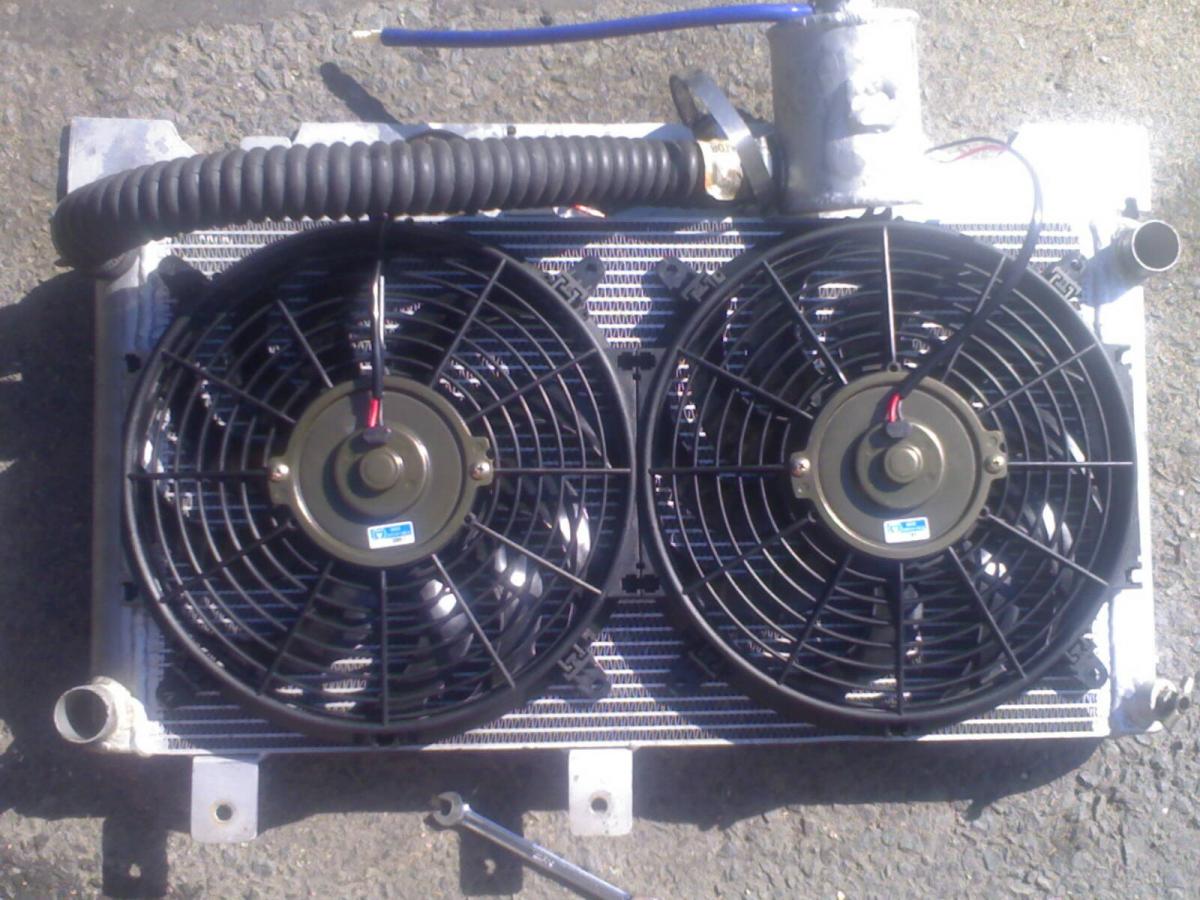

Second, two fans arranged on top of the rad (custom, one-off, that's why the remote reservoir)

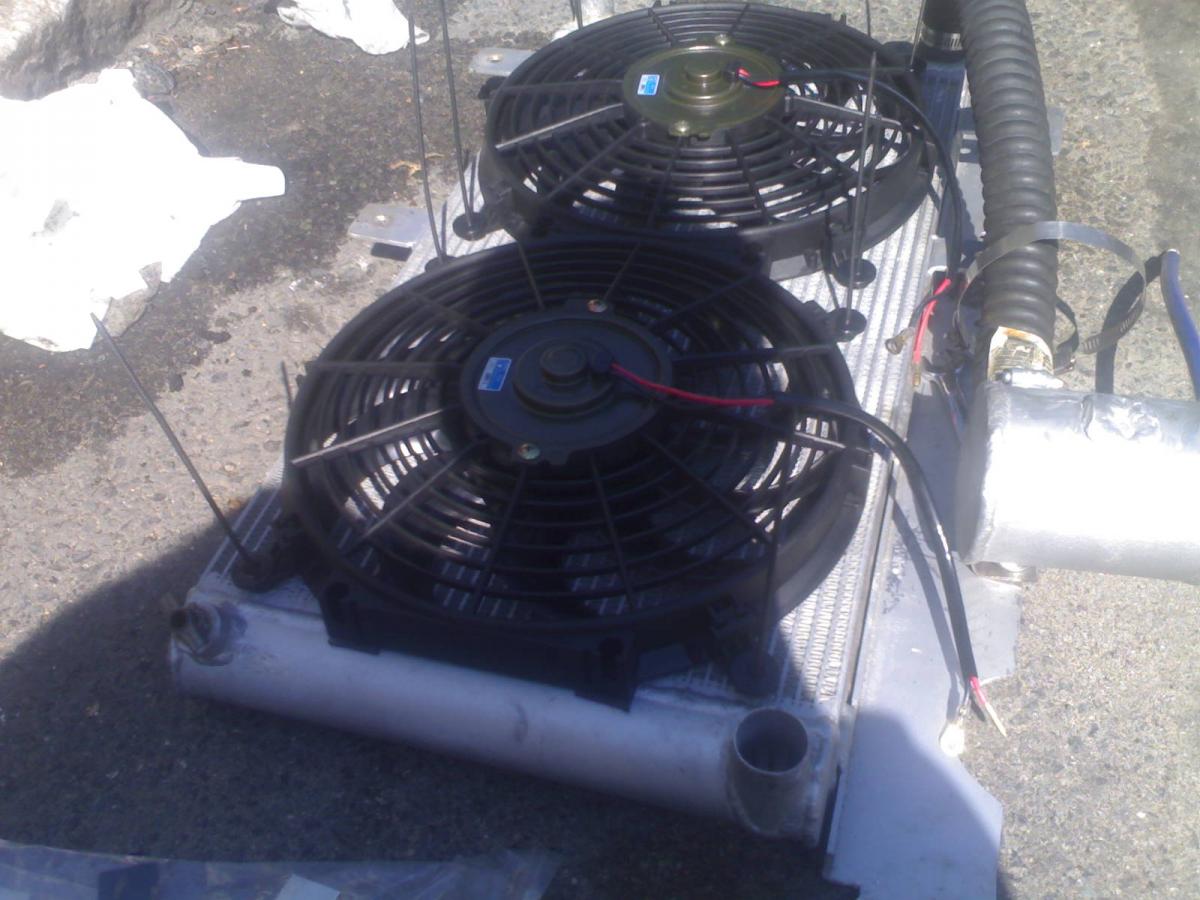

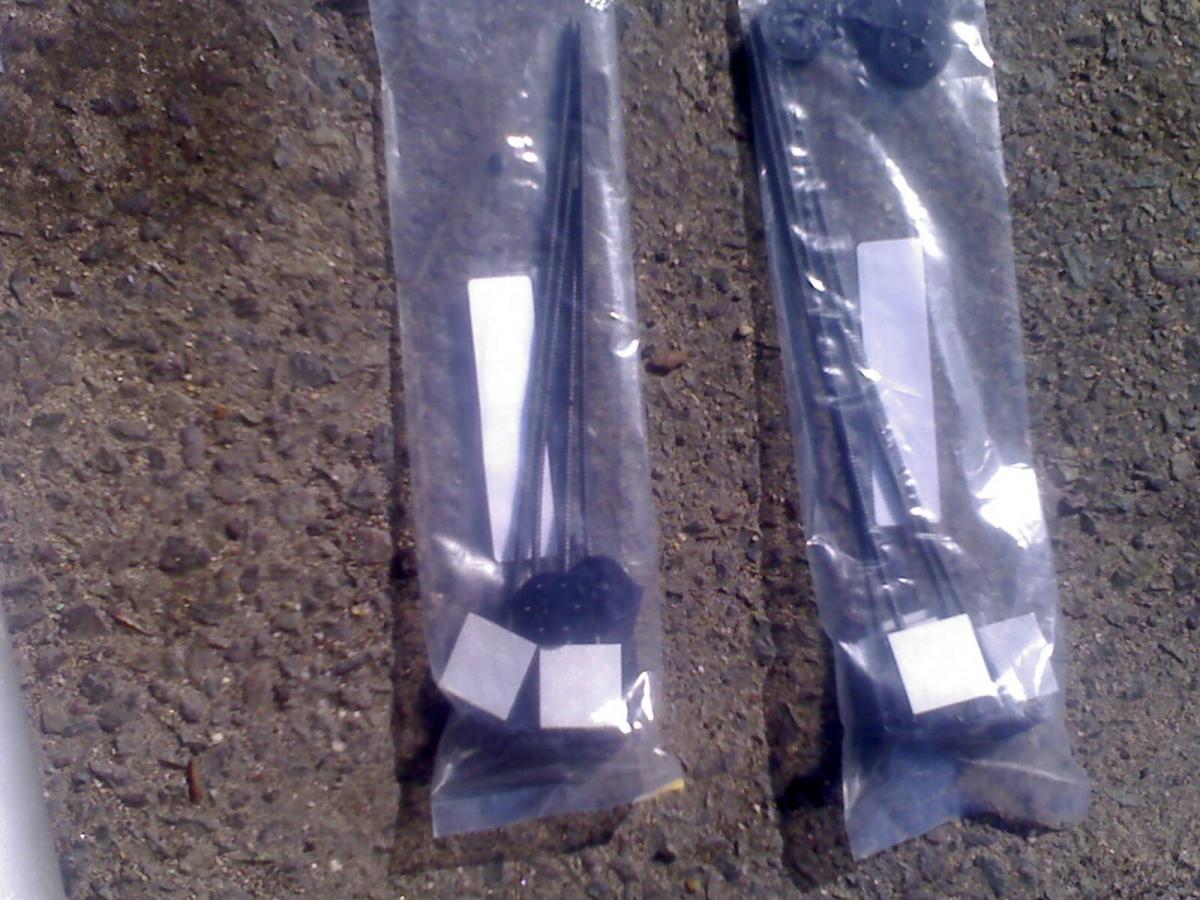

Third show the zip ties that I used to mount the fans. Feed them through, and lower the retaining ring. Pretty secure.
Fourth photo, everything installed, and I left the zip ties un-snipped (I did it later, on the car)
Note: I reversed the blades. Didn't take pics, but it's straightforward. Seems that the fans pulled more with the blades reversed.
Note: Reversing the blades keeps the fan a "pull" type.

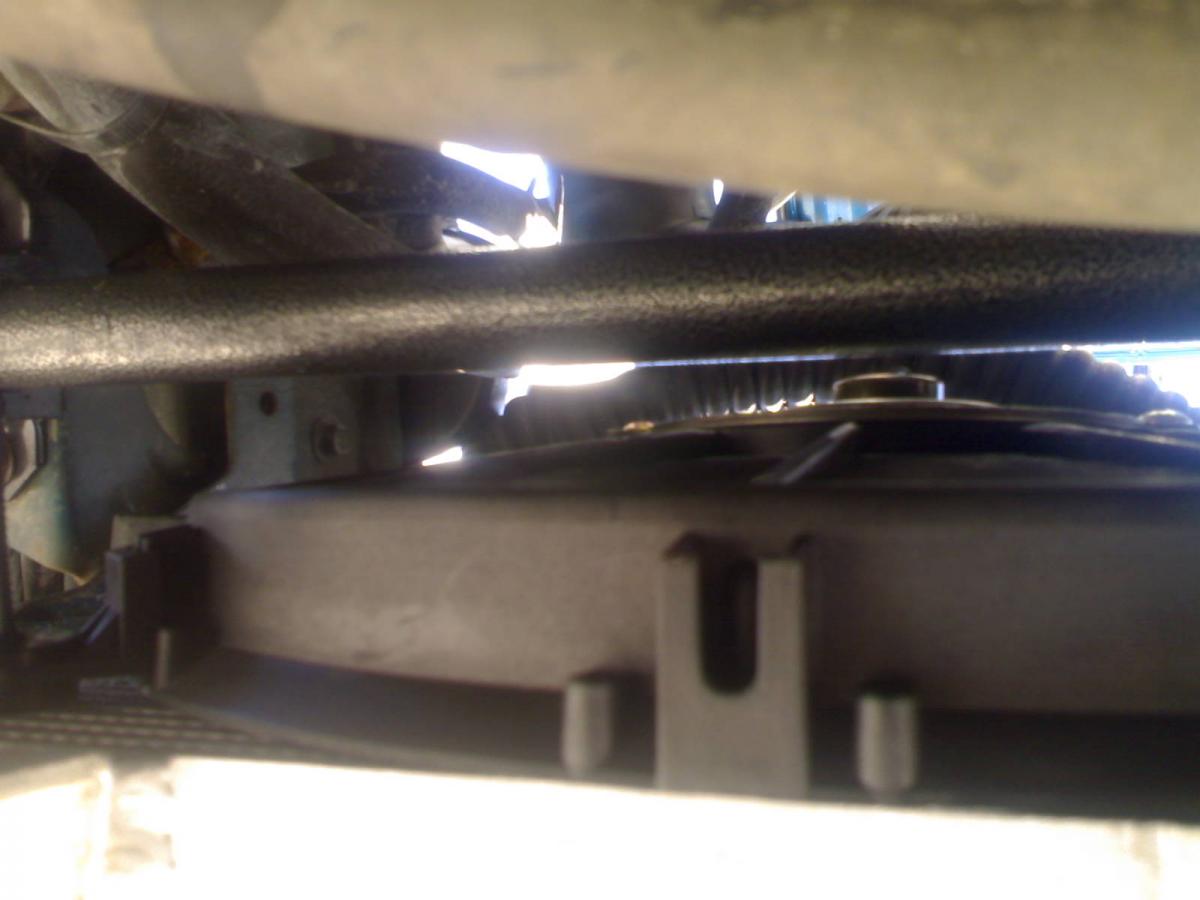

And, lastly, fifth photo shows the sway bar clearance. FM 1" NB (car is '90).
Hope this helps.![](https://www.miataturbo.net/images/smilies/smile.gif)
P.S. The reason I switched from single to dual (only one stock fan could be mounted on alum rad, so I had to put up with it after my stock rad blew up, literally) was because one fan was plenty for cooling, but not nearly enough to run A/C, P/S, and cool the car.
I finally got to installing them.
First photo shows the stock and 12" side-by-side. Notice the scalloping of the stock shroud to the left of the fan motor, done to clear the sway (and the sway still rested on the shroud).
Second, two fans arranged on top of the rad (custom, one-off, that's why the remote reservoir)
Third show the zip ties that I used to mount the fans. Feed them through, and lower the retaining ring. Pretty secure.
Fourth photo, everything installed, and I left the zip ties un-snipped (I did it later, on the car)
Note: I reversed the blades. Didn't take pics, but it's straightforward. Seems that the fans pulled more with the blades reversed.
Note: Reversing the blades keeps the fan a "pull" type.
And, lastly, fifth photo shows the sway bar clearance. FM 1" NB (car is '90).
Hope this helps.
![](https://www.miataturbo.net/images/smilies/smile.gif)
P.S. The reason I switched from single to dual (only one stock fan could be mounted on alum rad, so I had to put up with it after my stock rad blew up, literally) was because one fan was plenty for cooling, but not nearly enough to run A/C, P/S, and cool the car.
#68
Junior Member
iTrader: (3)
Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 330
Total Cats: 14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The fans came with a ground (black) and power (red) wires. From the description I understood that either the wires can be switched (unlikely), or the fans can be mounted in either push (in front of rad) or pull (behind the rad) orientation.
All I know is, my A/C blows freezing air.
All I know is, my A/C blows freezing air.
![big grin](https://www.miataturbo.net/images/smilies/biggrin.gif)
Last edited by alik; 08-25-2008 at 07:19 AM.
#69
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'm now running the 2x12's from siliconintakes - they come assembled in a pull config (with the blades in the right orientation and the blue wire is hot, black is ground). The other aftermarket fan I bought came in a push config and I had to remove the blades and reverse them and use the same polarity (i/e blue = hot, black = ground). So it's all that uncommon to have a fan come in the push config.
#71
Junior Member
iTrader: (3)
Join Date: Nov 2007
Location: Boston / '90 Mariner Blue
Posts: 330
Total Cats: 14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'm now running the 2x12's from siliconintakes - they come assembled in a pull config (with the blades in the right orientation and the blue wire is hot, black is ground). The other aftermarket fan I bought came in a push config and I had to remove the blades and reverse them and use the same polarity (i/e blue = hot, black = ground). So it's all that uncommon to have a fan come in the push config.
One thing I'm about to do is wire both fans to come on at the same time, and not just the passenger side fan only when the A/C is on.
I was sitting in traffic, outside temp around 90, I turn the A/C on, and see my temp gauge climb up past the middle.
Parallel fans!
#74
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I have clearance issues with the stock fan assembly (attacked to CXRacing radiator) and the FM MSM throttle body elbow .... they both want to occupy the same airspace.
So I ordered a pair of 10" fans and mounting hardware from our new friend Jessica. Hoping that solves the fitment problem.
Is anybody other than me starting to wonder if she's hot and digs turbo Miatas?
![Doh](https://www.miataturbo.net/images/smilies/doh.gif)
Is anybody other than me starting to wonder if she's hot and digs turbo Miatas?
#78
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (39)
Join Date: Sep 2007
Location: High Point NC
Posts: 4,850
Total Cats: 8
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
WOW, am I responsible for bringing another female to our board? Stephanie is no longer alone!!! Go me!
Anyways, thanks for your help Jessica, if you list your location in your profile I am sure someone will offer you a ride.
Anyways, thanks for your help Jessica, if you list your location in your profile I am sure someone will offer you a ride.
