Wiring gauges - where to tap for constant power

Does anyone know if there is open fuse box constant power slots in NA ?

-1

07-23-2019, 09:58 PM

hks_kansei

Junior Member

Join Date: Mar 2012

Posts: 298

Total Cats: 44

Grab a test light and spend a few minutes shoving it into the un-used fuse slots.

Test lights are like $5, or you can just make one with a spare bulb and some wire for free

07-24-2019, 01:36 AM

codrus

Elite Member

Join Date: Mar 2007

Location: Santa Clara, CA

Posts: 5,178

Total Cats: 858

You don't want constant power for gauges, it needs to be switched with the key unless you want the battery to be dead all the time. I run mine off the stereo circuit -- hot in accessory and run.

--Ian

07-24-2019, 01:38 AM

stevos555

Junior Member

Thread Starter

Join Date: Nov 2016

Location: Chicago

Posts: 496

Total Cats: -8

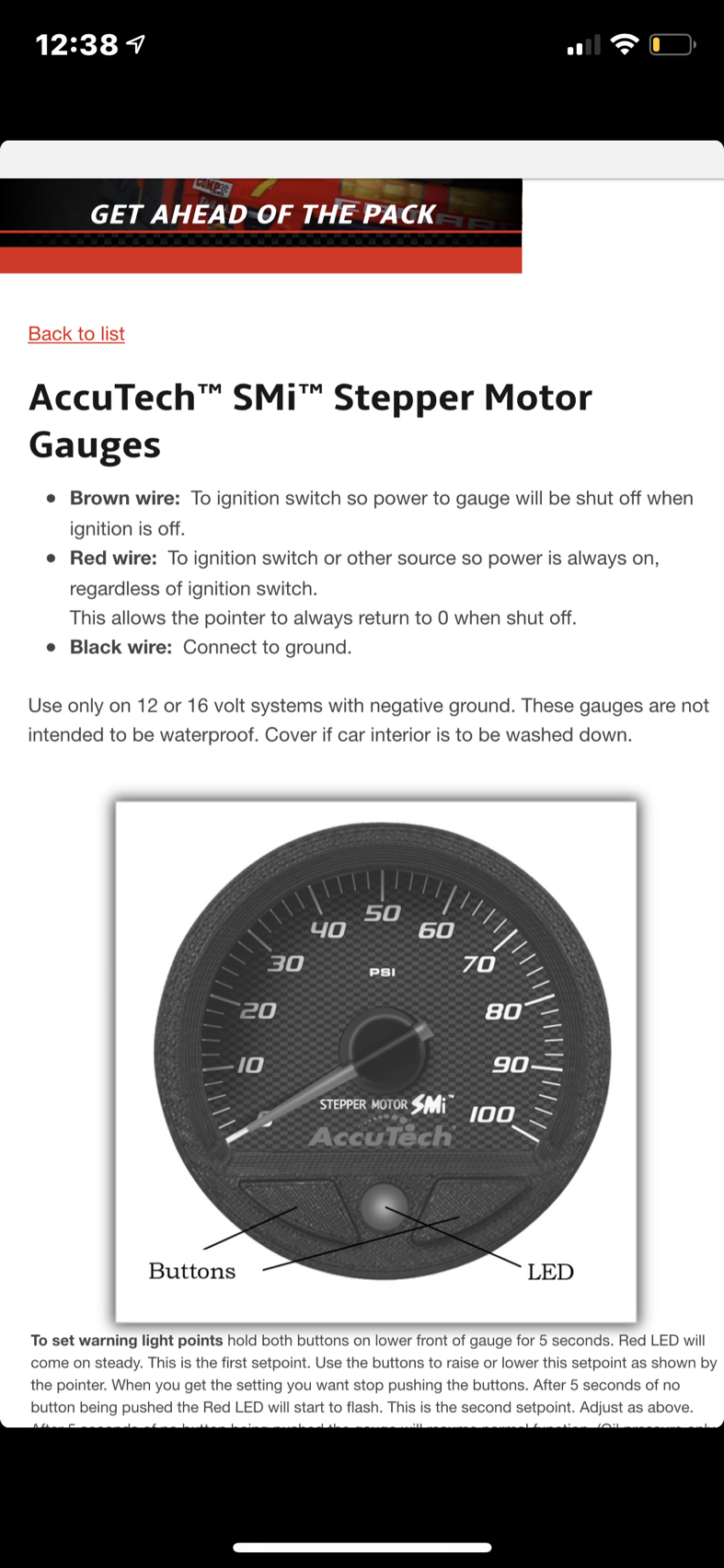

They need constant power

Attached Thumbnails

Wiring gauges - where to tap for constant power-photo562.jpg

07-24-2019, 02:44 AM

gooflophaze

Senior Member

Join Date: May 2007

Location: Atlanta

Posts: 997

Total Cats: 156

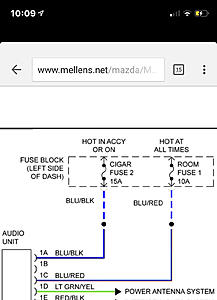

Blue with a red stripe is constant in and around the dash.

07-24-2019, 04:22 PM

Quigs

Junior Member

iTrader: (2)

Join Date: Dec 2017

Location: Richmond, VA

Posts: 309

Total Cats: 86

I have those same gauges. I used the radio circuit and the needles return to zero. I used a test light to see which wire was switched 12v and which was constant 12v.

07-24-2019, 04:49 PM

stevos555

Junior Member

Thread Starter

Join Date: Nov 2016

Location: Chicago

Posts: 496

Total Cats: -8

Any chance you recall if the radio plug had both ?

07-24-2019, 07:25 PM

hks_kansei

Junior Member

Join Date: Mar 2012

Posts: 298

Total Cats: 44

Quote:

Originally Posted by stevos555

Any chance you recall if the radio plug had both ?

It does.

cant remember colours, but there's the switched power which lets it turn on, and a constant 12v which is why it doesnt lose your radio presets etc every time the car is off.
