Rollbar/soft tops. Help me see through my rear view mirror.

Thread Tools

Search this Thread

Old 10-29-2011 | 08:46 PM
  #1
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default Rollbar/soft tops. Help me see through my rear view mirror.

My rear window is getting all toasty and gross. I can't really see **** out of it anymore. I want a hardtop but they're all getting stolen, and I don't really wanna lose my money. Also money could be used more wisely elsewhere on this car etc etc.

Option #1: see if an upholstery shop will replace just the plastic window.
Option #2: Buy a new soft top.

Has anyone had #1 done? And if so, about how much did you pay?

OR

What soft tops are you guys replacing yours with? Tops are the one area of this car that I don't know **** about, searching revealed that I should stay away from Robbins tops but there is contradicting information everywhere.

I need a plastic window and a zipper because of the roll bar (I think, somebody feel free to prove me wrong). It's a Hard dog DD HT.
Old 10-29-2011 | 08:54 PM
  #2
soviet's Avatar
Elite Member
iTrader: (10)

Joined: Jan 2010
Posts: 3,493
Total Cats: 268
From: VA
Default

If your rollbar has a harness bar then yes you need a plastic window. That's the only difference between M1 (for NA) and M2 (for NB) hard dog bars.

If I were you I'd go to a pick-n-pull junk yard first.
Old 10-29-2011 | 09:52 PM
  #3
gearhead_318's Avatar
Elite Member
iTrader: (1)

Joined: Dec 2010
Posts: 3,966
Total Cats: 21
From: SoCal
Default

I got the cheap Robbins, it leaks a little but I just had to correct the pieces of foamish stuff that line the top of the window. That should stop the leaking issue.
Also, Revlimiter did a write up about securing his hard top against theft.
http://revlimiter.net/blog/2010/01/m...op-security-1/
Old 10-30-2011 | 11:09 AM
  #4
y8s's Avatar
y8s
DEI liberal femininity
iTrader: (8)

Joined: Jun 2005
Posts: 19,338
Total Cats: 574
From: Fake Virginia
Default

I went to miatatopsource.com and ordered a glass window cloth top for my NB. the material around the window delaminated and they took FOR-EV-ER to get it handled properly--a replacement is finally on the way (OEM style instead of the economy top I ordered). They use KEE tops like many other discount top sellers so...

I suspect the vinyl tops aren't as much a problem but I don't know for sure.

Anyway, I'm not sure what combination of NB top, NB top frame, and NB rollbar you really need but using all three doesn't require a plastic window.

http://www.miatatopsource.com/1990_1..._Tops_s/24.htm
Old 10-31-2011 | 12:10 AM
  #5
soviet's Avatar
Elite Member
iTrader: (10)

Joined: Jan 2010
Posts: 3,493
Total Cats: 268
From: VA
Default

If he has an M1 roll bar, he can't use a glass window. There is not enough space to fold down the top due to the integrated harness bar. M2 roll bars have an optional bolt-in harness bar which apparently works with a glass window.
Old 12-22-2011 | 05:34 AM
  #6
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default

Derp, forgot all about this thread.
I don't have a harness bar, I have no idea if my rollbar is meant for NA or NB. I don't really have a problem with a plastic window anyway.

I know this isn't a place for spoonfeeding, but is anyone able to provide me with some direction on what will work for me and what won't? I can't see out of my window anymore, it looks like birds **** all over it. So from what I've been able to find from searching, NB tops don't have zippers and are all made of glass...but I'm not in the mood to experiment with it and find out that my top won't go down because of my roll bar.
Old 12-22-2011 | 10:38 AM
  #7
jtpaintballwdp's Avatar
Junior Member
iTrader: (14)

Joined: Sep 2007
Posts: 280
Total Cats: 0
From: Aldie, VA
Default

I just replaced my NA top ('92) with a top from a NB ('04 Mazdaspeed Miata). I used both the frame and top from the NB with the M2 roll bar that was on my car. I can take some pics when I get home today so you can compare with yours if you'd like. Using the top off of a wrecked car seems to be the cheapest option and its really simple (I think it took me about 1.5 hours to pull out the old top and frame and bolt in the newer one.)

Shops in the NoVA area were quoting anywhere from 700 to 900 to put a new Robbins or similar on my frame (and that was a plastic window). I was able to get the NB top and frame shipped for $350. I'm sure if you find one local or look around they can be had for cheaper.
Old 12-22-2011 | 10:49 AM
  #8
olderguy's Avatar
AFM Crusader
iTrader: (19)

Joined: Oct 2004
Posts: 4,685
Total Cats: 351
From: Wayne, NJ
Default

If you remove the panel that contains the plastic window and take it to a place that does canvas awnings and boat stuff, they should be able to sew in a new window for less than $100.
Old 12-22-2011 | 01:45 PM
  #9
matthewdesigns's Avatar
Elite Member
iTrader: (8)

Joined: Jun 2008
Posts: 1,648
Total Cats: 55
From: WNC
Default

I'd try a plastic polish before spending the time and coin on a new top or window. I can't recommend any as I've never done it to the rear window, but I can vouch for the 3M headlight restoration kit and it's miraculous effect. It comes with both liquid and paper abrasives, and since I've got about half of it left I'll be trying it (the liquid abrasives only). Support the window from the back with something flat and put a little elbow grease into it. Will probably be giving it a shot by this Spring as my softtop is showing a little age itself.
Old 12-22-2011 | 01:49 PM
  #10
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default

Originally Posted by matthewdesigns
I'd try a plastic polish before spending the time and coin on a new top or window. I can't recommend any as I've never done it to the rear window, but I can vouch for the 3M headlight restoration kit and it's miraculous effect. It comes with both liquid and paper abrasives, and since I've got about half of it left I'll be trying it (the liquid abrasives only). Support the window from the back with something flat and put a little elbow grease into it. Will probably be giving it a shot by this Spring as my softtop is showing a little age itself.
This was suggested by a local guy, and I am down to do this, I just have no idea what to buy.
Old 12-22-2011 | 01:55 PM
  #11
matthewdesigns's Avatar
Elite Member
iTrader: (8)

Joined: Jun 2008
Posts: 1,648
Total Cats: 55
From: WNC
Default

Yeah IDK. Maybe somebody on M.net has done it. **** maybe even try a small spot using buffing compound and wax. You probably have some of that on hand.
Old 12-22-2011 | 02:11 PM
  #12
wittyworks's Avatar
Senior Member
iTrader: (6)

Joined: May 2009
Posts: 983
Total Cats: 23
From: San Francisco
Default

Originally Posted by MartinezA92
This was suggested by a local guy, and I am down to do this, I just have no idea what to buy.
Sorry to burst your bubble, but i tried it and it blew large chunks. Total waste of several hours and had absolutely no good results. I think the plastic eventually gets to a point of no return. Take some pictures of your rollbar so we can figure out if a glass window is in your future.
Old 12-22-2011 | 02:25 PM
  #13
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default

Originally Posted by wittyworks
Sorry to burst your bubble, but i tried it and it blew large chunks. Total waste of several hours and had absolutely no good results. I think the plastic eventually gets to a point of no return. Take some pictures of your rollbar so we can figure out if a glass window is in your future.
Sigh...

Will do.
Old 12-22-2011 | 04:30 PM
  #14
matthewdesigns's Avatar
Elite Member
iTrader: (8)

Joined: Jun 2008
Posts: 1,648
Total Cats: 55
From: WNC
Default

Originally Posted by wittyworks
Sorry to burst your bubble, but i tried it and it blew large chunks. Total waste of several hours and had absolutely no good results. I think the plastic eventually gets to a point of no return. Take some pictures of your rollbar so we can figure out if a glass window is in your future.
What product/s did you try? Not questioning your results, just curious.
Old 12-22-2011 | 04:45 PM
  #15
soviet's Avatar
Elite Member
iTrader: (10)

Joined: Jan 2010
Posts: 3,493
Total Cats: 268
From: VA
Default

It's pretty damn simple.

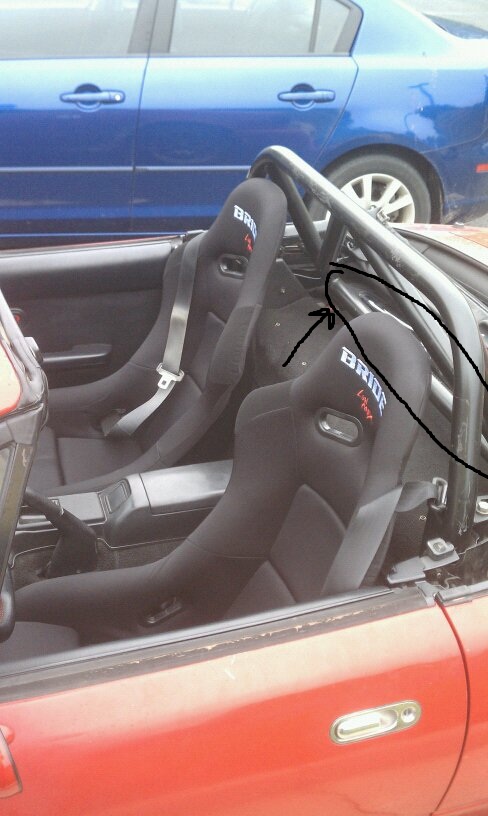

If you have this bar (circled) you can't use a glass top.
Attached Thumbnails Rollbar/soft tops. Help me see through my rear view mirror.-219970_10150244964276823_739766822_8720159_6876010_o.jpg
Old 12-22-2011 | 05:34 PM
  #16
pdexta's Avatar
Elite Member
iTrader: (17)

Joined: Aug 2007
Posts: 2,949
Total Cats: 183
From: Knoxville, TN
Default

I've done several tops on my miatas. I always buy the cheapest top I can find on ebay. Fitment has always been great. They look great and last ~3 years (daily driving, top up and down multiple times a day) before they'll start to get a tear/rip and I buy a new one.

This always seemed to make more sense than buying a top of the line $500-600 top. They're all gonna look like crap after 5 years anyway. I'd rather junk a cheap one a year or 2 sooner than I would with a name brand top that costs 4x as much.
Old 12-22-2011 | 06:02 PM
  #17
hornetball's Avatar
Elite Member
iTrader: (4)

Joined: Mar 2008
Posts: 6,301
Total Cats: 696
From: Granbury, TX
Default

^^+1. My current E-bay special has a glass window, has been on the car since 2005, and still looks perfect. I'm garaged . . . that helps. I'm planning to buy a roll bar to fit the glass window (looking at BF DD Maxx) rather than vice-versa. Glass windows are a worthwhile upgrade.
Old 04-18-2012 | 01:06 AM
  #18
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default

Resurrecting this, again. I've been lagging hardcore on this and just got my tax return, so I'm using it to repair this.

Is the panel where the plastic window attaches to removable/seperate from the rest of the top? I'd be down to just replace the plastic window, otherwise I'm going to post a WTB for a top with a plastic window. Have no desire to deal with glass windows/fitment issues, glass seperating from the top, etc.

Also, are NA/NB tops with plastic windows interchangeable?
Old 04-18-2012 | 12:13 PM
  #19
skidude's Avatar
Elite Member
iTrader: (3)

Joined: Apr 2008
Posts: 2,023
Total Cats: 19
From: Outside Portland Maine
Default

Originally Posted by MartinezA92
Resurrecting this, again. I've been lagging hardcore on this and just got my tax return, so I'm using it to repair this.

Is the panel where the plastic window attaches to removable/seperate from the rest of the top? I'd be down to just replace the plastic window, otherwise I'm going to post a WTB for a top with a plastic window. Have no desire to deal with glass windows/fitment issues, glass seperating from the top, etc.

Also, are NA/NB tops with plastic windows interchangeable?
There are no NB tops with plastic windows. The glass-window NB tops will fit NAs if you use the NB frame, but there is a difference with one of the frame bows so you can't just use the NB cloth on an NA frame. Somebody will correct me if I am wrong, I am sure.
Old 04-18-2012 | 12:44 PM
  #20
MartinezA92's Avatar
Thread Starter
Elite Member
iTrader: (4)

Joined: Aug 2009
Posts: 1,784
Total Cats: 42
From: Redwood City, CA
Default

I had a feeling that was the case. NA top it is.
