Looking for 2 NA8 owners to take pictures and measurements for LS coils harness

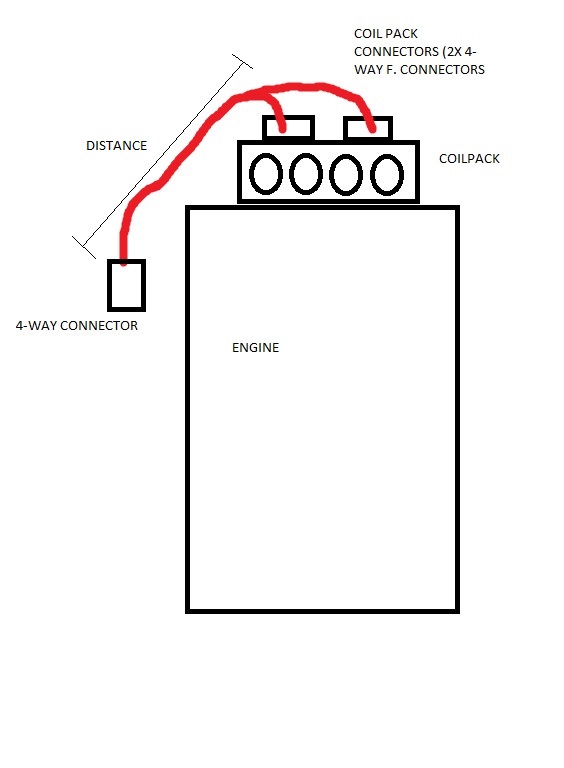

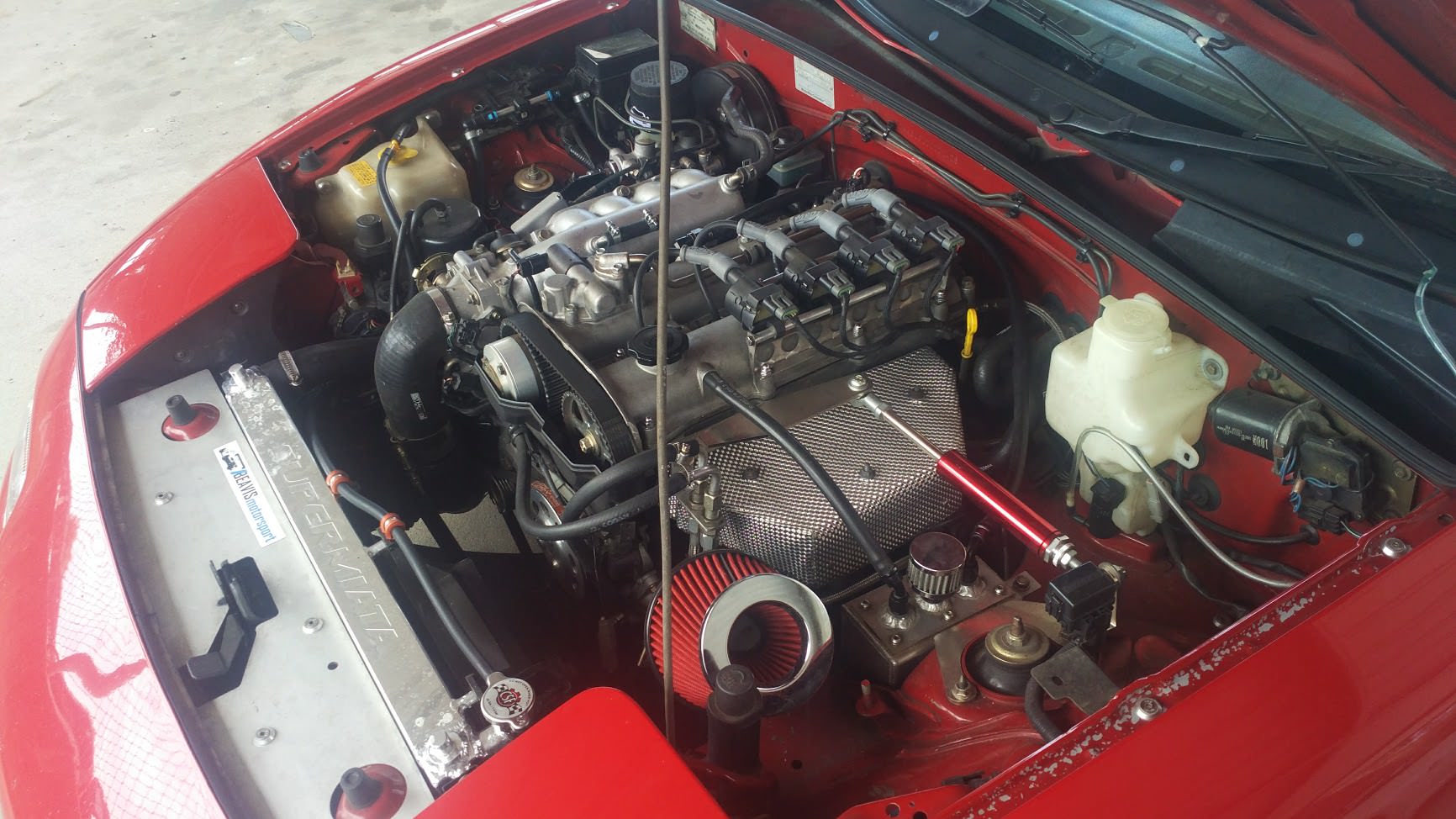

Howdy folks. As some of you know Barton and I are working on plug and play LS coil harnesses that will make using cheap LS coils + SADfab bracket awesomeness really easy. We've got the 1.6, NB1, and NB2 models covered, but between the two of us and across our two hemispheres, we have exactly 0 NA 1.8s. We need someone with the 94-95, and someone with the 96-97. It will involve tracing the wires from the coil pack back to the connector where it joins onto the harness, measuring the distance from that plug to the front and back of the engine, and snapping a couple close up pics of the connector with the wire colors.
Is anyone rooting around in their engine bay anyway and want to help us out?
Thanks!!
Is anyone rooting around in their engine bay anyway and want to help us out?
Thanks!!
__________________
Last edited by nigelt; 01-20-2018 at 04:18 PM.
#2
I'm not really messing with the engine, but if you send me some detailed info with samples from NA 1.6 or NB of what you need I may be able to help you out (if it's somewhere in the open space and not inside the dash or wrapped in some really hard to reach spot). Shoot me a PM with details and I'll take a look.
#7
On 1994 it's 21-22" . I've used a sticky tape to trace out the length from 4 way to one of the coil plug connectors, then once traced - pulled it off and measured the length of that piece. You may want to allow for an extra inch or more of slack though working with those coil connectors and not having this extra length when taking them off is a pain.
Strange though to see that it's only 1' on 96-97. I will go double-check it later when i get some time.
Strange though to see that it's only 1' on 96-97. I will go double-check it later when i get some time.
#8
Supporting Vendor
Thread Starter
iTrader: (10)
Join Date: Aug 2014
Location: Bainbridge Island, WA
Posts: 1,461
Total Cats: 388

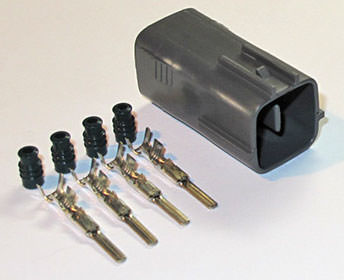

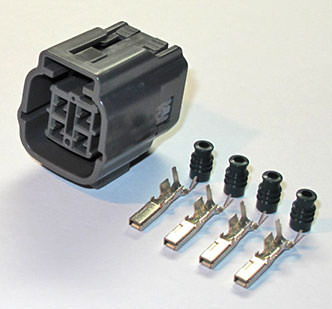

That's so much guys. The other thing we need is a close up of the 4-pin connector where you can see the wire colors, so we know which wire goes to which pin.
__________________
#9

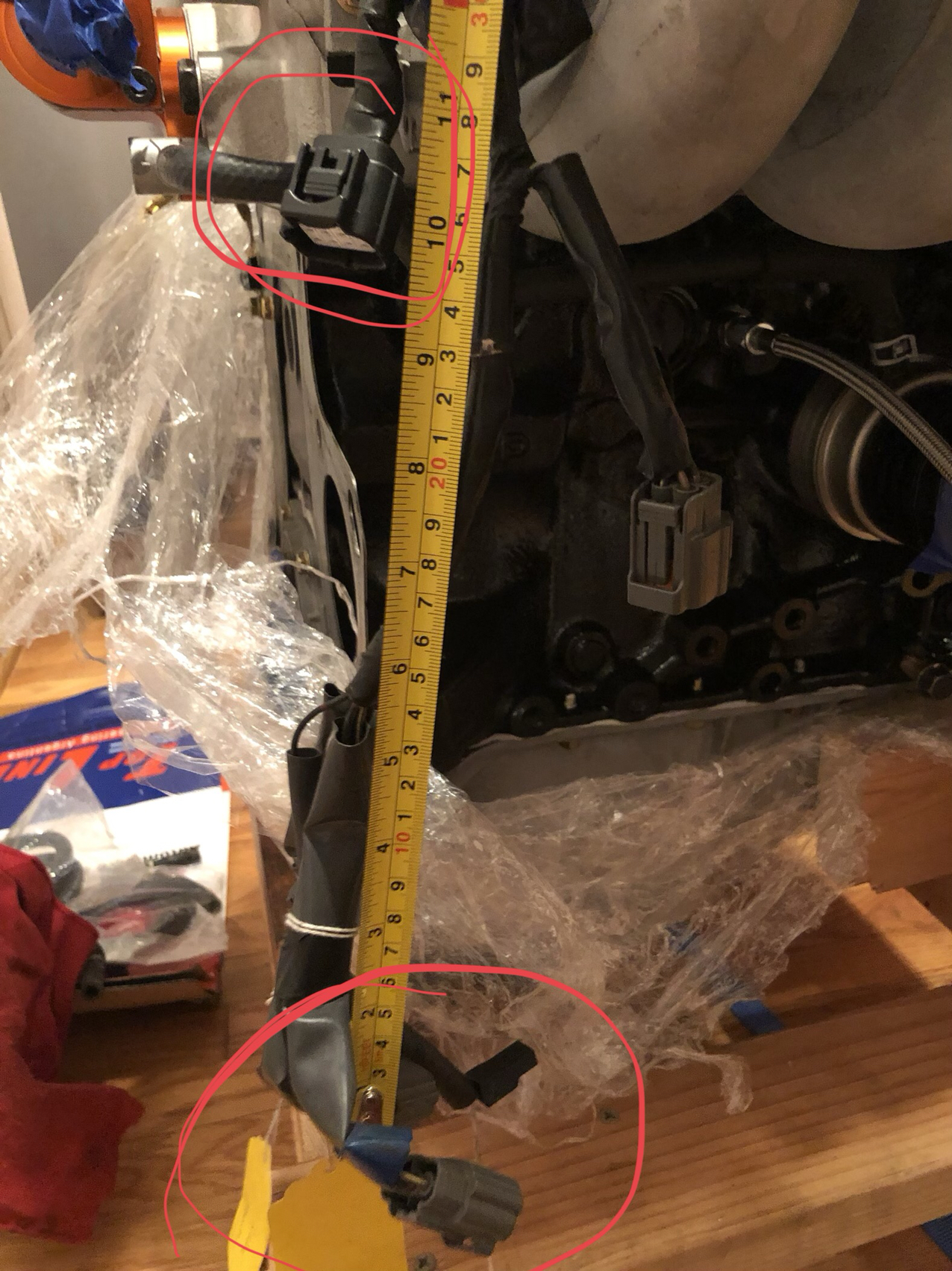

Ok, so looks like I measured distance to the wrong connector in the post above. I couldn't find a strictly 4 pin connector. I have an 8 wire connector and a 6 wire connector that is 13.5" away from coil connectors that has only 5 wires in it. They appear to match color on coil wires. Looks like female side is going to the coils and if you take the release lever to denote the top of the plug
Plug facing you
Lever
1 2 3
4 5 6
1 is blue
2 is black
3 is brown
4 black with white stripe
5 brown with yellow stripe
6 empty
Top by lever
flipped upside down
Same color wires receiving male connector
Plug facing you
Lever
1 2 3
4 5 6
1 is blue
2 is black
3 is brown
4 black with white stripe
5 brown with yellow stripe
6 empty
Top by lever
flipped upside down
Same color wires receiving male connector
#12
Ok, so looks like I measured distance to the wrong connector in the post above. I couldn't find a strictly 4 pin connector. I have an 8 wire connector and a 6 wire connector that is 13.5" away from coil connectors that has only 5 wires in it. They appear to match color on coil wires. Looks like female side is going to the coils and if you take the release lever to denote the top of the plug
Plug facing you
Lever
1 2 3
4 5 6
1 is blue
2 is black
3 is brown
4 black with white stripe
5 brown with yellow stripe
6 empty
Top by lever
flipped upside down
Same color wires receiving male connector
Plug facing you
Lever
1 2 3
4 5 6
1 is blue
2 is black
3 is brown
4 black with white stripe
5 brown with yellow stripe
6 empty
Top by lever
flipped upside down
Same color wires receiving male connector
Thanks heaps. Is yours a 94-95 car? I think the 94-95 will have a 6 pin connector with 5 wires since it also has a rpm signal back to the ecu while the 96-97 has a 4 pin and no rpm signal.
Final product will be a LS coil harness similar to the ones I've already made but manufactured in larger quantities and PnP for all years 89-05. Will suit the Sadfab mounting brackets and others like my Beavis Motorsport bracket.
#16
Supporting Vendor
Thread Starter
iTrader: (10)
Join Date: Aug 2014
Location: Bainbridge Island, WA
Posts: 1,461
Total Cats: 388
They are not strictly necessary for NA. The problem under boost is you get spark blowout at somewhere north of 12 psi so you need to gap down your plugs. With LS coils on NA you can run like .040 gaps which gives you excellent combustion. I noticed the difference at idle instantly.
