Anyone have any brake questions?
#522
i used brake clean. just blast it out and make sure your grease is clean. tiny stones can band and cause the caliper to drag.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#523
So i'd like to talk about a topic that i know has been covered in this forum, but not in this thread yet, which is brake ducts.
I'm not new to road courses and track days but i just do them for fun, i don't "race" so i'm not bound by any specific limitations. Previously we were running two mustangs, my ~400 whp / 3600 lb 5.0 and my fiance's ~300 whp / 3400 lb v6. On both cars i was running 13.2" rotors with 3" brake ducts and carbotech XP 10 / 8 pads. Our typical schedule is 1 weekend every 2-3 months, so not super often, but often enough that we go through some wear items.
So, to save money my fiance' and i are now sharing a Miata, and since this car will really only get ~20 minutes rest between our sessions, i am trying to address all cooling and efficiency mods upfront. I understand the design of the miata hub seems to limit how brake ducts can be designed, but on the mustangs (and maybe it mattered more there due to the weight and horsepower) it was always stressed that the duct should be aimed as close to the rotor hat as possible. This makes sense to me, it cools the hub, and allows the air to pass up through the vanes and cool both faces of the rotor evenly - in theory.
All the Miata ducts i have found have very large gaps between the duct and rotor, again a design i understand is limited by what we are working with, but combined with the small rotor hats we're working with it basically just seems like all the air is blowing on the rear face of the rotor? I am probably over thinking this, as apparently people are running these kits with success, but the "science" of it doesn't make sense to me. You would think that basically ducting 2.5 - 3" worth of air at the rear face of a rotor and not really getting much into the hat / vanes to cool the front would lead to a warped / cracked rotor since different parts of it are heating and cooling / expanding / flexing, whichever at different rates?
I still have a lot of my 3" brake duct hardware left over, so i am looking to put 3" ducts on our car - which is otherwise just a basic bolt on NB2 with some very mild weight reduction and suspension, we've only had it for a few months at this point and are just getting it all set up - since i already have the parts. I understand 3" is overkill for our application, but like i said, since we're both driving this car, i would hate for a weekend to get ruined by some cooked brakes when that issue can be very easily addressed beforehand, i'm just not sure how i feel about a lot of the duct options out there ... Thanks.
For example, these were the backing plates / dust shields we were running on the mustangs: Vorshlag S197 3" diameter Brake Duct Backing Plates (Pair) - Vorshlag LLC
I'm not new to road courses and track days but i just do them for fun, i don't "race" so i'm not bound by any specific limitations. Previously we were running two mustangs, my ~400 whp / 3600 lb 5.0 and my fiance's ~300 whp / 3400 lb v6. On both cars i was running 13.2" rotors with 3" brake ducts and carbotech XP 10 / 8 pads. Our typical schedule is 1 weekend every 2-3 months, so not super often, but often enough that we go through some wear items.
So, to save money my fiance' and i are now sharing a Miata, and since this car will really only get ~20 minutes rest between our sessions, i am trying to address all cooling and efficiency mods upfront. I understand the design of the miata hub seems to limit how brake ducts can be designed, but on the mustangs (and maybe it mattered more there due to the weight and horsepower) it was always stressed that the duct should be aimed as close to the rotor hat as possible. This makes sense to me, it cools the hub, and allows the air to pass up through the vanes and cool both faces of the rotor evenly - in theory.
All the Miata ducts i have found have very large gaps between the duct and rotor, again a design i understand is limited by what we are working with, but combined with the small rotor hats we're working with it basically just seems like all the air is blowing on the rear face of the rotor? I am probably over thinking this, as apparently people are running these kits with success, but the "science" of it doesn't make sense to me. You would think that basically ducting 2.5 - 3" worth of air at the rear face of a rotor and not really getting much into the hat / vanes to cool the front would lead to a warped / cracked rotor since different parts of it are heating and cooling / expanding / flexing, whichever at different rates?
I still have a lot of my 3" brake duct hardware left over, so i am looking to put 3" ducts on our car - which is otherwise just a basic bolt on NB2 with some very mild weight reduction and suspension, we've only had it for a few months at this point and are just getting it all set up - since i already have the parts. I understand 3" is overkill for our application, but like i said, since we're both driving this car, i would hate for a weekend to get ruined by some cooked brakes when that issue can be very easily addressed beforehand, i'm just not sure how i feel about a lot of the duct options out there ... Thanks.
For example, these were the backing plates / dust shields we were running on the mustangs: Vorshlag S197 3" diameter Brake Duct Backing Plates (Pair) - Vorshlag LLC
#524
Supporting Vendor
iTrader: (3)
Join Date: Jul 2006
Location: San Diego
Posts: 3,303
Total Cats: 1,216
You're right on the money that there is simply no way with the dimensions of the Miata spindle to move the outlet closer to the hub unless you want to cut parts of the spindle off.
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
#525
You're right on the money that there is simply no way with the dimensions of the Miata spindle to move the outlet closer to the hub unless you want to cut parts of the spindle off.
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
I think you're exactly right, thanks for clearing that up. You can see looking at those Vorshlag baking plates what i was expecting coming in, and seeing all the miata offerings i was kind of hesitant. Thanks for the reply.
#526
You're right on the money that there is simply no way with the dimensions of the Miata spindle to move the outlet closer to the hub unless you want to cut parts of the spindle off.
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. With a curved vein rotor Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
But in short, yes you are overthinking it. These factors were all considered in the design of our ducts.
First, the sort of design that you see in Singular ducts place the outlet of the hose about 1/2" away from the inward rotor face, and then the shape of duct itself is designed to serve as three sides to a box that allows the airflow to flare out from there towards the center of the rotor. The duct direction is angled towards the rotor center. You seem to be thinking of the air exiting that duct as if it exits the hose end, contacts the rotor and then vanishes. In practice, with a Singular duct, the inwards rotor face serves as the fourth wall to the box that channels air from the hose exit to the rotor center. With a curved vein rotor Air pressure is lowest at the center of the rotor hat - an effect facilitated by the design of the rotor and internal vanes as they spin - so this is exactly where the cool air delivered by the hose from a much higher pressure source will go. The rotor gains a bit of cooling from the initial contact of cool air fed by the duct, but the majority of the thermal transfer IS indeed from the air feeding into the rotor hat and then traveling outwards through the rotor veins.
Many, many cars running these ducts these days, reporting lower brake component temperatures, longer pad/rotor life and no adverse effects. All our testing during development showed the same, but the sample size that exists now reinforces that.
-Ryan
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#528
true true...
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#529
Here are two:

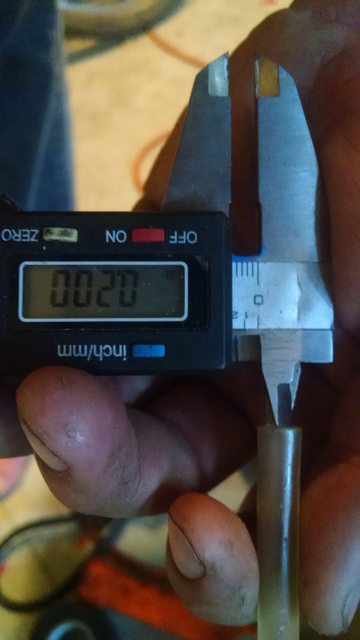

1) What is the diameter of the small-*** tubing that fits over the bleed screws for four piston dynapro calipers?
edit: read it is a .170" inside diameter. I will confirm tonight after getting some different tubing.
2) Why are one-way check valves not used for bleed screws or can one swap those out to make bleeding easier (more reliable?)?
1) What is the diameter of the small-*** tubing that fits over the bleed screws for four piston dynapro calipers?
edit: read it is a .170" inside diameter. I will confirm tonight after getting some different tubing.
2) Why are one-way check valves not used for bleed screws or can one swap those out to make bleeding easier (more reliable?)?
Last edited by tazswing; 08-14-2015 at 02:33 PM.
#533
Okay 95% of all this brake info I've just read has gone completely over my head, so I'll just ask my question straight forward.
1996 1.8L. turbo'd Miata making approx: 250whp. 230tq.
Stock 1.8L rotors & pads (so so bad)
Car will never ever see any track time BUT my daily driver situation is very different then most......
The car is a business use city delivery only
car, meaning 5-days per week 10am-10pm delivery driving 1,000 delivery miles per week on this car.
I'm looking for a rotor and Pad combination that has minimal dust, Extremely longevity an will stop my turbo'd Miata from 100mph. to 0 for 10 hours a day 5-days per week.
I'm unwilling to swap to a BBK. at this time, cost being the set back
My current delivery car 02 civic has burned through (gone nothing left) EBC Redstuff pads in 6 months, then switched same car to fresh EBC blank rotors an Yellow stuff pads they wore down to the backing plate in 9 months. This is unacceptable.
Is what I'm after Possible, staying with the oem 1.8L calipers & rotor size?
Thanks
1996 1.8L. turbo'd Miata making approx: 250whp. 230tq.
Stock 1.8L rotors & pads (so so bad)
Car will never ever see any track time BUT my daily driver situation is very different then most......
The car is a business use city delivery only
car, meaning 5-days per week 10am-10pm delivery driving 1,000 delivery miles per week on this car.
I'm looking for a rotor and Pad combination that has minimal dust, Extremely longevity an will stop my turbo'd Miata from 100mph. to 0 for 10 hours a day 5-days per week.
I'm unwilling to swap to a BBK. at this time, cost being the set back
My current delivery car 02 civic has burned through (gone nothing left) EBC Redstuff pads in 6 months, then switched same car to fresh EBC blank rotors an Yellow stuff pads they wore down to the backing plate in 9 months. This is unacceptable.
Is what I'm after Possible, staying with the oem 1.8L calipers & rotor size?
Thanks
#535
Okay 95% of all this brake info I've just read has gone completely over my head, so I'll just ask my question straight forward.
1996 1.8L. turbo'd Miata making approx: 250whp. 230tq.
Stock 1.8L rotors & pads (so so bad)
Car will never ever see any track time BUT my daily driver situation is very different then most......
The car is a business use city delivery only
car, meaning 5-days per week 10am-10pm delivery driving 1,000 delivery miles per week on this car.
I'm looking for a rotor and Pad combination that has minimal dust, Extremely longevity an will stop my turbo'd Miata from 100mph. to 0 for 10 hours a day 5-days per week.
I'm unwilling to swap to a BBK. at this time, cost being the set back
My current delivery car 02 civic has burned through (gone nothing left) EBC Redstuff pads in 6 months, then switched same car to fresh EBC blank rotors an Yellow stuff pads they wore down to the backing plate in 9 months. This is unacceptable.
Is what I'm after Possible, staying with the oem 1.8L calipers & rotor size?
Thanks
1996 1.8L. turbo'd Miata making approx: 250whp. 230tq.
Stock 1.8L rotors & pads (so so bad)
Car will never ever see any track time BUT my daily driver situation is very different then most......
The car is a business use city delivery only
car, meaning 5-days per week 10am-10pm delivery driving 1,000 delivery miles per week on this car.
I'm looking for a rotor and Pad combination that has minimal dust, Extremely longevity an will stop my turbo'd Miata from 100mph. to 0 for 10 hours a day 5-days per week.
I'm unwilling to swap to a BBK. at this time, cost being the set back
My current delivery car 02 civic has burned through (gone nothing left) EBC Redstuff pads in 6 months, then switched same car to fresh EBC blank rotors an Yellow stuff pads they wore down to the backing plate in 9 months. This is unacceptable.
Is what I'm after Possible, staying with the oem 1.8L calipers & rotor size?
Thanks
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#536
Moderator
iTrader: (12)
Join Date: Nov 2008
Location: Tampa, Florida
Posts: 20,814
Total Cats: 3,051
Run cheap stock pads. For delivering pizzas it is all you need.
If you are more interested in stopping the car than looking hot for all the potential boyfriends you may encounter then you can use real performance pads, which will dust. If you aren't gay you need to realize girls pay very little attention to cars. If you are gay you need to realize gay guys pay very little attention to cars. Straight guys pay attention to cars. But straight guys think the Miata is pretty faggy, even if lowered and placed on cute wheels (called rimz if you dropped out of school).
The only pads with light dust are ceramic ones from the local parts store. They don't stop as well as ones that do dust.
Six months? Nine months? And you are complaining? Mine last two weekends, maybe three. And I am happy they last that long.
You should consider a job in cosmetology. They don't go through brake pads quickly.
If you are more interested in stopping the car than looking hot for all the potential boyfriends you may encounter then you can use real performance pads, which will dust. If you aren't gay you need to realize girls pay very little attention to cars. If you are gay you need to realize gay guys pay very little attention to cars. Straight guys pay attention to cars. But straight guys think the Miata is pretty faggy, even if lowered and placed on cute wheels (called rimz if you dropped out of school).
The only pads with light dust are ceramic ones from the local parts store. They don't stop as well as ones that do dust.
Six months? Nine months? And you are complaining? Mine last two weekends, maybe three. And I am happy they last that long.
You should consider a job in cosmetology. They don't go through brake pads quickly.
#537
that quote needs to get immortalized somewhere.
If you aren't gay you need to realize girls pay very little attention to cars. If you are gay you need to realize gay guys pay very little attention to cars.
