DIY manifold
#342
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

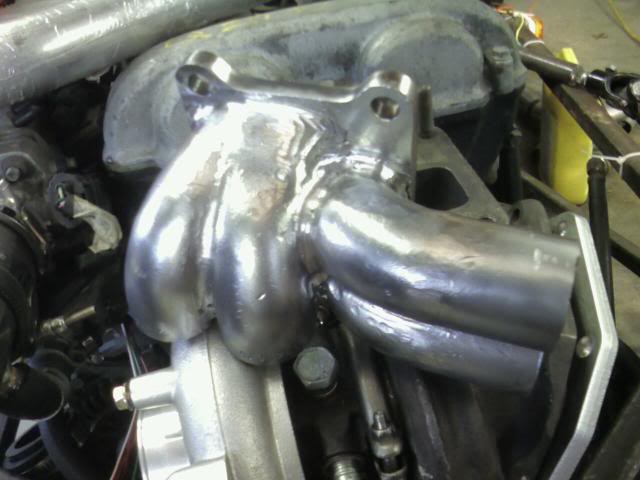

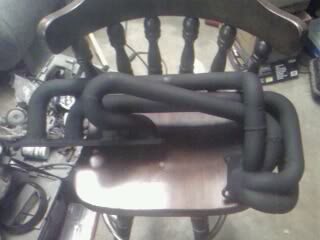

heres mine. nothing speciall just 1.5" weld els. this view is from under neath so you can see how i reversed the #2 runner into the turbo so the airflow is better into the turbo intake from the log.
http://carphotos.cardomain.com/ride_..._large.jpg?v=0

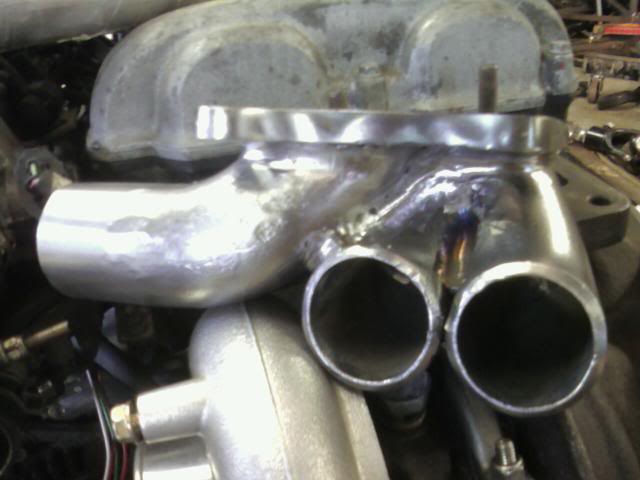

top view showing the flange for the IHI VF10 turbo from a subaru legacy GT.
http://carphotos.cardomain.com/ride_..._large.jpg?v=0

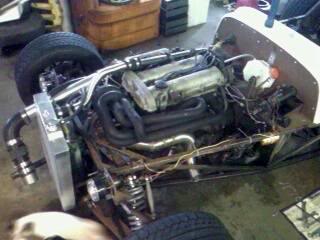

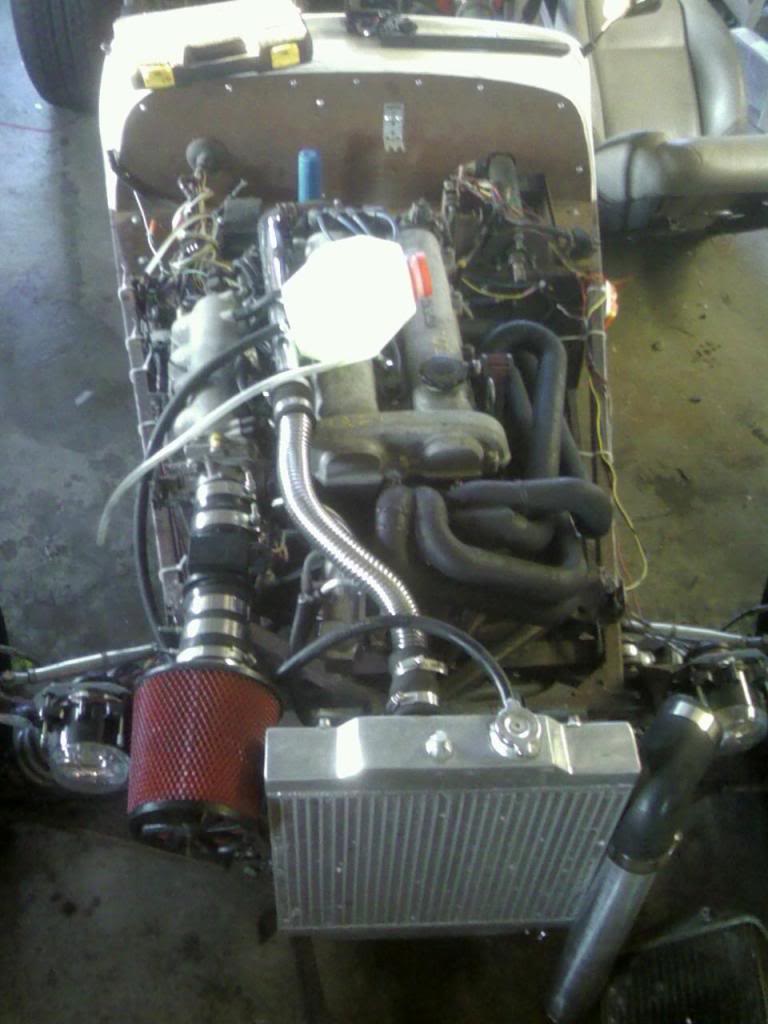

here it is on the car. Very tight compac manifold. note the relocated power steering intake hose.
http://carphotos.cardomain.com/ride_..._large.jpg?v=0
this manifold has been on the car for 7 years now and not missed a beat! i havent even had to retorque the turbo or manifold studs and nuts!
http://carphotos.cardomain.com/ride_..._large.jpg?v=0
top view showing the flange for the IHI VF10 turbo from a subaru legacy GT.
http://carphotos.cardomain.com/ride_..._large.jpg?v=0
here it is on the car. Very tight compac manifold. note the relocated power steering intake hose.
http://carphotos.cardomain.com/ride_..._large.jpg?v=0
this manifold has been on the car for 7 years now and not missed a beat! i havent even had to retorque the turbo or manifold studs and nuts!
#343
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Look at the head itself and see where you can leave material. It wont add cost to cutting the flange and having a little more meat on the head flange will help both with welding and even torque over the flange once your done and tighten it down. If its laser cut the extra girth in the flange will keep warping down too.

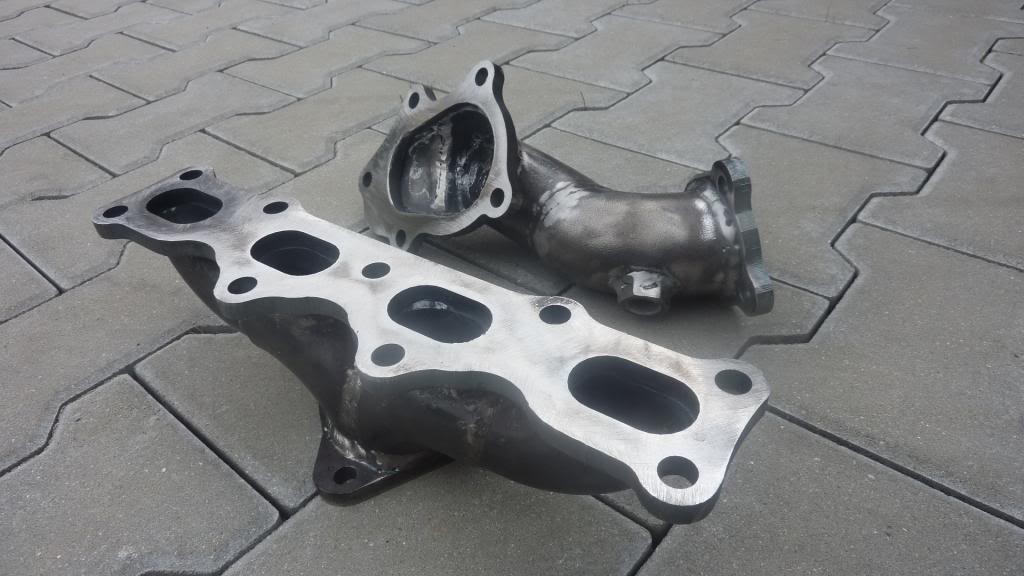

Cut the overlay flange you just posted.
Cut the overlay flange you just posted.
![Name: P1030672_zps9ca25e50.jpg
Views: 1592
Size: 71.3 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185318d1501210558-diy-manifold-p1030672_zps9ca25e50.jpg)
Strange as it is but I pay for laser work by the Kg so it doesn't hurt to add a few curves.
4sfed5 your manifold is what inspired me to try and make my own. It is an elegant design. +1
Last edited by sturovo; 06-27-2013 at 12:57 AM.
#348
Retired Mech Design Engr
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (3)
Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,011
Total Cats: 859
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
This is the start to an interesting series where a log manifold is constructed for a TD04. Note the asymmetrical outlet flange location to move the Turbo forward. This also discusses how to clock turbine AND compressor to allow wastegate controller to not need a new bracket. Of course, it limits the direction of the compressor outlet.
#350
Elite Member
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
If you have cad, just run the exhaust gaskets through a scanner, xref the scanned tiff in, scale it off a few points and then trace it.
Print off a 1:1 scaled print of it to verify and your gold. shouldn't take more than 15 minutes.
Print off a 1:1 scaled print of it to verify and your gold. shouldn't take more than 15 minutes.
#360
mkturbo.com
![](/mt2011/images_td/ranks/supporter1.gif)
![](/mt2011/images_td/ranks/admin.png)
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,189
Total Cats: 1,685
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

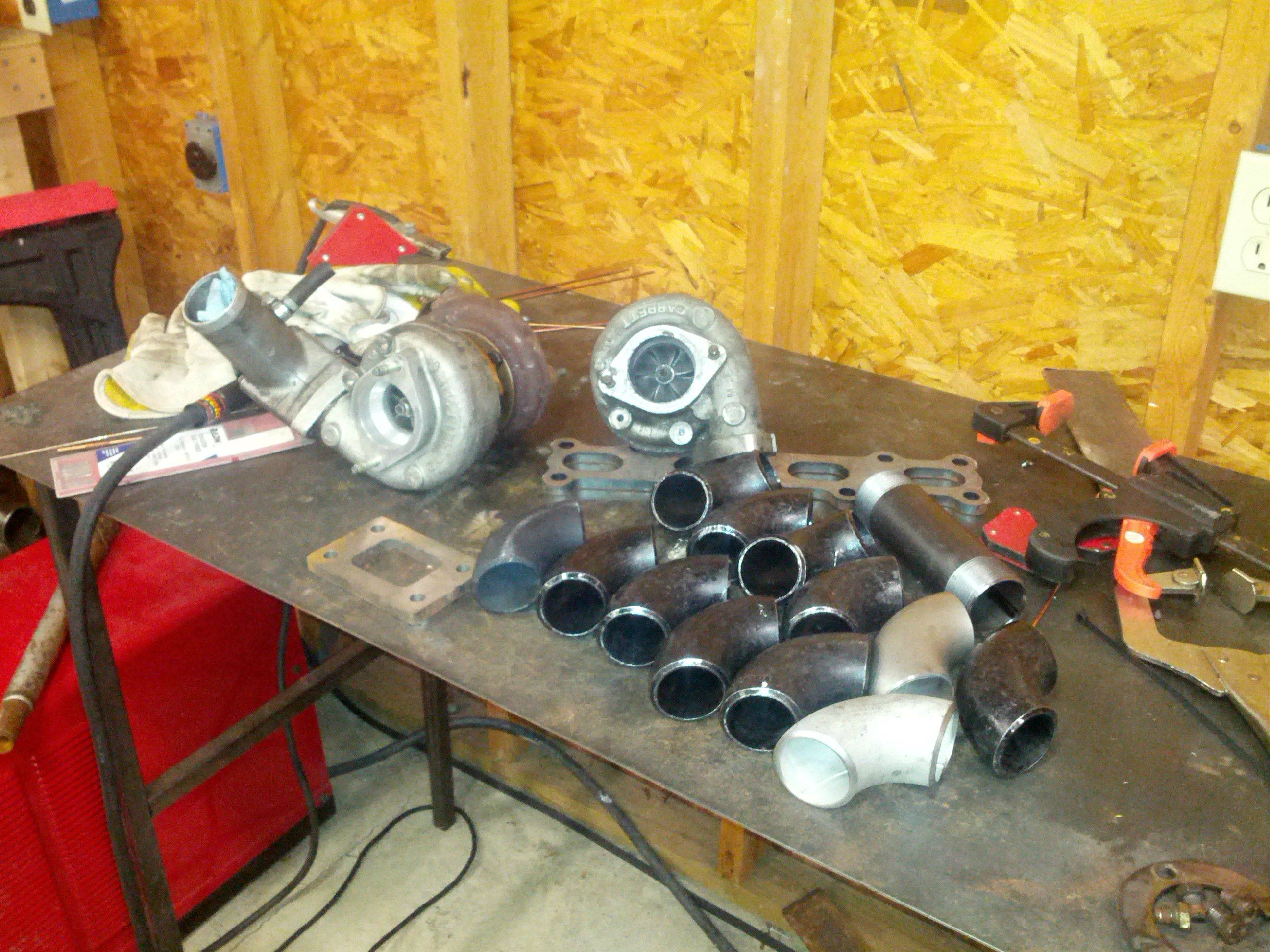

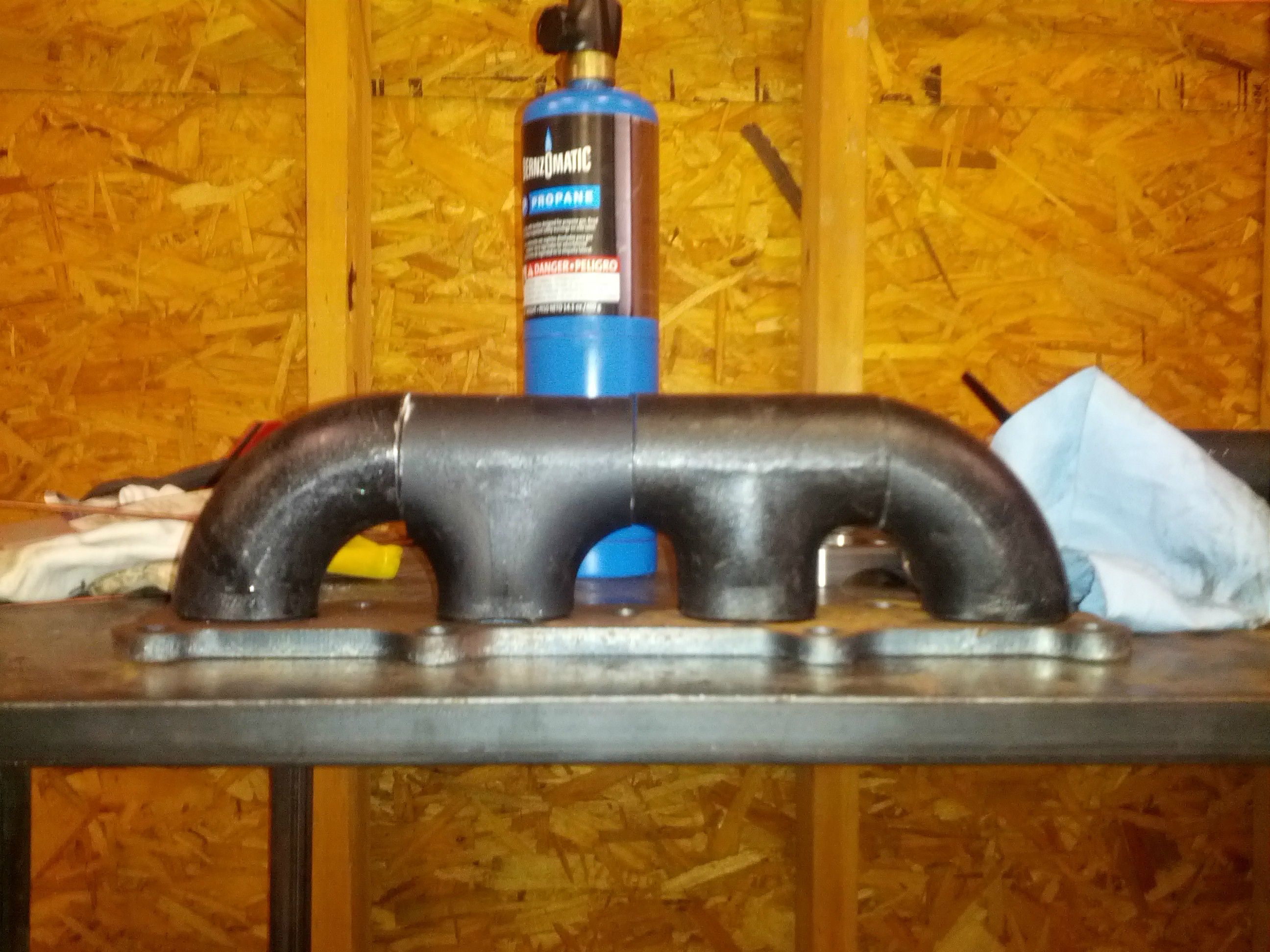

First manifold is getting there. I am learning how to use my new HF band saw so my cuts are by no means perfect yet. Tomorrow hopefully I will get it all good gap wise and get some tack welds on it.
![Name: duiXbNY.jpg
Views: 82
Size: 582.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/238875d1683055991-diy-manifold-duixbny.jpg)
Last edited by shuiend; 09-17-2014 at 07:45 PM.
