The custom fabrication thread! (Post pics of stuff you have made)
#402
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Dam... Ive done enough of these now and i dont have any training in welding or anything and i hoped I could find someone who knew.
I want to just email a few companies who are pro but in other countries and asking if they have time to give me pics to show how.
Its the only thing i havnt really figured out how to do nicely.
Dann
I want to just email a few companies who are pro but in other countries and asking if they have time to give me pics to show how.
Its the only thing i havnt really figured out how to do nicely.
Dann
#412
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'm going to go with theres multiple ways of doing things. I was taught by someone who went by the 1-2 times the diameter of the tungsten should be out of the cup, if you need to do more than that, turn the gas flow up.
But if they're too short you run into a worse problem. Mine were really short, welding the pipe to the collector was a bit of a bear once there was more than one runner on it. You can see how tight the merge was on this side.
![Name: IMG_20130323_000332.jpg
Views: 254
Size: 213.7 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185504d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-img_20130323_000332.jpg)

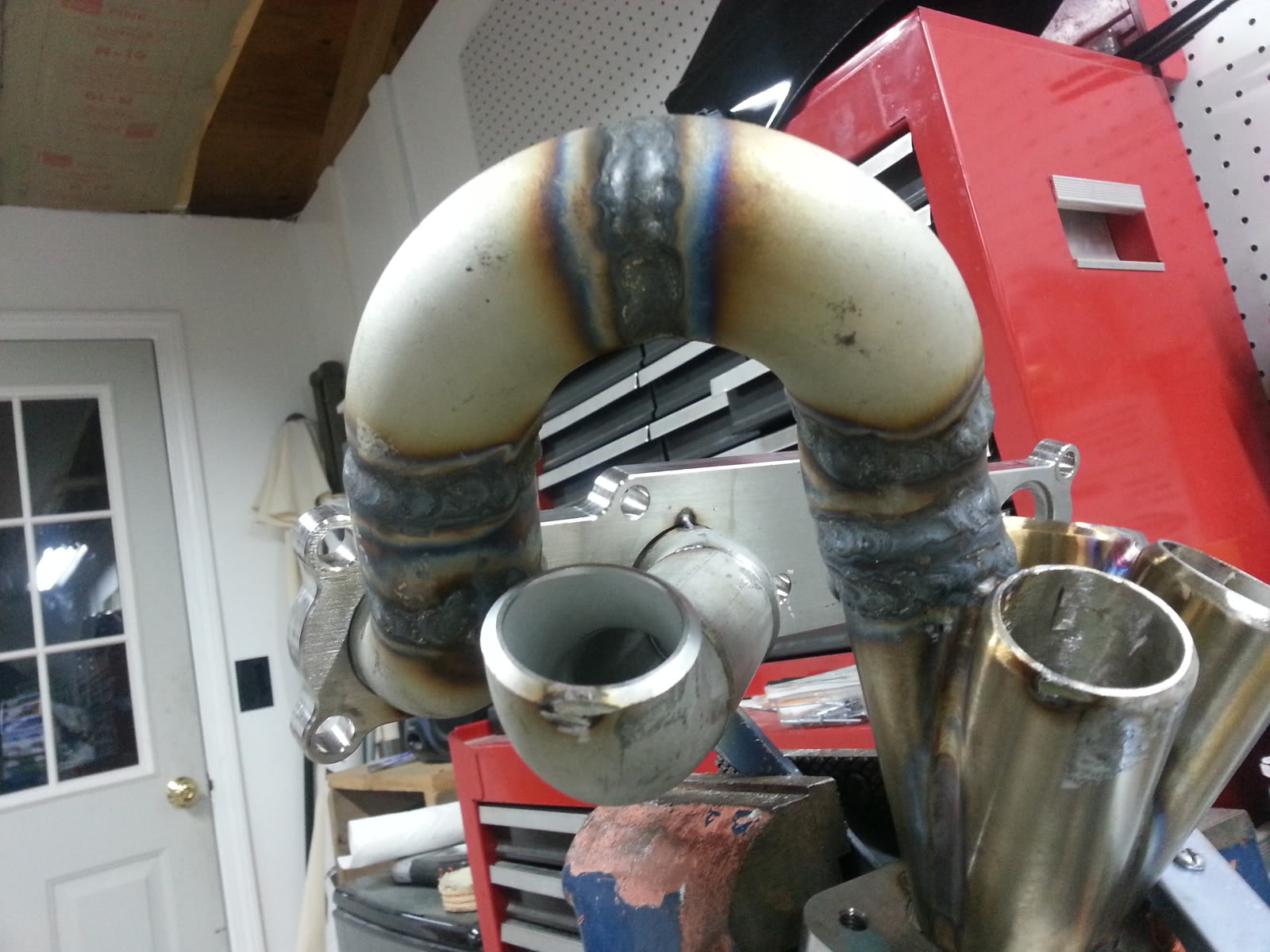

And no I'm not terribly happy with my weld quality on this, I've done much better, I was experimenting with ceriated tungsten and trying to weld sch40 with on 110v.
But if they're too short you run into a worse problem. Mine were really short, welding the pipe to the collector was a bit of a bear once there was more than one runner on it. You can see how tight the merge was on this side.
![Name: IMG_20130323_000332.jpg
Views: 254
Size: 213.7 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185504d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-img_20130323_000332.jpg)
And no I'm not terribly happy with my weld quality on this, I've done much better, I was experimenting with ceriated tungsten and trying to weld sch40 with on 110v.
#414
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (5)
Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 5,683
Total Cats: 805
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
But quit trying "different" fancy ****.
Just learn the basics first man. I'm not really sure where to start with this. If you were running on 110, you were using allofit because that is REALLY hot.
I'm not even sure where to point you, because i feel there is so much to fix.
I think i told you this before, quit flat pedaling it.
Get yourself some flat stock, and see how small of a bead you can make. Turn that thing way down and hardly made a bead. Get your gap super super close too.
#416
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Probably going to come off wrong.
But quit trying "different" fancy ****.
Just learn the basics first man. I'm not really sure where to start with this. If you were running on 110, you were using allofit because that is REALLY hot.
I'm not even sure where to point you, because i feel there is so much to fix.
I think i told you this before, quit flat pedaling it.
Get yourself some flat stock, and see how small of a bead you can make. Turn that thing way down and hardly made a bead. Get your gap super super close too.
But quit trying "different" fancy ****.
Just learn the basics first man. I'm not really sure where to start with this. If you were running on 110, you were using allofit because that is REALLY hot.
I'm not even sure where to point you, because i feel there is so much to fix.
I think i told you this before, quit flat pedaling it.
Get yourself some flat stock, and see how small of a bead you can make. Turn that thing way down and hardly made a bead. Get your gap super super close too.
![Name: IMG_20130325_194943.jpg
Views: 306
Size: 245.4 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185502d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-img_20130325_194943.jpg)

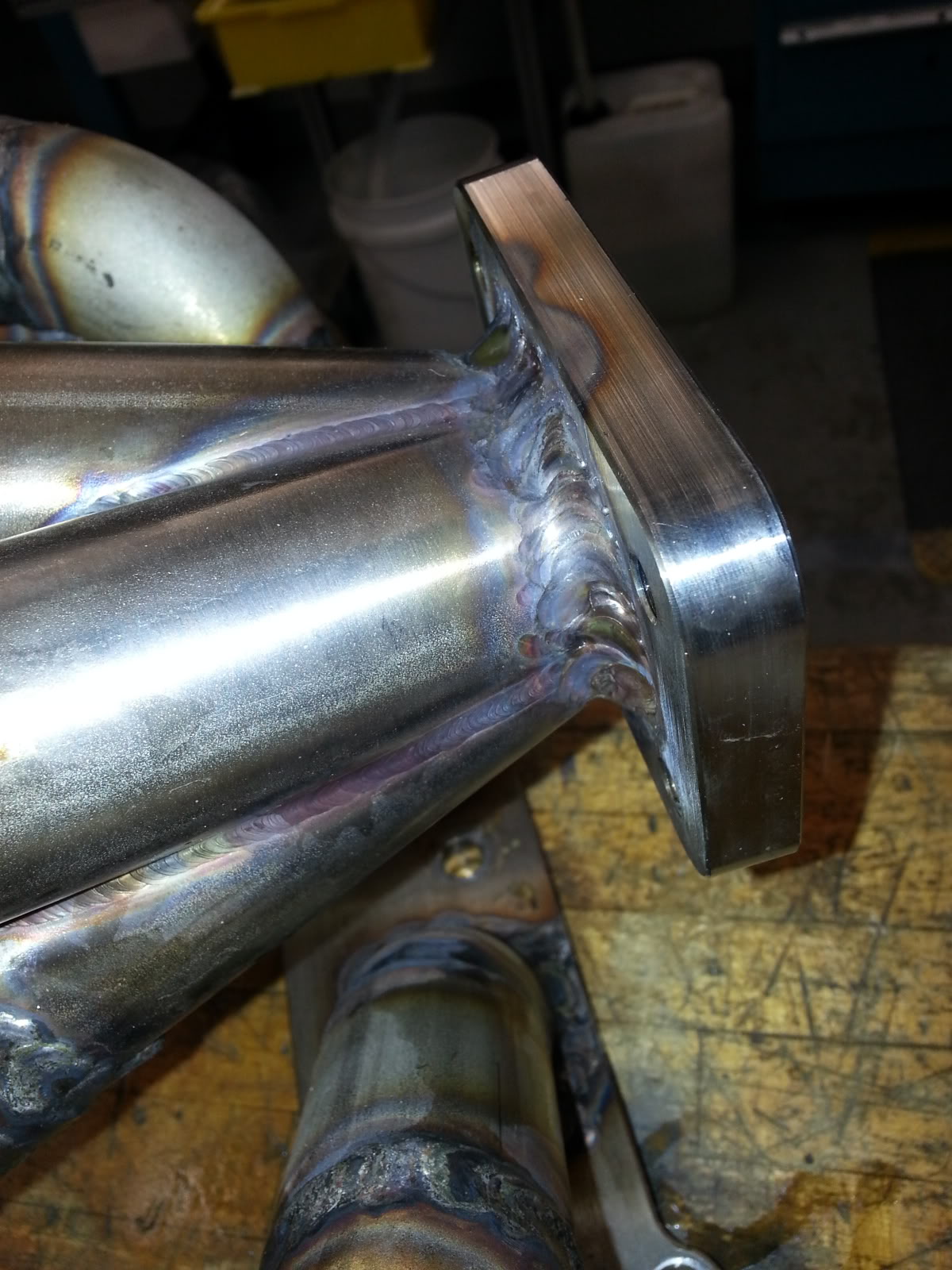

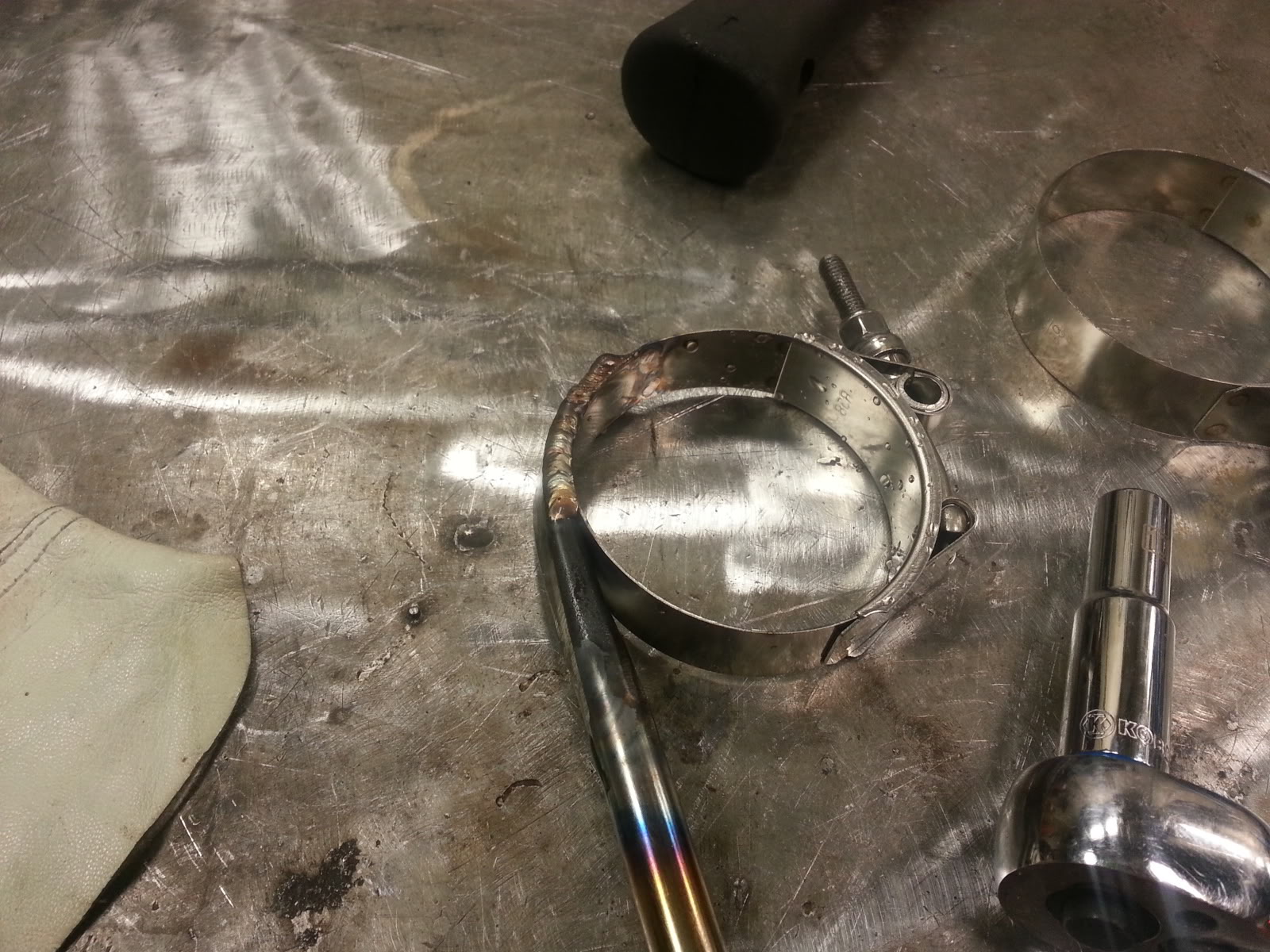

I've gotten a lot better since that manifold.
![Name: IMG_20130426_205810.jpg
Views: 241
Size: 334.8 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185503d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-img_20130426_205810.jpg)
#417
Elite Member
iTrader: (8)
Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,910
Total Cats: 51
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
basically instead of having a 5 degree window that your cup can fit into you have a 60 degree window.
Im not saying to make it a short one with a larger angle, just less length after they actually merge.
Try it and you will see.
#418
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Shortnening the collector that far ruins the scavenging properties.
I always assumed you would have to weld the spike portion from the inside of the collector with a long gas lens.
You could use a cheap sand blasting cabinet as a gas chamber and evacuate the whole thing with argon, than a gas lens would be unnecessary.
I always assumed you would have to weld the spike portion from the inside of the collector with a long gas lens.
You could use a cheap sand blasting cabinet as a gas chamber and evacuate the whole thing with argon, than a gas lens would be unnecessary.
#420
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Here's how I make collectors. Keep in mind, I cut out the triangle points and weld them to the header tubes without the collector, then weld on the collector.... That way I don't have to do any welding on the inside.
I make my bend by cutting off the starting end of a u bend. Yes they're not perfectly symmetrical on the front and back.

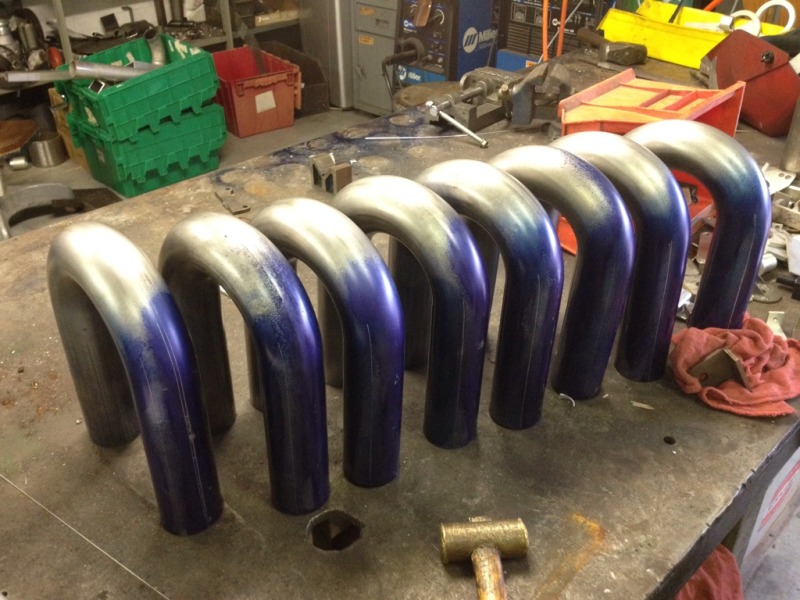

Transfer dye for scribing a line
![Name: D6CF1930-7D3F-41F6-BB8B-42E6482B778C-5142-00000361D15A253F.jpg
Views: 284
Size: 133.5 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185481d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-d6cf1930-7d3f-41f6-bb8b-42e6482b778c-5142-00000361d15a253f.jpg)

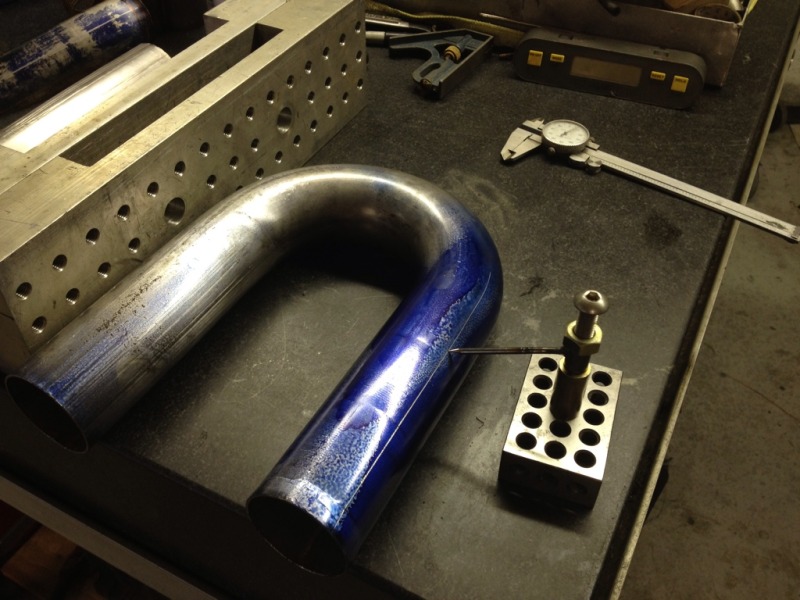

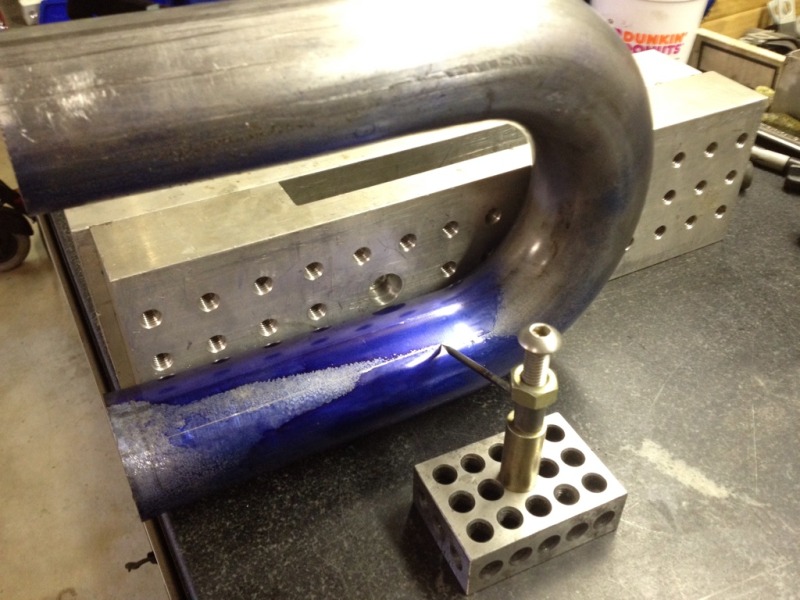

Device for scribing a line 45* off 90*. Scribed in 2 positions, 90* apart.
![Name: 936EF4FB-D2E9-402B-ADAE-C03F559F4EB0-5142-00000361C275909A.jpg
Views: 230
Size: 120.8 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185482d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-936ef4fb-d2e9-402b-adae-c03f559f4eb0-5142-00000361c275909a.jpg)
![Name: 44565E64-8C55-4CDA-8E5F-72C1B9B450D2-5142-00000361C7E5A570.jpg
Views: 238
Size: 118.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185483d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-44565e64-8c55-4cda-8e5f-72c1b9b450d2-5142-00000361c7e5a570.jpg)

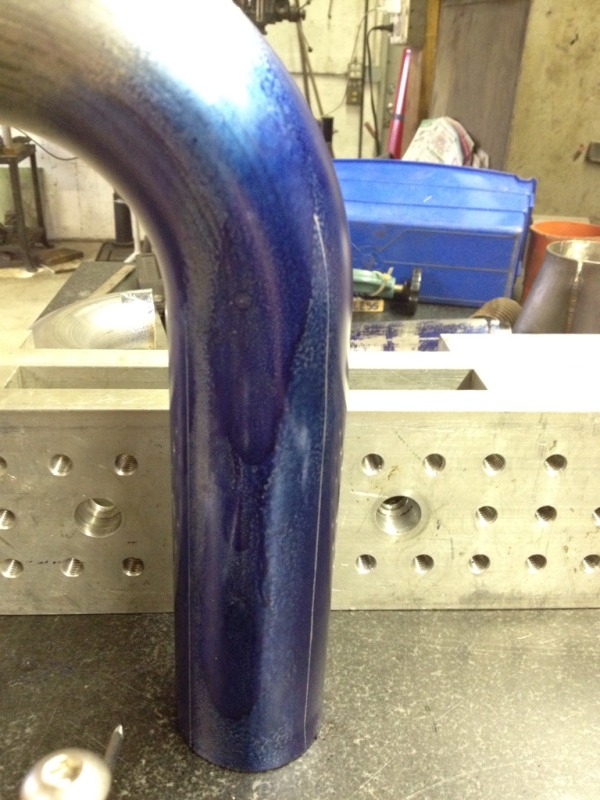

Both lines scribed
![Name: FF824C3E-4556-44E8-8D29-BB30E74D2D6A-5142-00000361CC883BB4.jpg
Views: 317
Size: 118.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185484d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-ff824c3e-4556-44e8-8d29-bb30e74d2d6a-5142-00000361cc883bb4.jpg)

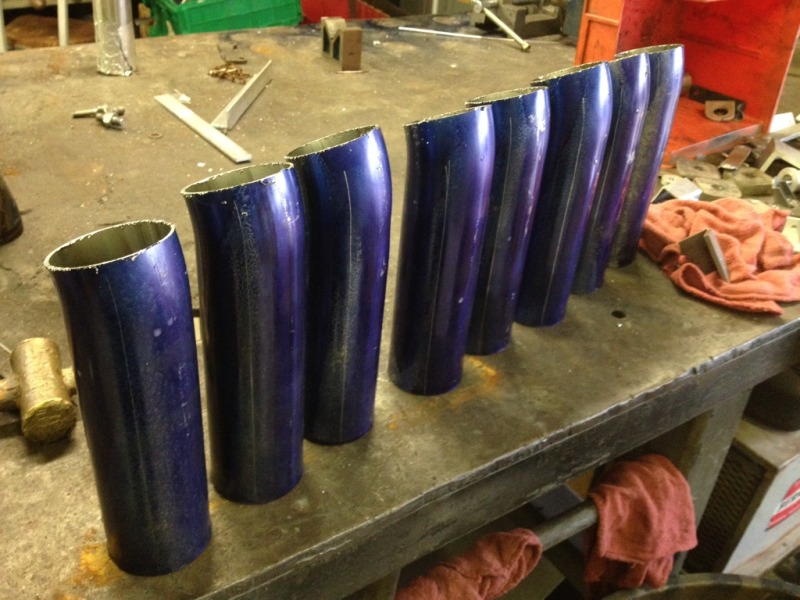

Then cut them all with a bit extra
![Name: 2942B26E-9DB6-4F9A-865A-2060CEC138ED-5142-00000361D6A20EC3.jpg
Views: 263
Size: 128.4 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185485d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-2942b26e-9db6-4f9a-865a-2060cec138ed-5142-00000361d6a20ec3.jpg)

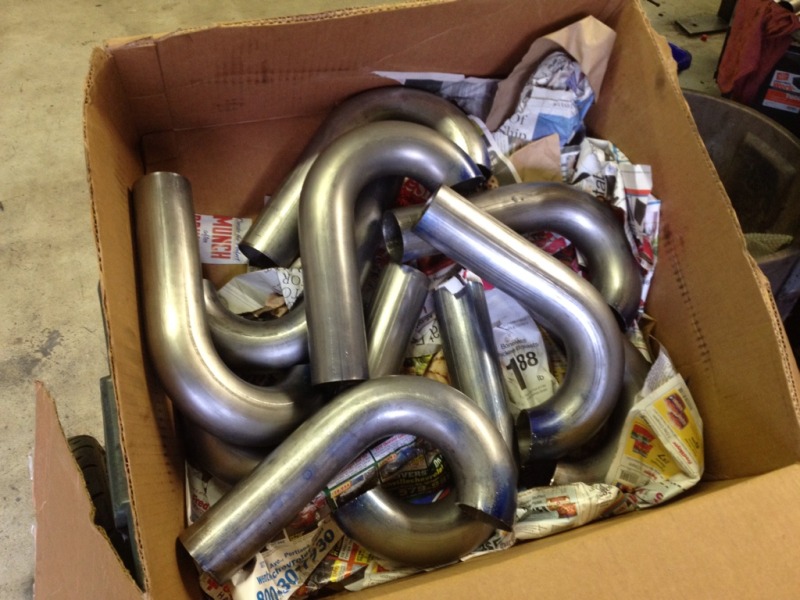

As you can see I have plenty to finish these headers (big block Chevy)
![Name: 96AA8207-1694-47BF-BB67-E6A90F8235FF-5555-0000039DC61ED700.jpg
Views: 239
Size: 124.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185486d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-96aa8207-1694-47bf-bb67-e6a90f8235ff-5555-0000039dc61ed700.jpg)

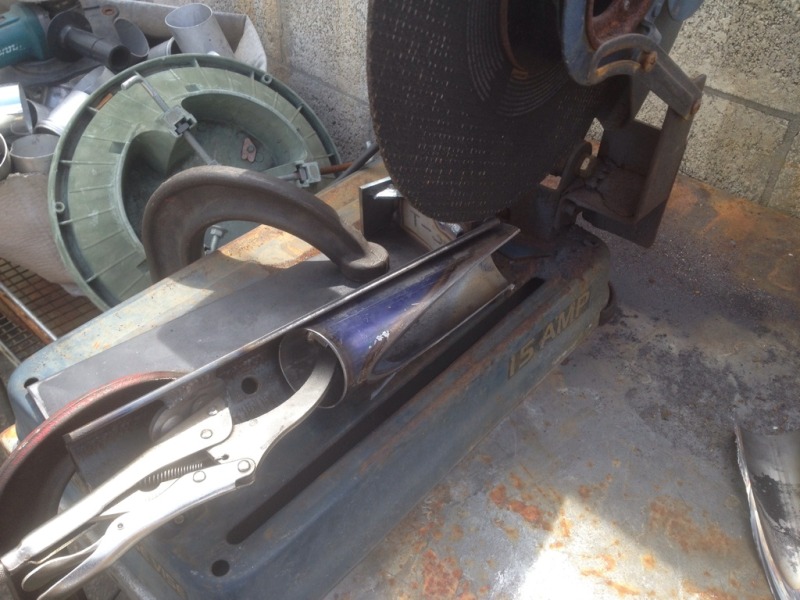

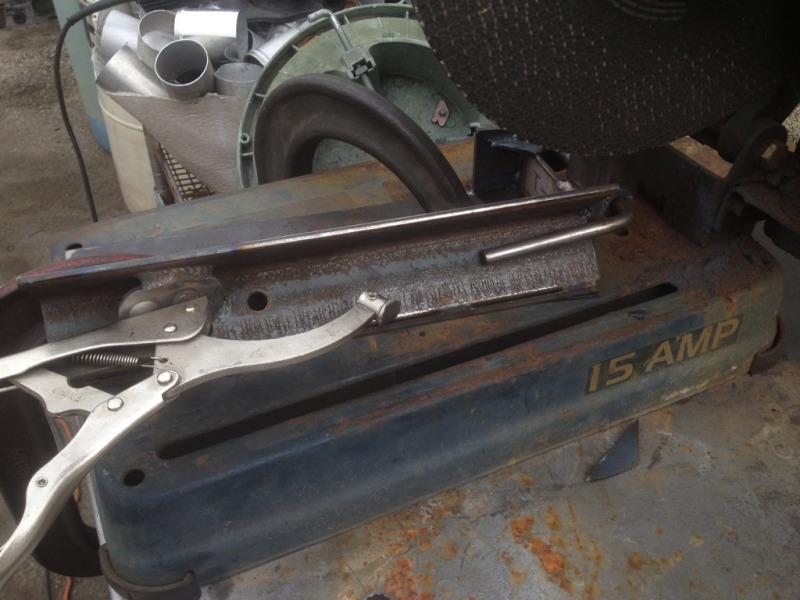

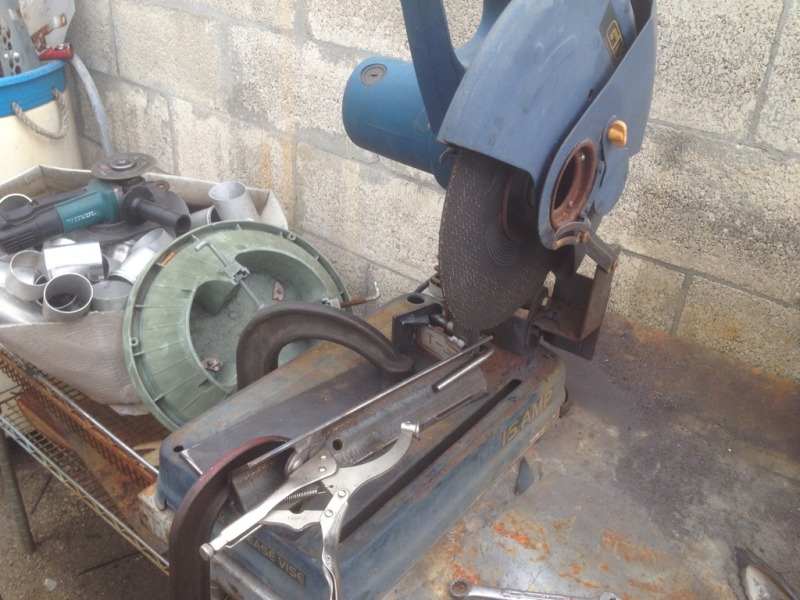

Made the fixture for the 14" abrasive saw, the rear tightening "pin" has a bolt you tighten to get the back snug.
![Name: 8D70DE95-71D3-4469-B96F-7985BA157C6A-5142-00000361B6126295.jpg
Views: 261
Size: 140.5 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185487d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8d70de95-71d3-4469-b96f-7985ba157c6a-5142-00000361b6126295.jpg)
![Name: C5CF23B9-EF64-4CE6-B136-EE26F929BDF4-5142-00000361B14B0DCA.jpg
Views: 241
Size: 111.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185488d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-c5cf23b9-ef64-4ce6-b136-ee26f929bdf4-5142-00000361b14b0dca.jpg)
![Name: 165CBBF0-0CE7-49D4-97B2-8112EA2B780D-5142-00000361BCF3CF2E.jpg
Views: 326
Size: 121.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185489d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-165cbbf0-0ce7-49d4-97b2-8112ea2b780d-5142-00000361bcf3cf2e.jpg)

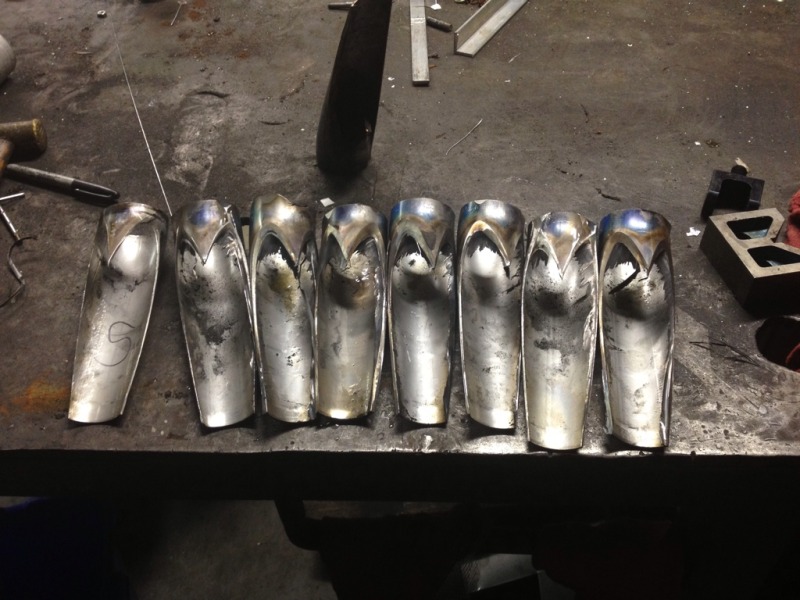

Then you end up with these, rough and in need of deburing.
![Name: 6D169F08-B02F-4894-AB89-26643A160541-5142-00000361DB9F8230.jpg
Views: 258
Size: 120.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185490d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-6d169f08-b02f-4894-ab89-26643a160541-5142-00000361db9f8230.jpg)

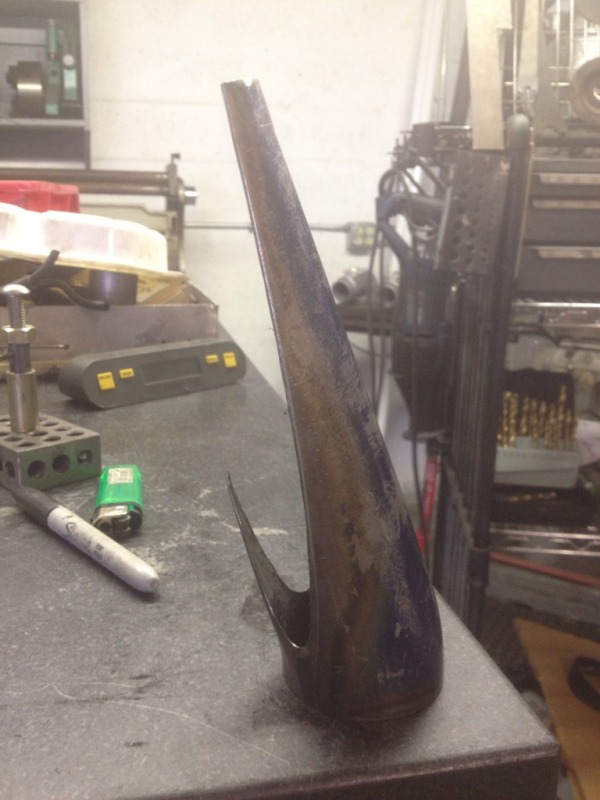

Debured.
![Name: 382CEE5D-66F4-41B2-907E-7AFDD220E110-5555-0000039F4061BCAE.jpg
Views: 247
Size: 90.6 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185491d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-382cee5d-66f4-41b2-907e-7afdd220e110-5555-0000039f4061bcae.jpg)

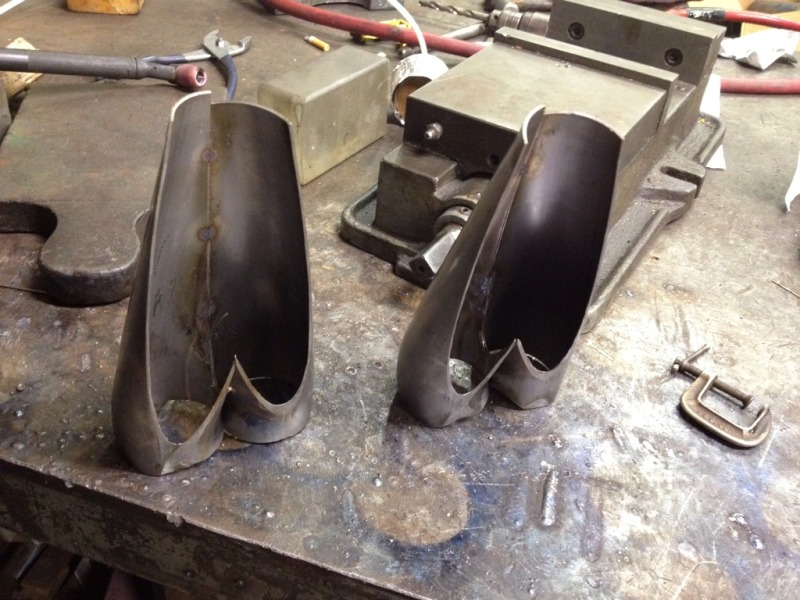

I tack one half at a time
![Name: 7A5D37AE-08D2-49B9-9B53-C4E74DF2FC1D-5555-0000039EB7D63289.jpg
Views: 237
Size: 142.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185492d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-7a5d37ae-08d2-49b9-9b53-c4e74df2fc1d-5555-0000039eb7d63289.jpg)

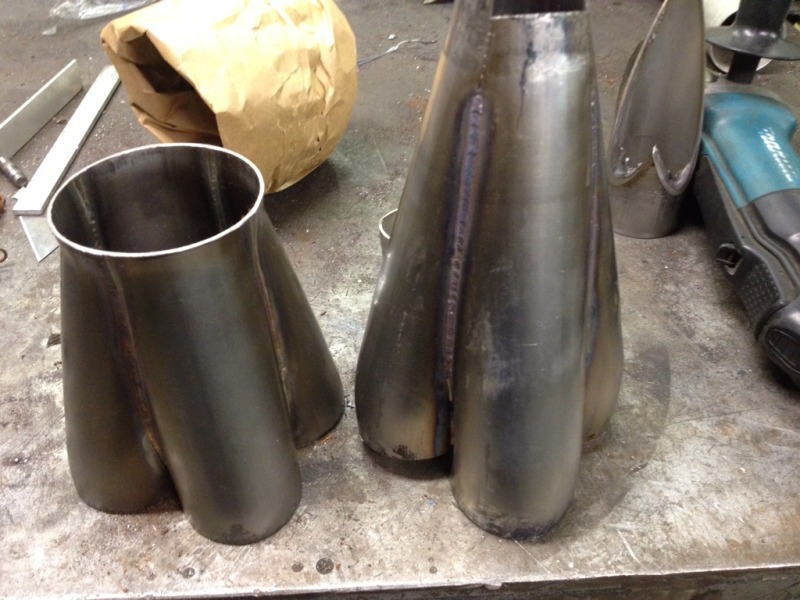

Then I am done, here is a before, and after of trimming material. I do a rough cut with the cutoff wheel, then pass it on the belt sander.
![Name: 8E81098B-884F-4D62-A563-42D86AF9DDFA-5555-0000039ED0534C97.jpg
Views: 260
Size: 124.3 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185493d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8e81098b-884f-4d62-a563-42d86af9ddfa-5555-0000039ed0534c97.jpg)

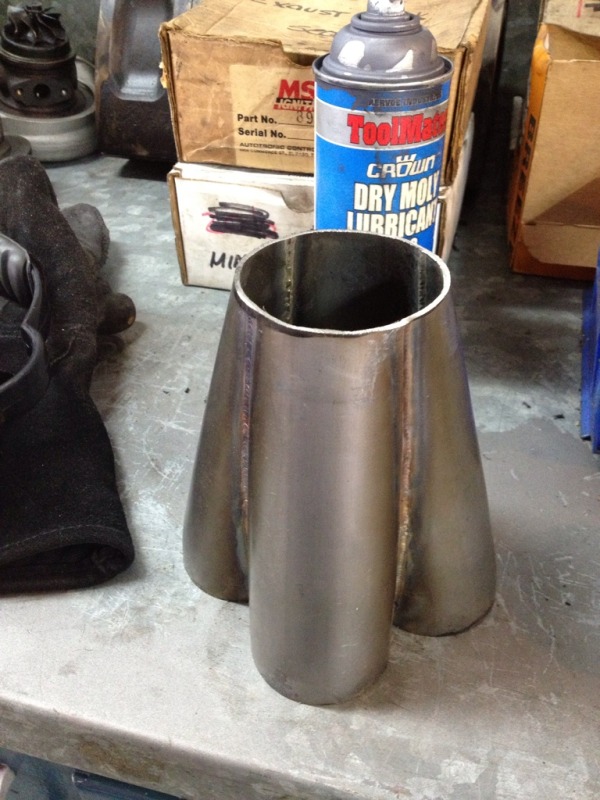

Ooo sexy.
![Name: 1BC8524D-4CB0-4F1D-896A-9F7E4CECBF52-5142-00000361E0AFCE1A.jpg
Views: 235
Size: 127.7 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185494d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-1bc8524d-4cb0-4f1d-896a-9f7e4cecbf52-5142-00000361e0afce1a.jpg)
![Name: 8197D990-6744-46B9-851B-9C7781140FA1-5142-00000361AC5BC23E.jpg
Views: 233
Size: 70.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185495d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8197d990-6744-46b9-851b-9c7781140fa1-5142-00000361ac5bc23e.jpg)

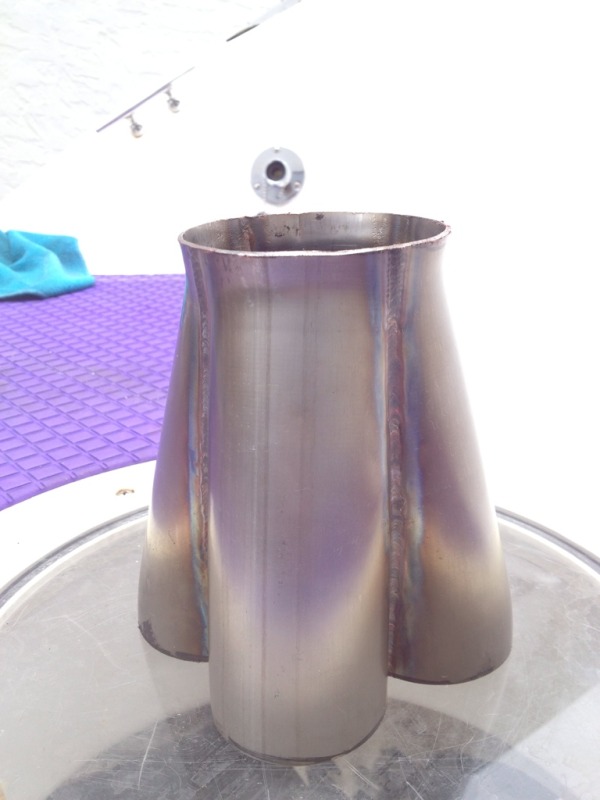

Then it gets flared out at the end
![Name: 6DBD908D-C290-4F69-80BE-1686F69E7307-5142-00000361E6D680C1.jpg
Views: 286
Size: 63.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185496d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-6dbd908d-c290-4f69-80be-1686f69e7307-5142-00000361e6d680c1.jpg)
Video of flaring on hydraulic press, with anti size as a lube. Just so it's said I was being sarcastic when I said "what do I do now?"
http://i104.photobucket.com/albums/m...9B1E93FA5B.mp4
Made a tapered cone, this is the fixture for back purging. Lol a bulkhead worked nicely for the bung to fit.
![Name: 991F6C8C-805D-43A4-8A97-291E3A54CE28-5555-0000039B17F40FC2.jpg
Views: 276
Size: 123.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185497d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-991f6c8c-805d-43a4-8a97-291e3a54ce28-5555-0000039b17f40fc2.jpg)

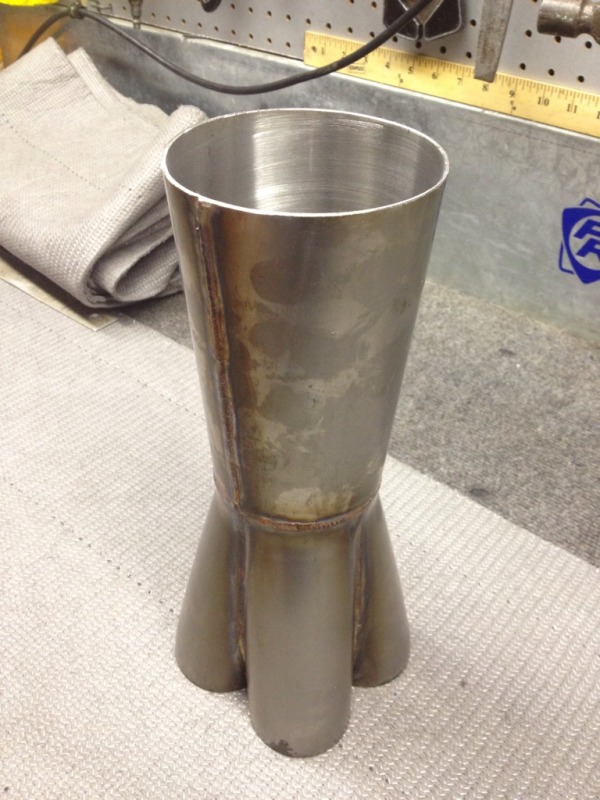

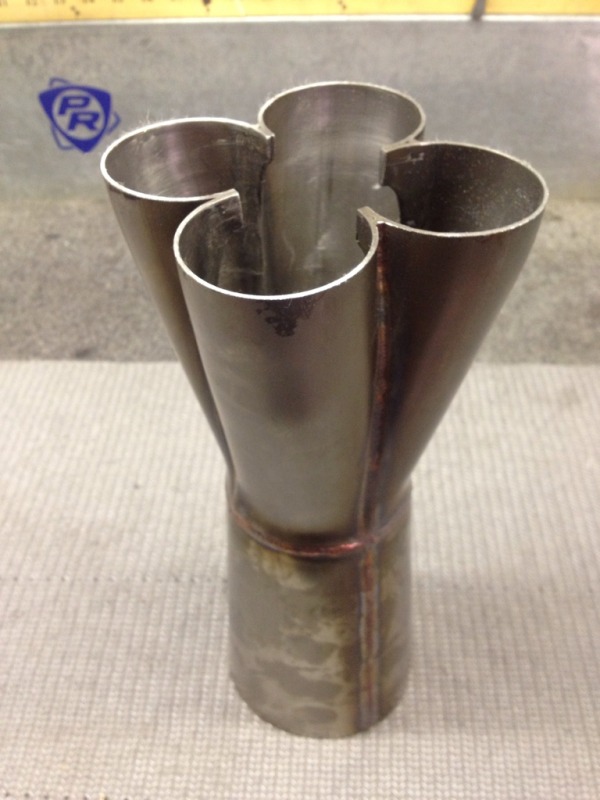

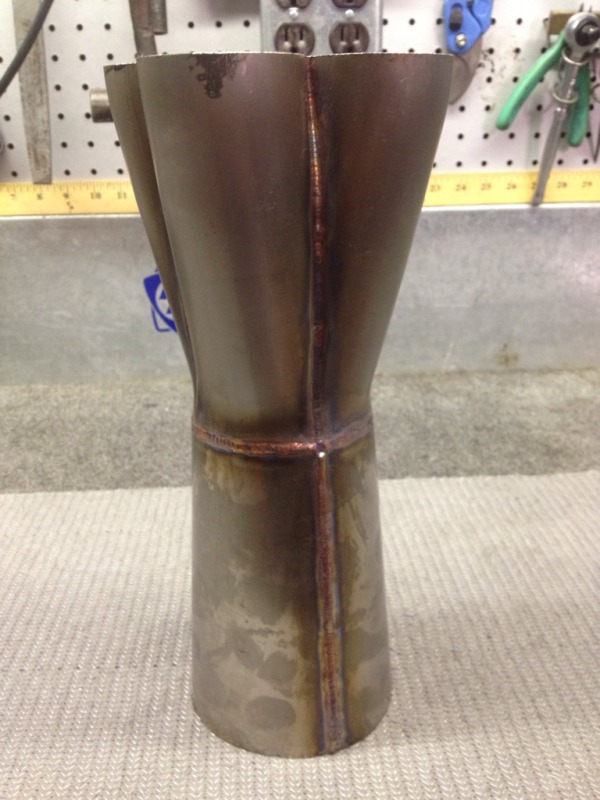

All done!
![Name: 34A2407F-7195-460F-86EB-137654DA5903-5142-000003619CF0FEAE.jpg
Views: 266
Size: 86.2 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185498d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-34a2407f-7195-460f-86eb-137654da5903-5142-000003619cf0feae.jpg)
![Name: 7527C17E-F9D9-4CB0-8731-27E654D5FACA-5142-000003617771B312.jpg
Views: 244
Size: 103.2 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185499d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-7527c17e-f9d9-4cb0-8731-27e654d5faca-5142-000003617771b312.jpg)
![Name: 88BF02E5-A0A4-48FD-B68D-5AEA8B1E2346-5142-00000361704BEAAE.jpg
Views: 331
Size: 124.4 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185500d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-88bf02e5-a0a4-48fd-b68d-5aea8b1e2346-5142-00000361704beaae.jpg)

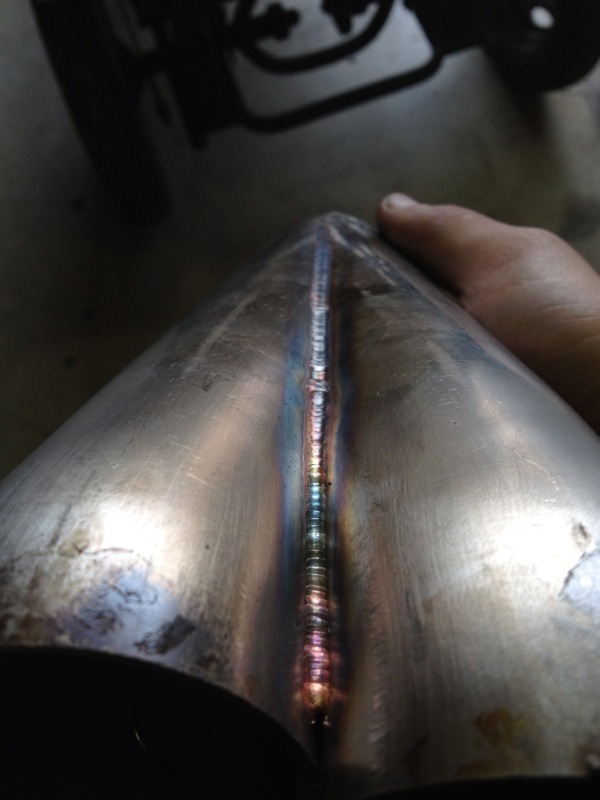

And here's a nice weld I wanted to show off.
I make my bend by cutting off the starting end of a u bend. Yes they're not perfectly symmetrical on the front and back.
Transfer dye for scribing a line
![Name: D6CF1930-7D3F-41F6-BB8B-42E6482B778C-5142-00000361D15A253F.jpg
Views: 284
Size: 133.5 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185481d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-d6cf1930-7d3f-41f6-bb8b-42e6482b778c-5142-00000361d15a253f.jpg)
Device for scribing a line 45* off 90*. Scribed in 2 positions, 90* apart.
![Name: 936EF4FB-D2E9-402B-ADAE-C03F559F4EB0-5142-00000361C275909A.jpg
Views: 230
Size: 120.8 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185482d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-936ef4fb-d2e9-402b-adae-c03f559f4eb0-5142-00000361c275909a.jpg)
![Name: 44565E64-8C55-4CDA-8E5F-72C1B9B450D2-5142-00000361C7E5A570.jpg
Views: 238
Size: 118.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185483d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-44565e64-8c55-4cda-8e5f-72c1b9b450d2-5142-00000361c7e5a570.jpg)
Both lines scribed
![Name: FF824C3E-4556-44E8-8D29-BB30E74D2D6A-5142-00000361CC883BB4.jpg
Views: 317
Size: 118.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185484d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-ff824c3e-4556-44e8-8d29-bb30e74d2d6a-5142-00000361cc883bb4.jpg)
Then cut them all with a bit extra
![Name: 2942B26E-9DB6-4F9A-865A-2060CEC138ED-5142-00000361D6A20EC3.jpg
Views: 263
Size: 128.4 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185485d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-2942b26e-9db6-4f9a-865a-2060cec138ed-5142-00000361d6a20ec3.jpg)
As you can see I have plenty to finish these headers (big block Chevy)
![Name: 96AA8207-1694-47BF-BB67-E6A90F8235FF-5555-0000039DC61ED700.jpg
Views: 239
Size: 124.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185486d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-96aa8207-1694-47bf-bb67-e6a90f8235ff-5555-0000039dc61ed700.jpg)
Made the fixture for the 14" abrasive saw, the rear tightening "pin" has a bolt you tighten to get the back snug.
![Name: 8D70DE95-71D3-4469-B96F-7985BA157C6A-5142-00000361B6126295.jpg
Views: 261
Size: 140.5 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185487d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8d70de95-71d3-4469-b96f-7985ba157c6a-5142-00000361b6126295.jpg)
![Name: C5CF23B9-EF64-4CE6-B136-EE26F929BDF4-5142-00000361B14B0DCA.jpg
Views: 241
Size: 111.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185488d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-c5cf23b9-ef64-4ce6-b136-ee26f929bdf4-5142-00000361b14b0dca.jpg)
![Name: 165CBBF0-0CE7-49D4-97B2-8112EA2B780D-5142-00000361BCF3CF2E.jpg
Views: 326
Size: 121.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185489d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-165cbbf0-0ce7-49d4-97b2-8112ea2b780d-5142-00000361bcf3cf2e.jpg)
Then you end up with these, rough and in need of deburing.
![Name: 6D169F08-B02F-4894-AB89-26643A160541-5142-00000361DB9F8230.jpg
Views: 258
Size: 120.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185490d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-6d169f08-b02f-4894-ab89-26643a160541-5142-00000361db9f8230.jpg)
Debured.
![Name: 382CEE5D-66F4-41B2-907E-7AFDD220E110-5555-0000039F4061BCAE.jpg
Views: 247
Size: 90.6 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185491d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-382cee5d-66f4-41b2-907e-7afdd220e110-5555-0000039f4061bcae.jpg)
I tack one half at a time
![Name: 7A5D37AE-08D2-49B9-9B53-C4E74DF2FC1D-5555-0000039EB7D63289.jpg
Views: 237
Size: 142.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185492d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-7a5d37ae-08d2-49b9-9b53-c4e74df2fc1d-5555-0000039eb7d63289.jpg)
Then I am done, here is a before, and after of trimming material. I do a rough cut with the cutoff wheel, then pass it on the belt sander.
![Name: 8E81098B-884F-4D62-A563-42D86AF9DDFA-5555-0000039ED0534C97.jpg
Views: 260
Size: 124.3 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185493d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8e81098b-884f-4d62-a563-42d86af9ddfa-5555-0000039ed0534c97.jpg)
Ooo sexy.
![Name: 1BC8524D-4CB0-4F1D-896A-9F7E4CECBF52-5142-00000361E0AFCE1A.jpg
Views: 235
Size: 127.7 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185494d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-1bc8524d-4cb0-4f1d-896a-9f7e4cecbf52-5142-00000361e0afce1a.jpg)
![Name: 8197D990-6744-46B9-851B-9C7781140FA1-5142-00000361AC5BC23E.jpg
Views: 233
Size: 70.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185495d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-8197d990-6744-46b9-851b-9c7781140fa1-5142-00000361ac5bc23e.jpg)
Then it gets flared out at the end
![Name: 6DBD908D-C290-4F69-80BE-1686F69E7307-5142-00000361E6D680C1.jpg
Views: 286
Size: 63.9 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185496d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-6dbd908d-c290-4f69-80be-1686f69e7307-5142-00000361e6d680c1.jpg)
Video of flaring on hydraulic press, with anti size as a lube. Just so it's said I was being sarcastic when I said "what do I do now?"
http://i104.photobucket.com/albums/m...9B1E93FA5B.mp4
Made a tapered cone, this is the fixture for back purging. Lol a bulkhead worked nicely for the bung to fit.
![Name: 991F6C8C-805D-43A4-8A97-291E3A54CE28-5555-0000039B17F40FC2.jpg
Views: 276
Size: 123.1 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185497d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-991f6c8c-805d-43a4-8a97-291e3a54ce28-5555-0000039b17f40fc2.jpg)
All done!
![Name: 34A2407F-7195-460F-86EB-137654DA5903-5142-000003619CF0FEAE.jpg
Views: 266
Size: 86.2 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185498d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-34a2407f-7195-460f-86eb-137654da5903-5142-000003619cf0feae.jpg)
![Name: 7527C17E-F9D9-4CB0-8731-27E654D5FACA-5142-000003617771B312.jpg
Views: 244
Size: 103.2 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185499d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-7527c17e-f9d9-4cb0-8731-27e654d5faca-5142-000003617771b312.jpg)
![Name: 88BF02E5-A0A4-48FD-B68D-5AEA8B1E2346-5142-00000361704BEAAE.jpg
Views: 331
Size: 124.4 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185500d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-88bf02e5-a0a4-48fd-b68d-5aea8b1e2346-5142-00000361704beaae.jpg)
And here's a nice weld I wanted to show off.
![Name: E94E7522-2028-4B52-BE98-FB5FB2D8FA2E-5142-00000361A2BB749B.jpg
Views: 266
Size: 84.0 KB](https://www.miataturbo.net/attachments/fabulous-fabrication-96/185501d1501211026-custom-fabrication-thread-post-pics-stuff-you-have-made-e94e7522-2028-4b52-be98-fb5fb2d8fa2e-5142-00000361a2bb749b.jpg)
Last edited by Boost_addict; 05-04-2013 at 09:23 AM.
