OK, haven't been able to track down the actual connector, but that plug appears to be the same as the 2003 Protege blower/fan switch, which seems to be quite melty. Just Google for "2003 mazda protege blower switch connector" and you'll see a number of posts from people having trouble with it, and image search will show a bunch of melted ones.
#428
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

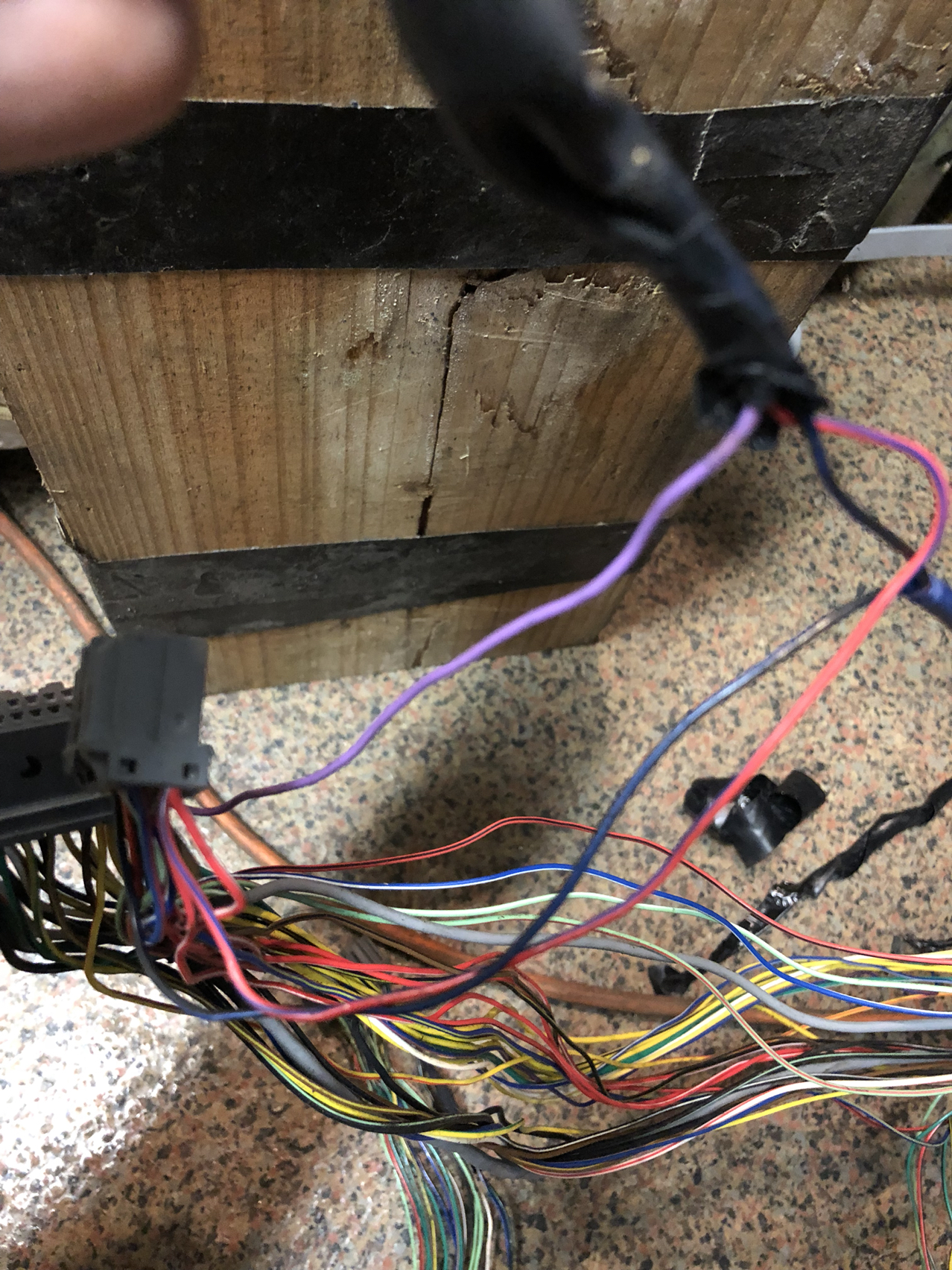

Help!! Trying to simplify the harness and ran into a plug in a 1997 that sits at the ECU and it has Violet, Red/Blue, black/blue.
Looks like an O2 sensor but the wiring diagram shows 4th wire Blk Yellow. I only have 3 pins on this plug and it's joined to the 2 ECU connectors - Violet on last bottom pin of a large connector and red blue and black blue on a small connector. Any ideas ?
Looks like an O2 sensor but the wiring diagram shows 4th wire Blk Yellow. I only have 3 pins on this plug and it's joined to the 2 ECU connectors - Violet on last bottom pin of a large connector and red blue and black blue on a small connector. Any ideas ?
