BMW TPS on 1.6l - Problems?
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
So I bought this vTPS from BMW two years ago for my 1.6l engine.
Because of emmision laws, I have to go with the OEM Ecu + Piggyback, an emanage Blue.
So I needed:
Idle switch, WOT Swich for OEM ECU
vTPS for Airflow Adjustment and Acceleration map
Got a vTPS reading, but no signal for Idle or WOT.
Then I found out, that the throttle on the BW opens in thre other direction.
No Problem if you only need the vTPS for your standalone.
But am I so far the only one with a BMW TPS and an Emanage?
I found a solution after cutting the vTPS open:
You need to pull a small metal Clip that blocks the end of the fitting for the throttle bodyshaft, that you can install the TPS BACKWARDS with some spacers and everything works:
![](https://3.bp.blogspot.com/_J7DaOtVD_60/TLeKEW60aNI/AAAAAAAAAp4/0LB6wblxTRE/s1600/Domstrebe+001.jpg)
Because of emmision laws, I have to go with the OEM Ecu + Piggyback, an emanage Blue.
So I needed:
Idle switch, WOT Swich for OEM ECU
vTPS for Airflow Adjustment and Acceleration map
Got a vTPS reading, but no signal for Idle or WOT.
Then I found out, that the throttle on the BW opens in thre other direction.
No Problem if you only need the vTPS for your standalone.
But am I so far the only one with a BMW TPS and an Emanage?

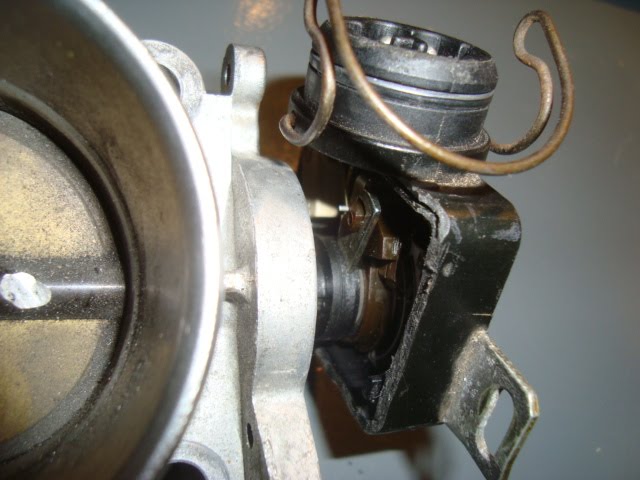

I found a solution after cutting the vTPS open:
You need to pull a small metal Clip that blocks the end of the fitting for the throttle bodyshaft, that you can install the TPS BACKWARDS with some spacers and everything works:
![](https://3.bp.blogspot.com/_J7DaOtVD_60/TLeKEW60aNI/AAAAAAAAAp4/0LB6wblxTRE/s1600/Domstrebe+001.jpg)
![](https://1.bp.blogspot.com/_J7DaOtVD_60/TLeAP1YMT0I/AAAAAAAAApo/ZNKzWgYcxxI/s1600/Domstrebe+004.jpg)
#3
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
in younger cars here,OBDII Reading is an integral part of the test.
Emmission test and technical check of the car is combined.
You also have to get a TUEV certificate for every change (suspension, muffler, engine) you make on the car. Every Certifacate contains restrictions and rules
For example:
muffler: only allowed with stock airbox and stock header and cat because of noise restrictions
wheels: restrictions in offset, the wheels have to be tested and the tireprofile musn't be seen till a certain angle.
Turbo:
Set from the vendor with certificate has to be kept the same as in the certificate, standalones which are userprogrammable are not allowed. If they see an aftermarket turbo on a car, they check the certificate first. Next question is: how is it controlled? Standalone is the wrong anser
Emmission test and technical check of the car is combined.
You also have to get a TUEV certificate for every change (suspension, muffler, engine) you make on the car. Every Certifacate contains restrictions and rules
For example:
muffler: only allowed with stock airbox and stock header and cat because of noise restrictions
wheels: restrictions in offset, the wheels have to be tested and the tireprofile musn't be seen till a certain angle.
Turbo:
Set from the vendor with certificate has to be kept the same as in the certificate, standalones which are userprogrammable are not allowed. If they see an aftermarket turbo on a car, they check the certificate first. Next question is: how is it controlled? Standalone is the wrong anser
![Jerkit](https://www.miataturbo.net/images/smilies/jerkit.gif)
