Over the radiator intercooler piping (NB) radiator placement.
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Good evening all,
I’ve finally completed the last major piece of turbo prep for my 99. Right now I’m trying to get things in order under the hood to run intercooler piping. I’m looking to go with the “simple” (allegedly) route, running the intercooler pipes over the radiator. My piping will all be 2.5”
my car has the AC deleted. No condenser, nothing. I’ve got a little room to work with here.
Anyone who is running a turbo NB1 with over rad intercooler piping, what did you need to do with the radiator to make it all fit? I’ve seen lots of NA OTR setups and I’ve heard the NBs are easier to do this on.
thanks in advance!
I’ve finally completed the last major piece of turbo prep for my 99. Right now I’m trying to get things in order under the hood to run intercooler piping. I’m looking to go with the “simple” (allegedly) route, running the intercooler pipes over the radiator. My piping will all be 2.5”
my car has the AC deleted. No condenser, nothing. I’ve got a little room to work with here.
Anyone who is running a turbo NB1 with over rad intercooler piping, what did you need to do with the radiator to make it all fit? I’ve seen lots of NA OTR setups and I’ve heard the NBs are easier to do this on.
thanks in advance!
#2
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
stay with 2.0. There's absolutely zero reason to run 2.5 piping unless you have 2.5l of displacement or more.

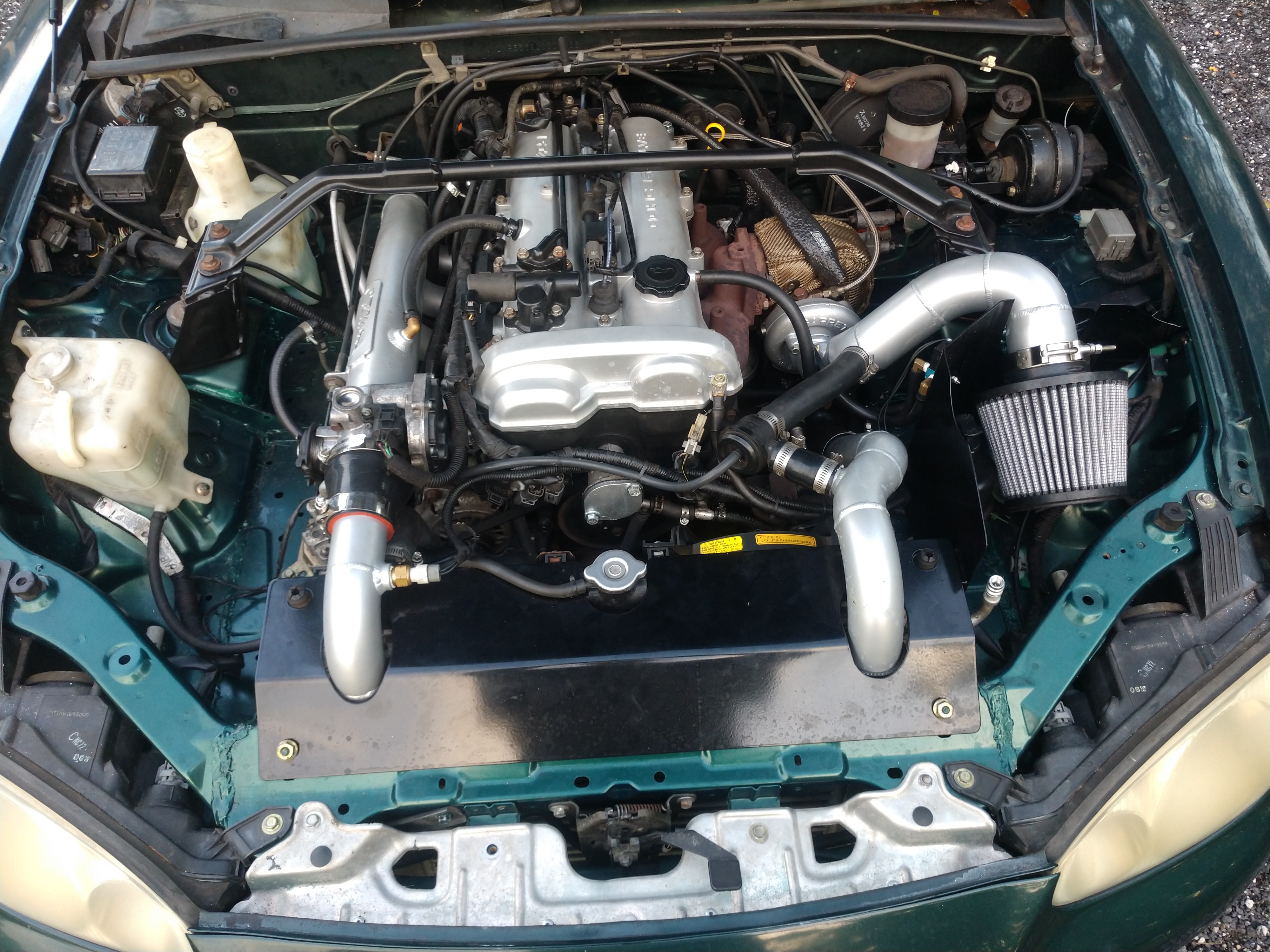

I used 30mm spacers on the mounting tab with longer screws to mount the ac condenser. Since you don't have that you don't have to worry about it. I mounted the intercooler to the same condenser tabs. I made a shroud plate for the radiator mounts. You don't need to lower the radiator on the NB.
I used 30mm spacers on the mounting tab with longer screws to mount the ac condenser. Since you don't have that you don't have to worry about it. I mounted the intercooler to the same condenser tabs. I made a shroud plate for the radiator mounts. You don't need to lower the radiator on the NB.
![Name: ibkBkMX.jpg
Views: 366
Size: 2.02 MB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227188d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-ibkbkmx.jpg)
#3
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
stay with 2.0. There's absolutely zero reason to run 2.5 piping unless you have 2.5l of displacement or more.
I used 30mm spacers on the mounting tab with longer screws to mount the ac condenser. Since you don't have that you don't have to worry about it. I mounted the intercooler to the same condenser tabs. I made a shroud plate for the radiator mounts. You don't need to lower the radiator on the NB.
![](https://i.imgur.com/ibkBkMX.jpg)
I used 30mm spacers on the mounting tab with longer screws to mount the ac condenser. Since you don't have that you don't have to worry about it. I mounted the intercooler to the same condenser tabs. I made a shroud plate for the radiator mounts. You don't need to lower the radiator on the NB.
![](https://i.imgur.com/ibkBkMX.jpg)
thanks a million for the reply. Looks like I’ll go 2” then!
did you have to modify or replace your cooling fans? Mine contact the sway bar with enough tilting. Also, is your intercooler in between the radiator and the core support, Or is it more underneath the support? Was any modification required at all for the radiator brackets?
#4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

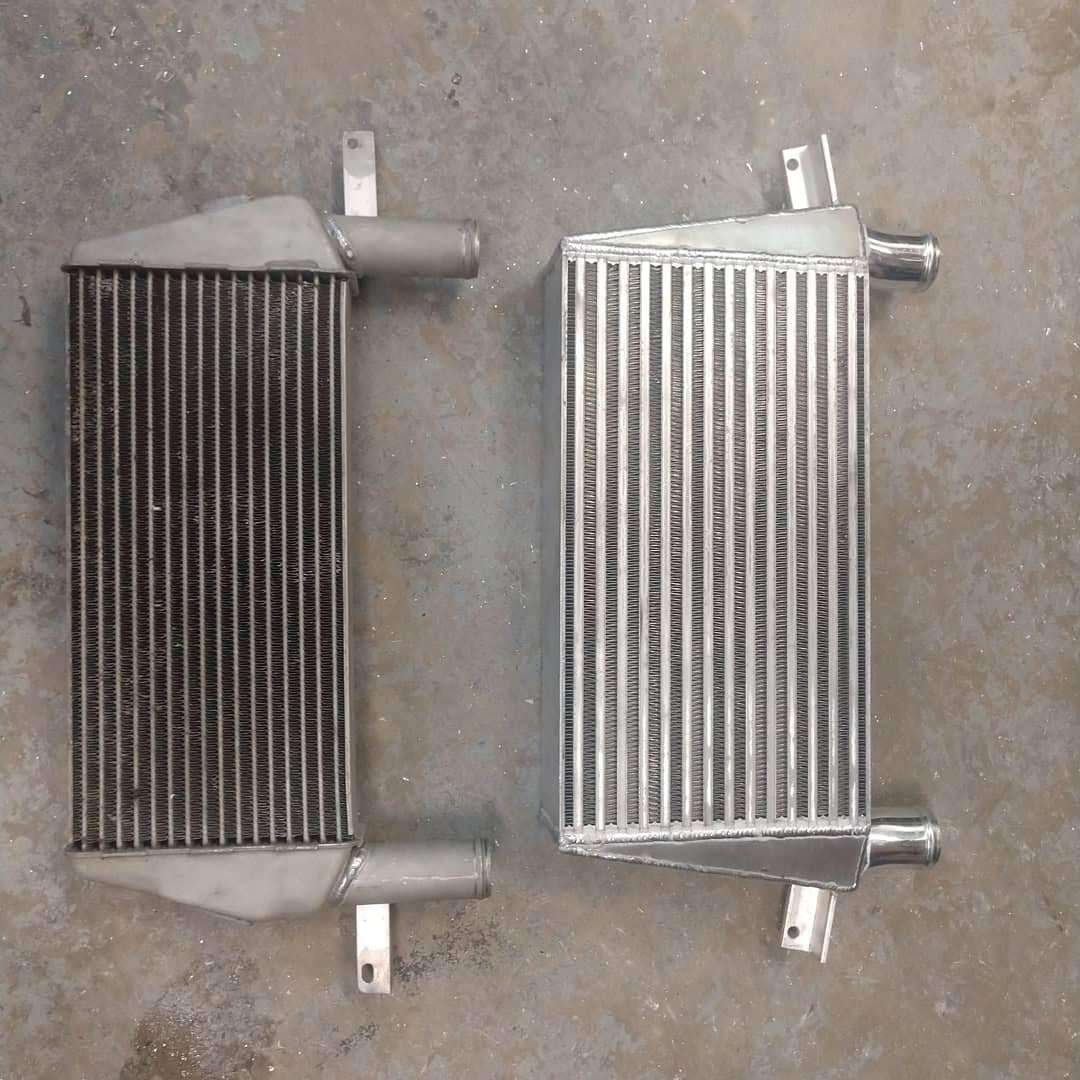

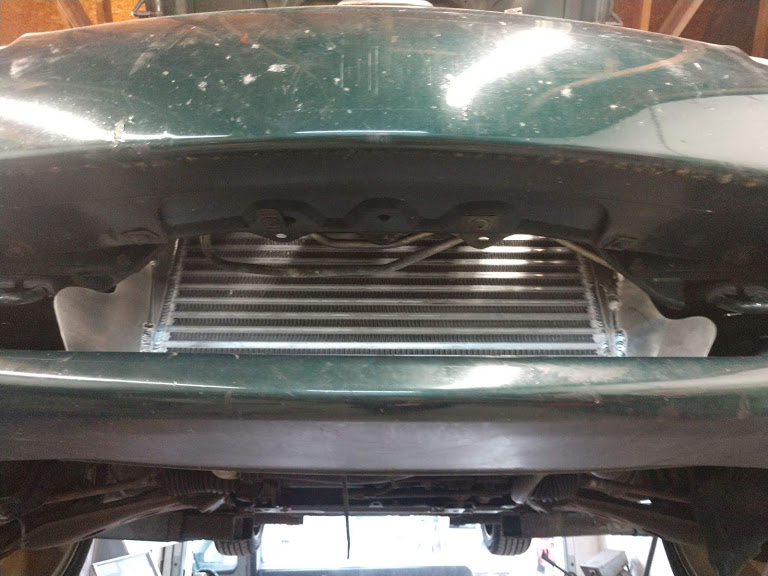

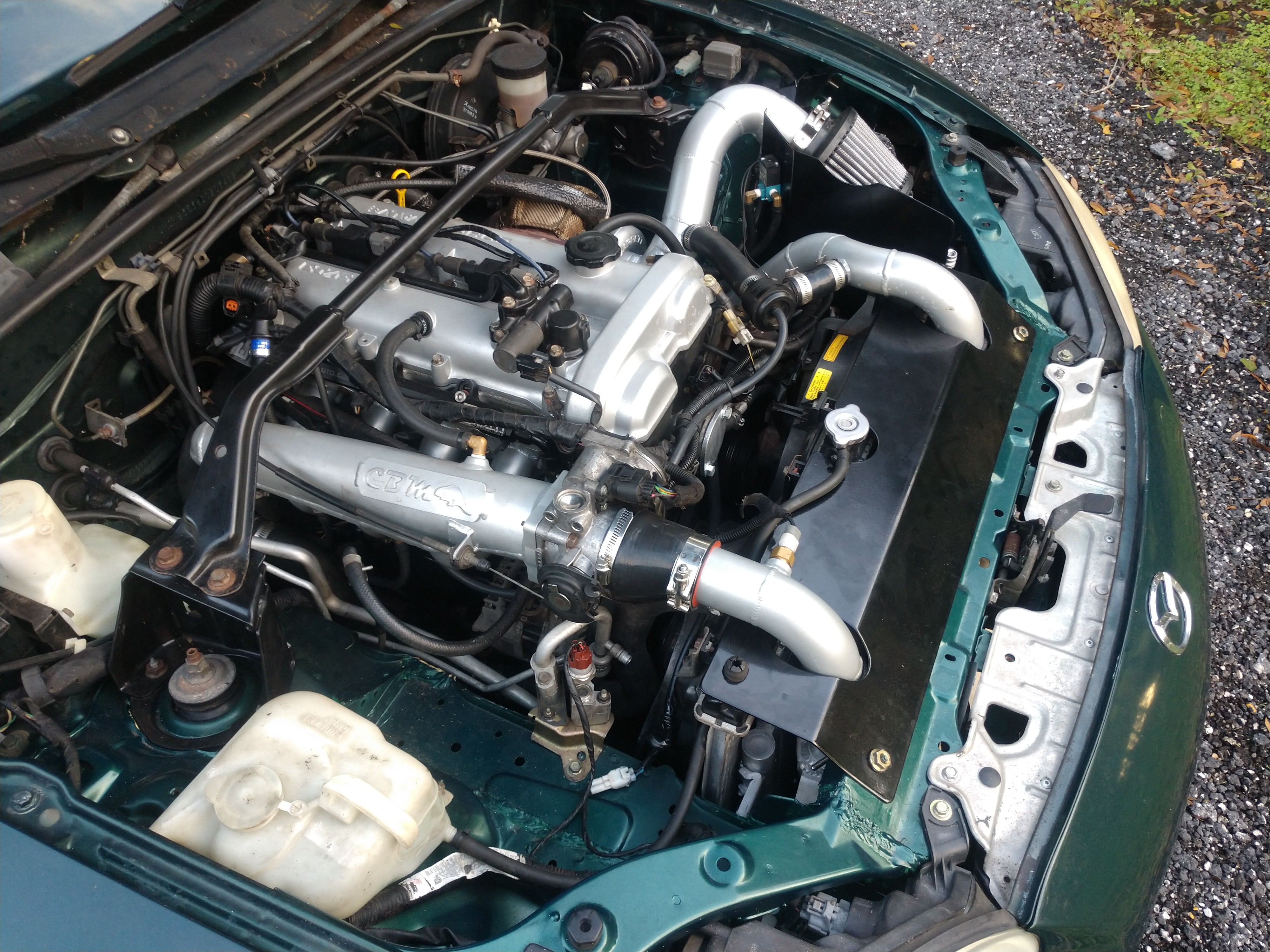

Fans clear with no problem. No contact with the sway bar. The fan motors are close to the serp belt though. Like 10mm close. I didn't do anything to the lower mounts. There was enough slop in the rubber bushings to accept the lay-back. My IC is between the core support and radiator. I did have to bend the power steering and AC lines a little to clear the IC. I'm using a treadstone 500hp core with custom end-tanks because I had an extra one on-hand. I was running a Starion core but it killed my turbo spool rate.
![Name: WuboZ3a.jpeg
Views: 266
Size: 2.24 MB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227185d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-wuboz3a.jpeg)
![Name: ivyvVTy.jpg
Views: 254
Size: 100.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227186d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-ivyvvty.jpg)
![Name: WuboZ3a.jpeg
Views: 266
Size: 2.24 MB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227185d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-wuboz3a.jpeg)
![Name: ivyvVTy.jpg
Views: 254
Size: 100.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227186d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-ivyvvty.jpg)
![Name: oEnz8kH.jpg
Views: 253
Size: 117.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/227187d1683051141-over-radiator-intercooler-piping-nb-radiator-placement-oenz8kh.jpg)
#5
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Fans clear with no problem. No contact with the sway bar. The fan motors are close to the serp belt though. Like 10mm close. I didn't do anything to the lower mounts. There was enough slop in the rubber bushings to accept the lay-back. My IC is between the core support and radiator. I did have to bend the power steering and AC lines a little to clear the IC. I'm using a treadstone 500hp core with custom end-tanks because I had an extra one on-hand. I was running a Starion core but it killed my turbo spool rate.
![](https://i.imgur.com/WuboZ3a.jpeg)
![](https://i.imgur.com/ivyvVTy.jpg)
![](https://i.imgur.com/oEnz8kH.jpg)
![](https://i.imgur.com/WuboZ3a.jpeg)
![](https://i.imgur.com/ivyvVTy.jpg)
![](https://i.imgur.com/oEnz8kH.jpg)
