New DIY turbo setup from Greece
#22
Junior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (6)
Join Date: Mar 2007
Location: Greece
Posts: 349
Total Cats: -14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Alright. The car fired up right away with the best idle i could get!
I m very happy with the result except of the fact that the turbo starts spooling at 3.000 rpm. I hope this is a wastegate fine tuning problem, because it is a monster!
We tuned it for minimum boost but she made 10-13 psi at full boost. I would be happy if i could maximize my boost to 8 psi because i m running right now stock 240cc injectors. In first and 2nd gear the the duty cycle reaches 100% .And this is bad..
Beside these, the car feels great. I ve never had a turbocharged vehicle in my life so I m very happy with it and cant stop burning fuel!

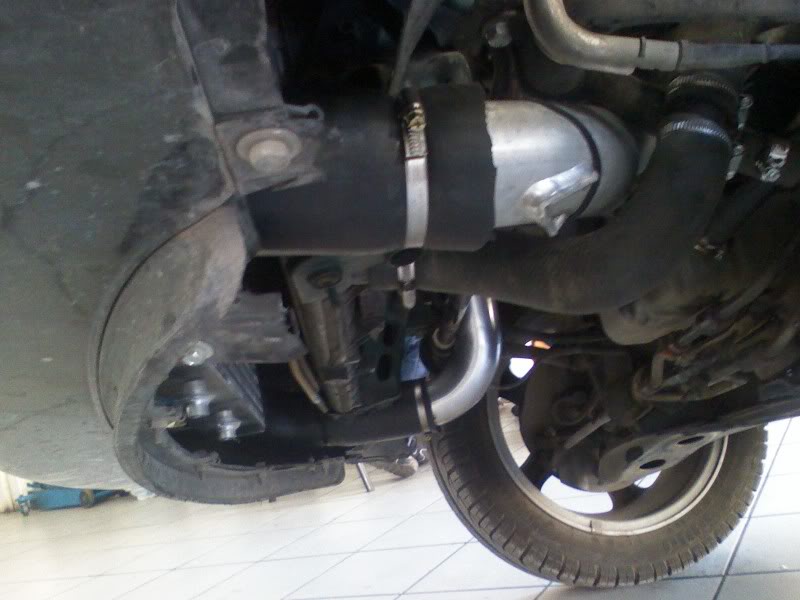

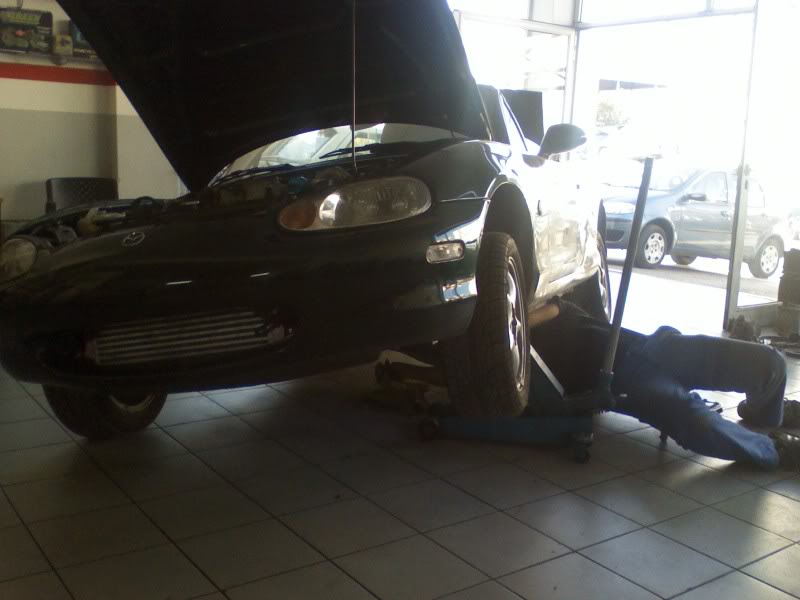

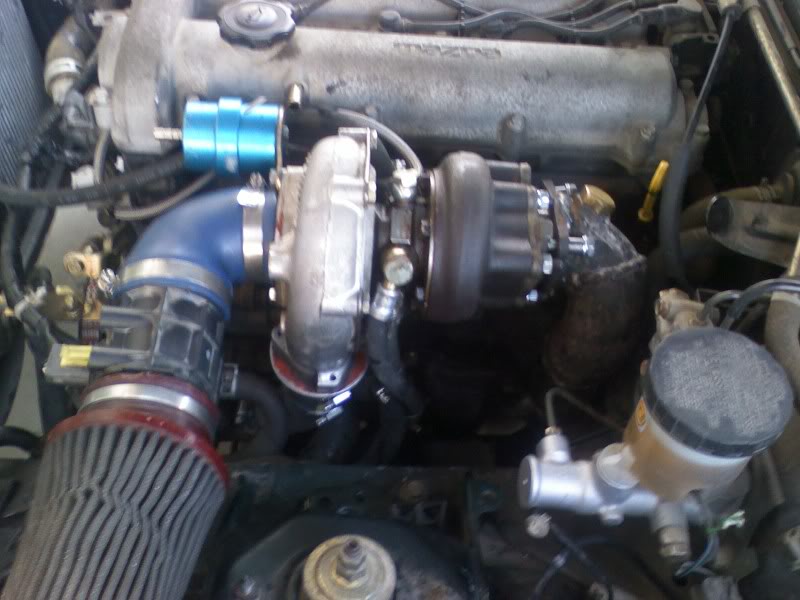

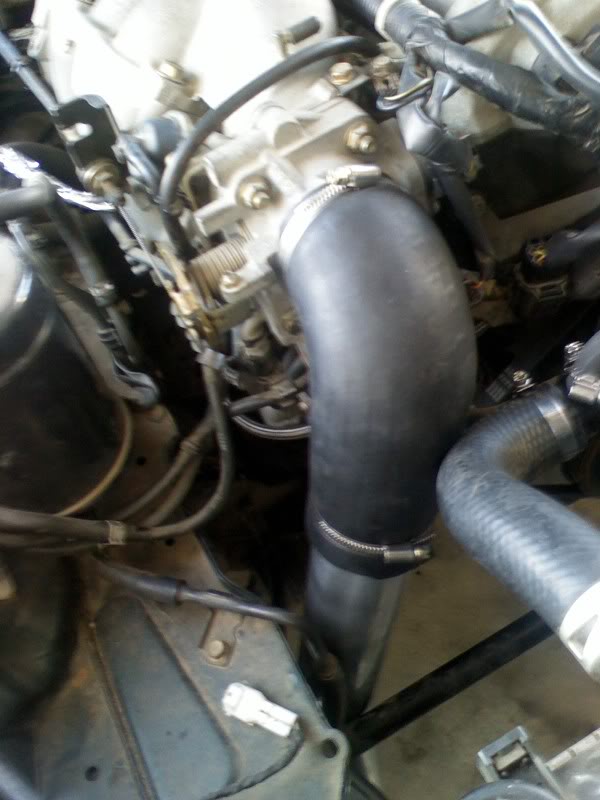

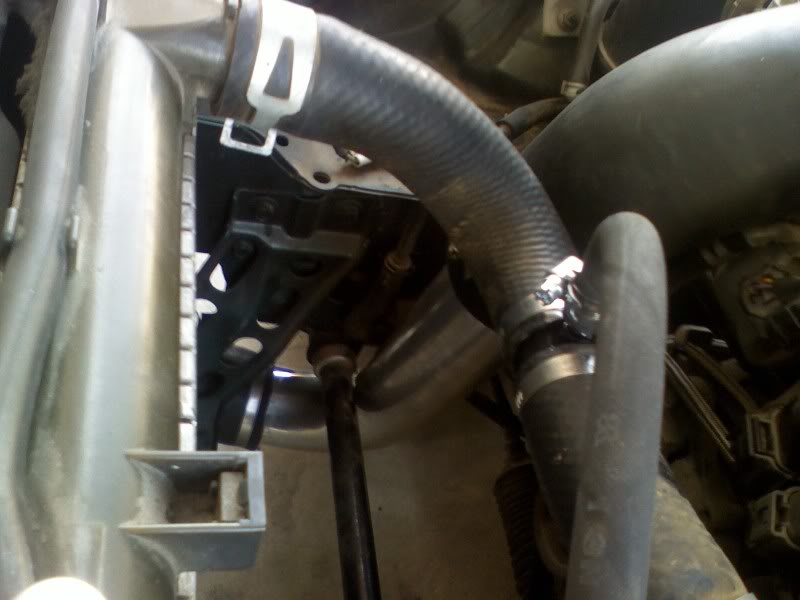

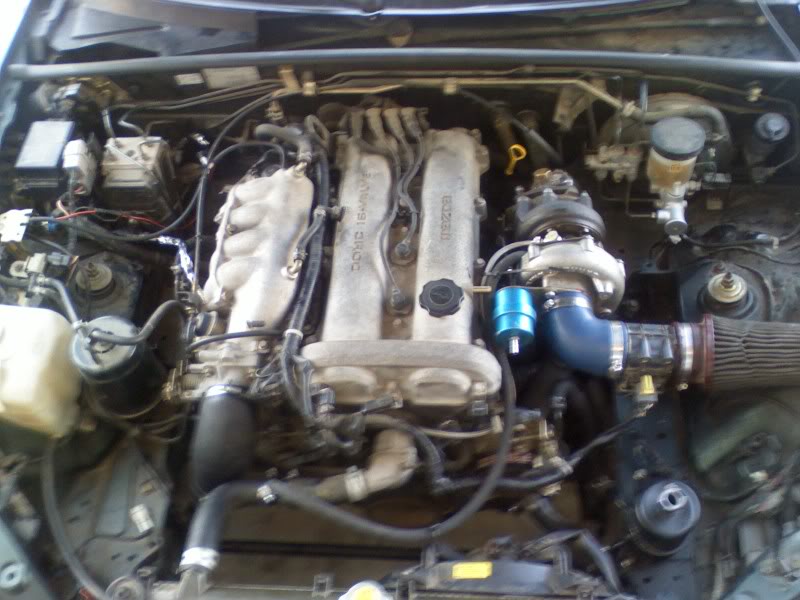

Here are the final pictures. Unfortunetely I didn't have time to install the bov so i have some idling problems when i let of the throttle. It runs way to rich to 9:1 and then some times dies.
![Name: DC081104005.jpg
Views: 191
Size: 75.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210191d1501260629-new-diy-turbo-setup-greece-dc081104005.jpg)
![Name: DC081104002.jpg
Views: 165
Size: 64.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210192d1501260629-new-diy-turbo-setup-greece-dc081104002.jpg)
![Name: DC081104004.jpg
Views: 159
Size: 58.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210193d1501260629-new-diy-turbo-setup-greece-dc081104004.jpg)
![Name: DC081104008.jpg
Views: 193
Size: 45.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210194d1501260629-new-diy-turbo-setup-greece-dc081104008.jpg)
![Name: DC081104011.jpg
Views: 169
Size: 55.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210195d1501260629-new-diy-turbo-setup-greece-dc081104011.jpg)
I m very happy with the result except of the fact that the turbo starts spooling at 3.000 rpm. I hope this is a wastegate fine tuning problem, because it is a monster!
We tuned it for minimum boost but she made 10-13 psi at full boost. I would be happy if i could maximize my boost to 8 psi because i m running right now stock 240cc injectors. In first and 2nd gear the the duty cycle reaches 100% .And this is bad..
Beside these, the car feels great. I ve never had a turbocharged vehicle in my life so I m very happy with it and cant stop burning fuel!
Here are the final pictures. Unfortunetely I didn't have time to install the bov so i have some idling problems when i let of the throttle. It runs way to rich to 9:1 and then some times dies.
![Name: DC081104005.jpg
Views: 191
Size: 75.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210191d1501260629-new-diy-turbo-setup-greece-dc081104005.jpg)
![Name: DC081104002.jpg
Views: 165
Size: 64.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210192d1501260629-new-diy-turbo-setup-greece-dc081104002.jpg)
![Name: DC081104004.jpg
Views: 159
Size: 58.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210193d1501260629-new-diy-turbo-setup-greece-dc081104004.jpg)
![Name: DC081104008.jpg
Views: 193
Size: 45.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210194d1501260629-new-diy-turbo-setup-greece-dc081104008.jpg)
![Name: DC081104011.jpg
Views: 169
Size: 55.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210195d1501260629-new-diy-turbo-setup-greece-dc081104011.jpg)
![Name: DC081104009.jpg
Views: 285
Size: 46.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/210196d1501260629-new-diy-turbo-setup-greece-dc081104009.jpg)
#23
Junior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (6)
Join Date: Mar 2007
Location: Greece
Posts: 349
Total Cats: -14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Hello!
My idling problem disapeared completely.
The solution was found when i put an extended pipe between the maf and the inlet of the turbo. So maf needs to be away from the turbo for sure...
Everything seems to run fine.I will post some videos soon.
Thanks for watching!
My idling problem disapeared completely.
The solution was found when i put an extended pipe between the maf and the inlet of the turbo. So maf needs to be away from the turbo for sure...
Everything seems to run fine.I will post some videos soon.
Thanks for watching!
#24
Junior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (6)
Join Date: Mar 2007
Location: Greece
Posts: 349
Total Cats: -14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Some updates.
gt2560r has been replaced with a gt2871r, 3" full exhaust and 8 injector setup. and the engine is now fully forged with wiseco pistons ,eagle rods and arp goodies.
Some photos

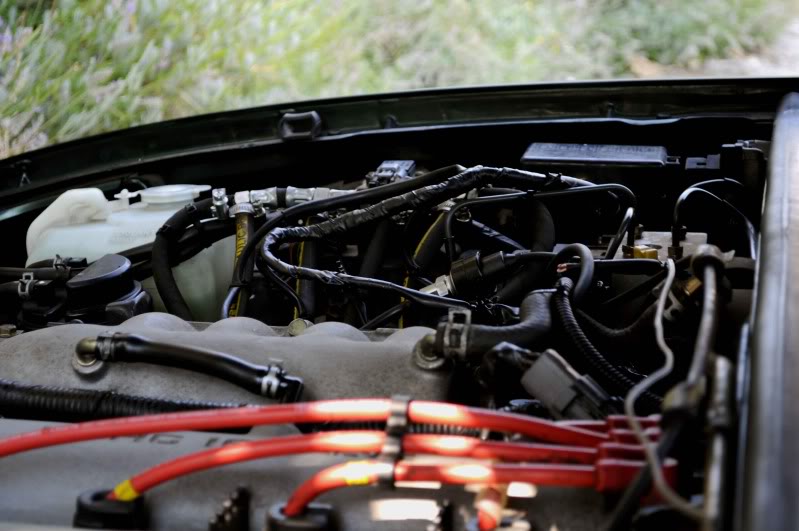

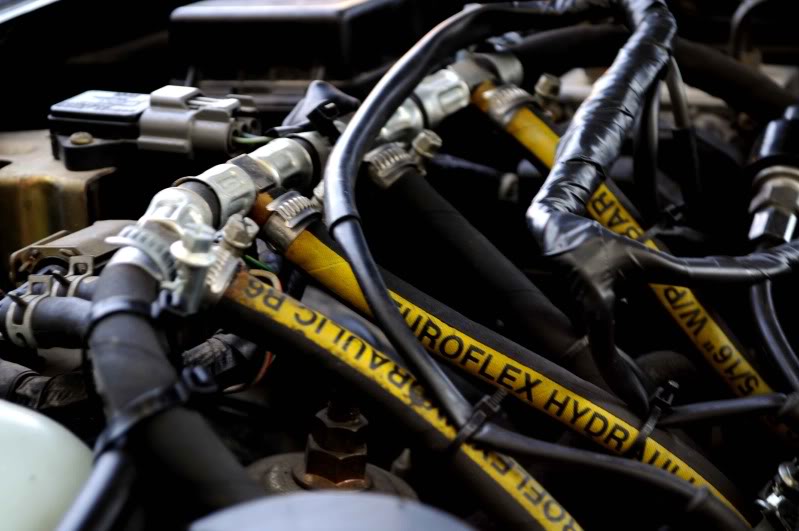

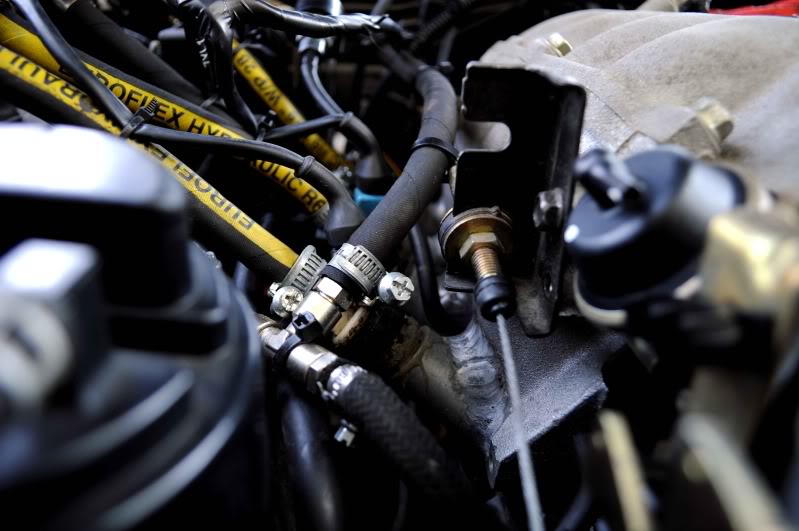

8 injectors setup
![Name: DSC_0040.jpg
Views: 163
Size: 64.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204120d1501249280-new-diy-turbo-setup-greece-dsc_0040.jpg)
![Name: DSC_0051.jpg
Views: 162
Size: 69.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204121d1501249280-new-diy-turbo-setup-greece-dsc_0051.jpg)
![Name: DSC_0054.jpg
Views: 171
Size: 66.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204122d1501249280-new-diy-turbo-setup-greece-dsc_0054.jpg)

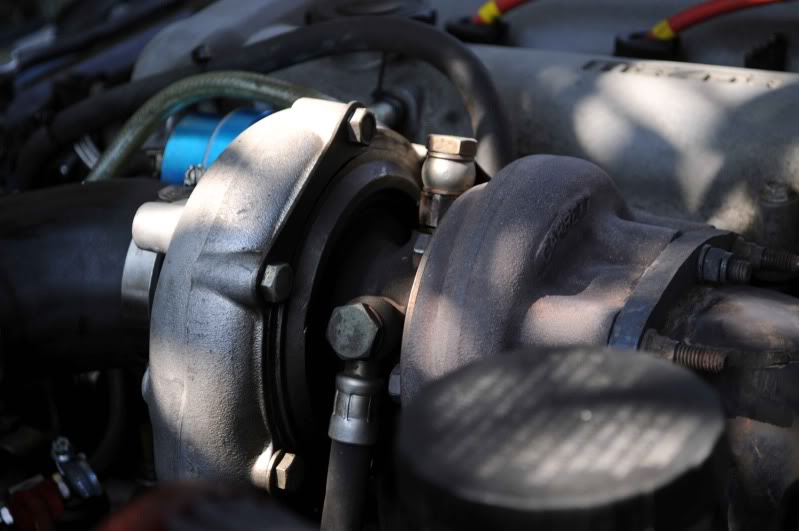

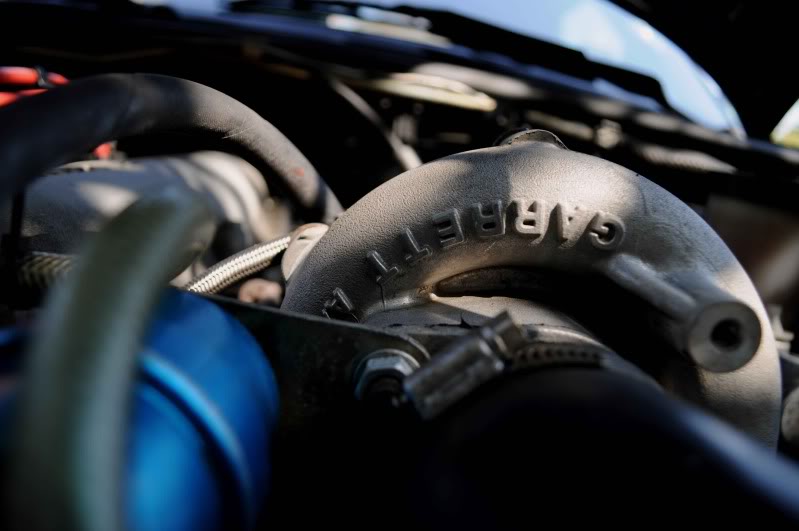

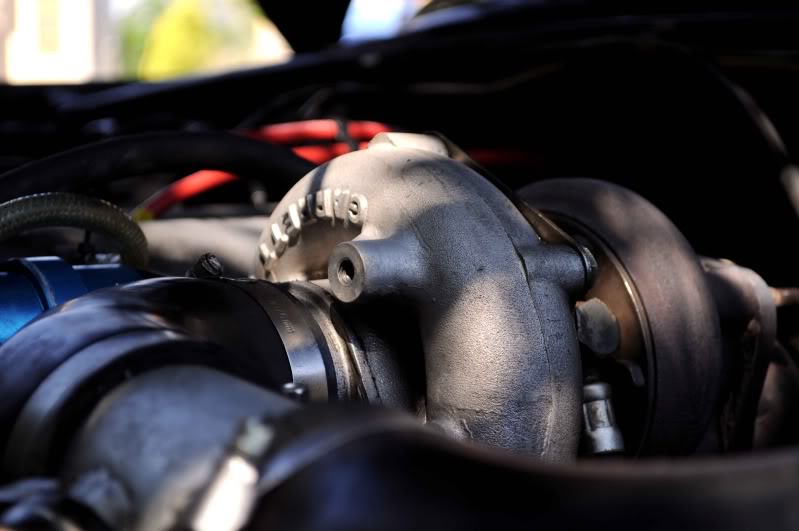

GT2871R
![Name: DSC_0038.jpg
Views: 194
Size: 49.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204123d1501249280-new-diy-turbo-setup-greece-dsc_0038.jpg)
![Name: DSC_0043.jpg
Views: 165
Size: 52.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204124d1501249280-new-diy-turbo-setup-greece-dsc_0043.jpg)
![Name: DSC_0049.jpg
Views: 148
Size: 53.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204125d1501249280-new-diy-turbo-setup-greece-dsc_0049.jpg)

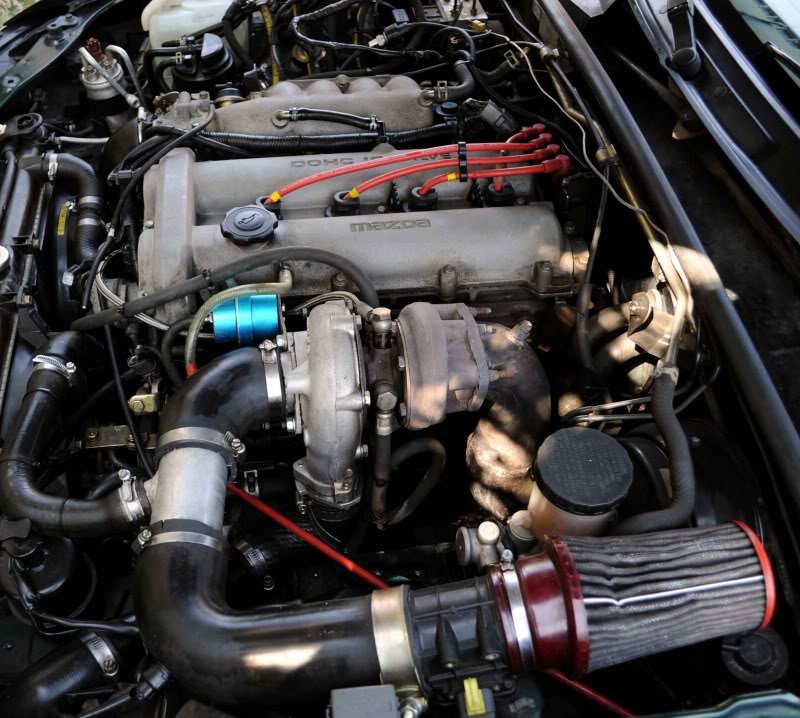

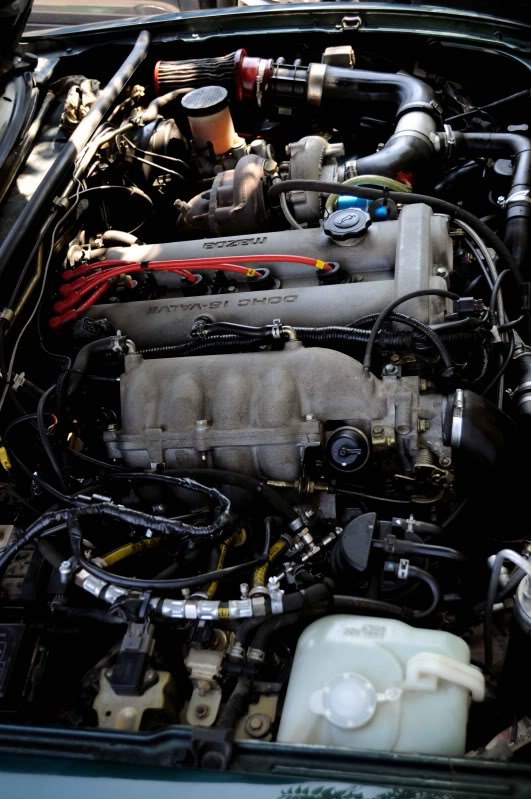

The engine bay (dirty as hell but that is just me)
![Name: DSC_0069.jpg
Views: 222
Size: 123.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204126d1501249280-new-diy-turbo-setup-greece-dsc_0069.jpg)
![Name: DSC_0065.jpg
Views: 161
Size: 97.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204127d1501249280-new-diy-turbo-setup-greece-dsc_0065.jpg)
Other
gt2560r has been replaced with a gt2871r, 3" full exhaust and 8 injector setup. and the engine is now fully forged with wiseco pistons ,eagle rods and arp goodies.
Some photos
8 injectors setup
![Name: DSC_0040.jpg
Views: 163
Size: 64.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204120d1501249280-new-diy-turbo-setup-greece-dsc_0040.jpg)
![Name: DSC_0051.jpg
Views: 162
Size: 69.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204121d1501249280-new-diy-turbo-setup-greece-dsc_0051.jpg)
![Name: DSC_0054.jpg
Views: 171
Size: 66.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204122d1501249280-new-diy-turbo-setup-greece-dsc_0054.jpg)
GT2871R
![Name: DSC_0038.jpg
Views: 194
Size: 49.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204123d1501249280-new-diy-turbo-setup-greece-dsc_0038.jpg)
![Name: DSC_0043.jpg
Views: 165
Size: 52.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204124d1501249280-new-diy-turbo-setup-greece-dsc_0043.jpg)
![Name: DSC_0049.jpg
Views: 148
Size: 53.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204125d1501249280-new-diy-turbo-setup-greece-dsc_0049.jpg)
The engine bay (dirty as hell but that is just me)
![Name: DSC_0069.jpg
Views: 222
Size: 123.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204126d1501249280-new-diy-turbo-setup-greece-dsc_0069.jpg)
![Name: DSC_0065.jpg
Views: 161
Size: 97.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204127d1501249280-new-diy-turbo-setup-greece-dsc_0065.jpg)
Other
![Name: DSC_0067.jpg
Views: 155
Size: 86.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/204128d1501249280-new-diy-turbo-setup-greece-dsc_0067.jpg)
#26
Junior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (6)
Join Date: Mar 2007
Location: Greece
Posts: 349
Total Cats: -14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
You are definetely right man, emb sucks but it gets the job done with pretty solid afrs and it's fairly easy to be tuned from a newbie like me. Before the extra injectors installation I hated this unit so much but now I m quiet happy with it.
#31
Junior Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (6)
Join Date: Mar 2007
Location: Greece
Posts: 349
Total Cats: -14
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I am officially done! Didn't have time for a dyno but the car is pretty fast.
Final Specs
Garrett GT2871R @26 psi
HKS manifold
Tial 38mm external WG
AEM water/methanol injection
Rx7 tii tranny with adapter plate
MS2 extra
800cc denso injectors
Toyota cops
Bosch BOV
3" custom exhaust
Greddy profec spec II
Zeitronix Wideband controller
EMUSA intercooler 31x12x3
Ebay alloy radiator
![](https://sphotos.ak.fbcdn.net/hphotos-ak-snc3/hs330.snc3/29122_398525405285_547370285_4768915_6147998_n.jpg)
Fitting a big intercooler? No problem!
Final Specs
Garrett GT2871R @26 psi
HKS manifold
Tial 38mm external WG
AEM water/methanol injection
Rx7 tii tranny with adapter plate
MS2 extra
800cc denso injectors
Toyota cops
Bosch BOV
3" custom exhaust
Greddy profec spec II
Zeitronix Wideband controller
EMUSA intercooler 31x12x3
Ebay alloy radiator
![](https://sphotos.ak.fbcdn.net/hphotos-ak-snc3/hs330.snc3/29122_398525405285_547370285_4768915_6147998_n.jpg)
Fitting a big intercooler? No problem!
![](http://i2.photobucket.com/albums/y39/giannis_cc/img4965.jpg?t=1276181581)
