I recently finished the TD04 install on my 1994 1.8 MX-5 powered Westfield. Its running a MS3 and an Innovate LC-2 wideband sensor.

I've noticed after a few minutes driving the ARF stops working properly and drops down to around 7.5. I've tired setting the LC-2 in MS3 to use the voltages and the pre-set LC-2 but it reads the same.

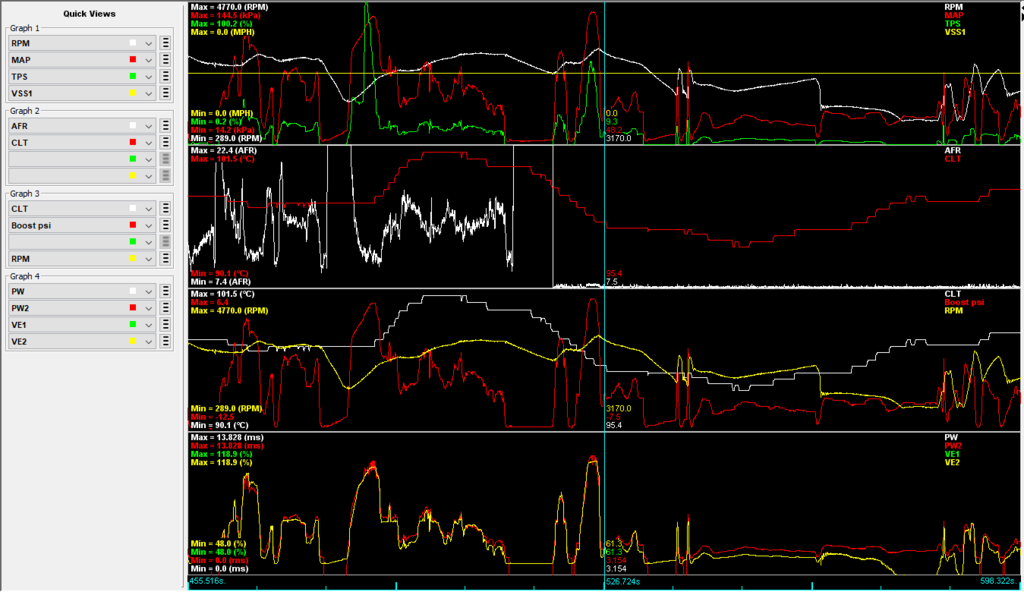

Here is the log from a run yesterday where you can see what I mean: https://www.dropbox.com/s/qyzl5gfafi...03.41.msl?dl=0




The connector is plugged securely and the once the signal is dropped it doesn't come back so I don't think its a bad ground (it gets ground from the ECU). The only thing I thought it could be is its getting too hot next to the downpipe.



I put some Textile Extreme Heat shield sleeve on the wideband connector, exhaust wrap on the downpipe and a heat shield in between the downpipe and the chassis rail with gold tape on and it didn't change anything.

Has anyone had problems with these?



How far is it from the turbo? Isn't it supposed to be 1-2ft away? How long does it take to *warm up* is that when it fails? Maybe it's the o2 sensor.
I cut my cord in half thinking it was a vacuum hose... Soldered her up and shoved the shielding in with some sticky tape and she works Better than yours �� mine sits behind the turbo with no shielding.



The O2 sensor itself is a couple of feet from the turbo so should be OK.



It starts reading off after around 5 minutes. How long does it take for the sensor to warm up?



Should take around like 15-30 seconds to warm up.

My lc-1 warms up somewhere between that window.



You are probably getting an Error 8 code. I've had my LC2 for several years now, and the same crap happens to me after a few months. Then I go to autozone and replace the sensor under warranty (I bought a replacement from them when this first happened).

When this occurs, look at the LC2 controller and count the number of red flashes from the LED. Then look up the number of flashes as a "code" in the back of the instruction manual or online. If it's the E8 code, replace the sensor and re-calibrate.



yeah i bet it's throwing an e8 error.



Thanks for that. I will check for an E8 error tonight. Would hope its not failed already as its only been driven 50 miles or so since the turbo and LC-2 install.



Sometimes it doesn't take long for it to die. I had about a year on my LC2 before turbo and it was fine, within 2 months it was dead while turbo'd. Granted, I run low 11 afr WOT, burn plenty of oil on decel, and have a craptastic 2 piece downpipe from BEGI that has exhaust leaks. All of those will factor in for sensor life, and I don't feel like addressing the "issues", so I put up with replacing sensors pretty much every oil change...



Has anyone run the HBX-1 bung extender?

https://h-tune.co.uk/innovate-hbx-1-...bung-extender/



Ran the tests and I get the error 8. Done a petrol rag test and it starts full lean then goes full rich but the the error 8 comes and it reads full lean and the sensor cools down.

The vendor is saying the sensors are not warrantied at all so talking to Innovate directly now.

This is really annoying to happen so soon, had to take the Westfield to bits to get the sensor out.



Ouch, definitely a hassle... maybe route the sensor/harness to be able to remove/replace the sensor easier in the future? Access to the controller isn't super critical, just being able to see the LED is all you really need from that.

Also, the guy that usually answers the phone at Innovate, is probably going to be Felipe. Who will blame your car and or wiring, and ultimately won't do anything for you... just a heads up



When I re-install it I will make it easier to get to. The Bosch sensor itself is easy. I will also mount the control unit so I can see the LED without having to to take the dash off.

Does anyone have experience with the HBX-1 heat sink bung? Could this improve the life of a sensor? I have the LSU 4.9



I'd first go with a heatsink out of a piece of copper/metal.



Got a new sensor on the way (not for free under warranty) and just ordered a 10cm2 piece of copper now!



Something's up. I'm running same LC-2 sensor for about 10K boosted miles now. Bought a back-up, but have not needed it. Heat sink seems a wise choice.

See Ian's build for another fix for more severe situations. A high dollar part from Innovate: Post 918



How far is your sensor from the turbo? I did see that heat sink but some other posts think it might cause delays and inaccuracies with the signal?



I'll check tomorrow evening. IIRC it is roughly 30" away. Past the downpipe.
