Default Leak leak leak, T3 manifold and TD04 turbo
Hey,

Just got my manifold and turbo from surfacing... and it still leaks bad !

What can I do :\ ?
elior77 is offline
Reply
Leave a poscat -2 Leave a negcat
Old 04-02-2017, 09:50 AM
  #2
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Posts: 2,384
Total Cats: 315
Default
Originally Posted by elior77
Hey,

Just got my manifold and turbo from surfacing... and it still leaks bad !

What can I do :\ ?
Did the machine shop actually measure it? Which surface leaks?
bahurd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-03-2017, 01:31 AM
  #3
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
:(

Just got it all out again for retest and resurface....
Attached Files
elior77 is offline
Reply
Leave a poscat -1 Leave a negcat
Old 04-03-2017, 08:31 AM
  #4
Elite Member
iTrader: (6)

ryansmoneypit's Avatar

Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Default
How in the world is it that bad after just resurfacing? did you check it for flatness before the install? how tight are you tightening the nuts?
ryansmoneypit is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-03-2017, 10:33 AM
  #5
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default
Originally Posted by ryansmoneypit
How in the world is it that bad after just resurfacing? did you check it for flatness before the install? how tight are you tightening the nuts?
by being badly resurfaced
18psi is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 01:56 AM
  #6
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
Went back to resurface... I'll try to get gaskets for it.
elior77 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:39 AM
  #7
Elite Member
iTrader: (6)

ryansmoneypit's Avatar

Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Default
What? No. You don't need gaskets. You need a proper surface and a light coat of grease. And check to see how flat it is when they resurface it again. I want to see.
ryansmoneypit is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:45 AM
  #8
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
Default
what if they machined it flat, but on an angle...
Braineack is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:47 AM
  #9
Elite Member
iTrader: (6)

ryansmoneypit's Avatar

Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Default
Well, then it just needs some JB Weld or gorilla glue.
ryansmoneypit is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:50 AM
  #10
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
resurfaced again and checked with the filler-gauge, looks better... I will assemble it later and check.
elior77 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:52 AM
  #11
Elite Member
iTrader: (6)

ryansmoneypit's Avatar

Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Default
Looks better does not sound good. Show a pic of how you checked and what the measurement was.
ryansmoneypit is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 08:53 AM
  #12
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
The same 015mm can not go in anymore... I do not have any better tool to check with.
elior77 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 03:34 PM
  #13
Junior Member

astral's Avatar

Join Date: Jul 2016
Location: Bay Area
Posts: 355
Total Cats: 33
Default
Get a new machine shop, ASAP.
astral is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 04:16 PM
  #14
Elite Member
iTrader: (6)

ryansmoneypit's Avatar

Join Date: Feb 2013
Location: A cave in Va
Posts: 3,395
Total Cats: 456
Default
Get a new feeler gauge set. You need to be checking flatness before assembly. Straight edge over the top then feeler gauge under to check gap. Should be less than .005.
ryansmoneypit is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 04:45 PM
  #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default
He has a turbo like my old one. Its a weird Saab T3 flange. You have to mill off the weird flange, and then you are left with a normal t3 bolt pattern.

That being said, something obviously isn't straight.
aidandj is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-04-2017, 05:35 PM
  #16
Boost Czar
iTrader: (62)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 79,688
Total Cats: 4,113
Default

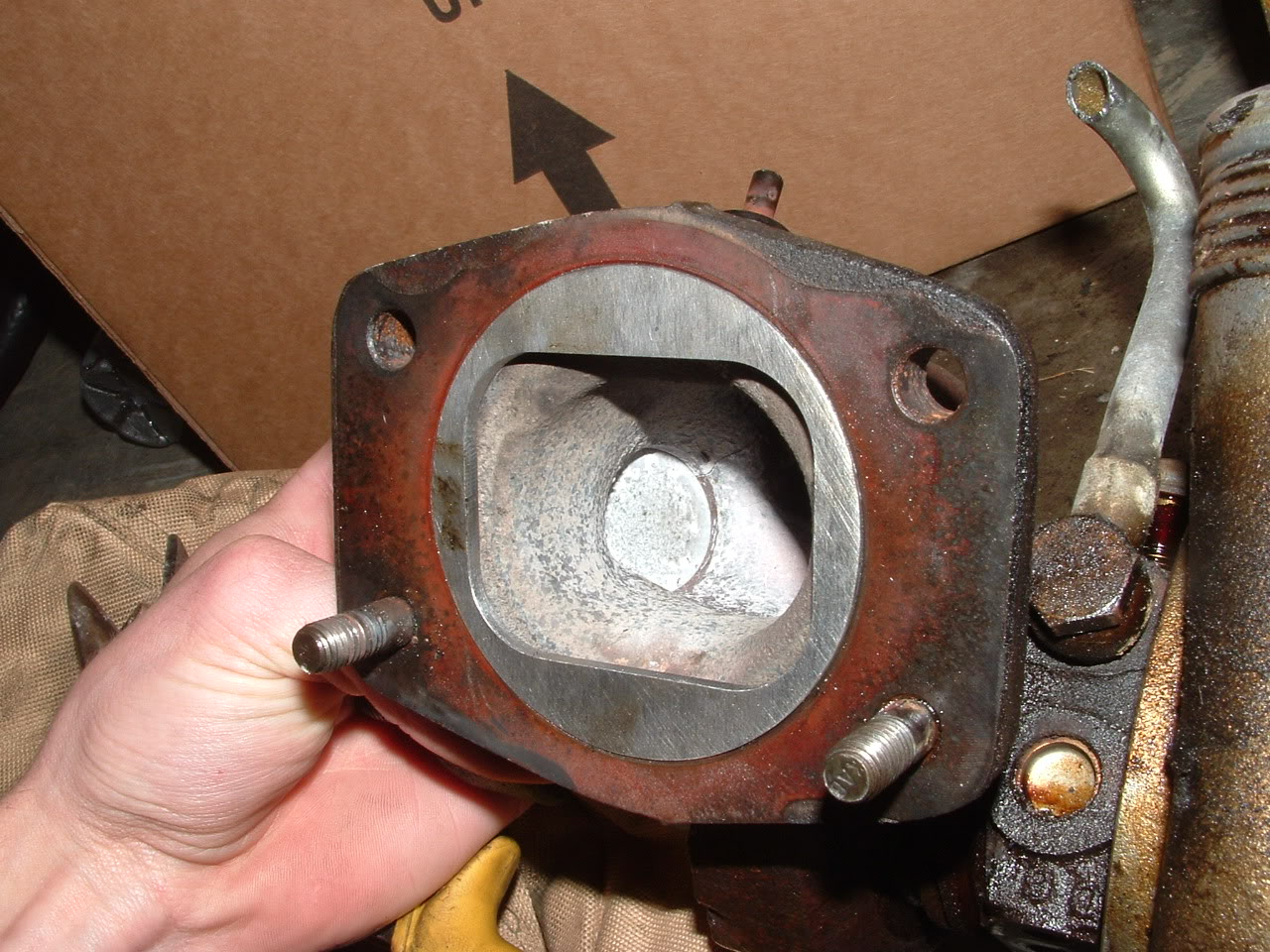

yeah you have to machine that flat to the flange...

Name: dscf0172.jpg Views: 2029 Size: 268.5 KB
Braineack is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-05-2017, 01:10 AM
  #17
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
Good idea to start with, but if I'll do it now, it will not align with the dp...

Big crack on the wg btw.
elior77 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 04-23-2017, 01:58 AM
  #18
Senior Member
Thread Starter

elior77's Avatar

Join Date: Nov 2012
Location: Israel
Posts: 650
Total Cats: -481
Default
Got it to a machine shop - He did a great job, but after all the machining the turbine housing would not align with the down pipe...
I released the downpipe support (from the transmission) and now it is all good - only need to redo the downpipe support bracket.

Took about one month and a lot of work - did not take it for a drive yet - only tested at idle - no leaks!

elior77 is offline
