Lazzers build thread.
#5
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Ok I'll get to it soon. Too dark to take the IC pics but I have an '06 Evo 24x12" IC in there with 2.5" coldside and 2" hotside but the hotside is steel because my aluminum tubing hasn't come in yet.
I have lots of other little diy mods I've done here and there. Like a big honkin' spiral cell battery.
Here's the wideband.
http://i196.photobucket.com/albums/a...Wideband_2.jpg
How do I post photobucket pics in here that show the picture in the post?
![vash](https://www.miataturbo.net/images/smilies/vash.gif)
Here's the wideband.
http://i196.photobucket.com/albums/a...Wideband_2.jpg
How do I post photobucket pics in here that show the picture in the post?
Last edited by lazzer408; 07-24-2007 at 11:42 PM.
#6
Senior Member
iTrader: (1)
Join Date: Jun 2006
Location: Outside of the Loop-ATL
Posts: 761
Total Cats: 1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

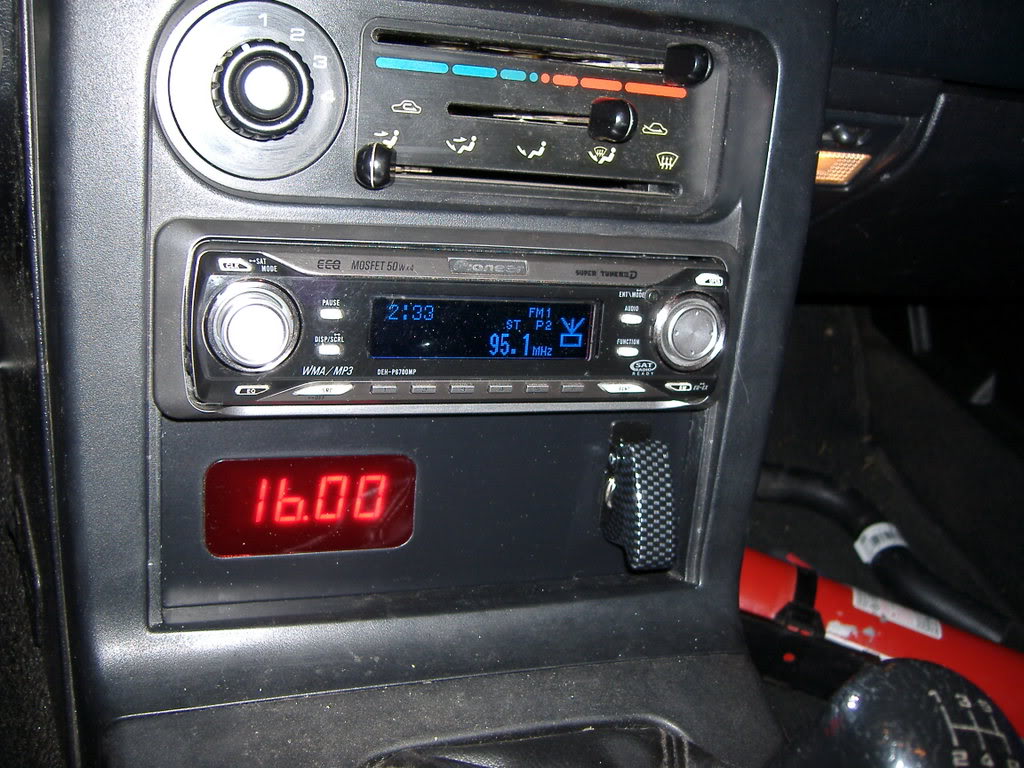

![Name: Wideband_2.jpg
Views: 108
Size: 145.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216186d1501272972-lazzers-build-thread-wideband_2.jpg)
here is your photo you wanted to upload.
BTW quick how to
way 1: in photobucket under your photo you will see a link that starts with [img]http:....etc Take that whole link with the img tag and paste it into the post.
way 2: on must forums there is series of buttons above your post area. The one that looks like square box with some little triangle layered like mtns. click that button and then add the url.
hope that helps
#8
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
NGK Powerdex AFX
http://www.ngksparkplugs.com/product...x.asp?mode=nml
It has 9-16:1 (0-5v linear) output for ecu.
I paid $250 for mine locally. Here's one on ebay for $240.13 shipped.
http://cgi.ebay.com/ebaymotors/NGK-N...spagenameZWDVW
I've never had to calibrate it since installed a year ago.
http://www.ngksparkplugs.com/product...x.asp?mode=nml
It has 9-16:1 (0-5v linear) output for ecu.
I paid $250 for mine locally. Here's one on ebay for $240.13 shipped.
http://cgi.ebay.com/ebaymotors/NGK-N...spagenameZWDVW
I've never had to calibrate it since installed a year ago.
#11
Elite Member
iTrader: (5)
Join Date: Jul 2006
Location: Central California
Posts: 2,557
Total Cats: 5
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Im not so sure about that wideband, NGK is a reputable company for sparkplugs, but not for O2 sensors. Also it only reads as lean as 16:1, which is about as lean as you ever want to go probably, but I prefer my LC1 that reads between 10:1 and 20:1
#12
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
It was cheap and in stock at the time. So far it seems to be working. I don't run any higher then 15:1 and that's under very light deceleration. I needed something quick for automapping a stand alone.
#13
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Ok, here we go. Oddles of pictures to post soon. Here's my story.
I was getting tired of driving my powerless '98 Chevy Lumina. When I was 16-18 years old I owned 3 Chevy Monzas. One had a 400ci 400hp smallblock in it. I bent the car with the torque and junked it. I hadn't owned a Monza since. I found one on ebay for $1500 but money complications and shipping charges kinda screwed up that deal. I decided to buy my old boss's '85 Firebird TransAm. 65k original garage kept. It just wasn't "fun" and I always wanted a Miata. =) Only blue or black would do. I sold the TA on ebay with the soul intention of buying a Miata with the money. Turns out the mid-point between me and the TA buyer's house was near Joilet Illinois. That's where the Laguna Miata was waiting for me. =) $3700 So I drove the TA down there, met the buyer of that, recieved $4000 in an envelope, and handed it straight to the Miata owner (less $300) I drove the Miata home.

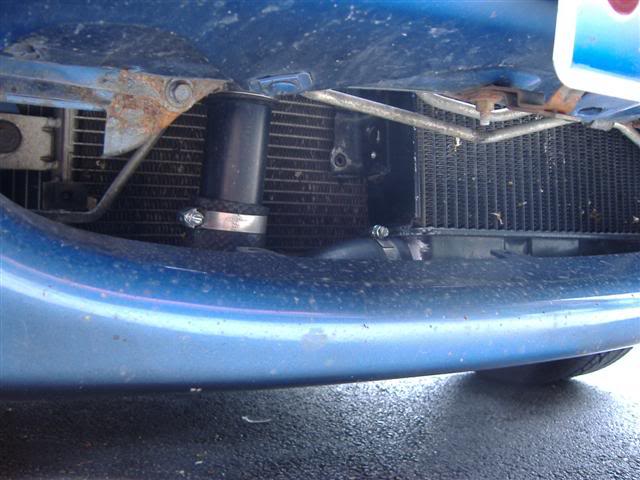

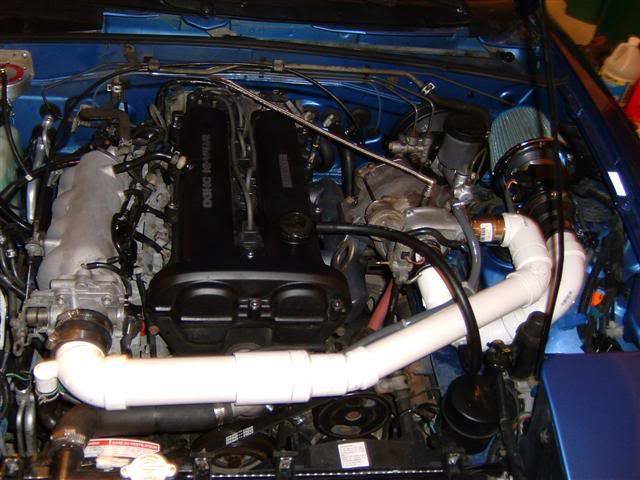

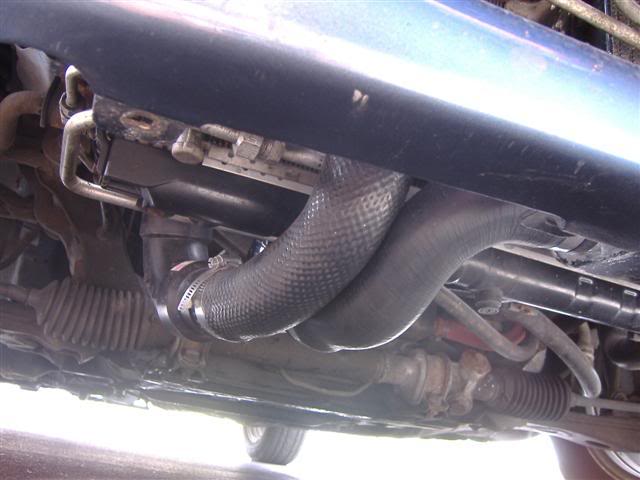

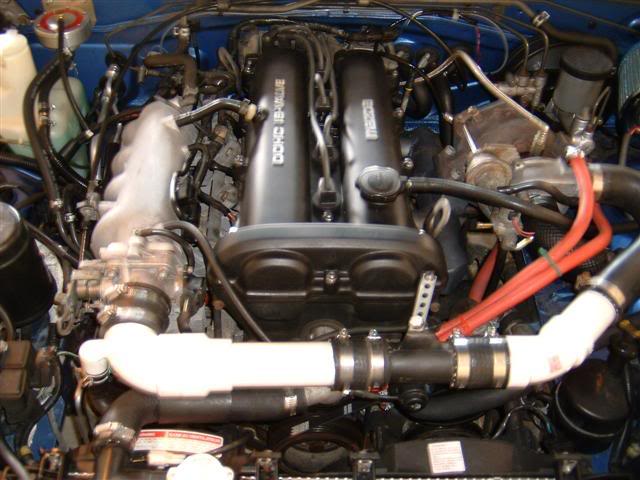

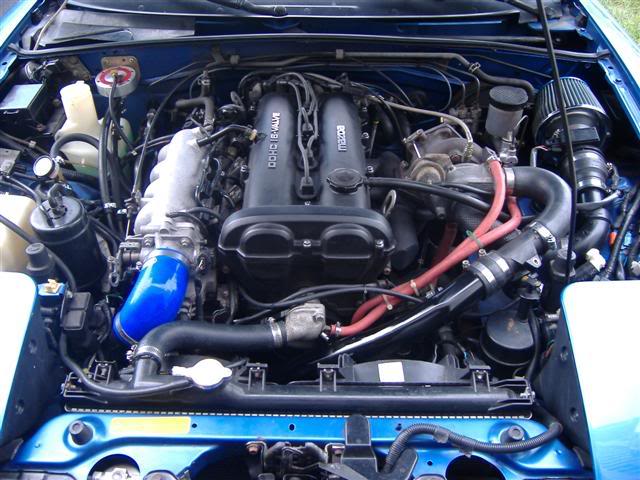

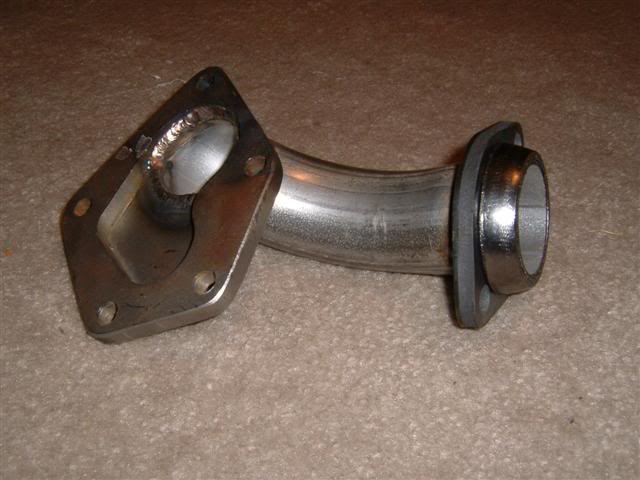

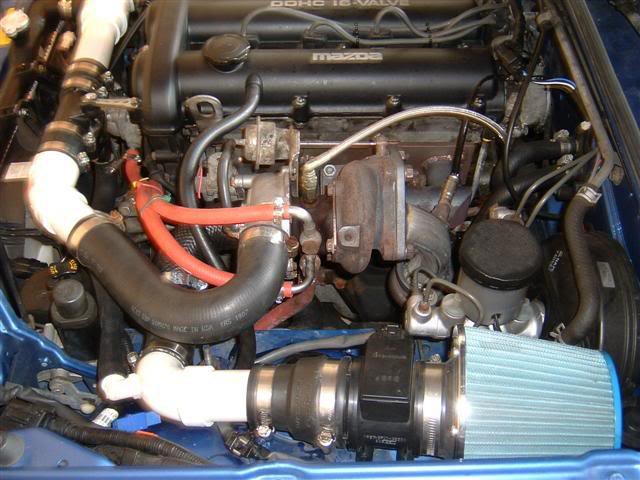

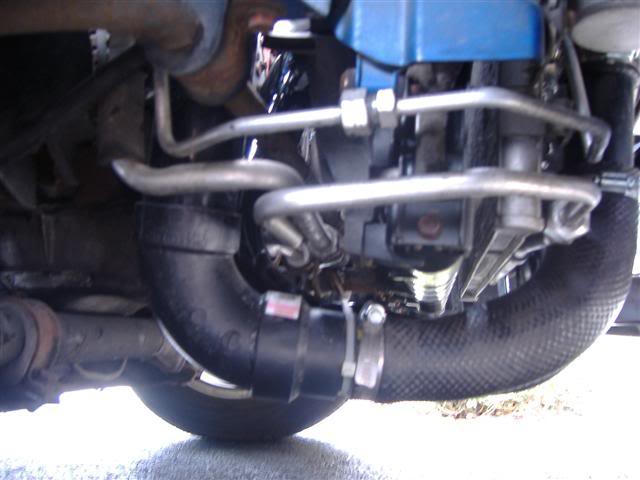

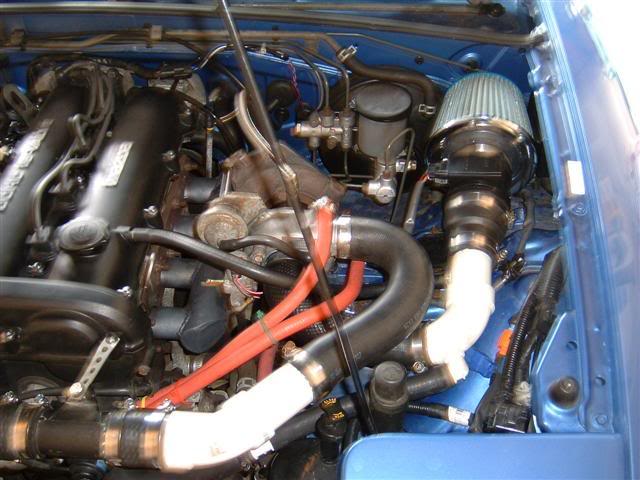

Now, the original intention for this Miata was a 4.3L Vortec swap. I already bought the v6 and it was sitting on a stand waiting for a Miata to put it in. I had so much fun zipping home in my little Laguna that I couldn't ruin it by putting a big heavy American anything in it. Can we say boost? I looked at some turbo kits and it was out of my budget at the time. I decided to make my own... ALL OF IT. $250 later I had a homemade manifold, homemade downpipe, ford probe turbo, and PVC chargepiping. The IC (also probe) came shortly after to help the detonation issues. The IC allowed me about 8lbs and I ran this for a few weeks before I switched to a steel (exhaust) hot-side IC pipe. PVC was melting. =)
Greedy for more power, and still dealing with fuel/ignition issues, I chose to upgrade everything a piece at a time saving the engine build for last. The first thing was to get rid of the bandaids. I bought 550cc Venom injectors $375, an AEM EMS $610, Aeromotive 1:1 fuel pressure regulator $150, and stainless braided fuel lines and AN fittings $125. I ran this for a year tuning on the road. This was all during summer '06

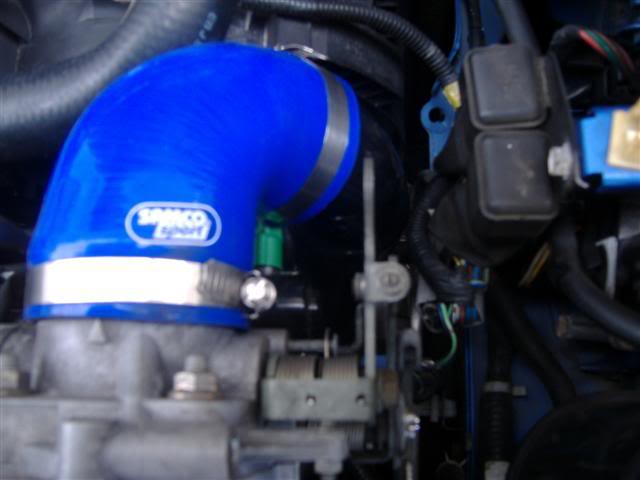

This summer ('07) I decided MORE POWER and I chose a tubular T3 manifold $50, Saab T3 turbo .48t/.42c $81, homemade 2.5" downpipe $50, Full 2.5" exhaust with cat $200, and a Mitsubishi EVO intercooler $free with 2" hotside and 2.5" coldside aluminum charge piping $250-ish. All T-bolt clamps and silicon couplings. It's 99% completed excluding the engine build.
I hope you enjoyed my little Miata story. Pics to come soon! I'm posting them on Photobucket now.
EDIT - By the way. Before this car I knew -nothing- about turbos.
I was getting tired of driving my powerless '98 Chevy Lumina. When I was 16-18 years old I owned 3 Chevy Monzas. One had a 400ci 400hp smallblock in it. I bent the car with the torque and junked it. I hadn't owned a Monza since. I found one on ebay for $1500 but money complications and shipping charges kinda screwed up that deal. I decided to buy my old boss's '85 Firebird TransAm. 65k original garage kept. It just wasn't "fun" and I always wanted a Miata. =) Only blue or black would do. I sold the TA on ebay with the soul intention of buying a Miata with the money. Turns out the mid-point between me and the TA buyer's house was near Joilet Illinois. That's where the Laguna Miata was waiting for me. =) $3700 So I drove the TA down there, met the buyer of that, recieved $4000 in an envelope, and handed it straight to the Miata owner (less $300) I drove the Miata home.
Now, the original intention for this Miata was a 4.3L Vortec swap. I already bought the v6 and it was sitting on a stand waiting for a Miata to put it in. I had so much fun zipping home in my little Laguna that I couldn't ruin it by putting a big heavy American anything in it. Can we say boost? I looked at some turbo kits and it was out of my budget at the time. I decided to make my own... ALL OF IT. $250 later I had a homemade manifold, homemade downpipe, ford probe turbo, and PVC chargepiping. The IC (also probe) came shortly after to help the detonation issues. The IC allowed me about 8lbs and I ran this for a few weeks before I switched to a steel (exhaust) hot-side IC pipe. PVC was melting. =)
Greedy for more power, and still dealing with fuel/ignition issues, I chose to upgrade everything a piece at a time saving the engine build for last. The first thing was to get rid of the bandaids. I bought 550cc Venom injectors $375, an AEM EMS $610, Aeromotive 1:1 fuel pressure regulator $150, and stainless braided fuel lines and AN fittings $125. I ran this for a year tuning on the road. This was all during summer '06
This summer ('07) I decided MORE POWER and I chose a tubular T3 manifold $50, Saab T3 turbo .48t/.42c $81, homemade 2.5" downpipe $50, Full 2.5" exhaust with cat $200, and a Mitsubishi EVO intercooler $free with 2" hotside and 2.5" coldside aluminum charge piping $250-ish. All T-bolt clamps and silicon couplings. It's 99% completed excluding the engine build.
I hope you enjoyed my little Miata story. Pics to come soon! I'm posting them on Photobucket now.
EDIT - By the way. Before this car I knew -nothing- about turbos.
#14
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Here's the car as I was shown.
![Name: As_advertised.jpg
Views: 119
Size: 48.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216178d1501272950-lazzers-build-thread-as_advertised.jpg)
Here's some $40 wheels I got a deal on. Note the dent in the fender. I got most of that pounded out.
![Name: DSCF0309Small.jpg
Views: 126
Size: 40.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216179d1501272950-lazzers-build-thread-dscf0309small.jpg)
Here's the stock engine bay but I painted the valve cover.
![Name: As_advertised.jpg
Views: 119
Size: 48.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216178d1501272950-lazzers-build-thread-as_advertised.jpg)

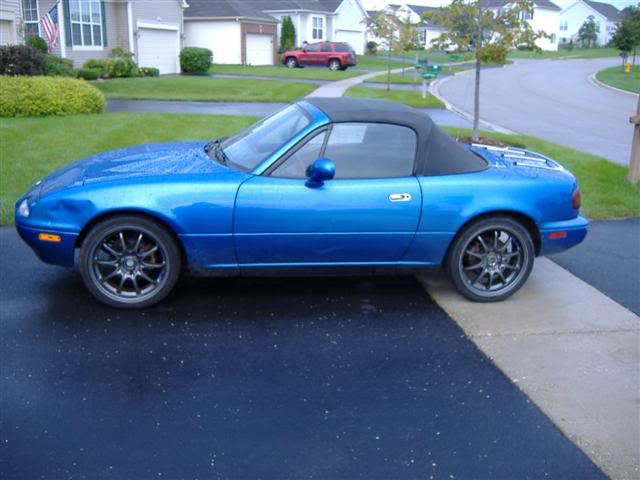

Here's some $40 wheels I got a deal on. Note the dent in the fender. I got most of that pounded out.
![Name: DSCF0309Small.jpg
Views: 126
Size: 40.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216179d1501272950-lazzers-build-thread-dscf0309small.jpg)

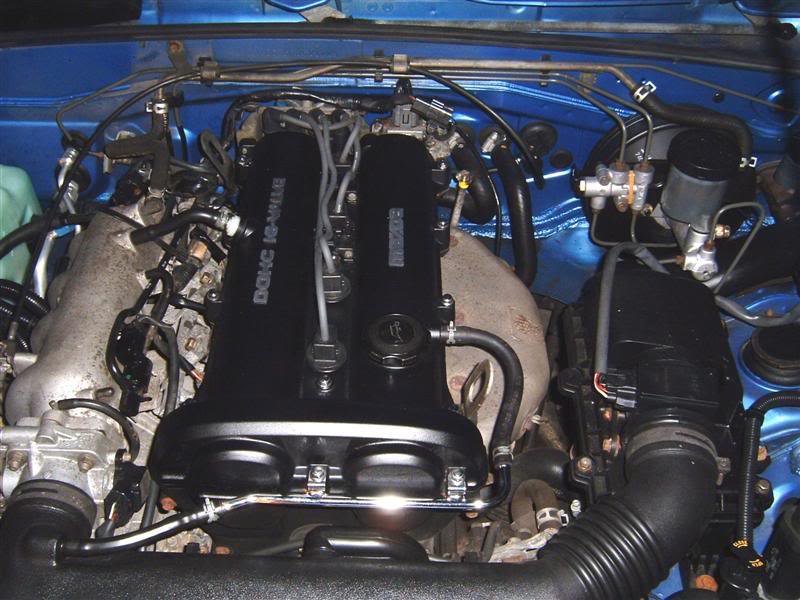

Here's the stock engine bay but I painted the valve cover.
![Name: engine_bay.jpg
Views: 108
Size: 79.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216180d1501272950-lazzers-build-thread-engine_bay.jpg)
#18
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

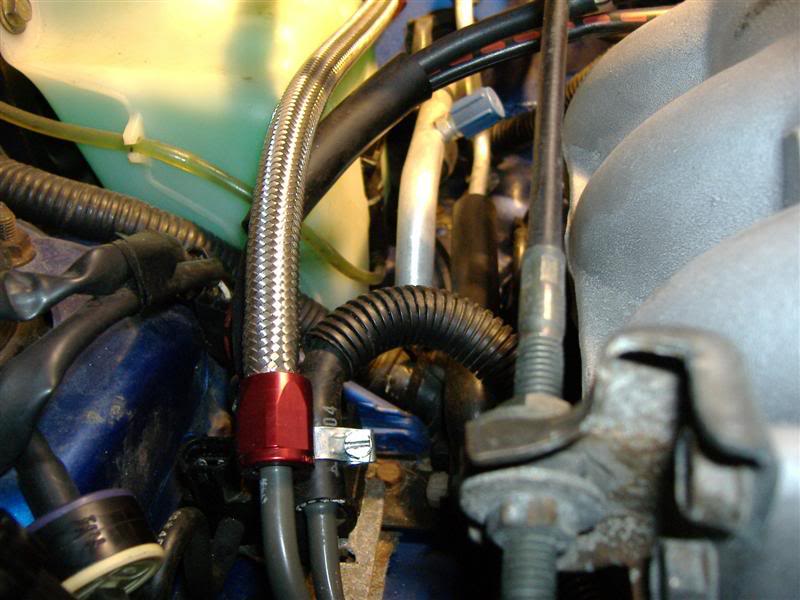

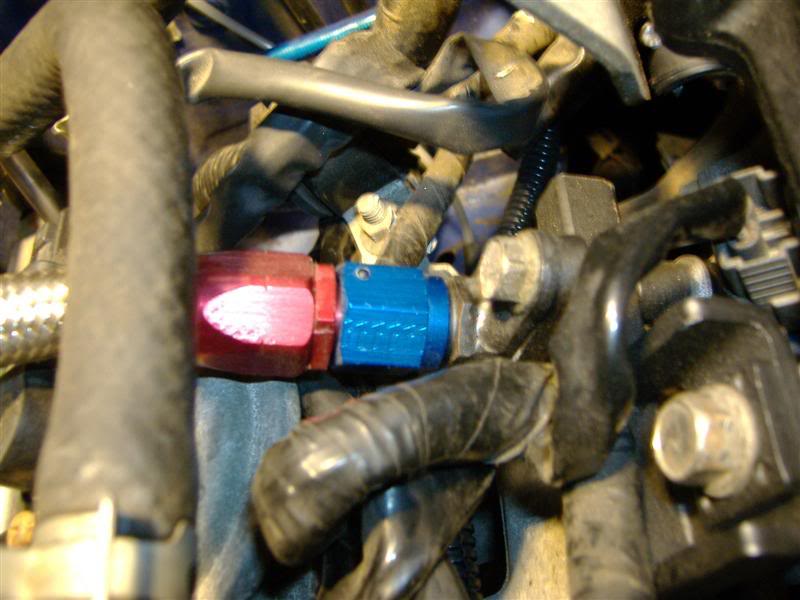

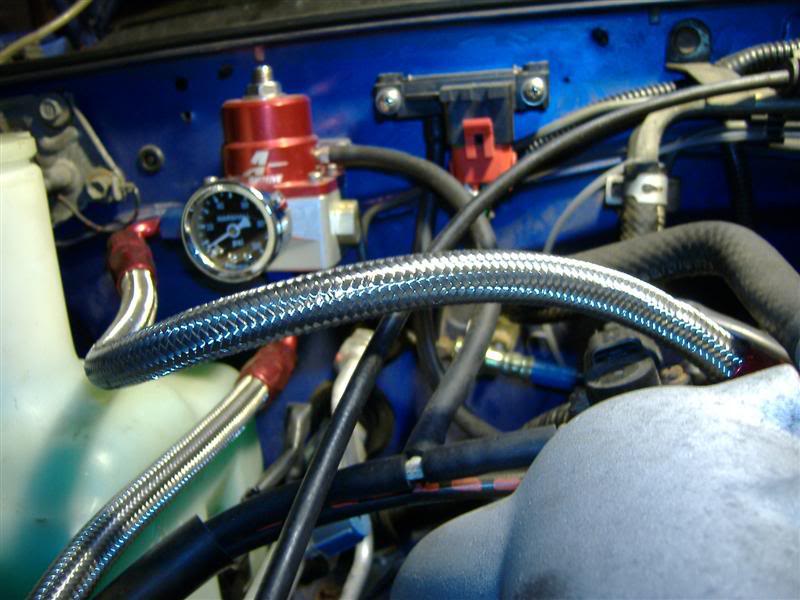

And here's the fpr fittings. I welded a steel AN fitting to the stock regulator flange after I wiz-wheeled the stock fpu off of it. =) You can see the MAP sensor on the firewall. The EMS and 550s were in at this time.
![Name: 3Medium.jpg
Views: 96
Size: 66.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216164d1501272930-lazzers-build-thread-3medium.jpg)
![Name: 2Medium.jpg
Views: 114
Size: 67.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216165d1501272930-lazzers-build-thread-2medium.jpg)
![Name: 1Medium.jpg
Views: 115
Size: 58.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216166d1501272930-lazzers-build-thread-1medium.jpg)
I bought a new camera by now. =)
![Name: 3Medium.jpg
Views: 96
Size: 66.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216164d1501272930-lazzers-build-thread-3medium.jpg)
![Name: 2Medium.jpg
Views: 114
Size: 67.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216165d1501272930-lazzers-build-thread-2medium.jpg)
![Name: 1Medium.jpg
Views: 115
Size: 58.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216166d1501272930-lazzers-build-thread-1medium.jpg)
I bought a new camera by now. =)
#19
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

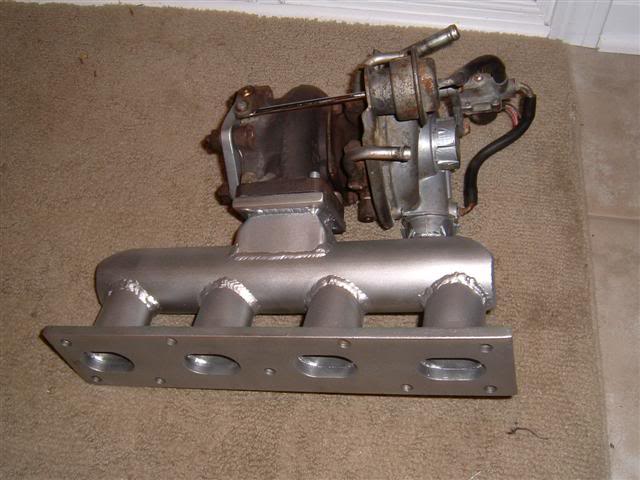

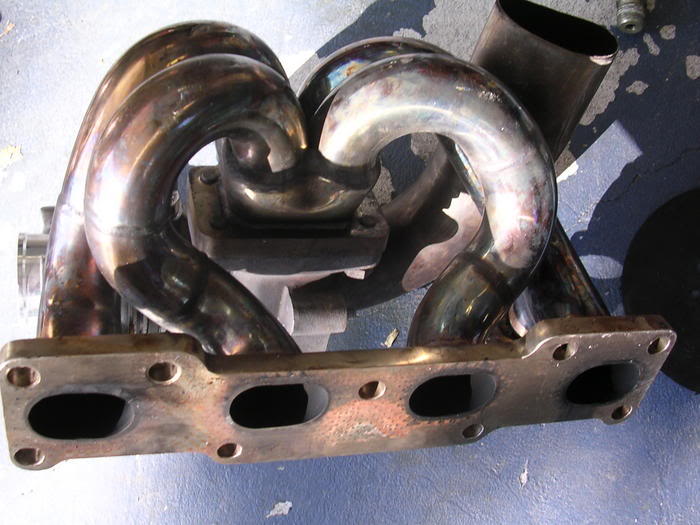

Here's my tubular manifold I picked up for $50. I split the $200 bill with a buddy because it came with a turbo I didn't use. Also here are some pics of the heatshield I made to keep my brakes cooler. It works very well. You can see some of the PVC piping still being used as intake plumbing and also the "cold air" mod thru the firewall into the cowl. Spiffy! =)
![Name: New_manifold.jpg
Views: 104
Size: 60.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216162d1501272930-lazzers-build-thread-new_manifold.jpg)
![Name: New_manifold.jpg
Views: 104
Size: 60.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216162d1501272930-lazzers-build-thread-new_manifold.jpg)

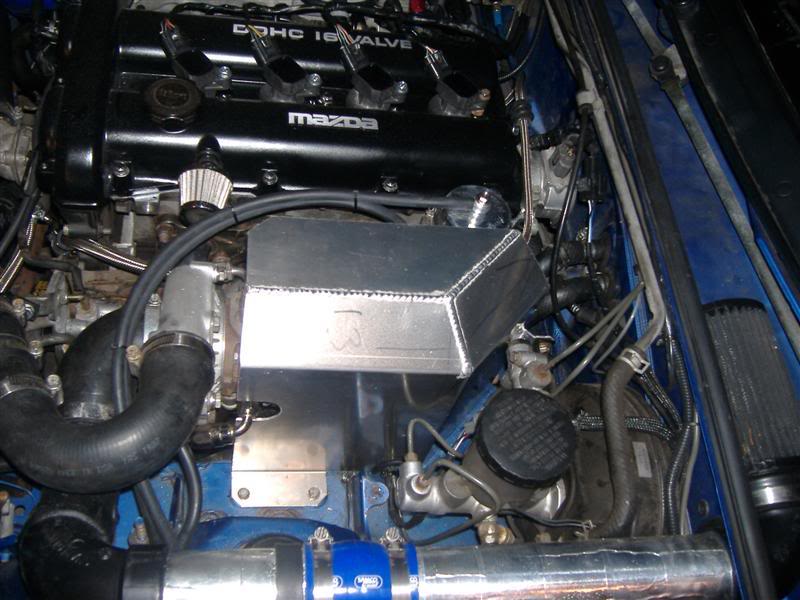

![Name: DSCF0976Medium.jpg
Views: 131
Size: 73.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216163d1501272930-lazzers-build-thread-dscf0976medium.jpg)
#20
Senior Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

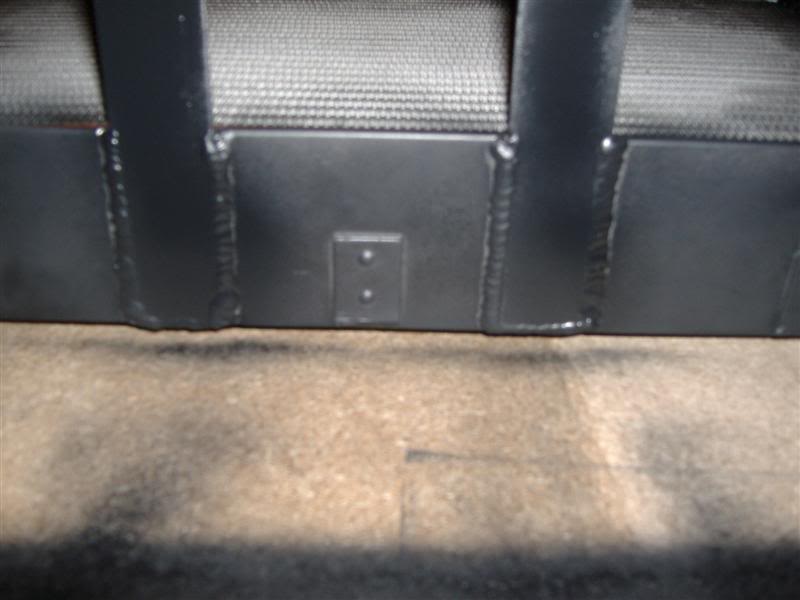

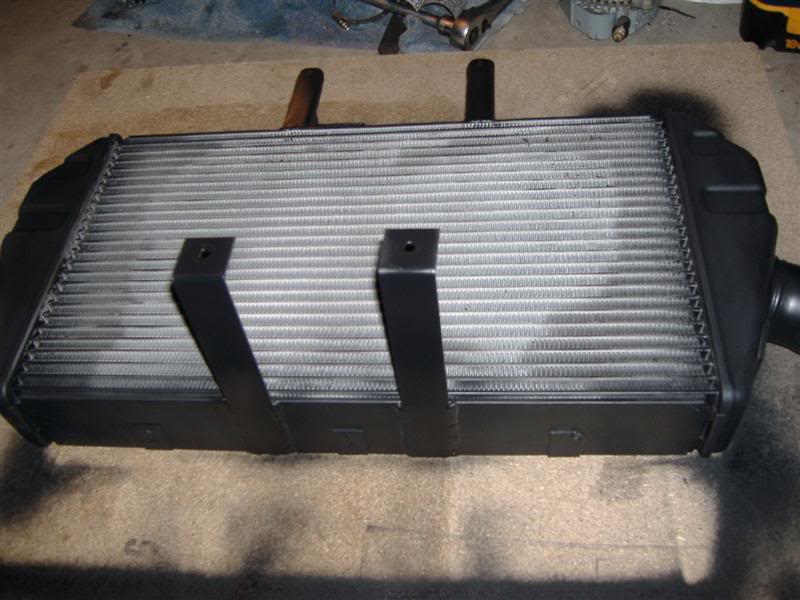

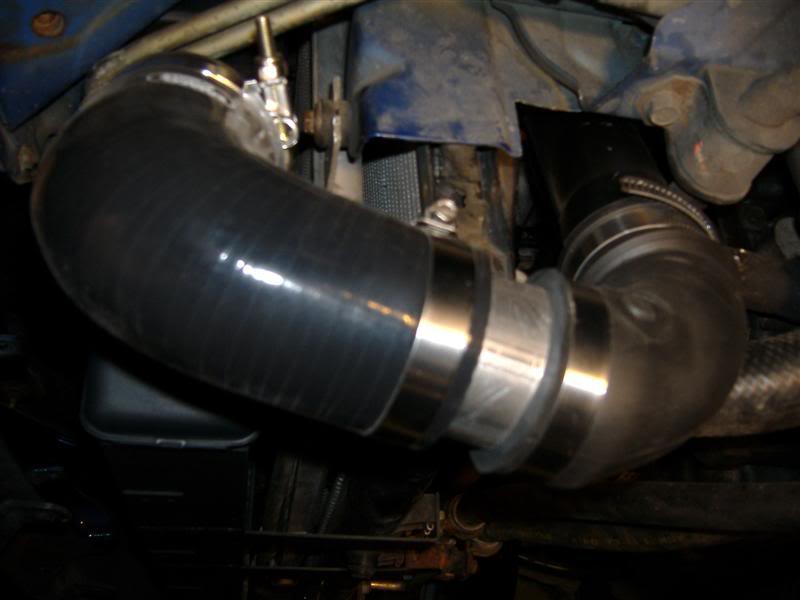

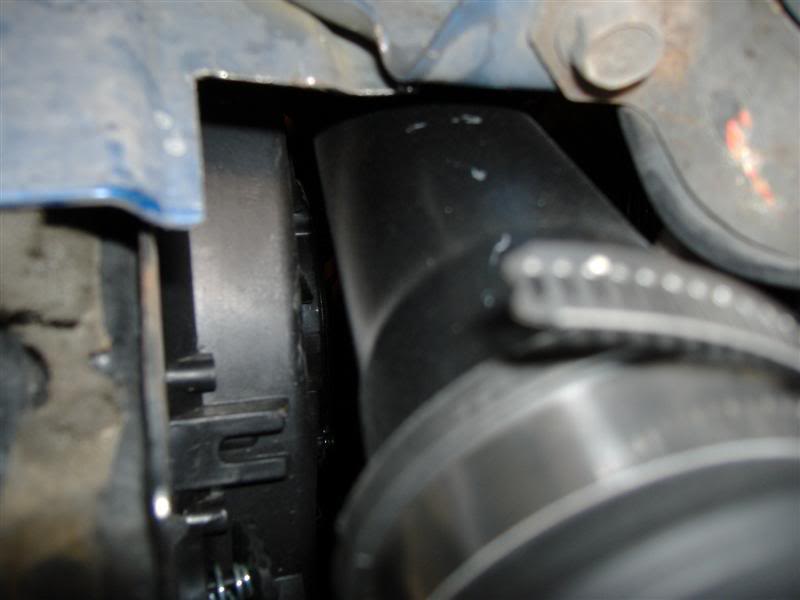

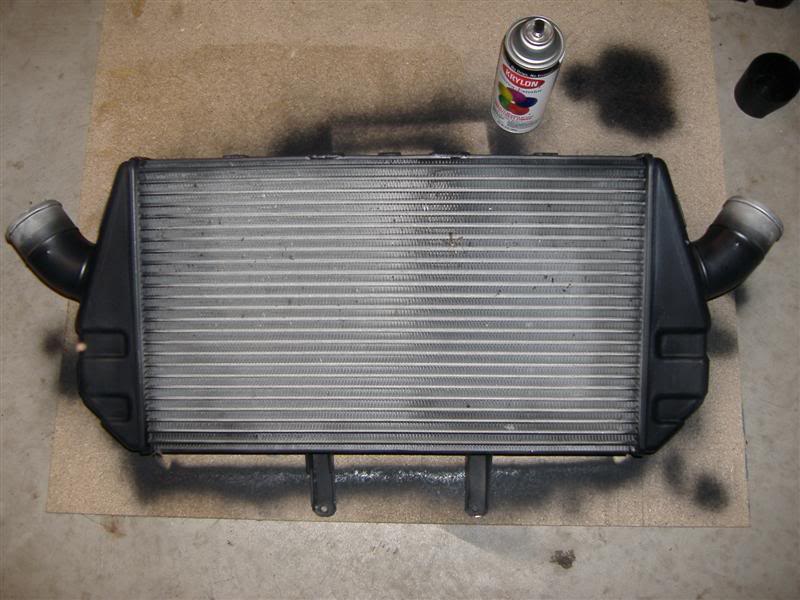

Now with the good stuff. The EVO IC install! =) Yeh that big pig fits in there. TOYO radiator makes it. I took the drivers side lower radiator support off the frame and planned on welding it back in front instead. That gave me a bit more room for the hotside pipe. The original fans have been replaced with mini fans (parallel wired) which also gave me more IC pipe room. The a/c is still in the car but the dryer is being moved where the purge can was.
![Name: TheBeastMedium.jpg
Views: 122
Size: 68.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216151d1501272908-lazzers-build-thread-thebeastmedium.jpg)
![Name: Lower_bracketsMedium.jpg
Views: 119
Size: 46.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216152d1501272908-lazzers-build-thread-lower_bracketsmedium.jpg)
![Name: IC_brackets_2Medium.jpg
Views: 121
Size: 38.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216153d1501272908-lazzers-build-thread-ic_brackets_2medium.jpg)
![Name: IC_bracketsMedium.jpg
Views: 117
Size: 67.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216154d1501272908-lazzers-build-thread-ic_bracketsmedium.jpg)
![Name: Top_mount_holesMedium.jpg
Views: 87
Size: 56.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216155d1501272908-lazzers-build-thread-top_mount_holesmedium.jpg)
![Name: Horn_tweekMedium.jpg
Views: 96
Size: 49.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216156d1501272908-lazzers-build-thread-horn_tweekmedium.jpg)
![Name: Temporary_hotside_2Medium.jpg
Views: 106
Size: 35.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216157d1501272908-lazzers-build-thread-temporary_hotside_2medium.jpg)
![Name: Radiator_support_cutMedium.jpg
Views: 113
Size: 32.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216158d1501272908-lazzers-build-thread-radiator_support_cutmedium.jpg)

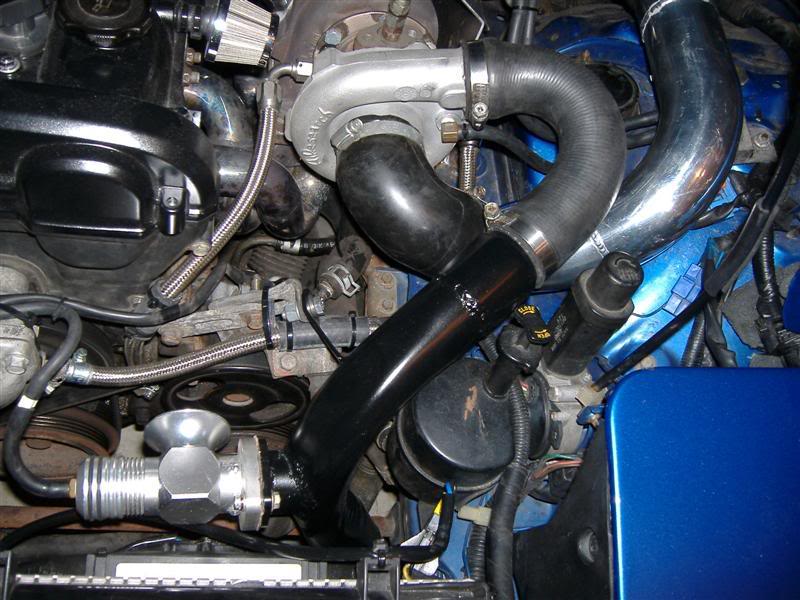

![Name: Temporary_hotsideMedium.jpg
Views: 136
Size: 86.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216159d1501272908-lazzers-build-thread-temporary_hotsidemedium.jpg)

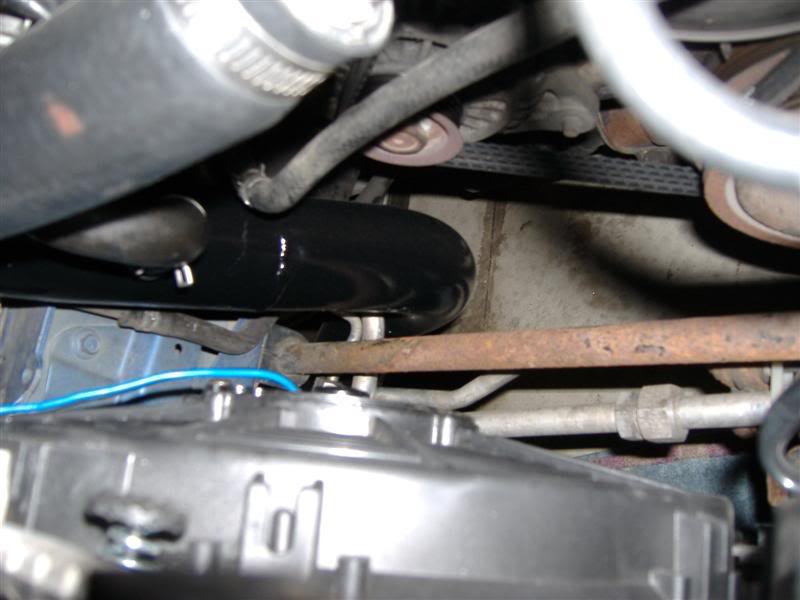

![Name: TB_pipeMedium.jpg
Views: 112
Size: 46.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216160d1501272908-lazzers-build-thread-tb_pipemedium.jpg)
![Name: TheBeastMedium.jpg
Views: 122
Size: 68.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216151d1501272908-lazzers-build-thread-thebeastmedium.jpg)

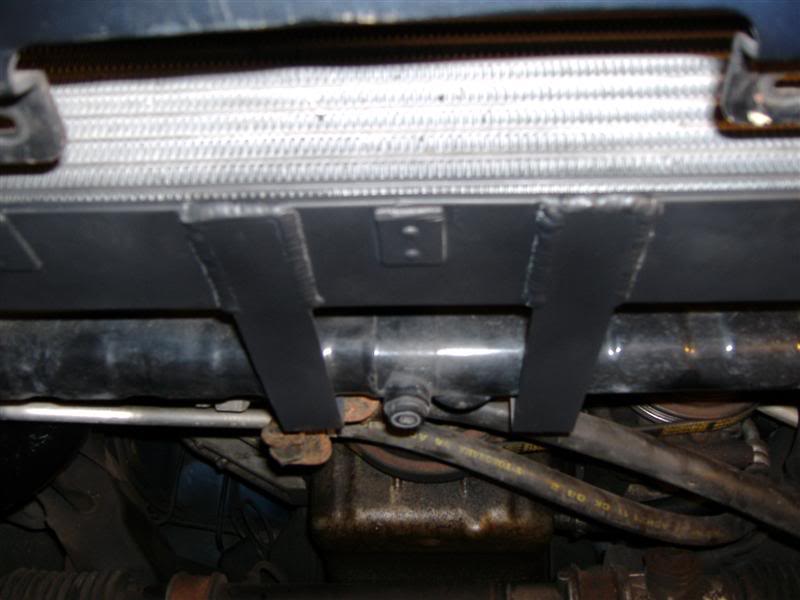

![Name: Lower_bracketsMedium.jpg
Views: 119
Size: 46.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216152d1501272908-lazzers-build-thread-lower_bracketsmedium.jpg)
![Name: IC_brackets_2Medium.jpg
Views: 121
Size: 38.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216153d1501272908-lazzers-build-thread-ic_brackets_2medium.jpg)
![Name: IC_bracketsMedium.jpg
Views: 117
Size: 67.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216154d1501272908-lazzers-build-thread-ic_bracketsmedium.jpg)

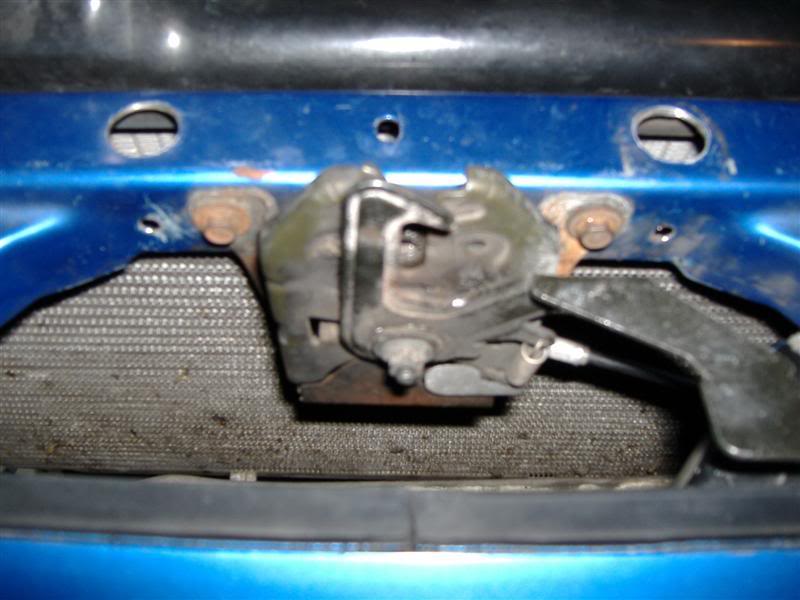

![Name: Top_mount_holesMedium.jpg
Views: 87
Size: 56.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216155d1501272908-lazzers-build-thread-top_mount_holesmedium.jpg)

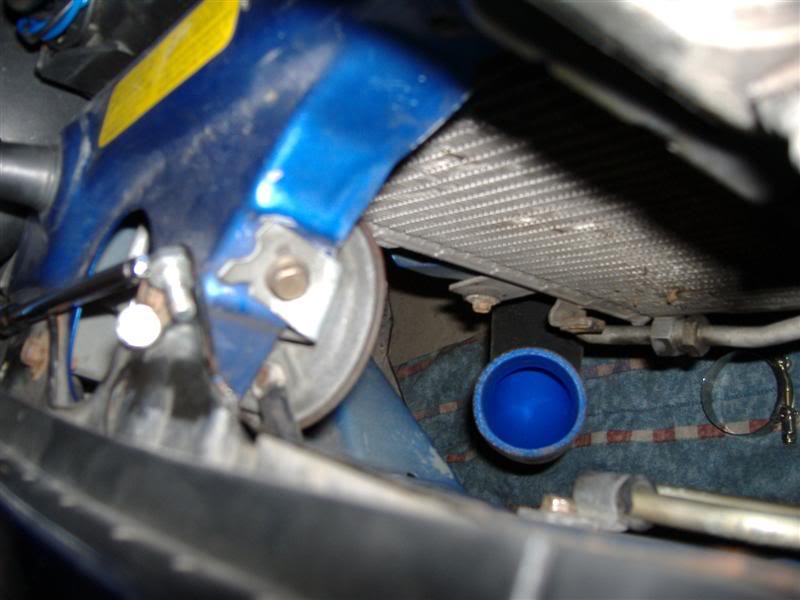

![Name: Horn_tweekMedium.jpg
Views: 96
Size: 49.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216156d1501272908-lazzers-build-thread-horn_tweekmedium.jpg)
![Name: Temporary_hotside_2Medium.jpg
Views: 106
Size: 35.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216157d1501272908-lazzers-build-thread-temporary_hotside_2medium.jpg)
![Name: Radiator_support_cutMedium.jpg
Views: 113
Size: 32.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216158d1501272908-lazzers-build-thread-radiator_support_cutmedium.jpg)
![Name: Temporary_hotsideMedium.jpg
Views: 136
Size: 86.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216159d1501272908-lazzers-build-thread-temporary_hotsidemedium.jpg)
![Name: TB_pipeMedium.jpg
Views: 112
Size: 46.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216160d1501272908-lazzers-build-thread-tb_pipemedium.jpg)

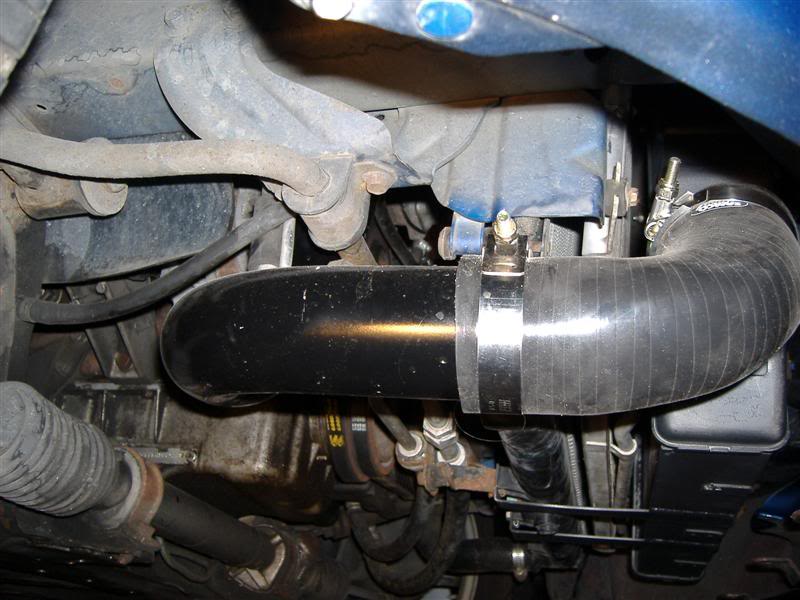

![Name: Passengers_sideMedium.jpg
Views: 114
Size: 69.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/216161d1501272908-lazzers-build-thread-passengers_sidemedium.jpg)
