Homebrew Diy Budget Build
#1
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Hey @ all,
soooo Im up to a new fun project... Bet my brother i could turbocharge my Na Miata with under 100 usd.... With random stuff ive got laying arround in my garage from other builds in my past....
So Ive started the build and would like some input from you guys just in case ive forgotten something...
Speclist so far:
Rewelded Stock NA Manifold
K03 KKK Turbocharger
Baily 2 Piston BOV
Cometic Triple plate Head gasket
Apexi SAFC 2
305 CC Toyota Injectors
Downpipe
Oil Feed
Oil Return
Nissan Skyline Gtst intercooler
Intercooler Pipes...
So far so good... any suggestions?
...
Im not a noob to turbocharging cars i just wanted to prove a point... aiming for like 160 hp. so i think ill do fine with like 8 psi of boost!
I Plan on retarding the ignition a couple degrees and fill it with "Ultimate" Fuel (102 oct.) Will pull my Wideband AFM from my Rx7 to check and set A/R Ratio... and i guess i should be good...
soooo Im up to a new fun project... Bet my brother i could turbocharge my Na Miata with under 100 usd.... With random stuff ive got laying arround in my garage from other builds in my past....
So Ive started the build and would like some input from you guys just in case ive forgotten something...
Speclist so far:
Rewelded Stock NA Manifold
K03 KKK Turbocharger
Baily 2 Piston BOV
Cometic Triple plate Head gasket
Apexi SAFC 2
305 CC Toyota Injectors
Downpipe
Oil Feed
Oil Return
Nissan Skyline Gtst intercooler
Intercooler Pipes...
So far so good... any suggestions?
![big grin](https://www.miataturbo.net/images/smilies/biggrin.gif)
Im not a noob to turbocharging cars i just wanted to prove a point... aiming for like 160 hp. so i think ill do fine with like 8 psi of boost!
I Plan on retarding the ignition a couple degrees and fill it with "Ultimate" Fuel (102 oct.) Will pull my Wideband AFM from my Rx7 to check and set A/R Ratio... and i guess i should be good...
#3
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
This is a just for fun project... parts are allready lying around in my garage so no cost... that was the point of the whole idea... just take all spare parts flying arround and make a kit from scratch... still have lots and lots of stuff of skylines / Rx7s and Supras....
Ive built and am currently racing an FD Rx7 with a holset charger and 800 + whp .... i just wanted to let you in in my fun weekend adventure
... So no hate guys....
will post pics tomorrow... today i had some stuff to do on my daily driver so i just disassembled the miatas enginebay and so ill start fabricating and installing tomorrow...
Point is it all started with a crack in my stock manifold... had a look for spare parts and they were 150 usd plus here in germany so i said as a joke f*?! it with that money i can turbo my miata ... instead of just change the manifold... and so it began : D
Just to stay clear I DO NOT BELIEVE that anyone else could boost their miata with that kind of money.... its just that i have all parts aside just sitting there and not being used.... and i know a MS would be awesome but thats not the point... this is just a spare part turbo build... and im having fun with the build
Ive built and am currently racing an FD Rx7 with a holset charger and 800 + whp .... i just wanted to let you in in my fun weekend adventure
![](https://www.miataturbo.net/images/smilies/smile.gif)
will post pics tomorrow... today i had some stuff to do on my daily driver so i just disassembled the miatas enginebay and so ill start fabricating and installing tomorrow...
Point is it all started with a crack in my stock manifold... had a look for spare parts and they were 150 usd plus here in germany so i said as a joke f*?! it with that money i can turbo my miata ... instead of just change the manifold... and so it began : D
Just to stay clear I DO NOT BELIEVE that anyone else could boost their miata with that kind of money.... its just that i have all parts aside just sitting there and not being used.... and i know a MS would be awesome but thats not the point... this is just a spare part turbo build... and im having fun with the build
![big grin](https://www.miataturbo.net/images/smilies/biggrin.gif)
#4
Cpt. Slow
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (25)
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,360
Total Cats: 1,184
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The Apexi is sketchy, but Concealer will love you for it, and if the AFRs are good, I suppose why not. I'm assuming you aren't expecting MS level performance out of a $100 build anyways.
If you have good compression, I wouldn't bother with the head gasket, OEM head gaskets are known to be good to high numbers of power, so don't worry about swapping them.
If you have good compression, I wouldn't bother with the head gasket, OEM head gaskets are known to be good to high numbers of power, so don't worry about swapping them.
#6
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
yeah thanks for the input guys.... stock headgasket is actually fine... just had the 3ple gasket hanging on my wall since 2007 when we turbocharged my brothers NB .... and never actually installed it due to him selling the car ...BUT ill take the advice and leave it aside as it saves me a couple of hours worth of work.
Yeah i know the SAFC is not very good but as you said ... im not wanting to push crazy numbers.... or even close to high performance
and i think the safc will do just fine for a low boost setup... And guys to be honest ive spend the last 2 years working on cars for customers and on our Rx7 / Supra / Skyline's ... and it has been a lot of fun, trouble and pain... and it sure is nice for a change to work on something much more simple than Rx7's and Supra's
... brings the old times back and is much easier
...and also less back pain with small turbos...
This will be fun ill keep you guys posted![](https://www.miataturbo.net/images/smilies/smile.gif)
Oh and sry @ dieselmiata ...
heres your cat pic:
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124847-homebrew-diy-budget-build-dsc_05961b5jsj.jpg?dateline=1412201631)
This is CAT... thats her name actually... my gf found her on the streets in greece as a dying kitten and send me a picture on my phone and asked what to do.... well long story short we took her ... and i couldnt come up with a name... so i called her cat... and as weeks passed and i got used to cat.... it stayed cat....
Yeah i know the SAFC is not very good but as you said ... im not wanting to push crazy numbers.... or even close to high performance
![](https://www.miataturbo.net/images/smilies/smile.gif)
![](https://www.miataturbo.net/images/smilies/smile.gif)
![big grin](https://www.miataturbo.net/images/smilies/biggrin.gif)
This will be fun ill keep you guys posted
![](https://www.miataturbo.net/images/smilies/smile.gif)
Oh and sry @ dieselmiata ...
heres your cat pic:
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124847-homebrew-diy-budget-build-dsc_05961b5jsj.jpg?dateline=1412201631)
This is CAT... thats her name actually... my gf found her on the streets in greece as a dying kitten and send me a picture on my phone and asked what to do.... well long story short we took her ... and i couldnt come up with a name... so i called her cat... and as weeks passed and i got used to cat.... it stayed cat....
#7
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
~15 years ago I installed larger injectors into my turbocharged 1995 Escort GT (1.8 BP) and used an S-AFC (2nd gen I think) to pull fuel at idle and low throttle. It worked even better after I substituted a MAP sensor in place of the throttle input. If you aren't looking for more than 14.7 psi, grab a MAP sensor and tune for it instead. That way, fuel will follow the pressure increase instead of your throttle input. The other thing you'll want is an O2 sensor clamp so the OEM ECU doesn't try to pull fuel. I didn't use one and there were some times when I could tell the ECU was fighting and there would be a dead, lean spot before sudden acceleration. I only had a narrow band A/F meter and tuned using that and the EGT temps. Weirdly, the engine lasted but most likely because I was running rich, too rich for maximum power but it ran pretty well and was cheap! Only time I ran it at a drag track I repeatedly hit 97 mph and low 14s in the quarter mile with poor traction off the line (all season tires) and slow reaction and 60 ft. times. I had a hybrid Mazda GTX turbo and Thunderbird cold side but the thing was TINY and restrictive. Power started dropping off around 5500-6000 RPM.
...just a thought. These days I wouldn't mess with the S-AFC since there are inexpensive ECUs that work MUCH better. In the late 90s there weren't many options and they were all quite expensive and complicated to tune.
...just a thought. These days I wouldn't mess with the S-AFC since there are inexpensive ECUs that work MUCH better. In the late 90s there weren't many options and they were all quite expensive and complicated to tune.
#9
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Thanks a lot for the info! Ive got a spare map sensor of an FC3s Rx7 so i guess ill try and use that ... to be honest i would never spend money on a safc... i have messed around with them for quite some years.. when i first started modifying cars they were pretty common in greece...I even remember buying one for my brother for his NB Turbo setup .... BIG MISTAKE... resold it immediatly and went with a ms1... as the only thing we were bothered about was fuel...but after learning abit about ignition and how important it can be ... the safc only does a halfa*s job... you would have to spend at least the same amount of money again for an ignition controller...plus thats just a very small portion of what else you miss out on with a piggyback... and with that summed up you could buy a MS or similiar.... its just not worth spending money on that route... there is no point... and i can not state this enough.... as i know a lot of newbie people get on here who get excited and try to do it the same way im going to do it after i prove my point and it works...
.
DO NOT DO THIS! Dont build a setup like im doing! Do it the right way... I just have to much time on my hands... a lot of turbo parts in my garage from past projects... and i am trying to win a bet...aaand Im running a car business so if anything goes wrong i have no problem with pulling the engine... and even if everything goes "ok" .... Ill propably remove the engine in a couple of weeks and do it right all over again...
This is just supposed to be a fun project and i like challanges
and winning
.
DO NOT DO THIS! Dont build a setup like im doing! Do it the right way... I just have to much time on my hands... a lot of turbo parts in my garage from past projects... and i am trying to win a bet...aaand Im running a car business so if anything goes wrong i have no problem with pulling the engine... and even if everything goes "ok" .... Ill propably remove the engine in a couple of weeks and do it right all over again...
This is just supposed to be a fun project and i like challanges
![](https://www.miataturbo.net/images/smilies/smile.gif)
![big grin](https://www.miataturbo.net/images/smilies/biggrin.gif)
#12
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
really?? Is there so much difference from na 1.6 to nb? I once sold an NB Head to some guy with an NA ....he swore it would fit with no issues... but as said earlier i guess ill leave it aside for now... and focus on the rest... but im still interested in what differences there are from NA to NB B6 block...
#13
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
I like this thread. 99% of "budget" builds are broke kids masquerading as just ******* around when they are dead serious about trying to slap together ebay turbos and taking shortcuts because of a lack of money/education. And then they get pissed when their **** blows up.
You seem genuine about doing this as a "Don't try this at home/trying to win a bet" build knowing full well it will probably blow up.
Can't wait to see this thing "running".
#16
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
$100 you say?
look no further for inspiration!
The FrankenMiata Geek Hub > MotoIQ - Automotive Tech, Project Cars, Performance & Motorsports
look no further for inspiration!
The FrankenMiata Geek Hub > MotoIQ - Automotive Tech, Project Cars, Performance & Motorsports
#17
Senior Member
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (2)
Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 520
Total Cats: 27
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Think I have a JR boost timing controller that may work for you. I'll look into it. I'll hook you up for just shipping if it won't break your budget. Let me check it out and I'll get back to you if you are interested.
#18
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
@williams805
Yessss that would be awesome
...

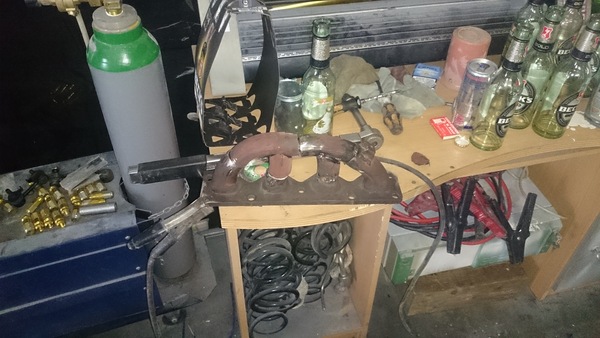

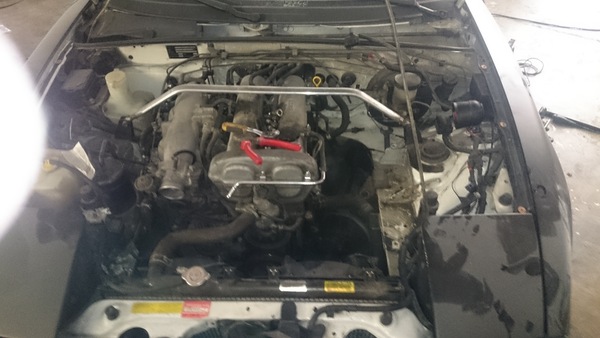

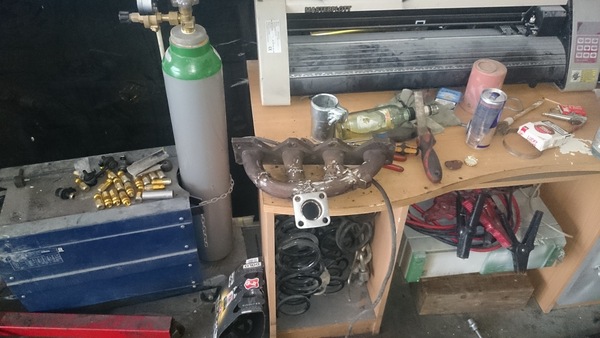

So i got some work done today, didnt have too much time though as i had other stuff to take care of unfortunatly... anyways i mocked up a ghetto turbomanifold of oem manifold parts

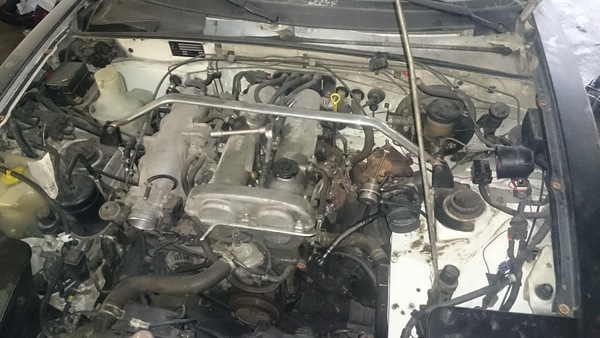

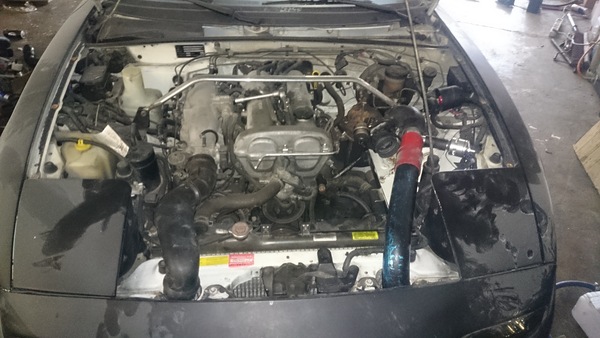

Turbo is sitting good enough clearance for downpipe and whatever... the brake line is quite near the exhausthousing but i will isolate that just to be sure...
I had kind of bad luck today as my welding tip was bend and as i was in a hurry i did not get a new one so it was a pain in the *** to weld everything up ... f*/+ed a few spots up a couple of time... grinded over and welded again... and again and again.... well atleast now the welds are ok and i think im going to paint it black with manifold spray just to not catch all the looks with the rust / shiny grind combo effect that looks hideous ... also checked for an intercooler route... Oil feed is done ... need to tap the oilpan next and weld the downpipe ...
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124872-homebrew-diy-budget-build-dsc_077816di70.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124873-homebrew-diy-budget-build-dsc_0779173i7k.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124874-homebrew-diy-budget-build-dsc_07811cniba.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124875-homebrew-diy-budget-build-dsc_07821ljcgk.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124876-homebrew-diy-budget-build-dsc_07841hccf3.jpg?dateline=1412264860)
ps... sorry for the dusty pics but im also working on the rear fenders and grinding the hell out of em ... so my whole garage is a bit dusty at the moment
Yessss that would be awesome
![](https://www.miataturbo.net/images/smilies/smile.gif)
So i got some work done today, didnt have too much time though as i had other stuff to take care of unfortunatly... anyways i mocked up a ghetto turbomanifold of oem manifold parts
![](https://www.miataturbo.net/images/smilies/smile.gif)
I had kind of bad luck today as my welding tip was bend and as i was in a hurry i did not get a new one so it was a pain in the *** to weld everything up ... f*/+ed a few spots up a couple of time... grinded over and welded again... and again and again.... well atleast now the welds are ok and i think im going to paint it black with manifold spray just to not catch all the looks with the rust / shiny grind combo effect that looks hideous ... also checked for an intercooler route... Oil feed is done ... need to tap the oilpan next and weld the downpipe ...
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124872-homebrew-diy-budget-build-dsc_077816di70.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124873-homebrew-diy-budget-build-dsc_0779173i7k.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124874-homebrew-diy-budget-build-dsc_07811cniba.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124875-homebrew-diy-budget-build-dsc_07821ljcgk.jpg?dateline=1412264860)
![](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/124876-homebrew-diy-budget-build-dsc_07841hccf3.jpg?dateline=1412264860)
ps... sorry for the dusty pics but im also working on the rear fenders and grinding the hell out of em ... so my whole garage is a bit dusty at the moment
![](https://www.miataturbo.net/images/smilies/smile.gif)
#20
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The Apexi is sketchy, but Concealer will love you for it, and if the AFRs are good, I suppose why not. I'm assuming you aren't expecting MS level performance out of a $100 build anyways.
If you have good compression, I wouldn't bother with the head gasket, OEM head gaskets are known to be good to high numbers of power, so don't worry about swapping them.
If you have good compression, I wouldn't bother with the head gasket, OEM head gaskets are known to be good to high numbers of power, so don't worry about swapping them.
I won't love the SAFC, because it's unlikely to operate on the same voltage range as the oem MAF/AFM/whatever the **** OP's car had from factory.
They don't work well on Mazdas. Period.
Oh wait, this is a 1.6 car? SAFC definitely won't work well, then. SAFC wants 0-5v. Mazda flappers aren't anywhere close to that range.
