Exhaust diameter 2.5" vs 3"... Noticeable difference?
#24
Apart from the slightly odd rear muffler design, with the 'side entry' into what looks to be an expansion chamber, the rest of the system is 'straight through'. I just stuck a borescope up the tailpipe in the name of science (don't we all claim that? ) and it looks like a standard non baffled silencer...
#25
that sharp corner is a significant restriction, and so is the catalytic converter that most (all?) of their systems run. And by significant I mean measurable and repeatable, not some astronomical number.
That's why the big Maggie "MT Approved" exhaust setup is so good: it's quieter, AND free-er flowing.
superchargers, esp centri superchargers, basically need to do this to make up for all the power/efficiency they're loosing by spinning the blower.
turbo's don't have this problem, and most people would never want to give up delicious torque for that "flat" power curve peaking at redline.
That's why the big Maggie "MT Approved" exhaust setup is so good: it's quieter, AND free-er flowing.
turbo's don't have this problem, and most people would never want to give up delicious torque for that "flat" power curve peaking at redline.
#26
that sharp corner is a significant restriction, and so is the catalytic converter that most (all?) of their systems run. And by significant I mean measurable and repeatable, not some astronomical number.
That's why the big Maggie "MT Approved" exhaust setup is so good: it's quieter, AND free-er flowing.
That's why the big Maggie "MT Approved" exhaust setup is so good: it's quieter, AND free-er flowing.
When I bought the FM setup in 2009 (!!) there weren't a lot of alternatives available off the shelf, especially in the UK... I've hacked the front half around recently for the tubular mani and V band setup, if there's significant free power I may hack the back half around, as it looks like you can get Magnaflow mufflers over here now...
#29
Elite Member
iTrader: (1)
Join Date: May 2009
Location: Jacksonville, FL
Posts: 5,155
Total Cats: 407
The only way a BP is making 300hp on 9 psi is going to have to be at around 8k rpm or more, and that is probably going to be with cams to make it hold its torque better above 6k rpm where they normally start falling off.
The idea that a really huge turbo is going to make more power for the same amount of boost is a bit of a fallacy. Just because the turbo can flow more doesnt mean that it does, it flows what the engine flows, not the other way around. The only reason you ever do see a big turbo improving power on the same pressure is due to decreased back pressure from the larger turbine and better compressor efficiency; at a higher rpm. More torque at high rpm equals more power.
The torque output is based on the engines displacement, volumetric efficiency, pressure ratio, and charge air temp. Turbo flow is not a factor in the equation, it only influences the other factors.
The idea that a really huge turbo is going to make more power for the same amount of boost is a bit of a fallacy. Just because the turbo can flow more doesnt mean that it does, it flows what the engine flows, not the other way around. The only reason you ever do see a big turbo improving power on the same pressure is due to decreased back pressure from the larger turbine and better compressor efficiency; at a higher rpm. More torque at high rpm equals more power.
The torque output is based on the engines displacement, volumetric efficiency, pressure ratio, and charge air temp. Turbo flow is not a factor in the equation, it only influences the other factors.
#31
Former Vendor
iTrader: (31)
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,103
Peak power is dictated almost entirely by airflow. Boost is a measure of restriction. The two do not correlate linearly. 300whp at 9psi in Tom's setup (which I tuned) is a result of his custom cams and overall system performance which allow for more flow than the stock cams do at the same boost level. In supercharger setups in particular, if you add custom cams which increase airflow (i.e. less flow restriction), boost (a measure of said restriction) will fall every time. Put the same cams in an engine with a large turbo (something like an EFR7163) and you'd see similar power at similarly low boost levels.
#32
Think about this, 300hp =XXX CFM at X,XXX RPM. With stock cams, head and poor flowing intake/exhaust paths you’ll need to increase pressure (boost) to move XXX CFM. With optimized parts it takes less pressure (boost) to achieve the same CFM.
Since 300hp was my goal and I had a fixed variable (Rotrex 30-74 at max RPM) I had no choice but to optimize the rest of the flow path and crank up compression. If I had a good turbo I would have simply turned up the boost to achieve the same. Why spend the money on porting/cams etc when it’s much easier and cheaper to achieve XXX CFM through other means.
#33
Not quite what you were asking for, but I thought it was an interesting datapoint. When I first put my car together I ran a 3" exhaust necked down into a tiny MSM muffler to see what kind of power I could get out of it.

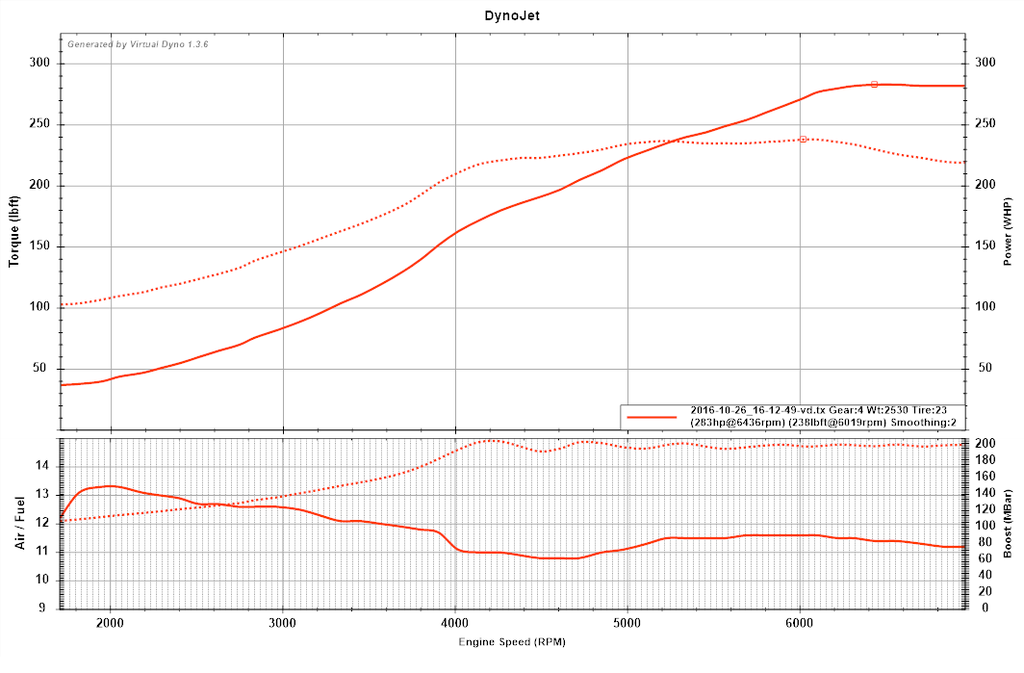

MSM datalogged 283/236 @ 200kpa

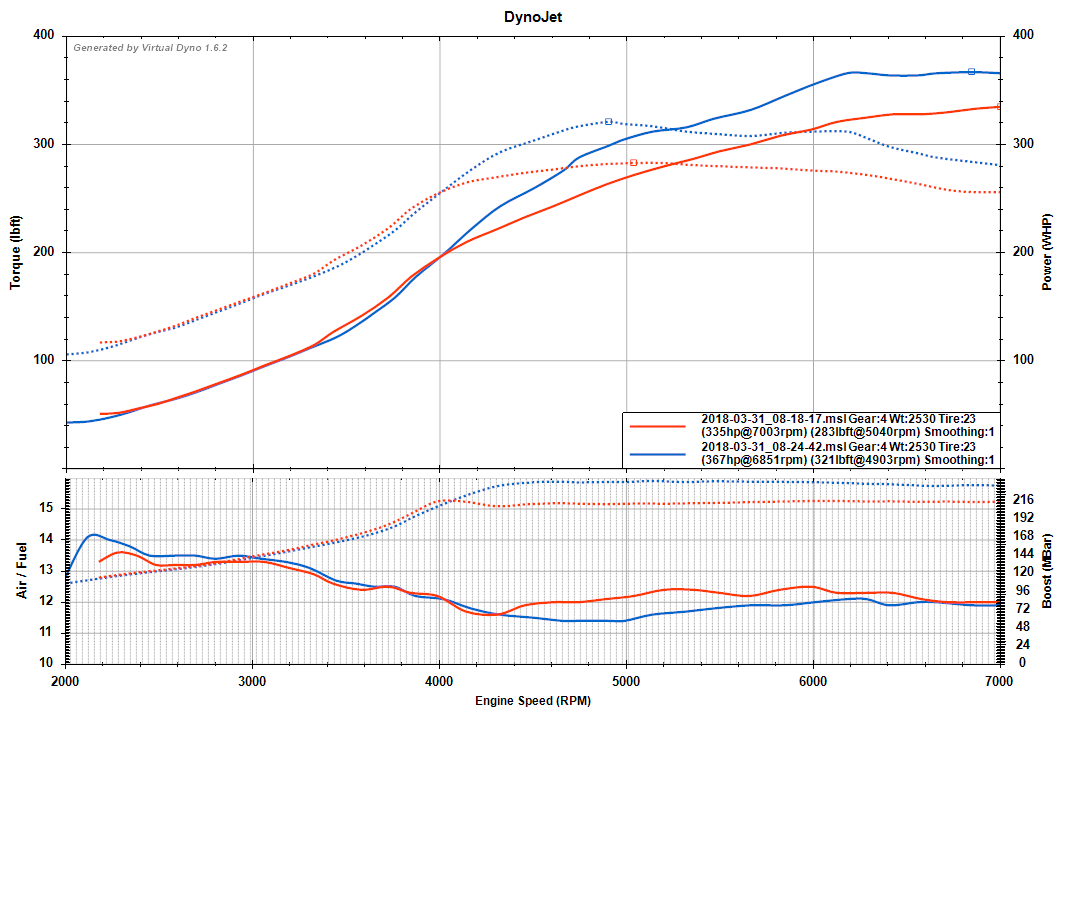

3" datalogged 335/283 @ 210kpa
~50whp gained from a MSM muffler to 3" magnaflow. Just the fact that the MSM muffler would make 283hp makes me feel like a 2.5" can't be too terrible of a restriction at realistic stock motor power levels.
MSM datalogged 283/236 @ 200kpa
3" datalogged 335/283 @ 210kpa
~50whp gained from a MSM muffler to 3" magnaflow. Just the fact that the MSM muffler would make 283hp makes me feel like a 2.5" can't be too terrible of a restriction at realistic stock motor power levels.
#34
The cat I agree on -- the first FM 3" cat I bought was a Magnaflow metal core cat, and flowed very nicely. The warranty replacement for it was a ceramic core cat of a different design and was a significant restriction. Backpressure measurements for all of this are in my build thread.
--Ian
#36
Some shitty person took it away, but I got you Ian.
Also to add to the slightly off topic ls3 comment, since my car is a single exit when I take the burns off (super small 4" muffler, very free flowing) and put on my custom one for the street (triple the volume, about twice the length, and 3" inner diameter) the low end and mid range is noticeable fatter. Seat of the pants, but it is noticeable. Sadly I don't have a dyno sheet to back it up but I may bring my other muffler to the dyno when I go this spring/summer. Just for *****, and science.
Also to add to the slightly off topic ls3 comment, since my car is a single exit when I take the burns off (super small 4" muffler, very free flowing) and put on my custom one for the street (triple the volume, about twice the length, and 3" inner diameter) the low end and mid range is noticeable fatter. Seat of the pants, but it is noticeable. Sadly I don't have a dyno sheet to back it up but I may bring my other muffler to the dyno when I go this spring/summer. Just for *****, and science.
#37
Here, have another
y'all very well might be right. what I've noticed personally is that you feel the torque more with quieter exhaust, and less with loud. but if you end up testing this on the rollers you'll get ALLTHECATS
Also to add to the slightly off topic ls3 comment, since my car is a single exit when I take the burns off (super small 4" muffler, very free flowing) and put on my custom one for the street (triple the volume, about twice the length, and 3" inner diameter) the low end and mid range is noticeable fatter. Seat of the pants, but it is noticeable. Sadly I don't have a dyno sheet to back it up but I may bring my other muffler to the dyno when I go this spring/summer. Just for *****, and science.
#38
Elite Member
iTrader: (1)
Join Date: May 2009
Location: Jacksonville, FL
Posts: 5,155
Total Cats: 407
It could also be that the exhaust restriction helps the too-big collectors and too-big primaries work better at low RPM than they do with a free flowing muffler.
Note: When I say "too big" I mean not optimized for low RPM.
Note: When I say "too big" I mean not optimized for low RPM.
