DIY Downpipe to tailpipe *56k Warning*
#61
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
very nice build indeed. I too made my own SGDP but out of mild steel. I wish I could weld that good LOL.
Are you planing on putting an exhaust tip on it? If not you might want to extend your tail pipe a little. In one picture it apears to be sitting a little to far under the car, and you will burn the rear bumper cover.
Are you planing on putting an exhaust tip on it? If not you might want to extend your tail pipe a little. In one picture it apears to be sitting a little to far under the car, and you will burn the rear bumper cover.
#63
Elite Member
Thread Starter
iTrader: (7)
Join Date: Jan 2007
Location: Renton Washington
Posts: 1,731
Total Cats: 4
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Well finally done with it. Got the hangers welded on and painted with high temp paint.

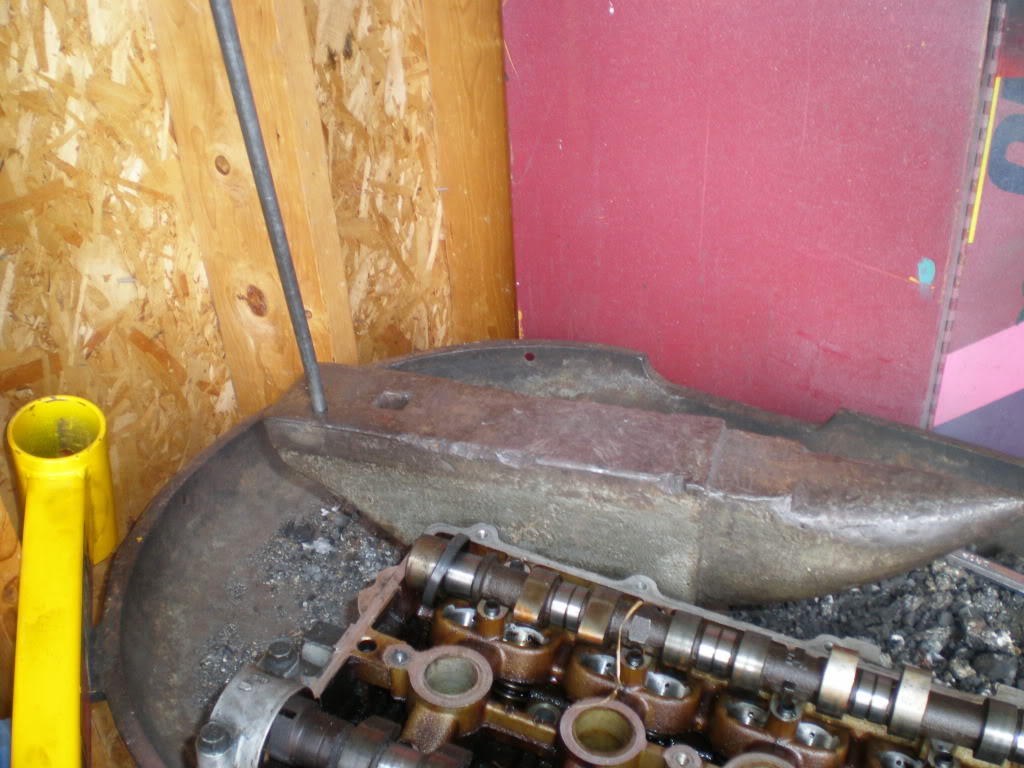

Heres how i bent the exhaust hangers ( anvils ftw )
![Name: P5180025.jpg
Views: 237
Size: 148.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205771d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180025.jpg)

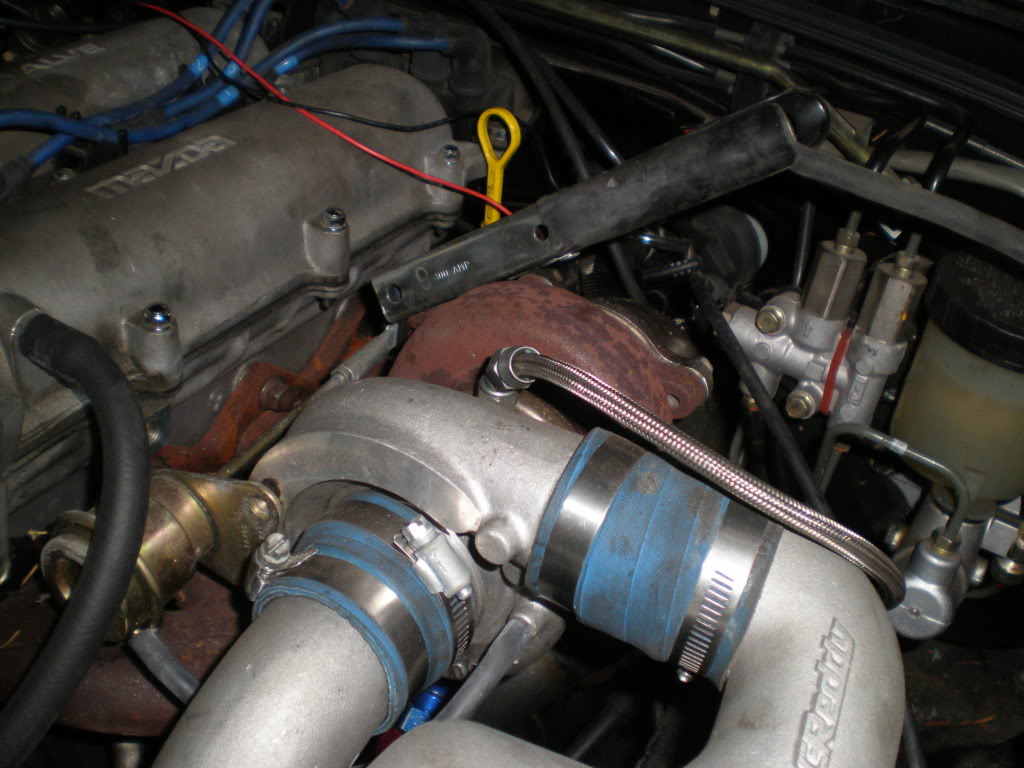

I decided the best route to make sure the hangers would fit is to weld them while they are attached ( yes i can weld underneith a car )
![Name: P5180026.jpg
Views: 175
Size: 133.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205772d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180026.jpg)

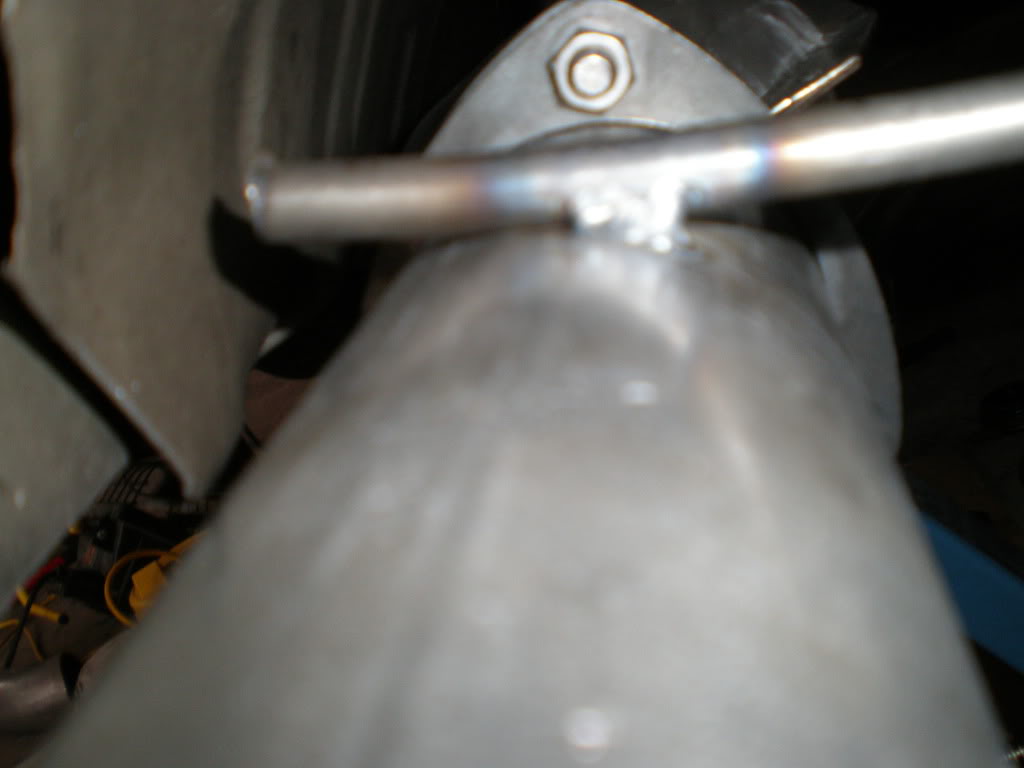

Proof!
![Name: P5180028.jpg
Views: 155
Size: 60.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205773d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180028.jpg)

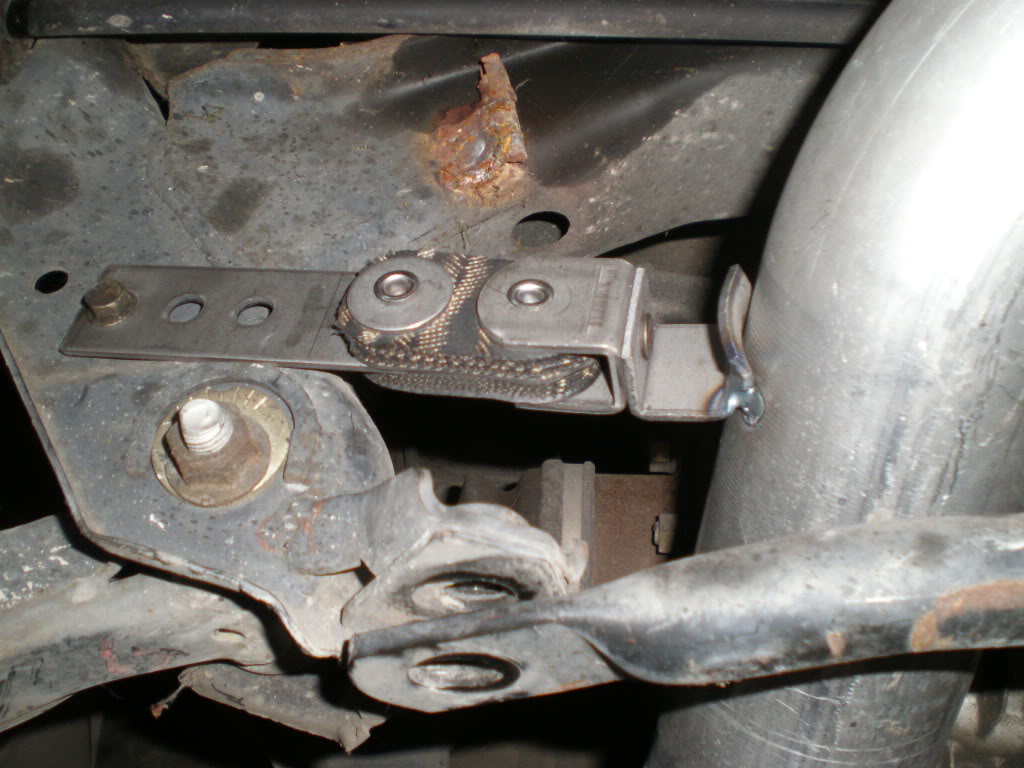

Heres what ive seen lots of people doing on there exhaust builds so i decided to do it too
![Name: P5180030.jpg
Views: 222
Size: 128.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205774d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180030.jpg)
After i welded them up pretty solid i pulled it out and put the final welds on her
![Name: P5180032.jpg
Views: 153
Size: 116.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205775d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180032.jpg)

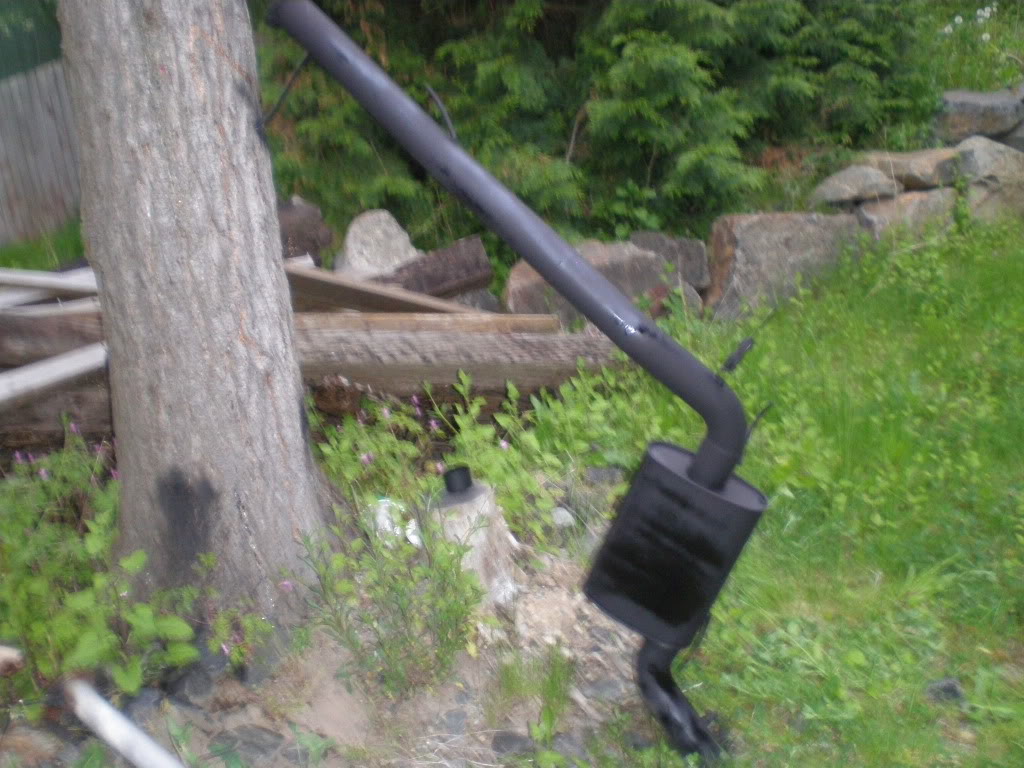

Painted!
![Name: P5180033.jpg
Views: 287
Size: 157.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205776d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180033.jpg)

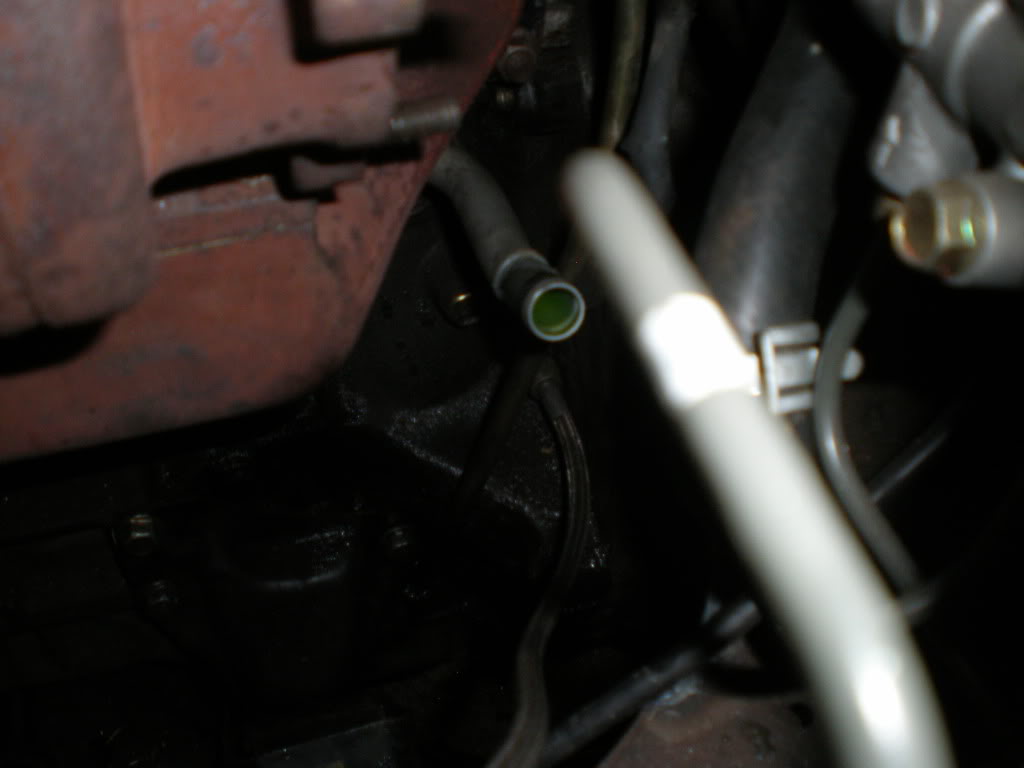

I decided to move the heater line a bit to give my downpipe some room
![Name: P5180035.jpg
Views: 148
Size: 61.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205777d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180035.jpg)

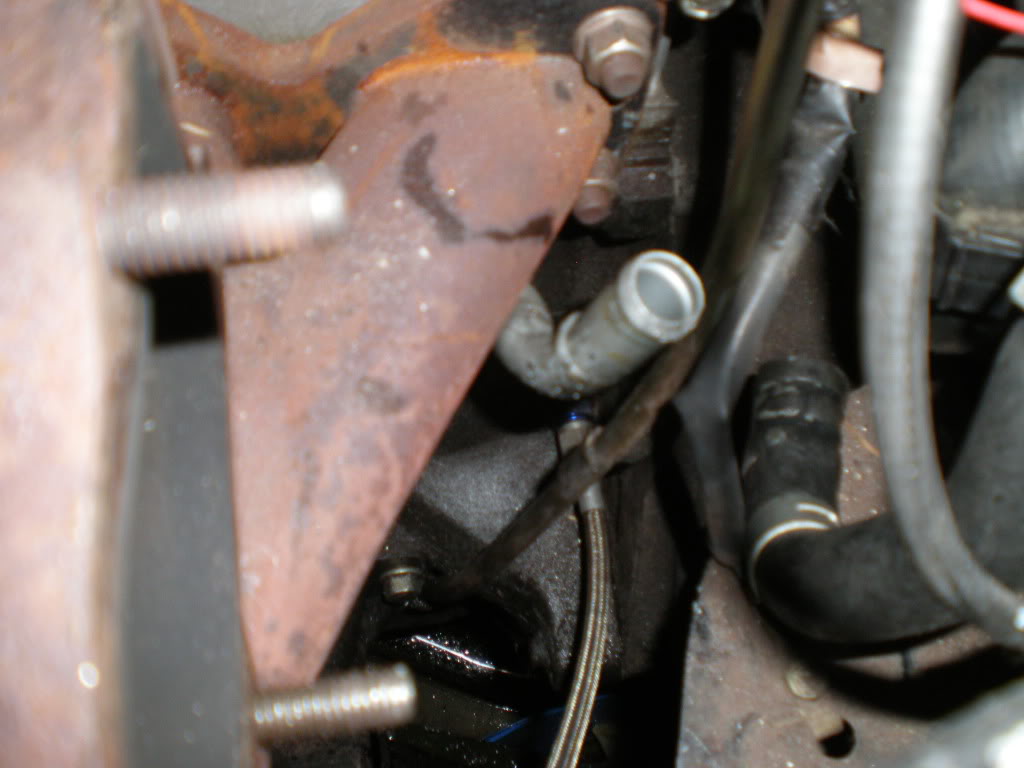

Little bit more!
![Name: P5180036.jpg
Views: 167
Size: 89.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205778d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180036.jpg)

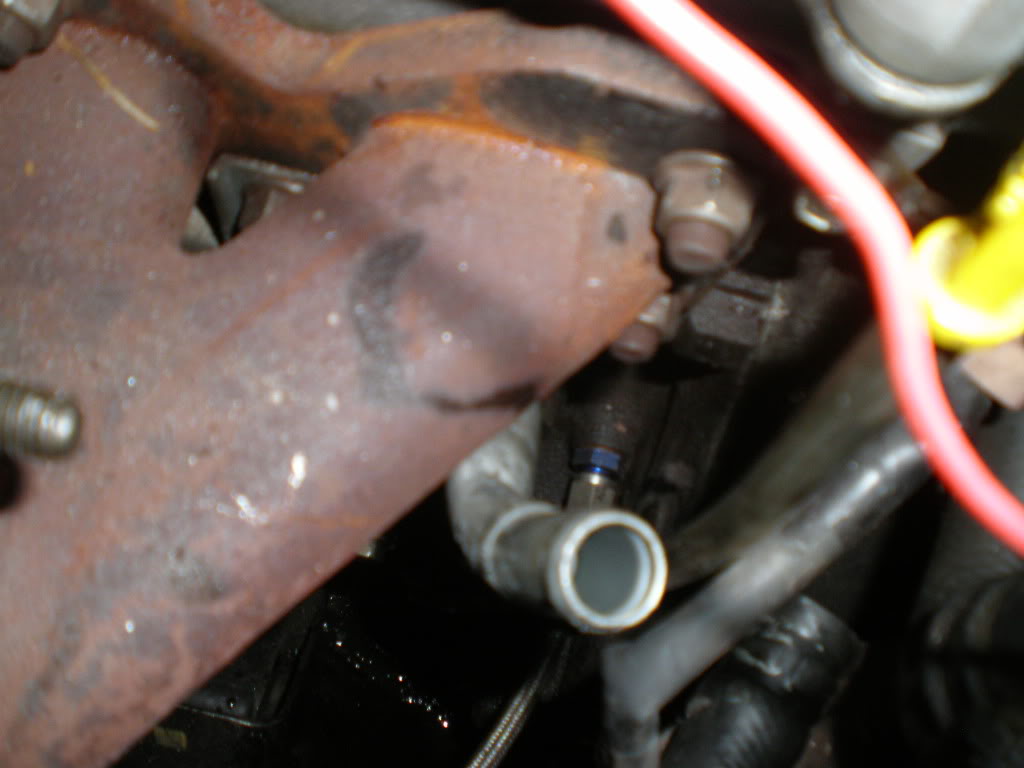

Ahh **** too much. Its pinched now
. Gives me a reason to pull off the manifold to make a better one. Also gonna clean out them combustion chambers for some ponies
![Name: P5180037.jpg
Views: 295
Size: 82.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205779d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180037.jpg)
Heres the video. Enjoy
Heres how i bent the exhaust hangers ( anvils ftw )
![Name: P5180025.jpg
Views: 237
Size: 148.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205771d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180025.jpg)
I decided the best route to make sure the hangers would fit is to weld them while they are attached ( yes i can weld underneith a car )
![Name: P5180026.jpg
Views: 175
Size: 133.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205772d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180026.jpg)
Proof!
![Name: P5180028.jpg
Views: 155
Size: 60.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205773d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180028.jpg)
Heres what ive seen lots of people doing on there exhaust builds so i decided to do it too
![Name: P5180030.jpg
Views: 222
Size: 128.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205774d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180030.jpg)

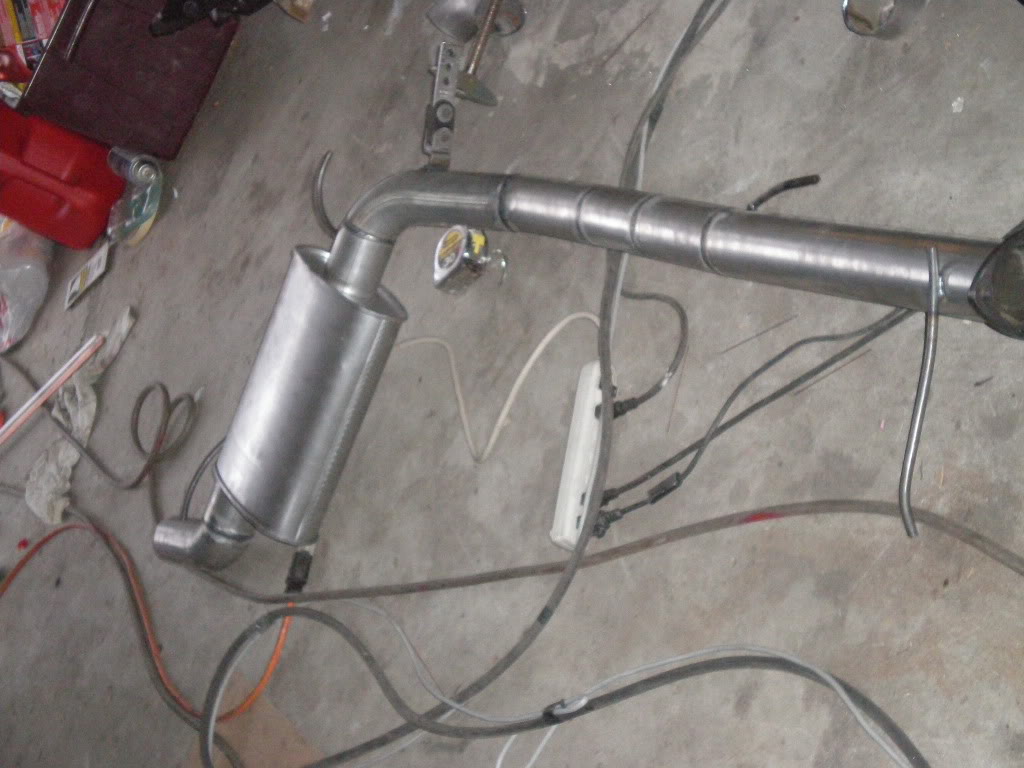

After i welded them up pretty solid i pulled it out and put the final welds on her
![Name: P5180032.jpg
Views: 153
Size: 116.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205775d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180032.jpg)
Painted!
![Name: P5180033.jpg
Views: 287
Size: 157.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205776d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180033.jpg)
I decided to move the heater line a bit to give my downpipe some room
![Name: P5180035.jpg
Views: 148
Size: 61.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205777d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180035.jpg)
Little bit more!
![Name: P5180036.jpg
Views: 167
Size: 89.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205778d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180036.jpg)
Ahh **** too much. Its pinched now
![vash](https://www.miataturbo.net/images/smilies/vash.gif)
![Name: P5180037.jpg
Views: 295
Size: 82.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/205779d1501252435-diy-downpipe-tailpipe-%2A56k-warning%2A-p5180037.jpg)
Heres the video. Enjoy
![](http://i692.photobucket.com/albums/vv283/SKmetalworks/th_P5180023.jpg)
#66
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Incredibly impressed with both your welding and your work.
XSPower exhausts have worse welds than yours, you done a proper job there.
May I ask if you have a JPG/BMP/etc of your td04 downpipe flange/mounting?
I'm doing a similar project over the summer and was hoping to ease myself from some of the drawing
XSPower exhausts have worse welds than yours, you done a proper job there.
May I ask if you have a JPG/BMP/etc of your td04 downpipe flange/mounting?
I'm doing a similar project over the summer and was hoping to ease myself from some of the drawing
