So let me start by asking forgiveness for the number of pictures I'm about to post.
The car will run X-prepared in solo2. The engine and drivetrain are exactly the same as when the car was purchased, which is a Greddy kit with a small front mount, bipes, and 1.8 injectors. I do have a 1.8 rearend set up waiting to go in, but am waiting on the OS Ginken diff to arrive. Eventually it will get a full rebuild, MS, and at least 750 injectors running straight e85.
The car as it sits in the final picture weighs 1666lbs with fuel. It's a little front heavy right now, but nothing will happen to address that until the new rear is under it and the wing is on the back.
So here goes....

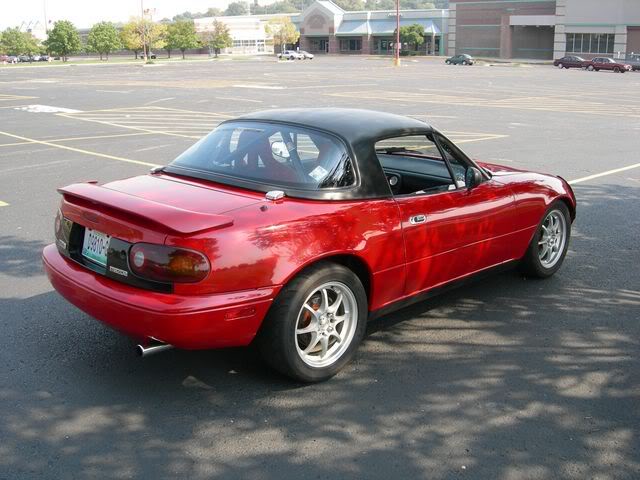

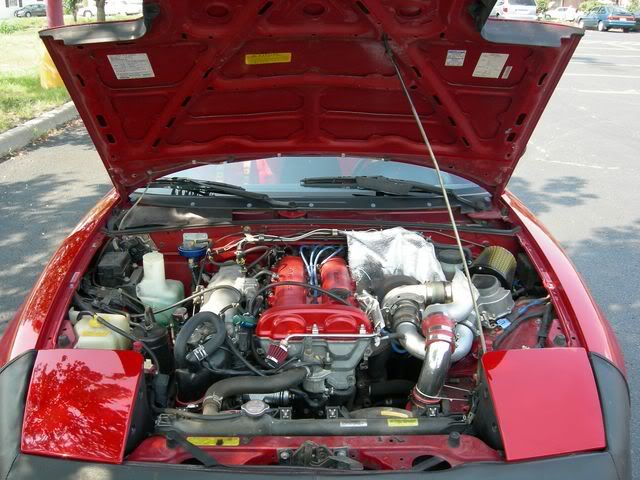

The car as purchased on 9/29/08
![](http://i432.photobucket.com/albums/qq49/omaharam/01.jpg)
![Name: 03.jpg
Views: 522
Size: 58.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206708d1501254078-build-thread-my-xp-car-03.jpg)
![Name: 07.jpg
Views: 488
Size: 68.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206709d1501254078-build-thread-my-xp-car-07.jpg)

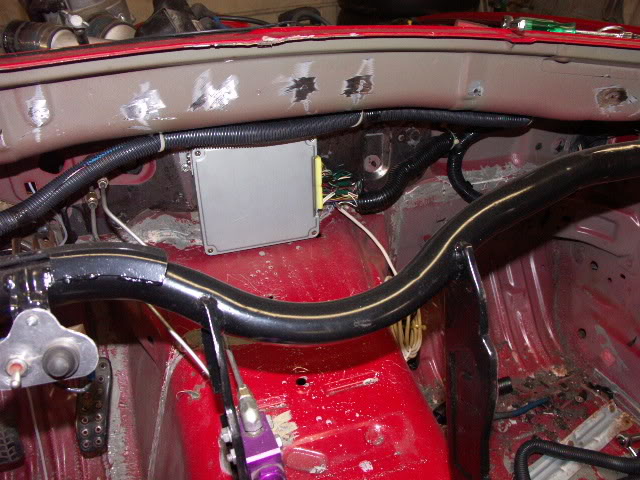

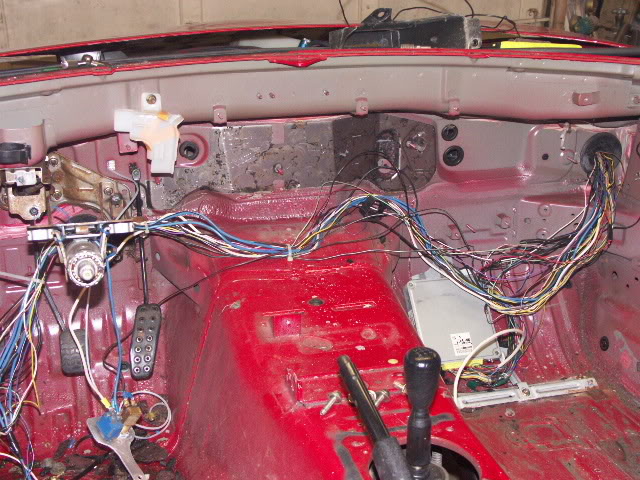

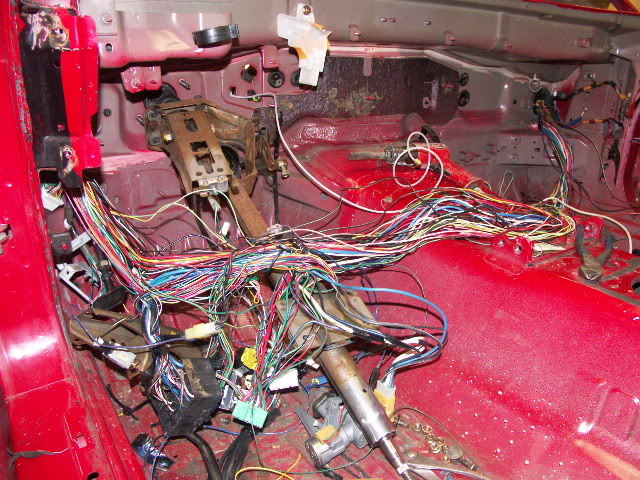

Removed a lot of weight in wiring.
![Name: 11.jpg
Views: 486
Size: 153.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206710d1501254078-build-thread-my-xp-car-11.jpg)
![Name: 13.jpg
Views: 492
Size: 135.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206711d1501254078-build-thread-my-xp-car-13.jpg)
![Name: 15.jpg
Views: 464
Size: 118.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206712d1501254078-build-thread-my-xp-car-15.jpg)

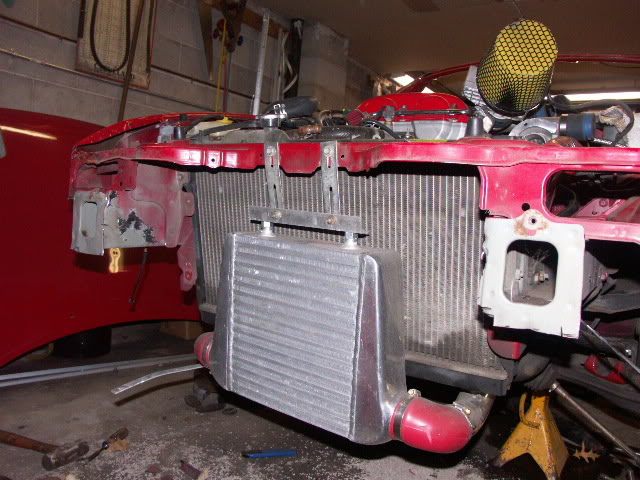

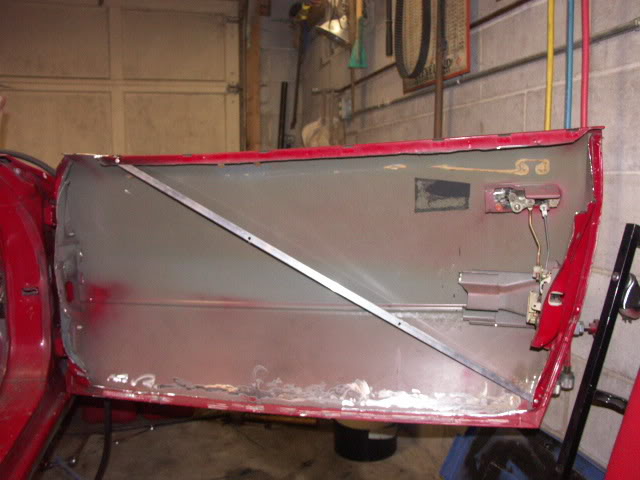

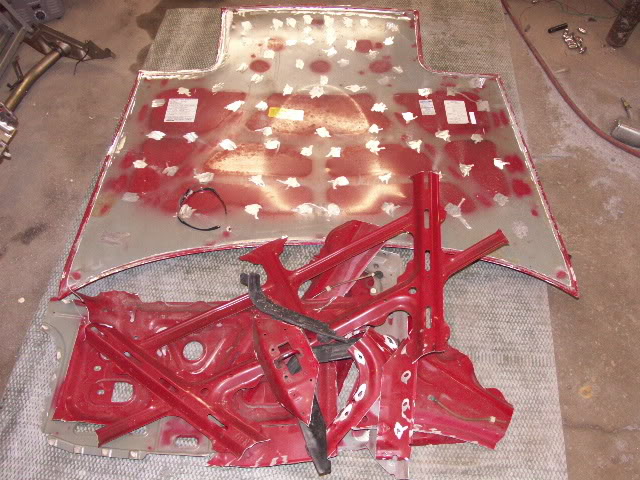

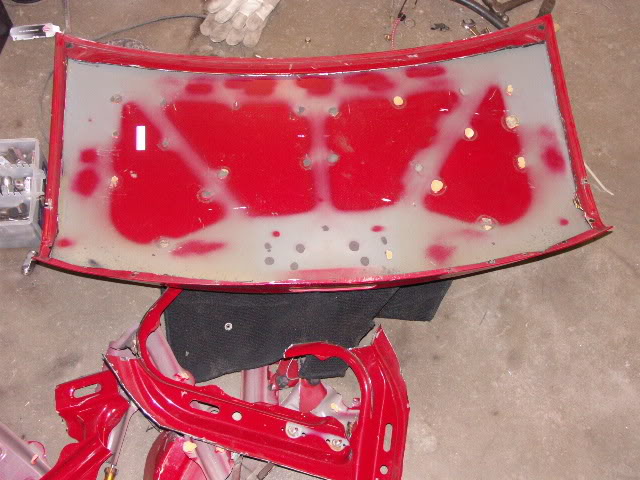

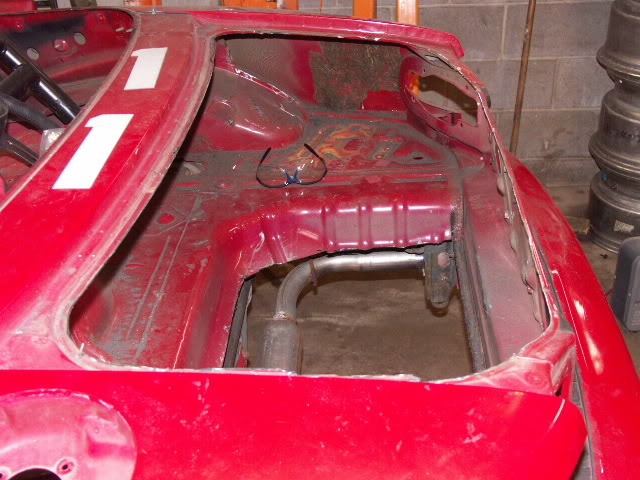

Weight savings projects...
![Name: 24.jpg
Views: 459
Size: 129.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206713d1501254078-build-thread-my-xp-car-24.jpg)
![Name: 19.jpg
Views: 465
Size: 108.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206714d1501254078-build-thread-my-xp-car-19.jpg)
![Name: 22.jpg
Views: 801
Size: 108.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206715d1501254078-build-thread-my-xp-car-22.jpg)
![Name: 25.jpg
Views: 474
Size: 84.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206716d1501254078-build-thread-my-xp-car-25.jpg)
![Name: 27.jpg
Views: 458
Size: 117.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206717d1501254078-build-thread-my-xp-car-27.jpg)

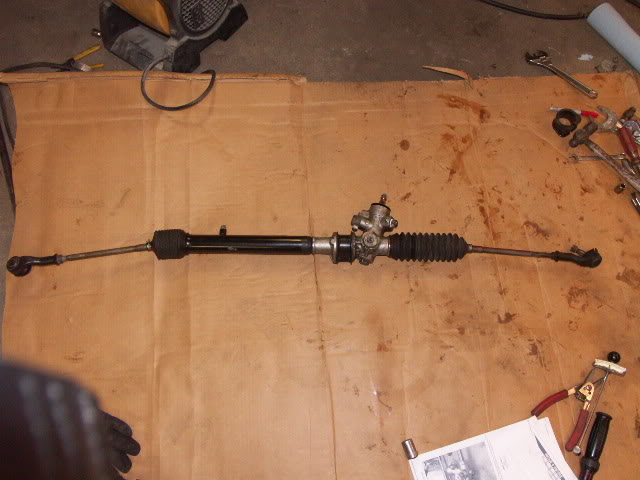

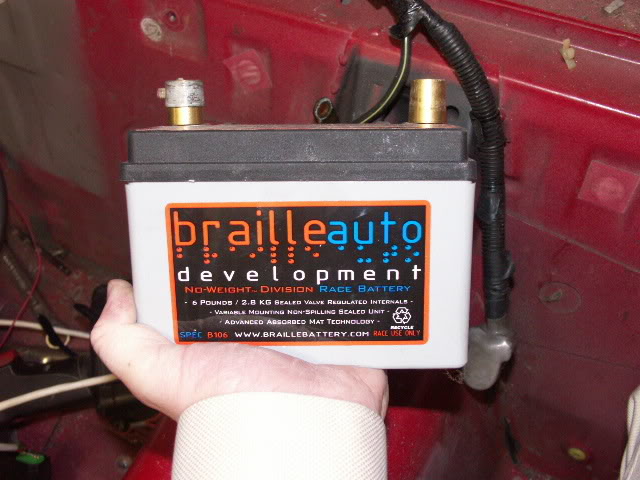

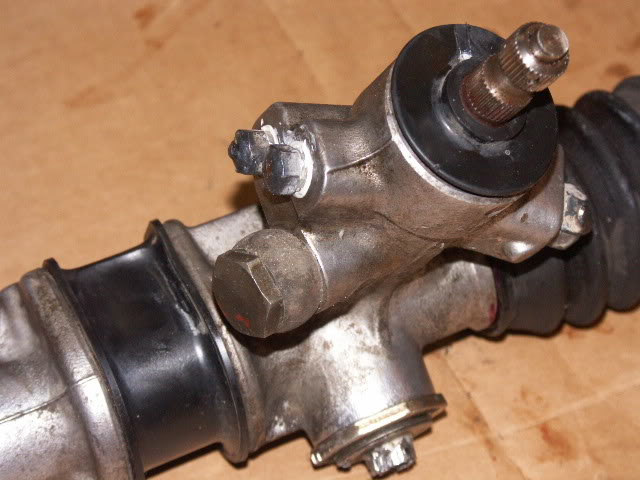

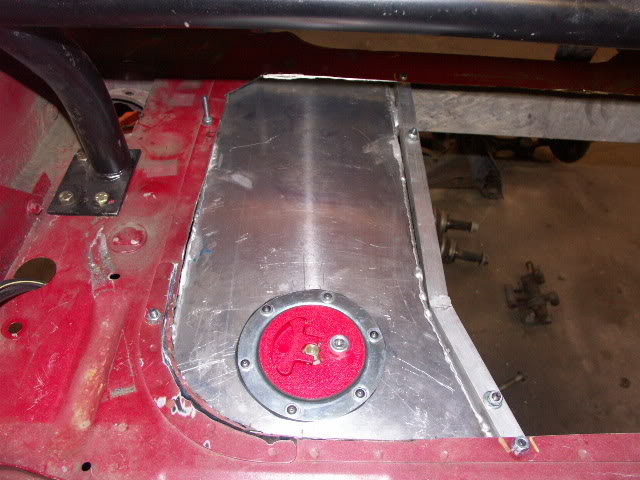

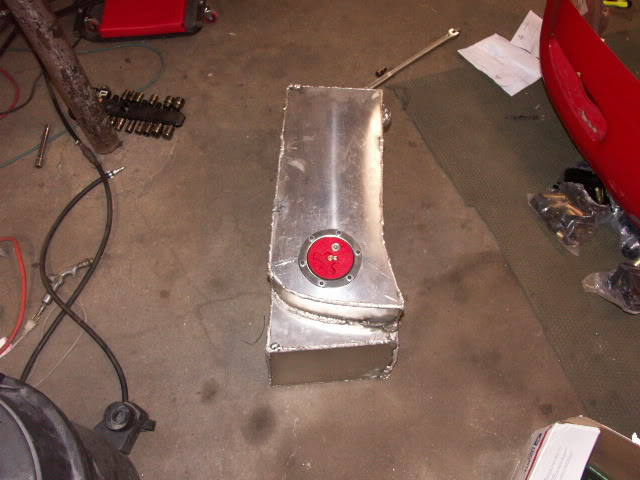

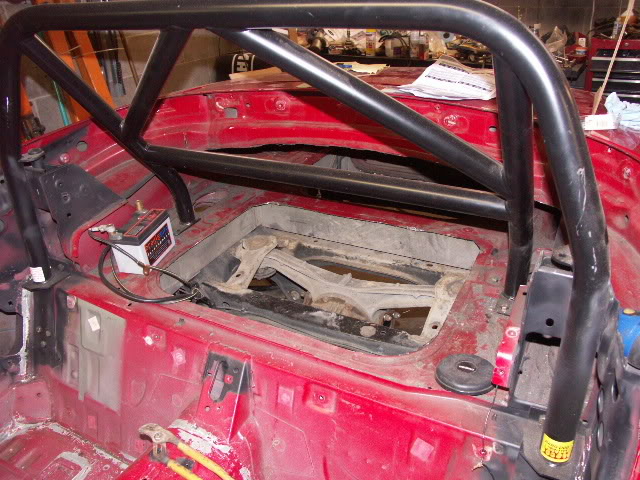

Gas tank replacement, battery, and de-powered rack
![Name: 28.jpg
Views: 605
Size: 128.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206718d1501254078-build-thread-my-xp-car-28.jpg)
![Name: 30.jpg
Views: 501
Size: 88.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206719d1501254078-build-thread-my-xp-car-30.jpg)
![Name: PICT0079.jpg
Views: 525
Size: 100.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206720d1501254078-build-thread-my-xp-car-pict0079.jpg)
![Name: 17.jpg
Views: 455
Size: 97.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206721d1501254078-build-thread-my-xp-car-17.jpg)
![Name: 31.jpg
Views: 472
Size: 122.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206722d1501254078-build-thread-my-xp-car-31.jpg)
![Name: 32.jpg
Views: 468
Size: 84.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206723d1501254078-build-thread-my-xp-car-32.jpg)
![Name: 33.jpg
Views: 456
Size: 89.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206724d1501254078-build-thread-my-xp-car-33.jpg)

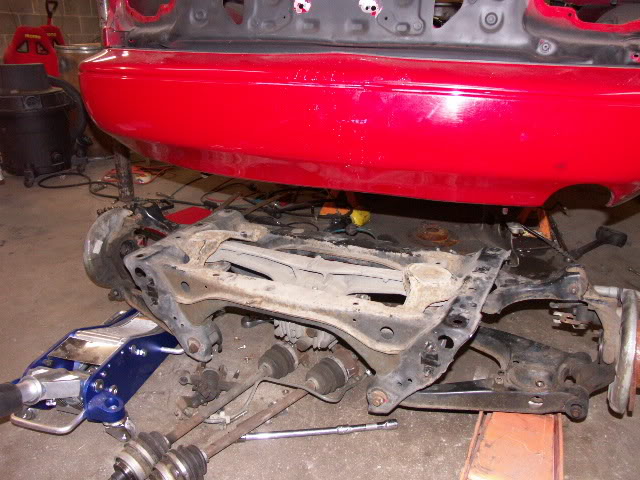

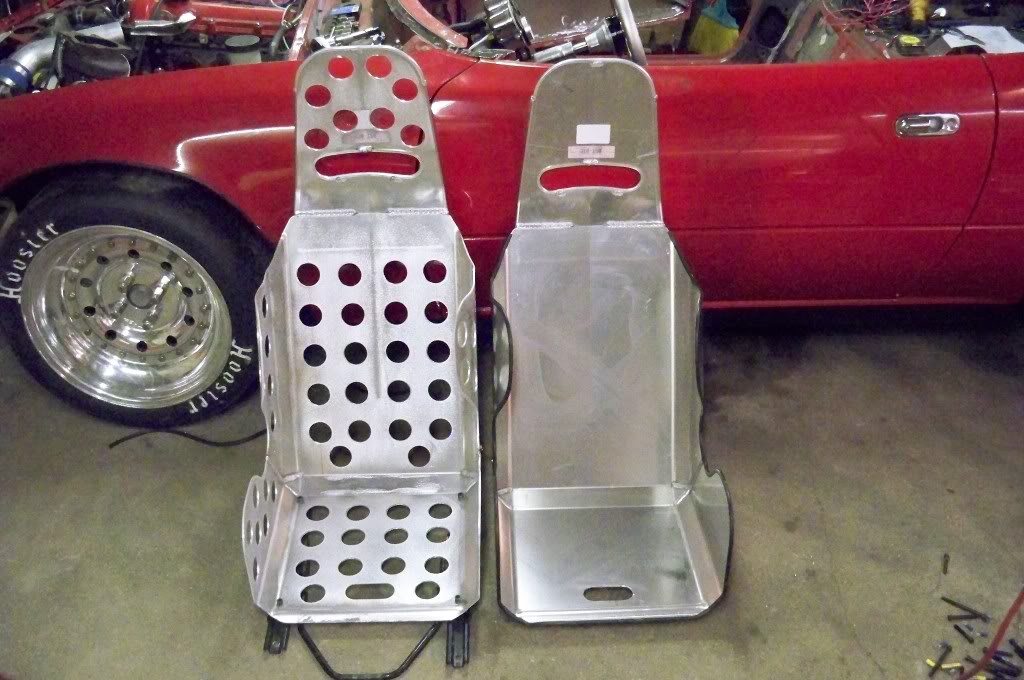

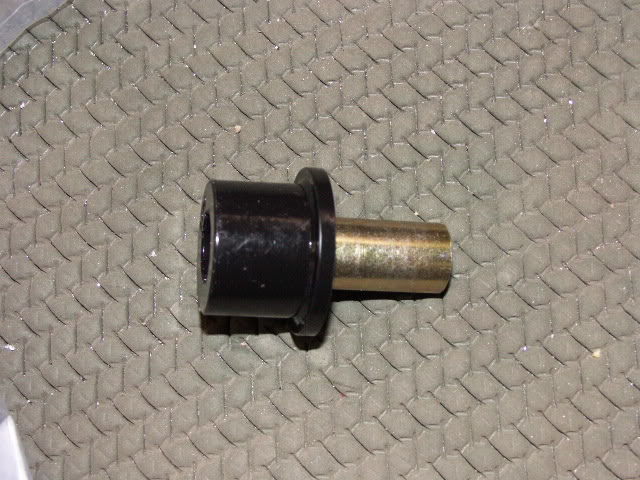

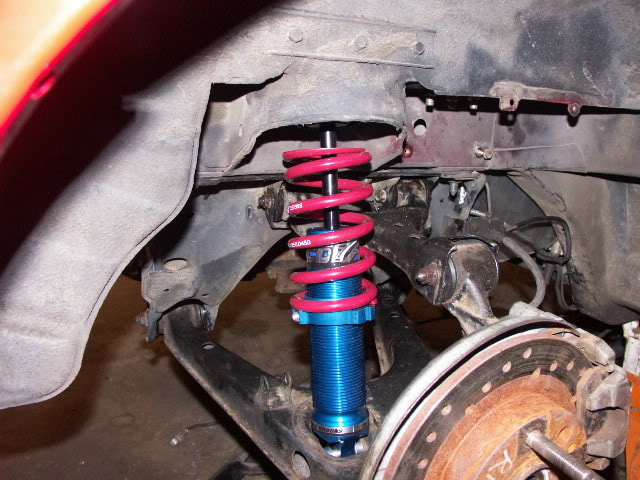

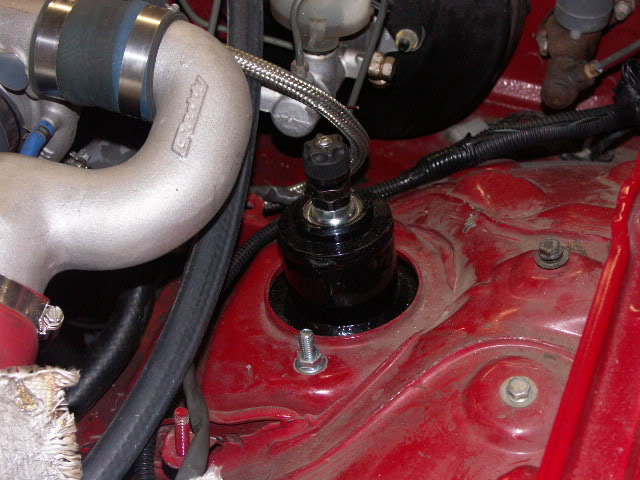

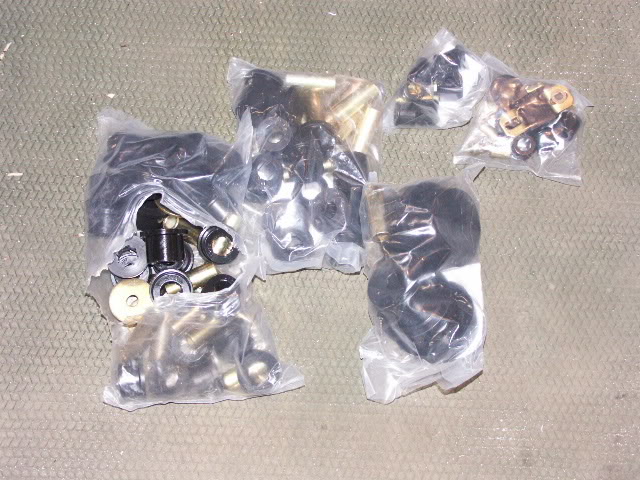

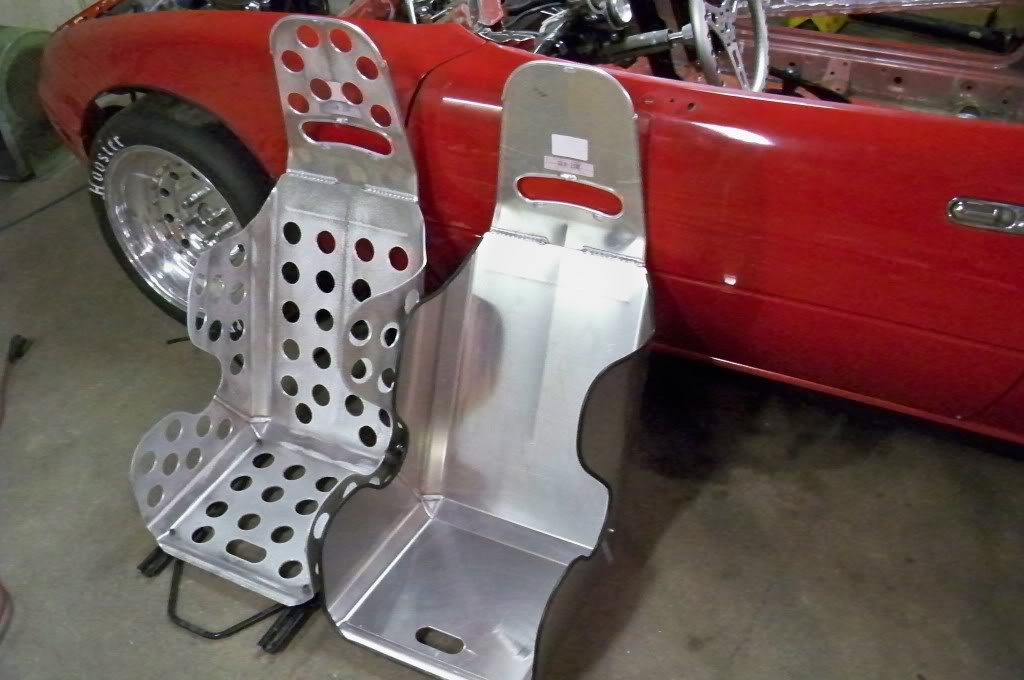

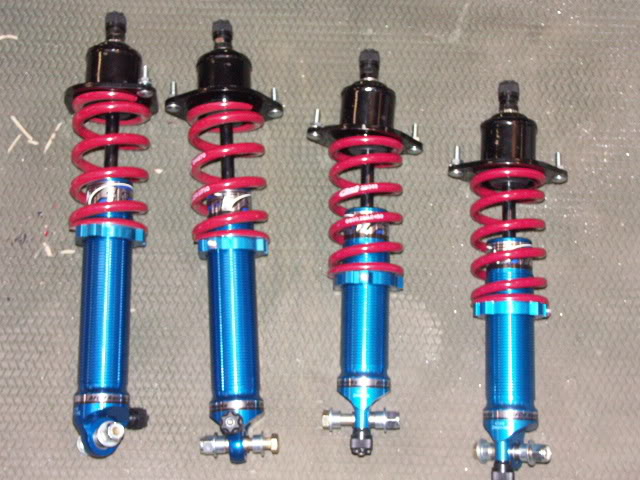

Bushings, Afco's with custom hats, and seats with a lot of time in them.
![Name: 37.jpg
Views: 461
Size: 124.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206725d1501254078-build-thread-my-xp-car-37.jpg)
![Name: 38.jpg
Views: 456
Size: 118.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206726d1501254078-build-thread-my-xp-car-38.jpg)
![Name: 36.jpg
Views: 475
Size: 114.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206727d1501254078-build-thread-my-xp-car-36.jpg)
![Name: 39.jpg
Views: 463
Size: 105.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206728d1501254078-build-thread-my-xp-car-39.jpg)
![Name: PICT0084.jpg
Views: 486
Size: 116.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206729d1501254078-build-thread-my-xp-car-pict0084.jpg)
![Name: PICT0082.jpg
Views: 471
Size: 104.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206730d1501254078-build-thread-my-xp-car-pict0082.jpg)
![Name: 100_1632.jpg
Views: 459
Size: 97.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206731d1501254078-build-thread-my-xp-car-100_1632.jpg)
![Name: 100_1631.jpg
Views: 491
Size: 132.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206732d1501254078-build-thread-my-xp-car-100_1631.jpg)

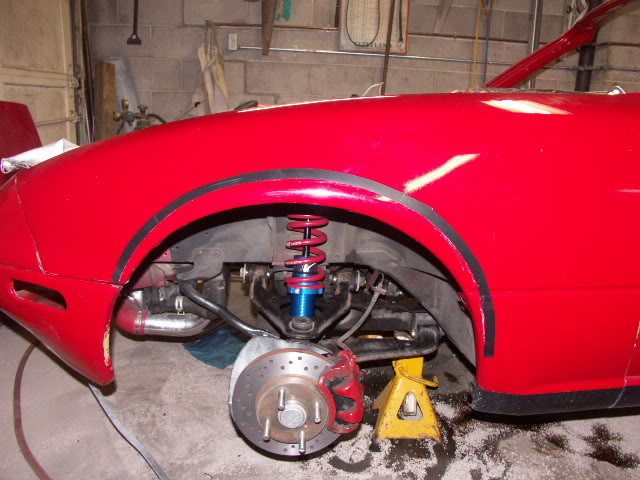

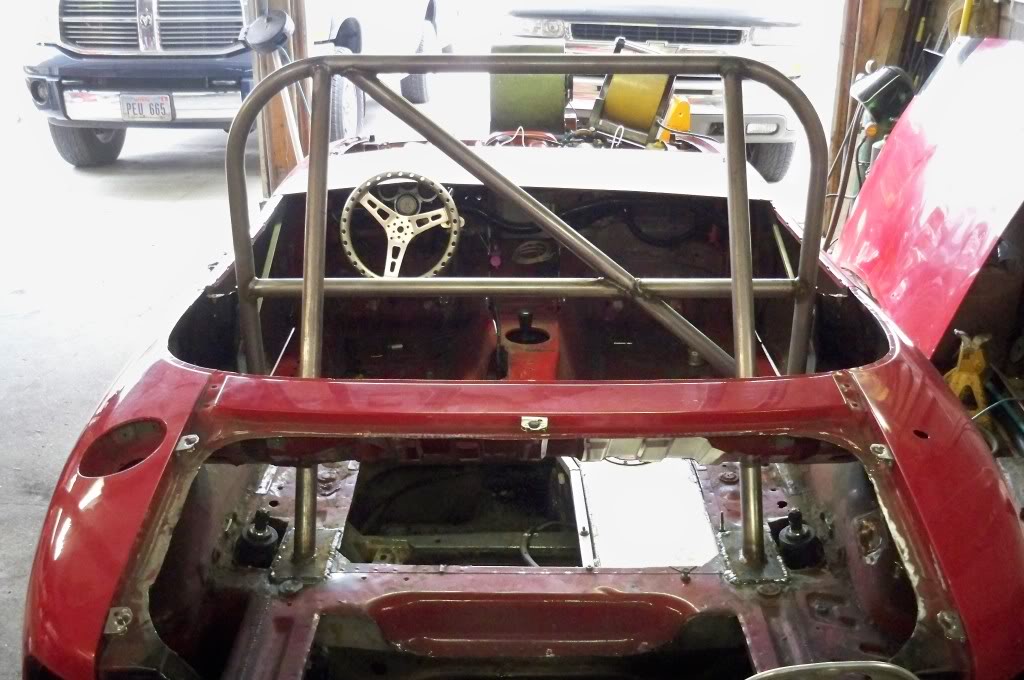

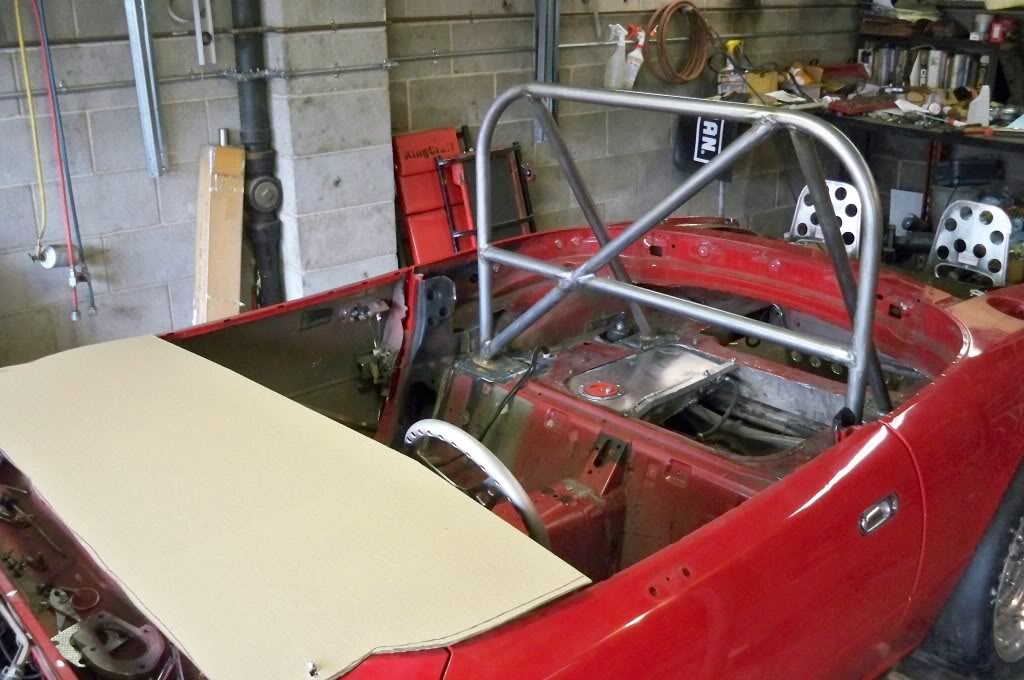

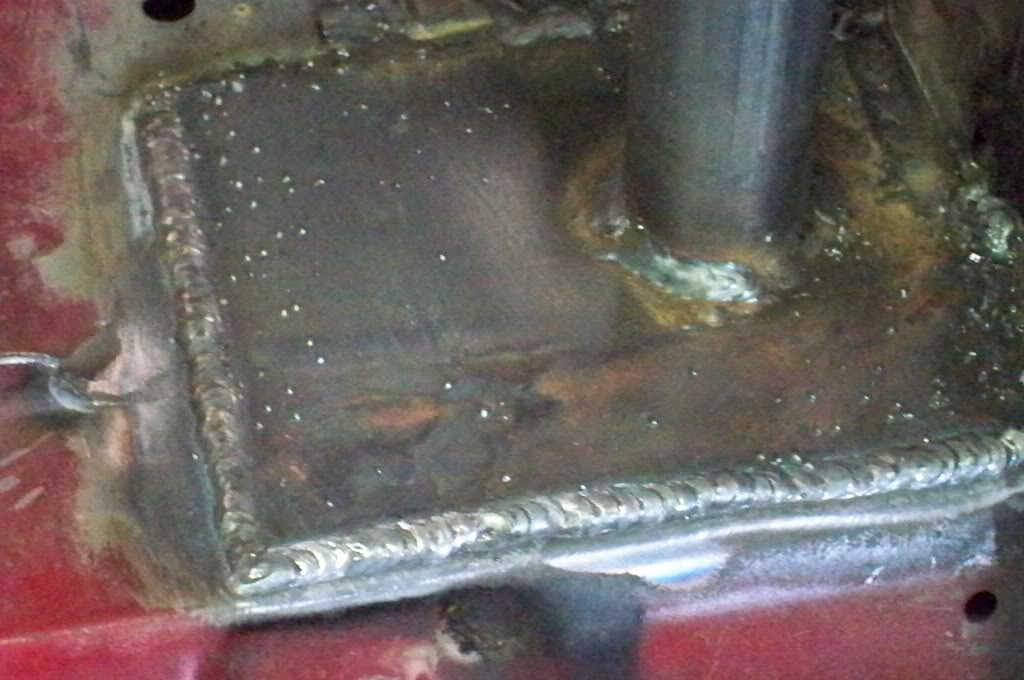

1 pound aluminum steering wheel, first cuts for tire clearance, and the homemade roll bar that had to replace the too short HD.
![Name: PICT0087.jpg
Views: 455
Size: 92.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206733d1501254078-build-thread-my-xp-car-pict0087.jpg)
![Name: PICT0085.jpg
Views: 465
Size: 103.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206734d1501254078-build-thread-my-xp-car-pict0085.jpg)
![Name: 100_1640.jpg
Views: 478
Size: 118.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206735d1501254078-build-thread-my-xp-car-100_1640.jpg)
![Name: 100_1641.jpg
Views: 464
Size: 127.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206736d1501254078-build-thread-my-xp-car-100_1641.jpg)
![Name: 100_1642.jpg
Views: 451
Size: 100.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206737d1501254078-build-thread-my-xp-car-100_1642.jpg)

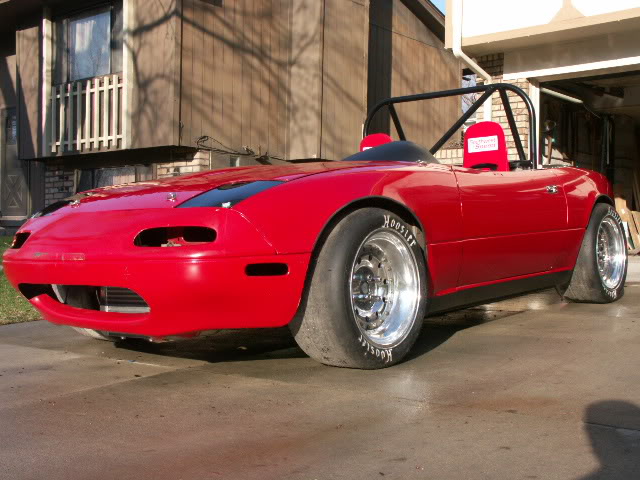

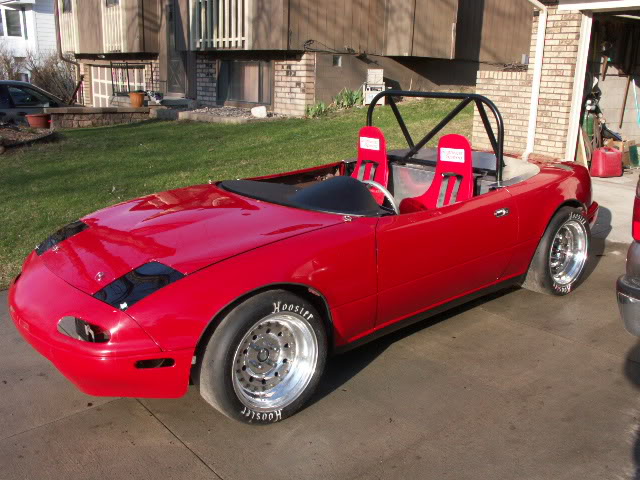

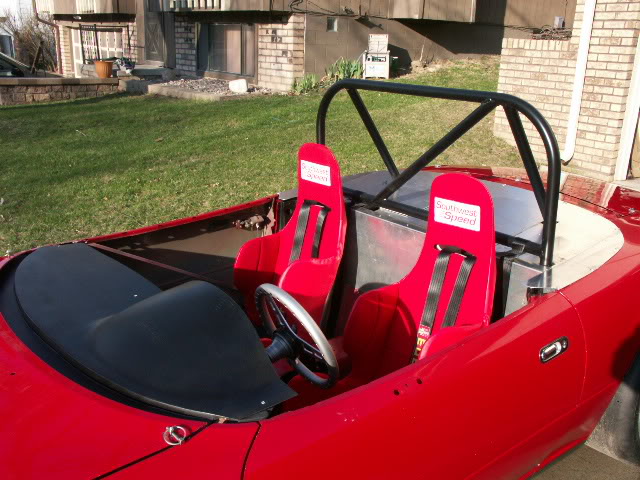

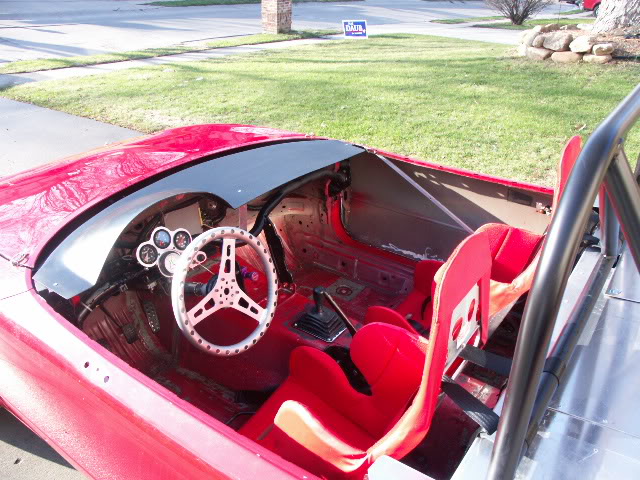

The car as it sits right now with the homemade fiberglass dash cover and aluminum rear cover.
![Name: PICT0101.jpg
Views: 635
Size: 130.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206738d1501254078-build-thread-my-xp-car-pict0101.jpg)
![Name: PICT0100.jpg
Views: 473
Size: 115.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206739d1501254078-build-thread-my-xp-car-pict0100.jpg)
![](http://i432.photobucket.com/albums/qq49/omaharam/PICT0102.jpg)
![Name: PICT0099.jpg
Views: 493
Size: 116.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206740d1501254078-build-thread-my-xp-car-pict0099.jpg)
![Name: PICT0097.jpg
Views: 565
Size: 103.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206741d1501254078-build-thread-my-xp-car-pict0097.jpg)
The car will run X-prepared in solo2. The engine and drivetrain are exactly the same as when the car was purchased, which is a Greddy kit with a small front mount, bipes, and 1.8 injectors. I do have a 1.8 rearend set up waiting to go in, but am waiting on the OS Ginken diff to arrive. Eventually it will get a full rebuild, MS, and at least 750 injectors running straight e85.
The car as it sits in the final picture weighs 1666lbs with fuel. It's a little front heavy right now, but nothing will happen to address that until the new rear is under it and the wing is on the back.
So here goes....
The car as purchased on 9/29/08
![](http://i432.photobucket.com/albums/qq49/omaharam/01.jpg)
![Name: 03.jpg
Views: 522
Size: 58.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206708d1501254078-build-thread-my-xp-car-03.jpg)
![Name: 07.jpg
Views: 488
Size: 68.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206709d1501254078-build-thread-my-xp-car-07.jpg)
Removed a lot of weight in wiring.
![Name: 11.jpg
Views: 486
Size: 153.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206710d1501254078-build-thread-my-xp-car-11.jpg)
![Name: 13.jpg
Views: 492
Size: 135.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206711d1501254078-build-thread-my-xp-car-13.jpg)
![Name: 15.jpg
Views: 464
Size: 118.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206712d1501254078-build-thread-my-xp-car-15.jpg)
Weight savings projects...
![Name: 24.jpg
Views: 459
Size: 129.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206713d1501254078-build-thread-my-xp-car-24.jpg)
![Name: 19.jpg
Views: 465
Size: 108.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206714d1501254078-build-thread-my-xp-car-19.jpg)
![Name: 22.jpg
Views: 801
Size: 108.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206715d1501254078-build-thread-my-xp-car-22.jpg)
![Name: 25.jpg
Views: 474
Size: 84.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206716d1501254078-build-thread-my-xp-car-25.jpg)
![Name: 27.jpg
Views: 458
Size: 117.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206717d1501254078-build-thread-my-xp-car-27.jpg)
Gas tank replacement, battery, and de-powered rack
![Name: 28.jpg
Views: 605
Size: 128.0 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206718d1501254078-build-thread-my-xp-car-28.jpg)
![Name: 30.jpg
Views: 501
Size: 88.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206719d1501254078-build-thread-my-xp-car-30.jpg)
![Name: PICT0079.jpg
Views: 525
Size: 100.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206720d1501254078-build-thread-my-xp-car-pict0079.jpg)
![Name: 17.jpg
Views: 455
Size: 97.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206721d1501254078-build-thread-my-xp-car-17.jpg)
![Name: 31.jpg
Views: 472
Size: 122.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206722d1501254078-build-thread-my-xp-car-31.jpg)
![Name: 32.jpg
Views: 468
Size: 84.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206723d1501254078-build-thread-my-xp-car-32.jpg)
![Name: 33.jpg
Views: 456
Size: 89.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206724d1501254078-build-thread-my-xp-car-33.jpg)
Bushings, Afco's with custom hats, and seats with a lot of time in them.
![Name: 37.jpg
Views: 461
Size: 124.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206725d1501254078-build-thread-my-xp-car-37.jpg)
![Name: 38.jpg
Views: 456
Size: 118.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206726d1501254078-build-thread-my-xp-car-38.jpg)
![Name: 36.jpg
Views: 475
Size: 114.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206727d1501254078-build-thread-my-xp-car-36.jpg)
![Name: 39.jpg
Views: 463
Size: 105.5 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206728d1501254078-build-thread-my-xp-car-39.jpg)
![Name: PICT0084.jpg
Views: 486
Size: 116.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206729d1501254078-build-thread-my-xp-car-pict0084.jpg)
![Name: PICT0082.jpg
Views: 471
Size: 104.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206730d1501254078-build-thread-my-xp-car-pict0082.jpg)
![Name: 100_1632.jpg
Views: 459
Size: 97.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206731d1501254078-build-thread-my-xp-car-100_1632.jpg)
![Name: 100_1631.jpg
Views: 491
Size: 132.2 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206732d1501254078-build-thread-my-xp-car-100_1631.jpg)
1 pound aluminum steering wheel, first cuts for tire clearance, and the homemade roll bar that had to replace the too short HD.
![Name: PICT0087.jpg
Views: 455
Size: 92.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206733d1501254078-build-thread-my-xp-car-pict0087.jpg)
![Name: PICT0085.jpg
Views: 465
Size: 103.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206734d1501254078-build-thread-my-xp-car-pict0085.jpg)
![Name: 100_1640.jpg
Views: 478
Size: 118.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206735d1501254078-build-thread-my-xp-car-100_1640.jpg)
![Name: 100_1641.jpg
Views: 464
Size: 127.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206736d1501254078-build-thread-my-xp-car-100_1641.jpg)
![Name: 100_1642.jpg
Views: 451
Size: 100.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206737d1501254078-build-thread-my-xp-car-100_1642.jpg)
The car as it sits right now with the homemade fiberglass dash cover and aluminum rear cover.
![Name: PICT0101.jpg
Views: 635
Size: 130.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206738d1501254078-build-thread-my-xp-car-pict0101.jpg)
![Name: PICT0100.jpg
Views: 473
Size: 115.8 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206739d1501254078-build-thread-my-xp-car-pict0100.jpg)
![](http://i432.photobucket.com/albums/qq49/omaharam/PICT0102.jpg)
![Name: PICT0099.jpg
Views: 493
Size: 116.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206740d1501254078-build-thread-my-xp-car-pict0099.jpg)
![Name: PICT0097.jpg
Views: 565
Size: 103.3 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206741d1501254078-build-thread-my-xp-car-pict0097.jpg)
![Name: PICT0105.jpg
Views: 451
Size: 92.6 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/206742d1501254078-build-thread-my-xp-car-pict0105.jpg)
#6
Junior Member
Thread Starter
iTrader: (2)
Join Date: Sep 2008
Location: Omaha, Ne
Posts: 79
Total Cats: 0
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Later
#13
Junior Member
Thread Starter
iTrader: (2)
Join Date: Sep 2008
Location: Omaha, Ne
Posts: 79
Total Cats: 0
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Wheels are REAL 16x10 at 14.9lbs and tires are a Hoosier 22x10 slick that measure 22.9 diameter and 10.7 cross section on a 10" rim at 16lbs. Mostly went with this set up for cost since I already had the wheels. I just had to buy new centers for the right bolt pattern. Had to cut quite a bit from the front and back of the front wells. Actually had to cut the bumper cover. Also, they only had about 1/16" clearance on the back side of the inner wells, so a little massaging with a 3lb sludge was needed.
#14
Junior Member
Thread Starter
iTrader: (2)
Join Date: Sep 2008
Location: Omaha, Ne
Posts: 79
Total Cats: 0
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Anybody know what the weight difference is from a 1.6 to a 1.8 w/ VVT head?
If I had big bucks, I'd be searching for a 3 rotor.
#15
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Actually we could build a non-turbo 1.8 and only have to weigh 1560. Haven't done any research on what kind of power can be made from the 1.8 naturally aspirated. Not having a turbo hanging off the side of the engine would help the bias.
Anybody know what the weight difference is from a 1.6 to a 1.8 w/ VVT head?
If I had big bucks, I'd be searching for a 3 rotor.
Anybody know what the weight difference is from a 1.6 to a 1.8 w/ VVT head?
If I had big bucks, I'd be searching for a 3 rotor.
#17
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Actually we could build a non-turbo 1.8 and only have to weigh 1560. Haven't done any research on what kind of power can be made from the 1.8 naturally aspirated. Not having a turbo hanging off the side of the engine would help the bias.
Anybody know what the weight difference is from a 1.6 to a 1.8 w/ VVT head?
If I had big bucks, I'd be searching for a 3 rotor.
Anybody know what the weight difference is from a 1.6 to a 1.8 w/ VVT head?
If I had big bucks, I'd be searching for a 3 rotor.
#20
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Or without spending big bucks, you could do a duratec 2.0/2.3 swap, lose another 100 lbs, get your weight distribution back to where it should be, and use a MZR cam cover to remain inside the "any corporate engine" rule. Quad4Rods makes a Duratec to T5 bellhousing, so there is no problem gearbox wise unless you find an 06+ MX5 trans which will bolt right to the duratec.
