BEGI Kit Install Pics
#61
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
The oil comes from the pump on the outside, goes through the filter and returns back to the block through the center piping.
So if you want filtered oil, you need to source from the center pipe
Keep this in mind if you're adding external oil thermostat + cooler too, because the direction is important when plumbing the thermostat.
#66
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
![Name: P1010077.jpg
Views: 182
Size: 54.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214525d1501269348-begi-kit-install-pics-p1010077.jpg)
![](http://i16.photobucket.com/albums/b34/sv650_ck/th_FIC.jpg)
#69
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

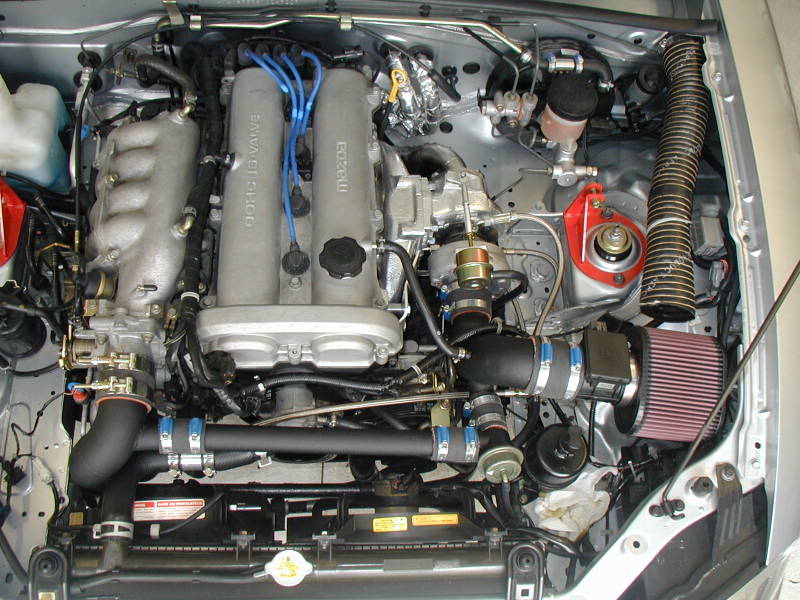

Finally finished up my install. Boosting to 6psi with no creep. Runs really well open loop with AFRs ~12.2 to 12.5. Not so good in closed loop mood. AFR's constantly swing from ~14 to 16 while cruising - feels kind of stumbly/jerky. Maybe a new narrowband is in order?

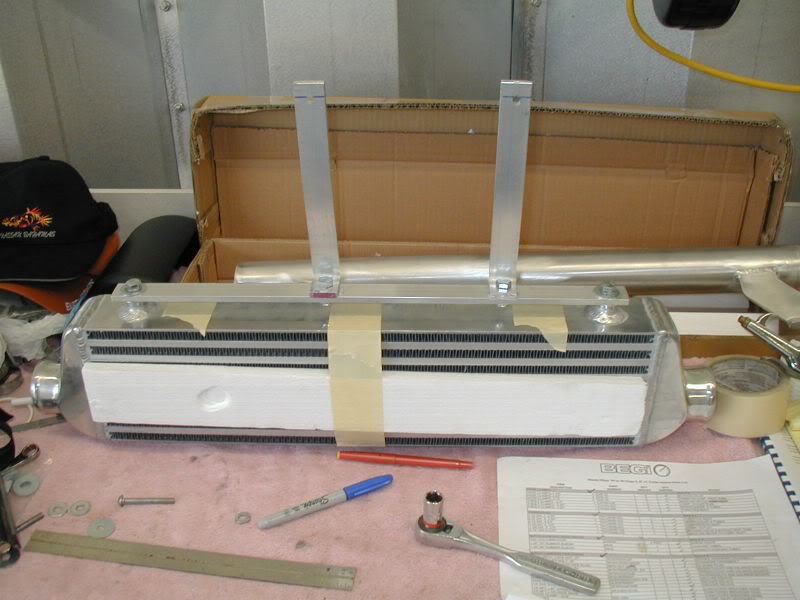

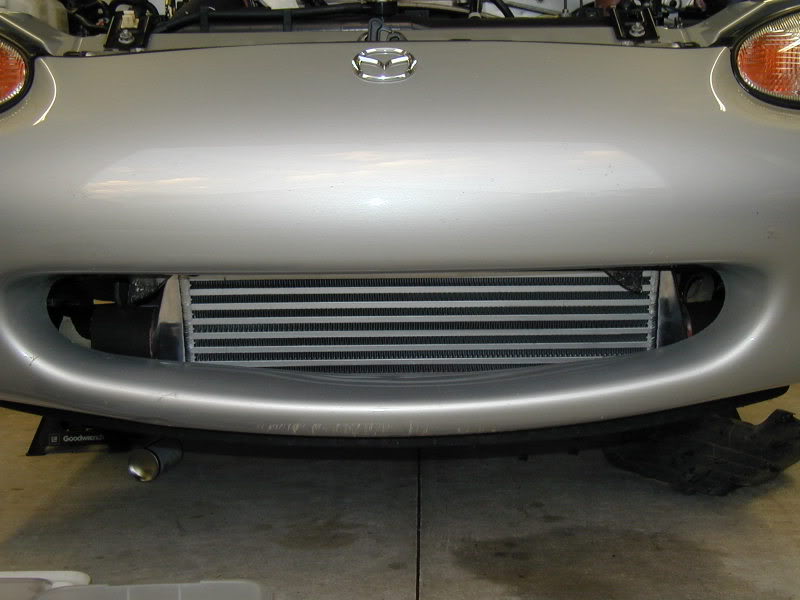

Ebay intercooler:
![Name: p1010085-1.jpg
Views: 180
Size: 63.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214007d1501268163-begi-kit-install-pics-p1010085-1.jpg)
![Name: P1010087-1.jpg
Views: 169
Size: 52.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214008d1501268163-begi-kit-install-pics-p1010087-1.jpg)

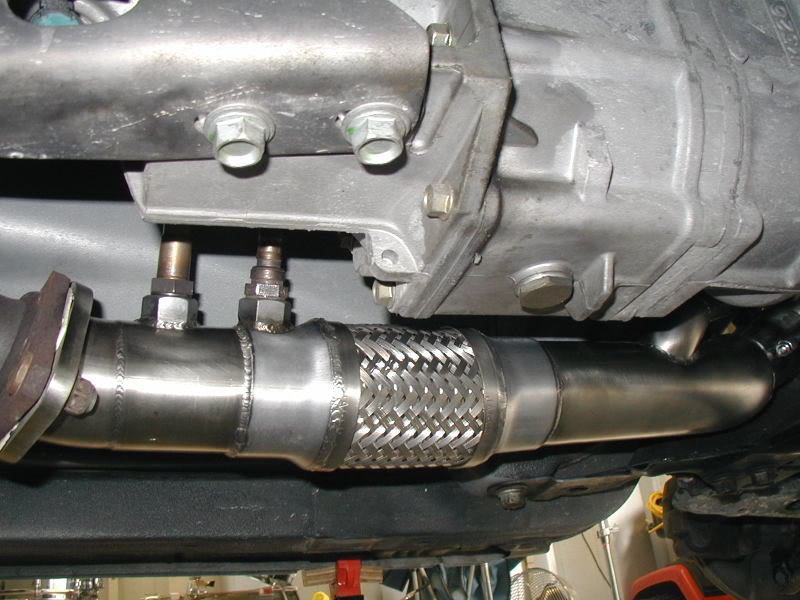

No problems with dp clearance except for the front bung which is unusable. Had to use one of the rear bungs for the narrowband.
![Name: P1010090-1.jpg
Views: 193
Size: 73.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214009d1501268163-begi-kit-install-pics-p1010090-1.jpg)
Ebay intercooler:
![Name: p1010085-1.jpg
Views: 180
Size: 63.1 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214007d1501268163-begi-kit-install-pics-p1010085-1.jpg)
![Name: P1010087-1.jpg
Views: 169
Size: 52.7 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214008d1501268163-begi-kit-install-pics-p1010087-1.jpg)
No problems with dp clearance except for the front bung which is unusable. Had to use one of the rear bungs for the narrowband.
![Name: P1010090-1.jpg
Views: 193
Size: 73.4 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214009d1501268163-begi-kit-install-pics-p1010090-1.jpg)
![Name: P1010093-1.jpg
Views: 155
Size: 93.9 KB](https://www.miataturbo.net/attachments/diy-turbo-discussion-14/214010d1501268163-begi-kit-install-pics-p1010093-1.jpg)
