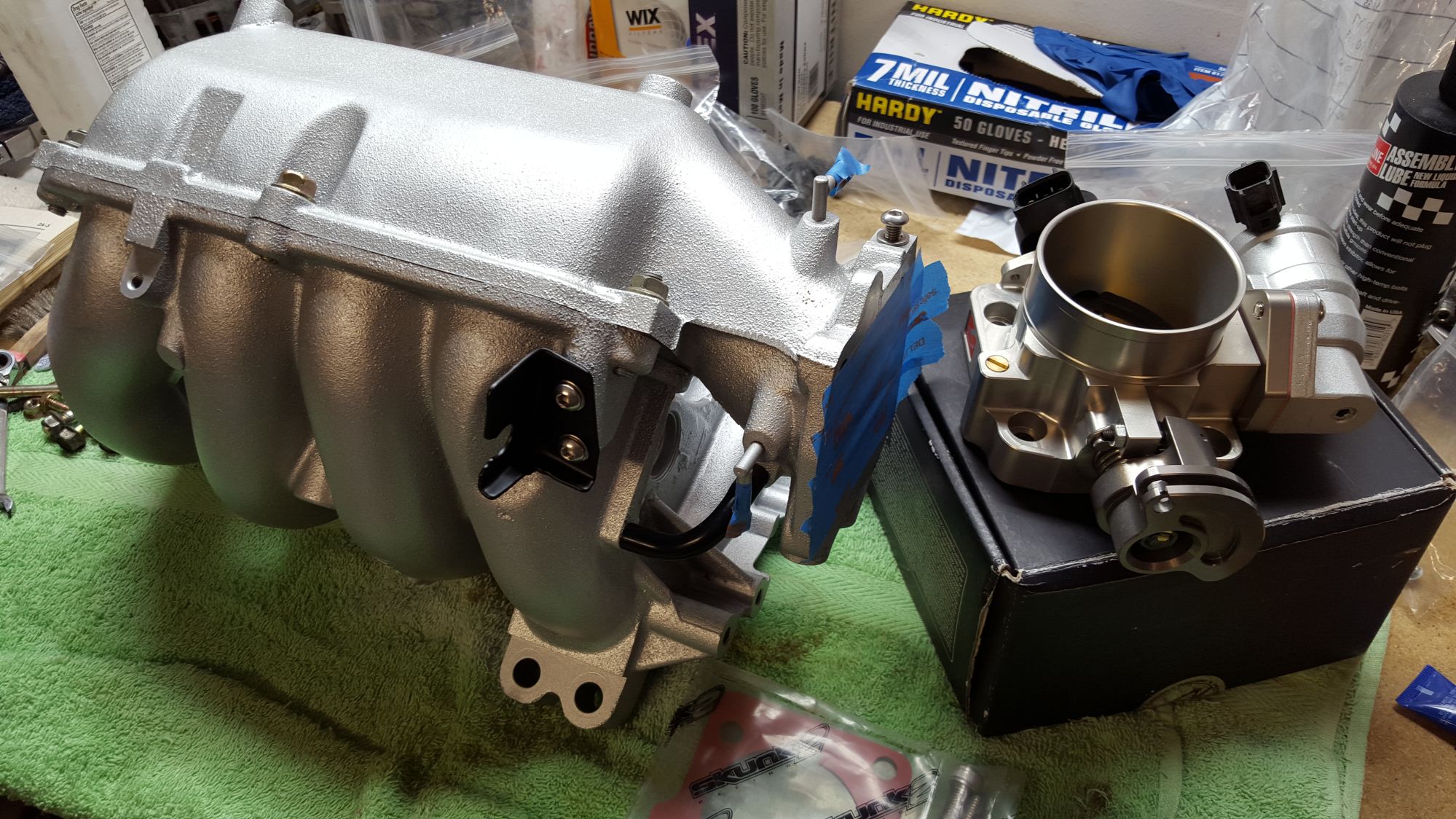

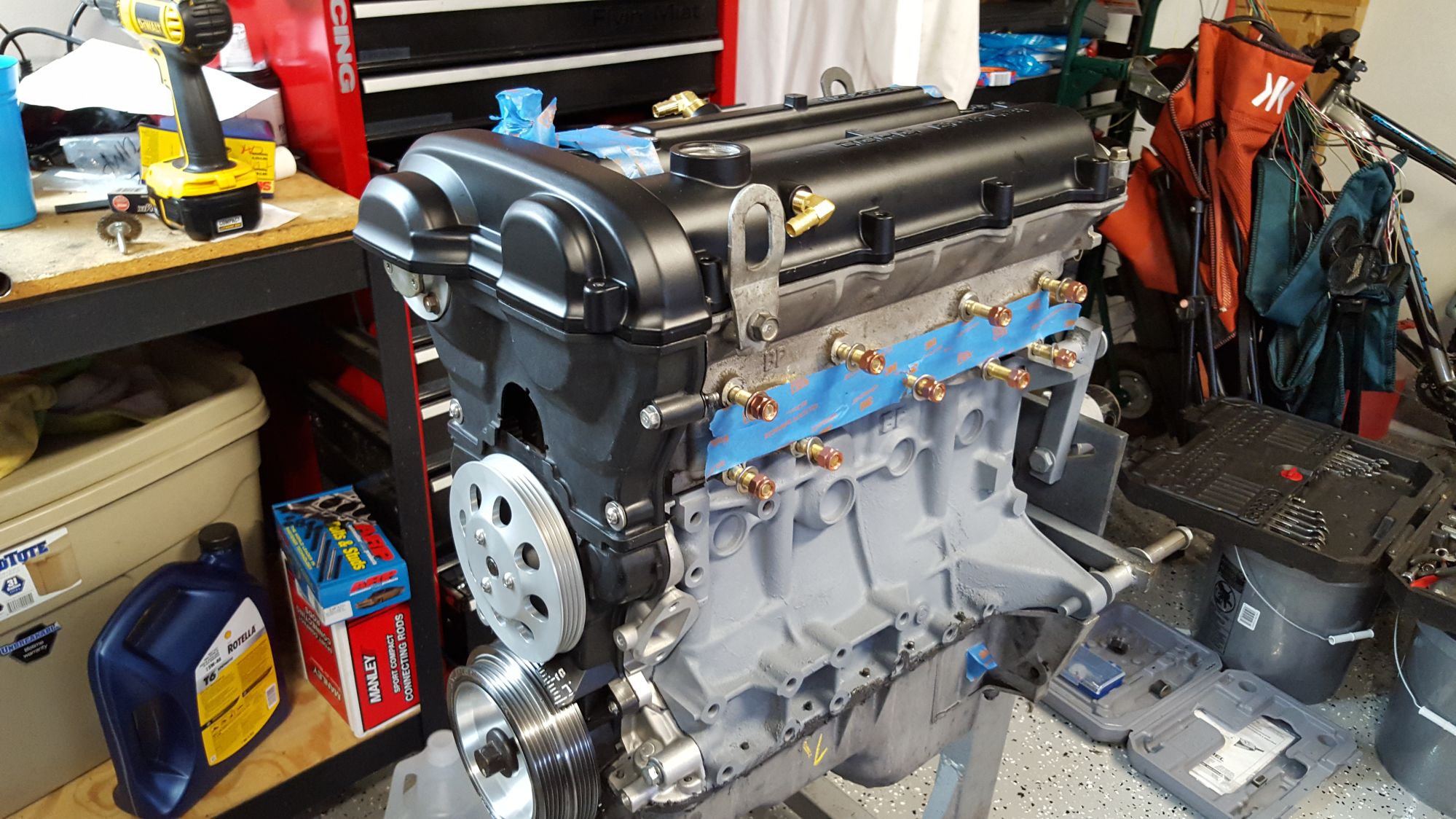

Well the oil in the water passages problem is mostly cleaned up. Probably going to get the car fired up and run some dish water machine detergent through it while running. Get it really clean inside. Link to idiocy -> https://www.miataturbo.net/engine-pe...o-wrong-85445/

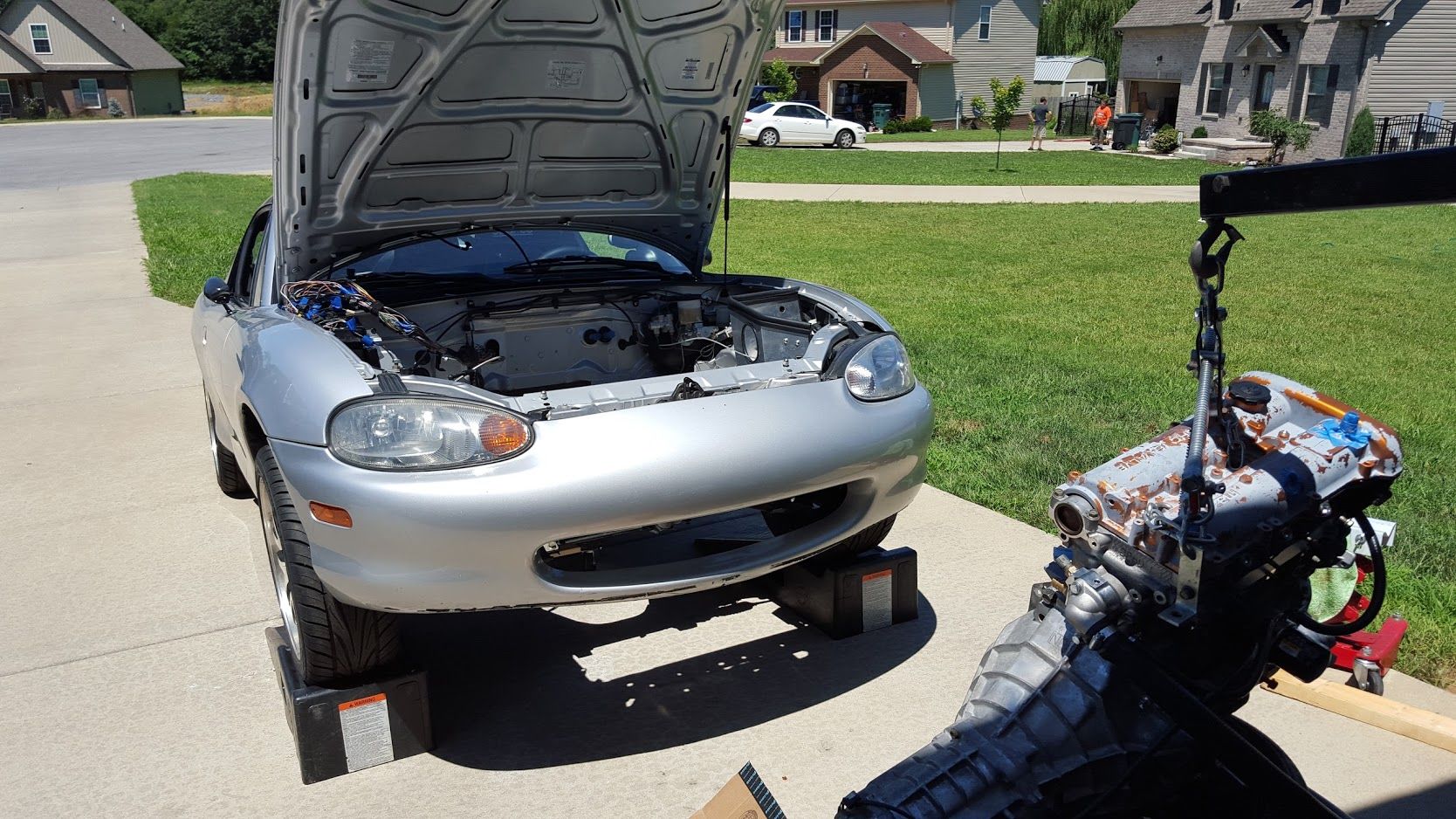

![](https://www.miataturbo.net/attachments/build-threads-57/146295-tzs-build-documentary-adequacy-hopes-more-80-uplo4xf3rvobcx039v0sf_gdgo9ynohzf8h0e1odyke_w1668_h938_no_jpeg_15dc0d24969c50a7ddeabf16b344f7.jpg?dateline=1438835349)
Ready to go in
![](https://www.miataturbo.net/attachments/build-threads-57/146296-tzs-build-documentary-adequacy-hopes-more-80-vza0a64einln8cnveh4azvfopr_fvdeyzl6d4dv88vg_w407_h229_no_jpeg_87c48761bb52a3a5f1fa31e8694b064.jpg?dateline=1438835349)

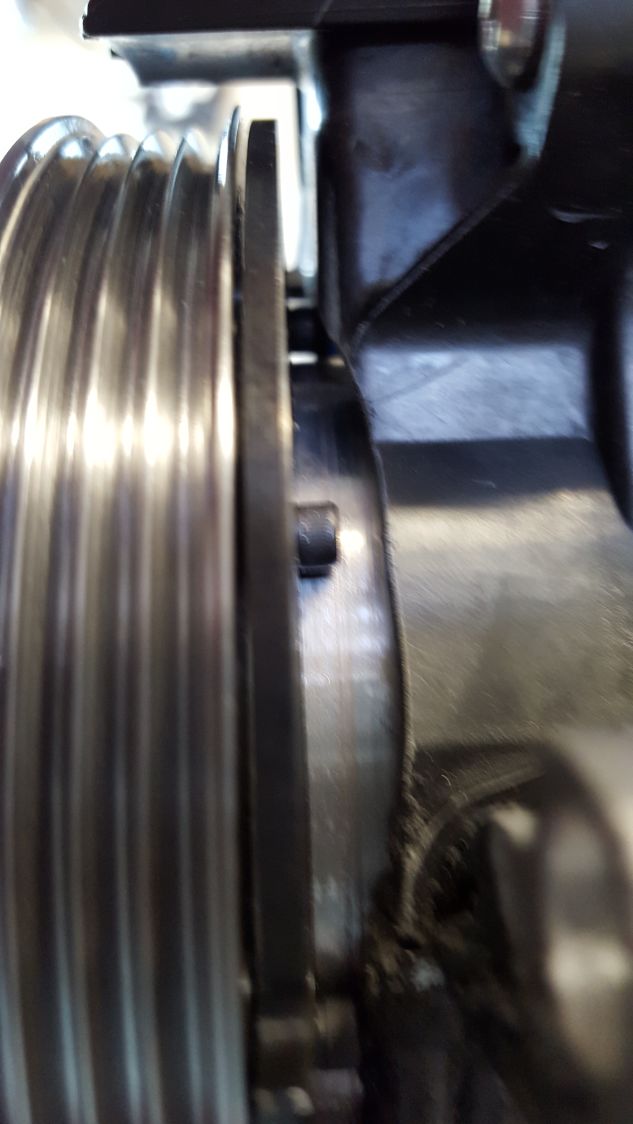

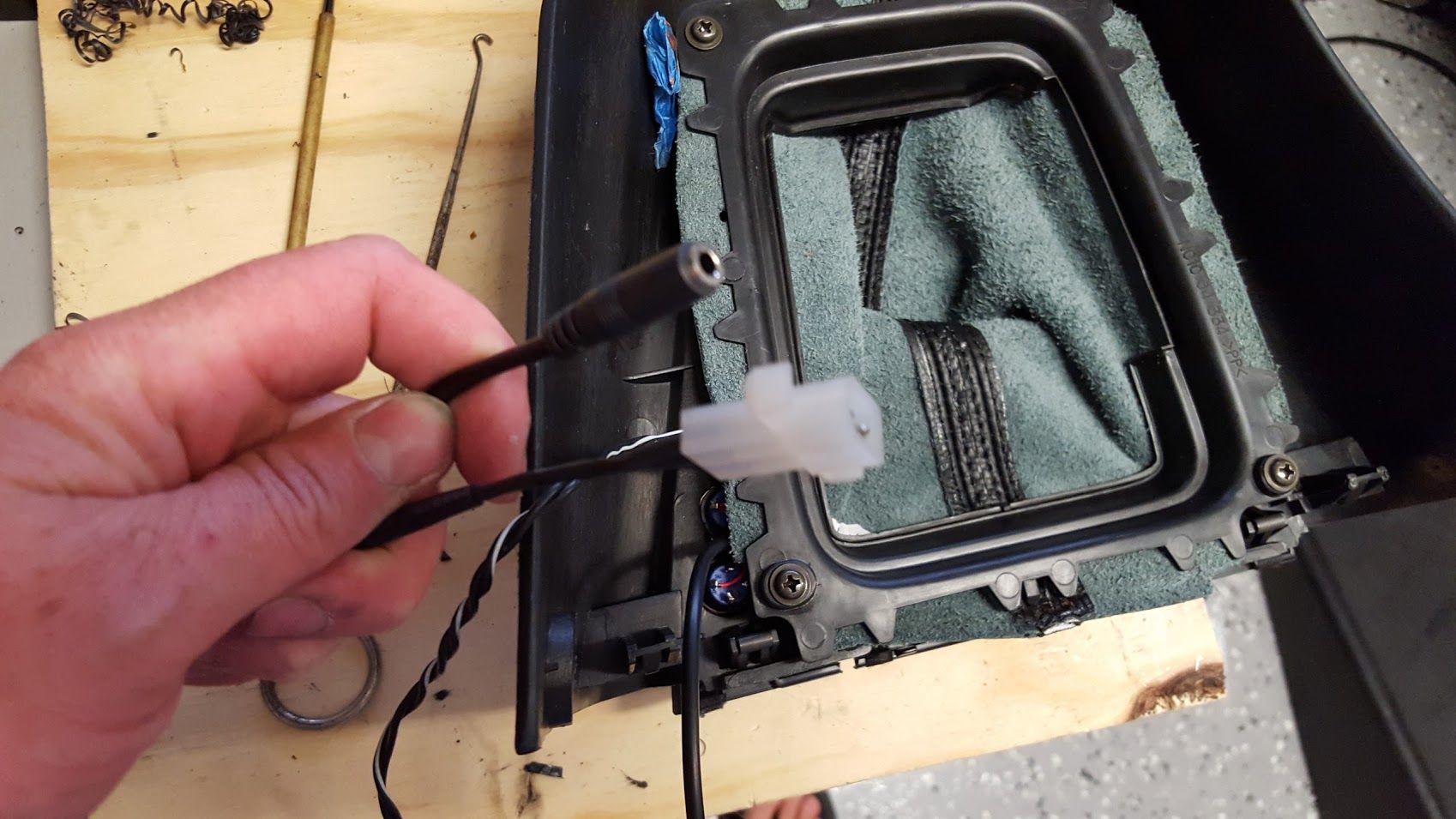

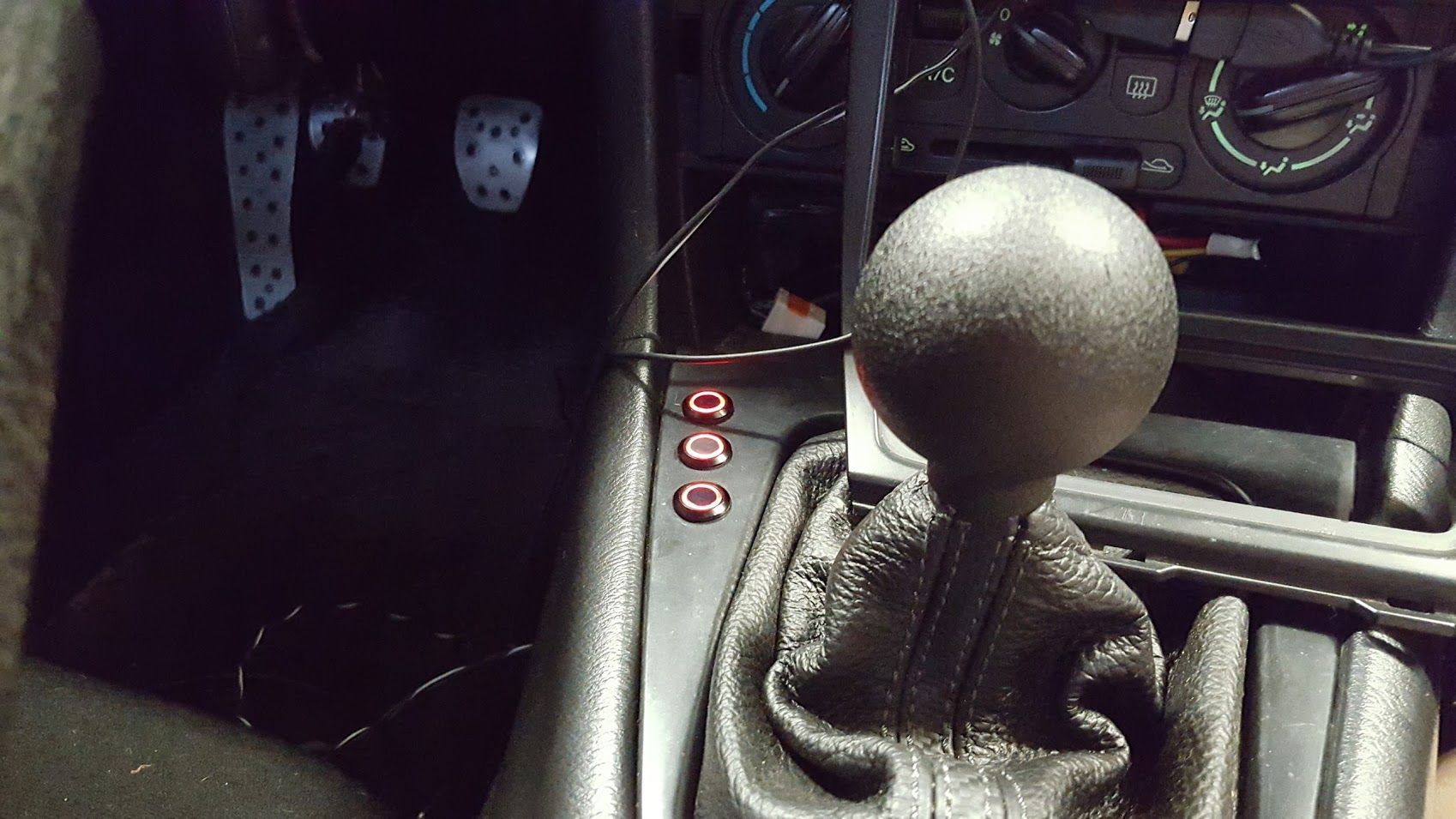

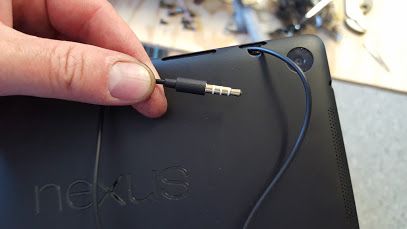

Tablet button wired to 4 pin stereo plig to go to hard button in console.
![](https://www.miataturbo.net/attachments/build-threads-57/146297-tzs-build-documentary-adequacy-hopes-more-80-rsiqv0sv_wih0a9pvswmounlvo75w0celhubtpwulyq_w1699_h955_no_jpeg_d182e0a819d3f4f1ade38b94d28278.jpg?dateline=1438835349)

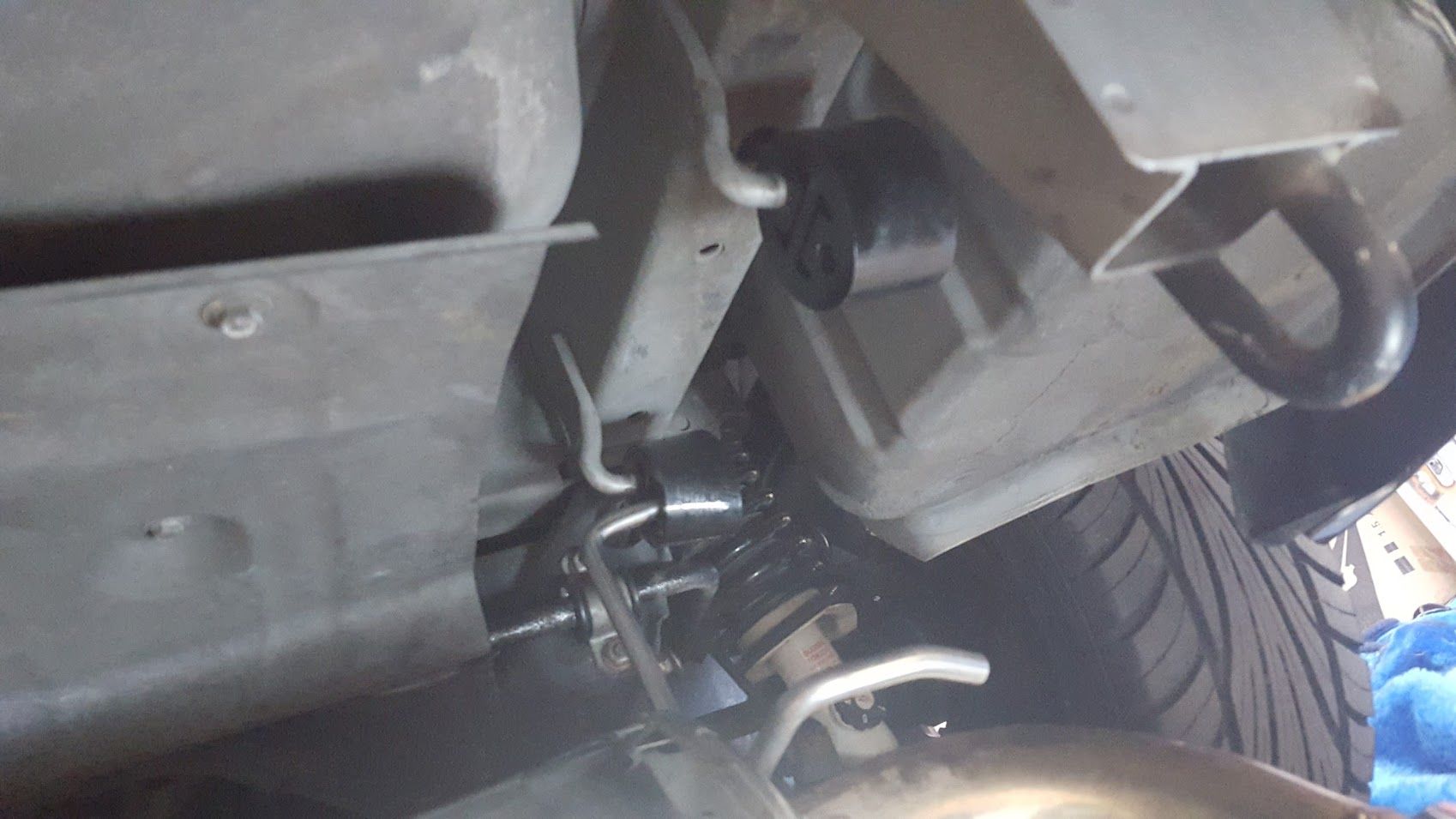

Poly exh hangers are a pain in the hands.
![](https://www.miataturbo.net/attachments/build-threads-57/146298-tzs-build-documentary-adequacy-hopes-more-80-ckg9nj3clyzg5_whbq7cfdopx6bvtgewdz5jra8alvs_w1699_h955_no_jpeg_b7d6f474b79856fd32768034a475b9.jpg?dateline=1438835349)
Too short even if temp?
![](https://www.miataturbo.net/attachments/build-threads-57/146295-tzs-build-documentary-adequacy-hopes-more-80-uplo4xf3rvobcx039v0sf_gdgo9ynohzf8h0e1odyke_w1668_h938_no_jpeg_15dc0d24969c50a7ddeabf16b344f7.jpg?dateline=1438835349)
Ready to go in
![](https://www.miataturbo.net/attachments/build-threads-57/146296-tzs-build-documentary-adequacy-hopes-more-80-vza0a64einln8cnveh4azvfopr_fvdeyzl6d4dv88vg_w407_h229_no_jpeg_87c48761bb52a3a5f1fa31e8694b064.jpg?dateline=1438835349)
Tablet button wired to 4 pin stereo plig to go to hard button in console.
![](https://www.miataturbo.net/attachments/build-threads-57/146297-tzs-build-documentary-adequacy-hopes-more-80-rsiqv0sv_wih0a9pvswmounlvo75w0celhubtpwulyq_w1699_h955_no_jpeg_d182e0a819d3f4f1ade38b94d28278.jpg?dateline=1438835349)
Poly exh hangers are a pain in the hands.
![](https://www.miataturbo.net/attachments/build-threads-57/146298-tzs-build-documentary-adequacy-hopes-more-80-ckg9nj3clyzg5_whbq7cfdopx6bvtgewdz5jra8alvs_w1699_h955_no_jpeg_b7d6f474b79856fd32768034a475b9.jpg?dateline=1438835349)
Too short even if temp?
#124
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Car won't fire and I need to replace the VVT copper washers to solve a leak. It tries to fire, but only feels like it catches 2 cylinders. It will fire if the throttle is held down and wants to run, but any let of an it dies instantly. TPS is calibrated on a Reverent base map. Only thing I changed was VE table was upped in idle range. Engine displacement changed to 1862cc for 0.020 overbore and injector cc changed to 1000cc for the ID1000's. Nothing loomed wire wise. Makes it easier to diagnose.
In test mode each coil fires in it's proper order. Hard to feel if each injector is. fuel in the port should still work even if it's timed wrong.
In test mode each coil fires in it's proper order. Hard to feel if each injector is. fuel in the port should still work even if it's timed wrong.
#126
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

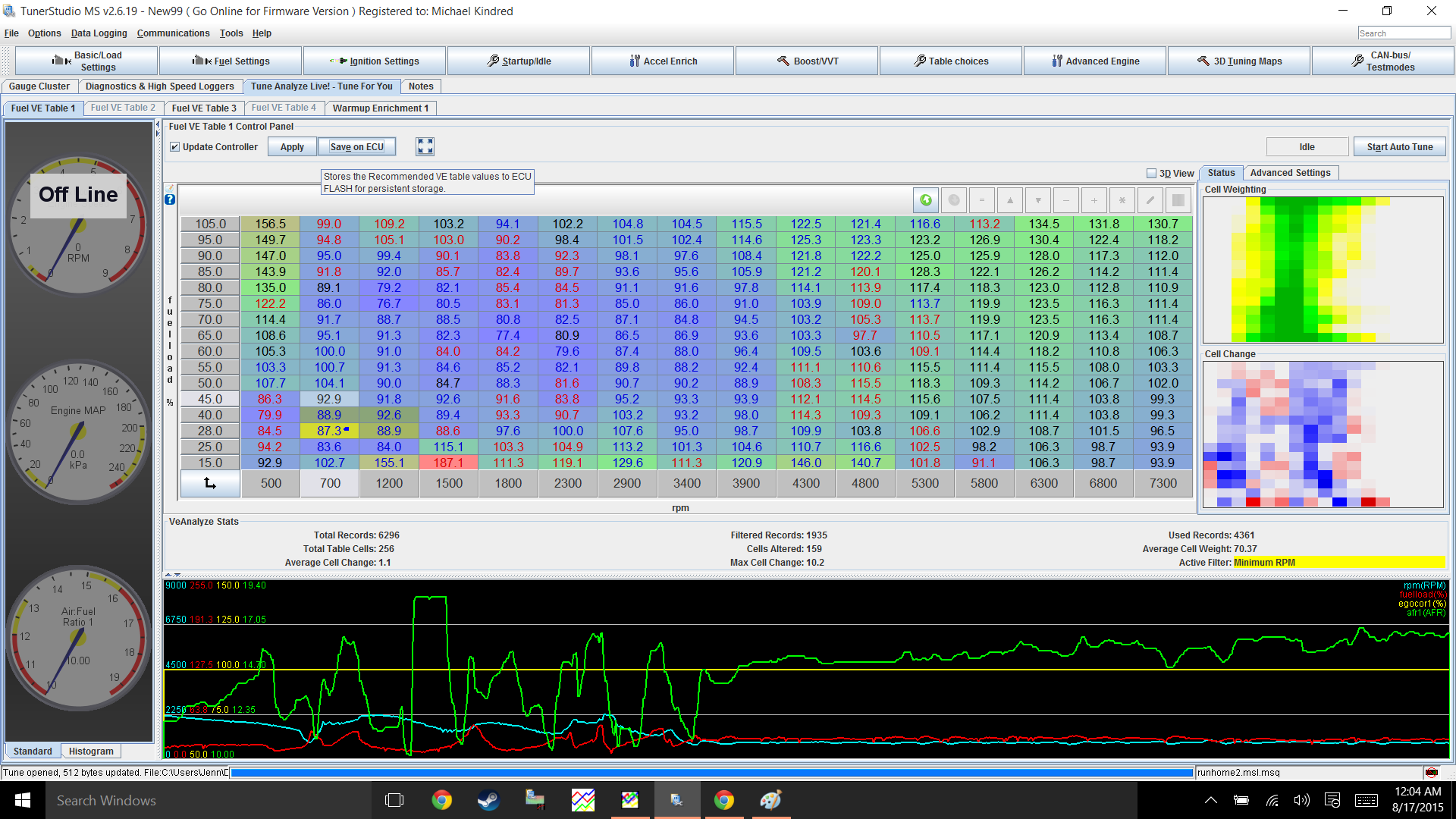

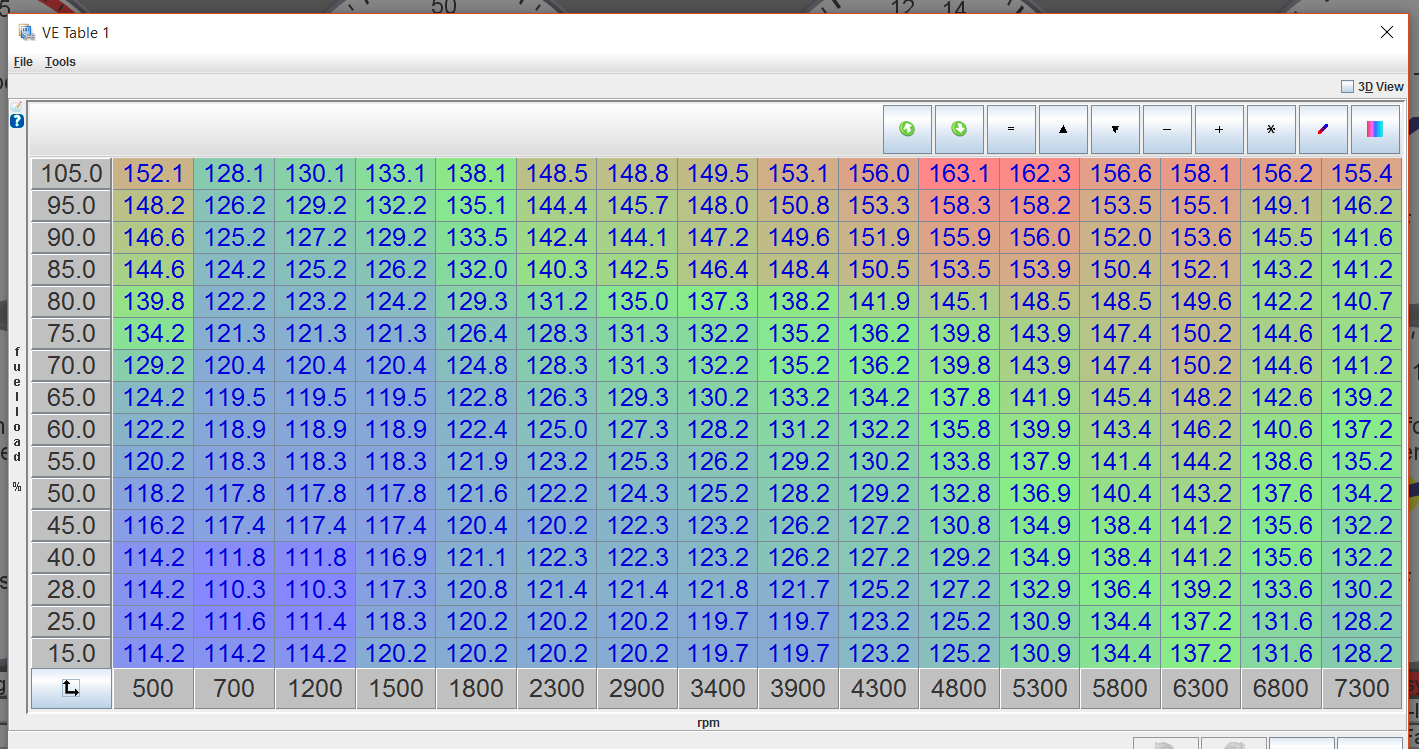

Here is where it is now. Yes, tons of fuel coming out. Not sure if I should just keep cranking VE table down or if I should change something else. It fire all cylinders it seems and all coils fire. It runs really rough with throttle and seems flooded. Ideas?
![](https://www.miataturbo.net/attachments/build-threads-57/146566-tzs-build-documentary-adequacy-hopes-more-80-untitled_051163e8a9816097b69d8c381c9b8118490f99a2.png?dateline=1439248228)
![](https://www.miataturbo.net/attachments/build-threads-57/146566-tzs-build-documentary-adequacy-hopes-more-80-untitled_051163e8a9816097b69d8c381c9b8118490f99a2.png?dateline=1439248228)

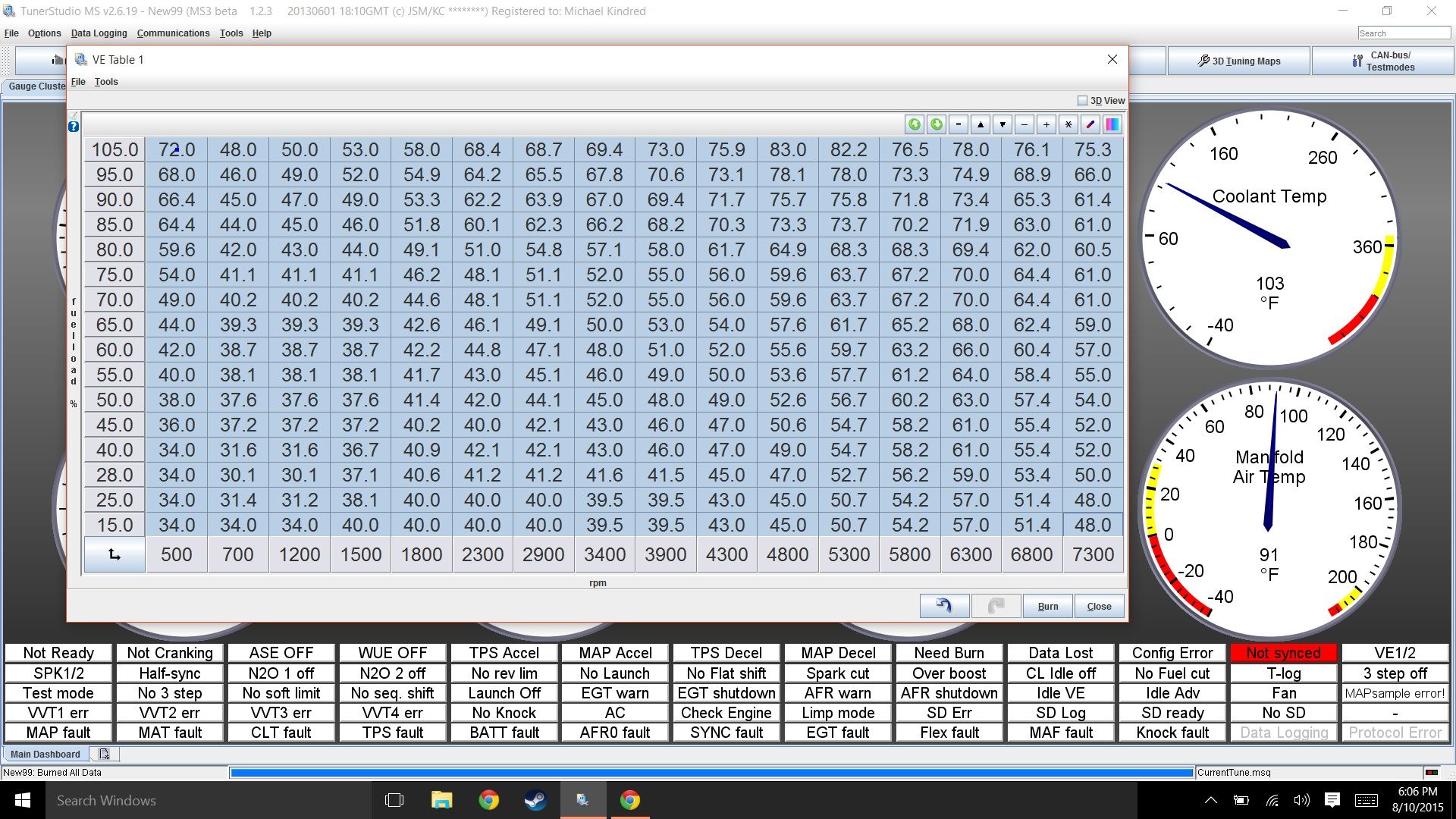

![](https://www.miataturbo.net/attachments/build-threads-57/146567-tzs-build-documentary-adequacy-hopes-more-80-base_map_573465e1ab81bed4b9a69f1fb7c3662a212e3e1f.jpg?dateline=1439248228)
#127
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Changed the settigns a bit. Dialed up the VE table again and changed the required fuel to 2.6 per another thread that discussed ID's. I hope 2.6 is right, found 3.0 as well. What happens if it's off? Would I adjust the VE table to compensate, or what? Tomorrow is trying to get it to idle and clean it up.
Any ideas on alternate sources for the big VVT line bolt for the copper washer? I ordered one from the Mazda dealer. They're an hour each way for me. Any bizarre AutoZone part that someone knows. The VVT line is pissing out the back. Go figure the only gasket I didn't swap to new is the only leaking one so far.
Any ideas on alternate sources for the big VVT line bolt for the copper washer? I ordered one from the Mazda dealer. They're an hour each way for me. Any bizarre AutoZone part that someone knows. The VVT line is pissing out the back. Go figure the only gasket I didn't swap to new is the only leaking one so far.
#128
Elite Member
iTrader: (15)
Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 2,068
Total Cats: 277
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Measure the ID and OD of the washer and take it to an auto parts store. They typically have a variety of copper crush washers available. I find Napa and O'Reilly's to be more "DIY" friendly when it comes to going off the computer parts hunting.
#129
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I set the required fuel to 3.1 per its calculation now. It seems much happier with that. Fires almost immediately now. It is still hunting for an idle though. AFR is 16-17 bouncing around. I keep dialing up the VE table and it gets better. Is it normal to run this much?
Ideas on how to get the idle to stabilize?
Ideas on how to get the idle to stabilize?
![](https://www.miataturbo.net/attachments/build-threads-57/146704-tzs-build-documentary-adequacy-hopes-more-80-8eleven_dd4323a27b870a6b3a8edd773973ddd8488009cb.png?dateline=1439348114)
#130
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Lots of stuff cleaned up. Decided it should have the wires and etc cleaned up before it hits the road. Would hate to have the wires saw through and short before it makes it down the block. Bunch of crap deleted that wasn't needed. I need more loom materials for the harness and to connect the catch can.
![](https://www.miataturbo.net/attachments/build-threads-57/146716-tzs-build-documentary-adequacy-hopes-more-80-6jf8y_pogeg3hw_dwl07sztchwq6kcdnoafnrwjsav0_w1699_h955_no_jpeg_fb07c16c3531247bada31394d875e6.jpg?dateline=1439359841)
#131
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

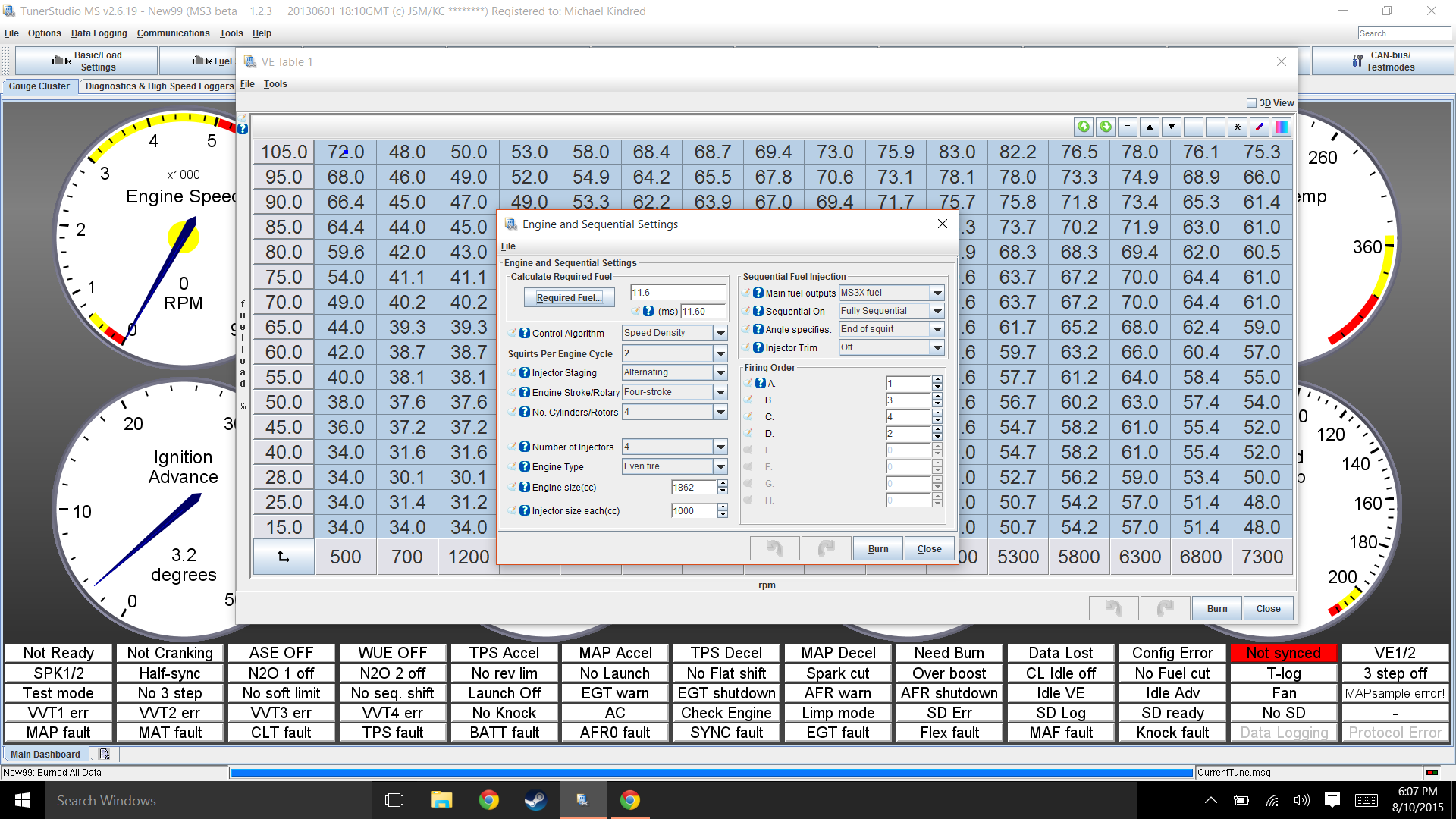

It seems I have it running now after the snafu with the ID1000s and the ecu. It is close to idling stable. Every time I get the idle to rock 14.7ish then go drive it and idle at a light it goes richer. Still hunts a bit at first start up sometimes. Only went driving on it today really.
Took some teething on learning the Tunerstudio and the Megalogviewer. Basically drove around running Autotune and then later figured out I was running the wrong data logging bit. Use the drop down not the easy looking one. MLV seems to be doing magic. I really want to get the knock stuff set up so I know it isn't hurting itself. It is set to whatever default Rev sent it to me with. Probably safe, but I didn't have the injectors set and now want to make sure everything is proper.

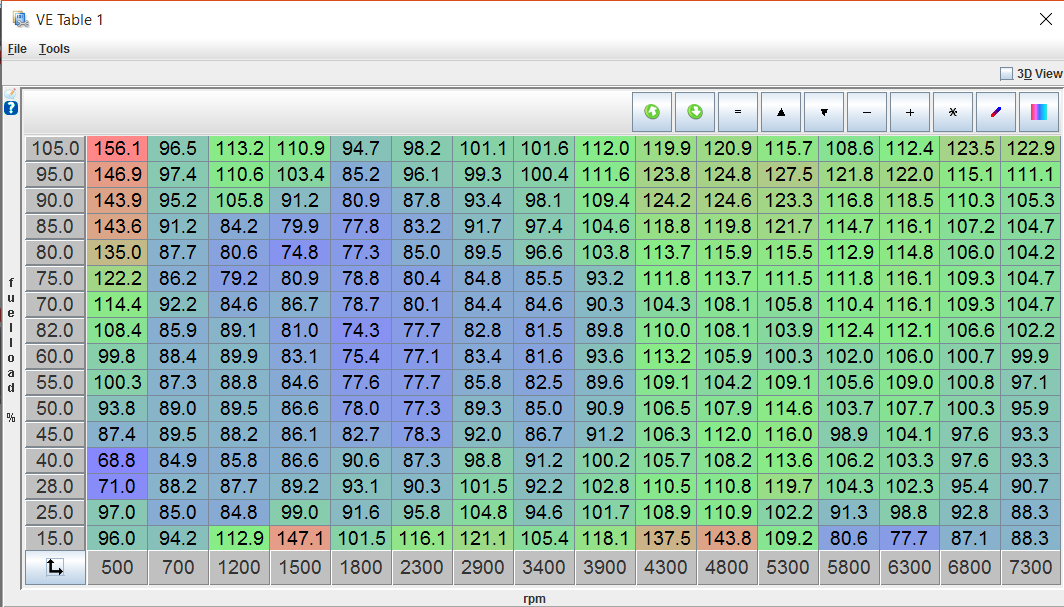

Most recent MLV change. The auto tune keeps spiking the 15% X 1500rpm super high. The upper range of the load/rpm area is still a decent jump to rich. Being a noob I'm okay with it some. I'll try scaling it to within 5%ish of the cells next to it. Glad it up and running. Or up and exploding soon.
Took some teething on learning the Tunerstudio and the Megalogviewer. Basically drove around running Autotune and then later figured out I was running the wrong data logging bit. Use the drop down not the easy looking one. MLV seems to be doing magic. I really want to get the knock stuff set up so I know it isn't hurting itself. It is set to whatever default Rev sent it to me with. Probably safe, but I didn't have the injectors set and now want to make sure everything is proper.
Most recent MLV change. The auto tune keeps spiking the 15% X 1500rpm super high. The upper range of the load/rpm area is still a decent jump to rich. Being a noob I'm okay with it some. I'll try scaling it to within 5%ish of the cells next to it. Glad it up and running. Or up and exploding soon.
![](https://www.miataturbo.net/attachments/build-threads-57/147085-tzs-build-documentary-adequacy-hopes-more-80-dadhome1_7c36296fccba42480ccb0e369e40d1a2e240816c.png?dateline=1439788297)
#132
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Under 4k the cells don't change much in auto tune anymore. There are some spikes that need ironed out. 4k and up needs a serious cleaning. I'll manually dial it all back. Going to try and solve the idle drop and stall issue.
Clutch master popped inside so car is down for a week waiting for the parts.
Clutch master popped inside so car is down for a week waiting for the parts.
![](https://www.miataturbo.net/attachments/build-threads-57/148248-tzs-build-documentary-adequacy-hopes-more-80-huh_a7f76d0948a59060f5beb37b8bce2d435980f812.png?dateline=1440863751)
#134
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Alight so far it runs. I had some really odd tuning and sensor issues and may have found the culprit. The "sensors ground" on the 36pin connector was just cjilling in the loom not grounded. Got about 80-90mv with the key on through it, so now it is grounded.
I just added a 0-5volt oil pressure sender. Anyone know what pin on the 36pin is a 0-5v in. Would like to put it back together and I don't see it on the diagram Rev sent me. I made the wires for the GM 3 bar as well, but they will be left alone for now. Big dreams, but just need to fix the wonky tuning issues first.
I just added a 0-5volt oil pressure sender. Anyone know what pin on the 36pin is a 0-5v in. Would like to put it back together and I don't see it on the diagram Rev sent me. I made the wires for the GM 3 bar as well, but they will be left alone for now. Big dreams, but just need to fix the wonky tuning issues first.
#135
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I swapped out the ID1000's this weekend and put in Deatchwerks 350's. Idle is easier to get stable. I know the ID1000's are tunable, but I'm not good enough. Plus they were overkill.

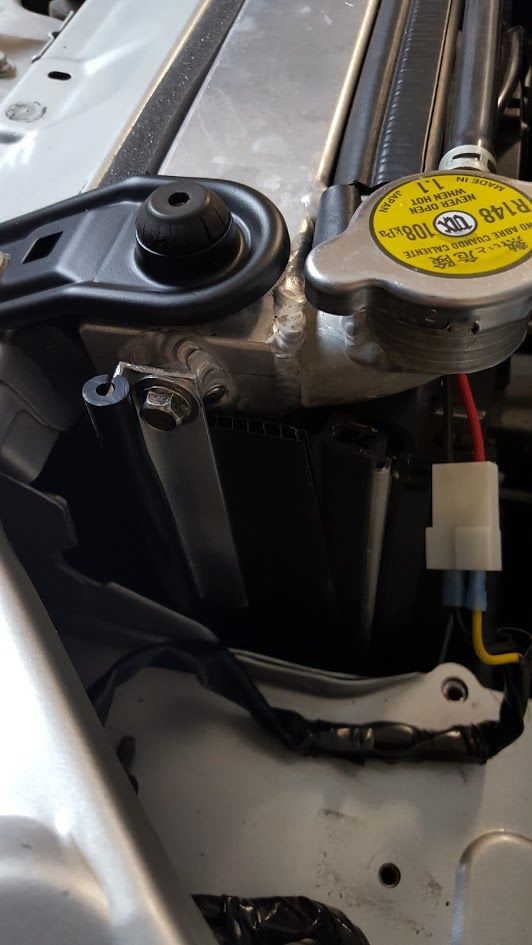

I built some brackets to hold the ducting down on the sides of the radiator. I think the hood was lifting a little at highway speed on the driver side. This quick fix my be redone to a longer time solution.
![](https://www.miataturbo.net/attachments/build-threads-57/152392-tzs-build-documentary-adequacy-hopes-more-80-20151012_195419_4539d3dcbf1560f4a34cb0ab7cd91cf5e52cda03.jpg?dateline=1444703214)

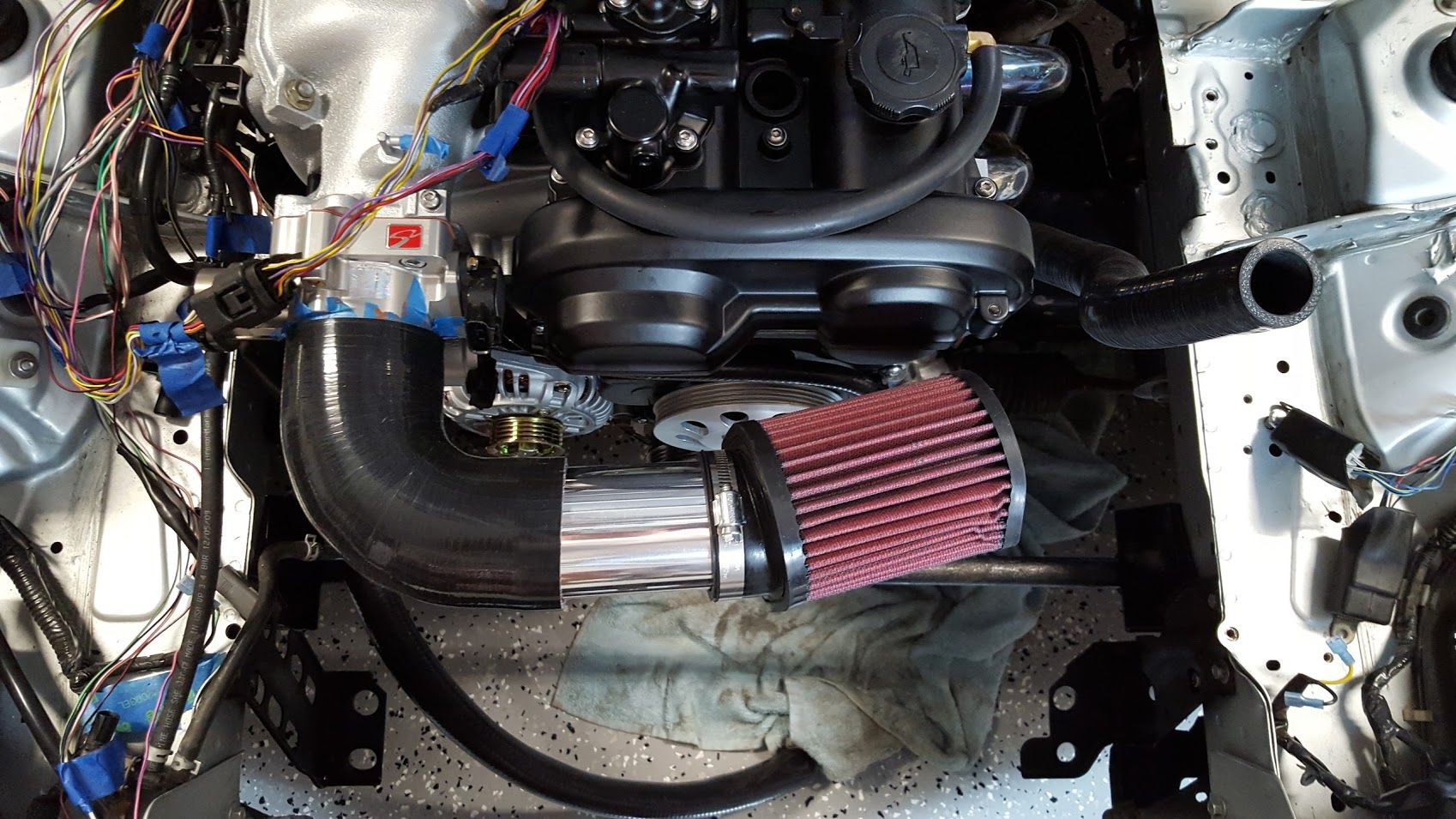

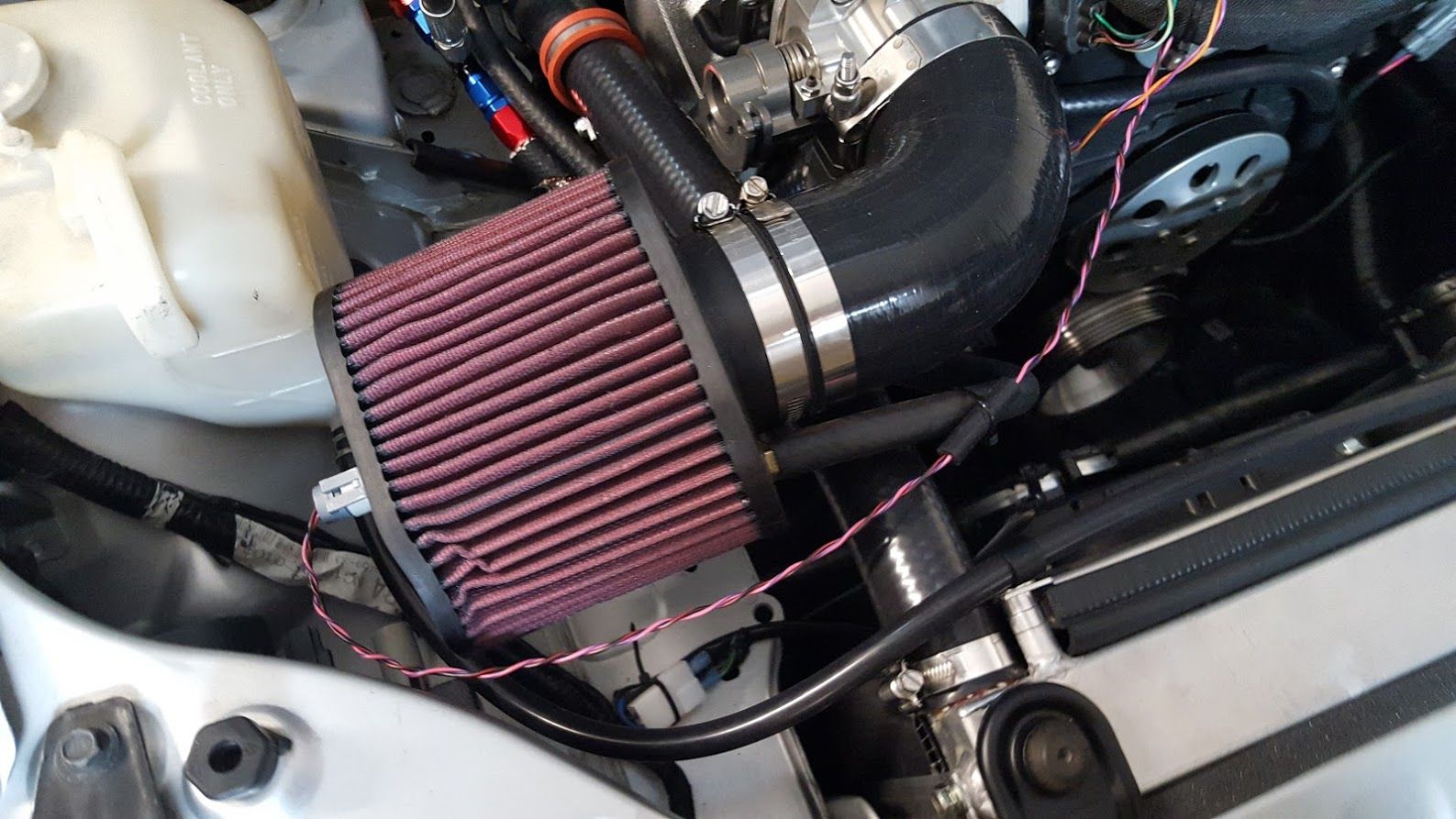

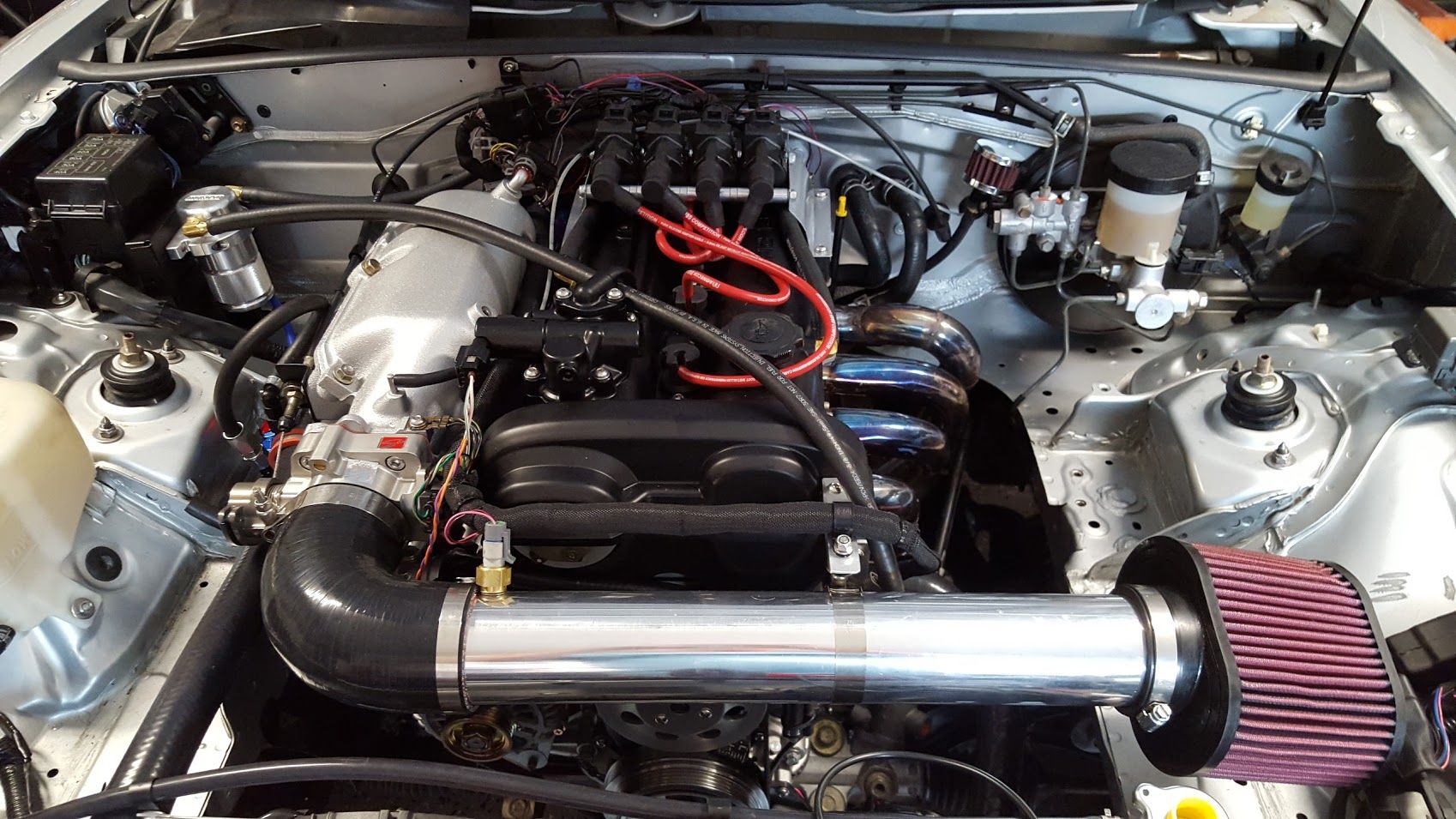

I was getting some terrible heat soak problem and redid the intake. I think it may be too short, but the air temps have been better. Plus since it faces the other way the throttle scream is less annoying.
I built some brackets to hold the ducting down on the sides of the radiator. I think the hood was lifting a little at highway speed on the driver side. This quick fix my be redone to a longer time solution.
![](https://www.miataturbo.net/attachments/build-threads-57/152392-tzs-build-documentary-adequacy-hopes-more-80-20151012_195419_4539d3dcbf1560f4a34cb0ab7cd91cf5e52cda03.jpg?dateline=1444703214)
I was getting some terrible heat soak problem and redid the intake. I think it may be too short, but the air temps have been better. Plus since it faces the other way the throttle scream is less annoying.
![](https://www.miataturbo.net/attachments/build-threads-57/152393-tzs-build-documentary-adequacy-hopes-more-80-20151012_195403_ea3b76b08370c2e3a50b1e18dea6a11e9a6fb13c.jpg?dateline=1444703214)
#136
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

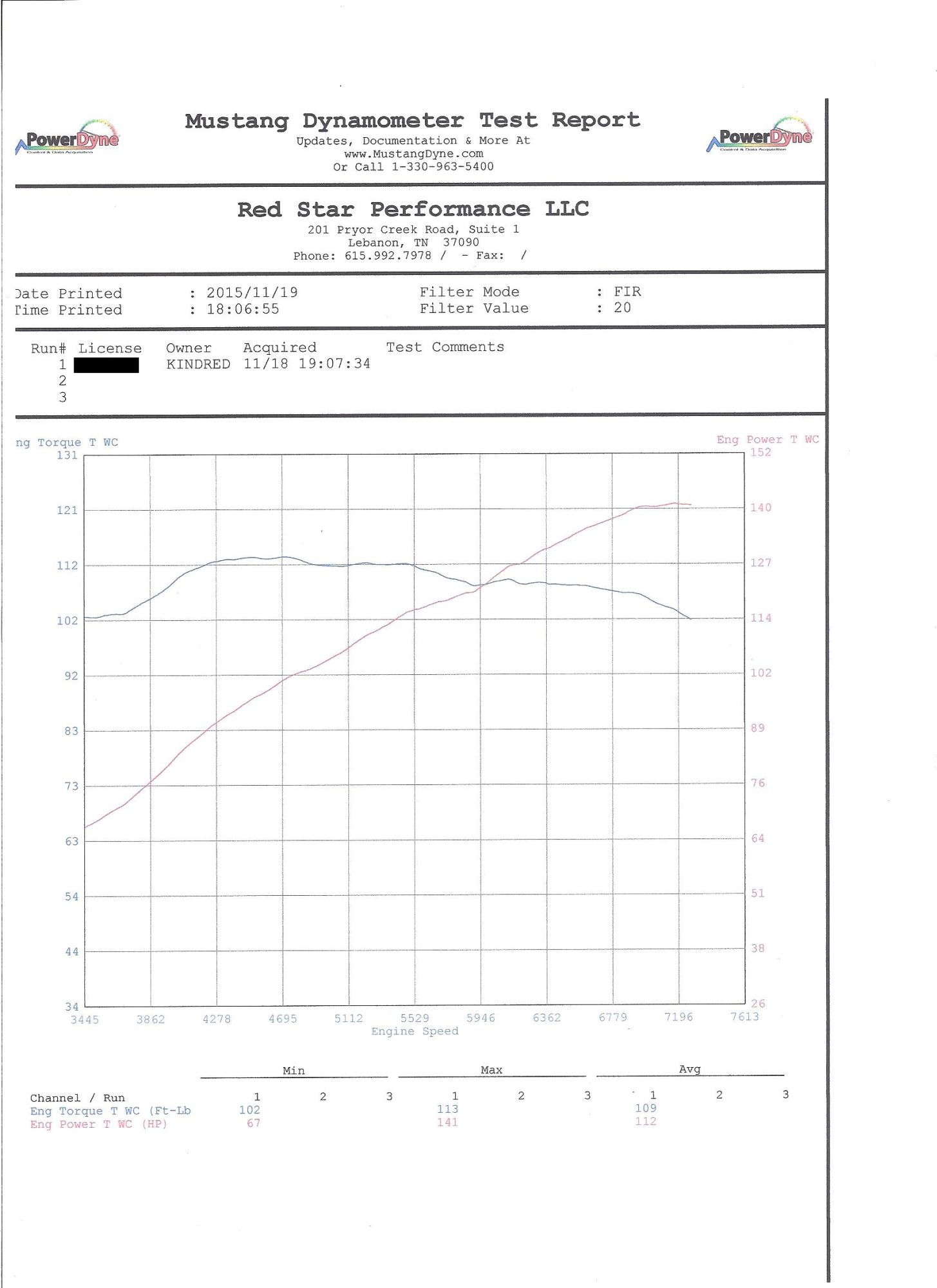

Car is back from the dyno and here is the numbers. Been so busy I haven't had time to fiddle with it, so broke down and had a shop tune it. So far doesn't drive so bad. We'll see as time tells and little stuff arises.
![](https://www.miataturbo.net/attachments/build-threads-57/155387-tzs-build-documentary-adequacy-hopes-more-80-99_miata_dyno_e07883039e80ec4f758abcebc2a17cb711737757.jpeg?dateline=1447991071)
#139
Elite Member
Thread Starter
iTrader: (6)
Join Date: May 2011
Location: Albuquerque, NM
Posts: 1,656
Total Cats: 64
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Ha-ha yeah. Probably would sell. Chrome race radiator delete reroute. Shave all those pounds of radiater and water.

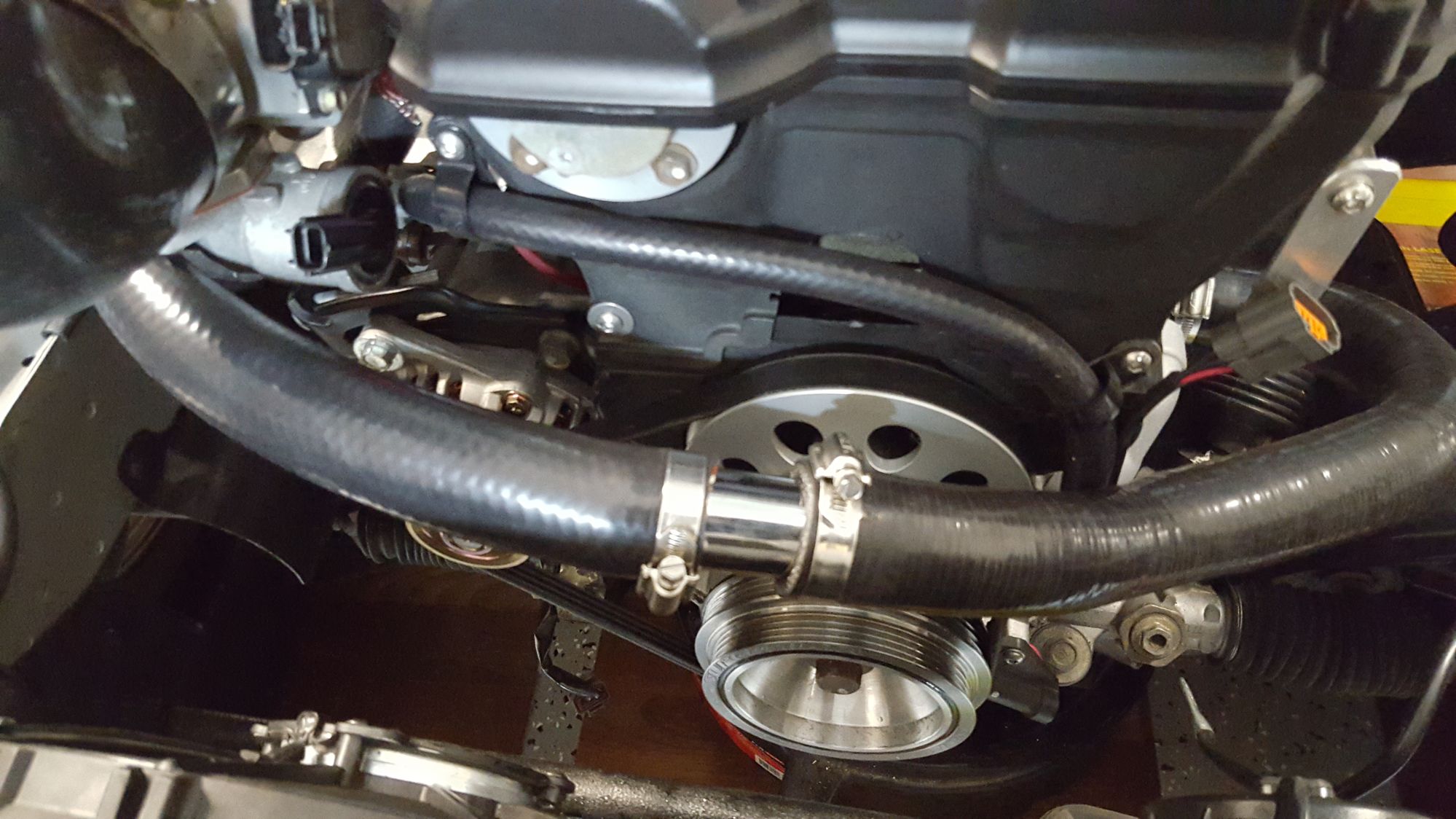

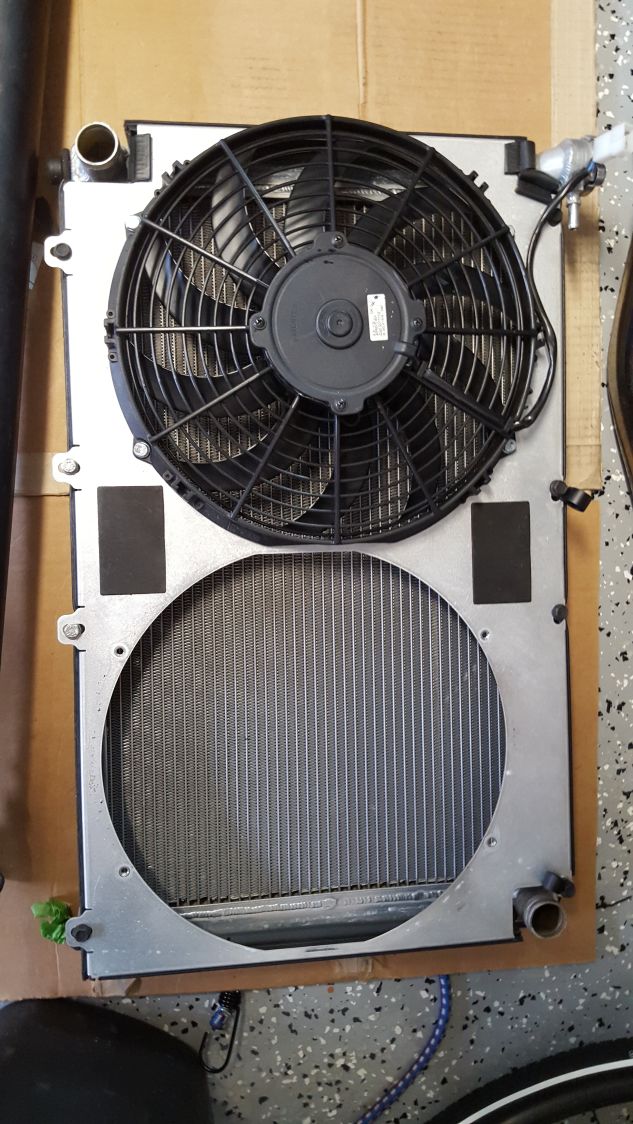

Speaking of radiator. Thinking of just using one fan on the FM shroud and making a piece to separate the sides of the shroud. Saves me 4lb is and so far, yes its winter, the second fan never turns on even back in sept.
![](https://www.miataturbo.net/attachments/build-threads-57/159678-tzs-build-documentary-adequacy-hopes-more-80-20160115_121036_b57250cb4c098571b3f1c9926020b9f4df8055ca.jpg?dateline=1452917834)
Light fan on there. Figure I'll keep an eye on engine temps as the weather warms and I see more traffic.

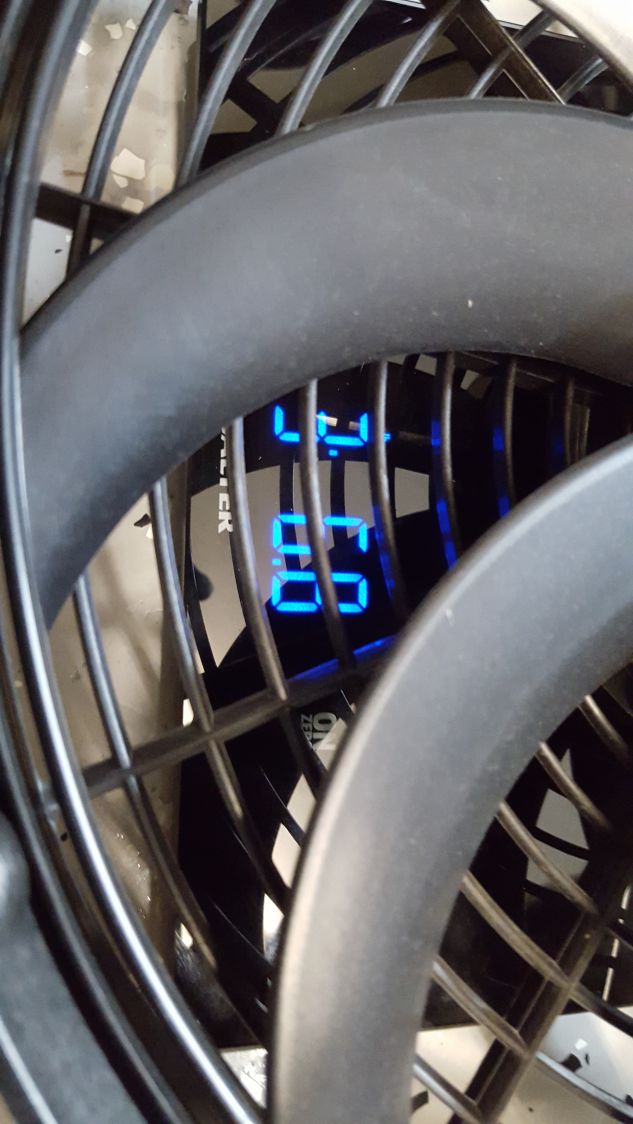

![](https://www.miataturbo.net/attachments/build-threads-57/159679-tzs-build-documentary-adequacy-hopes-more-80-20160114_194425_e99d2fb7d5752c79d4a8a67afec65c5ece1beb8b.jpg?dateline=1452917834)
Smaller fan is 3lb 6.8oz

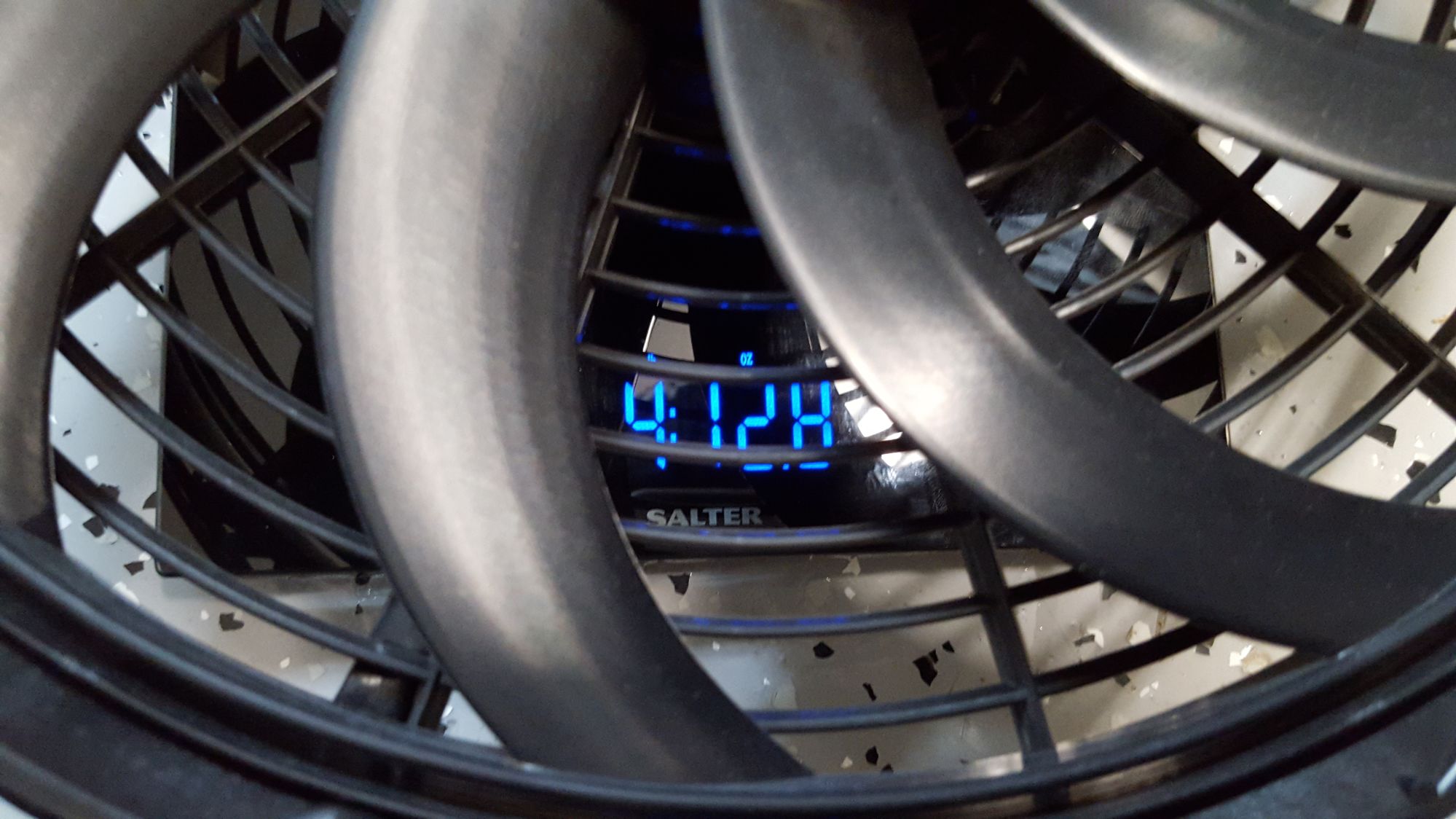

![](https://www.miataturbo.net/attachments/build-threads-57/159680-tzs-build-documentary-adequacy-hopes-more-80-20160114_194217_e3a72e32e0d107537404f83c94895ad018c6d252.jpg?dateline=1452917834)
Big fan is 4lb 12.8oz
Speaking of radiator. Thinking of just using one fan on the FM shroud and making a piece to separate the sides of the shroud. Saves me 4lb is and so far, yes its winter, the second fan never turns on even back in sept.
![](https://www.miataturbo.net/attachments/build-threads-57/159678-tzs-build-documentary-adequacy-hopes-more-80-20160115_121036_b57250cb4c098571b3f1c9926020b9f4df8055ca.jpg?dateline=1452917834)
Light fan on there. Figure I'll keep an eye on engine temps as the weather warms and I see more traffic.
![](https://www.miataturbo.net/attachments/build-threads-57/159679-tzs-build-documentary-adequacy-hopes-more-80-20160114_194425_e99d2fb7d5752c79d4a8a67afec65c5ece1beb8b.jpg?dateline=1452917834)
Smaller fan is 3lb 6.8oz
![](https://www.miataturbo.net/attachments/build-threads-57/159680-tzs-build-documentary-adequacy-hopes-more-80-20160114_194217_e3a72e32e0d107537404f83c94895ad018c6d252.jpg?dateline=1452917834)
Big fan is 4lb 12.8oz
