Technically, in order to reuse rod bolts you need to have the measurements from before they were torqued, so that you can re-measure them and determine if they've stretched beyond their elastic limit. I think machine shops will usually give you the measurements when they assemble a motor for you (dunno, I've done it myself the two times I've built bottom ends), so you might ask the PO if he's got a set of measurements. Hopefully you've got it marked as to which bolt came out of which hole in the motor?
If not, then you're taking a risk by reusing them. I think rod bolt failures are usually due to tensile loading rather than compressive loading, and detonation is more about compression, so that would argue that as long as they were torqued properly (ideally with a rod bolt stretch gauge, not a torque wrench) they should be fine.
--Ian
If not, then you're taking a risk by reusing them. I think rod bolt failures are usually due to tensile loading rather than compressive loading, and detonation is more about compression, so that would argue that as long as they were torqued properly (ideally with a rod bolt stretch gauge, not a torque wrench) they should be fine.
--Ian
#42
Former Vendor
![](/mt2011/images_td/ranks/supporter1.gif)
iTrader: (31)
Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,103
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I tried to reuse rod bolts once. I pulled the recorded stretch specs from my assembly notes, measured each one again to verify, and then started disassembly. The fourth rod bolt came out 0.0005" stretched. Had to throw the whole set away anyway. ![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
Fresh ARP2000 bolts are $75
![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
Fresh ARP2000 bolts are $75
#43
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I tried to reuse rod bolts once. I pulled the recorded stretch specs from my assembly notes, measured each one again to verify, and then started disassembly. The fourth rod bolt came out 0.0005" stretched. Had to throw the whole set away anyway. ![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
Fresh ARP2000 bolts are $75
![Party Kitty](https://www.miataturbo.net/images/smilies/birthday[1].gif)
Fresh ARP2000 bolts are $75
#45
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
I'll preface this by saying that I'm a software guy, not a mechanical engineer, but here's my understanding:
Metals stretch in two ways -- elastic and plastic. Elastic deformation is like a spring, it deforms in a particular direction under a load and when the load it released it goes back to its original shape. Plastic deformation is a permanent change, when you remove the load it does not return to the original shape. Steel will stretch a small amount in an elastic fashion, and beyond that limit it becomes plastic.
When you torque a bolt, what you are actually doing is stretching it within the elastic range. That's what produces the clamping force, the "spring" of the steel trying to pull the bolt back into its original shape. A torque wrench is only a somewhat accurate way of measuring this because much of the torque goes into overcoming friction. Variances in the cleanliness of the threads, lubrication of the surfaces, etc can change the amount of torque required to get a particular amount of stretch by a fairly large amount.

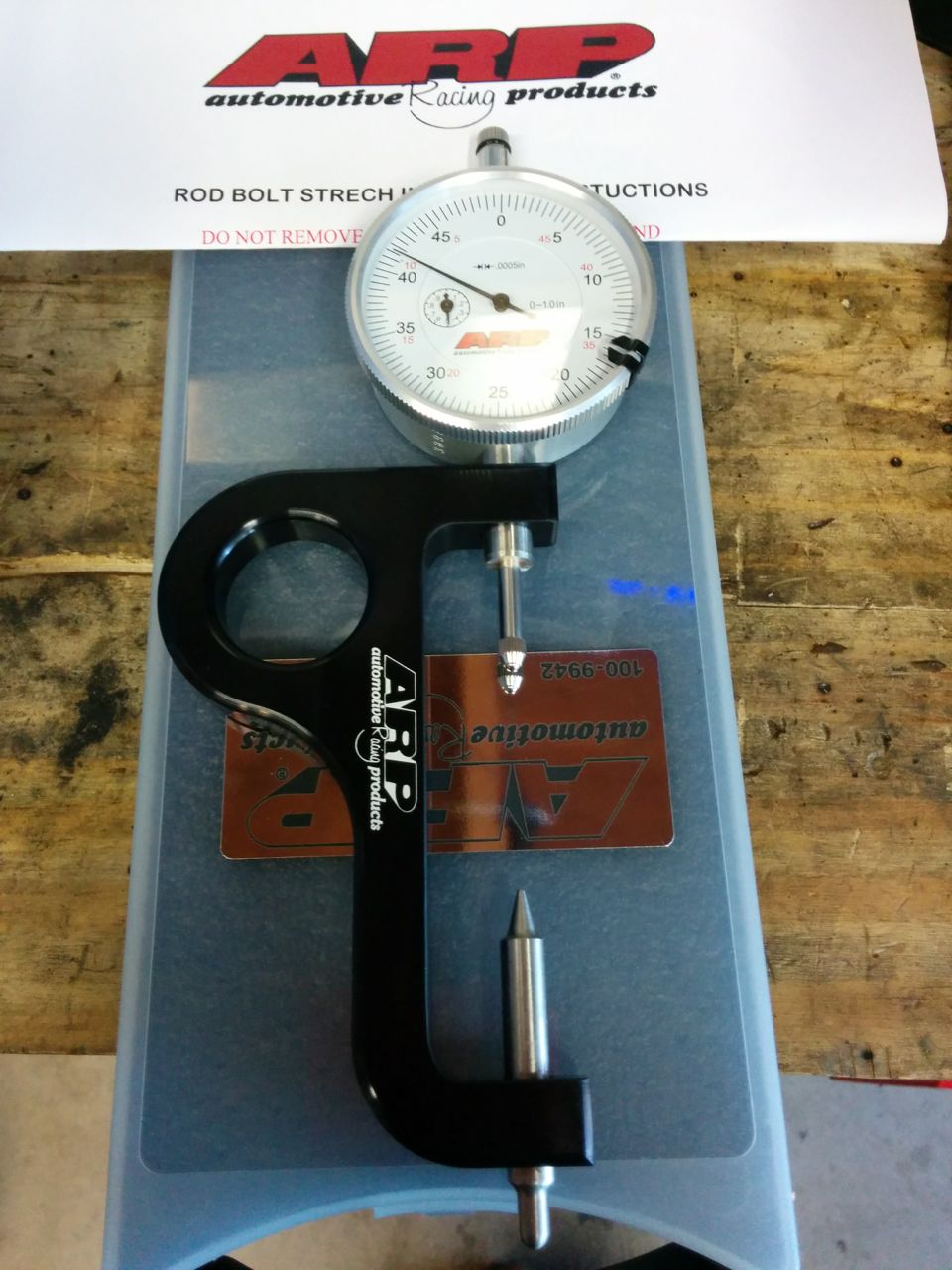

So when you attach critical fasteners, the best way to do it is to directly measure the stretch of the bolt using a stretch gauge, like this:
