TheBandit's Resurrection Build
#1
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
After several years of watching the dust collect due to Subaru awesomeness, it was time for the Miata to be reborn.
And in comes the EFR!
![](https://www.miataturbo.net/attachments/build-threads-57/120624-thebandits-resurrection-build-14ihord.jpg?dateline=1408076100)
Build Plans:
And in comes the EFR!
![](https://www.miataturbo.net/attachments/build-threads-57/120624-thebandits-resurrection-build-14ihord.jpg?dateline=1408076100)
Build Plans:
- Forged Pistons and Rods
- BE Oil Pump
- 99/00 or VVT Head
- MS ECU
- Toyota COPS
- EFR 6258
- Big Boy Vibrant IC
- 1000cc's and DW300 Pump (For the E85's)
- 949 Crank Damper and CrossFlow Radiator
- Homebrew Turbo Mani/Charge Pipes/Downpipe
- Homebrew Reroute
- Homebrew EFR BOV Hat
- Homebrew Coolant Inlet Adapter
Last edited by TheBandit; 08-15-2014 at 10:22 AM.
#2
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Progress Pics!
Heading over to a friends shop to start mock up.
![](https://www.miataturbo.net/attachments/build-threads-57/120656-thebandits-resurrection-build-3008fn5.jpg?dateline=1408111977)

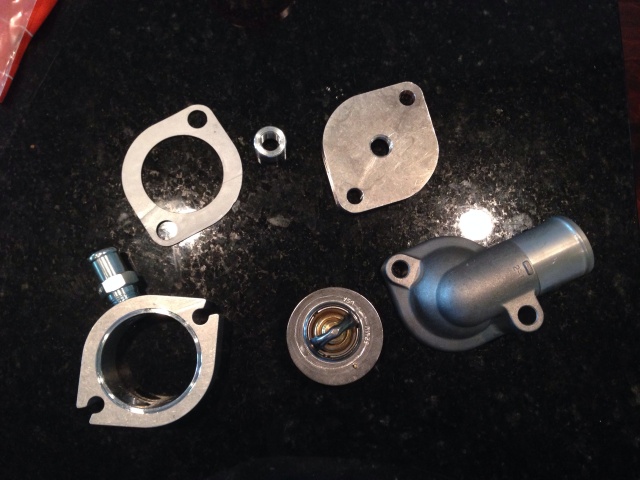

Reroute Parts. Just need to weld on the bung.
![](https://www.miataturbo.net/attachments/build-threads-57/120657-thebandits-resurrection-build-b8ti7r.jpg?dateline=1408111977)
Obligatory EFR Unboxed Shot
![](http://i61.tinypic.com/fje3r9.jpg)

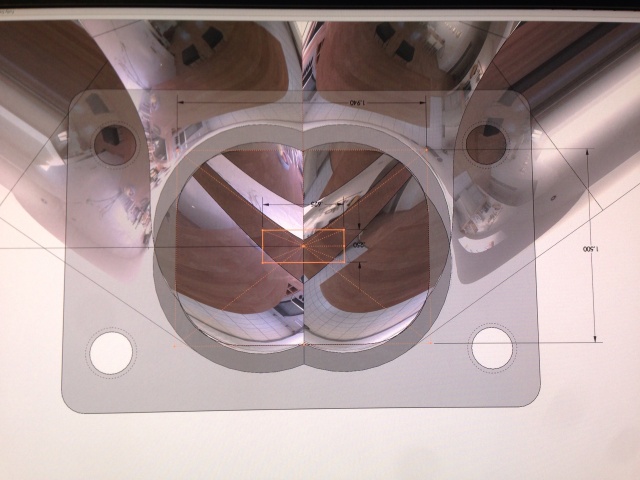

CAD Ninja'd the Collector
![](https://www.miataturbo.net/attachments/build-threads-57/120658-thebandits-resurrection-build-1444qit.jpg?dateline=1408111977)

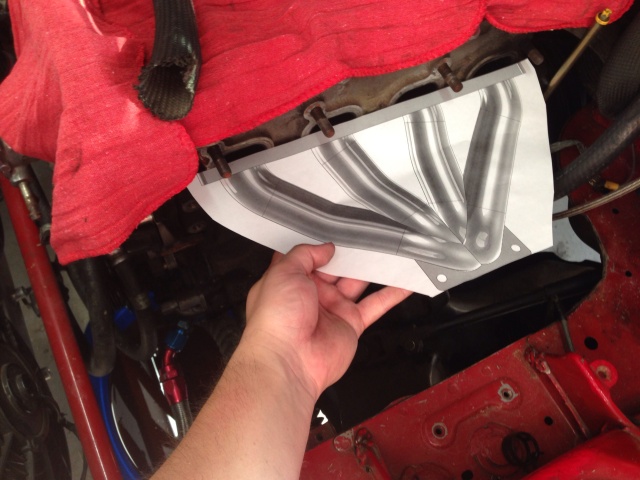

Paper Mockup. I love Print to Scale!
![](https://www.miataturbo.net/attachments/build-threads-57/120659-thebandits-resurrection-build-141ipf6.jpg?dateline=1408111977)

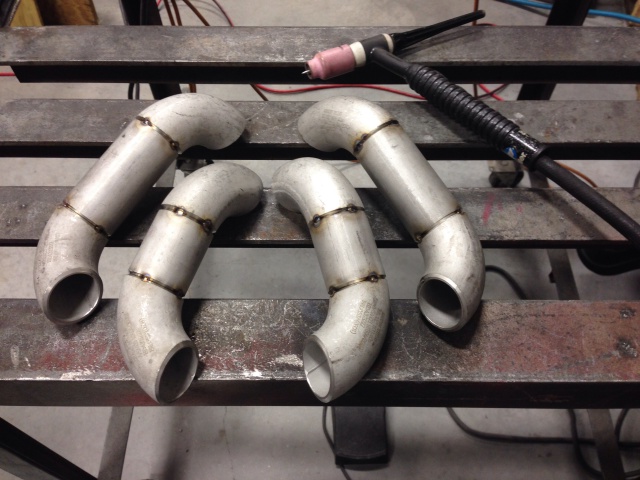

Finally got the straights cut and beveled, and threw a few down a few tacks.
Heading over to a friends shop to start mock up.
![](https://www.miataturbo.net/attachments/build-threads-57/120656-thebandits-resurrection-build-3008fn5.jpg?dateline=1408111977)
Reroute Parts. Just need to weld on the bung.
![](https://www.miataturbo.net/attachments/build-threads-57/120657-thebandits-resurrection-build-b8ti7r.jpg?dateline=1408111977)
Obligatory EFR Unboxed Shot
![](http://i61.tinypic.com/fje3r9.jpg)
CAD Ninja'd the Collector
![](https://www.miataturbo.net/attachments/build-threads-57/120658-thebandits-resurrection-build-1444qit.jpg?dateline=1408111977)
Paper Mockup. I love Print to Scale!
![](https://www.miataturbo.net/attachments/build-threads-57/120659-thebandits-resurrection-build-141ipf6.jpg?dateline=1408111977)
Finally got the straights cut and beveled, and threw a few down a few tacks.
![](https://www.miataturbo.net/attachments/build-threads-57/120660-thebandits-resurrection-build-241s9lg.jpg?dateline=1408111977)
Last edited by TheBandit; 08-15-2014 at 10:20 AM.
#7
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

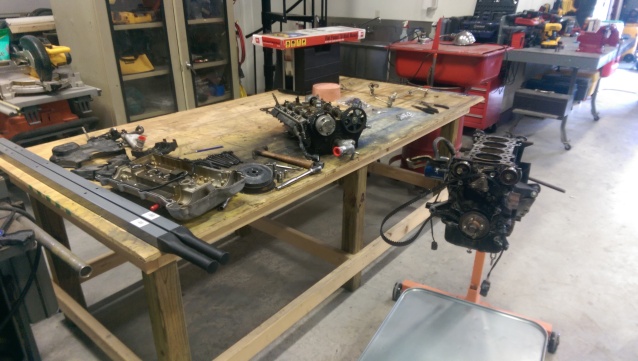

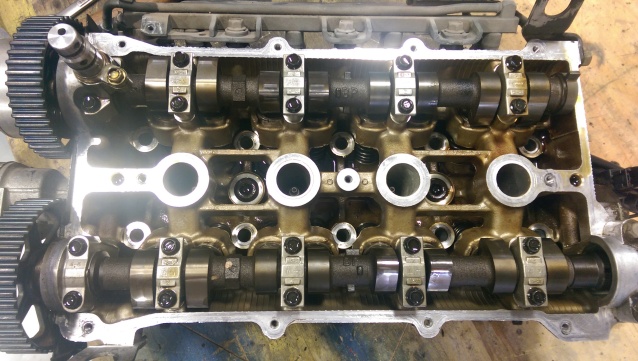

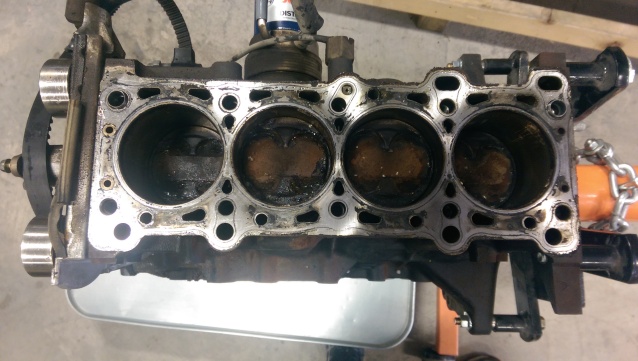

Well I ended up buying an extra motor from an '01 car at the local salvage. This of course was after purchasing a VVT head, only to find out you need the crank trigger setup from the new motors to make all that work. DOH!
The block dis-assembly needs to be finished and then I can sent it and the head off to the machine shop for any necessary work.
![](https://www.miataturbo.net/attachments/build-threads-57/124198-thebandits-resurrection-build-2h5mj2c.jpg?dateline=1411478045)
![](https://www.miataturbo.net/attachments/build-threads-57/124199-thebandits-resurrection-build-30vk7qw.jpg?dateline=1411478045)
![](https://www.miataturbo.net/attachments/build-threads-57/124200-thebandits-resurrection-build-2rwny9z.jpg?dateline=1411478045)

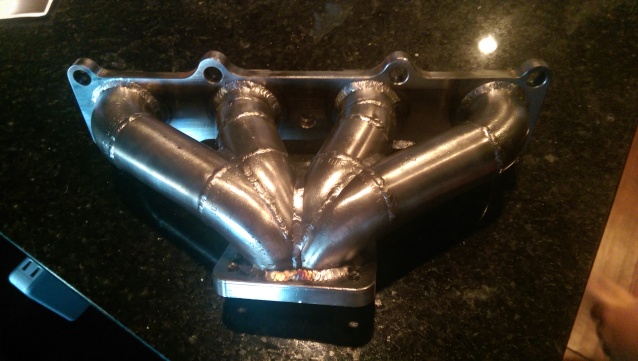

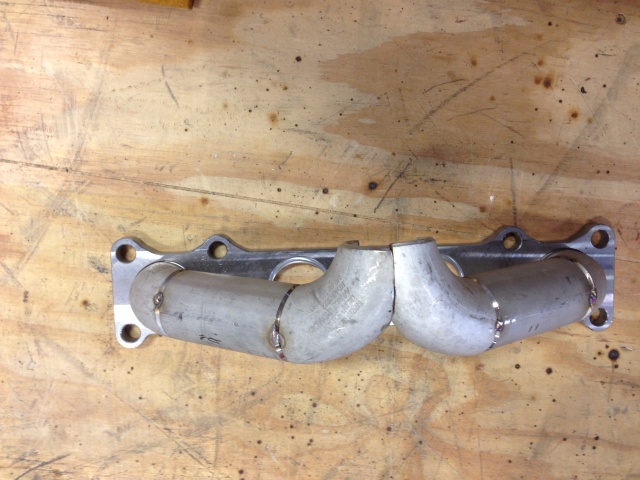

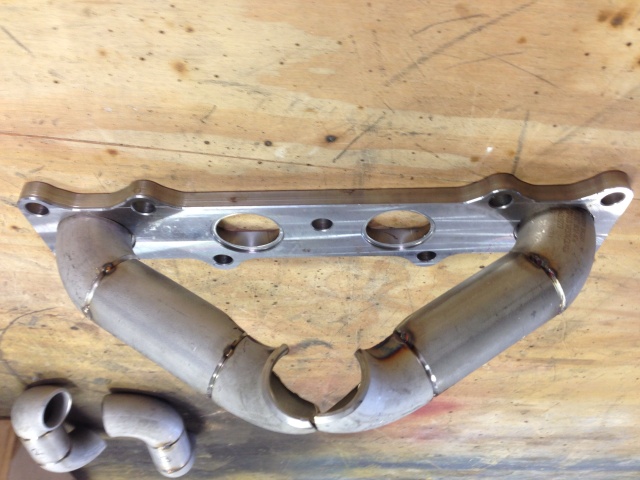

Regrettably, I sent Abe the funds to complete the manifold for me. As much as I wanted to do it myslef, the collector ended up being a headache and for the amount of time involved it made more sense to let him do what he does best.
The block dis-assembly needs to be finished and then I can sent it and the head off to the machine shop for any necessary work.
![](https://www.miataturbo.net/attachments/build-threads-57/124198-thebandits-resurrection-build-2h5mj2c.jpg?dateline=1411478045)
![](https://www.miataturbo.net/attachments/build-threads-57/124199-thebandits-resurrection-build-30vk7qw.jpg?dateline=1411478045)
![](https://www.miataturbo.net/attachments/build-threads-57/124200-thebandits-resurrection-build-2rwny9z.jpg?dateline=1411478045)
Regrettably, I sent Abe the funds to complete the manifold for me. As much as I wanted to do it myslef, the collector ended up being a headache and for the amount of time involved it made more sense to let him do what he does best.
![](https://www.miataturbo.net/attachments/build-threads-57/124201-thebandits-resurrection-build-245g5qu.jpg?dateline=1411478045)
#9
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Yes, this is the "absurdflow" style made famous by TurboTim. Abe has coined the name "Axial" bottom mount for this style. I was also surprised that I hadn't seen this manifold and turbo configured together before. Lets hope that it works as well in application as it does in my head.
![](https://www.miataturbo.net/images/smilies/smile.gif)
#10
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

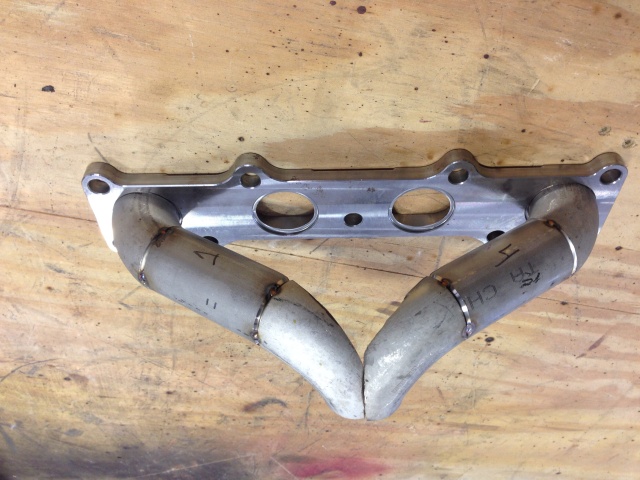

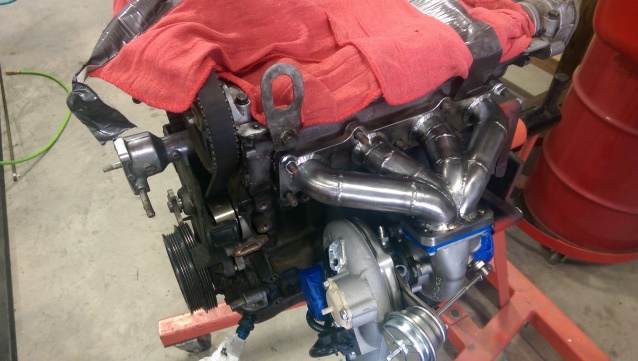

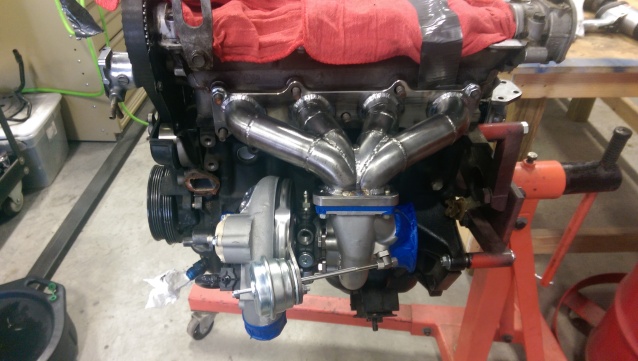

Did a quick test fit with the new manifold and turbo setup. It's a tight fit, and will likely require some grind to fit action on the engine bay shelf.
![](https://www.miataturbo.net/attachments/build-threads-57/125175-thebandits-resurrection-build-1h4e9c.jpg?dateline=1412728015)
![](https://www.miataturbo.net/attachments/build-threads-57/125176-thebandits-resurrection-build-dcdfz9.jpg?dateline=1412728015)
Also, I finally dropped the disassembled engine off at the machine shop. They are going to get started on it this week and I will need to get some parts ordered here soon.
The bores looked good and were straight, but the machinist suggested that he would go ahead and re-bore and move up a piston size so that everything would be new. Is this sound advice? The donor block had 125K+ if memory serves so it makes sense, I just worry about any future machine work that might be needed as there doesn't seem to be much meat available to do multiple re-bores.
![](https://www.miataturbo.net/attachments/build-threads-57/125175-thebandits-resurrection-build-1h4e9c.jpg?dateline=1412728015)
![](https://www.miataturbo.net/attachments/build-threads-57/125176-thebandits-resurrection-build-dcdfz9.jpg?dateline=1412728015)
Also, I finally dropped the disassembled engine off at the machine shop. They are going to get started on it this week and I will need to get some parts ordered here soon.
The bores looked good and were straight, but the machinist suggested that he would go ahead and re-bore and move up a piston size so that everything would be new. Is this sound advice? The donor block had 125K+ if memory serves so it makes sense, I just worry about any future machine work that might be needed as there doesn't seem to be much meat available to do multiple re-bores.
#11
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

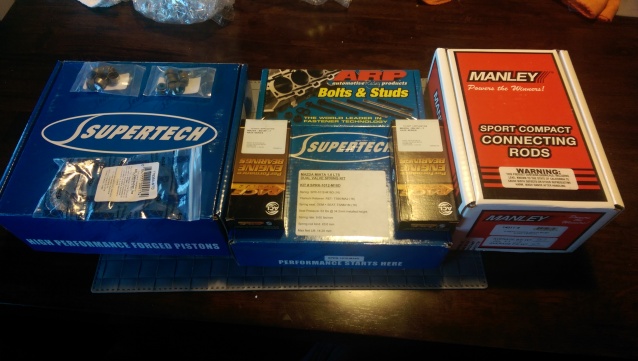

First batch of parts came in! Head is getting a valve job and some porting. Need to get the pistons over to the machine shop for boring.
Bryan at Fab9 has been a pleasure to deal with.
Bryan at Fab9 has been a pleasure to deal with.
![](https://www.miataturbo.net/attachments/build-threads-57/126649-thebandits-resurrection-build-2rf3aew.jpg?dateline=1414630384)
#13
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
That's probably sound advice. After talking with a few friends and the machine shop I ended up going with the 84mm pistons after all.
I'm hoping to get some further progress pics in the coming weeks. So much time, so little to do.. Wait scratch that. Reverse it.
I'm hoping to get some further progress pics in the coming weeks. So much time, so little to do.. Wait scratch that. Reverse it.
#15
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

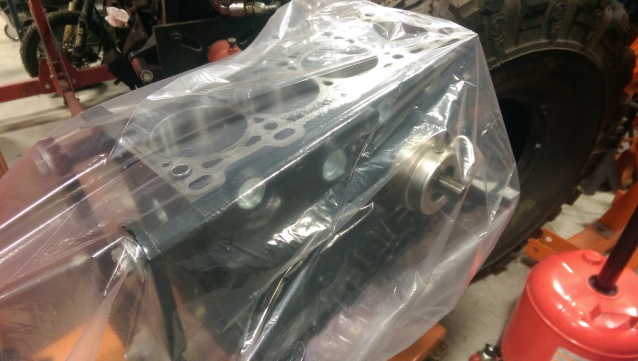

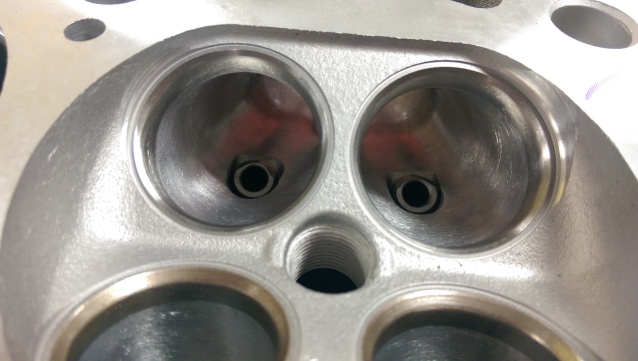

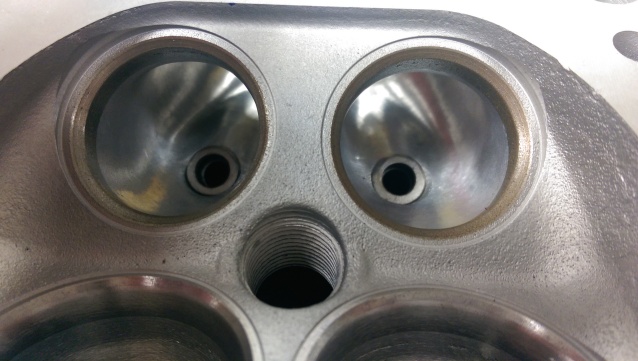

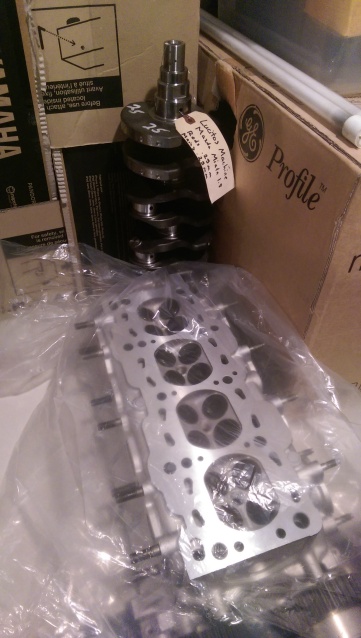

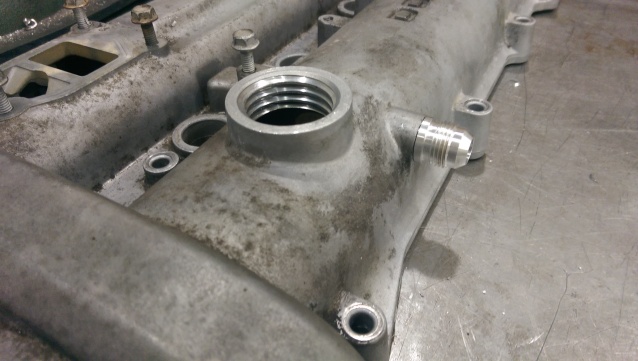

Got the engine back from the machine shop this week. The head had some porting done, which net a change of about 30cfm (200 -> 230) which seems about right according to what I've read. I'm hoping to have some time over the holidays to get started assembling and routing new turbo oil/water lines. I have a fair amount of things to make including the mixing manifold. I'm not going to rush it, I want this done right.
![](https://www.miataturbo.net/attachments/build-threads-57/129652-thebandits-resurrection-build-2mmv6z9.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129653-thebandits-resurrection-build-rlddua.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129654-thebandits-resurrection-build-2nrd30g.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129655-thebandits-resurrection-build-2nb8u54.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129652-thebandits-resurrection-build-2mmv6z9.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129653-thebandits-resurrection-build-rlddua.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129654-thebandits-resurrection-build-2nrd30g.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129655-thebandits-resurrection-build-2nb8u54.jpg?dateline=1419084966)
![](https://www.miataturbo.net/attachments/build-threads-57/129656-thebandits-resurrection-build-24lsac1.jpg?dateline=1419084966)
#17
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

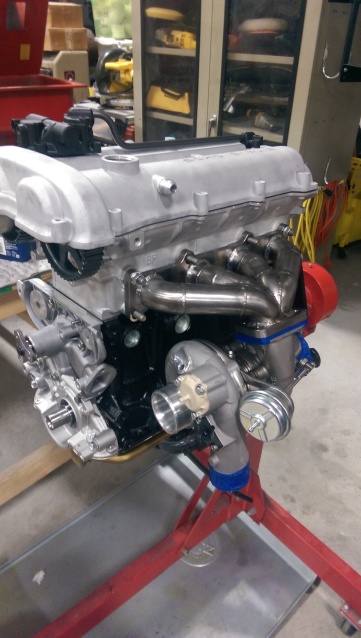

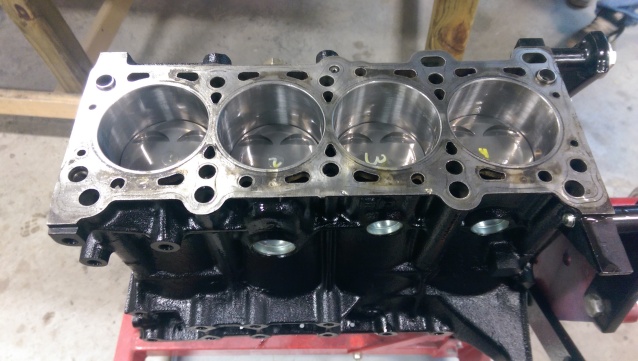

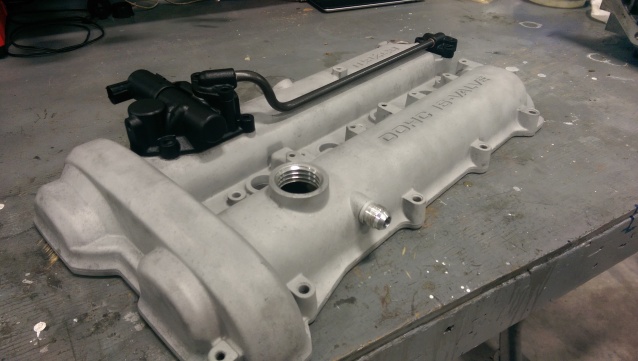

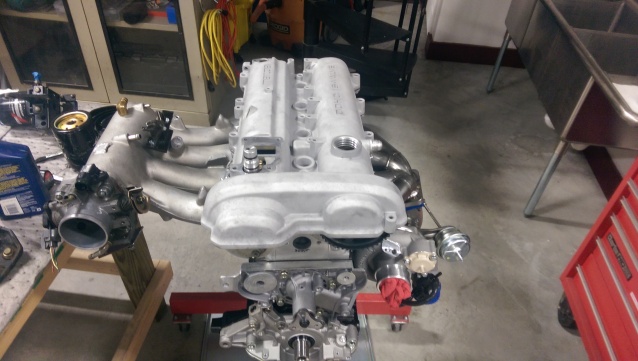

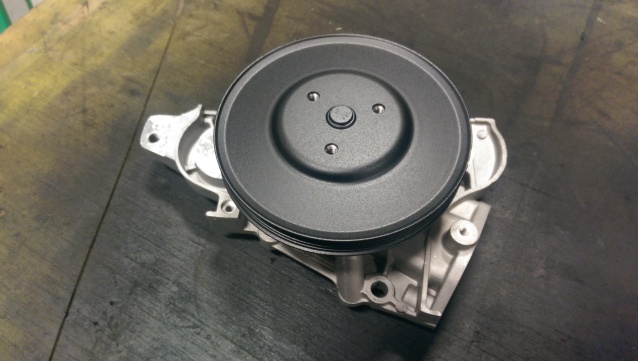

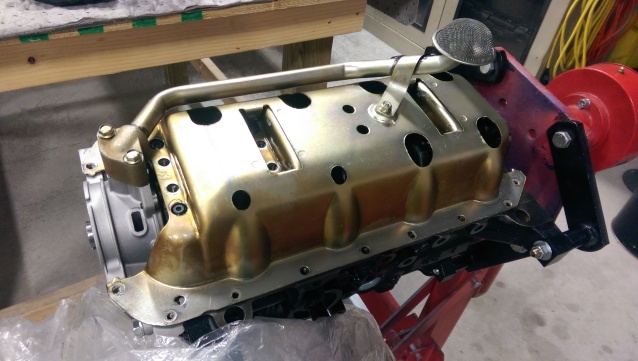

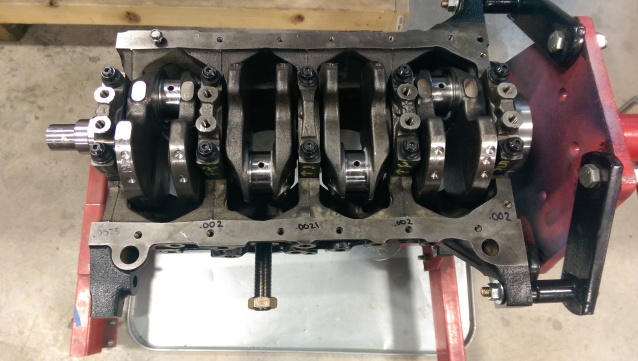

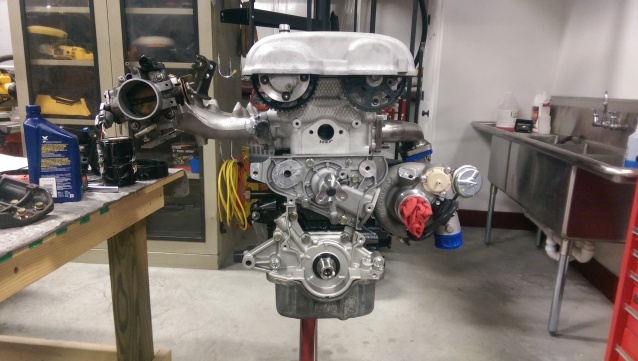

The bottom end has been assembled! Test fit the head to get an idea what the intake and turbo would look like. Need to solidify my oil drain situation so I can drill the pan and be done with the bottom end. Surprisingly found out that the damn MBSP had to be drilled out to fit the ARP hardware. That has a bit of a pain, so heads up if you're considering this. It's doable, but takes some time drilling, grinding, and then cleaning. For the aesthetics side of me, I cleaned up the valve cover in prep for powder coat and started rattle canning the vvt hardware and water pump nose/pulley. In the same thought, as much as I know the honda intake has been proven powerful it just looks/feels like a sore thumb to me. I'm considering doing my own the more I look at it.
In other news, I got kinda nutty and ordered some 15x9 Bronze Jong's, 245 RC-1's and an MS3x from Brain.
Still need to get a fuel pump/injectors and radiator. Maybe next month to spread out the damage. This has gone full retard..
Anywho, MOAR Pictures!!
![](https://www.miataturbo.net/attachments/build-threads-57/130373-thebandits-resurrection-build-s4cqbq.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130374-thebandits-resurrection-build-353cjtw.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130366-thebandits-resurrection-build-98d1yp.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130367-thebandits-resurrection-build-21ovwwn.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130368-thebandits-resurrection-build-s4xjxv.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130369-thebandits-resurrection-build-nxuhbp.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130370-thebandits-resurrection-build-35842gm.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130369-thebandits-resurrection-build-nxuhbp.jpg?dateline=1420341121)
In other news, I got kinda nutty and ordered some 15x9 Bronze Jong's, 245 RC-1's and an MS3x from Brain.
Still need to get a fuel pump/injectors and radiator. Maybe next month to spread out the damage. This has gone full retard..
Anywho, MOAR Pictures!!
![](https://www.miataturbo.net/attachments/build-threads-57/130373-thebandits-resurrection-build-s4cqbq.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130374-thebandits-resurrection-build-353cjtw.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130366-thebandits-resurrection-build-98d1yp.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130367-thebandits-resurrection-build-21ovwwn.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130368-thebandits-resurrection-build-s4xjxv.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130369-thebandits-resurrection-build-nxuhbp.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130370-thebandits-resurrection-build-35842gm.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130369-thebandits-resurrection-build-nxuhbp.jpg?dateline=1420341121)
![](https://www.miataturbo.net/attachments/build-threads-57/130371-thebandits-resurrection-build-9zrgjd.jpg?dateline=1420341121)
#19
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

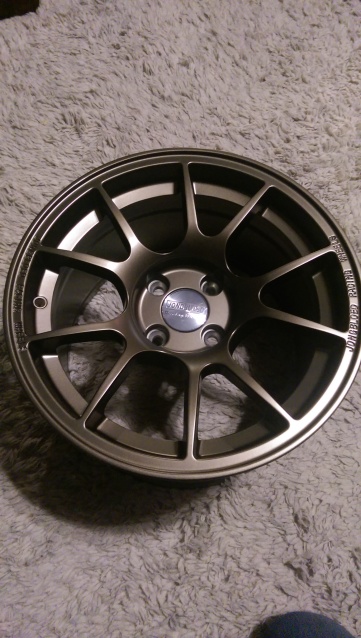

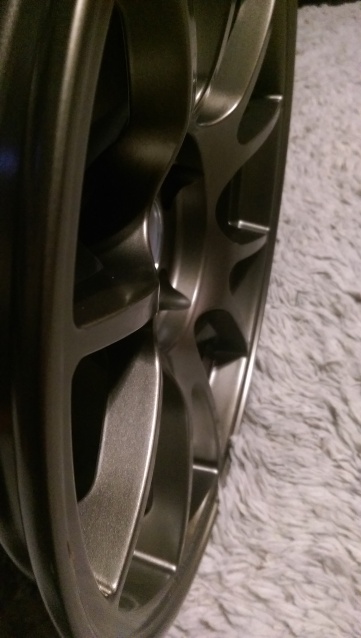

New 15x9 Jong's came in! I'm loving the Bronze! Still awaiting the rubber.

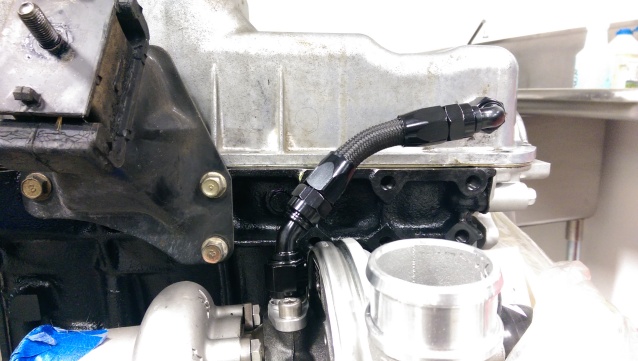

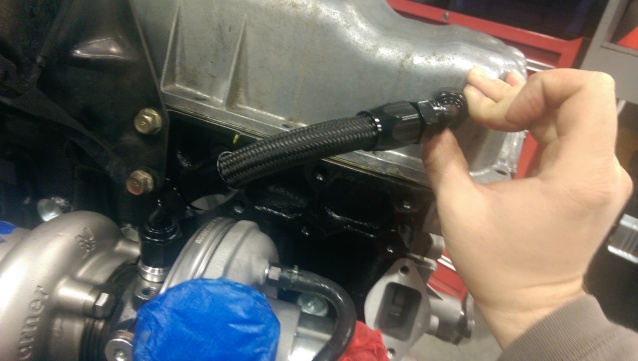

Also, got a chance to work on the turbo drain line. Due to the super low mount manifold the direct route wasn't possible due to the fitingo geometry.
![](https://www.miataturbo.net/attachments/build-threads-57/130665-thebandits-resurrection-build-2qx2vq9.jpg?dateline=1420685212)
![](https://www.miataturbo.net/attachments/build-threads-57/130666-thebandits-resurrection-build-2yxp5ah.jpg?dateline=1420685212)
Also, got a chance to work on the turbo drain line. Due to the super low mount manifold the direct route wasn't possible due to the fitingo geometry.
![](https://www.miataturbo.net/attachments/build-threads-57/130665-thebandits-resurrection-build-2qx2vq9.jpg?dateline=1420685212)
![](https://www.miataturbo.net/attachments/build-threads-57/130666-thebandits-resurrection-build-2yxp5ah.jpg?dateline=1420685212)
![](https://www.miataturbo.net/attachments/build-threads-57/130667-thebandits-resurrection-build-f07pj.jpg?dateline=1420685212)
#20
Former Vendor
Thread Starter
iTrader: (8)
Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,185
Total Cats: 57
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
Moar Updates!
First though, a question - What trigger wheel do I need to run on my SuperMiata crank damper with my Brain MS3x? Will the stock 4 tooth work or do I need a fancy one from 949?
Tires have arrived!
![](https://www.miataturbo.net/attachments/build-threads-57/131181-thebandits-resurrection-build-j9n6v6.jpg?dateline=1421462690)

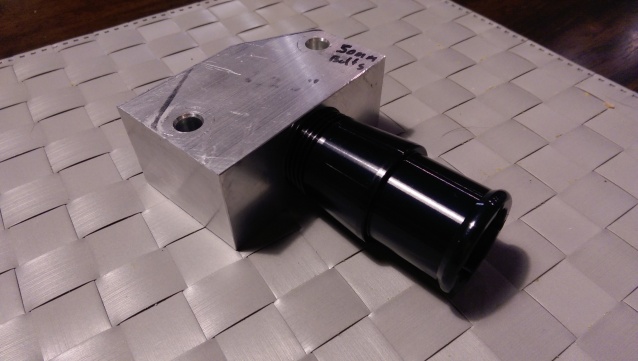

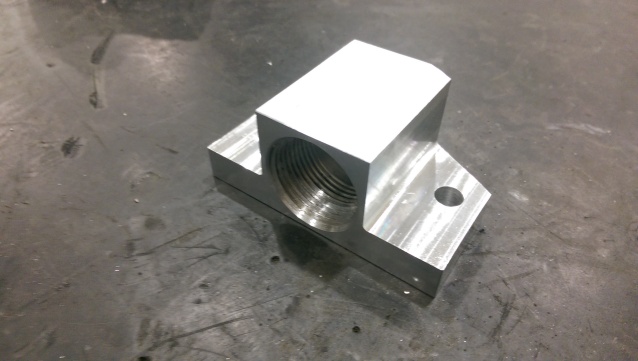

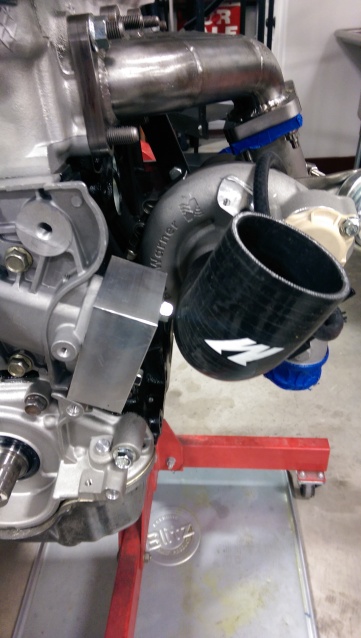

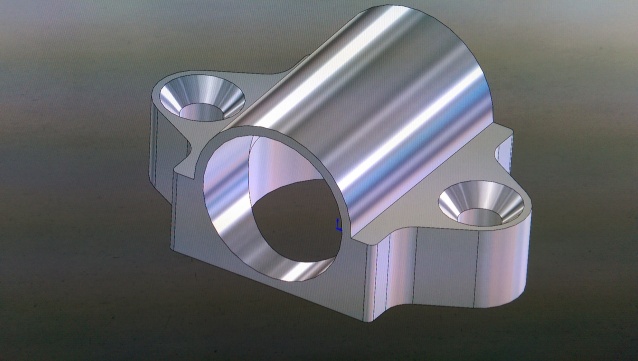

Working on a slim billet mixing manifold to work with the EFR"s.
![](https://www.miataturbo.net/attachments/build-threads-57/131182-thebandits-resurrection-build-o07am1.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131183-thebandits-resurrection-build-35baxl5.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131184-thebandits-resurrection-build-2lc8zeq.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131185-thebandits-resurrection-build-2vss2ro.jpg?dateline=1421462690)

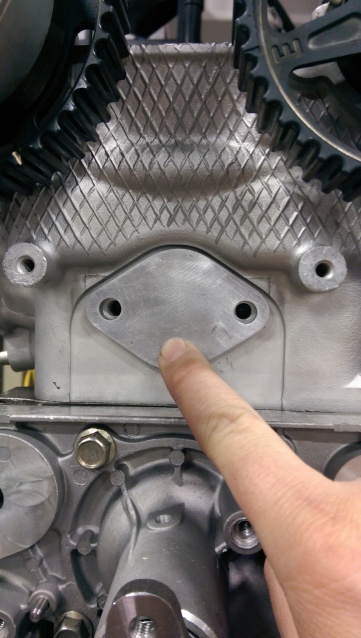

Front outlet plugged and flanged.
![](https://www.miataturbo.net/attachments/build-threads-57/131186-thebandits-resurrection-build-1g3kwg.jpg?dateline=1421462690)

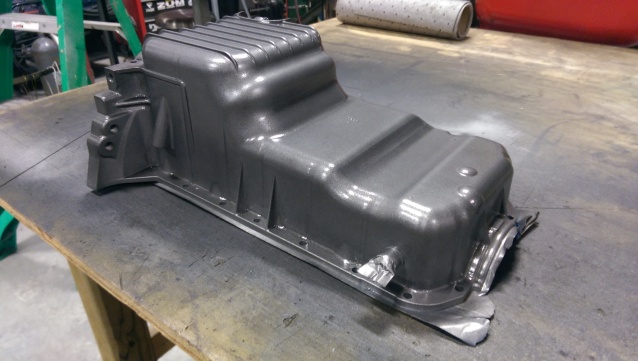

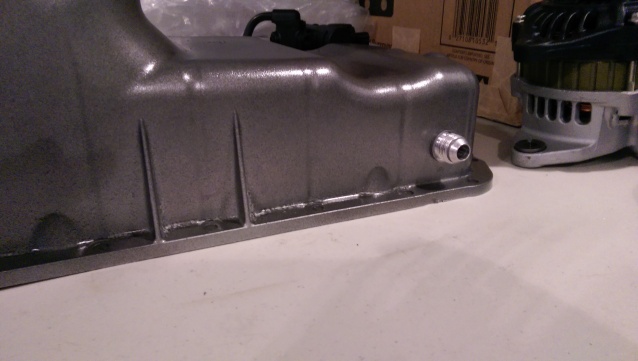

Oil Drain Bung Welded and Braided Line Complete - Ended up being fairly tricky as it was so low and the fittings had rather large radii.
![](https://www.miataturbo.net/attachments/build-threads-57/131187-thebandits-resurrection-build-sv04sg.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131188-thebandits-resurrection-build-4qo7r.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131189-thebandits-resurrection-build-2v29lif.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131190-thebandits-resurrection-build-2vsetq8.jpg?dateline=1421462690)
I also bought another intake to play with..
First though, a question - What trigger wheel do I need to run on my SuperMiata crank damper with my Brain MS3x? Will the stock 4 tooth work or do I need a fancy one from 949?
Tires have arrived!
![](https://www.miataturbo.net/attachments/build-threads-57/131181-thebandits-resurrection-build-j9n6v6.jpg?dateline=1421462690)
Working on a slim billet mixing manifold to work with the EFR"s.
![](https://www.miataturbo.net/attachments/build-threads-57/131182-thebandits-resurrection-build-o07am1.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131183-thebandits-resurrection-build-35baxl5.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131184-thebandits-resurrection-build-2lc8zeq.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131185-thebandits-resurrection-build-2vss2ro.jpg?dateline=1421462690)
Front outlet plugged and flanged.
![](https://www.miataturbo.net/attachments/build-threads-57/131186-thebandits-resurrection-build-1g3kwg.jpg?dateline=1421462690)
Oil Drain Bung Welded and Braided Line Complete - Ended up being fairly tricky as it was so low and the fittings had rather large radii.
![](https://www.miataturbo.net/attachments/build-threads-57/131187-thebandits-resurrection-build-sv04sg.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131188-thebandits-resurrection-build-4qo7r.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131189-thebandits-resurrection-build-2v29lif.jpg?dateline=1421462690)
![](https://www.miataturbo.net/attachments/build-threads-57/131190-thebandits-resurrection-build-2vsetq8.jpg?dateline=1421462690)
I also bought another intake to play with..
![](https://www.miataturbo.net/attachments/build-threads-57/131191-thebandits-resurrection-build-2isgz1h.jpg?dateline=1421462690)
