Hi guys! I'm getting pretty close to having my car turbo'ed so I figured a build thread is in order.
All the images are clickable for 3000x2000 glory

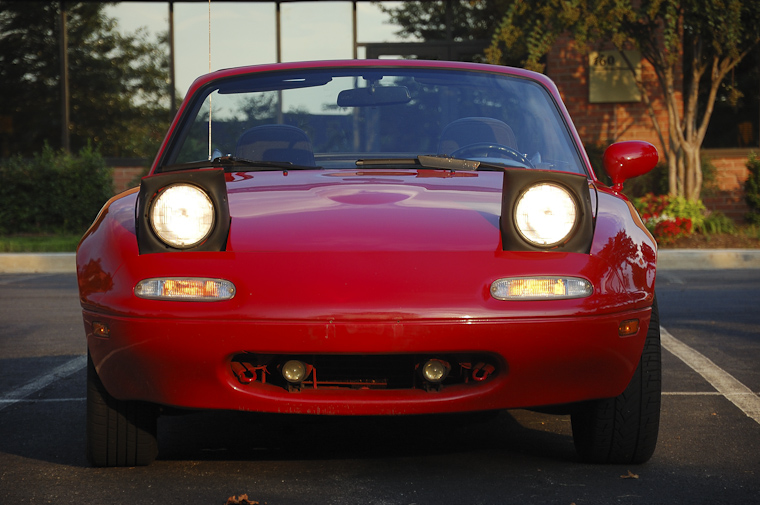

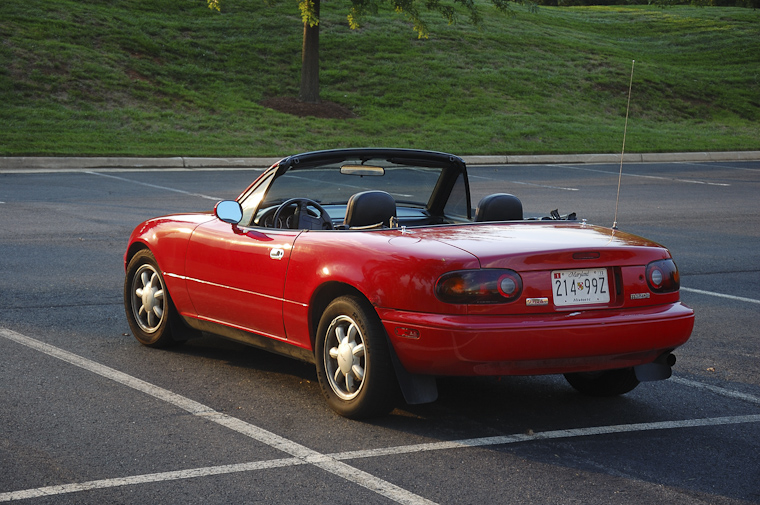

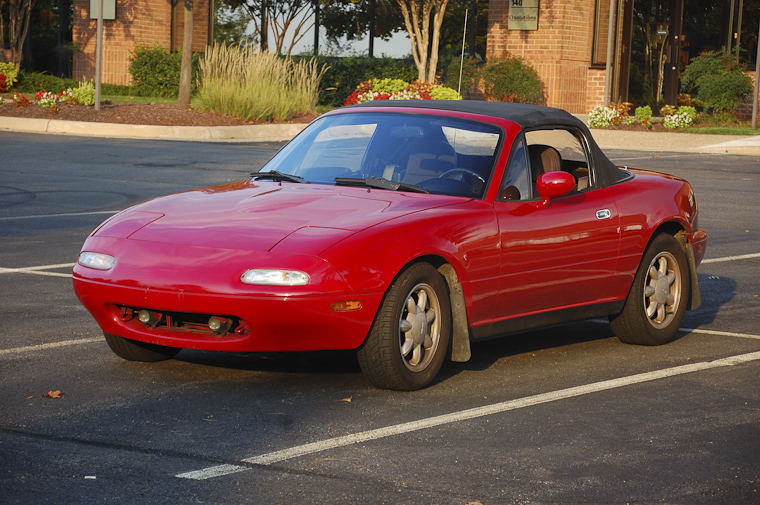

I have a red 91... actually, I have two red 91s.
![](https://www.miataturbo.net/attachments/build-threads-57/27639-soviet-russia-car-build-you-dsc_7235.jpg?dateline=1320644937)
The left one I got for $500 about 2 months ago. It's a 180k mile with a MAACO repaint and a few small rust spots.
The right one has been my daily driver for the last year, and is the car in my signature. It's a 145k mile 91 with an ebay jdm 94 engine and a 96 brakes and rear end. The 96 parts came from my first Miata that I've totalled about a year ago. It's has a horribly rusty chassis (but straight!) and the worst paint in the world.
The plan is to get the turbo running on my daily, then swap it all on the "new" $500 car, and junk the old chassis since it's beyond repair.
Turbo parts:
![](https://www.miataturbo.net/attachments/build-threads-57/27640-soviet-russia-car-build-you-dsc_6279.jpg?dateline=1320644937)
Supporting mods (all done!):
Clutch will be an ACT 6-puck with a Fidanza flywheel, once Faeflora lets me rip it out of his car.
Some recent things I've done:![](https://www.miataturbo.net/attachments/build-threads-57/27641-soviet-russia-car-build-you-dsc_7880.jpg?dateline=1320644937)
Flipped the hard line that goes from radiator to water pump mixing manifold to make room for bottom mount
![](https://www.miataturbo.net/attachments/build-threads-57/27642-soviet-russia-car-build-you-dsc_7853.jpg?dateline=1320644937)
Installed and wired a 99 throttle body. For 2 reasons. 1) Both TPS and IAC connectors on the side so they don't interfere with the intercooler piping elbow. 2) There is no separate hose for IAC so you don't need to have any extra fittings in the piping.
![](https://www.miataturbo.net/attachments/build-threads-57/27643-soviet-russia-car-build-you-dsc_7850.jpg?dateline=1320644937)
What I'm missing and still need to do in order to get the car running:
Stock wastegate spring is like 6 or 7 psi... once I have the clutch I'll add in EBC and run MOAR BOOST.
All the images are clickable for 3000x2000 glory
I have a red 91... actually, I have two red 91s.
![](https://www.miataturbo.net/attachments/build-threads-57/27639-soviet-russia-car-build-you-dsc_7235.jpg?dateline=1320644937)
The left one I got for $500 about 2 months ago. It's a 180k mile with a MAACO repaint and a few small rust spots.
The right one has been my daily driver for the last year, and is the car in my signature. It's a 145k mile 91 with an ebay jdm 94 engine and a 96 brakes and rear end. The 96 parts came from my first Miata that I've totalled about a year ago. It's has a horribly rusty chassis (but straight!) and the worst paint in the world.
The plan is to get the turbo running on my daily, then swap it all on the "new" $500 car, and junk the old chassis since it's beyond repair.

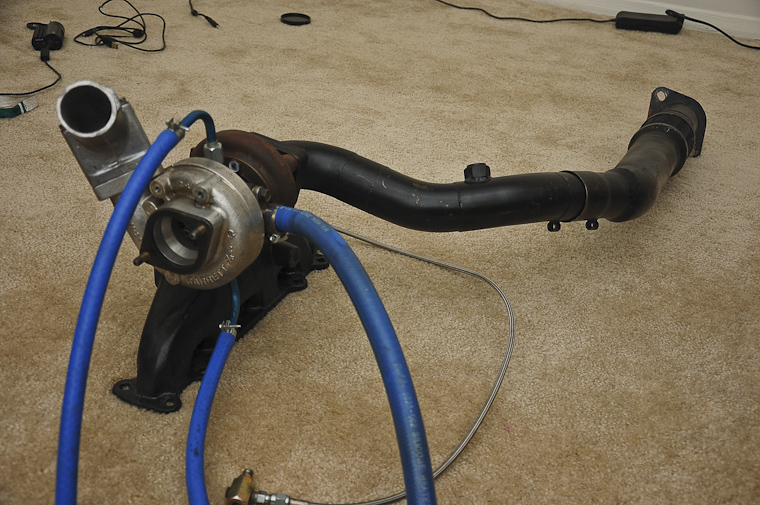

Turbo parts:
- SR20 T25 Garrett turbo
- BEGI log manifold
- 2.5" BEGI downpipe
- Older Flyin Miata 2.5" turbo exhaust with a high-flow cat
- Generic gigantic intercooler, 2.5" cold side, 2" hot side piping
- Bosch recirc BOV
- EBC via megasquirt eventually
- Water & Oil Drain I *THINK* are Artech lines, I'm not sure.
![](https://www.miataturbo.net/attachments/build-threads-57/27640-soviet-russia-car-build-you-dsc_6279.jpg?dateline=1320644937)
Supporting mods (all done!):
- Standalone MS2
- 14point7 SLC DIY 2 wideband controller
- RX7 550cc cleaned injectors
- NB throttle body so I don't have to plumb the IAC (not like I'm using it...
)
- Toyota COPs
Clutch will be an ACT 6-puck with a Fidanza flywheel, once Faeflora lets me rip it out of his car.
Some recent things I've done:
- Clocked the turbo. I read some manual on Garrett site that said to rotate have water inlet lower than outlet, in order to promote water flow.
- Made a wastegate bracket. It's made out of 3/16" aluminium and is STURDY AS ****
- Test fitted everything

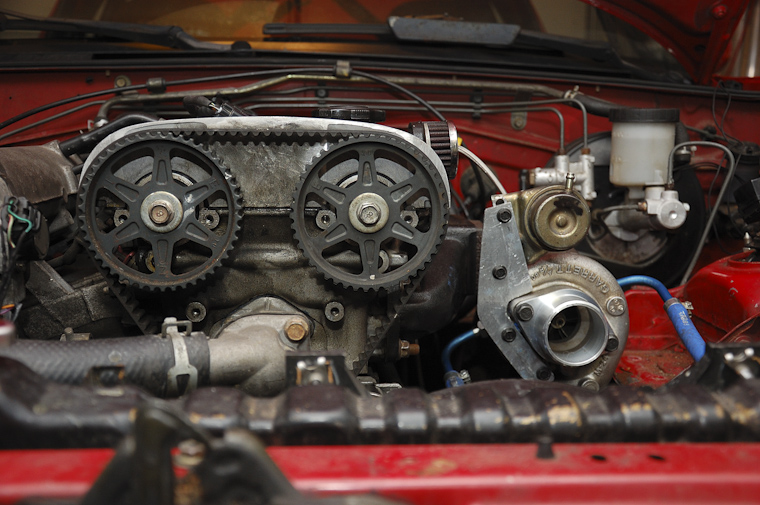

![](https://www.miataturbo.net/attachments/build-threads-57/27641-soviet-russia-car-build-you-dsc_7880.jpg?dateline=1320644937)

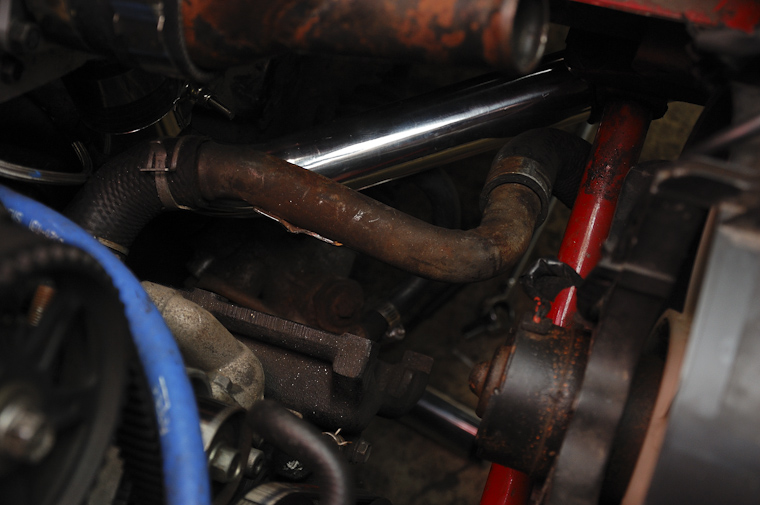

Flipped the hard line that goes from radiator to water pump mixing manifold to make room for bottom mount
![](https://www.miataturbo.net/attachments/build-threads-57/27642-soviet-russia-car-build-you-dsc_7853.jpg?dateline=1320644937)
Installed and wired a 99 throttle body. For 2 reasons. 1) Both TPS and IAC connectors on the side so they don't interfere with the intercooler piping elbow. 2) There is no separate hose for IAC so you don't need to have any extra fittings in the piping.

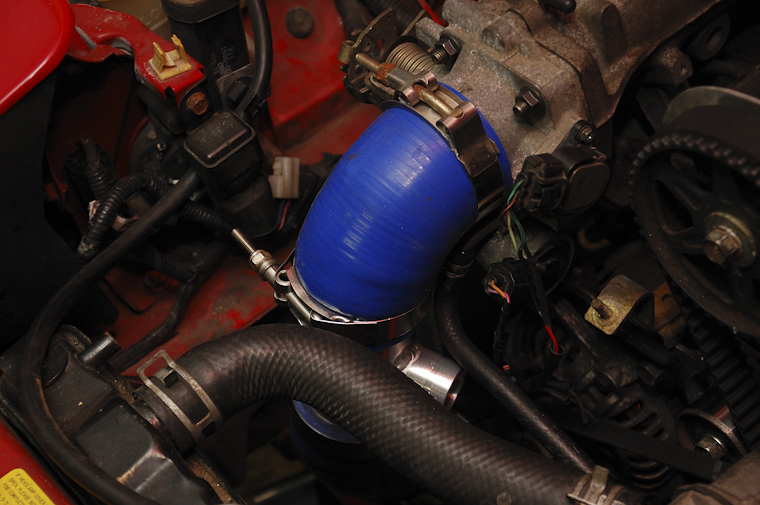

![](https://www.miataturbo.net/attachments/build-threads-57/27643-soviet-russia-car-build-you-dsc_7850.jpg?dateline=1320644937)
What I'm missing and still need to do in order to get the car running:
- Add BOV hoses. The Bosch BOV has 1" OD fittings, the silicone intakes BOV tee pipe has 1.25" OD fitting and the BEGI turbo inlet pipe has 1.25" ID pipe
- Tap intercooler endtank for IAT sensor
- Tap oil pan for oil drain
- Route vacuum lines for boost gauge, wastegate and BOV
Stock wastegate spring is like 6 or 7 psi... once I have the clutch I'll add in EBC and run MOAR BOOST.
#2
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (10)
Join Date: Jan 2010
Location: VA
Posts: 3,493
Total Cats: 268
![Default](https://www.miataturbo.net/images/icons/icon1.gif)
This whole build is made mostly out of used parts.
Turbo, manifold, downpipe, oil drain & water lines - $500
Intercooler and all 2.5" piping - $90
MS2 95% built + misc parts to complete it - $200
Injectors + cleaning - $150 + around $100 for cleaning I think
COPs - like $90? + DIY bracket
In the last week or two I bought a lot of new parts to actually complete the build - 2" piping and couplers, 90* elbows, 10.9 and grade 8 hardware, alumimum stock for IC bracket and wastegate bracket, boost gauge etc... but it's all been pretty cheap.
Here's my intercooler piping. Hopefully this will be useful to someone piecing together a piece.
Cold side is 2" and hot side is 2.5"
![](https://www.miataturbo.net/attachments/build-threads-57/27644-soviet-russia-car-build-you-dsc_7884.jpg?dateline=1320644950)
Hot side:
Cold side:
![](https://www.miataturbo.net/attachments/build-threads-57/27645-soviet-russia-car-build-you-dsc_7855.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27646-soviet-russia-car-build-you-dsc_7856.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27647-soviet-russia-car-build-you-dsc_7860.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27648-soviet-russia-car-build-you-dsc_7863.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27649-soviet-russia-car-build-you-dsc_7864.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27650-soviet-russia-car-build-you-dsc_7866.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27651-soviet-russia-car-build-you-dsc_7869.jpg?dateline=1320644950)

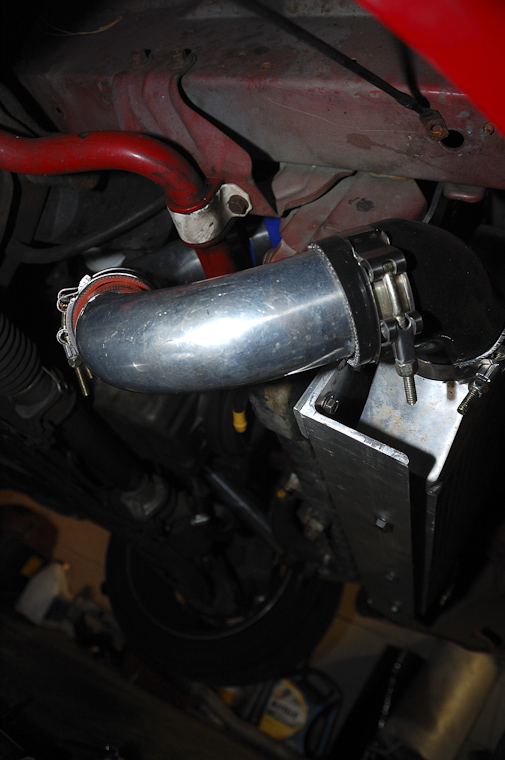

Intercooler bracket is 3" x 3" x 3ft alumium bracket with some alumium strips. I used 3/16" thick and it's MASSIVE OVERKILL. I will trim the bracket to not block airflow, obviously... and might add another angle to the top part.
Turbo, manifold, downpipe, oil drain & water lines - $500
Intercooler and all 2.5" piping - $90
MS2 95% built + misc parts to complete it - $200
Injectors + cleaning - $150 + around $100 for cleaning I think
COPs - like $90? + DIY bracket
In the last week or two I bought a lot of new parts to actually complete the build - 2" piping and couplers, 90* elbows, 10.9 and grade 8 hardware, alumimum stock for IC bracket and wastegate bracket, boost gauge etc... but it's all been pretty cheap.

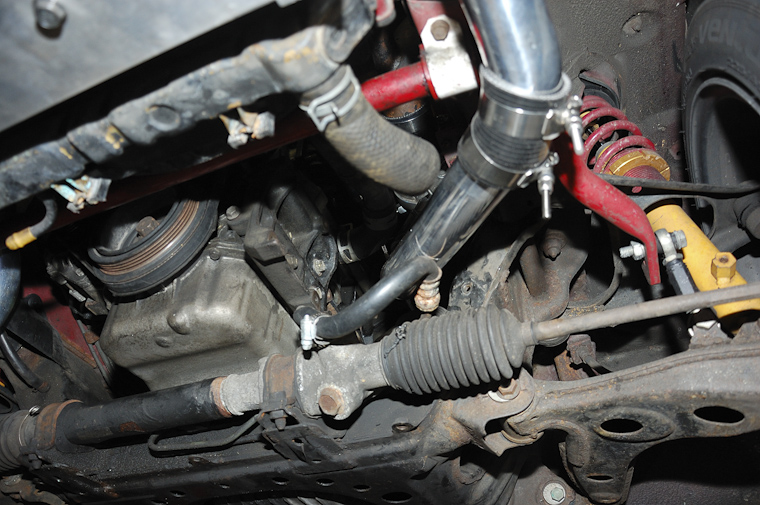

Here's my intercooler piping. Hopefully this will be useful to someone piecing together a piece.
Cold side is 2" and hot side is 2.5"
![](https://www.miataturbo.net/attachments/build-threads-57/27644-soviet-russia-car-build-you-dsc_7884.jpg?dateline=1320644950)
Hot side:
- 2 x 2" 2ft 90. One is cut to form a 45", so you can order one 90 and use a 45 instead
- 2 x 2" coupler
- 1 x 2.5" to 2" 90 elbow
Cold side:
- 2 x 2.5" 90 pipe
- 1 x BOV tee
- 2 x 2.5" 90 elbow
- 1 x 2.5" 45 elbow

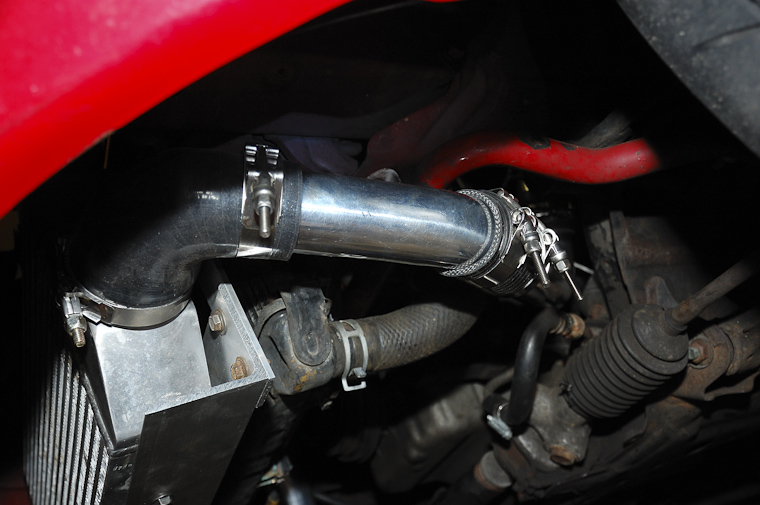

![](https://www.miataturbo.net/attachments/build-threads-57/27645-soviet-russia-car-build-you-dsc_7855.jpg?dateline=1320644950)

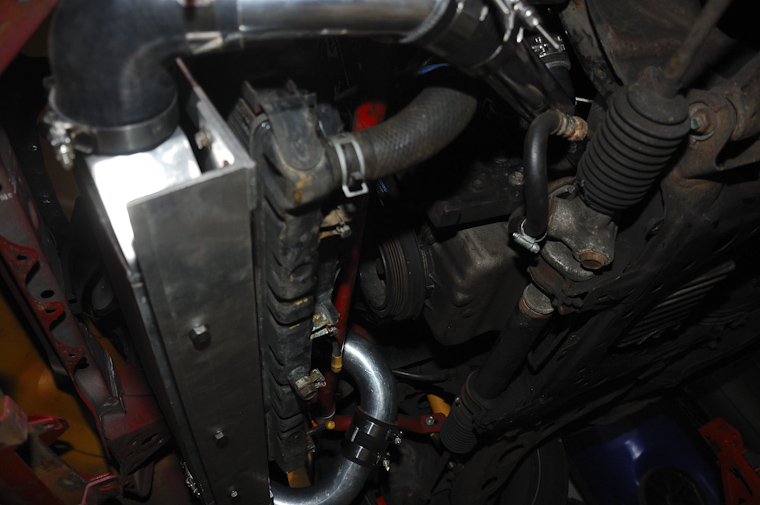

![](https://www.miataturbo.net/attachments/build-threads-57/27646-soviet-russia-car-build-you-dsc_7856.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27647-soviet-russia-car-build-you-dsc_7860.jpg?dateline=1320644950)

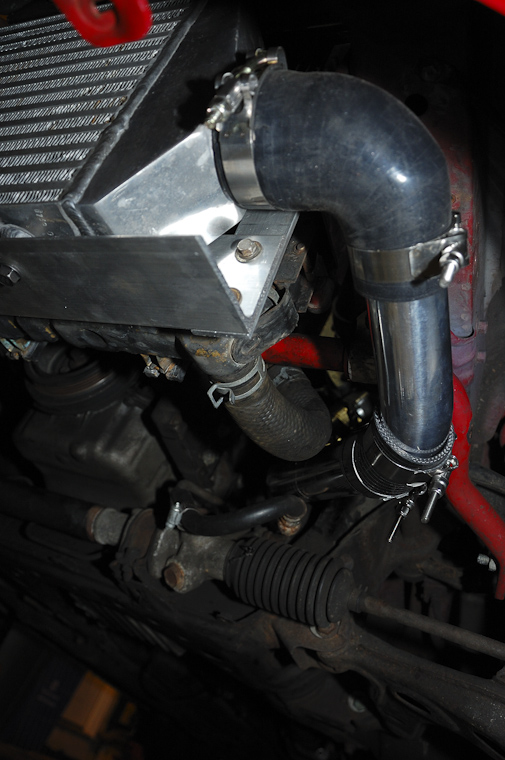

![](https://www.miataturbo.net/attachments/build-threads-57/27648-soviet-russia-car-build-you-dsc_7863.jpg?dateline=1320644950)

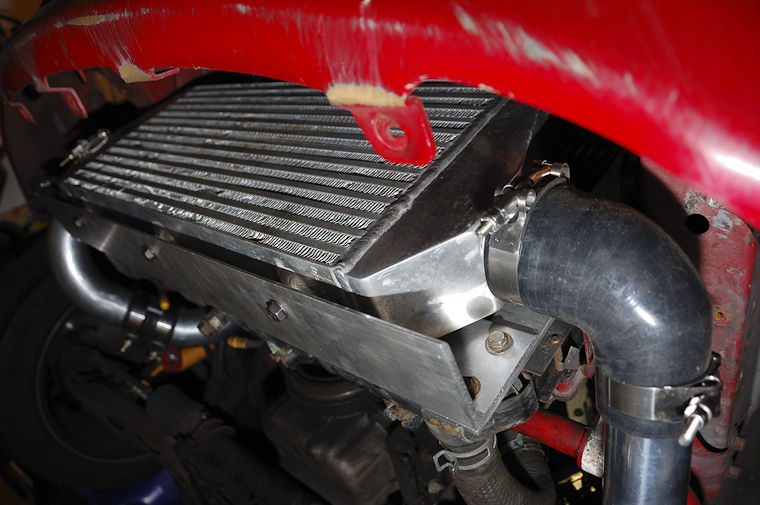

![](https://www.miataturbo.net/attachments/build-threads-57/27649-soviet-russia-car-build-you-dsc_7864.jpg?dateline=1320644950)

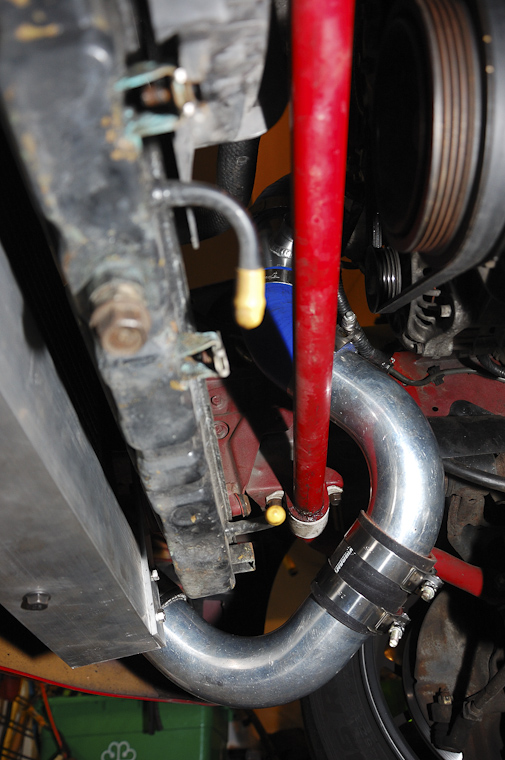

![](https://www.miataturbo.net/attachments/build-threads-57/27650-soviet-russia-car-build-you-dsc_7866.jpg?dateline=1320644950)
![](https://www.miataturbo.net/attachments/build-threads-57/27651-soviet-russia-car-build-you-dsc_7869.jpg?dateline=1320644950)

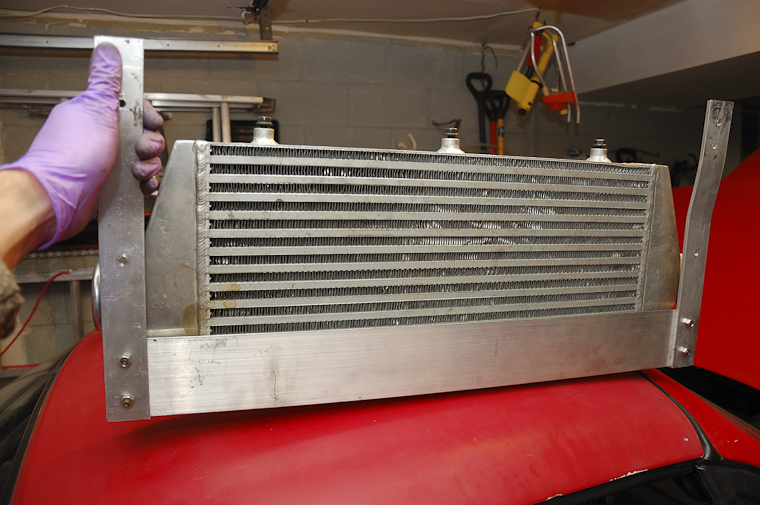

Intercooler bracket is 3" x 3" x 3ft alumium bracket with some alumium strips. I used 3/16" thick and it's MASSIVE OVERKILL. I will trim the bracket to not block airflow, obviously... and might add another angle to the top part.
![](https://www.miataturbo.net/attachments/build-threads-57/27652-soviet-russia-car-build-you-dsc_7888.jpg?dateline=1320644950)
#4
Elite Member
![](/mt2011/images_td/ranks/supporter1.gif)
Thread Starter
iTrader: (10)
Join Date: Jan 2010
Location: VA
Posts: 3,493
Total Cats: 268
![Default](https://www.miataturbo.net/images/icons/icon1.gif)

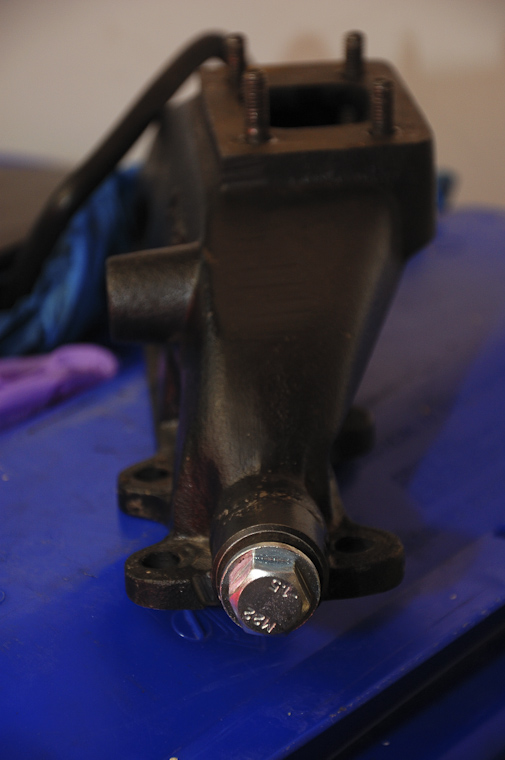

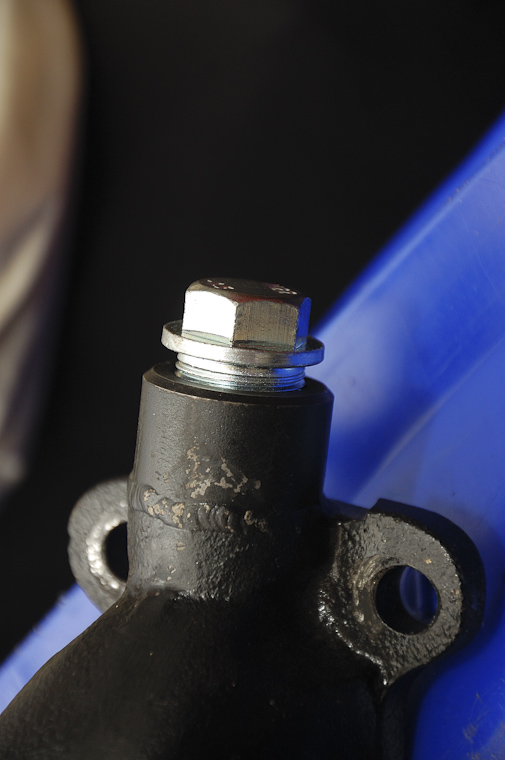

Poor man's EGR plug for 99-00 manifold. BEGI charges $27.50 for this plug. Or you can use a Doorman 090055 oil drain plug for less than $3....
